Sayfa 2-05 - Isuzu EPC

2-05 — CLUTCH PIPING (#62687) — 95 parça

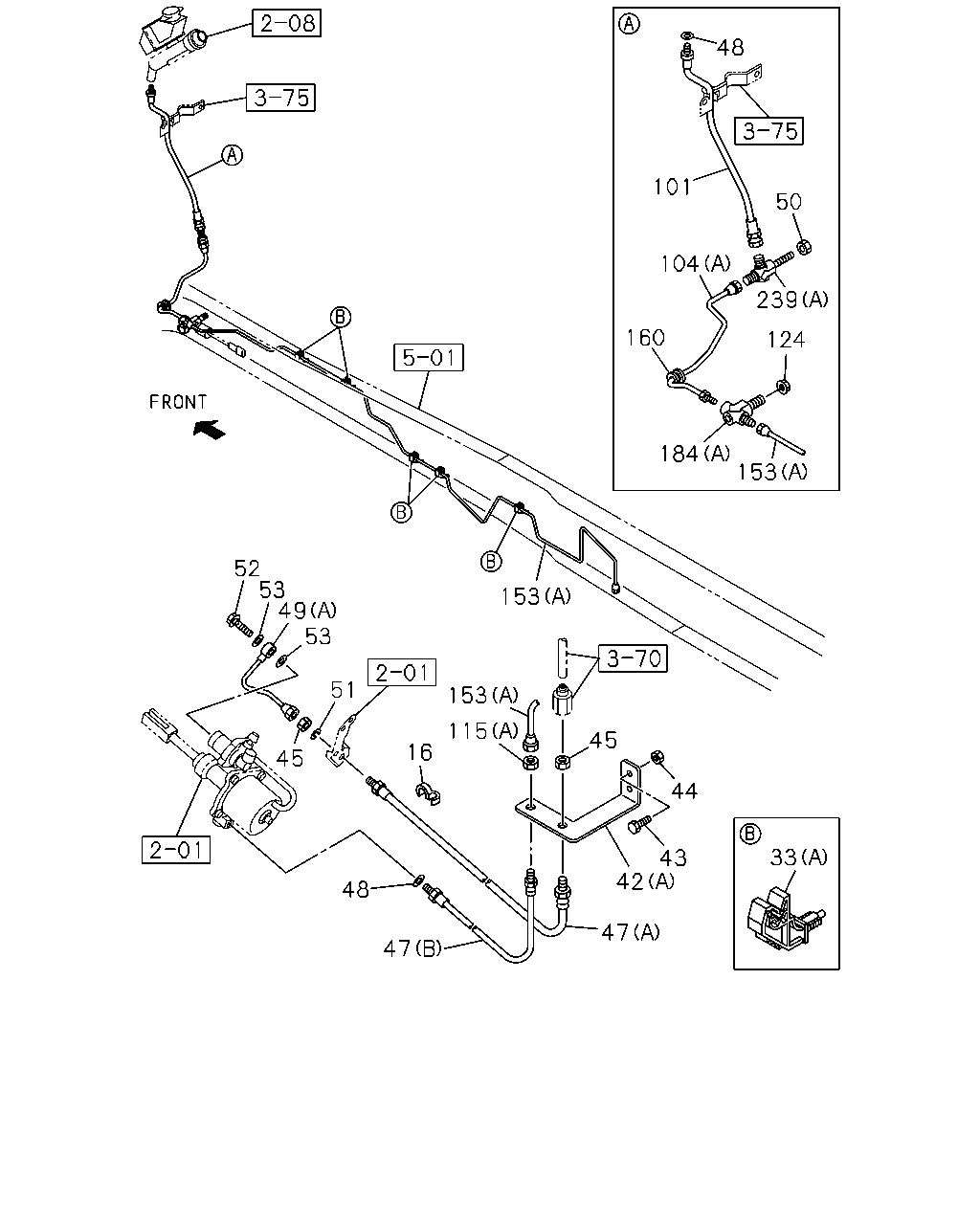

48 50 239 124 184 153 153 153 115 16 51 53 49 53 52 45 48 47 47 42 43 44 45 33 160 104 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; FLEX HOSE ID=10 & 12	1-09709-278-1	01	1	1108-
33	CLIP; OIL PIPE ZF9S1110 DD M/T(Y5P) (B) ID=8 H=20 L=20	1-09700-604-0	03	1	1310-
33	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (A) ID=6.35	1-09701-247-1	04	1	1108-
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1110 DD M/T(Y5P) (B)	8-98077-571-0	01	1	1310-
42	BRACKET; FLEX HOSE,CLU CONT 6HK1-TCN ENG(82L) (A)	8-98105-654-0	01	1	1108-
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	1108-
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	1108-
45	NUT; FLEX HOSE,CLU CONT M12	9-09840-280-0	02	1	1108-
47	HOSE; FLEX,CLU CONT ZF9S1110 DD M/T(Y5P) (D) L=560	1-09363-689-0	01	1	1310-
47	HOSE; FLEX,CLU CONT ZF9S1110 DD M/T(Y5P) (C) L=520	1-09364-583-0	01	1	1310-
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) (A) L=470	1-09363-716-0	01	1	1108-
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) (B) L=375	1-09364-407-0	01	1	1108-
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	02	1	1108-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER ZF9S1110 DD M/T(Y5P) (B) L=232 IDN	1-49124-795-0	01	1	1310-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (A) L=239 IDN	1-49117-401-0	01	1	1108-1309
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER MZW6P M/T(RSZ) (A) L=239 IDN	1-49117-401-0	01	1	1310-
50	NUT; UNION M12	0-91111-512-0	01	1	1108-
51	WASHER; LK ID=12.2	0-91510-812-0	01	1	1108-
52	BOLT; EYE,AIR PIPE M14X27 FLANGE	1-09675-086-0	01	1	1108-
53	GASKET; JOINT BOLT ID=14.2 OD=19.2	1-09630-085-0	02	1	1108-1312
53	GASKET; JOINT BOLT ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=440 IDN	8-98072-346-0	01	1	1108-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF9S1110 DD M/T(Y5P) (B) L=544 SERVICED BY L=550	1-47428-753-0	01	1	1310-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR (A) L=554 IDN	8-98114-452-0	01	1	1108-1303
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MZW6P M/T(RSZ) (A) L=554 IDN	8-98114-452-0	01	1	1304-
115	NUT; FLEX HOSE,CLU CONT ZF9S1110 DD M/T(Y5P) (B) M14	0-91111-514-0	01	1	1310-
115	NUT; FLEX HOSE,CLU CONT (A) M12	9-09840-280-0	01	1	1108-1303
115	NUT; FLEX HOSE,CLU CONT MZW6P M/T(RSZ) (A) M12	9-09840-280-0	01	1	1304-
124	NUT; PIPE UNION M12	0-91111-512-0	01	1	1108-
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 DD M/T(Y5P) (B) L=1655 SERVICED BY L=1700	1-47428-767-0	01	1	1310-
153	PIPE ASM; CLU,UNION TO FLEX (A) L=2790 SERVICED BY L=2900	1-47428-744-0	01	1	1108-1303
153	PIPE ASM; CLU,UNION TO FLEX MZW6P M/T(RSZ) (A) L=2790 SERVICED BY L=2900	1-47428-744-0	01	1	1304-
160	GROMMET; OIL PIPE ID=28 OD=35 T=17	9-09956-256-2	01	1	1108-
184	UNION; FLEX HOSE ZF9S1110 DD M/T(Y5P) (B) M14 2WAY	1-09654-176-2	01	1	1310-
184	UNION; FLEX HOSE (A)	8-98150-865-0	01	1	1108-1303
184	UNION; FLEX HOSE MZW6P M/T(RSZ) (A)	8-98150-865-0	01	1	1304-
239	UNION; CLU HOSE ZF9S1110 DD M/T(Y5P) (B)	8-98107-850-0	01	1	1310-
239	UNION; CLU HOSE (A) M12 2WAY	1-09654-059-2	01	1	1108-1303
239	UNION; CLU HOSE MZW6P M/T(RSZ) (A) M12 2WAY	1-09654-059-2	01	1	1304-

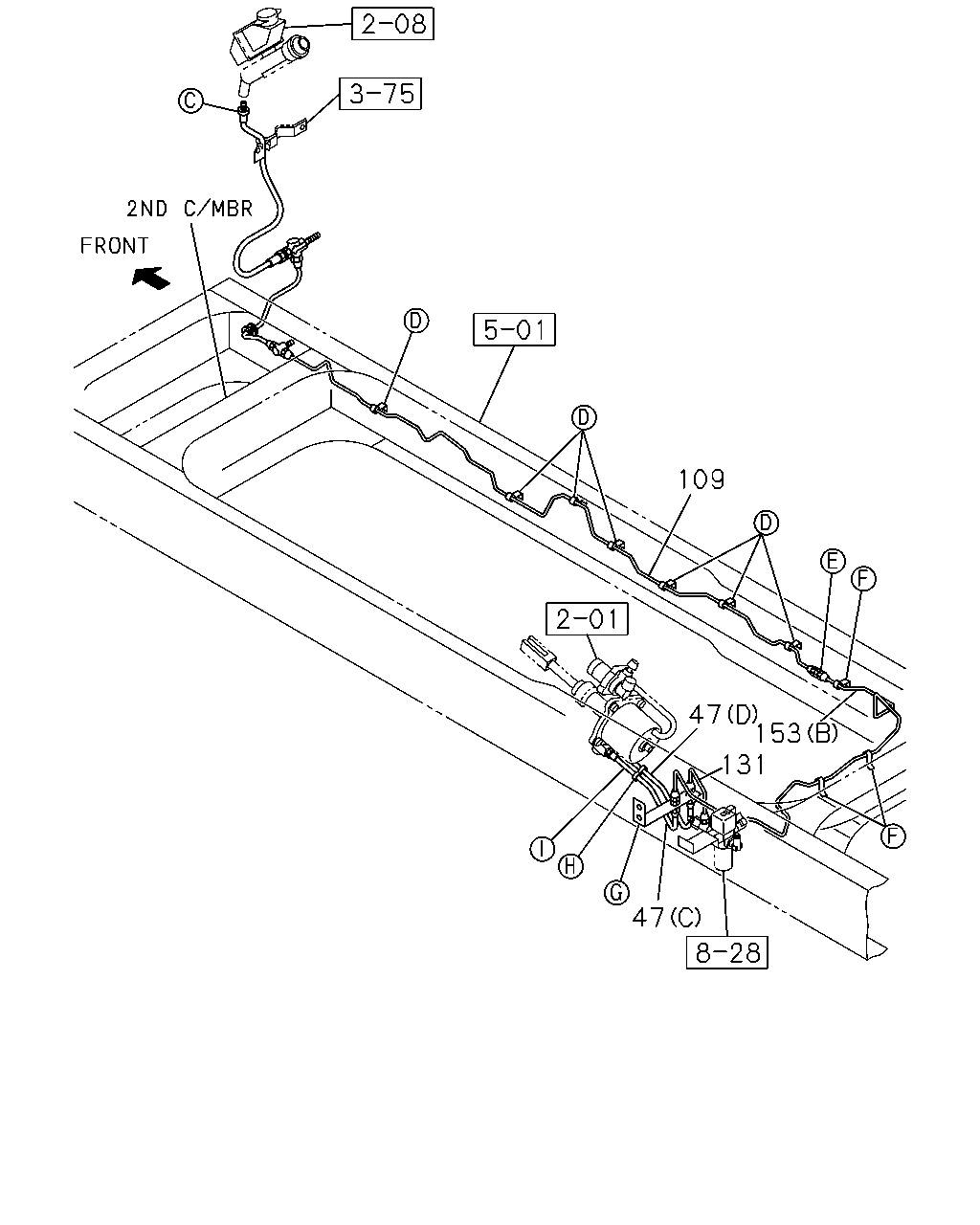

109 47 153 131 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
47	HOSE; FLEX,CLU CONT ZF9S1110 DD M/T(Y5P) (D) L=560	1-09363-689-0	01	1	1310-
47	HOSE; FLEX,CLU CONT ZF9S1110 DD M/T(Y5P) (C) L=520	1-09364-583-0	01	1	1310-
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) (A) L=470	1-09363-716-0	01	1	1108-
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) (B) L=375	1-09364-407-0	01	1	1108-
109	PIPE; AIR,UNION TO UNION ZF9S1110 DD M/T(Y5P) L=2766 SERVICED BY L=3000	1-47428-773-0	01	1	1310-
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 DD M/T(Y5P) L=218 IDN	8-98108-924-0	01	1	1310-
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 DD M/T(Y5P) (B) L=1655 SERVICED BY L=1700	1-47428-767-0	01	1	1310-
153	PIPE ASM; CLU,UNION TO FLEX (A) L=2790 SERVICED BY L=2900	1-47428-744-0	01	1	1108-1303
153	PIPE ASM; CLU,UNION TO FLEX MZW6P M/T(RSZ) (A) L=2790 SERVICED BY L=2900	1-47428-744-0	01	1	1304-

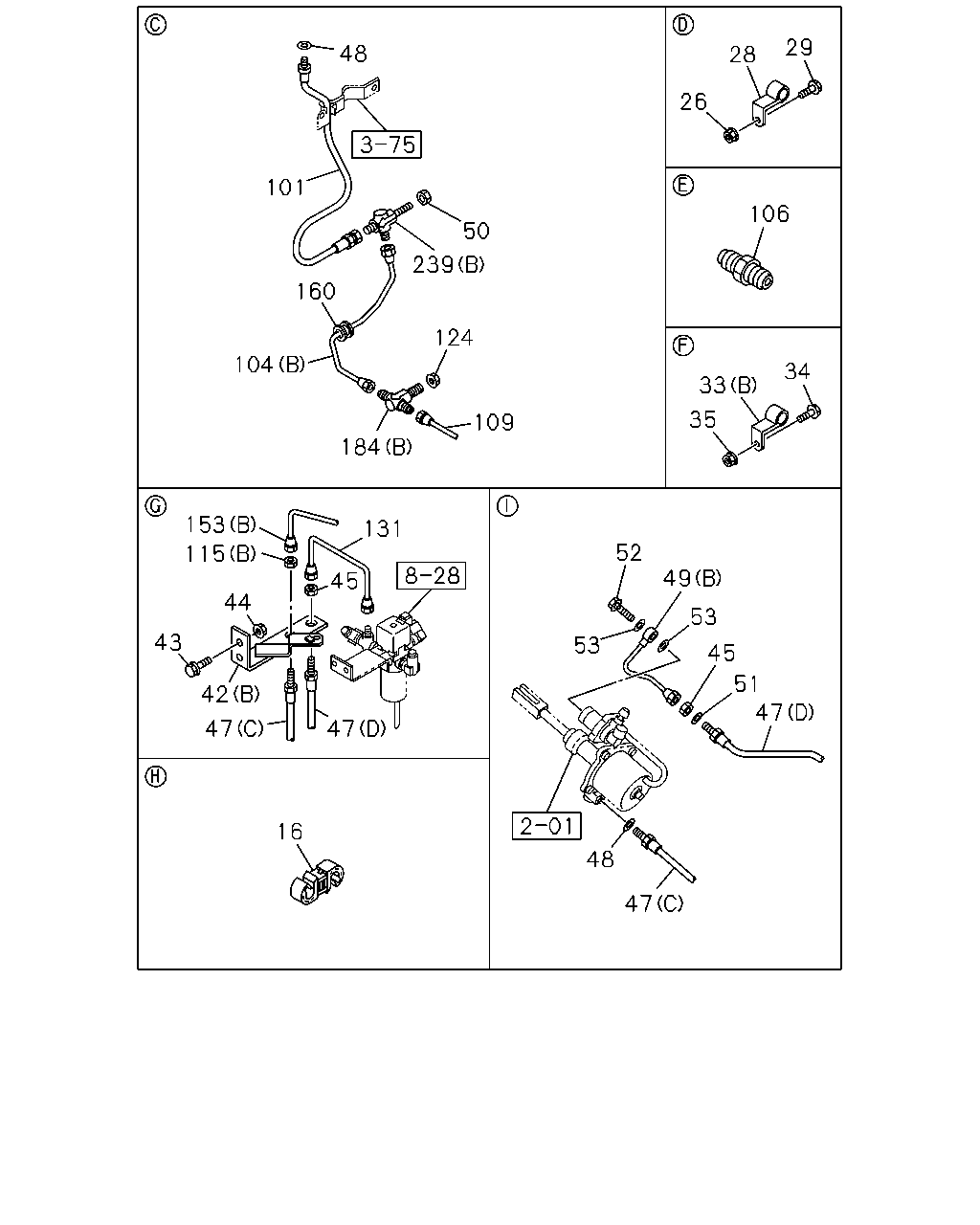

48 101 160 104 239 50 124 109 184 131 153 115 45 47 47 42 43 44 48 47 47 51 45 53 49 52 53 35 33 34 106 26 28 29 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; FLEX HOSE ID=10 & 12	1-09709-278-1	01	1	1108-
26	NUT; CLIP,OIL PIPE ZF9S1110 DD M/T(Y5P) M8 FLANGE	0-91180-108-0	07	1	1310-
28	CLIP; OIL PIPE ZF9S1110 DD M/T(Y5P) ID=8 H=20 L=20	1-09700-604-0	07	1	1310-
29	BOLT; CLIP,OIL PIPE ZF9S1110 DD M/T(Y5P) M8X30 FLANGE	0-28650-830-0	07	1	1310-
33	CLIP; OIL PIPE ZF9S1110 DD M/T(Y5P) (B) ID=8 H=20 L=20	1-09700-604-0	03	1	1310-
33	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (A) ID=6.35	1-09701-247-1	04	1	1108-
34	BOLT; PIPE CLIP ZF9S1110 DD M/T(Y5P) M8X30 FLANGE	0-28650-830-0	03	1	1310-
35	NUT; PIPE CLIP ZF9S1110 DD M/T(Y5P) M8 FLANGE	0-91180-108-0	03	1	1310-
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1110 DD M/T(Y5P) (B)	8-98077-571-0	01	1	1310-
42	BRACKET; FLEX HOSE,CLU CONT 6HK1-TCN ENG(82L) (A)	8-98105-654-0	01	1	1108-
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	1108-
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	1108-
45	NUT; FLEX HOSE,CLU CONT M12	9-09840-280-0	02	1	1108-
47	HOSE; FLEX,CLU CONT ZF9S1110 DD M/T(Y5P) (D) L=560	1-09363-689-0	01	1	1310-
47	HOSE; FLEX,CLU CONT ZF9S1110 DD M/T(Y5P) (C) L=520	1-09364-583-0	01	1	1310-
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) (A) L=470	1-09363-716-0	01	1	1108-
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) (B) L=375	1-09364-407-0	01	1	1108-
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	02	1	1108-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER ZF9S1110 DD M/T(Y5P) (B) L=232 IDN	1-49124-795-0	01	1	1310-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (A) L=239 IDN	1-49117-401-0	01	1	1108-1309
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER MZW6P M/T(RSZ) (A) L=239 IDN	1-49117-401-0	01	1	1310-
50	NUT; UNION M12	0-91111-512-0	01	1	1108-
51	WASHER; LK ID=12.2	0-91510-812-0	01	1	1108-
52	BOLT; EYE,AIR PIPE M14X27 FLANGE	1-09675-086-0	01	1	1108-
53	GASKET; JOINT BOLT ID=14.2 OD=19.2	1-09630-085-0	02	1	1108-1312
53	GASKET; JOINT BOLT ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=440 IDN	8-98072-346-0	01	1	1108-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF9S1110 DD M/T(Y5P) (B) L=544 SERVICED BY L=550	1-47428-753-0	01	1	1310-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR (A) L=554 IDN	8-98114-452-0	01	1	1108-1303
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MZW6P M/T(RSZ) (A) L=554 IDN	8-98114-452-0	01	1	1304-
106	UNION; OIL PIPE ZF9S1110 DD M/T(Y5P) M14 STRAIGHT	0-92113-008-0	01	1	1310-
109	PIPE; AIR,UNION TO UNION ZF9S1110 DD M/T(Y5P) L=2766 SERVICED BY L=3000	1-47428-773-0	01	1	1310-
115	NUT; FLEX HOSE,CLU CONT ZF9S1110 DD M/T(Y5P) (B) M14	0-91111-514-0	01	1	1310-
115	NUT; FLEX HOSE,CLU CONT (A) M12	9-09840-280-0	01	1	1108-1303
115	NUT; FLEX HOSE,CLU CONT MZW6P M/T(RSZ) (A) M12	9-09840-280-0	01	1	1304-
124	NUT; PIPE UNION M12	0-91111-512-0	01	1	1108-
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 DD M/T(Y5P) L=218 IDN	8-98108-924-0	01	1	1310-
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 DD M/T(Y5P) (B) L=1655 SERVICED BY L=1700	1-47428-767-0	01	1	1310-
153	PIPE ASM; CLU,UNION TO FLEX (A) L=2790 SERVICED BY L=2900	1-47428-744-0	01	1	1108-1303
153	PIPE ASM; CLU,UNION TO FLEX MZW6P M/T(RSZ) (A) L=2790 SERVICED BY L=2900	1-47428-744-0	01	1	1304-
160	GROMMET; OIL PIPE ID=28 OD=35 T=17	9-09956-256-2	01	1	1108-
184	UNION; FLEX HOSE ZF9S1110 DD M/T(Y5P) (B) M14 2WAY	1-09654-176-2	01	1	1310-
184	UNION; FLEX HOSE (A)	8-98150-865-0	01	1	1108-1303
184	UNION; FLEX HOSE MZW6P M/T(RSZ) (A)	8-98150-865-0	01	1	1304-
239	UNION; CLU HOSE ZF9S1110 DD M/T(Y5P) (B)	8-98107-850-0	01	1	1310-
239	UNION; CLU HOSE (A) M12 2WAY	1-09654-059-2	01	1	1108-1303
239	UNION; CLU HOSE MZW6P M/T(RSZ) (A) M12 2WAY	1-09654-059-2	01	1	1304-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
