Isuzu WW
▶
TRUCKS
▶
FVM
▶
11391 - FVM(INDONESIA)6HK1
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-55 - EXHAUST BRAKE VALVE AND CONTROL CYLINDER
▶

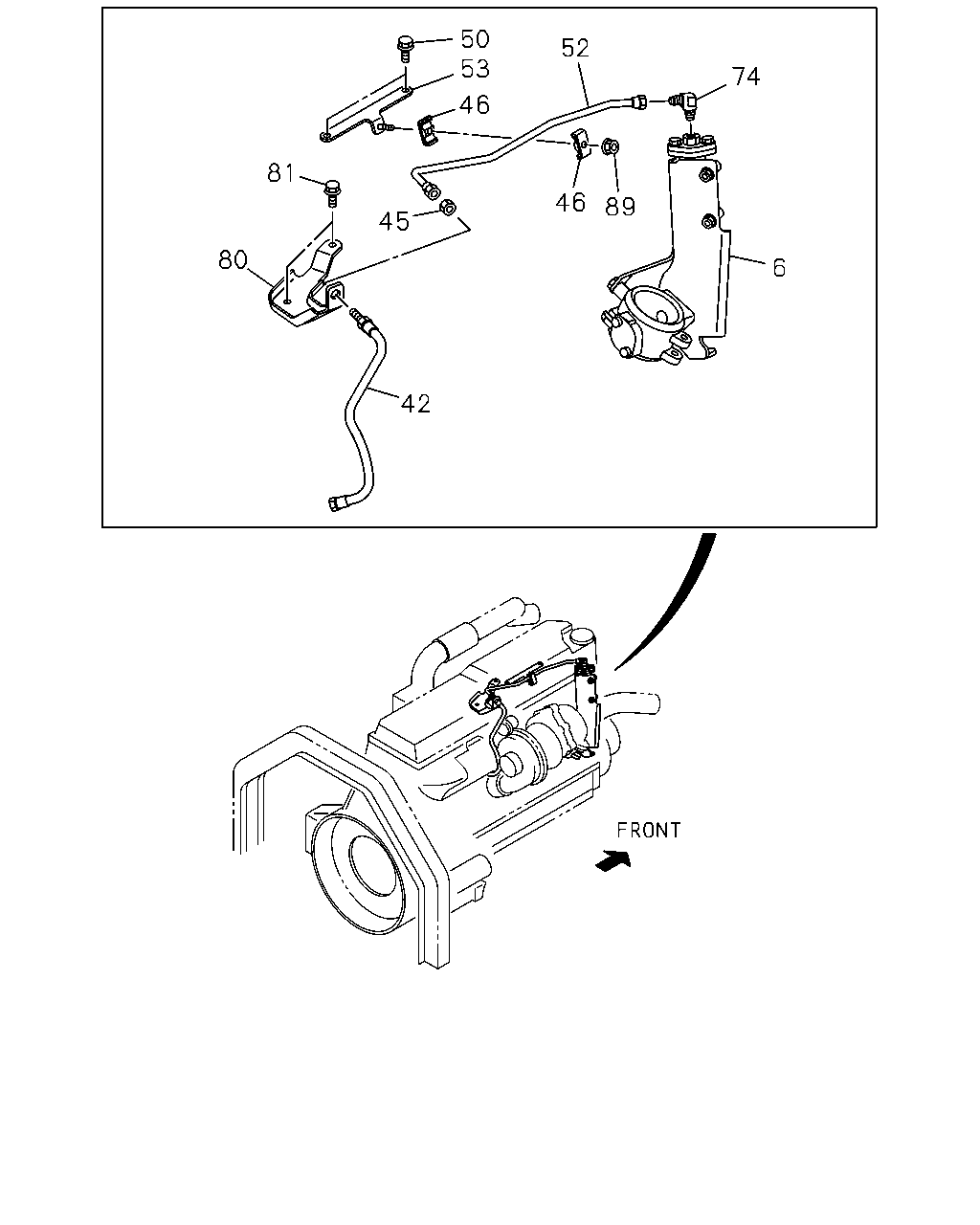

1-55 — EXHAUST BRAKE VALVE AND CONTROL CYLINDER
(#62684) — 22 parça
Tümü
A - 6HK1-TCN ENG
B - 6HK1-TCS ENG
6
74
89
46
52
50
46
53
45
81
80
42
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
6
VALVE; EXH BRAKE
8-97602-527-1
01
1
1108-1309
●
6
VALVE; EXH BRAKE
8-97602-527-1
01
1
1310-
●
●
42
HOSE; FLEX,EXH BRK
L=300
1-09363-608-0
01
1
1108-1309
●
42
HOSE; FLEX,EXH BRK
L=300
1-09363-608-0
01
1
1310-
●
●
45
NUT; FLEX HOSE
M12
9-09840-280-0
01
1
1108-1309
●
45
NUT; FLEX HOSE
M12
9-09840-280-0
01
1
1310-
●
●
46
CLIP; AIR PIPE
ID=11 & 11 L=19
8-98148-996-2
02
1
1108-1309
●
46
CLIP; AIR PIPE
ID=11 & 11 L=19
8-98148-996-2
02
1
1310-
●
●
50
BOLT; BRKT
M8X12 FLANGE
0-28050-812-0
02
1
1108-1309
●
50
BOLT; BRKT
M8X12 FLANGE
0-28050-812-0
02
1
1310-
●
●
52
PIPE ASM; AIR FLEX HOSE
8-97603-547-0
01
1
1108-1309
●
52
PIPE ASM; AIR FLEX HOSE
8-97603-547-0
01
1
1310-
●
●
53
BRACKET; CLIP
IDN
8-98182-766-0
01
1
1108-1309
●
53
BRACKET; CLIP
IDN
8-98182-766-0
01
1
1310-
●
●
74
CONNECTOR; EXH BRK VLV
M12 & PT1/4 ELBOW
1-09650-430-0
01
1
1108-1309
●
74
CONNECTOR; EXH BRK VLV
M12 & PT1/4 ELBOW
1-09650-430-0
01
1
1310-
●
●
80
BRACKET; FLEX HOSE
IDN
8-98182-767-0
01
1
1108-1309
●
80
BRACKET; FLEX HOSE
IDN
8-98182-767-0
01
1
1310-
●
●
81
BOLT; HOSE BRKT
M8X12 FLANGE
0-28050-812-0
02
1
1108-1309
●
81
BOLT; HOSE BRKT
M8X12 FLANGE
0-28050-812-0
02
1
1310-
●
●
89
NUT; BRKT
M6 FLANGE
0-91180-106-0
01
1
1108-1309
●
89
NUT; BRKT
M6 FLANGE
0-91180-106-0
01
1
1310-
●
●
