Isuzu WW
▶
TRUCKS
▶
FVM
▶
11391 - FVM(INDONESIA)6HK1
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-41 - FUEL PIPING; CHASSIS
▶
1-41 — FUEL PIPING; CHASSIS
(#62681) — 83 parça
◀

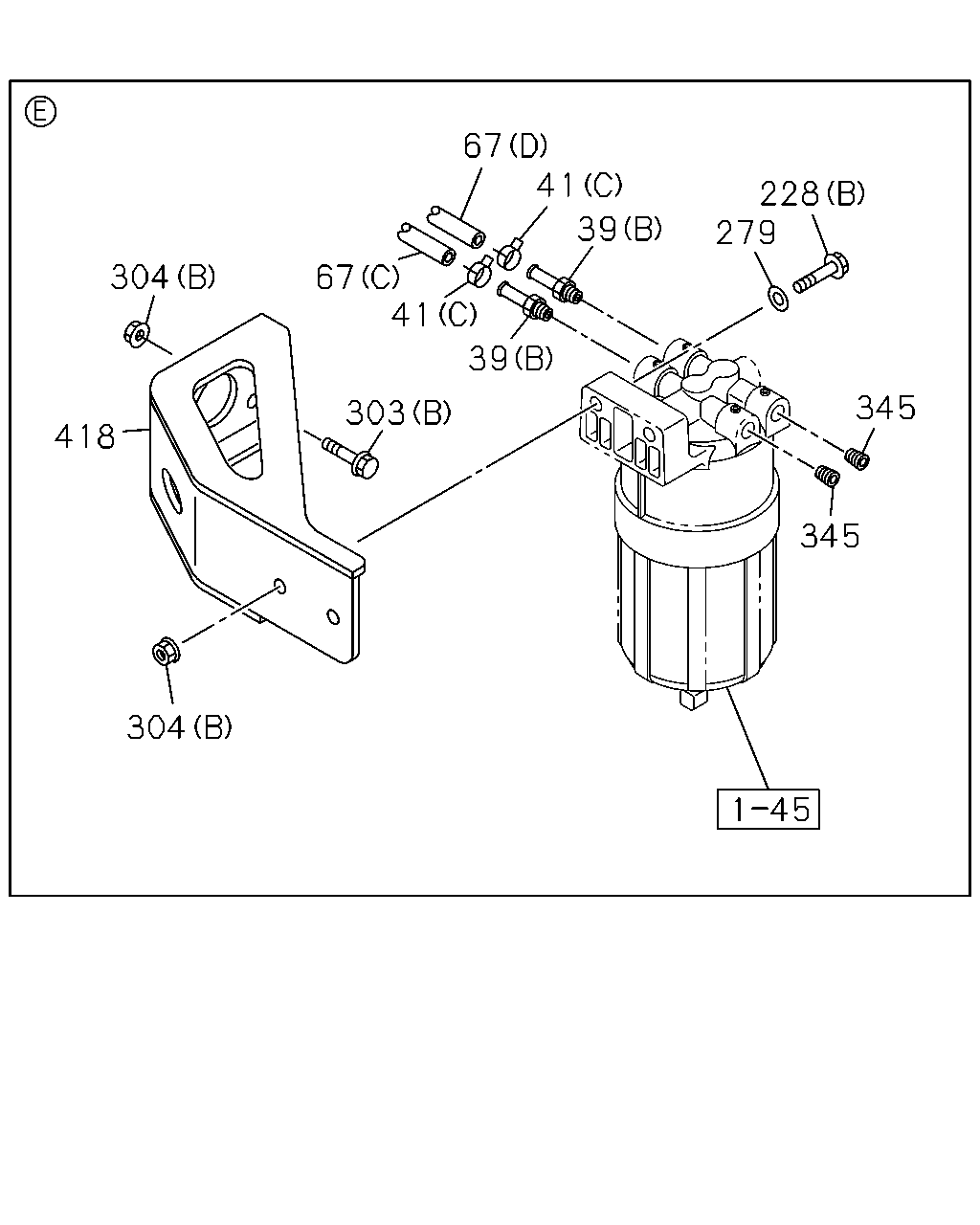

[141A] PRE FUEL FILTER FIXING (24 parça)

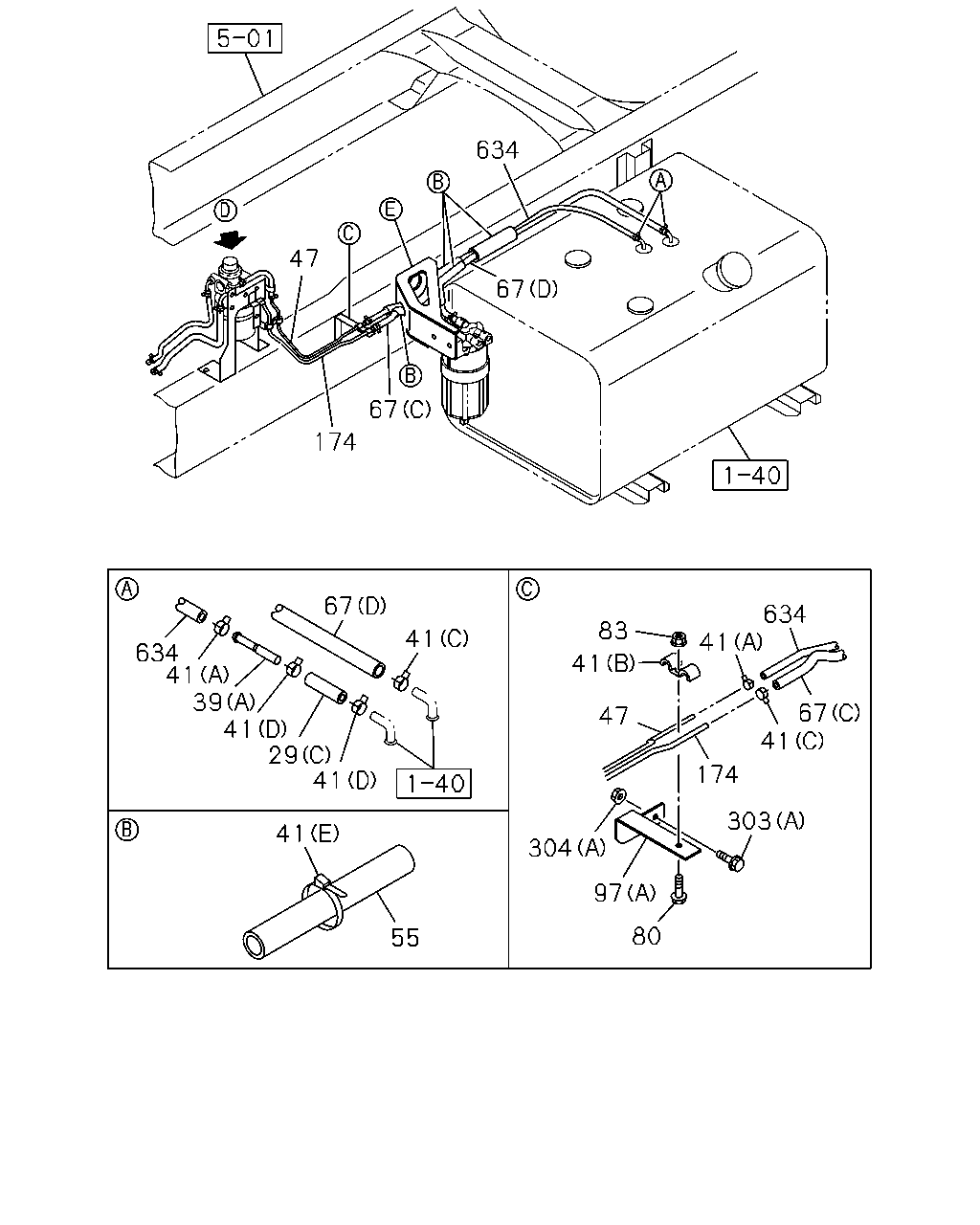

[141A] PIPING (31 parça)

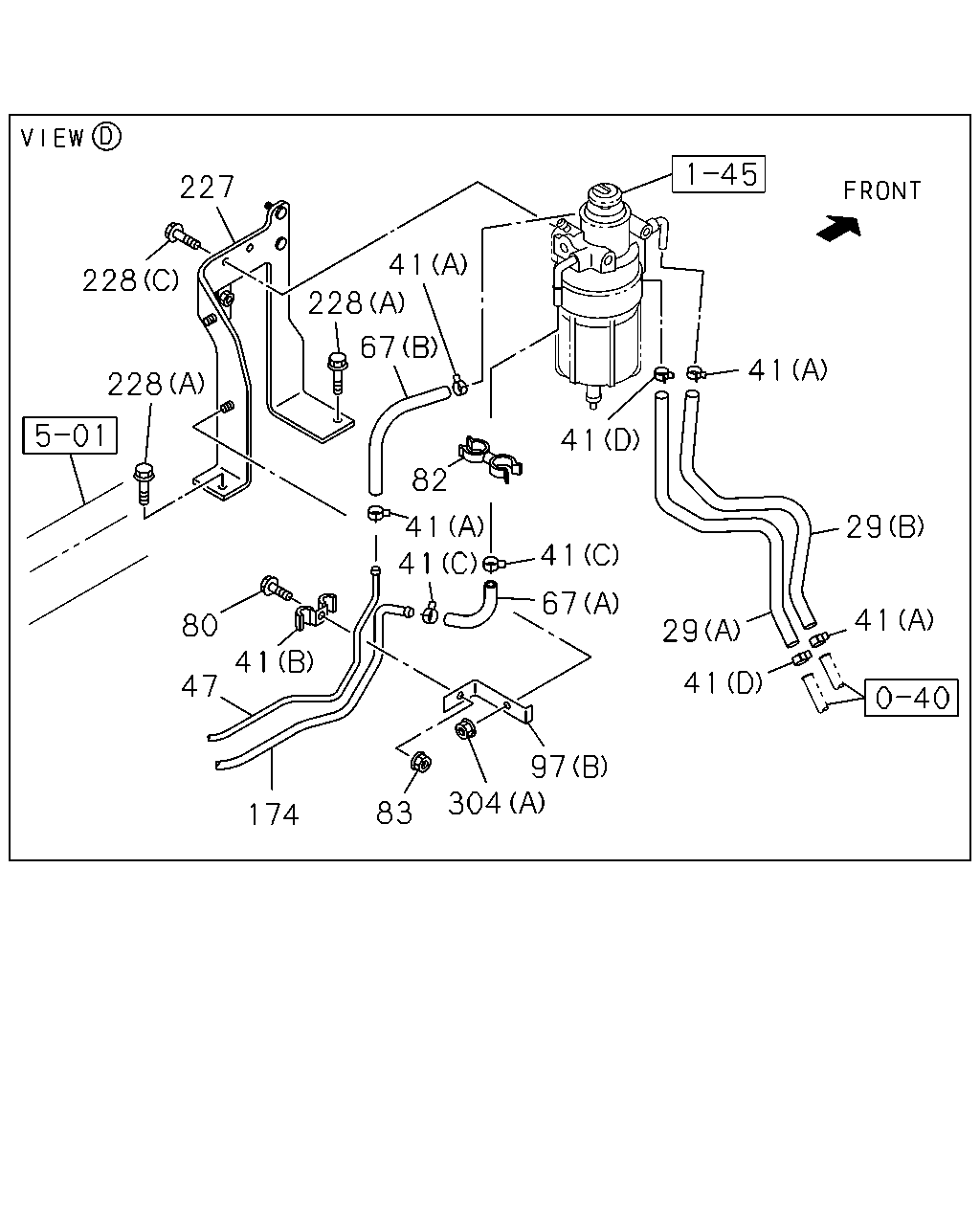

[141A] FUEL SEDIMENTER FIXING (28 parça)
▶
304
418
304
345
345
279
228
39
41
67
67
41
39
303
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
39
PIPE; FUEL
(A) IDN
8-98009-438-1
01
1
1108-
39
PIPE; FUEL
(B) NPTF3/8-18 OD=10
8-98122-953-0
02
1
1108-
41
CLIP; FUEL PIPE,FUEL TANK
EXC. LOCALLY SUPPLIED PARTS<TKH> (D) ID=16 IDN
8-94238-568-0
04
1
1201-
41
CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 9 L=17.5 & 17.5
1-09700-747-0
02
1
1108-
41
CLIP; FUEL PIPE,FUEL TANK
(C) ID=14 IDN
1-09704-102-0
06
1
1108-
41
CLIP; FUEL PIPE,FUEL TANK
(E) L=250 IDN
5-09707-030-1
03
1
1108-
41
CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 IDN
8-94238-568-0
04
1
1108-1112
41
CLIP; FUEL PIPE,FUEL TANK
LOCALLY SUPPLIED PARTS<TKH> (D) ID=16 IDN
8-94238-568-0
02
1
1201-
41
CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 IDN
8-94238-571-0
06
1
1108-
67
HOSE; FUEL,DELIVERY
(C) L=300
8-98157-878-0
01
1
1108-
67
HOSE; FUEL,DELIVERY
(D) L=780 IDN
8-98184-820-0
01
1
1108-
67
HOSE; FUEL,DELIVERY
(A) L=110 SERVICED BY L=3000
0-01260-300-0
01
1
1108-
67
HOSE; FUEL,DELIVERY
(B) L=210 SERVICED BY L=3000
0-01558-300-0
01
1
1108-
228
BOLT; BRKT,SEDIMENTER
(A) M8X25 FLANGE
0-28050-825-0
02
1
1108-
228
BOLT; BRKT,SEDIMENTER
(B) M10X50 FLANGE
0-28051-050-0
02
1
1108-
228
BOLT; BRKT,SEDIMENTER
(C) M8X20 FLANGE IDN
0-28650-820-0
02
1
1108-
279
WASHER
ID=10.5 OD=26
0-91614-710-0
02
1
1108-
303
BOLT; BRKT
(A) M8X35 FLANGE
0-28650-835-0
02
1
1108-
303
BOLT; BRKT
(B) M10X35 FLANGE IDN
0-28651-035-0
02
1
1108-
304
NUT; BRKT
(A) M8 FLANGE
0-91180-108-0
03
1
1108-
304
NUT; BRKT
(B) M10 FLANGE
0-91180-210-0
02
1
1108-
304
NUT; BRKT
(B) M10 FLANGE
0-91180-210-0
02
1
1108-
345
PLUG
NPTF3/8-18
8-97329-623-0
02
1
1108-
418
BRACKET; PRE FUEL FILTER
8-98128-254-0
01
1
1108-
634
67
67
174
47
634
41
41
67
174
303
80
97
304
47
41
83
55
41
41
67
41
29
41
39
41
634
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
29
HOSE; FUEL
(C) L=60 SERVICED BY L=3000
0-01259-300-0
01
1
1108-
29
HOSE; FUEL
(A) IDN
8-98078-196-2
01
1
1108-
29
HOSE; FUEL
(B) IDN
8-98078-197-1
01
1
1108-
39
PIPE; FUEL
(A) IDN
8-98009-438-1
01
1
1108-
39
PIPE; FUEL
(B) NPTF3/8-18 OD=10
8-98122-953-0
02
1
1108-
41
CLIP; FUEL PIPE,FUEL TANK
EXC. LOCALLY SUPPLIED PARTS<TKH> (D) ID=16 IDN
8-94238-568-0
04
1
1201-
41
CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 9 L=17.5 & 17.5
1-09700-747-0
02
1
1108-
41
CLIP; FUEL PIPE,FUEL TANK
(C) ID=14 IDN
1-09704-102-0
06
1
1108-
41
CLIP; FUEL PIPE,FUEL TANK
(E) L=250 IDN
5-09707-030-1
03
1
1108-
41
CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 IDN
8-94238-568-0
04
1
1108-1112
41
CLIP; FUEL PIPE,FUEL TANK
LOCALLY SUPPLIED PARTS<TKH> (D) ID=16 IDN
8-94238-568-0
02
1
1201-
41
CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 IDN
8-94238-571-0
06
1
1108-
47
PIPE; FUEL,RETURN
L=539 IDN
8-98117-709-0
01
1
1108-
55
COVER; PIPE,FUEL TANK
L=150 SERVICED BY L=1300
1-09360-677-1
02
1
1108-
67
HOSE; FUEL,DELIVERY
(C) L=300
8-98157-878-0
01
1
1108-
67
HOSE; FUEL,DELIVERY
(D) L=780 IDN
8-98184-820-0
01
1
1108-
67
HOSE; FUEL,DELIVERY
(A) L=110 SERVICED BY L=3000
0-01260-300-0
01
1
1108-
67
HOSE; FUEL,DELIVERY
(B) L=210 SERVICED BY L=3000
0-01558-300-0
01
1
1108-
80
BOLT; CLIP,FUEL TANK
M8X20 FLANGE IDN
0-28650-820-0
02
1
1108-
83
NUT; CLIP,FUEL TANK
M8 FLANGE
0-91180-108-0
02
1
1108-
97
BRACKET; CLIP
(B)
8-98053-654-0
01
1
1108-
97
BRACKET; CLIP
(A)
8-98126-612-0
01
1
1108-
174
PIPE; FUEL,FEED,FRT
L=548 IDN
8-98117-708-0
01
1
1108-
303
BOLT; BRKT
(A) M8X35 FLANGE
0-28650-835-0
02
1
1108-
303
BOLT; BRKT
(B) M10X35 FLANGE IDN
0-28651-035-0
02
1
1108-
304
NUT; BRKT
(A) M8 FLANGE
0-91180-108-0
03
1
1108-
304
NUT; BRKT
(B) M10 FLANGE
0-91180-210-0
02
1
1108-
304
NUT; BRKT
(B) M10 FLANGE
0-91180-210-0
02
1
1108-
634
HOSE; RUBBER RETURN
LOCALLY SUPPLIED PARTS<TKH>
8-98211-102-0
01
1
1201-
634
HOSE; RUBBER RETURN
IDN
8-98184-202-0
01
1
1108-1112
634
HOSE; RUBBER RETURN
EXC. LOCALLY SUPPLIED PARTS<TKH> IDN
8-98184-202-0
01
1
1201-
227
228
228
80
41
47
174
83
304
97
67
41
41
41
82
67
228
41
41
41
29
41
29
41
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
29
HOSE; FUEL
(C) L=60 SERVICED BY L=3000
0-01259-300-0
01
1
1108-
29
HOSE; FUEL
(A) IDN
8-98078-196-2
01
1
1108-
29
HOSE; FUEL
(B) IDN
8-98078-197-1
01
1
1108-
41
CLIP; FUEL PIPE,FUEL TANK
EXC. LOCALLY SUPPLIED PARTS<TKH> (D) ID=16 IDN
8-94238-568-0
04
1
1201-
41
CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 9 L=17.5 & 17.5
1-09700-747-0
02
1
1108-
41
CLIP; FUEL PIPE,FUEL TANK
(C) ID=14 IDN
1-09704-102-0
06
1
1108-
41
CLIP; FUEL PIPE,FUEL TANK
(E) L=250 IDN
5-09707-030-1
03
1
1108-
41
CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 IDN
8-94238-568-0
04
1
1108-1112
41
CLIP; FUEL PIPE,FUEL TANK
LOCALLY SUPPLIED PARTS<TKH> (D) ID=16 IDN
8-94238-568-0
02
1
1201-
41
CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 IDN
8-94238-571-0
06
1
1108-
47
PIPE; FUEL,RETURN
L=539 IDN
8-98117-709-0
01
1
1108-
67
HOSE; FUEL,DELIVERY
(C) L=300
8-98157-878-0
01
1
1108-
67
HOSE; FUEL,DELIVERY
(D) L=780 IDN
8-98184-820-0
01
1
1108-
67
HOSE; FUEL,DELIVERY
(A) L=110 SERVICED BY L=3000
0-01260-300-0
01
1
1108-
67
HOSE; FUEL,DELIVERY
(B) L=210 SERVICED BY L=3000
0-01558-300-0
01
1
1108-
80
BOLT; CLIP,FUEL TANK
M8X20 FLANGE IDN
0-28650-820-0
02
1
1108-
82
CLIP; FUEL HOSE
ID=13 & 16.5
8-94169-028-0
01
1
1108-
83
NUT; CLIP,FUEL TANK
M8 FLANGE
0-91180-108-0
02
1
1108-
97
BRACKET; CLIP
(B)
8-98053-654-0
01
1
1108-
97
BRACKET; CLIP
(A)
8-98126-612-0
01
1
1108-
174
PIPE; FUEL,FEED,FRT
L=548 IDN
8-98117-708-0
01
1
1108-
227
BRACKET; FUEL SEDIMENTER
8-98044-366-3
01
1
1108-
228
BOLT; BRKT,SEDIMENTER
(A) M8X25 FLANGE
0-28050-825-0
02
1
1108-
228
BOLT; BRKT,SEDIMENTER
(B) M10X50 FLANGE
0-28051-050-0
02
1
1108-
228
BOLT; BRKT,SEDIMENTER
(C) M8X20 FLANGE IDN
0-28650-820-0
02
1
1108-
304
NUT; BRKT
(A) M8 FLANGE
0-91180-108-0
03
1
1108-
304
NUT; BRKT
(B) M10 FLANGE
0-91180-210-0
02
1
1108-
304
NUT; BRKT
(B) M10 FLANGE
0-91180-210-0
02
1
1108-
