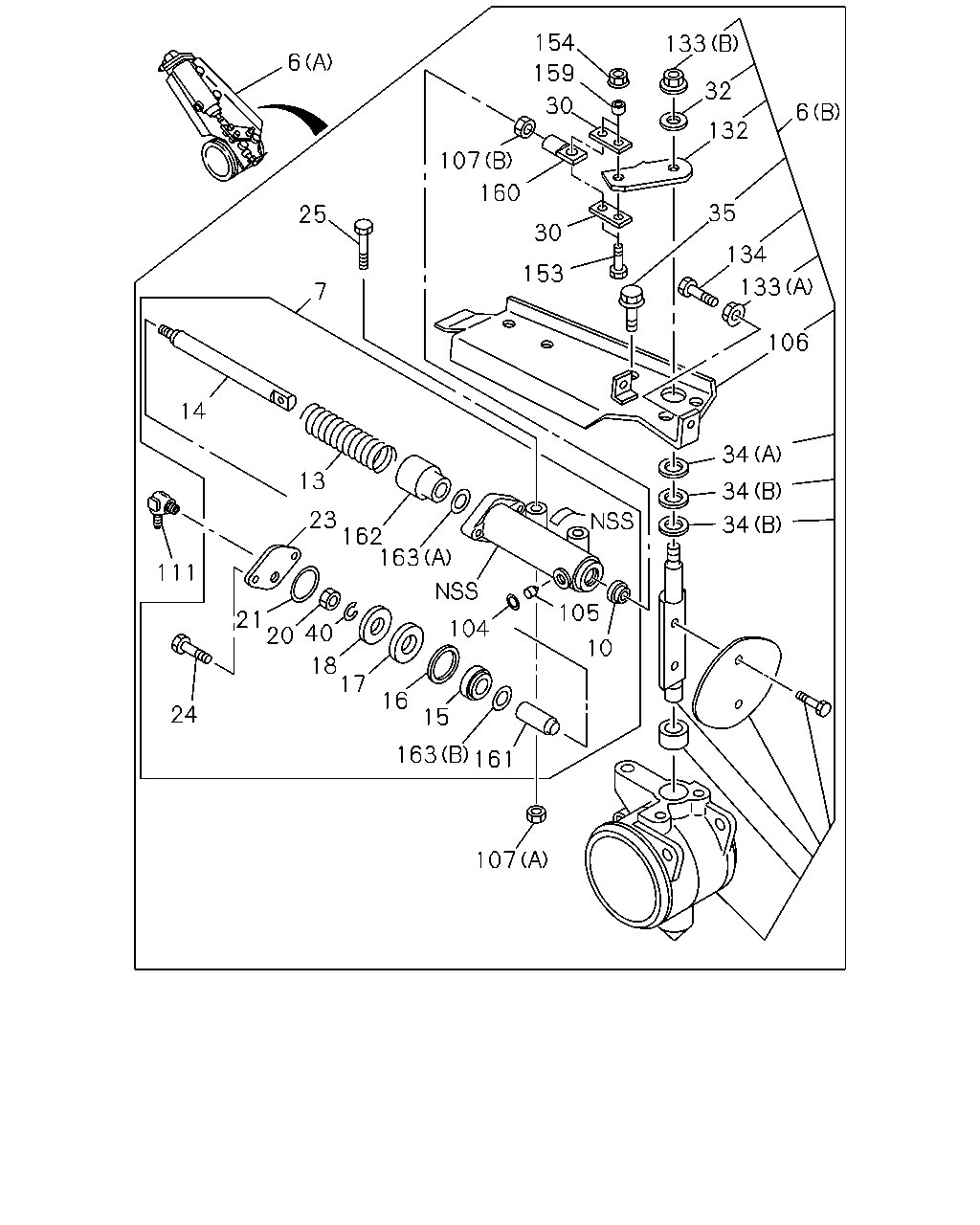

1-55 — EXHAUST BRAKE VALVE AND CONTROL CYLINDER (#6268) — 117 parça
çizim 10470
154 133 6 159 32 30 6 132 107 160 35 25 30 134 153 133 7 106 14 34 13 34 23 162 163 34 111 105 21 20 104 40 10 18 17 16 24 15 163 161 107
BalonParca AdiParca NoAdetTipApplied Date A B C
6 VALVE; EXH BRAKE
(A) 		1-14144-603-3 01 1 9906-9906 ● ●
6 VALVE; EXH BRAKE
(A) 		1-14144-603-3 01 1 9907- ●
6 VALVE; EXH BRAKE
(B) 		1-14144-616-0 01 1 9906-9906 ● ●
6 VALVE; EXH BRAKE
(B) 		1-14144-616-0 01 1 9907- ●
6 VALVE; EXH BRAKE
(B) 		1-22181-154-0 01 1 9906- ●
6 VALVE; EXH BRAKE
(A) 		1-22190-646-0 01 1 9906- ●
7 CYLINDER ASM; CONT 1-22190-592-1 01 1 9906-9906 ● ●
7 CYLINDER ASM; CONT 1-22190-592-1 01 1 9907- ●
7 CYLINDER ASM; CONT 1-22190-642-0 01 1 9906- ●
10 SEAL; DUST,CONT 1-22189-016-0 01 1 9906-9906 ● ●
10 SEAL; DUST,CONT 1-22189-016-0 01 1 9907- ●
10 SEAL; DUST,CONT 1-22199-071-0 01 1 9906- ●
13 SPRING; CONT CYL 1-22199-077-0 01 1 9906-9906 ● ●
13 SPRING; CONT CYL 1-22199-077-0 01 1 9907- ●
13 SPRING; CONT CYL 1-22199-173-0 01 1 9906- ●
14 SHAFT; CONT CYL 1-22199-142-0 01 1 9906-9906 ● ●
14 SHAFT; CONT CYL 1-22199-142-0 01 1 9907- ●
14 SHAFT; CONT CYL 1-22199-158-0 01 1 9906- ●
15 PLATE; CONT CYL 1-22199-096-0 01 1 9906-9906 ● ●
15 PLATE; CONT CYL 1-22199-096-0 01 1 9907- ●
15 PLATE; CONT CYL 1-22199-168-0 01 1 9906- ●
16 RING; WEAR,CONT CYL 1-22189-161-0 01 1 9906-9906 ● ●
16 RING; WEAR,CONT CYL 1-22189-161-0 01 1 9907- ●
16 RING; WEAR,CONT CYL 1-22199-169-0 01 1 9906- ●
17 GASKET; CONT CYL 1-22189-160-0 01 1 9906-9906 ● ●
17 GASKET; CONT CYL 1-22189-160-0 01 1 9907- ●
17 GASKET; CONT CYL 1-22199-170-0 01 1 9906- ●
18 RETAINER; CONT CYL 9-88510-324-0 01 1 9906-9906 ● ●
18 RETAINER; CONT CYL 9-88510-324-0 01 1 9907- ●
20 NUT; CONT CYL 9-83315-085-0 01 1 9906-9906 ● ●
20 NUT; CONT CYL 9-83315-085-0 01 1 9907- ●
20 NUT; CONT CYL
M8 FLANGE 		0-91150-108-0 01 1 9906- ●
21 GASKET; COVER 9-88510-372-0 01 1 9906-9906 ● ●
21 GASKET; COVER 9-88510-372-0 01 1 9907- ●
21 GASKET; COVER 1-22199-171-0 01 1 9906- ●
23 COVER; CONT CYL 1-22199-066-0 01 1 9906-9906 ● ●
23 COVER; CONT CYL 1-22199-066-0 01 1 9907- ●
23 COVER; CONT CYL 1-22199-172-0 01 1 9906- ●
24 BOLT; COVER 1-22199-155-0 02 1 9906-9906 ● ● ●
24 BOLT; COVER 1-22199-155-0 02 1 9907- ● ●
25 BOLT; CONT CYL
M10X60 FLANGE 		1-22199-160-0 02 1 9906-9906 ● ●
25 BOLT; CONT CYL
M10X60 FLANGE 		1-22199-160-0 02 1 9907- ●
25 BOLT; CONT CYL 1-19519-244-0 02 1 9906- ●
30 ROD; LINK,CONT CYL 1-22199-165-0 02 1 9906-9906 ● ●
30 ROD; LINK,CONT CYL 1-22199-165-0 02 1 9907- ●
30 ROD; LINK,CONT CYL 1-22199-162-0 02 1 9906- ●
32 WASHER; LK
ID=10.5 OD=26 		9-09164-710-0 01 1 9906-9906 ● ● ●
32 WASHER; LK
ID=10.5 OD=26 		9-09164-710-0 01 1 9907- ● ●
34 RING; SEAL
(A) ID=21 		1-22189-158-0 01 1 9906-9906 ● ● ●
34 RING; SEAL
(A) ID=21 		1-22189-158-0 01 1 9907- ● ●
34 RING; SEAL
(B) ID=18.8 		1-22189-159-0 02 1 9906-9906 ● ● ●
34 RING; SEAL
(B) ID=18.8 		1-22189-159-0 02 1 9907- ● ●
35 BOLT; PLATE FIX
M10X20 		0-28021-020-0 03 1 9906-9906 ● ● ●
35 BOLT; PLATE FIX
M10X20 		0-28021-020-0 03 1 9907- ● ●
40 WASHER; LK,COVER
ID=8.2 		9-09150-508-0 01 1 9906-9906 ● ●
40 WASHER; LK,COVER
ID=8.2 		9-09150-508-0 01 1 9907- ●
104 RING; RET 9-88510-331-0 01 1 9906-9906 ● ● ●
104 RING; RET 9-88510-331-0 01 1 9907- ● ●
105 FILTER; CONT CYL 9-88510-330-0 01 1 9906-9906 ● ● ●
105 FILTER; CONT CYL 9-88510-330-0 01 1 9907- ● ●
106 BRACKET; CONT CYL 1-22186-138-0 01 1 9906-9906 ● ●
106 BRACKET; CONT CYL 1-22186-138-0 01 1 9907- ●
106 BRACKET; CONT CYL 1-22186-144-0 01 1 9906- ●
107 NUT; CONT CYL
(A) 		9-83315-080-0 02 1 9906-9906 ● ●
107 NUT; CONT CYL
(A) 		9-83315-080-0 02 1 9907- ●
107 NUT; CONT CYL
(B) 		9-83315-085-0 01 1 9906-9906 ● ●
107 NUT; CONT CYL
(B) 		9-83315-085-0 01 1 9907- ●
107 NUT; CONT CYL
(A) M10 FLANGE 		0-91150-110-0 02 1 9906- ●
107 NUT; CONT CYL
(B) M8 		9-09110-508-0 01 1 9906- ●
111 ELBOW; CONT CYL
PT1/4 & M12 ELBOW 		1-09650-117-1 01 1 9906-9906 ● ● ●
111 ELBOW; CONT CYL
PT1/4 & M12 ELBOW 		1-09650-117-1 01 1 9907- ● ●
132 LEVER; BRK VLV 1-22196-346-0 01 1 9906-9906 ● ● ●
132 LEVER; BRK VLV 1-22196-346-0 01 1 9907- ● ●
133 NUT; LK
(A) M8 FLANGE 		0-91150-108-0 02 1 9906-9906 ● ● ●
133 NUT; LK
(A) M8 FLANGE 		0-91150-108-0 02 1 9907- ● ●
133 NUT; LK
(B) M10 FLANGE 		0-91150-110-0 01 1 9906-9906 ● ● ●
133 NUT; LK
(B) M10 FLANGE 		0-91150-110-0 01 1 9907- ● ●
134 BOLT; STOPPER
M8X30 		1-09000-112-1 02 1 9906-9906 ● ● ●
134 BOLT; STOPPER
M8X30 		1-09000-112-1 02 1 9907- ● ●
153 BOLT; CLEVIS,CONT CYL 1-33739-200-0 02 1 9906-9906 ● ●
153 BOLT; CLEVIS,CONT CYL 1-33739-200-0 02 1 9907- ●
153 BOLT; CLEVIS,CONT CYL
M8X25 FLANGE 		0-28080-825-0 02 1 9906- ●
154 NUT; CLEVIS,CONT CYL
M8 FLANGE 		0-91150-108-0 02 1 9906-9906 ● ● ●
154 NUT; CLEVIS,CONT CYL
M8 FLANGE 		0-91150-108-0 02 1 9907- ● ●
159 COLLAR; CONT CYL 1-22199-151-0 02 1 9906-9906 ● ● ●
159 COLLAR; CONT CYL 1-22199-151-0 02 1 9907- ● ●
160 JOINT; CONT CYL 1-22199-164-0 01 1 9906-9906 ● ● ●
160 JOINT; CONT CYL 1-22199-164-0 01 1 9907- ● ●
161 PROTECTOR; CONT CYL 1-22199-146-0 01 1 9906- ●
162 GUIDE; CONT CYL 1-22199-147-0 01 1 9906- ●
163 WASHER; CONT CYL
(A) 		1-22199-148-0 01 1 9906- ●
163 WASHER; CONT CYL
(B) 		1-22199-179-0 01 1 9906- ●

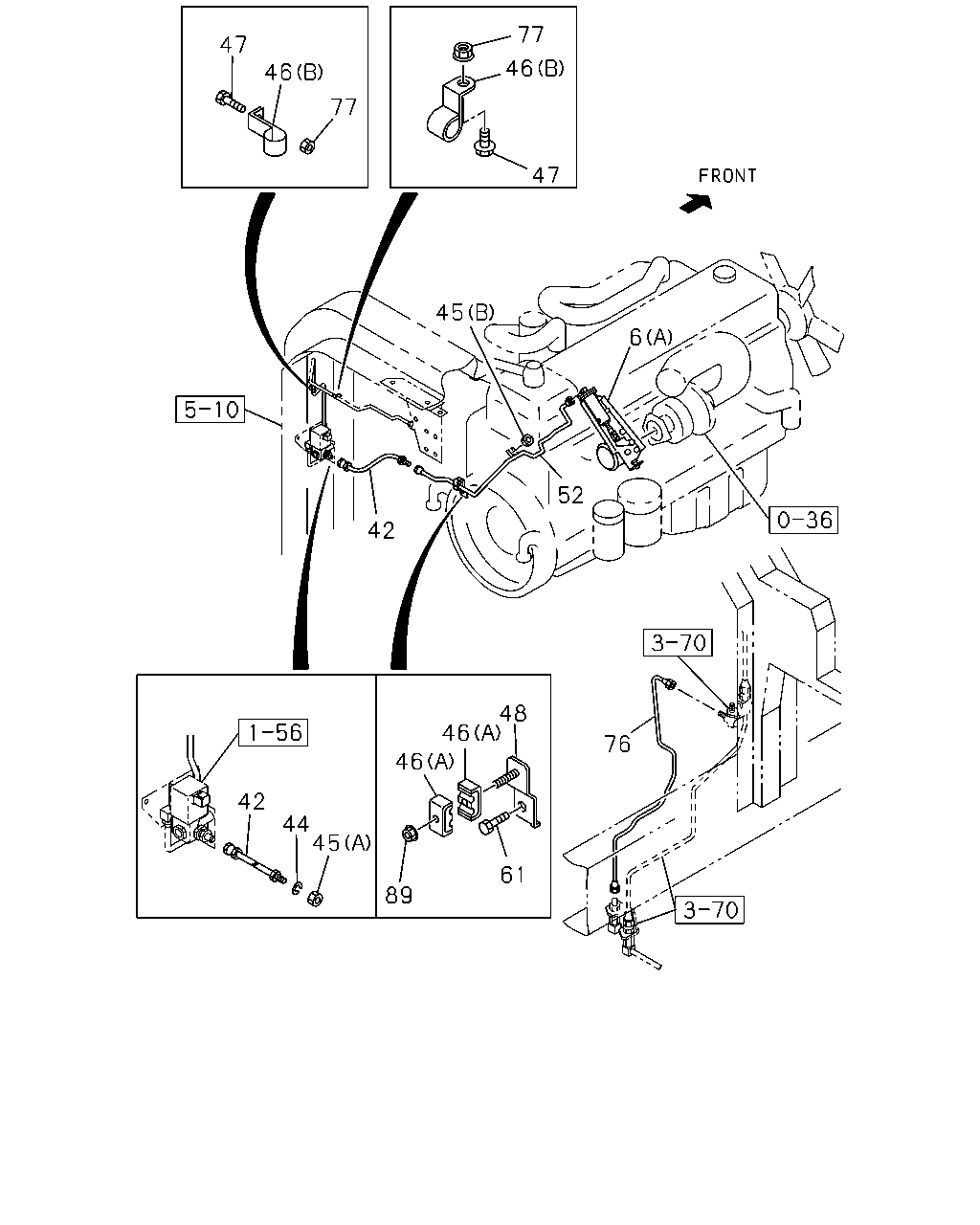

çizim 42773
77 47 46 46 77 47 45 6 52 42 48 46 76 46 42 44 45 61 89
BalonParca AdiParca NoAdetTipApplied Date A B C
6 VALVE; EXH BRAKE
(A) 		1-14144-603-3 01 1 9906-9906 ● ●
6 VALVE; EXH BRAKE
(A) 		1-14144-603-3 01 1 9907- ●
6 VALVE; EXH BRAKE
(B) 		1-14144-616-0 01 1 9906-9906 ● ●
6 VALVE; EXH BRAKE
(B) 		1-14144-616-0 01 1 9907- ●
6 VALVE; EXH BRAKE
(B) 		1-22181-154-0 01 1 9906- ●
6 VALVE; EXH BRAKE
(A) 		1-22190-646-0 01 1 9906- ●
42 HOSE; FLEX,EXH BRK
L=320 		1-09363-656-0 01 1 9906- ● ● ●
44 WASHER; LK,FLEX HOSE
ID=12.2 		9-09150-512-0 01 1 9906- ● ● ●
45 NUT; FLEX HOSE
(A) M8 FLANGE 		0-91150-108-0 01 1 9906-9906 ● ● ●
45 NUT; FLEX HOSE
(A) M8 FLANGE 		0-91150-108-0 01 1 9907- ● ●
45 NUT; FLEX HOSE
(B) M12 		9-09840-280-0 01 1 9906- ● ● ●
46 CLIP; AIR PIPE
(A) 		1-09701-132-1 02 1 9906-9906 ● ● ●
46 CLIP; AIR PIPE
(A) 		1-09701-132-1 02 1 9907- ● ●
46 CLIP; AIR PIPE
WHEEL BASE 4700MM(47W) (B) ID=6 H=20 L=20 		1-09700-603-0 02 1 9906- ● ● ●
47 BOLT; CLIP
WHEEL BASE 4700MM(47W) M8X25 FLANGE 		0-28680-825-0 02 1 9906- ● ● ●
48 BRACKET; AIR PIPE 1-47477-407-0 01 1 9906-9906 ● ● ●
48 BRACKET; AIR PIPE 1-47477-407-0 01 1 9907- ● ●
52 PIPE ASM; AIR FLEX HOSE 1-19192-904-0 01 1 9906- ● ● ●
61 BOLT; BRKT AIR PIPE
M14X20 FLANGE 		0-28981-420-0 01 1 9906-9906 ● ● ●
61 BOLT; BRKT AIR PIPE
M14X20 FLANGE 		0-28981-420-0 01 1 9907- ● ●
76 PIPE ASM; AIR UNION TO UNION
WHEEL BASE 4500MM(45W) L=794 SERVICED BY L=800 		1-47428-812-0 01 1 9906- ● ● ●
76 PIPE ASM; AIR UNION TO UNION
WHEEL BASE 4700MM(47W) L=708 SERVICED BY L=800 		1-47428-812-0 01 1 9906- ● ● ●
77 NUT; CLIP
WHEEL BASE 4700MM(47W) M8 FLANGE 		0-91150-108-0 02 1 9906- ● ● ●
89 NUT; BRKT
M6 FLANGE 		0-91150-106-0 01 1 9906-9906 ● ● ●
89 NUT; BRKT
M6 FLANGE 		0-91150-106-0 01 1 9907- ● ●
