1-31 — AIR DUCT (#62678) — 99 parça

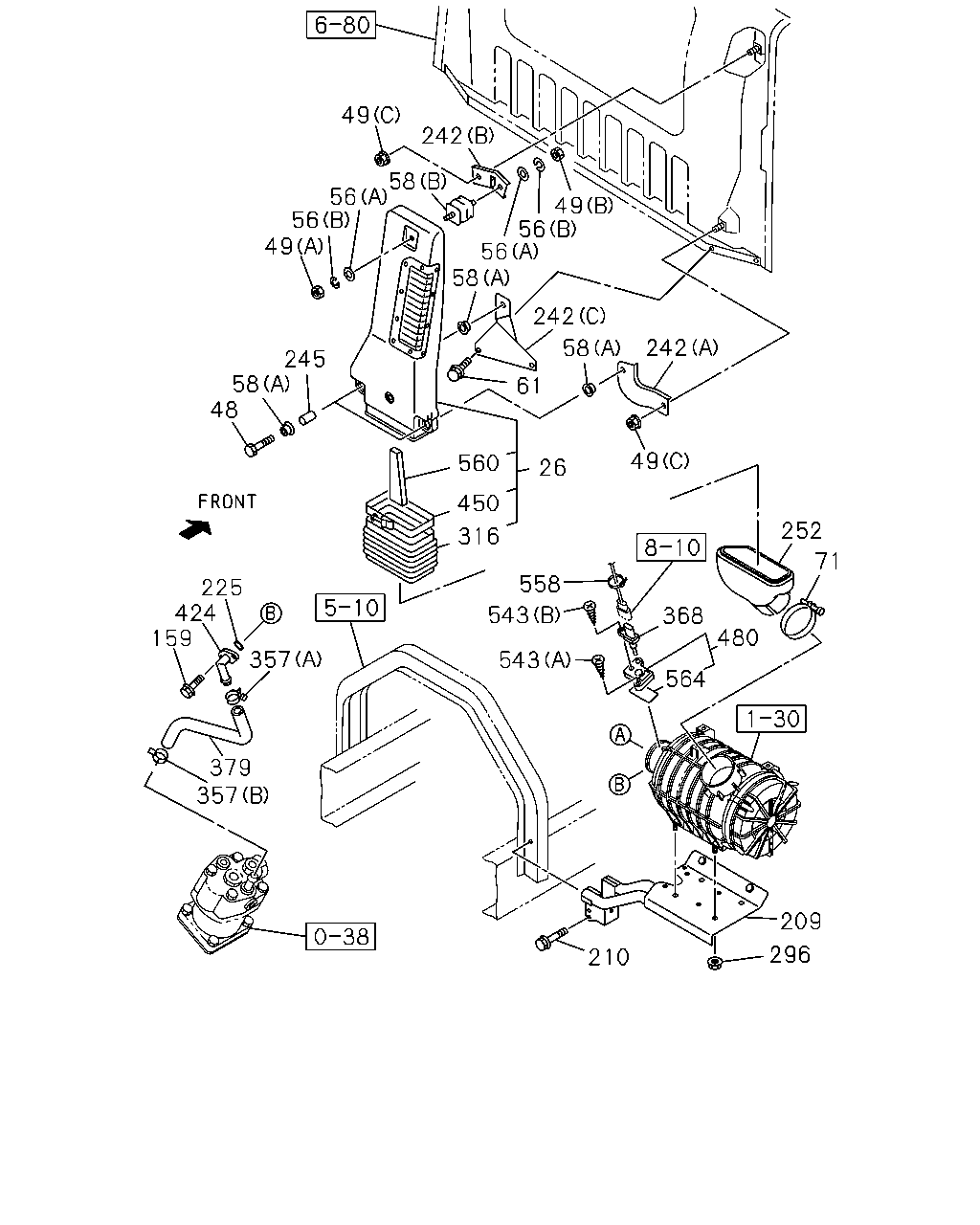

çizim 145848
49 242 49 56 56 58 49 56 56 58 242 58 242 245 61 58 48 560 26 450 316 49 252 71 368 480 564 209 296 210 357 379 159 424 225 357 543 543 558
BalonParca AdiParca NoAdetTipApplied Date A B
26 DUCT; AIR INT 8-98010-361-2 01 1 1108- ● ●
48 BOLT; AIR DUCT
M10X26 		1-09030-044-1 02 1 1108- ● ●
49 NUT; AIR DUCT
(B) M8 FLANGE 		1-09984-122-0 01 1 1108- ● ●
49 NUT; AIR DUCT
(A) M8 FLANGE 		1-09984-126-0 01 1 1108- ● ●
49 NUT; AIR DUCT
(C) M8 FLANGE IDN 		8-94279-517-0 02 1 1108- ● ●
56 WASHER; LK,AIR INT DUCT
(A) ID=8.2 		1-09985-177-0 02 1 1108- ● ●
56 WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22 		1-09985-188-0 02 1 1108- ● ●
58 SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5 		1-14119-267-0 04 1 1108- ● ●
58 SUPPORT; AIR INL DUCT
(B) 		8-98125-944-1 01 1 1108- ● ●
61 BOLT; BRKT,AIR DUCT
M8X25 FLANGE 		8-98074-570-0 02 1 1108- ● ●
71 CLIP; AIR DUCT
ID=140-160 		8-98133-368-0 01 1 1310- ●
71 CLIP; AIR DUCT
ID=120-140 		8-98133-367-0 01 1 1108- ●
159 BOLT; AIR PIPE
M6X16 FLANGE IDN 		0-28050-616-0 02 1 1108- ●
209 BRACKET; ACL 8-98021-995-1 01 1 1108- ● ●
210 BOLT; ACL BRKT
M10X25 FLANGE IDN 		0-28651-025-0 04 1 1108- ● ●
225 GASKET; AIR PIPE
ID=24.4 		1-09623-057-0 01 1 1108- ●
242 BRACKET; AIR DUCT
(B) 		8-98019-301-3 01 1 1108- ● ●
242 BRACKET; AIR DUCT
(C) 		8-98019-302-1 01 1 1108- ● ●
242 BRACKET; AIR DUCT
(A) 		8-98019-304-1 01 1 1108- ● ●
245 PIECE; DIST,AIR DUCT 1-79998-228-0 02 1 1108- ● ●
252 DUCT; AIR INT 8-98021-989-1 01 1 1310- ●
252 DUCT; AIR INT 8-98012-861-1 01 1 1108- ●
296 NUT; ACL
M8 FLANGE 		0-91180-108-0 04 1 1108- ● ●
316 RUBBER; CUSHION,DUCT 8-98152-269-0 01 1 1108- ● ●
357 CLIP; RUBBER HOSE
(A) ID=26 		1-09707-091-0 01 1 1108-1309 ●
357 CLIP; RUBBER HOSE
(A) ID=26 		1-09707-091-0 01 1 1310- ● ●
357 CLIP; RUBBER HOSE
(B) ID=29.5 		8-97354-979-0 01 1 1108-1309 ●
357 CLIP; RUBBER HOSE
(B) ID=29.5 		8-97354-979-0 01 1 1310- ● ●
368 SENSOR; TEMP 8-98065-377-0 01 1 1108-1309 ●
368 SENSOR; TEMP 8-98065-377-0 01 1 1310- ● ●
379 HOSE; RUBBER
IDN 		8-97639-463-0 01 1 1310- ●
379 HOSE; RUBBER 8-97619-194-0 01 1 1108- ●
424 PIPE; AIR,INL 8-98081-834-0 01 1 1108- ●
450 CLAMP; HOSE 9-09915-504-1 01 1 1108- ● ●
480 ADAPTER 8-98086-417-0 01 1 1108-1309 ●
480 ADAPTER 8-98086-417-0 01 1 1310- ● ●
543 SCREW; SENSOR
(B) M5X14 W/LK WASHER 		0-36220-514-0 01 1 1108-1309 ●
543 SCREW; SENSOR
(B) M5X14 W/LK WASHER 		0-36220-514-0 01 1 1310- ● ●
543 SCREW; SENSOR
(A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1108-1309 ●
543 SCREW; SENSOR
(A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1310- ● ●
558 CLIP; AIR FLOW SENSOR
L=600 		1-09707-107-1 01 1 1108- ● ●
558 CLIP; AIR FLOW SENSOR
L=250 IDN 		5-09707-030-1 02 1 1108- ● ●
560 FILTER; VERTICAL DUCT 8-98061-675-0 01 1 1108- ● ●
564 GASKET; ADAPTER 8-98071-416-0 01 1 1108-1309 ●
564 GASKET; ADAPTER 8-98071-416-0 01 1 1310- ● ●

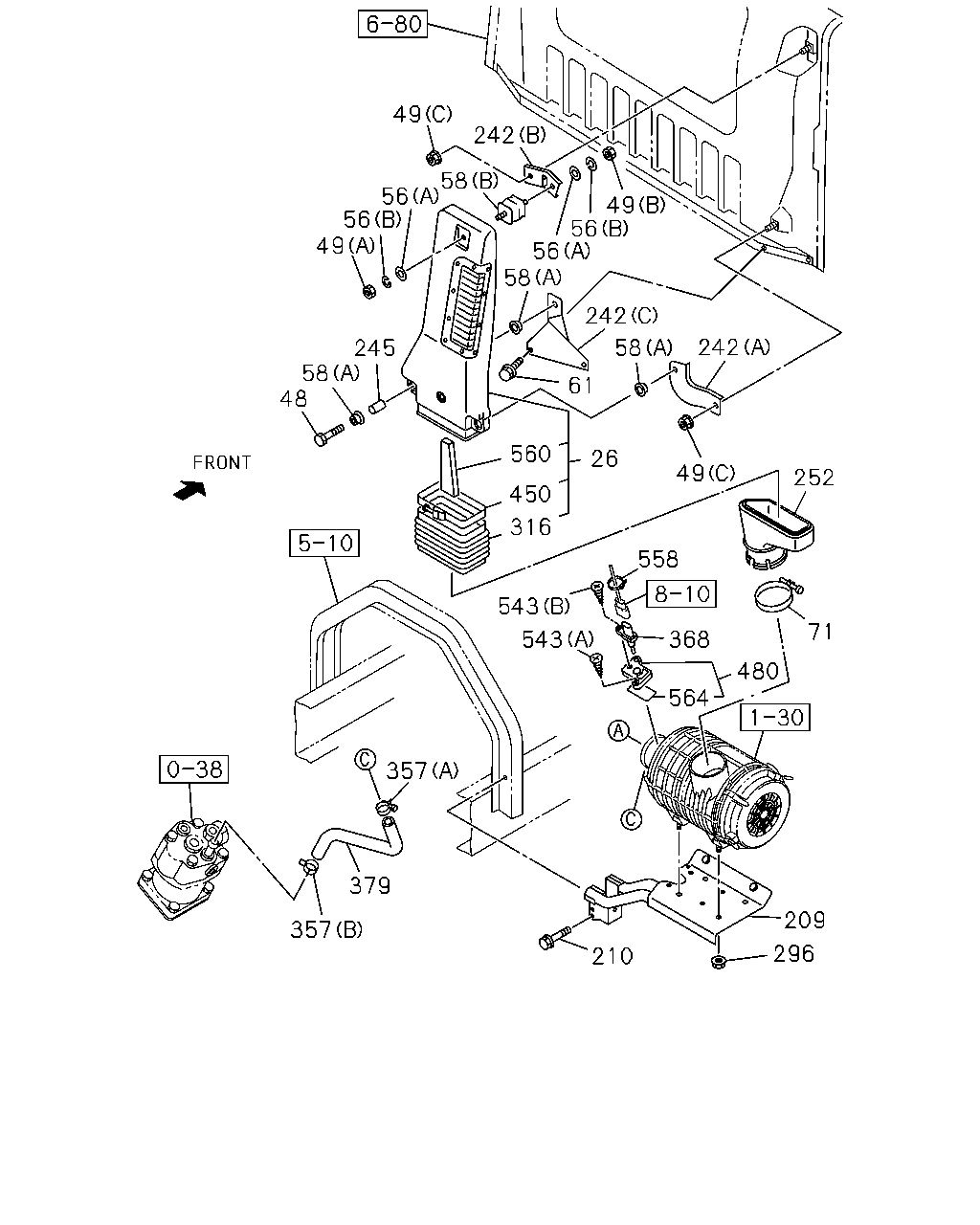

çizim 145881
48 58 245 49 56 56 58 242 49 49 56 56 58 560 450 316 543 543 357 379 357 210 296 209 564 368 71 480 252 558 49 26 58 61 242 242
BalonParca AdiParca NoAdetTipApplied Date A B
26 DUCT; AIR INT 8-98010-361-2 01 1 1108- ● ●
48 BOLT; AIR DUCT
M10X26 		1-09030-044-1 02 1 1108- ● ●
49 NUT; AIR DUCT
(B) M8 FLANGE 		1-09984-122-0 01 1 1108- ● ●
49 NUT; AIR DUCT
(A) M8 FLANGE 		1-09984-126-0 01 1 1108- ● ●
49 NUT; AIR DUCT
(C) M8 FLANGE IDN 		8-94279-517-0 02 1 1108- ● ●
56 WASHER; LK,AIR INT DUCT
(A) ID=8.2 		1-09985-177-0 02 1 1108- ● ●
56 WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22 		1-09985-188-0 02 1 1108- ● ●
58 SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5 		1-14119-267-0 04 1 1108- ● ●
58 SUPPORT; AIR INL DUCT
(B) 		8-98125-944-1 01 1 1108- ● ●
61 BOLT; BRKT,AIR DUCT
M8X25 FLANGE 		8-98074-570-0 02 1 1108- ● ●
71 CLIP; AIR DUCT
ID=140-160 		8-98133-368-0 01 1 1310- ●
71 CLIP; AIR DUCT
ID=120-140 		8-98133-367-0 01 1 1108- ●
209 BRACKET; ACL 8-98021-995-1 01 1 1108- ● ●
210 BOLT; ACL BRKT
M10X25 FLANGE IDN 		0-28651-025-0 04 1 1108- ● ●
242 BRACKET; AIR DUCT
(B) 		8-98019-301-3 01 1 1108- ● ●
242 BRACKET; AIR DUCT
(C) 		8-98019-302-1 01 1 1108- ● ●
242 BRACKET; AIR DUCT
(A) 		8-98019-304-1 01 1 1108- ● ●
245 PIECE; DIST,AIR DUCT 1-79998-228-0 02 1 1108- ● ●
252 DUCT; AIR INT 8-98021-989-1 01 1 1310- ●
252 DUCT; AIR INT 8-98012-861-1 01 1 1108- ●
296 NUT; ACL
M8 FLANGE 		0-91180-108-0 04 1 1108- ● ●
316 RUBBER; CUSHION,DUCT 8-98152-269-0 01 1 1108- ● ●
357 CLIP; RUBBER HOSE
(A) ID=26 		1-09707-091-0 01 1 1108-1309 ●
357 CLIP; RUBBER HOSE
(A) ID=26 		1-09707-091-0 01 1 1310- ● ●
357 CLIP; RUBBER HOSE
(B) ID=29.5 		8-97354-979-0 01 1 1108-1309 ●
357 CLIP; RUBBER HOSE
(B) ID=29.5 		8-97354-979-0 01 1 1310- ● ●
368 SENSOR; TEMP 8-98065-377-0 01 1 1108-1309 ●
368 SENSOR; TEMP 8-98065-377-0 01 1 1310- ● ●
379 HOSE; RUBBER
IDN 		8-97639-463-0 01 1 1310- ●
379 HOSE; RUBBER 8-97619-194-0 01 1 1108- ●
450 CLAMP; HOSE 9-09915-504-1 01 1 1108- ● ●
480 ADAPTER 8-98086-417-0 01 1 1108-1309 ●
480 ADAPTER 8-98086-417-0 01 1 1310- ● ●
543 SCREW; SENSOR
(B) M5X14 W/LK WASHER 		0-36220-514-0 01 1 1108-1309 ●
543 SCREW; SENSOR
(B) M5X14 W/LK WASHER 		0-36220-514-0 01 1 1310- ● ●
543 SCREW; SENSOR
(A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1108-1309 ●
543 SCREW; SENSOR
(A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1310- ● ●
558 CLIP; AIR FLOW SENSOR
L=600 		1-09707-107-1 01 1 1108- ● ●
558 CLIP; AIR FLOW SENSOR
L=250 IDN 		5-09707-030-1 02 1 1108- ● ●
560 FILTER; VERTICAL DUCT 8-98061-675-0 01 1 1108- ● ●
564 GASKET; ADAPTER 8-98071-416-0 01 1 1108-1309 ●
564 GASKET; ADAPTER 8-98071-416-0 01 1 1310- ● ●

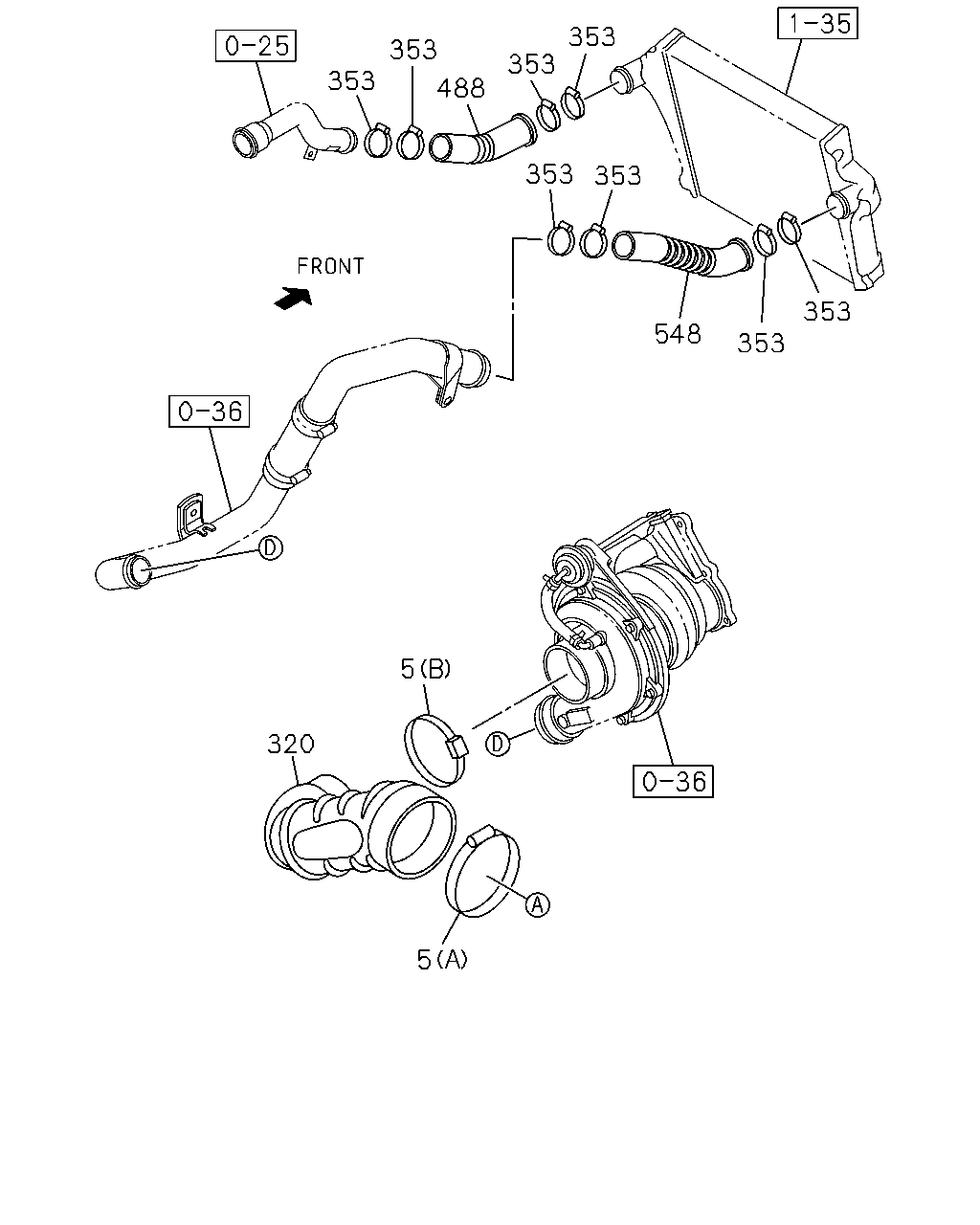

çizim 379484
353 353 488 353 353 353 353 548 353 353 5 320 5
BalonParca AdiParca NoAdetTipApplied Date A B
5 CLIP; AIR DUCT
(A) ID=130-150 		8-98133-360-0 01 1 1310- ●
5 CLIP; AIR DUCT
(A) ID=110-130 		8-98133-359-0 01 1 1108- ●
5 CLIP; AIR DUCT
(B) ID=90-110 		8-98133-365-0 01 1 1108-1309 ●
5 CLIP; AIR DUCT
(B) ID=90-110 		8-98133-365-0 01 1 1310- ● ●
320 HOSE; CONN,ACL
IDN 		8-98073-259-0 01 1 1310- ●
320 HOSE; CONN,ACL
IDN 		8-98073-257-0 01 1 1108- ●
353 CLIP; RUBBER HOSE
ID=55-75 		8-98133-349-0 08 1 1108-1309 ●
353 CLIP; RUBBER HOSE
ID=55-75 		8-98133-349-0 08 1 1310- ● ●
488 HOSE; RUBBER,PIPE 8-98012-936-1 01 1 1108-1309 ●
488 HOSE; RUBBER,PIPE 8-98012-936-1 01 1 1310- ● ●
548 HOSE; RUBBER,TURBO TO INL PIPE
IDN 		8-98181-974-1 01 1 1108-1309 ●
548 HOSE; RUBBER,TURBO TO INL PIPE
IDN 		8-98181-974-1 01 1 1310- ● ●
