◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11391 - FVM(INDONESIA)6HK1 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-30 - AIR CLEANER ▶
1-30 — AIR CLEANER (#62677) — 30 parça

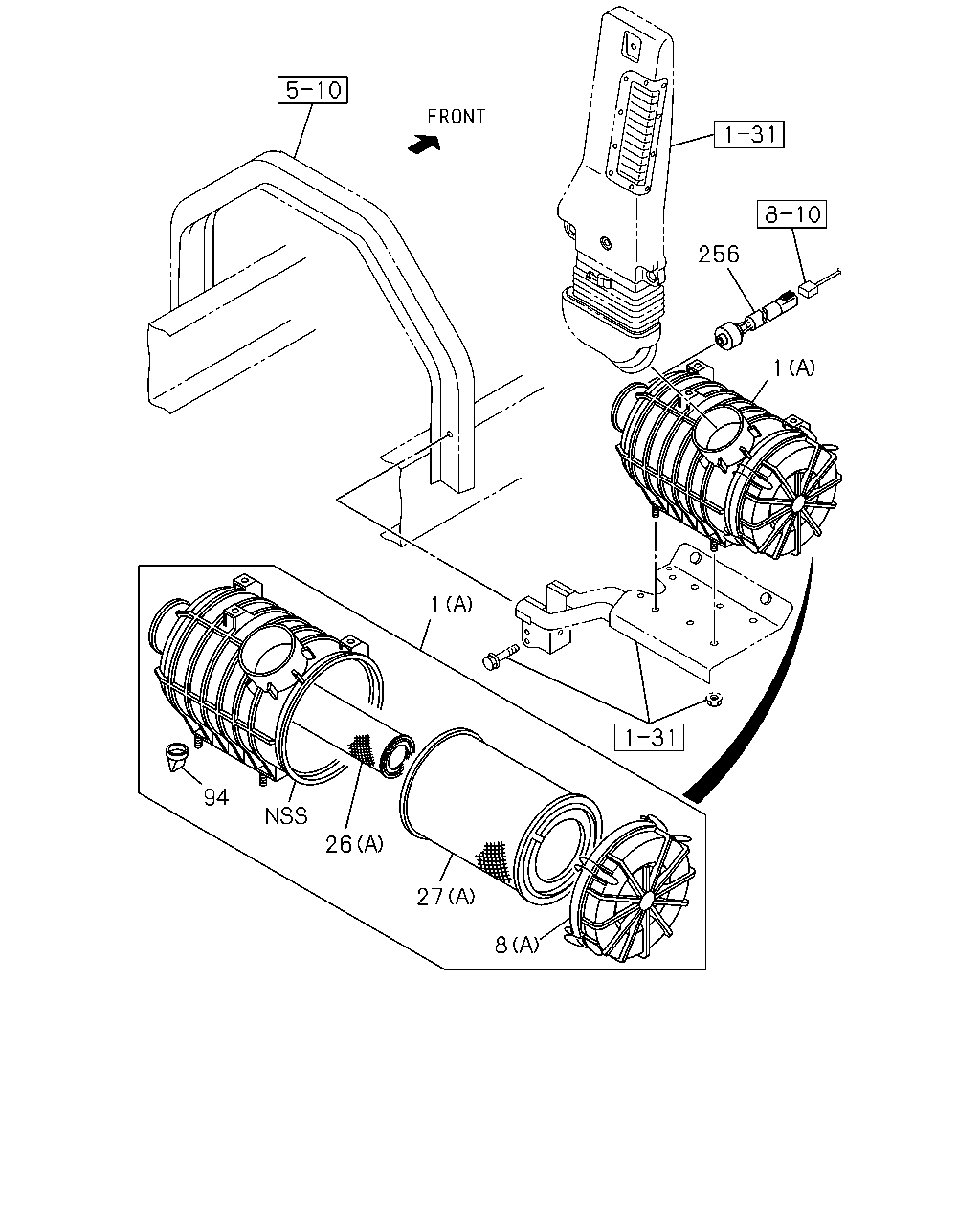

çizim 145842
256 1 1 94 26 27 8
BalonParca AdiParca NoAdetTipApplied Date A B
1 CLEANER ASM; AIR
(B) 		8-98057-666-3 01 1 1310- ●
1 CLEANER ASM; AIR
(A) 		8-98082-165-1 01 1 1108- ●
8 COVER ASM; ACL
(B) IDN 		8-98066-739-0 01 1 1310- ●
8 COVER ASM; ACL
(A) IDN 		8-98066-740-0 01 1 1108- ●
26 FILTER; ACL,INNER
(A) BEST VALUE PARTS 		1-87610-114-0 01 1 1108- ●
26 FILTER; ACL,INNER
(B) BEST VALUE PARTS 		1-87610-116-0 01 1 1310- ●
26 FILTER; ACL,INNER
(B) 		8-98071-424-0 01 1 1310- ●
26 FILTER; ACL,INNER
(A) 		8-98071-422-0 01 1 1108- ●
27 FILTER; ACL,OUTER
(A) BEST VALUE PARTS 		1-87610-113-0 01 1 1108- ●
27 FILTER; ACL,OUTER
(B) BEST VALUE PARTS 		1-87610-115-0 01 1 1310- ●
27 FILTER; ACL,OUTER
(B) DRY TYPE 		8-98071-423-0 01 1 1310- ●
27 FILTER; ACL,OUTER
(A) DRY TYPE 		8-98071-421-0 01 1 1108- ●
94 VALVE; VACUATOR
IDN 		1-14219-279-0 01 1 1108-1309 ●
94 VALVE; VACUATOR
IDN 		1-14219-279-0 01 1 1310- ● ●
256 SENSOR; AIRFLOW 8-98152-742-1 01 1 1108- ● ●

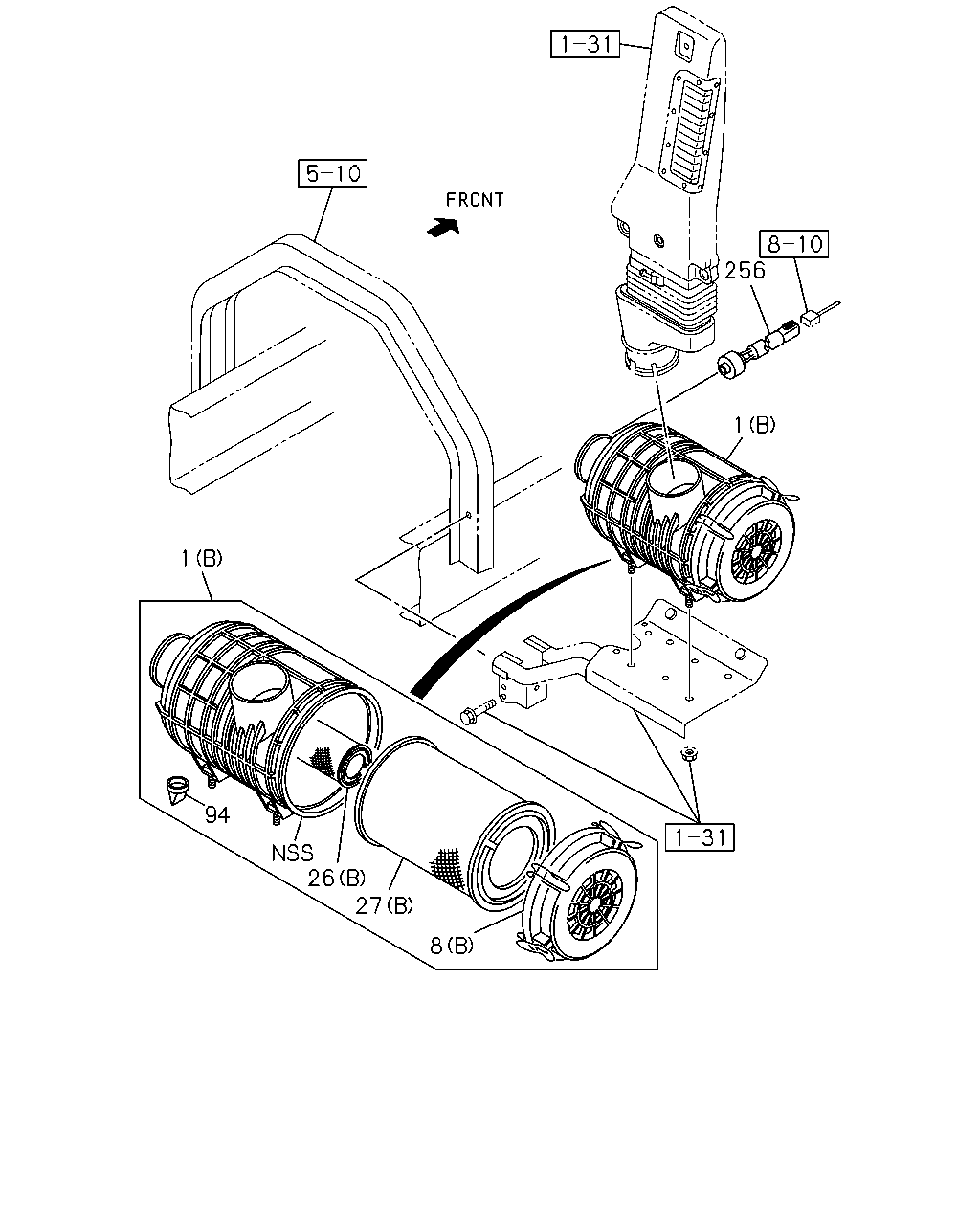

çizim 379398
256 1 1 94 26 27 8
BalonParca AdiParca NoAdetTipApplied Date A B
1 CLEANER ASM; AIR
(B) 		8-98057-666-3 01 1 1310- ●
1 CLEANER ASM; AIR
(A) 		8-98082-165-1 01 1 1108- ●
8 COVER ASM; ACL
(B) IDN 		8-98066-739-0 01 1 1310- ●
8 COVER ASM; ACL
(A) IDN 		8-98066-740-0 01 1 1108- ●
26 FILTER; ACL,INNER
(A) BEST VALUE PARTS 		1-87610-114-0 01 1 1108- ●
26 FILTER; ACL,INNER
(B) BEST VALUE PARTS 		1-87610-116-0 01 1 1310- ●
26 FILTER; ACL,INNER
(B) 		8-98071-424-0 01 1 1310- ●
26 FILTER; ACL,INNER
(A) 		8-98071-422-0 01 1 1108- ●
27 FILTER; ACL,OUTER
(A) BEST VALUE PARTS 		1-87610-113-0 01 1 1108- ●
27 FILTER; ACL,OUTER
(B) BEST VALUE PARTS 		1-87610-115-0 01 1 1310- ●
27 FILTER; ACL,OUTER
(B) DRY TYPE 		8-98071-423-0 01 1 1310- ●
27 FILTER; ACL,OUTER
(A) DRY TYPE 		8-98071-421-0 01 1 1108- ●
94 VALVE; VACUATOR
IDN 		1-14219-279-0 01 1 1108-1309 ●
94 VALVE; VACUATOR
IDN 		1-14219-279-0 01 1 1310- ● ●
256 SENSOR; AIRFLOW 8-98152-742-1 01 1 1108- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
