7-20 — MIRROR AND MIRROR STAY (#62674) — 133 parça

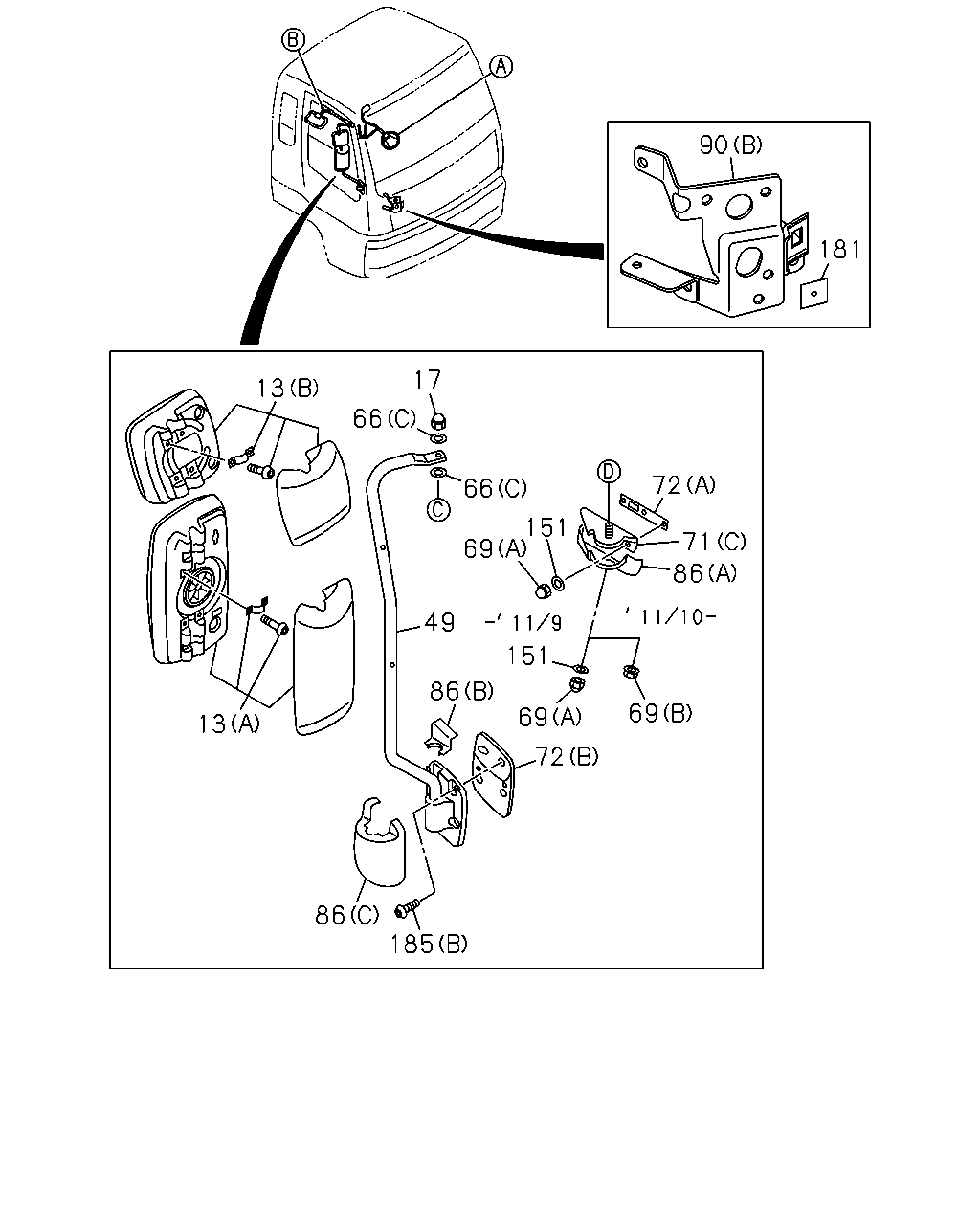

çizim 170383
90 181 13 66 17 66 69 151 72 71 86 49 13 86 185 72 69 69 151 86
BalonParca AdiParca NoAdetTipApplied Date A B
13 MIRROR ASM; OUTSIDE RR VIEW
(B) 		8-98162-676-1 02 1 1008- ● ●
13 MIRROR ASM; OUTSIDE RR VIEW
(A) 		8-98043-172-2 01 1 1008- ● ●
13 MIRROR ASM; OUTSIDE RR VIEW
(A) 		8-98043-056-2 01 1 1008- ● ●
17 NUT; CAP,MIRROR STAY
M10 CAP NUT 		1-09984-134-0 03 1 1411- ● ●
17 NUT; CAP,MIRROR STAY
M10 CAP NUT 		1-09984-134-0 05 1 1008-1410 ● ●
17 NUT; CAP,MIRROR STAY
M10 CAP NUT 		1-09984-134-0 02 1 1411- ● ●
49 STAY; MIRROR SIDE 8-98138-909-1 01 1 1008-1310 ● ●
49 STAY; MIRROR SIDE 8-98234-648-0 01 1 1311- ● ●
49 STAY; MIRROR SIDE 8-98138-906-1 01 1 1008-1310 ● ●
49 STAY; MIRROR SIDE 8-98234-647-0 01 1 1311- ● ●
66 WASHER; PL
(C) ID=10.5 OD=26 T=2.6 		1-09985-204-0 04 1 1008- ● ●
66 WASHER; PL
(B) ID=10.5 OD=26 T=2.6 		1-09985-184-0 06 1 1008- ● ●
66 WASHER; PL
(A) ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 02 1 1008- ● ●
69 NUT; CAP
(B) M8 CAP NUT FLANGE 		8-98197-000-0 02 1 1110- ● ●
69 NUT; CAP
(A) M8 CAP NUT 		8-98059-914-0 08 1 1008-1109 ● ●
69 NUT; CAP
(A) M8 CAP NUT 		8-98059-914-0 06 1 1110- ● ●
71 BRACKET; OUTSIDE MIRROR
(C) 		8-98144-750-0 01 1 1008-1109 ● ●
71 BRACKET; OUTSIDE MIRROR
(C) 		8-98197-133-0 01 1 1110- ● ●
71 BRACKET; OUTSIDE MIRROR
(B) 		8-98167-111-0 01 1 1008- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		1-71707-263-0 01 1 1008- ● ●
71 BRACKET; OUTSIDE MIRROR
(C) 		8-98144-749-0 01 1 1008-1109 ● ●
71 BRACKET; OUTSIDE MIRROR
(C) 		8-98197-132-0 01 1 1110- ● ●
71 BRACKET; OUTSIDE MIRROR
(B) 		8-98154-718-2 01 1 1008- ● ●
72 SHEET
(A) 		8-98147-891-0 02 1 1008- ● ●
72 SHEET
(B) 		8-98116-605-0 01 1 1008- ● ●
72 SHEET
(B) 		8-98116-604-0 01 1 1008- ● ●
86 COVER; STAY,OUTSIDE MIRROR
(C) 		8-98031-803-2 01 1 1008- ● ●
86 COVER; STAY,OUTSIDE MIRROR
(B) 		8-98031-806-0 01 1 1008- ● ●
86 COVER; STAY,OUTSIDE MIRROR
(A) 		8-98151-197-0 01 1 1008- ● ●
86 COVER; STAY,OUTSIDE MIRROR
(C) 		8-98031-802-2 01 1 1008- ● ●
86 COVER; STAY,OUTSIDE MIRROR
(B) 		8-98031-805-0 01 1 1008- ● ●
86 COVER; STAY,OUTSIDE MIRROR
(A) 		8-98151-196-0 01 1 1008- ● ●
90 BRACKET; MIRROR STAY
(A) 		8-98147-160-1 02 1 1008- ● ●
90 BRACKET; MIRROR STAY
(B) 		1-71798-829-1 01 1 1008- ● ●
90 BRACKET; MIRROR STAY
(B) 		1-71707-237-0 01 1 1008- ● ●
151 WASHER; PL,MIRROR
ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 06 1 1008- ● ●
181 SEAL; BRKT
25X25 		8-94272-533-0 02 1 1008- ● ●
185 BOLT; BRKT
(B) M8X23 		8-97310-216-1 08 1 1008- ● ●
185 BOLT; BRKT
(A) M5X16 		1-71707-259-0 02 1 1008- ● ●
çizim 170387
1 2 150
BalonParca AdiParca NoAdetTipApplied Date A B
1 MIRROR; ROOM 1-73117-033-1 01 1 1008- ● ●
2 SCREW; MIRROR TO BODY
M6X20 		1-09981-310-0 02 1 1008- ● ●
150 PLUG; MIRROR HOLE
EXC. RR VIEW MIRROR<D31> OD=6 L=17 LIGHT GRAY 		1-73996-301-0 02 1 1411- ● ●

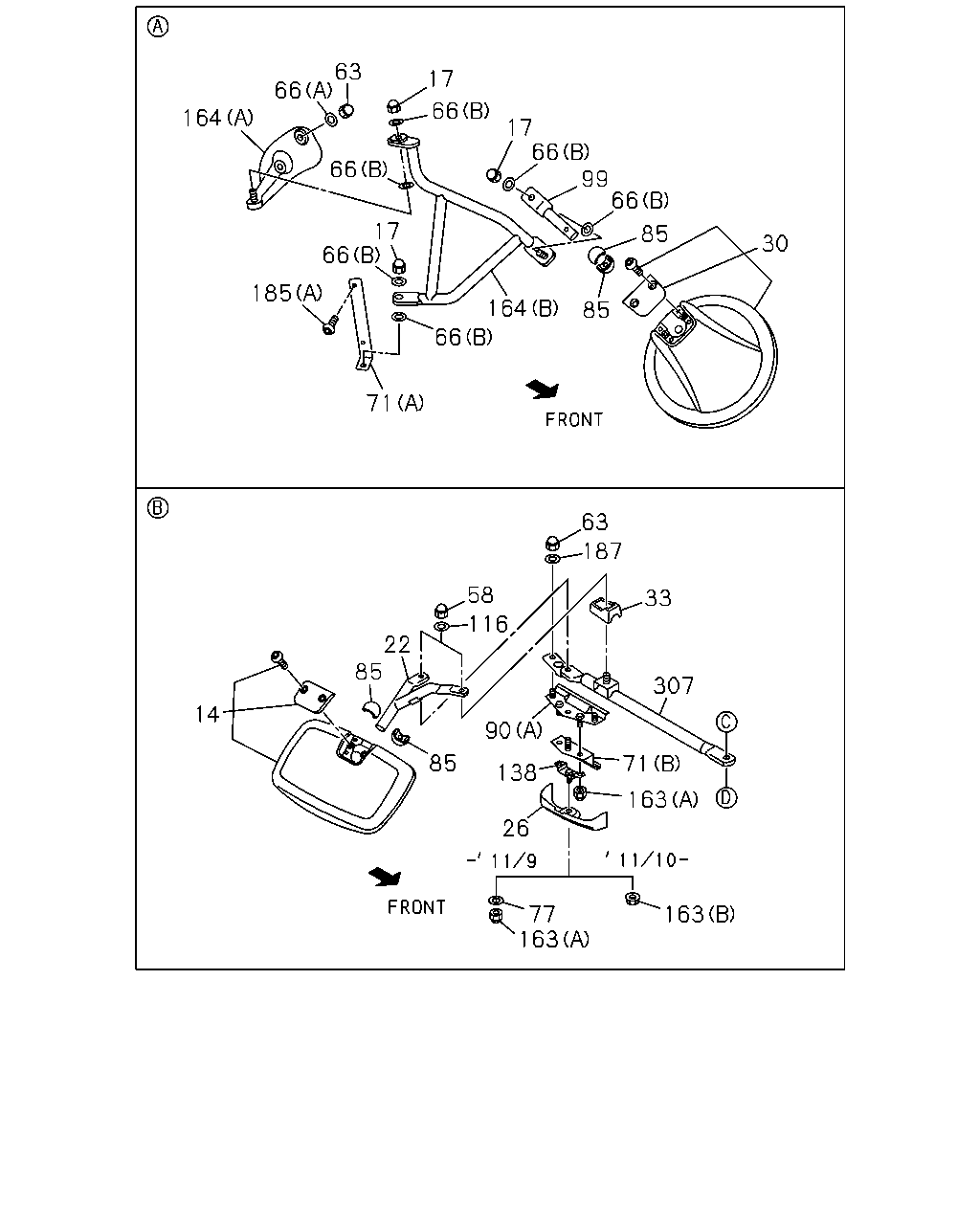

çizim 170405
17 66 66 17 99 66 85 30 85 164 66 71 66 17 185 66 63 66 164 58 63 187 33 307 71 163 163 163 77 85 138 90 116 22 85 14 26
BalonParca AdiParca NoAdetTipApplied Date A B
14 MIRROR ASM; OUTSIDE 8-98043-065-0 01 1 1008- ● ●
17 NUT; CAP,MIRROR STAY
M10 CAP NUT 		1-09984-134-0 03 1 1411- ● ●
17 NUT; CAP,MIRROR STAY
M10 CAP NUT 		1-09984-134-0 05 1 1008-1410 ● ●
17 NUT; CAP,MIRROR STAY
M10 CAP NUT 		1-09984-134-0 02 1 1411- ● ●
22 STAY; OUTSIDE MIRROR 8-98154-821-0 01 1 1008- ● ●
26 COVER; OUTSIDE MIRROR 8-98171-924-0 02 1 1008- ● ●
30 MIRROR; UNDER 8-98055-994-0 01 1 1008-1504 ● ●
30 MIRROR; UNDER 8-98309-725-0 01 1 1505- ● ●
33 COVER; MIRROR 8-98171-925-0 01 1 1008- ● ●
58 NUT; MIRROR STAY
M10 		1-09984-183-0 03 1 1008- ● ●
63 NUT; STAY
M8 		1-09984-187-0 06 1 1008- ● ●
66 WASHER; PL
(C) ID=10.5 OD=26 T=2.6 		1-09985-204-0 04 1 1008- ● ●
66 WASHER; PL
(B) ID=10.5 OD=26 T=2.6 		1-09985-184-0 06 1 1008- ● ●
66 WASHER; PL
(A) ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 02 1 1008- ● ●
71 BRACKET; OUTSIDE MIRROR
(C) 		8-98144-750-0 01 1 1008-1109 ● ●
71 BRACKET; OUTSIDE MIRROR
(C) 		8-98197-133-0 01 1 1110- ● ●
71 BRACKET; OUTSIDE MIRROR
(B) 		8-98167-111-0 01 1 1008- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		1-71707-263-0 01 1 1008- ● ●
71 BRACKET; OUTSIDE MIRROR
(C) 		8-98144-749-0 01 1 1008-1109 ● ●
71 BRACKET; OUTSIDE MIRROR
(C) 		8-98197-132-0 01 1 1110- ● ●
71 BRACKET; OUTSIDE MIRROR
(B) 		8-98154-718-2 01 1 1008- ● ●
77 WASHER; PL,BRKT,STAY
ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 02 1 1008-1109 ● ●
85 PIVOT; MAIN MIRROR
ID=19.1 		1-71737-633-2 02 1 1008- ● ●
85 PIVOT; MAIN MIRROR
ID=19.1 		1-71737-633-2 02 1 1008- ● ●
90 BRACKET; MIRROR STAY
(A) 		8-98147-160-1 02 1 1008- ● ●
90 BRACKET; MIRROR STAY
(B) 		1-71798-829-1 01 1 1008- ● ●
90 BRACKET; MIRROR STAY
(B) 		1-71707-237-0 01 1 1008- ● ●
99 STAY; MAIN UNDER MIRROR 8-98092-493-0 01 1 1008- ● ●
116 WASHER; PL,STAY,MIRROR
ID=10.5 OD=26 T=2.6 		1-09985-204-0 03 1 1008- ● ●
138 BRACKET; LWR,OUTSIDE MIRROR 8-98171-926-0 02 1 1008- ● ●
163 NUT; MIRROR BRKT
(B) M8 CAP NUT FLANGE 		8-98197-000-0 02 1 1110- ● ●
163 NUT; MIRROR BRKT
(A) M8 CAP NUT 		8-98059-914-0 06 1 1008-1109 ● ●
163 NUT; MIRROR BRKT
(A) M8 CAP NUT 		8-98059-914-0 04 1 1110- ● ●
164 STAY; ROOF
(A) 		1-71798-300-5 01 1 1008- ● ●
164 STAY; ROOF
(B) 		8-98138-918-1 01 1 1008- ● ●
185 BOLT; BRKT
(B) M8X23 		8-97310-216-1 08 1 1008- ● ●
185 BOLT; BRKT
(A) M5X16 		1-71707-259-0 02 1 1008- ● ●
187 WASHER; LK,BRKT
ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 04 1 1008- ● ●
307 STAY; MIRROR SUPPORT 8-98154-969-1 01 1 1008- ● ●
307 STAY; MIRROR SUPPORT 8-98154-968-2 01 1 1008- ● ●

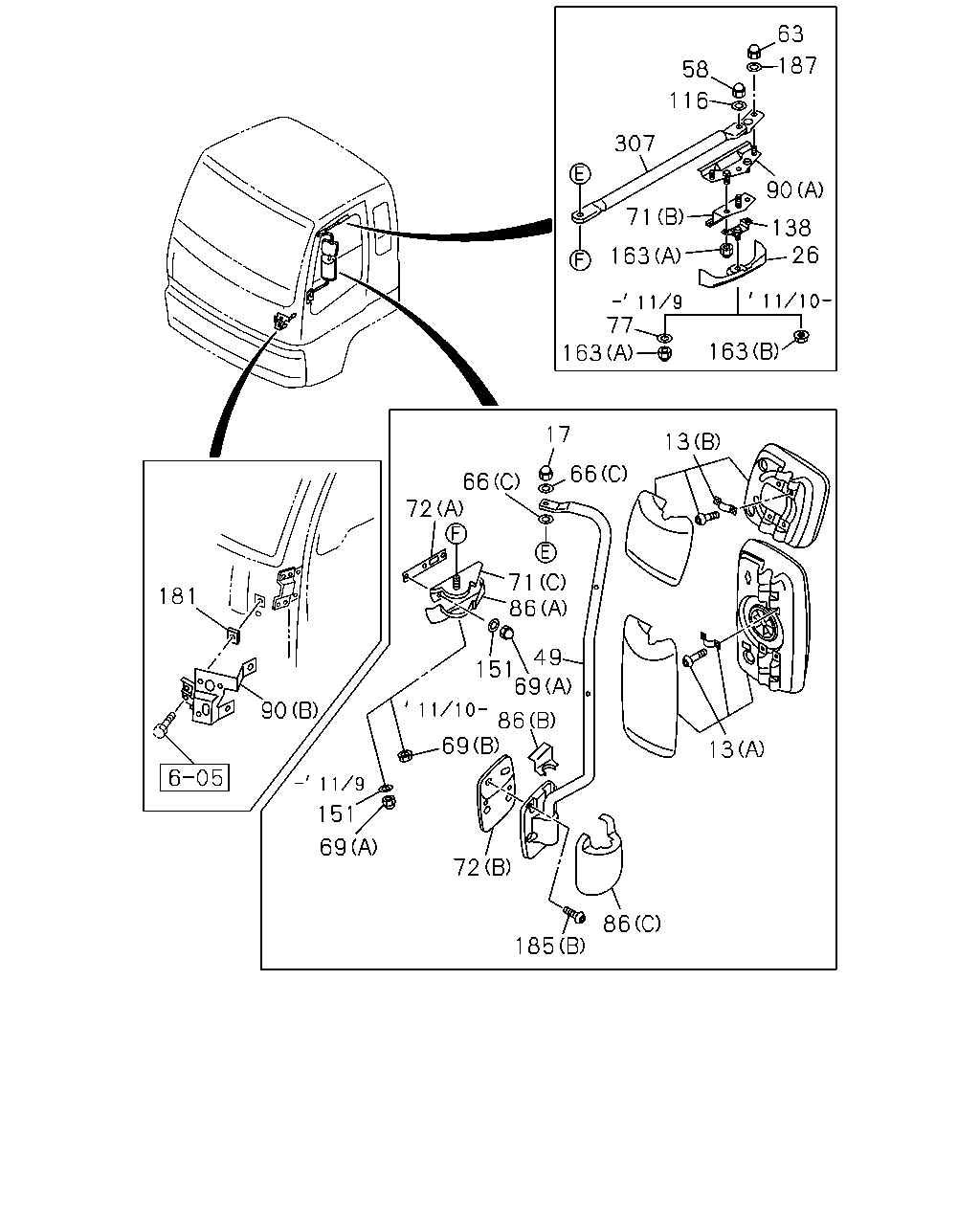

çizim 170411
63 187 58 116 307 90 138 71 26 163 163 163 77 13 66 17 66 72 71 86 49 69 151 86 13 72 69 86 185 69 151 90 181
BalonParca AdiParca NoAdetTipApplied Date A B
13 MIRROR ASM; OUTSIDE RR VIEW
(B) 		8-98162-676-1 02 1 1008- ● ●
13 MIRROR ASM; OUTSIDE RR VIEW
(A) 		8-98043-172-2 01 1 1008- ● ●
13 MIRROR ASM; OUTSIDE RR VIEW
(A) 		8-98043-056-2 01 1 1008- ● ●
17 NUT; CAP,MIRROR STAY
M10 CAP NUT 		1-09984-134-0 03 1 1411- ● ●
17 NUT; CAP,MIRROR STAY
M10 CAP NUT 		1-09984-134-0 05 1 1008-1410 ● ●
17 NUT; CAP,MIRROR STAY
M10 CAP NUT 		1-09984-134-0 02 1 1411- ● ●
26 COVER; OUTSIDE MIRROR 8-98171-924-0 02 1 1008- ● ●
49 STAY; MIRROR SIDE 8-98138-909-1 01 1 1008-1310 ● ●
49 STAY; MIRROR SIDE 8-98234-648-0 01 1 1311- ● ●
49 STAY; MIRROR SIDE 8-98138-906-1 01 1 1008-1310 ● ●
49 STAY; MIRROR SIDE 8-98234-647-0 01 1 1311- ● ●
58 NUT; MIRROR STAY
M10 		1-09984-183-0 03 1 1008- ● ●
63 NUT; STAY
M8 		1-09984-187-0 06 1 1008- ● ●
66 WASHER; PL
(C) ID=10.5 OD=26 T=2.6 		1-09985-204-0 04 1 1008- ● ●
66 WASHER; PL
(B) ID=10.5 OD=26 T=2.6 		1-09985-184-0 06 1 1008- ● ●
66 WASHER; PL
(A) ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 02 1 1008- ● ●
69 NUT; CAP
(B) M8 CAP NUT FLANGE 		8-98197-000-0 02 1 1110- ● ●
69 NUT; CAP
(A) M8 CAP NUT 		8-98059-914-0 08 1 1008-1109 ● ●
69 NUT; CAP
(A) M8 CAP NUT 		8-98059-914-0 06 1 1110- ● ●
71 BRACKET; OUTSIDE MIRROR
(C) 		8-98144-750-0 01 1 1008-1109 ● ●
71 BRACKET; OUTSIDE MIRROR
(C) 		8-98197-133-0 01 1 1110- ● ●
71 BRACKET; OUTSIDE MIRROR
(B) 		8-98167-111-0 01 1 1008- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		1-71707-263-0 01 1 1008- ● ●
71 BRACKET; OUTSIDE MIRROR
(C) 		8-98144-749-0 01 1 1008-1109 ● ●
71 BRACKET; OUTSIDE MIRROR
(C) 		8-98197-132-0 01 1 1110- ● ●
71 BRACKET; OUTSIDE MIRROR
(B) 		8-98154-718-2 01 1 1008- ● ●
72 SHEET
(A) 		8-98147-891-0 02 1 1008- ● ●
72 SHEET
(B) 		8-98116-605-0 01 1 1008- ● ●
72 SHEET
(B) 		8-98116-604-0 01 1 1008- ● ●
77 WASHER; PL,BRKT,STAY
ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 02 1 1008-1109 ● ●
86 COVER; STAY,OUTSIDE MIRROR
(C) 		8-98031-803-2 01 1 1008- ● ●
86 COVER; STAY,OUTSIDE MIRROR
(B) 		8-98031-806-0 01 1 1008- ● ●
86 COVER; STAY,OUTSIDE MIRROR
(A) 		8-98151-197-0 01 1 1008- ● ●
86 COVER; STAY,OUTSIDE MIRROR
(C) 		8-98031-802-2 01 1 1008- ● ●
86 COVER; STAY,OUTSIDE MIRROR
(B) 		8-98031-805-0 01 1 1008- ● ●
86 COVER; STAY,OUTSIDE MIRROR
(A) 		8-98151-196-0 01 1 1008- ● ●
90 BRACKET; MIRROR STAY
(A) 		8-98147-160-1 02 1 1008- ● ●
90 BRACKET; MIRROR STAY
(B) 		1-71798-829-1 01 1 1008- ● ●
90 BRACKET; MIRROR STAY
(B) 		1-71707-237-0 01 1 1008- ● ●
116 WASHER; PL,STAY,MIRROR
ID=10.5 OD=26 T=2.6 		1-09985-204-0 03 1 1008- ● ●
138 BRACKET; LWR,OUTSIDE MIRROR 8-98171-926-0 02 1 1008- ● ●
151 WASHER; PL,MIRROR
ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 06 1 1008- ● ●
163 NUT; MIRROR BRKT
(B) M8 CAP NUT FLANGE 		8-98197-000-0 02 1 1110- ● ●
163 NUT; MIRROR BRKT
(A) M8 CAP NUT 		8-98059-914-0 06 1 1008-1109 ● ●
163 NUT; MIRROR BRKT
(A) M8 CAP NUT 		8-98059-914-0 04 1 1110- ● ●
181 SEAL; BRKT
25X25 		8-94272-533-0 02 1 1008- ● ●
185 BOLT; BRKT
(B) M8X23 		8-97310-216-1 08 1 1008- ● ●
185 BOLT; BRKT
(A) M5X16 		1-71707-259-0 02 1 1008- ● ●
187 WASHER; LK,BRKT
ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 04 1 1008- ● ●
307 STAY; MIRROR SUPPORT 8-98154-969-1 01 1 1008- ● ●
307 STAY; MIRROR SUPPORT 8-98154-968-2 01 1 1008- ● ●
