◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11323 - CYZ LHD MIDDLE EAST EURO2 WITH 3STEPS ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-75 - MAT AND CARPET ▶
6-75 — MAT AND CARPET (#62664) — 19 parça

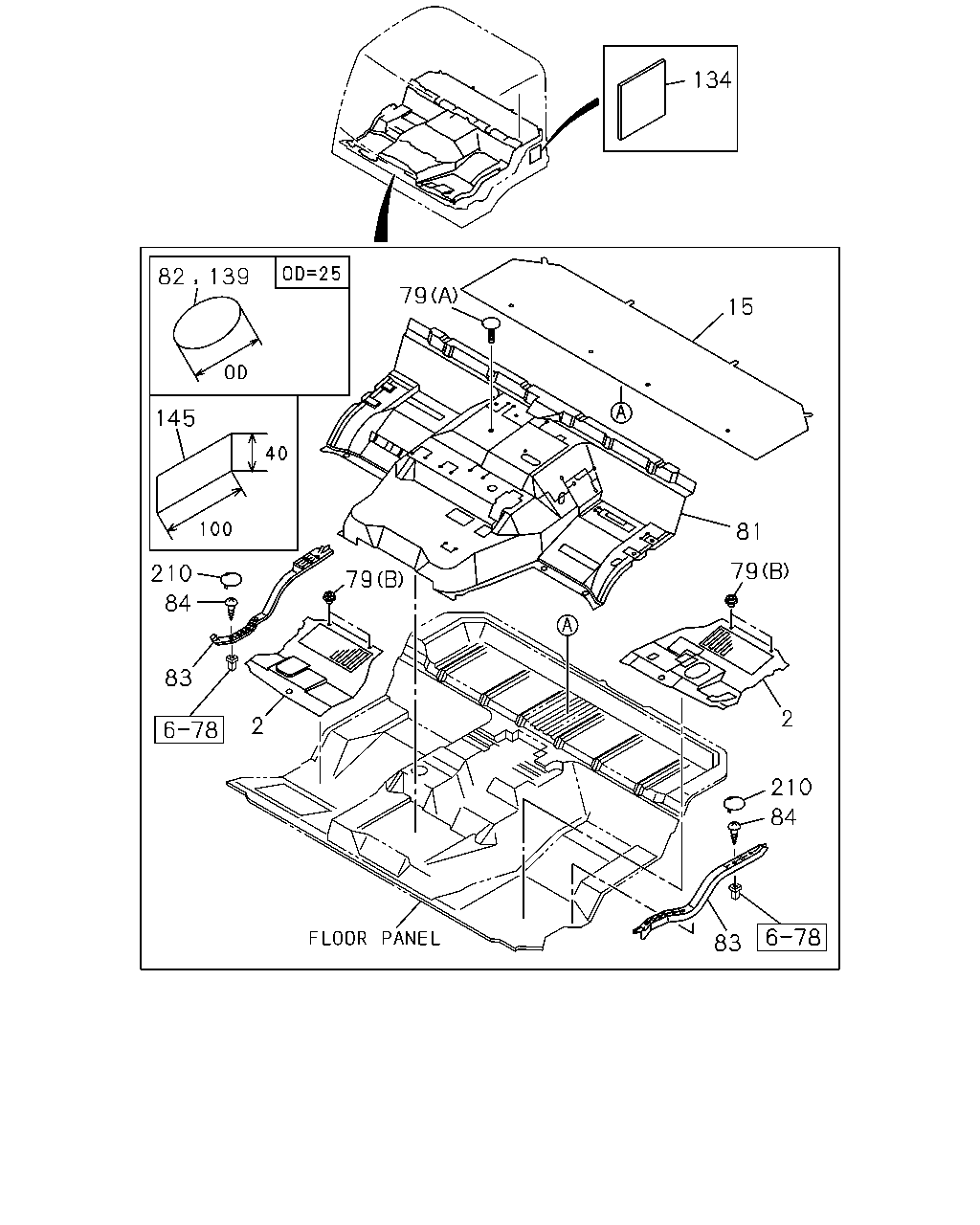

çizim 170495
134 15 81 79 2 210 84 83 79 139 82 145 210 84 83 2 79
BalonParca AdiParca NoAdetTipApplied Date A B
2 MAT; FLOOR 1-73237-785-1 01 1 1008- ● ●
2 MAT; FLOOR 1-73237-787-1 01 1 1008- ● ●
15 MAT; FLOOR REAR
CENTER SEAT DELETE(SP9) EXC. MATTRESS SLEEPER CAB<E40> 		1-73237-831-1 01 1 1008-1410 ● ●
15 MAT; FLOOR REAR
EXC. MATTRESS SLEEPER CAB<E40>,CENTER SEAT DELETE(SP9) 		1-73237-783-1 01 1 1008-1410 ● ●
15 MAT; FLOOR REAR
EXC. MATTRESS SLEEPER CAB<E40> 		1-73237-783-1 01 1 1411- ● ●
79 HOOK; MALE
(A) D6X23 BLACK 		1-09987-114-0 01 1 1008- ● ●
79 HOOK; MALE
(B) BLACK 		8-94279-089-0 08 1 1008- ● ●
81 MAT; FLOOR,CENTER
CENTER SEAT DELETE(SP9) 		1-73237-830-2 01 1 1008- ● ●
81 MAT; FLOOR,CENTER
EXC. CENTER SEAT DELETE(SP9) 		1-73237-813-3 01 1 1008- ● ●
82 SEAL; BED PAN
OD=25 BLACK 		1-76798-019-0 01 1 1008- ● ●
83 PLATE; KICKING,FLOOR MAT 8-98125-806-3 01 1 1008-1410 ● ●
83 PLATE; KICKING,FLOOR MAT 1-76798-046-0 01 1 1411- ● ●
83 PLATE; KICKING,FLOOR MAT 8-98132-636-3 01 1 1008-1410 ● ●
83 PLATE; KICKING,FLOOR MAT 1-76798-045-0 01 1 1411- ● ●
84 SCREW; PLATE TO FLOOR
M5X16 		8-94279-312-0 08 1 1008- ● ●
134 SILENCER; RR FLOOR,SIDE 1-73367-016-2 01 1 1008- ● ●
139 SEAL; FLOOR
OD=25 BLACK 		1-76798-019-0 01 1 1008- ● ●
145 SEAL; FLOOR PANEL
100X40 		1-72498-022-1 01 1 1008- ● ●
210 COVER; KICKING PLATE 1-76337-461-0 09 1 1008- ● ●
