6-70 — FLOOR PANEL (#62663) — 39 parça

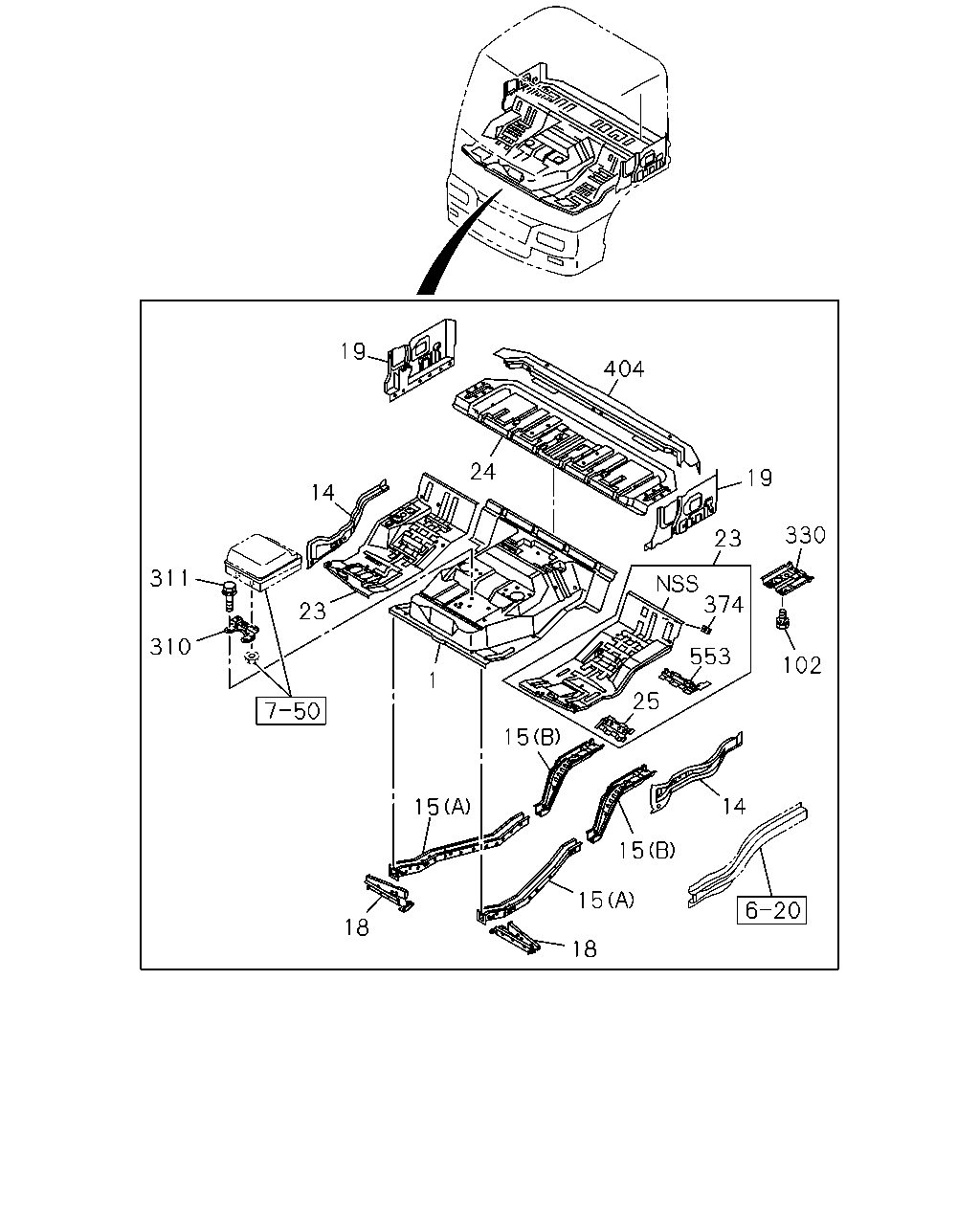

çizim 170503
19 14 23 311 310 1 15 18 18 15 15 14 15 25 553 102 374 23 19 404 24 330
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; FLOOR
MJT7S M/T(Y3E) 		1-62172-614-5 01 1 1008-1410 ● ●
1 PANEL; FLOOR
MJT7S M/T(Y3E) 		8-98198-729-0 01 1 1411- ● ●
1 PANEL; FLOOR
MJX16P M/T(Y3Z) 		1-62172-627-5 01 1 1008-1209 ● ●
1 PANEL; FLOOR
MJX16P M/T(Y3Z) 		1-62172-627-5 01 1 1210-1410 ●
1 PANEL; FLOOR
MJX16P M/T(Y3Z) 		8-98198-730-0 01 1 1411- ●
14 PANEL; FLOOR SIDE,FRT 1-62482-917-6 01 1 1008- ● ●
14 PANEL; FLOOR SIDE,FRT 1-62482-918-6 01 1 1008- ● ●
15 FRAME; UNDER
(B) 		1-62472-598-6 01 1 1008- ● ●
15 FRAME; UNDER
(A) 		1-62472-669-3 01 1 1008- ● ●
15 FRAME; UNDER
(A) 		1-62472-670-3 01 1 1008- ● ●
15 FRAME; UNDER
(B) 		1-62472-680-1 01 1 1008- ● ●
18 FRAME; FLOOR,CENTER SIDE 1-62472-671-3 01 1 1008- ● ●
18 FRAME; FLOOR,CENTER SIDE 1-62483-105-5 01 1 1008- ● ●
19 PANEL; FLOOR SIDE,REAR 1-62472-659-2 01 1 1008- ● ●
19 PANEL; FLOOR SIDE,REAR 1-62472-660-2 01 1 1008- ● ●
23 PANEL; FLOOR,SIDE
PTO CONTROL<SV6> 		1-62172-803-0 01 1 1008-1209 ●
23 PANEL; FLOOR,SIDE
DUMP CONTROL LEVER<RC4> 		1-62172-803-0 01 1 1008-1209 ●
23 PANEL; FLOOR,SIDE
PTO CONTROL<SV6> EXC. DUMP CONTROL LEVER<RC4> 		1-62172-803-0 01 1 1008-1209 ●
23 PANEL; FLOOR,SIDE
MJT7S M/T(Y3E) 		1-62172-803-0 01 1 1210-1410 ●
23 PANEL; FLOOR,SIDE
DUMP CONTROL LEVER<RC4> 		1-62172-803-0 01 1 1210-1410 ●
23 PANEL; FLOOR,SIDE
PTO CONTROL<SV6> EXC. DUMP CONTROL LEVER<RC4> 		1-62172-803-0 01 1 1210-1410 ●
23 PANEL; FLOOR,SIDE
PTO CONTROL<SV6> 		1-62172-803-0 01 1 1411- ● ●
23 PANEL; FLOOR,SIDE
DUMP CONTROL LEVER<RC4> 		1-62172-803-0 01 1 1411- ●
23 PANEL; FLOOR,SIDE
EXC. PTO CONTROL<SV6> 		1-62172-805-0 01 1 1008-1209 ●
23 PANEL; FLOOR,SIDE
EXC. DUMP CONTROL LEVER<RC4>,PTO CONTROL<SV6> 		1-62172-805-0 01 1 1008-1209 ●
23 PANEL; FLOOR,SIDE
EXC. DUMP CONTROL LEVER<RC4>,PTO CONTROL<SV6> 		1-62172-805-0 01 1 1210-1410 ●
23 PANEL; FLOOR,SIDE
EXC. PTO CONTROL<SV6> 		1-62172-805-0 01 1 1411- ●
23 PANEL; FLOOR,SIDE
EXC. DUMP CONTROL LEVER<RC4>,PTO CONTROL<SV6> 		1-62172-805-0 01 1 1411- ●
23 PANEL; FLOOR,SIDE 1-62172-800-0 01 1 1008-1410 ● ●
23 PANEL; FLOOR,SIDE 8-98198-725-0 01 1 1411- ● ●
24 PANEL; BED PAN 1-62172-540-9 01 1 1008- ● ●
25 REINFORCEMENT; FRAME FLOOR,FRT 1-62172-780-2 01 1 1008- ● ●
102 BOLT; FLOOR BOARD
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 1008- ● ●
310 BRACKET; SEAT STAND
CENTER SEAT(SA1) 		1-76397-015-0 01 1 1008- ● ●
311 BOLT; BRKT
CENTER SEAT(SA1) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 1008- ● ●
330 REINFORCEMENT; FLOOR 1-62172-585-5 01 1 1008- ● ●
374 NUT; FLOOR
M6 		1-09984-110-0 05 1 1008- ● ●
404 RAIL ASM; MTG,RR 1-62472-596-8 01 1 1008- ● ●
553 REINFORCEMENT; SEAT STAND RR 1-62172-797-0 01 1 1008- ● ●
