6-47 — MUD GUARD AND INSULATOR (#62660) — 328 parça

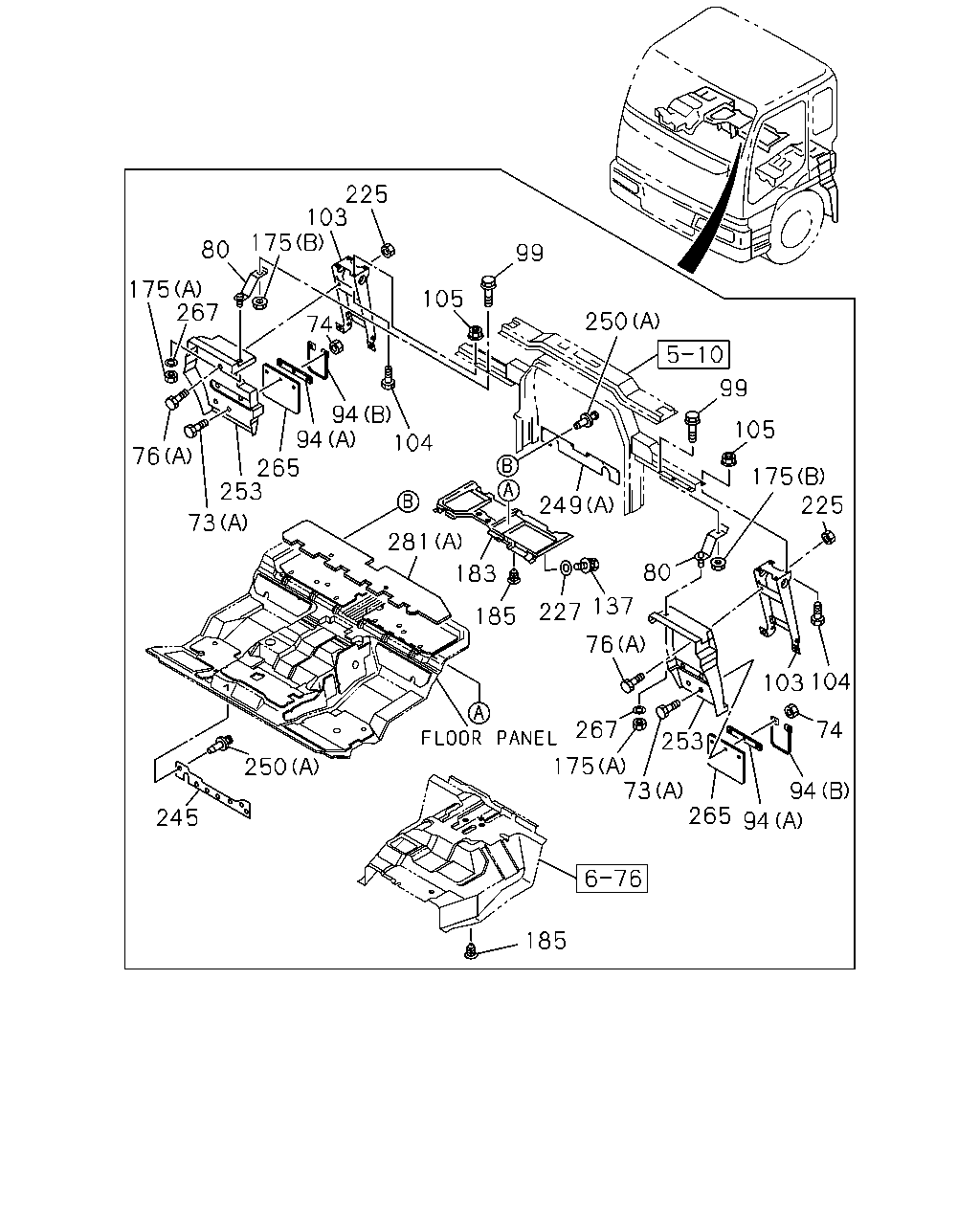

225 103 175 80 175 267 76 73 253 265 94 94 74 105 99 250 99 105 175 225 80 104 249 281 183 185 227 137 76 103 104 74 94 94 265 253 73 175 267 185 250 245

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
73	BOLT; MUD COVER BRKT (A) M8X25 W/LK&PL WASHER	1-09030-093-0	03	1	1008-	●	●
73	BOLT; MUD COVER BRKT (A) M8X25 W/LK&PL WASHER	1-09030-093-0	03	1	1008-	●	●
73	BOLT; MUD COVER BRKT (B) M8X16 FLANGE	0-28250-816-0	05	1	1008-1410	●	●
73	BOLT; MUD COVER BRKT (C) M8X16 FLANGE	0-28050-816-0	03	1	1411-	●	●
74	NUT M8 FLANGE	0-91180-108-0	03	1	1008-	●	●
74	NUT M8 FLANGE	0-91180-108-0	03	1	1008-	●	●
74	NUT M8 FLANGE	0-91180-108-0	01	1	1008-1410	●	●
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	1008-	●	●
76	BOLT; MUD GUARD (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	1008-	●	●
76	BOLT; MUD GUARD (B) M8X30 W/LK&PL WASHER	8-94279-210-0	06	1	1008-	●	●
80	BRACKET; MUD GUARD STAY	1-79931-159-1	02	1	1008-	●	●
94	RETAINER; FLAP RUBBER EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-79931-524-0	01	1	1008-1209	●
94	RETAINER; FLAP RUBBER EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> (B)	1-79931-524-0	01	1	1008-1209		●
94	RETAINER; FLAP RUBBER EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> (B)	1-79931-524-0	01	1	1210-1410		●
94	RETAINER; FLAP RUBBER (B)	1-79931-524-0	01	1	1411-	●	●
94	RETAINER; FLAP RUBBER (A)	1-79931-091-2	01	1	1008-	●	●
94	RETAINER; FLAP RUBBER (A)	1-79931-091-2	01	1	1008-	●	●
94	RETAINER; FLAP RUBBER (B)	1-79931-194-0	01	1	1411-	●	●
94	RETAINER; FLAP RUBBER (B)	1-79931-194-0	01	1	1008-1410	●	●
94	RETAINER; FLAP RUBBER SILENCER SINGLE VERTICAL<N28> (B)	1-79931-194-0	01	1	1008-1410	●	●
94	RETAINER; FLAP RUBBER SILENCER LAYOUT REAR VAR1<JAZ> (B)	1-79931-194-0	01	1	1008-1410		●
99	BOLT; STAY TO MUD GUARD M10X25 FLANGE	0-28651-025-0	02	1	1008-	●	●
103	BRACKET ASM; RR MUD FLAP	1-79931-527-0	01	1	1411-1502	●	●
103	BRACKET ASM; RR MUD FLAP	8-98306-895-0	01	1	1503-	●	●
103	BRACKET ASM; RR MUD FLAP	1-79931-444-0	02	1	1008-1410	●	●
103	BRACKET ASM; RR MUD FLAP	1-79931-444-0	01	1	1411-1502	●	●
103	BRACKET ASM; RR MUD FLAP	8-98306-892-0	01	1	1503-	●	●
104	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	08	1	1008-	●	●
105	NUT; BRKT M10 FLANGE	0-91180-210-0	08	1	1008-1410	●	●
105	NUT; BRKT M10 FLANGE	0-91180-210-0	07	1	1411-	●	●
137	BOLT M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	1008-	●	●
175	NUT; STAY FIX (A) M8 FLANGE	0-91180-108-0	02	1	1008-	●	●
175	NUT; STAY FIX (B) M10 FLANGE	0-91180-210-0	02	1	1008-	●	●
183	INSULATOR; HEAT,BED PAN	1-71907-539-4	01	1	1008-	●	●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	26	1	1411-	●	●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	21	1	1008-1410	●	●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	05	1	1411-	●	●
225	NUT; MUD GUARD M8 FLANGE	0-91180-108-0	08	1	1008-	●	●
227	SEAL; MUD GUARD T=2.0	8-94279-641-0	01	1	1008-	●	●
245	RUBBER; SHUTTER,RAD	1-79937-949-1	01	1	1008-1410	●	●
245	RUBBER; SHUTTER,RAD	8-98198-739-0	01	1	1411-	●	●
249	RUBBER; SHUTTER (A)	1-79937-924-2	01	1	1008-	●	●
249	RUBBER; SHUTTER (C)	1-79937-981-1	01	1	1008-	●	●
249	RUBBER; SHUTTER (E)	8-98079-173-0	01	1	1008-1410	●	●
249	RUBBER; SHUTTER (G)	1-79937-967-1	01	1	1411-	●	●
249	RUBBER; SHUTTER (D)	8-98146-437-0	01	1	1008-	●	●
249	RUBBER; SHUTTER (B)	1-79937-979-1	01	1	1008-	●	●
249	RUBBER; SHUTTER (F)	8-98146-436-0	01	1	1008-	●	●
250	FASTENER; SHUTTER (A) D6X16 PUSH RIVET	1-09983-105-0	06	1	1008-1410	●	●
250	FASTENER; SHUTTER (A) D6X16 PUSH RIVET	1-09983-105-0	06	1	1411-	●	●
250	FASTENER; SHUTTER (A) D6X16 PUSH RIVET	1-09983-105-0	06	1	1411-	●	●
250	FASTENER; SHUTTER (B) D8X13.5	1-09987-248-1	09	1	1008-1510	●	●
250	FASTENER; SHUTTER (B) D8X13.5	1-09987-248-1	10	1	1511-	●	●
253	GUARD; MUD	8-98134-766-1	01	1	1008-	●	●
253	GUARD; MUD SILENCER SINGLE VERTICAL<N28>	8-98134-760-0	01	1	1008-1209	●	●
253	GUARD; MUD	8-98134-760-0	01	1	1210-1410	●
253	GUARD; MUD SILENCER SINGLE VERTICAL<N28>	8-98134-760-0	01	1	1210-1410		●
253	GUARD; MUD EXC. SILENCER SINGLE VERTICAL<N28>	8-98134-759-0	01	1	1008-1209	●	●
253	GUARD; MUD EXC. SILENCER SINGLE VERTICAL<N28>	8-98134-759-0	01	1	1210-1410		●
253	GUARD; MUD	8-98134-759-0	01	1	1411-	●	●
265	RUBBER; FLAP,REAR	1-79930-978-0	01	1	1008-	●	●
265	RUBBER; FLAP,REAR	1-79930-978-0	01	1	1008-	●	●
267	WASHER; PL,STAY ID=8.4 OD=26	0-91614-808-0	02	1	1008-	●	●
281	INSULATOR; NOISE (C)	1-71907-825-0	01	1	1411-	●	●
281	INSULATOR; NOISE (B)	1-79937-956-1	01	1	1008-	●	●
281	INSULATOR; NOISE MATTRESS SLEEPER CAB<E40> (A)	1-73237-445-4	01	1	1008-	●	●

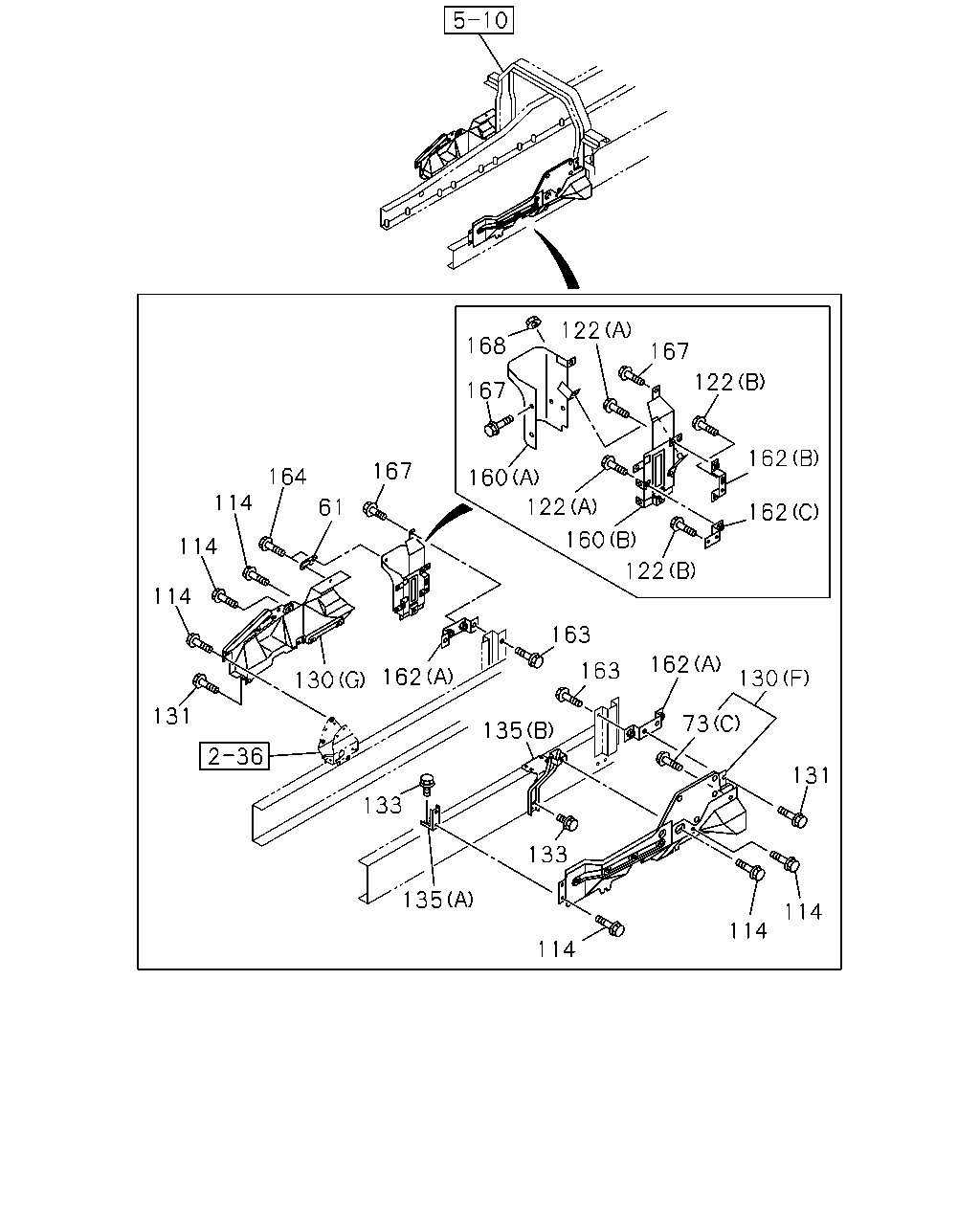

251 130 130 73 74 251 251 168 167 122 167 122 162 162 122 160 122 160

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
73	BOLT; MUD COVER BRKT (A) M8X25 W/LK&PL WASHER	1-09030-093-0	03	1	1008-	●	●
73	BOLT; MUD COVER BRKT (A) M8X25 W/LK&PL WASHER	1-09030-093-0	03	1	1008-	●	●
73	BOLT; MUD COVER BRKT (B) M8X16 FLANGE	0-28250-816-0	05	1	1008-1410	●	●
73	BOLT; MUD COVER BRKT (C) M8X16 FLANGE	0-28050-816-0	03	1	1411-	●	●
74	NUT M8 FLANGE	0-91180-108-0	03	1	1008-	●	●
74	NUT M8 FLANGE	0-91180-108-0	03	1	1008-	●	●
74	NUT M8 FLANGE	0-91180-108-0	01	1	1008-1410	●	●
122	BOLT EXC. SILENCER SINGLE VERTICAL<N28> (A) M8X20 FLANGE	0-28650-820-0	03	1	1008-1209	●	●
122	BOLT EXC. SILENCER SINGLE VERTICAL<N28> (A) M8X20 FLANGE	0-28650-820-0	03	1	1210-1410		●
122	BOLT EXC. SILENCER SINGLE VERTICAL<N28> (A) M8X20 FLANGE	0-28650-820-0	03	1	1411-	●	●
122	BOLT EXC. SILENCER SINGLE VERTICAL<N28> (B) M8X30 FLANGE	0-28650-830-0	03	1	1008-1209	●	●
122	BOLT EXC. SILENCER SINGLE VERTICAL<N28> (B) M8X30 FLANGE	0-28650-830-0	03	1	1210-1410		●
122	BOLT EXC. SILENCER SINGLE VERTICAL<N28> (B) M8X30 FLANGE	0-28650-830-0	03	1	1411-	●	●
130	PANEL; SHUTTER NOISE (A)	1-53194-376-0	01	1	1008-1410	●	●
130	PANEL; SHUTTER NOISE (E)	1-79947-081-0	01	1	1411-	●	●
130	PANEL; SHUTTER NOISE (B)	8-98146-435-1	01	1	1008-	●	●
130	PANEL; SHUTTER NOISE (C)	8-98159-129-0	01	1	1008-1410	●	●
130	PANEL; SHUTTER NOISE (F)	8-98240-672-0	01	1	1411-	●	●
130	PANEL; SHUTTER NOISE (D)	1-79937-943-2	01	1	1008-1410	●	●
130	PANEL; SHUTTER NOISE (G)	1-53194-386-1	01	1	1411-	●	●
130	PANEL; SHUTTER NOISE (B)	8-98146-434-1	01	1	1008-	●	●
130	PANEL; SHUTTER NOISE SILENCER SINGLE VERTICAL<N28> (A)	1-53192-818-6	01	1	1008-1209	●	●
130	PANEL; SHUTTER NOISE (A)	1-53192-818-6	01	1	1210-1410	●
130	PANEL; SHUTTER NOISE SILENCER SINGLE VERTICAL<N28> (A)	1-53192-818-6	01	1	1210-1410		●
130	PANEL; SHUTTER NOISE (H)	8-98243-959-0	01	1	1411-	●	●
130	PANEL; SHUTTER NOISE EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-53194-380-2	01	1	1008-1209	●	●
130	PANEL; SHUTTER NOISE EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-53194-380-2	01	1	1210-1410		●
160	COVER ASM; EXH EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-79931-408-4	01	1	1008-1207	●	●
160	COVER ASM; EXH EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-79931-411-2	01	1	1208-1209	●	●
160	COVER ASM; EXH EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-79931-411-2	01	1	1210-1410		●
160	COVER ASM; EXH EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-79931-411-2	01	1	1411-	●	●
160	COVER ASM; EXH EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-79931-412-1	01	1	1008-1209	●	●
160	COVER ASM; EXH EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-79931-412-1	01	1	1210-1410		●
160	COVER ASM; EXH EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-79931-412-1	01	1	1411-	●	●
162	BRACKET EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-53441-520-0	02	1	1411-	●	●
162	BRACKET (A)	1-53441-520-0	02	1	1008-1410	●	●
162	BRACKET SILENCER SINGLE VERTICAL<N28> (A)	1-53441-520-0	01	1	1411-	●	●
162	BRACKET EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-53441-521-2	01	1	1008-1209	●	●
162	BRACKET EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-53441-521-2	01	1	1210-1410		●
162	BRACKET EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-53441-521-2	01	1	1411-	●	●
162	BRACKET EXC. SILENCER SINGLE VERTICAL<N28> (C)	1-53441-522-0	01	1	1008-1209	●	●
162	BRACKET EXC. SILENCER SINGLE VERTICAL<N28> (C)	1-53441-522-0	01	1	1210-1410		●
162	BRACKET EXC. SILENCER SINGLE VERTICAL<N28> (C)	1-53441-522-0	01	1	1411-	●	●
167	BOLT; EXH COVER EXC. SILENCER SINGLE VERTICAL<N28> M8X20 FLANGE	0-28650-820-0	05	1	1008-1209	●	●
167	BOLT; EXH COVER EXC. SILENCER SINGLE VERTICAL<N28> M8X20 FLANGE	0-28650-820-0	05	1	1210-1410		●
167	BOLT; EXH COVER EXC. SILENCER SINGLE VERTICAL<N28> M8X20 FLANGE	0-28650-820-0	05	1	1411-	●	●
168	NUT; EXH COVER EXC. SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91180-108-0	01	1	1008-1209	●	●
168	NUT; EXH COVER EXC. SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91180-108-0	01	1	1210-1410		●
168	NUT; EXH COVER EXC. SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91180-108-0	01	1	1411-	●	●
251	CLIP; NOISE INSULATOR (A)	8-94165-394-0	05	1	1008-1410	●	●
251	CLIP; NOISE INSULATOR (B)	8-94279-048-0	05	1	1008-1410	●	●
251	CLIP; NOISE INSULATOR (A)	8-94165-394-0	04	1	1008-1410	●	●

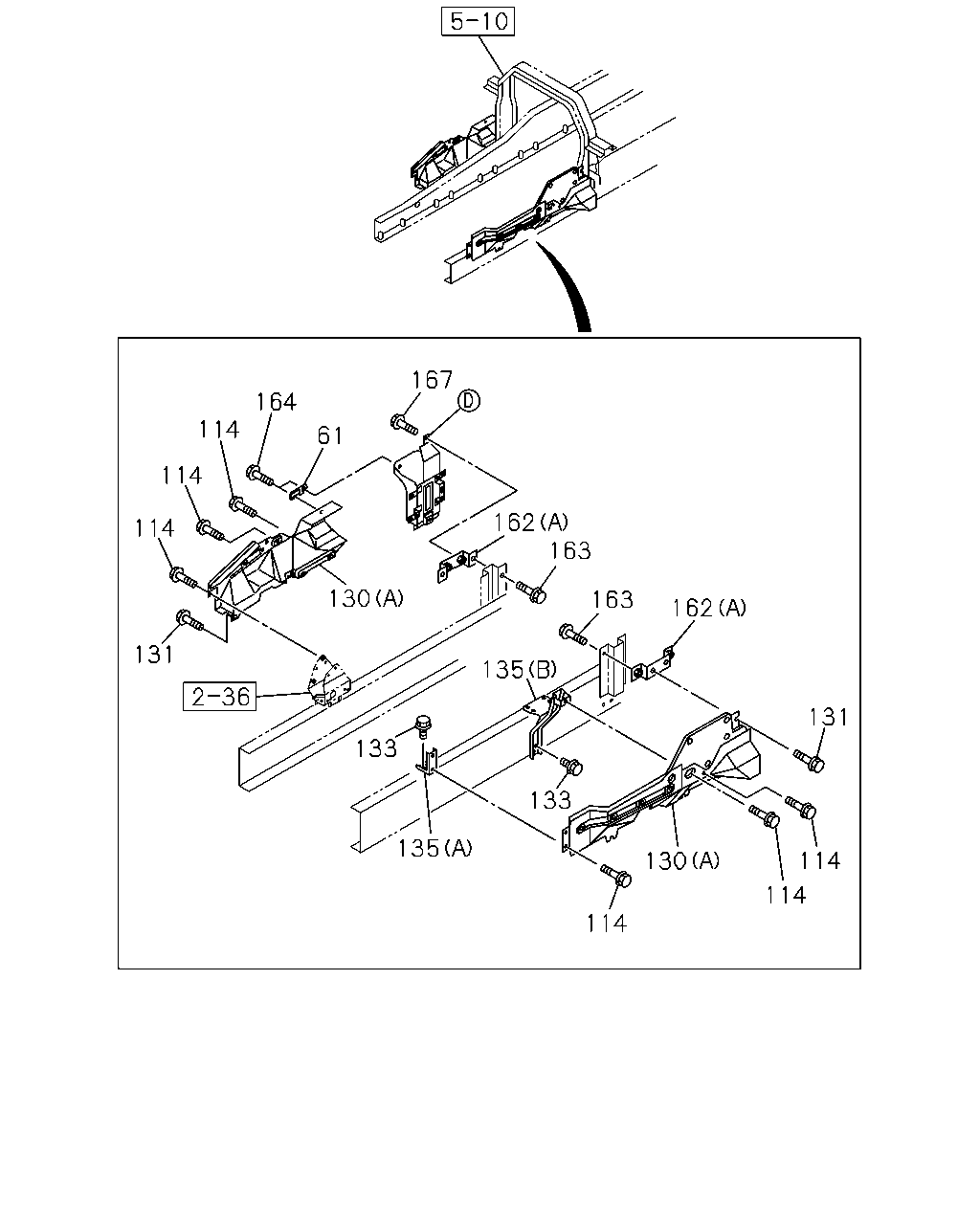

114 114 131 130 114 133 135 163 163 162 162 167 61 164 114 114 114 131 130 133 135

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
61	BRACKET; COVER EXC. SILENCER SINGLE VERTICAL<N28>	8-98039-501-1	01	1	1008-1209	●	●
61	BRACKET; COVER EXC. SILENCER SINGLE VERTICAL<N28>	8-98039-501-1	01	1	1210-1410		●
61	BRACKET; COVER EXC. SILENCER SINGLE VERTICAL<N28>	8-98039-501-1	01	1	1411-	●	●
114	BOLT M8X20 FLANGE	0-28650-820-0	05	1	1008-1410	●	●
114	BOLT M8X20 FLANGE	0-28650-820-0	02	1	1411-	●	●
114	BOLT M8X22 W/LK&PL WASHER	1-09030-042-0	05	1	1008-1410	●	●
114	BOLT M8X22 W/LK&PL WASHER	1-09030-042-0	09	1	1411-	●	●
130	PANEL; SHUTTER NOISE (A)	1-53194-376-0	01	1	1008-1410	●	●
130	PANEL; SHUTTER NOISE (E)	1-79947-081-0	01	1	1411-	●	●
130	PANEL; SHUTTER NOISE (B)	8-98146-435-1	01	1	1008-	●	●
130	PANEL; SHUTTER NOISE (C)	8-98159-129-0	01	1	1008-1410	●	●
130	PANEL; SHUTTER NOISE (F)	8-98240-672-0	01	1	1411-	●	●
130	PANEL; SHUTTER NOISE (D)	1-79937-943-2	01	1	1008-1410	●	●
130	PANEL; SHUTTER NOISE (G)	1-53194-386-1	01	1	1411-	●	●
130	PANEL; SHUTTER NOISE (B)	8-98146-434-1	01	1	1008-	●	●
130	PANEL; SHUTTER NOISE SILENCER SINGLE VERTICAL<N28> (A)	1-53192-818-6	01	1	1008-1209	●	●
130	PANEL; SHUTTER NOISE (A)	1-53192-818-6	01	1	1210-1410	●
130	PANEL; SHUTTER NOISE SILENCER SINGLE VERTICAL<N28> (A)	1-53192-818-6	01	1	1210-1410		●
130	PANEL; SHUTTER NOISE (H)	8-98243-959-0	01	1	1411-	●	●
130	PANEL; SHUTTER NOISE EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-53194-380-2	01	1	1008-1209	●	●
130	PANEL; SHUTTER NOISE EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-53194-380-2	01	1	1210-1410		●
131	BOLT; PANEL M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	1008-1410	●	●
131	BOLT; PANEL M8X25 W/LK&PL WASHER	1-09030-093-0	07	1	1411-	●	●
133	BOLT; FRAME M8X30 FLANGE	0-28650-830-0	02	1	1411-	●	●
133	BOLT; FRAME M8X25 FLANGE	0-28650-825-0	04	1	1008-1410	●	●
133	BOLT; FRAME M8X25 FLANGE	0-28650-825-0	02	1	1411-	●	●
135	BRACKET; SIDE PANEL (A)	1-53441-507-0	01	1	1008-1410	●	●
135	BRACKET; SIDE PANEL (A)	8-98225-728-0	01	1	1411-	●	●
135	BRACKET; SIDE PANEL (B)	1-53441-598-1	01	1	1008-	●	●
162	BRACKET EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-53441-520-0	02	1	1411-	●	●
162	BRACKET (A)	1-53441-520-0	02	1	1008-1410	●	●
162	BRACKET SILENCER SINGLE VERTICAL<N28> (A)	1-53441-520-0	01	1	1411-	●	●
162	BRACKET EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-53441-521-2	01	1	1008-1209	●	●
162	BRACKET EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-53441-521-2	01	1	1210-1410		●
162	BRACKET EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-53441-521-2	01	1	1411-	●	●
162	BRACKET EXC. SILENCER SINGLE VERTICAL<N28> (C)	1-53441-522-0	01	1	1008-1209	●	●
162	BRACKET EXC. SILENCER SINGLE VERTICAL<N28> (C)	1-53441-522-0	01	1	1210-1410		●
162	BRACKET EXC. SILENCER SINGLE VERTICAL<N28> (C)	1-53441-522-0	01	1	1411-	●	●
163	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> M8X20 FLANGE	0-28650-820-0	04	1	1411-	●	●
163	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	04	1	1008-1410	●	●
163	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M8X20 FLANGE	0-28650-820-0	02	1	1411-	●	●
164	BOLT; FLEX COVER EXC. SILENCER SINGLE VERTICAL<N28> M8X20 FLANGE	0-28650-820-0	02	1	1008-1209	●	●
164	BOLT; FLEX COVER EXC. SILENCER SINGLE VERTICAL<N28> M8X20 FLANGE	0-28650-820-0	02	1	1210-1410		●
164	BOLT; FLEX COVER EXC. SILENCER SINGLE VERTICAL<N28> M8X20 FLANGE	0-28650-820-0	02	1	1411-	●	●
167	BOLT; EXH COVER EXC. SILENCER SINGLE VERTICAL<N28> M8X20 FLANGE	0-28650-820-0	05	1	1008-1209	●	●
167	BOLT; EXH COVER EXC. SILENCER SINGLE VERTICAL<N28> M8X20 FLANGE	0-28650-820-0	05	1	1210-1410		●
167	BOLT; EXH COVER EXC. SILENCER SINGLE VERTICAL<N28> M8X20 FLANGE	0-28650-820-0	05	1	1411-	●	●

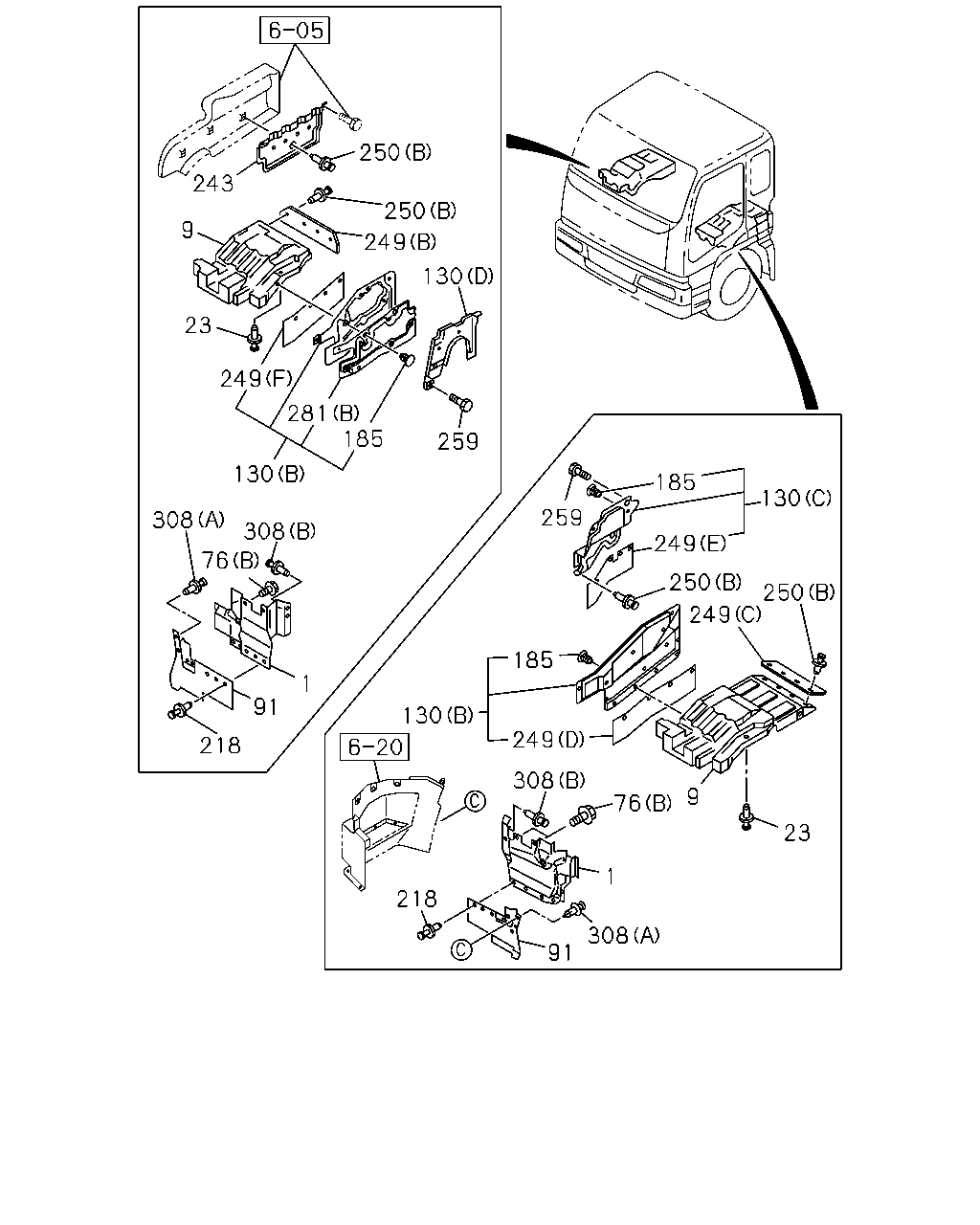

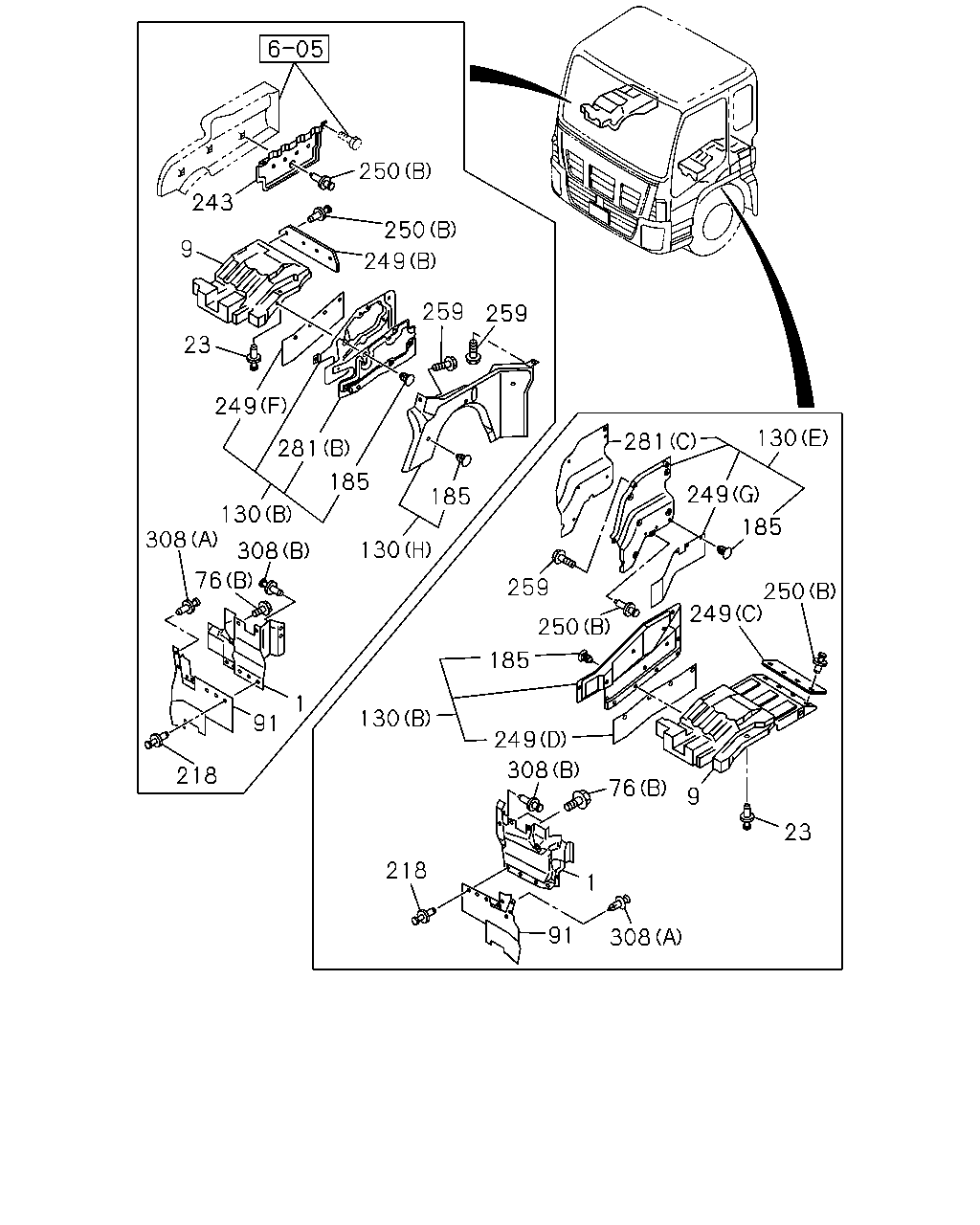

250 243 9 23 249 281 185 130 259 308 308 76 1 91 218 249 250 130 185 259 130 249 250 250 249 185 130 249 308 76 9 23 1 308 91 218

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	GUARD; MUD,FRT	1-79937-894-6	01	1	1008-	●	●
1	GUARD; MUD,FRT	1-79937-895-5	01	1	1008-	●	●
9	GUARD; SPLASH,WHEEL HOUSE	1-79937-908-4	01	1	1008-	●	●
9	GUARD; SPLASH,WHEEL HOUSE	1-79937-907-4	01	1	1008-	●	●
23	FASTENER; MUD COVER D8X13.5	1-09987-248-1	21	1	1008-	●	●
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	1008-	●	●
76	BOLT; MUD GUARD (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	1008-	●	●
76	BOLT; MUD GUARD (B) M8X30 W/LK&PL WASHER	8-94279-210-0	06	1	1008-	●	●
91	COVER; MUD,FRT	8-98134-826-2	01	1	1008-	●	●
91	COVER; MUD,FRT	8-98134-825-2	01	1	1008-	●	●
130	PANEL; SHUTTER NOISE (A)	1-53194-376-0	01	1	1008-1410	●	●
130	PANEL; SHUTTER NOISE (E)	1-79947-081-0	01	1	1411-	●	●
130	PANEL; SHUTTER NOISE (B)	8-98146-435-1	01	1	1008-	●	●
130	PANEL; SHUTTER NOISE (C)	8-98159-129-0	01	1	1008-1410	●	●
130	PANEL; SHUTTER NOISE (F)	8-98240-672-0	01	1	1411-	●	●
130	PANEL; SHUTTER NOISE (D)	1-79937-943-2	01	1	1008-1410	●	●
130	PANEL; SHUTTER NOISE (G)	1-53194-386-1	01	1	1411-	●	●
130	PANEL; SHUTTER NOISE (B)	8-98146-434-1	01	1	1008-	●	●
130	PANEL; SHUTTER NOISE SILENCER SINGLE VERTICAL<N28> (A)	1-53192-818-6	01	1	1008-1209	●	●
130	PANEL; SHUTTER NOISE (A)	1-53192-818-6	01	1	1210-1410	●
130	PANEL; SHUTTER NOISE SILENCER SINGLE VERTICAL<N28> (A)	1-53192-818-6	01	1	1210-1410		●
130	PANEL; SHUTTER NOISE (H)	8-98243-959-0	01	1	1411-	●	●
130	PANEL; SHUTTER NOISE EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-53194-380-2	01	1	1008-1209	●	●
130	PANEL; SHUTTER NOISE EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-53194-380-2	01	1	1210-1410		●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	26	1	1411-	●	●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	21	1	1008-1410	●	●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	05	1	1411-	●	●
218	FASTENER; RUBBER D8X13.5	1-09987-248-1	08	1	1008-	●	●
243	PROTECTOR; NOISE SHUT PANEL	1-79937-906-2	01	1	1008-	●	●
249	RUBBER; SHUTTER (A)	1-79937-924-2	01	1	1008-	●	●
249	RUBBER; SHUTTER (C)	1-79937-981-1	01	1	1008-	●	●
249	RUBBER; SHUTTER (E)	8-98079-173-0	01	1	1008-1410	●	●
249	RUBBER; SHUTTER (G)	1-79937-967-1	01	1	1411-	●	●
249	RUBBER; SHUTTER (D)	8-98146-437-0	01	1	1008-	●	●
249	RUBBER; SHUTTER (B)	1-79937-979-1	01	1	1008-	●	●
249	RUBBER; SHUTTER (F)	8-98146-436-0	01	1	1008-	●	●
250	FASTENER; SHUTTER (A) D6X16 PUSH RIVET	1-09983-105-0	06	1	1008-1410	●	●
250	FASTENER; SHUTTER (A) D6X16 PUSH RIVET	1-09983-105-0	06	1	1411-	●	●
250	FASTENER; SHUTTER (A) D6X16 PUSH RIVET	1-09983-105-0	06	1	1411-	●	●
250	FASTENER; SHUTTER (B) D8X13.5	1-09987-248-1	09	1	1008-1510	●	●
250	FASTENER; SHUTTER (B) D8X13.5	1-09987-248-1	10	1	1511-	●	●
259	BOLT; NOISE PANEL M8X24.5 W/LK&PL WASHER	8-98059-720-0	06	1	1511-	●	●
259	BOLT; NOISE PANEL M8X24.5 W/LK&PL WASHER	8-98059-720-0	10	1	1008-	●	●
281	INSULATOR; NOISE (C)	1-71907-825-0	01	1	1411-	●	●
281	INSULATOR; NOISE (B)	1-79937-956-1	01	1	1008-	●	●
281	INSULATOR; NOISE MATTRESS SLEEPER CAB<E40> (A)	1-73237-445-4	01	1	1008-	●	●
308	FASTENER; MUD GUARD (A)	1-09470-007-0	08	1	1008-	●	●
308	FASTENER; MUD GUARD (B) ID=6X6 OD=8	1-09987-194-0	02	1	1008-	●	●

250 250 249 9 243 23 249 281 259 259 185 185 130 130 308 308 76 1 91 218 130 218 91 1 308 76 9 23 308 249 185 259 250 249 250 185 249 130 281

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	GUARD; MUD,FRT	1-79937-894-6	01	1	1008-	●	●
1	GUARD; MUD,FRT	1-79937-895-5	01	1	1008-	●	●
9	GUARD; SPLASH,WHEEL HOUSE	1-79937-908-4	01	1	1008-	●	●
9	GUARD; SPLASH,WHEEL HOUSE	1-79937-907-4	01	1	1008-	●	●
23	FASTENER; MUD COVER D8X13.5	1-09987-248-1	21	1	1008-	●	●
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	1008-	●	●
76	BOLT; MUD GUARD (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	1008-	●	●
76	BOLT; MUD GUARD (B) M8X30 W/LK&PL WASHER	8-94279-210-0	06	1	1008-	●	●
91	COVER; MUD,FRT	8-98134-826-2	01	1	1008-	●	●
91	COVER; MUD,FRT	8-98134-825-2	01	1	1008-	●	●
130	PANEL; SHUTTER NOISE (A)	1-53194-376-0	01	1	1008-1410	●	●
130	PANEL; SHUTTER NOISE (E)	1-79947-081-0	01	1	1411-	●	●
130	PANEL; SHUTTER NOISE (B)	8-98146-435-1	01	1	1008-	●	●
130	PANEL; SHUTTER NOISE (C)	8-98159-129-0	01	1	1008-1410	●	●
130	PANEL; SHUTTER NOISE (F)	8-98240-672-0	01	1	1411-	●	●
130	PANEL; SHUTTER NOISE (D)	1-79937-943-2	01	1	1008-1410	●	●
130	PANEL; SHUTTER NOISE (G)	1-53194-386-1	01	1	1411-	●	●
130	PANEL; SHUTTER NOISE (B)	8-98146-434-1	01	1	1008-	●	●
130	PANEL; SHUTTER NOISE SILENCER SINGLE VERTICAL<N28> (A)	1-53192-818-6	01	1	1008-1209	●	●
130	PANEL; SHUTTER NOISE (A)	1-53192-818-6	01	1	1210-1410	●
130	PANEL; SHUTTER NOISE SILENCER SINGLE VERTICAL<N28> (A)	1-53192-818-6	01	1	1210-1410		●
130	PANEL; SHUTTER NOISE (H)	8-98243-959-0	01	1	1411-	●	●
130	PANEL; SHUTTER NOISE EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-53194-380-2	01	1	1008-1209	●	●
130	PANEL; SHUTTER NOISE EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-53194-380-2	01	1	1210-1410		●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	26	1	1411-	●	●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	21	1	1008-1410	●	●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	05	1	1411-	●	●
218	FASTENER; RUBBER D8X13.5	1-09987-248-1	08	1	1008-	●	●
243	PROTECTOR; NOISE SHUT PANEL	1-79937-906-2	01	1	1008-	●	●
249	RUBBER; SHUTTER (A)	1-79937-924-2	01	1	1008-	●	●
249	RUBBER; SHUTTER (C)	1-79937-981-1	01	1	1008-	●	●
249	RUBBER; SHUTTER (E)	8-98079-173-0	01	1	1008-1410	●	●
249	RUBBER; SHUTTER (G)	1-79937-967-1	01	1	1411-	●	●
249	RUBBER; SHUTTER (D)	8-98146-437-0	01	1	1008-	●	●
249	RUBBER; SHUTTER (B)	1-79937-979-1	01	1	1008-	●	●
249	RUBBER; SHUTTER (F)	8-98146-436-0	01	1	1008-	●	●
250	FASTENER; SHUTTER (A) D6X16 PUSH RIVET	1-09983-105-0	06	1	1008-1410	●	●
250	FASTENER; SHUTTER (A) D6X16 PUSH RIVET	1-09983-105-0	06	1	1411-	●	●
250	FASTENER; SHUTTER (A) D6X16 PUSH RIVET	1-09983-105-0	06	1	1411-	●	●
250	FASTENER; SHUTTER (B) D8X13.5	1-09987-248-1	09	1	1008-1510	●	●
250	FASTENER; SHUTTER (B) D8X13.5	1-09987-248-1	10	1	1511-	●	●
259	BOLT; NOISE PANEL M8X24.5 W/LK&PL WASHER	8-98059-720-0	06	1	1511-	●	●
259	BOLT; NOISE PANEL M8X24.5 W/LK&PL WASHER	8-98059-720-0	10	1	1008-	●	●
281	INSULATOR; NOISE (C)	1-71907-825-0	01	1	1411-	●	●
281	INSULATOR; NOISE (B)	1-79937-956-1	01	1	1008-	●	●
281	INSULATOR; NOISE MATTRESS SLEEPER CAB<E40> (A)	1-73237-445-4	01	1	1008-	●	●
308	FASTENER; MUD GUARD (A)	1-09470-007-0	08	1	1008-	●	●
308	FASTENER; MUD GUARD (B) ID=6X6 OD=8	1-09987-194-0	02	1	1008-	●	●

168 167 122 167 122 162 162 122 160 122 160 167 61 164 114 114 114 131 130 162 133 135 133 114 114 114 131 73 130 162 163 163 135

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
61	BRACKET; COVER EXC. SILENCER SINGLE VERTICAL<N28>	8-98039-501-1	01	1	1008-1209	●	●
61	BRACKET; COVER EXC. SILENCER SINGLE VERTICAL<N28>	8-98039-501-1	01	1	1210-1410		●
61	BRACKET; COVER EXC. SILENCER SINGLE VERTICAL<N28>	8-98039-501-1	01	1	1411-	●	●
73	BOLT; MUD COVER BRKT (A) M8X25 W/LK&PL WASHER	1-09030-093-0	03	1	1008-	●	●
73	BOLT; MUD COVER BRKT (A) M8X25 W/LK&PL WASHER	1-09030-093-0	03	1	1008-	●	●
73	BOLT; MUD COVER BRKT (B) M8X16 FLANGE	0-28250-816-0	05	1	1008-1410	●	●
73	BOLT; MUD COVER BRKT (C) M8X16 FLANGE	0-28050-816-0	03	1	1411-	●	●
114	BOLT M8X20 FLANGE	0-28650-820-0	05	1	1008-1410	●	●
114	BOLT M8X20 FLANGE	0-28650-820-0	02	1	1411-	●	●
114	BOLT M8X22 W/LK&PL WASHER	1-09030-042-0	05	1	1008-1410	●	●
114	BOLT M8X22 W/LK&PL WASHER	1-09030-042-0	09	1	1411-	●	●
122	BOLT EXC. SILENCER SINGLE VERTICAL<N28> (A) M8X20 FLANGE	0-28650-820-0	03	1	1008-1209	●	●
122	BOLT EXC. SILENCER SINGLE VERTICAL<N28> (A) M8X20 FLANGE	0-28650-820-0	03	1	1210-1410		●
122	BOLT EXC. SILENCER SINGLE VERTICAL<N28> (A) M8X20 FLANGE	0-28650-820-0	03	1	1411-	●	●
122	BOLT EXC. SILENCER SINGLE VERTICAL<N28> (B) M8X30 FLANGE	0-28650-830-0	03	1	1008-1209	●	●
122	BOLT EXC. SILENCER SINGLE VERTICAL<N28> (B) M8X30 FLANGE	0-28650-830-0	03	1	1210-1410		●
122	BOLT EXC. SILENCER SINGLE VERTICAL<N28> (B) M8X30 FLANGE	0-28650-830-0	03	1	1411-	●	●
130	PANEL; SHUTTER NOISE (A)	1-53194-376-0	01	1	1008-1410	●	●
130	PANEL; SHUTTER NOISE (E)	1-79947-081-0	01	1	1411-	●	●
130	PANEL; SHUTTER NOISE (B)	8-98146-435-1	01	1	1008-	●	●
130	PANEL; SHUTTER NOISE (C)	8-98159-129-0	01	1	1008-1410	●	●
130	PANEL; SHUTTER NOISE (F)	8-98240-672-0	01	1	1411-	●	●
130	PANEL; SHUTTER NOISE (D)	1-79937-943-2	01	1	1008-1410	●	●
130	PANEL; SHUTTER NOISE (G)	1-53194-386-1	01	1	1411-	●	●
130	PANEL; SHUTTER NOISE (B)	8-98146-434-1	01	1	1008-	●	●
130	PANEL; SHUTTER NOISE SILENCER SINGLE VERTICAL<N28> (A)	1-53192-818-6	01	1	1008-1209	●	●
130	PANEL; SHUTTER NOISE (A)	1-53192-818-6	01	1	1210-1410	●
130	PANEL; SHUTTER NOISE SILENCER SINGLE VERTICAL<N28> (A)	1-53192-818-6	01	1	1210-1410		●
130	PANEL; SHUTTER NOISE (H)	8-98243-959-0	01	1	1411-	●	●
130	PANEL; SHUTTER NOISE EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-53194-380-2	01	1	1008-1209	●	●
130	PANEL; SHUTTER NOISE EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-53194-380-2	01	1	1210-1410		●
131	BOLT; PANEL M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	1008-1410	●	●
131	BOLT; PANEL M8X25 W/LK&PL WASHER	1-09030-093-0	07	1	1411-	●	●
133	BOLT; FRAME M8X30 FLANGE	0-28650-830-0	02	1	1411-	●	●
133	BOLT; FRAME M8X25 FLANGE	0-28650-825-0	04	1	1008-1410	●	●
133	BOLT; FRAME M8X25 FLANGE	0-28650-825-0	02	1	1411-	●	●
135	BRACKET; SIDE PANEL (A)	1-53441-507-0	01	1	1008-1410	●	●
135	BRACKET; SIDE PANEL (A)	8-98225-728-0	01	1	1411-	●	●
135	BRACKET; SIDE PANEL (B)	1-53441-598-1	01	1	1008-	●	●
160	COVER ASM; EXH EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-79931-408-4	01	1	1008-1207	●	●
160	COVER ASM; EXH EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-79931-411-2	01	1	1208-1209	●	●
160	COVER ASM; EXH EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-79931-411-2	01	1	1210-1410		●
160	COVER ASM; EXH EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-79931-411-2	01	1	1411-	●	●
160	COVER ASM; EXH EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-79931-412-1	01	1	1008-1209	●	●
160	COVER ASM; EXH EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-79931-412-1	01	1	1210-1410		●
160	COVER ASM; EXH EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-79931-412-1	01	1	1411-	●	●
162	BRACKET EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-53441-520-0	02	1	1411-	●	●
162	BRACKET (A)	1-53441-520-0	02	1	1008-1410	●	●
162	BRACKET SILENCER SINGLE VERTICAL<N28> (A)	1-53441-520-0	01	1	1411-	●	●
162	BRACKET EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-53441-521-2	01	1	1008-1209	●	●
162	BRACKET EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-53441-521-2	01	1	1210-1410		●
162	BRACKET EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-53441-521-2	01	1	1411-	●	●
162	BRACKET EXC. SILENCER SINGLE VERTICAL<N28> (C)	1-53441-522-0	01	1	1008-1209	●	●
162	BRACKET EXC. SILENCER SINGLE VERTICAL<N28> (C)	1-53441-522-0	01	1	1210-1410		●
162	BRACKET EXC. SILENCER SINGLE VERTICAL<N28> (C)	1-53441-522-0	01	1	1411-	●	●
163	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> M8X20 FLANGE	0-28650-820-0	04	1	1411-	●	●
163	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	04	1	1008-1410	●	●
163	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M8X20 FLANGE	0-28650-820-0	02	1	1411-	●	●
164	BOLT; FLEX COVER EXC. SILENCER SINGLE VERTICAL<N28> M8X20 FLANGE	0-28650-820-0	02	1	1008-1209	●	●
164	BOLT; FLEX COVER EXC. SILENCER SINGLE VERTICAL<N28> M8X20 FLANGE	0-28650-820-0	02	1	1210-1410		●
164	BOLT; FLEX COVER EXC. SILENCER SINGLE VERTICAL<N28> M8X20 FLANGE	0-28650-820-0	02	1	1411-	●	●
167	BOLT; EXH COVER EXC. SILENCER SINGLE VERTICAL<N28> M8X20 FLANGE	0-28650-820-0	05	1	1008-1209	●	●
167	BOLT; EXH COVER EXC. SILENCER SINGLE VERTICAL<N28> M8X20 FLANGE	0-28650-820-0	05	1	1210-1410		●
167	BOLT; EXH COVER EXC. SILENCER SINGLE VERTICAL<N28> M8X20 FLANGE	0-28650-820-0	05	1	1411-	●	●
168	NUT; EXH COVER EXC. SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91180-108-0	01	1	1008-1209	●	●
168	NUT; EXH COVER EXC. SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91180-108-0	01	1	1210-1410		●
168	NUT; EXH COVER EXC. SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91180-108-0	01	1	1411-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
