Sayfa 6-20 - Isuzu EPC

6-20 — SIDE PANEL AND STEP (#62653) — 234 parça

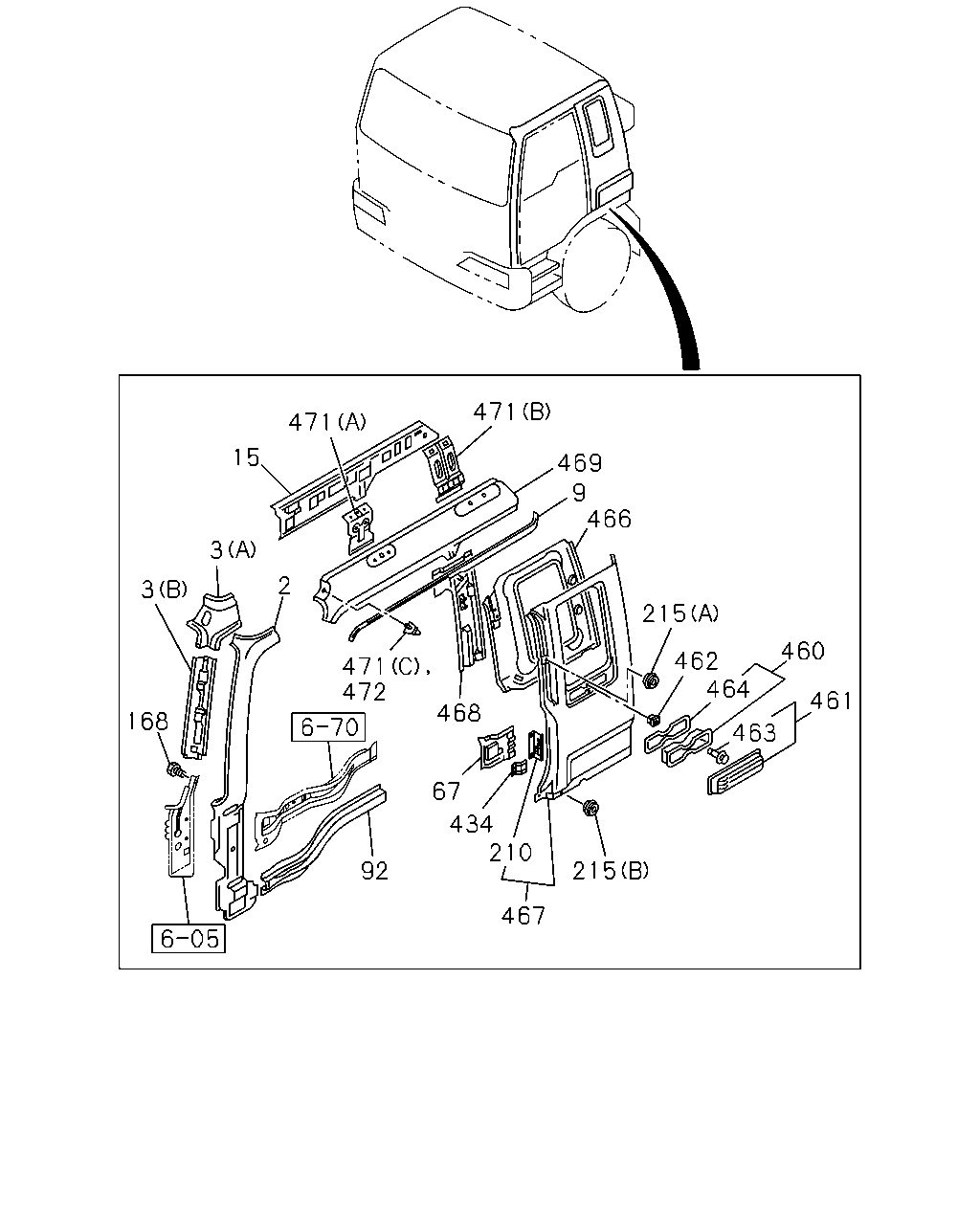

471 471 15 3 3 168 2 471 472 468 67 434 92 210 467 215 469 466 9 215 462 464 463 460 461

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	PILLAR; FRT	1-61281-410-2	01	1	1008-	●	●
2	PILLAR; FRT	1-61281-155-4	01	1	1008-	●	●
3	PANEL; CLOSING,FRT PILLAR (A)	1-61281-170-5	01	1	1008-	●	●
3	PANEL; CLOSING,FRT PILLAR (B)	1-61281-344-5	01	1	1008-	●	●
3	PANEL; CLOSING,FRT PILLAR (A)	1-61281-169-5	01	1	1008-	●	●
3	PANEL; CLOSING,FRT PILLAR (B)	1-61281-343-5	01	1	1008-	●	●
9	MOLDING; DRIP,CAB SIDE	1-61281-281-5	01	1	1008-	●	●
9	MOLDING; DRIP,CAB SIDE	1-61281-280-5	01	1	1008-	●	●
15	PANEL; CANT RAIL SIDE	1-61281-178-8	01	1	1008-	●	●
15	PANEL; CANT RAIL SIDE	1-61281-177-8	01	1	1008-	●	●
67	PANEL; INNER,RR PILLAR LWR	1-61281-195-5	01	1	1008-	●	●
67	PANEL; INNER,RR PILLAR LWR	1-61281-194-5	01	1	1008-	●	●
92	PANEL; SIDE SILL,CAB	1-61281-212-8	01	1	1008-	●	●
92	PANEL; SIDE SILL,CAB	1-61281-211-9	01	1	1008-	●	●
168	BOLT; BODY SIDE PANEL M6X10 FLANGE	0-28050-610-0	04	1	1008-	●	●
210	PANEL; DOOR STRIKER REINF	8-97851-446-1	01	1	1008-	●	●
215	GROMMET; RR PILLAR (A) OD=23.5	1-09983-101-0	02	1	1008-	●	●
215	GROMMET; RR PILLAR (B) OD=28.5	8-94279-711-0	02	1	1008-	●	●
434	PATCH; ASSIST GRIP	1-61270-763-1	01	1	1008-	●	●
434	PATCH; ASSIST GRIP	1-61270-763-1	01	1	1008-	●	●
460	VENTILATOR; BODY SIDE	1-76378-292-4	02	1	1008-	●	●
461	ORNAMENT; VENTILATOR	1-76378-303-6	01	1	1008-	●	●
461	ORNAMENT; VENTILATOR	1-76378-302-6	01	1	1008-	●	●
462	GROMMET; VENTILATOR OD=7.9X7.9 ID=4.2X4.2	1-09983-151-1	08	1	1008-	●	●
463	PIN; ORNAMENT D4.2X13	1-09983-161-0	08	1	1008-	●	●
464	SEAL; VENTILATOR	1-76378-299-0	02	1	1008-	●	●
466	PANEL; INNER,BACK CORNER	1-61281-416-1	01	1	1008-	●	●
466	PANEL; INNER,BACK CORNER	1-61281-415-1	01	1	1008-	●	●
467	PANEL; OUTER,BACK CORNER	1-61281-478-5	01	1	1008-	●	●
467	PANEL; OUTER,BACK CORNER	1-61281-203-4	01	1	1008-	●	●
468	REINFORCEMENT; SEAT BELT ANCHOR	1-61281-418-2	01	1	1008-	●	●
468	REINFORCEMENT; SEAT BELT ANCHOR	1-61281-417-2	01	1	1008-	●	●
469	ROOF; SIDE	1-61281-199-8	01	1	1008-	●	●
469	ROOF; SIDE	1-61281-198-8	01	1	1008-	●	●
471	PATCH; AIR DEFLECTOR (B)	1-61281-202-3	01	1	1008-	●	●
471	PATCH; AIR DEFLECTOR (B)	1-61281-202-3	01	1	1008-	●	●
471	PATCH; AIR DEFLECTOR (A)	1-61281-201-3	01	1	1008-	●	●
471	PATCH; AIR DEFLECTOR (C)	8-98132-463-0	01	1	1008-	●	●
471	PATCH; AIR DEFLECTOR (A)	1-61281-200-3	01	1	1008-	●	●
472	PATCH; STAY,ROOF	1-61270-943-1	01	1	1008-	●	●

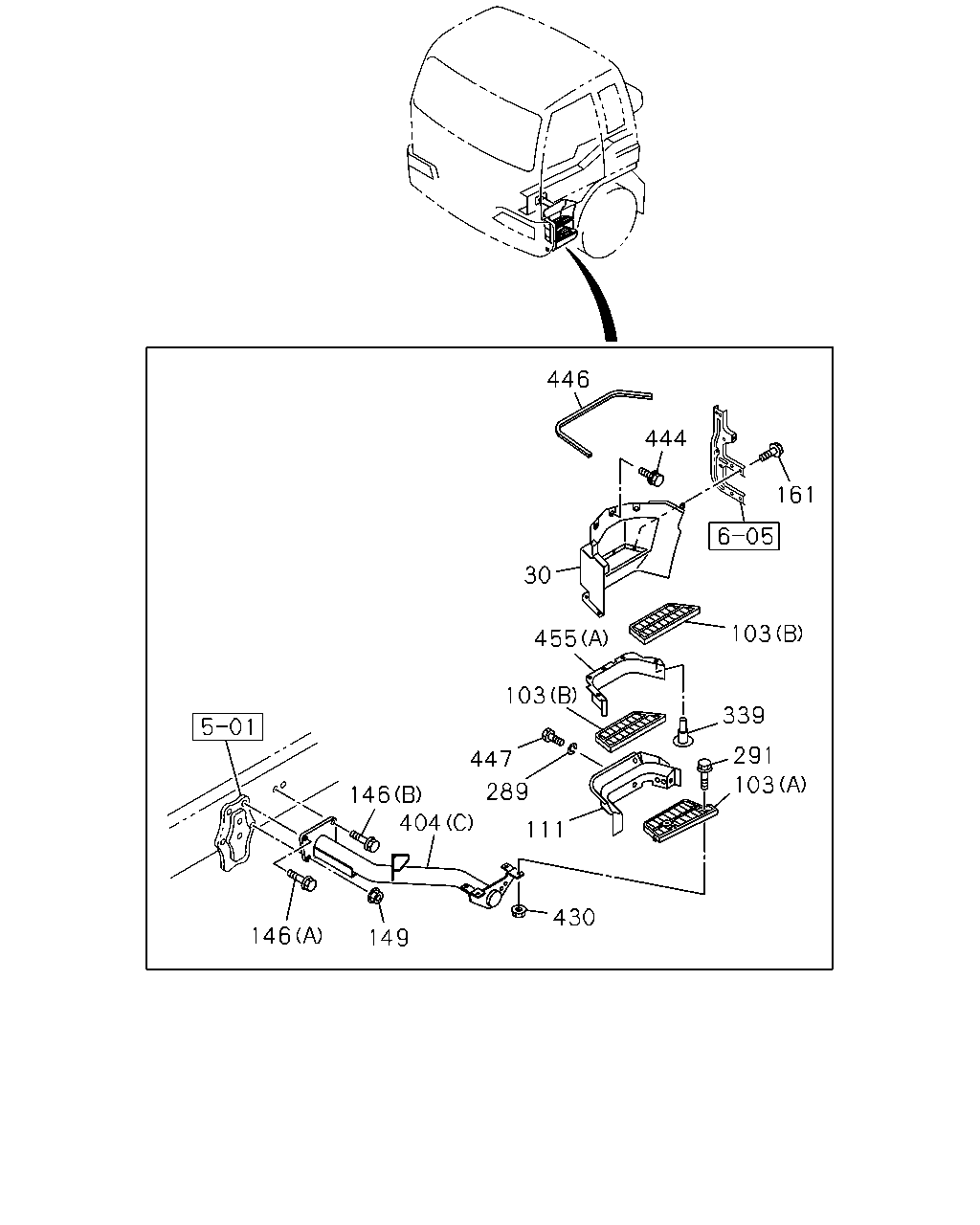

446 444 161 30 455 103 103 291 103 339 447 289 111 146 146 149 404 430

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
30	CLOSING; SIDE STEP	8-98157-935-0	01	1	1008-	●	●
30	CLOSING; SIDE STEP	8-98157-934-0	01	1	1008-	●	●
103	PLATE; STEP (A)	1-53414-181-0	01	1	1008-	●	●
103	PLATE; STEP (B)	1-71907-249-1	02	1	1008-	●	●
103	PLATE; STEP (A)	1-53414-180-0	01	1	1008-	●	●
103	PLATE; STEP (B)	1-71907-174-1	02	1	1008-	●	●
111	COVER; 1ST STEP	8-98167-806-0	01	1	1008-1410	●	●
111	COVER; 1ST STEP	8-98167-805-0	01	1	1008-1410	●	●
146	BOLT; STEP BRKT (A) M12X30 FLANGE	0-28051-230-0	02	1	1008-1410	●	●
146	BOLT; STEP BRKT EXC. FRONT UNDER RUN PROTECTOR<EBE> (A) M12X30 FLANGE	0-28051-230-0	08	1	1411-1504	●	●
146	BOLT; STEP BRKT (B) M12X80 FLANGE	0-28051-280-0	04	1	1008-1410	●	●
146	BOLT; STEP BRKT FRONT UNDER RUN PROTECTOR<EBE> (C) M12X35 FLANGE	0-28051-235-0	08	1	1411-1504	●	●
146	BOLT; STEP BRKT (D) M12X40 FLANGE	0-28051-240-0	08	1	1505-	●	●
149	NUT; STEP BRKT M12 FLANGE	0-91180-212-0	02	1	1008-1410	●	●
161	BOLT; FIX M8X29.5 W/LK+PL WASHER	8-94279-218-0	16	1	1008-	●	●
289	WASHER; PL,STEP ID=6.4 OD=18	0-91610-706-0	08	1	1008-	●	●
291	BOLT; STEP PLATE M8X35 FLANGE	0-28050-835-0	08	1	1008-1410	●	●
291	BOLT; STEP PLATE M8X50 FLANGE	0-28050-850-0	08	1	1411-	●	●
339	FASTENER; SIDE ID=6X6 OD=8	1-09987-194-0	10	1	1008-	●	●
404	BRACKET (C)	8-98144-629-2	01	1	1008-1410	●	●
404	BRACKET WHEEL BASE 5200MM(52W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (B)	8-98288-167-0	01	1	1411-	●
404	BRACKET WHEEL BASE 5200MM(52W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (B)	8-98288-167-0	01	1	1411-	●
404	BRACKET WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (B)	8-98288-167-0	01	1	1411-		●
404	BRACKET WHEEL BASE 5500MM(55W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (B)	8-98288-167-0	01	1	1411-		●
404	BRACKET WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (B)	8-98288-167-0	01	1	1411-		●
404	BRACKET (C)	8-98138-224-3	01	1	1008-1410	●	●
404	BRACKET WHEEL BASE 5200MM(52W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (B)	8-98288-166-0	01	1	1411-	●
404	BRACKET WHEEL BASE 5200MM(52W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (B)	8-98288-166-0	01	1	1411-	●
404	BRACKET WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (B)	8-98288-166-0	01	1	1411-		●
404	BRACKET WHEEL BASE 5500MM(55W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (B)	8-98288-166-0	01	1	1411-		●
404	BRACKET WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (B)	8-98288-166-0	01	1	1411-		●
404	BRACKET WHEEL BASE 5200MM(52W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (B)	8-98268-771-0	01	1	1411-	●
404	BRACKET WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (B)	8-98268-771-0	01	1	1411-		●
404	BRACKET WHEEL BASE 5500MM(55W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (B)	8-98268-771-0	01	1	1411-		●
404	BRACKET WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (B)	8-98268-771-0	01	1	1411-		●
404	BRACKET WHEEL BASE 5200MM(52W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (B)	8-98268-772-0	01	1	1411-	●
404	BRACKET WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (B)	8-98268-772-0	01	1	1411-		●
404	BRACKET WHEEL BASE 5500MM(55W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (B)	8-98268-772-0	01	1	1411-		●
404	BRACKET WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (B)	8-98268-772-0	01	1	1411-		●
404	BRACKET EXC. FRONT UNDER RUN PROTECTOR<EBE> (A)	8-98227-951-0	01	1	1411-	●	●
404	BRACKET EXC. FRONT UNDER RUN PROTECTOR<EBE> (A)	8-98227-952-0	01	1	1411-	●	●
430	NUT; PANEL M8 FLANGE	0-91180-108-0	08	1	1008-	●	●
444	BOLT; CLOSING M8X24.5 W/LK&PL WASHER	8-98059-720-0	06	1	1008-	●	●
446	FINISHER; STEP ID=18 L=80	1-71996-051-0	02	1	1008-	●	●
447	BOLT; PANEL M6X12 FLANGE	0-28050-612-0	08	1	1008-	●	●
455	PROTECTOR; STEP (A)	8-98157-942-0	01	1	1008-1410	●	●
455	PROTECTOR; STEP (B)	8-98125-807-2	01	1	1411-	●	●
455	PROTECTOR; STEP (A)	8-98157-943-0	01	1	1008-1410	●	●
455	PROTECTOR; STEP (B)	8-98125-808-2	01	1	1411-	●	●

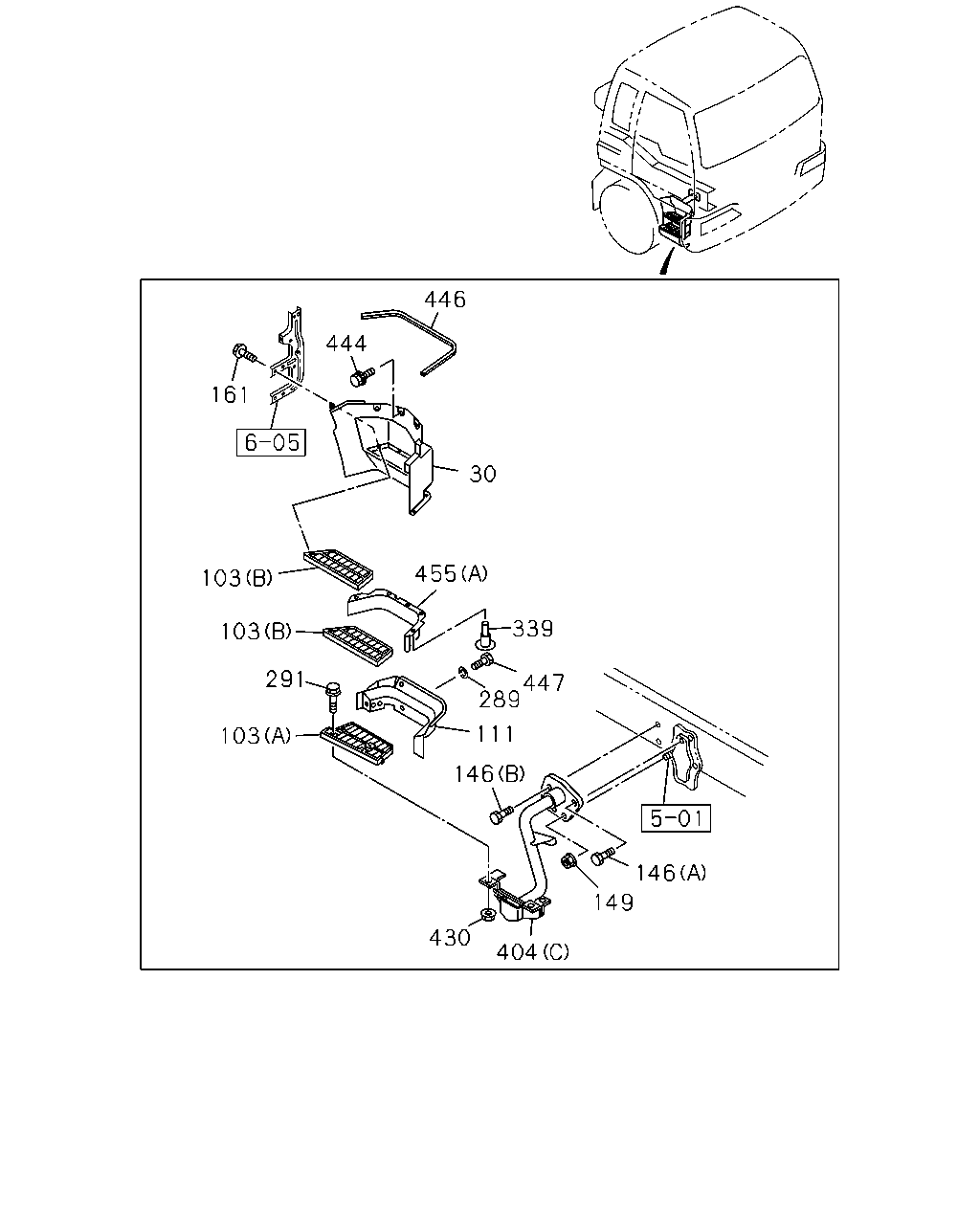

446 444 161 103 339 291 103 111 289 447 103 455 30 430 404 146 149 146

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
30	CLOSING; SIDE STEP	8-98157-935-0	01	1	1008-	●	●
30	CLOSING; SIDE STEP	8-98157-934-0	01	1	1008-	●	●
103	PLATE; STEP (A)	1-53414-181-0	01	1	1008-	●	●
103	PLATE; STEP (B)	1-71907-249-1	02	1	1008-	●	●
103	PLATE; STEP (A)	1-53414-180-0	01	1	1008-	●	●
103	PLATE; STEP (B)	1-71907-174-1	02	1	1008-	●	●
111	COVER; 1ST STEP	8-98167-806-0	01	1	1008-1410	●	●
111	COVER; 1ST STEP	8-98167-805-0	01	1	1008-1410	●	●
146	BOLT; STEP BRKT (A) M12X30 FLANGE	0-28051-230-0	02	1	1008-1410	●	●
146	BOLT; STEP BRKT EXC. FRONT UNDER RUN PROTECTOR<EBE> (A) M12X30 FLANGE	0-28051-230-0	08	1	1411-1504	●	●
146	BOLT; STEP BRKT (B) M12X80 FLANGE	0-28051-280-0	04	1	1008-1410	●	●
146	BOLT; STEP BRKT FRONT UNDER RUN PROTECTOR<EBE> (C) M12X35 FLANGE	0-28051-235-0	08	1	1411-1504	●	●
146	BOLT; STEP BRKT (D) M12X40 FLANGE	0-28051-240-0	08	1	1505-	●	●
149	NUT; STEP BRKT M12 FLANGE	0-91180-212-0	02	1	1008-1410	●	●
161	BOLT; FIX M8X29.5 W/LK+PL WASHER	8-94279-218-0	16	1	1008-	●	●
289	WASHER; PL,STEP ID=6.4 OD=18	0-91610-706-0	08	1	1008-	●	●
291	BOLT; STEP PLATE M8X35 FLANGE	0-28050-835-0	08	1	1008-1410	●	●
291	BOLT; STEP PLATE M8X50 FLANGE	0-28050-850-0	08	1	1411-	●	●
339	FASTENER; SIDE ID=6X6 OD=8	1-09987-194-0	10	1	1008-	●	●
404	BRACKET (C)	8-98144-629-2	01	1	1008-1410	●	●
404	BRACKET WHEEL BASE 5200MM(52W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (B)	8-98288-167-0	01	1	1411-	●
404	BRACKET WHEEL BASE 5200MM(52W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (B)	8-98288-167-0	01	1	1411-	●
404	BRACKET WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (B)	8-98288-167-0	01	1	1411-		●
404	BRACKET WHEEL BASE 5500MM(55W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (B)	8-98288-167-0	01	1	1411-		●
404	BRACKET WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (B)	8-98288-167-0	01	1	1411-		●
404	BRACKET (C)	8-98138-224-3	01	1	1008-1410	●	●
404	BRACKET WHEEL BASE 5200MM(52W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (B)	8-98288-166-0	01	1	1411-	●
404	BRACKET WHEEL BASE 5200MM(52W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (B)	8-98288-166-0	01	1	1411-	●
404	BRACKET WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (B)	8-98288-166-0	01	1	1411-		●
404	BRACKET WHEEL BASE 5500MM(55W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (B)	8-98288-166-0	01	1	1411-		●
404	BRACKET WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (B)	8-98288-166-0	01	1	1411-		●
404	BRACKET WHEEL BASE 5200MM(52W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (B)	8-98268-771-0	01	1	1411-	●
404	BRACKET WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (B)	8-98268-771-0	01	1	1411-		●
404	BRACKET WHEEL BASE 5500MM(55W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (B)	8-98268-771-0	01	1	1411-		●
404	BRACKET WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (B)	8-98268-771-0	01	1	1411-		●
404	BRACKET WHEEL BASE 5200MM(52W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (B)	8-98268-772-0	01	1	1411-	●
404	BRACKET WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (B)	8-98268-772-0	01	1	1411-		●
404	BRACKET WHEEL BASE 5500MM(55W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (B)	8-98268-772-0	01	1	1411-		●
404	BRACKET WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (B)	8-98268-772-0	01	1	1411-		●
404	BRACKET EXC. FRONT UNDER RUN PROTECTOR<EBE> (A)	8-98227-951-0	01	1	1411-	●	●
404	BRACKET EXC. FRONT UNDER RUN PROTECTOR<EBE> (A)	8-98227-952-0	01	1	1411-	●	●
430	NUT; PANEL M8 FLANGE	0-91180-108-0	08	1	1008-	●	●
444	BOLT; CLOSING M8X24.5 W/LK&PL WASHER	8-98059-720-0	06	1	1008-	●	●
446	FINISHER; STEP ID=18 L=80	1-71996-051-0	02	1	1008-	●	●
447	BOLT; PANEL M6X12 FLANGE	0-28050-612-0	08	1	1008-	●	●
455	PROTECTOR; STEP (A)	8-98157-942-0	01	1	1008-1410	●	●
455	PROTECTOR; STEP (B)	8-98125-807-2	01	1	1411-	●	●
455	PROTECTOR; STEP (A)	8-98157-943-0	01	1	1008-1410	●	●
455	PROTECTOR; STEP (B)	8-98125-808-2	01	1	1411-	●	●

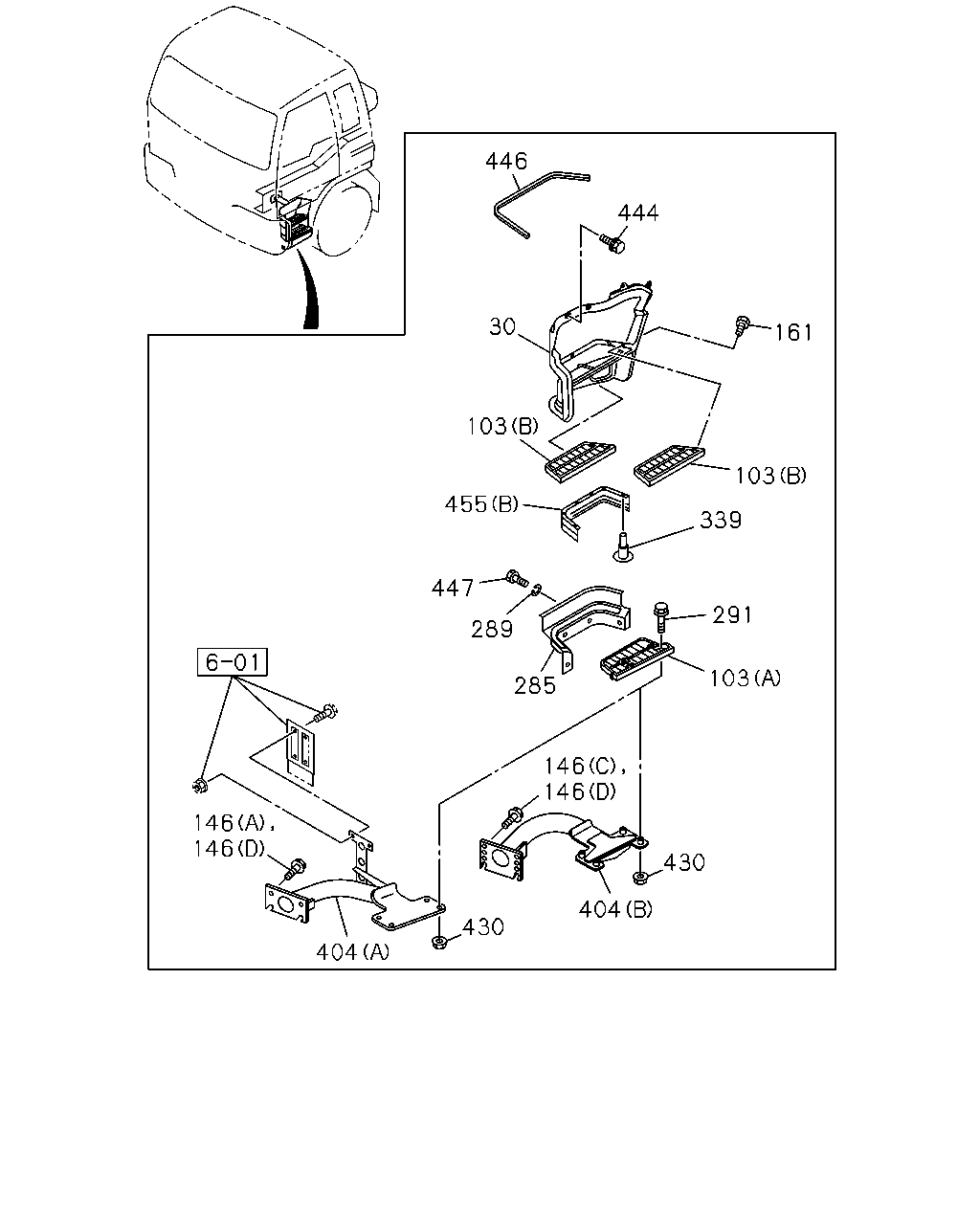

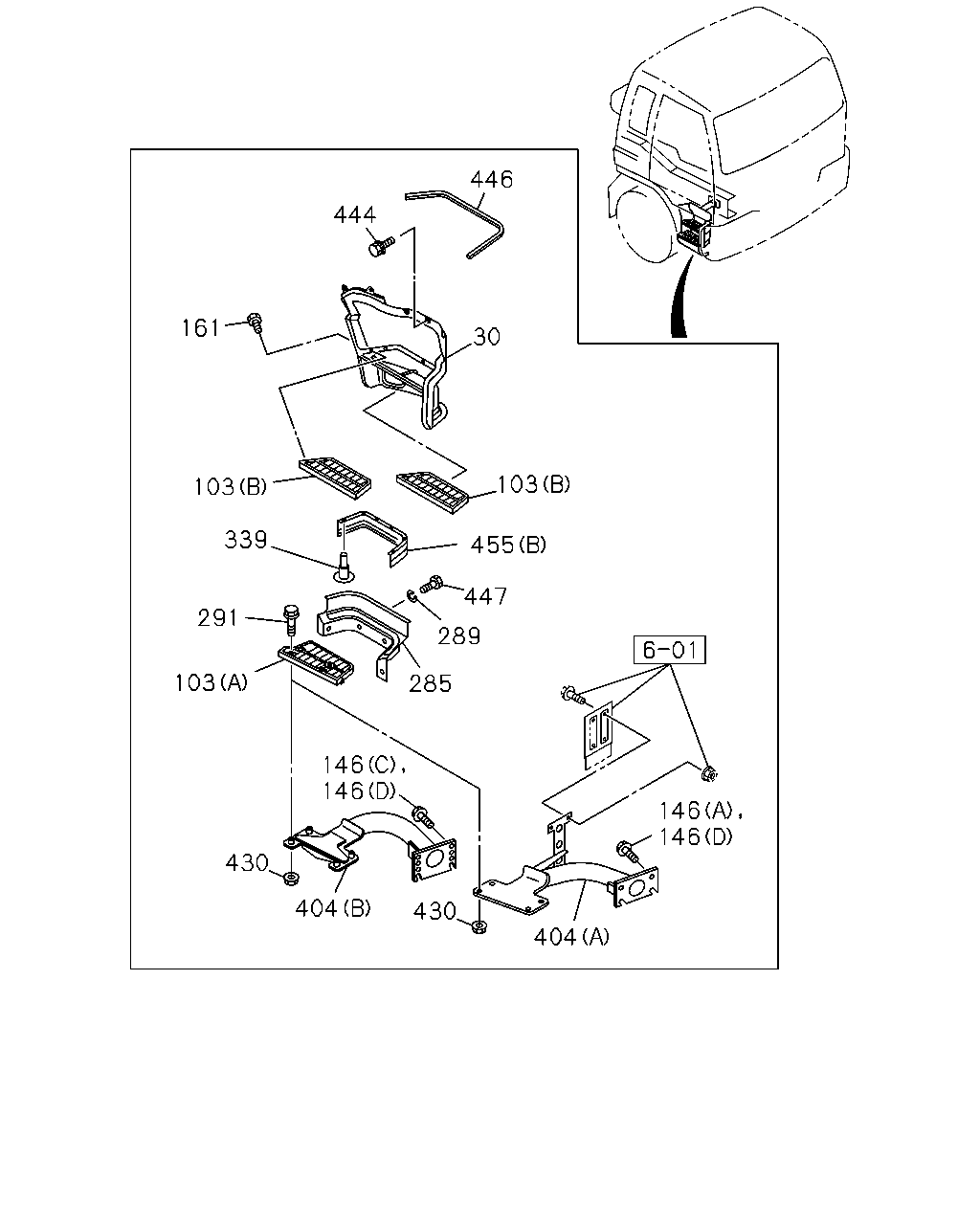

446 444 161 103 339 291 103 285 146 146 430 404 430 404 146 146 447 289 455 103 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
30	CLOSING; SIDE STEP	8-98157-935-0	01	1	1008-	●	●
30	CLOSING; SIDE STEP	8-98157-934-0	01	1	1008-	●	●
103	PLATE; STEP (A)	1-53414-181-0	01	1	1008-	●	●
103	PLATE; STEP (B)	1-71907-249-1	02	1	1008-	●	●
103	PLATE; STEP (A)	1-53414-180-0	01	1	1008-	●	●
103	PLATE; STEP (B)	1-71907-174-1	02	1	1008-	●	●
146	BOLT; STEP BRKT (A) M12X30 FLANGE	0-28051-230-0	02	1	1008-1410	●	●
146	BOLT; STEP BRKT EXC. FRONT UNDER RUN PROTECTOR<EBE> (A) M12X30 FLANGE	0-28051-230-0	08	1	1411-1504	●	●
146	BOLT; STEP BRKT (B) M12X80 FLANGE	0-28051-280-0	04	1	1008-1410	●	●
146	BOLT; STEP BRKT FRONT UNDER RUN PROTECTOR<EBE> (C) M12X35 FLANGE	0-28051-235-0	08	1	1411-1504	●	●
146	BOLT; STEP BRKT (D) M12X40 FLANGE	0-28051-240-0	08	1	1505-	●	●
161	BOLT; FIX M8X29.5 W/LK+PL WASHER	8-94279-218-0	16	1	1008-	●	●
285	PLATE; STEP,1ST STEP	8-98227-947-1	01	1	1411-	●	●
285	PLATE; STEP,1ST STEP	8-98227-948-1	01	1	1411-	●	●
289	WASHER; PL,STEP ID=6.4 OD=18	0-91610-706-0	08	1	1008-	●	●
291	BOLT; STEP PLATE M8X35 FLANGE	0-28050-835-0	08	1	1008-1410	●	●
291	BOLT; STEP PLATE M8X50 FLANGE	0-28050-850-0	08	1	1411-	●	●
339	FASTENER; SIDE ID=6X6 OD=8	1-09987-194-0	10	1	1008-	●	●
404	BRACKET (C)	8-98144-629-2	01	1	1008-1410	●	●
404	BRACKET WHEEL BASE 5200MM(52W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (B)	8-98288-167-0	01	1	1411-	●
404	BRACKET WHEEL BASE 5200MM(52W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (B)	8-98288-167-0	01	1	1411-	●
404	BRACKET WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (B)	8-98288-167-0	01	1	1411-		●
404	BRACKET WHEEL BASE 5500MM(55W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (B)	8-98288-167-0	01	1	1411-		●
404	BRACKET WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (B)	8-98288-167-0	01	1	1411-		●
404	BRACKET (C)	8-98138-224-3	01	1	1008-1410	●	●
404	BRACKET WHEEL BASE 5200MM(52W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (B)	8-98288-166-0	01	1	1411-	●
404	BRACKET WHEEL BASE 5200MM(52W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (B)	8-98288-166-0	01	1	1411-	●
404	BRACKET WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (B)	8-98288-166-0	01	1	1411-		●
404	BRACKET WHEEL BASE 5500MM(55W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (B)	8-98288-166-0	01	1	1411-		●
404	BRACKET WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (B)	8-98288-166-0	01	1	1411-		●
404	BRACKET WHEEL BASE 5200MM(52W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (B)	8-98268-771-0	01	1	1411-	●
404	BRACKET WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (B)	8-98268-771-0	01	1	1411-		●
404	BRACKET WHEEL BASE 5500MM(55W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (B)	8-98268-771-0	01	1	1411-		●
404	BRACKET WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (B)	8-98268-771-0	01	1	1411-		●
404	BRACKET WHEEL BASE 5200MM(52W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (B)	8-98268-772-0	01	1	1411-	●
404	BRACKET WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (B)	8-98268-772-0	01	1	1411-		●
404	BRACKET WHEEL BASE 5500MM(55W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (B)	8-98268-772-0	01	1	1411-		●
404	BRACKET WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (B)	8-98268-772-0	01	1	1411-		●
404	BRACKET EXC. FRONT UNDER RUN PROTECTOR<EBE> (A)	8-98227-951-0	01	1	1411-	●	●
404	BRACKET EXC. FRONT UNDER RUN PROTECTOR<EBE> (A)	8-98227-952-0	01	1	1411-	●	●
430	NUT; PANEL M8 FLANGE	0-91180-108-0	08	1	1008-	●	●
444	BOLT; CLOSING M8X24.5 W/LK&PL WASHER	8-98059-720-0	06	1	1008-	●	●
446	FINISHER; STEP ID=18 L=80	1-71996-051-0	02	1	1008-	●	●
447	BOLT; PANEL M6X12 FLANGE	0-28050-612-0	08	1	1008-	●	●
455	PROTECTOR; STEP (A)	8-98157-942-0	01	1	1008-1410	●	●
455	PROTECTOR; STEP (B)	8-98125-807-2	01	1	1411-	●	●
455	PROTECTOR; STEP (A)	8-98157-943-0	01	1	1008-1410	●	●
455	PROTECTOR; STEP (B)	8-98125-808-2	01	1	1411-	●	●

444 446 161 103 291 339 103 30 455 447 289 285 146 146 430 404 430 404 146 146 103

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
30	CLOSING; SIDE STEP	8-98157-935-0	01	1	1008-	●	●
30	CLOSING; SIDE STEP	8-98157-934-0	01	1	1008-	●	●
103	PLATE; STEP (A)	1-53414-181-0	01	1	1008-	●	●
103	PLATE; STEP (B)	1-71907-249-1	02	1	1008-	●	●
103	PLATE; STEP (A)	1-53414-180-0	01	1	1008-	●	●
103	PLATE; STEP (B)	1-71907-174-1	02	1	1008-	●	●
146	BOLT; STEP BRKT (A) M12X30 FLANGE	0-28051-230-0	02	1	1008-1410	●	●
146	BOLT; STEP BRKT EXC. FRONT UNDER RUN PROTECTOR<EBE> (A) M12X30 FLANGE	0-28051-230-0	08	1	1411-1504	●	●
146	BOLT; STEP BRKT (B) M12X80 FLANGE	0-28051-280-0	04	1	1008-1410	●	●
146	BOLT; STEP BRKT FRONT UNDER RUN PROTECTOR<EBE> (C) M12X35 FLANGE	0-28051-235-0	08	1	1411-1504	●	●
146	BOLT; STEP BRKT (D) M12X40 FLANGE	0-28051-240-0	08	1	1505-	●	●
161	BOLT; FIX M8X29.5 W/LK+PL WASHER	8-94279-218-0	16	1	1008-	●	●
285	PLATE; STEP,1ST STEP	8-98227-947-1	01	1	1411-	●	●
285	PLATE; STEP,1ST STEP	8-98227-948-1	01	1	1411-	●	●
289	WASHER; PL,STEP ID=6.4 OD=18	0-91610-706-0	08	1	1008-	●	●
291	BOLT; STEP PLATE M8X35 FLANGE	0-28050-835-0	08	1	1008-1410	●	●
291	BOLT; STEP PLATE M8X50 FLANGE	0-28050-850-0	08	1	1411-	●	●
339	FASTENER; SIDE ID=6X6 OD=8	1-09987-194-0	10	1	1008-	●	●
404	BRACKET (C)	8-98144-629-2	01	1	1008-1410	●	●
404	BRACKET WHEEL BASE 5200MM(52W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (B)	8-98288-167-0	01	1	1411-	●
404	BRACKET WHEEL BASE 5200MM(52W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (B)	8-98288-167-0	01	1	1411-	●
404	BRACKET WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (B)	8-98288-167-0	01	1	1411-		●
404	BRACKET WHEEL BASE 5500MM(55W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (B)	8-98288-167-0	01	1	1411-		●
404	BRACKET WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (B)	8-98288-167-0	01	1	1411-		●
404	BRACKET (C)	8-98138-224-3	01	1	1008-1410	●	●
404	BRACKET WHEEL BASE 5200MM(52W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (B)	8-98288-166-0	01	1	1411-	●
404	BRACKET WHEEL BASE 5200MM(52W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (B)	8-98288-166-0	01	1	1411-	●
404	BRACKET WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (B)	8-98288-166-0	01	1	1411-		●
404	BRACKET WHEEL BASE 5500MM(55W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (B)	8-98288-166-0	01	1	1411-		●
404	BRACKET WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (B)	8-98288-166-0	01	1	1411-		●
404	BRACKET WHEEL BASE 5200MM(52W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (B)	8-98268-771-0	01	1	1411-	●
404	BRACKET WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (B)	8-98268-771-0	01	1	1411-		●
404	BRACKET WHEEL BASE 5500MM(55W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (B)	8-98268-771-0	01	1	1411-		●
404	BRACKET WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (B)	8-98268-771-0	01	1	1411-		●
404	BRACKET WHEEL BASE 5200MM(52W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (B)	8-98268-772-0	01	1	1411-	●
404	BRACKET WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (B)	8-98268-772-0	01	1	1411-		●
404	BRACKET WHEEL BASE 5500MM(55W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (B)	8-98268-772-0	01	1	1411-		●
404	BRACKET WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (B)	8-98268-772-0	01	1	1411-		●
404	BRACKET EXC. FRONT UNDER RUN PROTECTOR<EBE> (A)	8-98227-951-0	01	1	1411-	●	●
404	BRACKET EXC. FRONT UNDER RUN PROTECTOR<EBE> (A)	8-98227-952-0	01	1	1411-	●	●
430	NUT; PANEL M8 FLANGE	0-91180-108-0	08	1	1008-	●	●
444	BOLT; CLOSING M8X24.5 W/LK&PL WASHER	8-98059-720-0	06	1	1008-	●	●
446	FINISHER; STEP ID=18 L=80	1-71996-051-0	02	1	1008-	●	●
447	BOLT; PANEL M6X12 FLANGE	0-28050-612-0	08	1	1008-	●	●
455	PROTECTOR; STEP (A)	8-98157-942-0	01	1	1008-1410	●	●
455	PROTECTOR; STEP (B)	8-98125-807-2	01	1	1411-	●	●
455	PROTECTOR; STEP (A)	8-98157-943-0	01	1	1008-1410	●	●
455	PROTECTOR; STEP (B)	8-98125-808-2	01	1	1411-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
