Sayfa 6-01 - Isuzu EPC

6-01 — FRONT BUMPER (#62649) — 484 parça

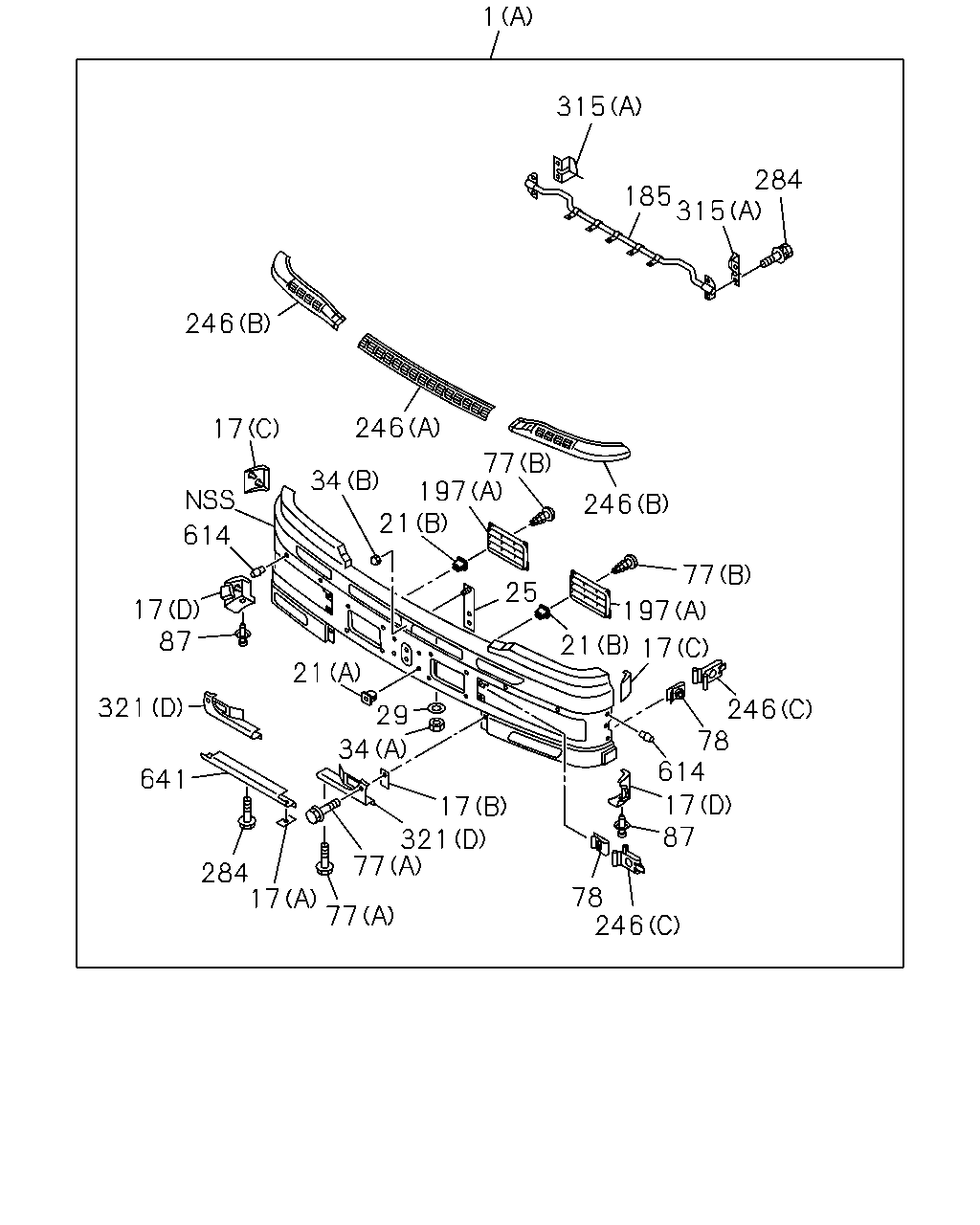

1 315 185 315 284 246 246 77 17 614 17 34 197 21 246 77 25 197 21 17 246 78 614 17 87 78 246 77 77 321 17 17 284 641 321 87 21 29 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BUMPER ASM; FRT (A)	8-98138-769-3	01	1	1008-1410	●	●
1	BUMPER ASM; FRT (B) WHITE	8-97417-846-3	01	1	1411-	●	●
17	PROTECTOR; FRT BUMPER (A)	1-71260-185-0	02	1	1008-1410	●	●
17	PROTECTOR; FRT BUMPER (B)	1-71260-277-0	02	1	1008-1410	●	●
17	PROTECTOR; FRT BUMPER (C)	8-98139-102-1	01	1	1008-1410	●	●
17	PROTECTOR; FRT BUMPER (C)	8-98139-103-1	01	1	1008-1410	●	●
17	PROTECTOR; FRT BUMPER (D)	8-98139-106-2	01	1	1008-1410	●	●
17	PROTECTOR; FRT BUMPER (D)	8-98139-107-2	01	1	1008-1410	●	●
21	GROMMET; SCREW,BUMPER PROTECTOR (B) D=9X9 L=7 M5	8-94163-979-0	08	1	1008-1410	●	●
21	GROMMET; SCREW,BUMPER PROTECTOR (A) D=9.7X9.7 L=8	8-94222-314-0	04	1	1008-	●	●
25	SPACER; PLATFORM	1-71230-640-0	01	1	1008-1410	●	●
29	WASHER; FRT BUMPER ID=8.4 OD=22	0-91610-708-0	13	1	1008-1410	●	●
34	NUT; BRKT,BUMPER (A) M8 FLANGE	0-91180-108-0	04	1	1008-1410	●	●
34	NUT; BRKT,BUMPER (C) M6 FLANGE	0-91180-106-0	02	1	1411-	●	●
34	NUT; BRKT,BUMPER (A) M8 FLANGE	0-91180-108-0	13	1	1008-1410	●	●
34	NUT; BRKT,BUMPER (D) M10 FLANGE	0-91180-110-0	04	1	1411-	●	●
34	NUT; BRKT,BUMPER (B) M10 CAP NUT	1-09650-480-0	01	1	1008-1410	●	●
77	SCREW; BRKT (B) M5X16 TAPPING	0-71240-516-0	08	1	1008-1410	●	●
77	SCREW; BRKT (A) M8X20 W/PL WASHER	1-71260-184-0	06	1	1008-1410	●	●
78	NUT; SPIRE	1-71260-174-0	06	1	1008-1410	●	●
87	RIVET; POP,FRT BUMPER D8X13.5	1-09987-248-1	02	1	1008-1410	●	●
185	BRACKET; BUMPER,INNER	1-71230-610-0	01	1	1008-1410	●	●
197	GRILLE; BUMPER (A)	1-71260-115-1	01	1	1008-1410	●	●
197	GRILLE; BUMPER (B)	8-98144-188-4	01	1	1411-	●	●
197	GRILLE; BUMPER (A)	1-71260-116-1	01	1	1008-1410	●	●
246	PROTECTOR; BUMPER (B)	1-71260-094-2	01	1	1008-1410	●	●
246	PROTECTOR; BUMPER (B)	1-71260-095-2	01	1	1008-1410	●	●
246	PROTECTOR; BUMPER (A)	1-71260-155-1	01	1	1008-1410	●	●
246	PROTECTOR; BUMPER (C)	1-71260-162-0	06	1	1008-1410	●	●
246	PROTECTOR; BUMPER (D)	8-98139-105-1	01	1	1008-1410	●	●
246	PROTECTOR; BUMPER (D)	8-98139-104-1	01	1	1008-1410	●	●
284	BOLT; BRKT M8X20 W/LK&PL WASHER	0-50640-820-0	03	1	1008-1410	●	●
284	BOLT; BRKT M8X25 W/LK&PL WASHER	0-50640-825-0	04	1	1008-1410	●	●
315	STAY; BUMPER (C)	1-71230-434-0	02	1	1008-1410	●	●
315	STAY; BUMPER (A)	1-71230-636-0	01	1	1008-1410	●	●
315	STAY; BUMPER (A)	1-71230-637-0	01	1	1008-1410	●	●
315	STAY; BUMPER (B)	1-71230-491-0	01	1	1008-1410	●	●
315	STAY; BUMPER (B)	1-71230-492-0	01	1	1008-1410	●	●
321	COVER; BUMPER FRT SIDE (B)	8-98123-447-1	01	1	1411-	●	●
321	COVER; BUMPER FRT SIDE (A)	8-98123-458-1	01	1	1411-	●	●
321	COVER; BUMPER FRT SIDE (C)	8-98132-737-1	01	1	1411-	●	●
321	COVER; BUMPER FRT SIDE (D)	1-71260-263-1	01	1	1008-1410	●	●
321	COVER; BUMPER FRT SIDE (A)	8-98123-457-1	01	1	1411-	●	●
321	COVER; BUMPER FRT SIDE (D)	1-71260-264-1	01	1	1008-1410	●	●
321	COVER; BUMPER FRT SIDE (B)	8-98123-446-1	01	1	1411-	●	●
614	STOPPER; LID	1-71260-163-0	12	1	1008-1410	●	●
641	BUMPER; FRT,LWR	1-71211-304-1	01	1	1008-1410	●	●

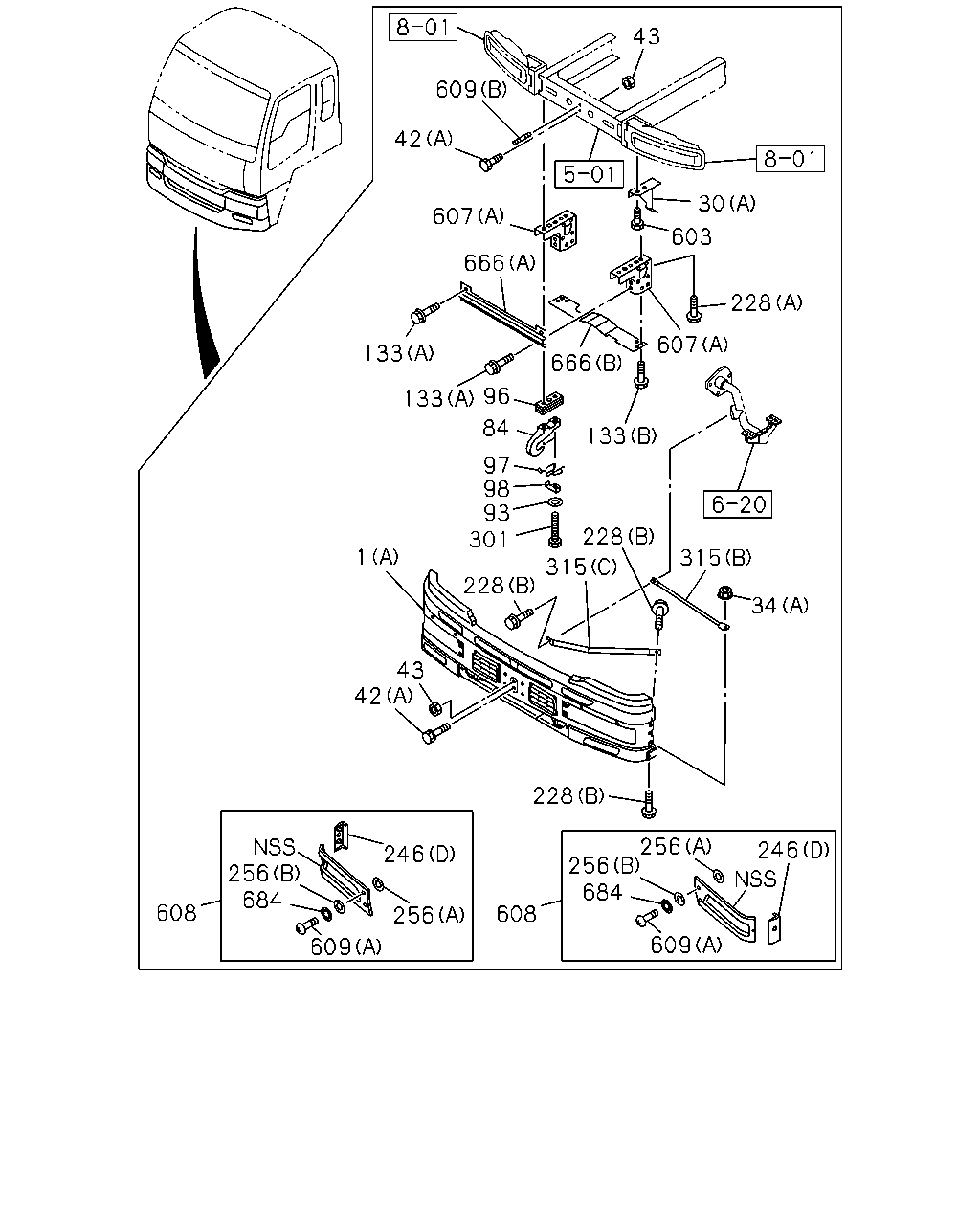

609 43 42 607 666 30 603 228 133 666 607 133 96 84 97 133 98 93 301 1 228 228 315 315 34 43 42 228 256 246 256 684 609 608 608 256 684 256 246 609

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BUMPER ASM; FRT (A)	8-98138-769-3	01	1	1008-1410	●	●
1	BUMPER ASM; FRT (B) WHITE	8-97417-846-3	01	1	1411-	●	●
30	BRACKET; FRT BUMPER FRONT UNDER RUN PROTECTOR<EBE> (B)	8-98218-616-3	01	1	1411-	●	●
30	BRACKET; FRT BUMPER FRONT UNDER RUN PROTECTOR<EBE> (B)	8-98218-617-3	01	1	1411-	●	●
30	BRACKET; FRT BUMPER FRONT UNDER RUN PROTECTOR<EBE> (C)	8-98236-332-0	01	1	1411-	●	●
30	BRACKET; FRT BUMPER FRONT UNDER RUN PROTECTOR<EBE> (C)	8-98236-334-0	01	1	1411-	●	●
30	BRACKET; FRT BUMPER (A)	1-71230-638-0	01	1	1008-1410	●	●
30	BRACKET; FRT BUMPER EXC. FRONT UNDER RUN PROTECTOR<EBE> (D)	8-98135-977-1	01	1	1411-	●	●
30	BRACKET; FRT BUMPER (A)	1-71230-639-0	01	1	1008-1410	●	●
30	BRACKET; FRT BUMPER EXC. FRONT UNDER RUN PROTECTOR<EBE> (D)	8-98135-978-1	01	1	1411-	●	●
34	NUT; BRKT,BUMPER (A) M8 FLANGE	0-91180-108-0	04	1	1008-1410	●	●
34	NUT; BRKT,BUMPER (C) M6 FLANGE	0-91180-106-0	02	1	1411-	●	●
34	NUT; BRKT,BUMPER (A) M8 FLANGE	0-91180-108-0	13	1	1008-1410	●	●
34	NUT; BRKT,BUMPER (D) M10 FLANGE	0-91180-110-0	04	1	1411-	●	●
34	NUT; BRKT,BUMPER (B) M10 CAP NUT	1-09650-480-0	01	1	1008-1410	●	●
42	BOLT; BUMPER FRONT UNDER RUN PROTECTOR<EBE> (D) M10X30 FLANGE	8-98055-942-0	12	1	1511-	●	●
42	BOLT; BUMPER FRONT UNDER RUN PROTECTOR<EBE> (D) M10X30 FLANGE	8-98055-942-0	12	1	1411-1412	●	●
42	BOLT; BUMPER EXC. FRONT UNDER RUN PROTECTOR<EBE> (C) M10X30 FLANGE	0-28051-030-0	04	1	1411-	●	●
42	BOLT; BUMPER EXC. FRONT UNDER RUN PROTECTOR<EBE> (D) M10X30 FLANGE	8-98055-942-0	10	1	1411-	●	●
42	BOLT; BUMPER (A) M10X30 W/LK&PL WASHER	8-94279-213-0	09	1	1008-1410	●	●
42	BOLT; BUMPER (B) M6X20	8-97611-666-0	06	1	1411-	●	●
43	NUT; BRKT TO BUMPER M10 FLANGE	0-91180-210-0	03	1	1008-1410	●	●
84	HOOK	1-57181-027-1	01	1	1008-1410	●	●
84	HOOK	8-98126-930-0	01	1	1411-	●	●
93	WASHER; LK,HOOK ID=16.2	0-91510-816-0	02	1	1008-	●	●
96	PLATE; DIST,HOOK FRONT UNDER RUN PROTECTOR<EBE>	8-98218-989-0	01	1	1411-	●	●
96	PLATE; DIST,HOOK	1-53497-595-0	01	1	1008-1410	●	●
96	PLATE; DIST,HOOK EXC. FRONT UNDER RUN PROTECTOR<EBE>	8-98169-197-0	01	1	1411-	●	●
97	SPRING; FRT HOOK	9-53519-003-0	01	1	1008-1410	●	●
98	STOPPER; SPR,FRT HOOK	9-53519-006-0	01	1	1008-1410	●	●
133	BOLT; PROTECTOR FIX (A) M12X40 FLANGE	0-28651-240-0	04	1	1008-1410	●	●
133	BOLT; PROTECTOR FIX (B) M12X25 FLANGE	0-28661-225-0	06	1	1008-1207	●	●
133	BOLT; PROTECTOR FIX (B) M12X30 FLANGE	0-28661-230-0	06	1	1208-1410	●	●
228	BOLT; BRKT FRONT UNDER RUN PROTECTOR<EBE> (C) M16X35 FLANGE	0-28851-635-0	12	1	1411-	●	●
228	BOLT; BRKT (A) M16X40	0-20951-640-0	06	1	1008-1410	●	●
228	BOLT; BRKT FRONT UNDER RUN PROTECTOR<EBE> (D) M16X40 FLANGE	0-28851-640-0	10	1	1411-	●	●
228	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	06	1	1008-1410	●	●
228	BOLT; BRKT EXC. FRONT UNDER RUN PROTECTOR<EBE> (C) M16X35 FLANGE	0-28851-635-0	06	1	1411-	●	●
246	PROTECTOR; BUMPER (B)	1-71260-094-2	01	1	1008-1410	●	●
246	PROTECTOR; BUMPER (B)	1-71260-095-2	01	1	1008-1410	●	●
246	PROTECTOR; BUMPER (A)	1-71260-155-1	01	1	1008-1410	●	●
246	PROTECTOR; BUMPER (C)	1-71260-162-0	06	1	1008-1410	●	●
246	PROTECTOR; BUMPER (D)	8-98139-105-1	01	1	1008-1410	●	●
246	PROTECTOR; BUMPER (D)	8-98139-104-1	01	1	1008-1410	●	●
256	WASHER; PL (A)	1-71260-173-0	06	1	1008-1410	●	●
256	WASHER; PL (B) ID=6.5 OD=14 T=1.2 NYLON	5-09985-028-0	06	1	1008-1410	●	●
301	BOLT; HOOK TO FRAME M16X95	0-10811-695-0	01	1	1008-1410	●	●
301	BOLT; HOOK TO FRAME M16X110	8-98074-591-0	02	1	1411-	●	●
301	BOLT; HOOK TO FRAME M16X90	0-10861-690-0	01	1	1008-1410	●	●
315	STAY; BUMPER (C)	1-71230-434-0	02	1	1008-1410	●	●
315	STAY; BUMPER (A)	1-71230-636-0	01	1	1008-1410	●	●
315	STAY; BUMPER (A)	1-71230-637-0	01	1	1008-1410	●	●
315	STAY; BUMPER (B)	1-71230-491-0	01	1	1008-1410	●	●
315	STAY; BUMPER (B)	1-71230-492-0	01	1	1008-1410	●	●
603	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	04	1	1008-1410	●	●
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> (G)	8-98223-542-0	01	1	1411-	●	●
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> (G)	8-98223-543-0	01	1	1411-	●	●
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> (H)	8-98290-477-1	01	1	1411-	●	●
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> (H)	8-98290-478-1	01	1	1411-	●	●
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> (F)	8-98304-441-0	01	1	1411-	●	●
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> (F)	8-98304-442-0	01	1	1411-	●	●
607	BRACKET WHEEL BASE 5200MM(52W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (D)	8-98288-160-2	01	1	1411-1510	●
607	BRACKET WHEEL BASE 5200MM(52W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-160-2	01	1	1411-1510	●
607	BRACKET WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (D)	8-98288-160-2	01	1	1411-1510		●
607	BRACKET WHEEL BASE 5500MM(55W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-160-2	01	1	1411-1510		●
607	BRACKET WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (D)	8-98288-160-2	01	1	1411-1510		●
607	BRACKET WHEEL BASE 5200MM(52W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-160-2	01	1	1511-	●
607	BRACKET WHEEL BASE 5200MM(52W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (D)	8-98288-160-2	01	1	1511-	●
607	BRACKET WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (D)	8-98288-160-2	01	1	1511-		●
607	BRACKET WHEEL BASE 5500MM(55W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-160-2	01	1	1511-		●
607	BRACKET WHEEL BASE 5200MM(52W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (D)	8-98288-161-2	01	1	1411-1510	●
607	BRACKET WHEEL BASE 5200MM(52W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-161-2	01	1	1411-1510	●
607	BRACKET WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (D)	8-98288-161-2	01	1	1411-1510		●
607	BRACKET WHEEL BASE 5500MM(55W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-161-2	01	1	1411-1510		●
607	BRACKET WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (D)	8-98288-161-2	01	1	1411-1510		●
607	BRACKET WHEEL BASE 5200MM(52W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-161-2	01	1	1511-	●
607	BRACKET WHEEL BASE 5200MM(52W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (D)	8-98288-161-2	01	1	1511-	●
607	BRACKET WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (D)	8-98288-161-2	01	1	1511-		●
607	BRACKET WHEEL BASE 5500MM(55W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-161-2	01	1	1511-		●
607	BRACKET WHEEL BASE 5200MM(52W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-158-2	01	1	1411-1510	●
607	BRACKET WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-158-2	01	1	1411-1510		●
607	BRACKET WHEEL BASE 5500MM(55W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (D)	8-98288-158-2	01	1	1411-1510		●
607	BRACKET WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-158-2	01	1	1411-1510		●
607	BRACKET WHEEL BASE 5200MM(52W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-158-2	01	1	1511-	●
607	BRACKET WHEEL BASE 5500MM(55W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-158-2	01	1	1511-		●
607	BRACKET WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-158-2	01	1	1511-		●
607	BRACKET WHEEL BASE 5200MM(52W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-159-2	01	1	1411-1510	●
607	BRACKET WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-159-2	01	1	1411-1510		●
607	BRACKET WHEEL BASE 5500MM(55W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (D)	8-98288-159-2	01	1	1411-1510		●
607	BRACKET WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-159-2	01	1	1411-1510		●
607	BRACKET WHEEL BASE 5200MM(52W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-159-2	01	1	1511-	●
607	BRACKET WHEEL BASE 5500MM(55W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-159-2	01	1	1511-		●
607	BRACKET WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-159-2	01	1	1511-		●
607	BRACKET EXC. FRONT UNDER RUN PROTECTOR<EBE> (E)	8-98211-758-0	01	1	1411-	●	●
607	BRACKET EXC. FRONT UNDER RUN PROTECTOR<EBE> (E)	8-98211-759-0	01	1	1411-	●	●
607	BRACKET (A)	8-97608-469-3	01	1	1008-1410	●	●
607	BRACKET (C)	8-98147-053-0	02	1	1411-	●	●
607	BRACKET (A)	8-97608-470-3	01	1	1008-1410	●	●
607	BRACKET (B)	8-98147-054-0	02	1	1411-	●	●
608	LID; BUMPER	8-98138-789-3	01	1	1008-1410	●	●
608	LID; BUMPER	8-98138-788-3	01	1	1008-1410	●	●
609	STUD; BUMPER (A)	1-71260-175-0	06	1	1008-1410	●	●
609	STUD; BUMPER (B) M10X28,M10X15 L=50	5-09300-050-0	01	1	1008-1410	●	●
666	PROTECTOR; UNDER FRONT UNDER RUN PROTECTOR<EBE> (D)	8-98288-162-0	01	1	1411-	●
666	PROTECTOR; UNDER DUMP TRUCK<RA1> FRONT UNDER RUN PROTECTOR<EBE> (D)	8-98288-162-0	01	1	1411-		●
666	PROTECTOR; UNDER EXC. FRONT UNDER RUN PROTECTOR<EBE> (D)	8-98194-529-0	01	1	1411-	●
666	PROTECTOR; UNDER DUMP TRUCK<RA1> EXC. FRONT UNDER RUN PROTECTOR<EBE> (D)	8-98194-529-0	01	1	1411-		●
666	PROTECTOR; UNDER (B)	8-97608-467-1	01	1	1008-1410	●	●
666	PROTECTOR; UNDER EXC. FRONT UNDER RUN PROTECTOR<EBE> (C)	8-98198-583-0	01	1	1411-	●	●
666	PROTECTOR; UNDER (A)	8-97608-471-0	01	1	1008-1410	●	●
666	PROTECTOR; UNDER FRONT UNDER RUN PROTECTOR<EBE> (C)	8-98220-526-0	01	1	1411-	●	●
684	WASHER	8-98148-221-0	06	1	1008-1410	●	●

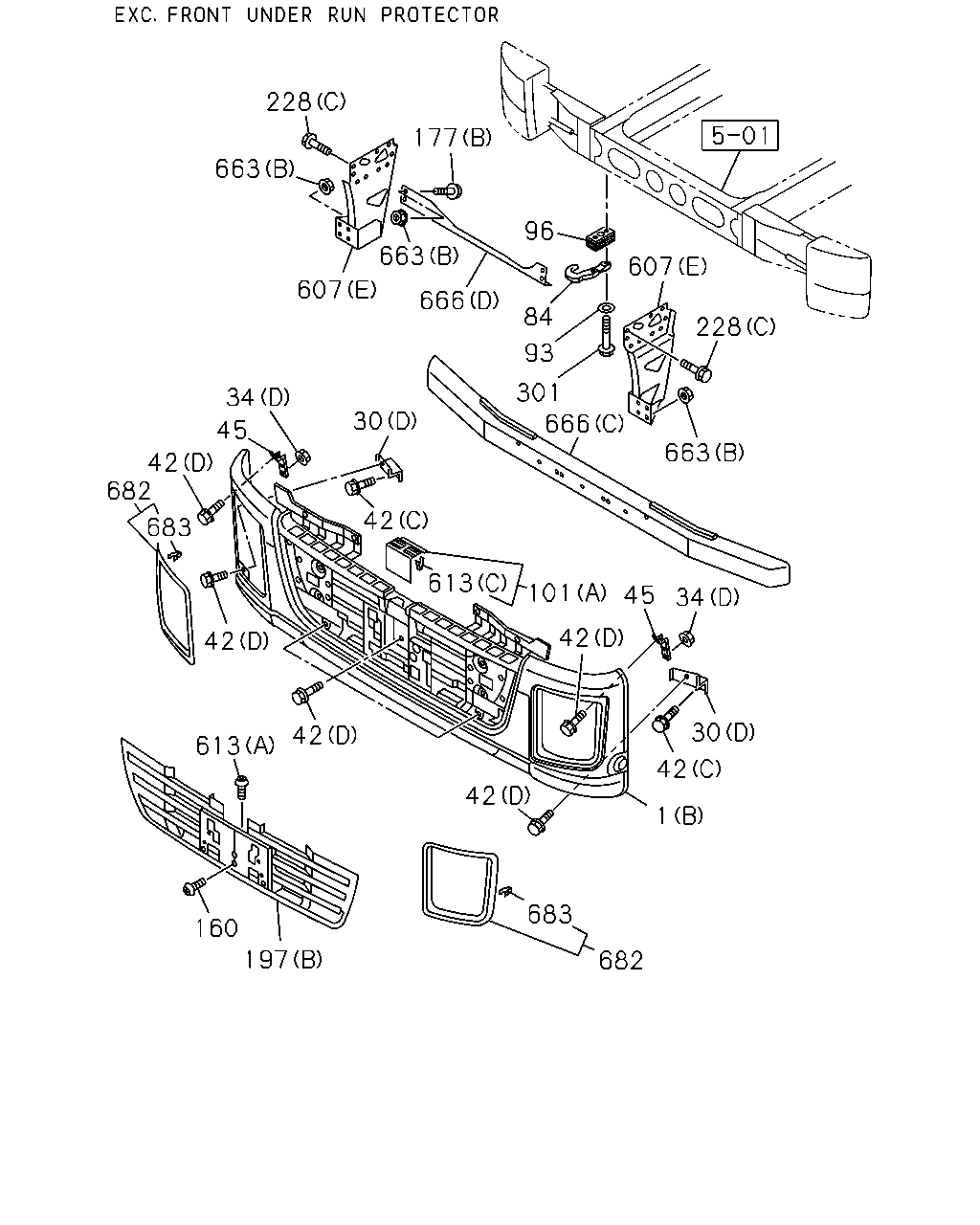

228 607 663 663 177 96 84 301 93 666 607 228 663 228 666 177 30 34 45 42 682 683 42 613 160 197 42 42 42 101 30 613 30 177 34 45 30 607 607 1 683 682 607 228 312 312 607 228

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BUMPER ASM; FRT (A)	8-98138-769-3	01	1	1008-1410	●	●
1	BUMPER ASM; FRT (B) WHITE	8-97417-846-3	01	1	1411-	●	●
30	BRACKET; FRT BUMPER FRONT UNDER RUN PROTECTOR<EBE> (B)	8-98218-616-3	01	1	1411-	●	●
30	BRACKET; FRT BUMPER FRONT UNDER RUN PROTECTOR<EBE> (B)	8-98218-617-3	01	1	1411-	●	●
30	BRACKET; FRT BUMPER FRONT UNDER RUN PROTECTOR<EBE> (C)	8-98236-332-0	01	1	1411-	●	●
30	BRACKET; FRT BUMPER FRONT UNDER RUN PROTECTOR<EBE> (C)	8-98236-334-0	01	1	1411-	●	●
30	BRACKET; FRT BUMPER (A)	1-71230-638-0	01	1	1008-1410	●	●
30	BRACKET; FRT BUMPER EXC. FRONT UNDER RUN PROTECTOR<EBE> (D)	8-98135-977-1	01	1	1411-	●	●
30	BRACKET; FRT BUMPER (A)	1-71230-639-0	01	1	1008-1410	●	●
30	BRACKET; FRT BUMPER EXC. FRONT UNDER RUN PROTECTOR<EBE> (D)	8-98135-978-1	01	1	1411-	●	●
34	NUT; BRKT,BUMPER (A) M8 FLANGE	0-91180-108-0	04	1	1008-1410	●	●
34	NUT; BRKT,BUMPER (C) M6 FLANGE	0-91180-106-0	02	1	1411-	●	●
34	NUT; BRKT,BUMPER (A) M8 FLANGE	0-91180-108-0	13	1	1008-1410	●	●
34	NUT; BRKT,BUMPER (D) M10 FLANGE	0-91180-110-0	04	1	1411-	●	●
34	NUT; BRKT,BUMPER (B) M10 CAP NUT	1-09650-480-0	01	1	1008-1410	●	●
42	BOLT; BUMPER FRONT UNDER RUN PROTECTOR<EBE> (D) M10X30 FLANGE	8-98055-942-0	12	1	1511-	●	●
42	BOLT; BUMPER FRONT UNDER RUN PROTECTOR<EBE> (D) M10X30 FLANGE	8-98055-942-0	12	1	1411-1412	●	●
42	BOLT; BUMPER EXC. FRONT UNDER RUN PROTECTOR<EBE> (C) M10X30 FLANGE	0-28051-030-0	04	1	1411-	●	●
42	BOLT; BUMPER EXC. FRONT UNDER RUN PROTECTOR<EBE> (D) M10X30 FLANGE	8-98055-942-0	10	1	1411-	●	●
42	BOLT; BUMPER (A) M10X30 W/LK&PL WASHER	8-94279-213-0	09	1	1008-1410	●	●
42	BOLT; BUMPER (B) M6X20	8-97611-666-0	06	1	1411-	●	●
45	BRACKET; BRKT TO BUMPER	8-98126-935-2	02	1	1411-	●	●
84	HOOK	1-57181-027-1	01	1	1008-1410	●	●
84	HOOK	8-98126-930-0	01	1	1411-	●	●
93	WASHER; LK,HOOK ID=16.2	0-91510-816-0	02	1	1008-	●	●
96	PLATE; DIST,HOOK FRONT UNDER RUN PROTECTOR<EBE>	8-98218-989-0	01	1	1411-	●	●
96	PLATE; DIST,HOOK	1-53497-595-0	01	1	1008-1410	●	●
96	PLATE; DIST,HOOK EXC. FRONT UNDER RUN PROTECTOR<EBE>	8-98169-197-0	01	1	1411-	●	●
101	STEP; BUMPER (A)	8-98123-450-2	01	1	1411-	●	●
101	STEP; BUMPER (B)	8-98123-452-1	01	1	1411-	●	●
101	STEP; BUMPER (B)	8-98123-453-1	01	1	1411-	●	●
160	SCREW M5X16	8-94380-268-0	01	1	1411-	●	●
177	BOLT FRONT UNDER RUN PROTECTOR<EBE> (C) M8X20 FLANGE	0-28650-820-0	04	1	1411-	●	●
177	BOLT EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) M12X25 FLANGE	0-28051-225-0	04	1	1411-	●
177	BOLT DUMP TRUCK<RA1> EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) M12X25 FLANGE	0-28051-225-0	04	1	1411-		●
177	BOLT EXC. FRONT UNDER RUN PROTECTOR<EBE> (A) M8X25 W/LK&PL WASHER	1-09030-093-0	06	1	1411-1510	●	●
197	GRILLE; BUMPER (A)	1-71260-115-1	01	1	1008-1410	●	●
197	GRILLE; BUMPER (B)	8-98144-188-4	01	1	1411-	●	●
197	GRILLE; BUMPER (A)	1-71260-116-1	01	1	1008-1410	●	●
228	BOLT; BRKT FRONT UNDER RUN PROTECTOR<EBE> (C) M16X35 FLANGE	0-28851-635-0	12	1	1411-	●	●
228	BOLT; BRKT (A) M16X40	0-20951-640-0	06	1	1008-1410	●	●
228	BOLT; BRKT FRONT UNDER RUN PROTECTOR<EBE> (D) M16X40 FLANGE	0-28851-640-0	10	1	1411-	●	●
228	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	06	1	1008-1410	●	●
228	BOLT; BRKT EXC. FRONT UNDER RUN PROTECTOR<EBE> (C) M16X35 FLANGE	0-28851-635-0	06	1	1411-	●	●
301	BOLT; HOOK TO FRAME M16X95	0-10811-695-0	01	1	1008-1410	●	●
301	BOLT; HOOK TO FRAME M16X110	8-98074-591-0	02	1	1411-	●	●
301	BOLT; HOOK TO FRAME M16X90	0-10861-690-0	01	1	1008-1410	●	●
312	NUT; BRKT FRONT UNDER RUN PROTECTOR<EBE> (A) M16	0-91110-516-0	02	1	1411-	●	●
312	NUT; BRKT FRONT UNDER RUN PROTECTOR<EBE> (B) M16 FLANGE	0-91180-216-0	04	1	1411-	●	●
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> (G)	8-98223-542-0	01	1	1411-	●	●
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> (G)	8-98223-543-0	01	1	1411-	●	●
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> (H)	8-98290-477-1	01	1	1411-	●	●
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> (H)	8-98290-478-1	01	1	1411-	●	●
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> (F)	8-98304-441-0	01	1	1411-	●	●
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> (F)	8-98304-442-0	01	1	1411-	●	●
607	BRACKET WHEEL BASE 5200MM(52W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (D)	8-98288-160-2	01	1	1411-1510	●
607	BRACKET WHEEL BASE 5200MM(52W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-160-2	01	1	1411-1510	●
607	BRACKET WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (D)	8-98288-160-2	01	1	1411-1510		●
607	BRACKET WHEEL BASE 5500MM(55W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-160-2	01	1	1411-1510		●
607	BRACKET WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (D)	8-98288-160-2	01	1	1411-1510		●
607	BRACKET WHEEL BASE 5200MM(52W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-160-2	01	1	1511-	●
607	BRACKET WHEEL BASE 5200MM(52W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (D)	8-98288-160-2	01	1	1511-	●
607	BRACKET WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (D)	8-98288-160-2	01	1	1511-		●
607	BRACKET WHEEL BASE 5500MM(55W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-160-2	01	1	1511-		●
607	BRACKET WHEEL BASE 5200MM(52W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (D)	8-98288-161-2	01	1	1411-1510	●
607	BRACKET WHEEL BASE 5200MM(52W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-161-2	01	1	1411-1510	●
607	BRACKET WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (D)	8-98288-161-2	01	1	1411-1510		●
607	BRACKET WHEEL BASE 5500MM(55W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-161-2	01	1	1411-1510		●
607	BRACKET WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (D)	8-98288-161-2	01	1	1411-1510		●
607	BRACKET WHEEL BASE 5200MM(52W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-161-2	01	1	1511-	●
607	BRACKET WHEEL BASE 5200MM(52W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (D)	8-98288-161-2	01	1	1511-	●
607	BRACKET WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (D)	8-98288-161-2	01	1	1511-		●
607	BRACKET WHEEL BASE 5500MM(55W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-161-2	01	1	1511-		●
607	BRACKET WHEEL BASE 5200MM(52W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-158-2	01	1	1411-1510	●
607	BRACKET WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-158-2	01	1	1411-1510		●
607	BRACKET WHEEL BASE 5500MM(55W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (D)	8-98288-158-2	01	1	1411-1510		●
607	BRACKET WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-158-2	01	1	1411-1510		●
607	BRACKET WHEEL BASE 5200MM(52W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-158-2	01	1	1511-	●
607	BRACKET WHEEL BASE 5500MM(55W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-158-2	01	1	1511-		●
607	BRACKET WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-158-2	01	1	1511-		●
607	BRACKET WHEEL BASE 5200MM(52W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-159-2	01	1	1411-1510	●
607	BRACKET WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-159-2	01	1	1411-1510		●
607	BRACKET WHEEL BASE 5500MM(55W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (D)	8-98288-159-2	01	1	1411-1510		●
607	BRACKET WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-159-2	01	1	1411-1510		●
607	BRACKET WHEEL BASE 5200MM(52W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-159-2	01	1	1511-	●
607	BRACKET WHEEL BASE 5500MM(55W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-159-2	01	1	1511-		●
607	BRACKET WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-159-2	01	1	1511-		●
607	BRACKET EXC. FRONT UNDER RUN PROTECTOR<EBE> (E)	8-98211-758-0	01	1	1411-	●	●
607	BRACKET EXC. FRONT UNDER RUN PROTECTOR<EBE> (E)	8-98211-759-0	01	1	1411-	●	●
607	BRACKET (A)	8-97608-469-3	01	1	1008-1410	●	●
607	BRACKET (C)	8-98147-053-0	02	1	1411-	●	●
607	BRACKET (A)	8-97608-470-3	01	1	1008-1410	●	●
607	BRACKET (B)	8-98147-054-0	02	1	1411-	●	●
613	CLIP (D)	8-97581-651-2	04	1	1411-	●	●
613	CLIP (A) D8X13.5	1-09987-248-1	05	1	1411-	●	●
613	CLIP (B)	8-98025-698-0	08	1	1411-	●	●
613	CLIP (C)	8-98144-173-1	06	1	1411-	●	●
663	NUT (B) M12 FLANGE	0-91180-212-0	04	1	1411-	●
663	NUT DUMP TRUCK<RA1> (B) M12 FLANGE	0-91180-212-0	04	1	1411-		●
663	NUT (B) M12 FLANGE	0-91180-212-0	08	1	1411-	●	●
663	NUT EXC. FRONT UNDER RUN PROTECTOR<EBE> (A) M8 FLANGE	0-91180-108-0	06	1	1411-1510	●	●
666	PROTECTOR; UNDER FRONT UNDER RUN PROTECTOR<EBE> (D)	8-98288-162-0	01	1	1411-	●
666	PROTECTOR; UNDER DUMP TRUCK<RA1> FRONT UNDER RUN PROTECTOR<EBE> (D)	8-98288-162-0	01	1	1411-		●
666	PROTECTOR; UNDER EXC. FRONT UNDER RUN PROTECTOR<EBE> (D)	8-98194-529-0	01	1	1411-	●
666	PROTECTOR; UNDER DUMP TRUCK<RA1> EXC. FRONT UNDER RUN PROTECTOR<EBE> (D)	8-98194-529-0	01	1	1411-		●
666	PROTECTOR; UNDER (B)	8-97608-467-1	01	1	1008-1410	●	●
666	PROTECTOR; UNDER EXC. FRONT UNDER RUN PROTECTOR<EBE> (C)	8-98198-583-0	01	1	1411-	●	●
666	PROTECTOR; UNDER (A)	8-97608-471-0	01	1	1008-1410	●	●
666	PROTECTOR; UNDER FRONT UNDER RUN PROTECTOR<EBE> (C)	8-98220-526-0	01	1	1411-	●	●
682	BEZEL; BUMPER	8-98123-444-2	01	1	1411-	●	●
682	BEZEL; BUMPER	8-98123-445-2	01	1	1411-	●	●
683	CLIP; BEZEL,BUMPER	8-98144-173-1	16	1	1411-	●	●

613 613 613 613 613 613 613 613 613 613 613 321 321 321 341 275 259 663 260 650 177 197

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
177	BOLT FRONT UNDER RUN PROTECTOR<EBE> (C) M8X20 FLANGE	0-28650-820-0	04	1	1411-	●	●
177	BOLT EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) M12X25 FLANGE	0-28051-225-0	04	1	1411-	●
177	BOLT DUMP TRUCK<RA1> EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) M12X25 FLANGE	0-28051-225-0	04	1	1411-		●
177	BOLT EXC. FRONT UNDER RUN PROTECTOR<EBE> (A) M8X25 W/LK&PL WASHER	1-09030-093-0	06	1	1411-1510	●	●

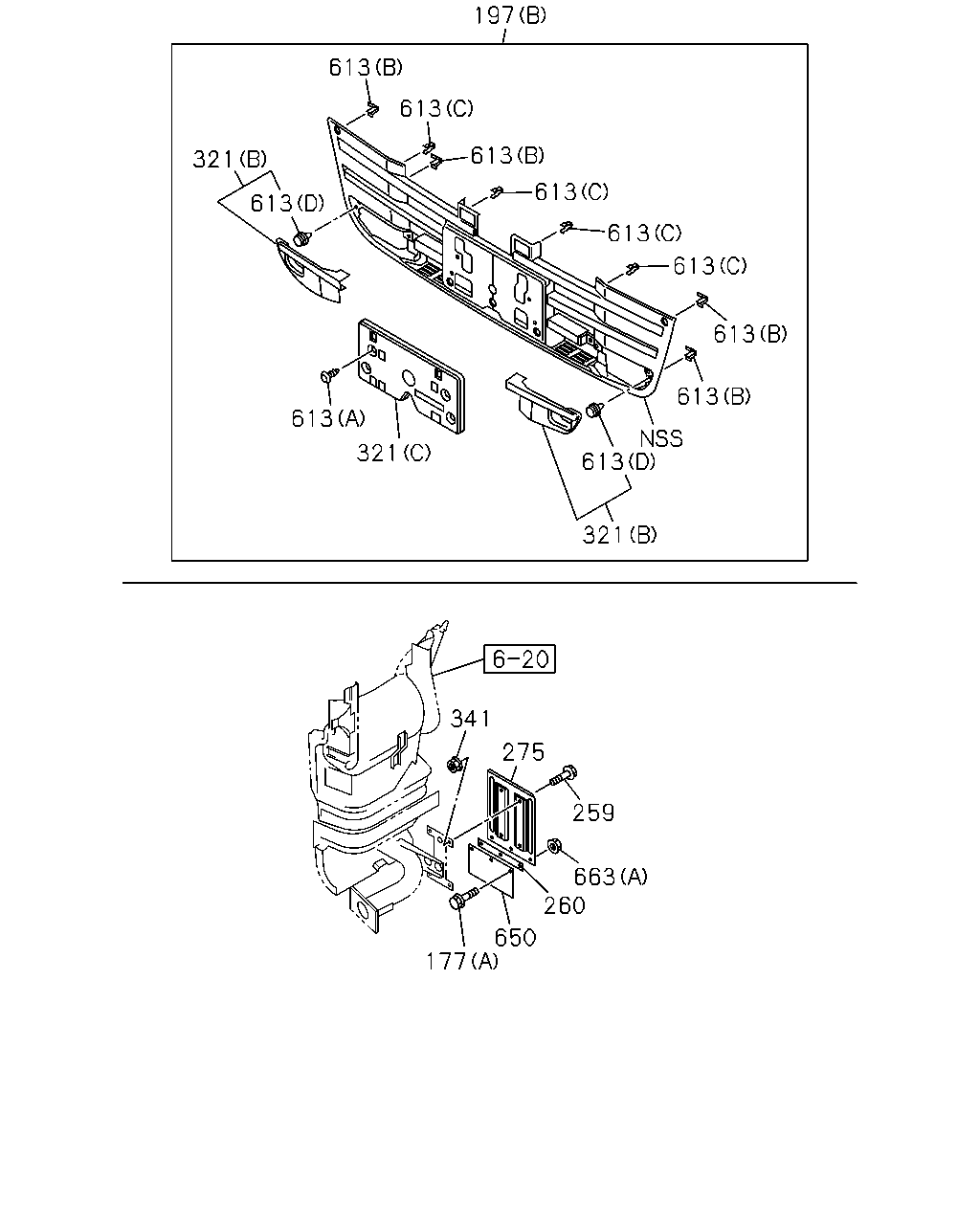

197	GRILLE; BUMPER (A)	1-71260-115-1	01	1	1008-1410	●	●
197	GRILLE; BUMPER (B)	8-98144-188-4	01	1	1411-	●	●
197	GRILLE; BUMPER (A)	1-71260-116-1	01	1	1008-1410	●	●
259	BOLT; COVER EXC. FRONT UNDER RUN PROTECTOR<EBE> M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	1411-1510	●	●
260	RETAINER; UPR SKIRT EXC. FRONT UNDER RUN PROTECTOR<EBE>	8-98125-829-0	02	1	1411-1510	●	●
275	GUARD; FRT EXC. FRONT UNDER RUN PROTECTOR<EBE>	8-98125-825-0	02	1	1411-1510	●	●
321	COVER; BUMPER FRT SIDE (B)	8-98123-447-1	01	1	1411-	●	●
321	COVER; BUMPER FRT SIDE (A)	8-98123-458-1	01	1	1411-	●	●
321	COVER; BUMPER FRT SIDE (C)	8-98132-737-1	01	1	1411-	●	●
321	COVER; BUMPER FRT SIDE (D)	1-71260-263-1	01	1	1008-1410	●	●
321	COVER; BUMPER FRT SIDE (A)	8-98123-457-1	01	1	1411-	●	●
321	COVER; BUMPER FRT SIDE (D)	1-71260-264-1	01	1	1008-1410	●	●
321	COVER; BUMPER FRT SIDE (B)	8-98123-446-1	01	1	1411-	●	●
341	NUT; COVER EXC. FRONT UNDER RUN PROTECTOR<EBE> M8 FLANGE	0-91180-108-0	08	1	1411-1510	●	●
613	CLIP (D)	8-97581-651-2	04	1	1411-	●	●
613	CLIP (A) D8X13.5	1-09987-248-1	05	1	1411-	●	●
613	CLIP (B)	8-98025-698-0	08	1	1411-	●	●
613	CLIP (C)	8-98144-173-1	06	1	1411-	●	●
650	RUBBER; MUD COVER EXC. FRONT UNDER RUN PROTECTOR<EBE>	8-98125-828-0	02	1	1411-1510	●	●
663	NUT (B) M12 FLANGE	0-91180-212-0	04	1	1411-	●
663	NUT DUMP TRUCK<RA1> (B) M12 FLANGE	0-91180-212-0	04	1	1411-		●
663	NUT (B) M12 FLANGE	0-91180-212-0	08	1	1411-	●	●
663	NUT EXC. FRONT UNDER RUN PROTECTOR<EBE> (A) M8 FLANGE	0-91180-108-0	06	1	1411-1510	●	●

228 663 177 607 84 96 93 666 663 228 301 30 42 613 101 42 34 45 30 42 1 42 683 682 197 160 613 42 42 683 682 42 45 34 607 663 666

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

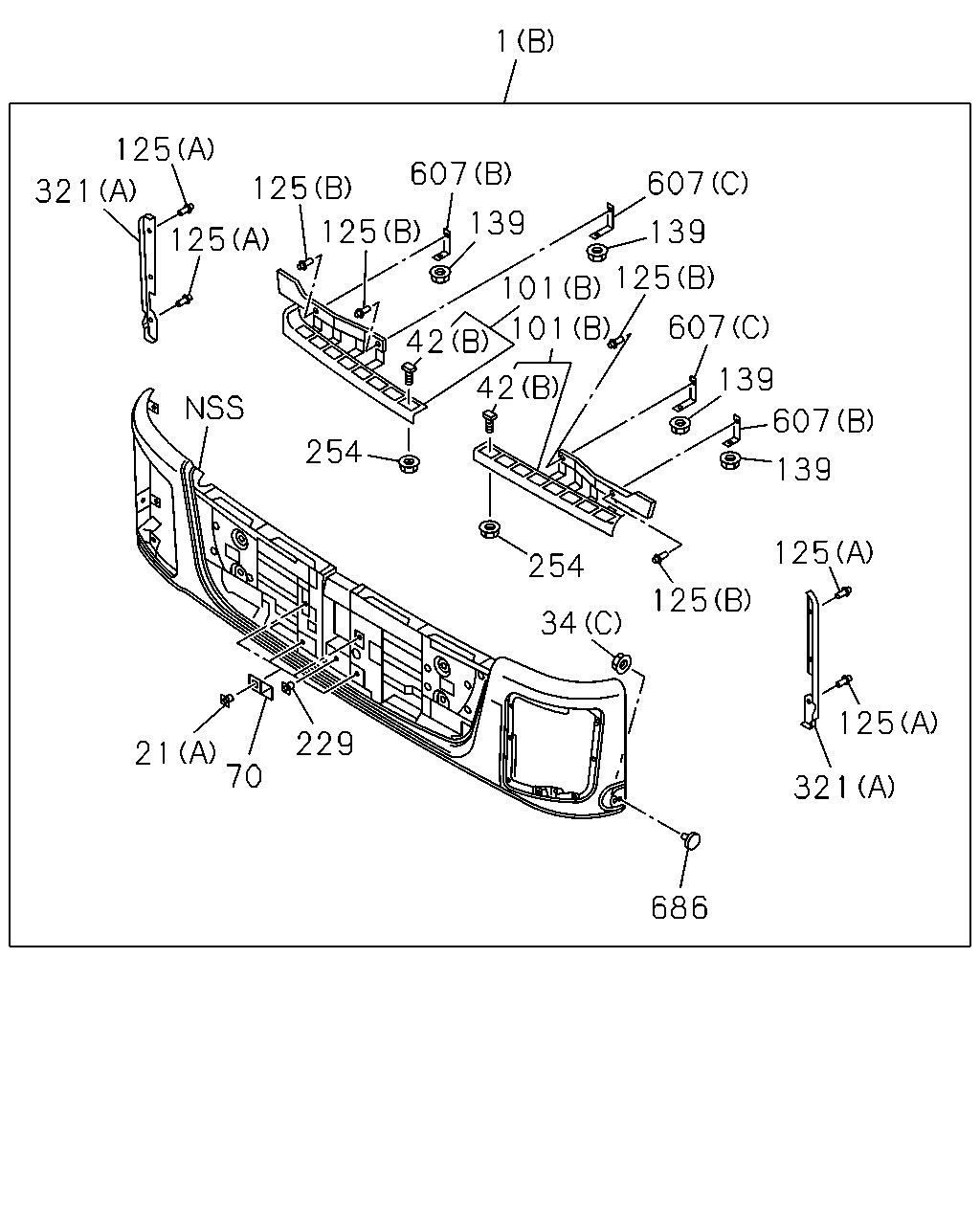

1	BUMPER ASM; FRT (A)	8-98138-769-3	01	1	1008-1410	●	●
1	BUMPER ASM; FRT (B) WHITE	8-97417-846-3	01	1	1411-	●	●

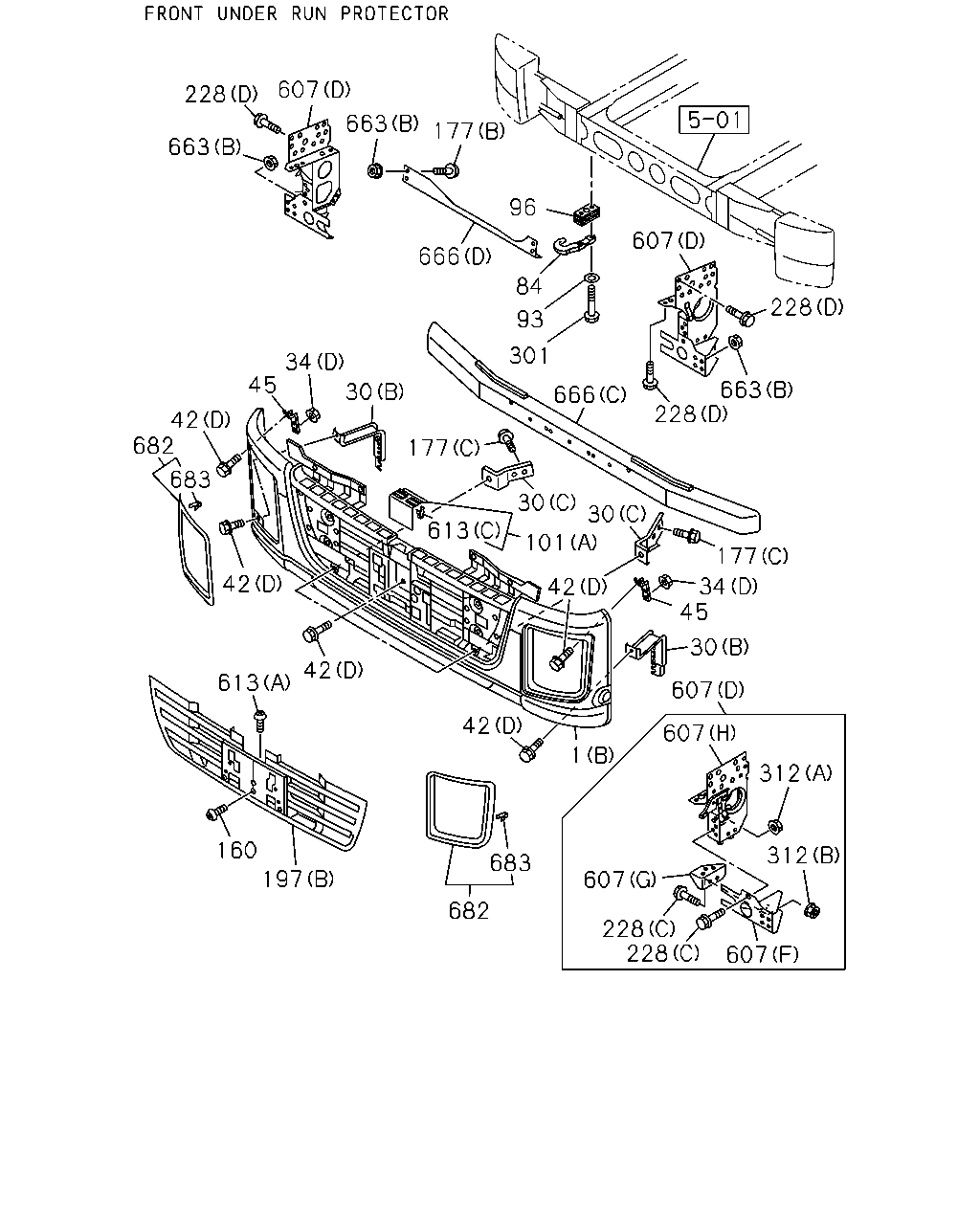

30	BRACKET; FRT BUMPER FRONT UNDER RUN PROTECTOR<EBE> (B)	8-98218-616-3	01	1	1411-	●	●
30	BRACKET; FRT BUMPER FRONT UNDER RUN PROTECTOR<EBE> (B)	8-98218-617-3	01	1	1411-	●	●
30	BRACKET; FRT BUMPER FRONT UNDER RUN PROTECTOR<EBE> (C)	8-98236-332-0	01	1	1411-	●	●
30	BRACKET; FRT BUMPER FRONT UNDER RUN PROTECTOR<EBE> (C)	8-98236-334-0	01	1	1411-	●	●
30	BRACKET; FRT BUMPER (A)	1-71230-638-0	01	1	1008-1410	●	●
30	BRACKET; FRT BUMPER EXC. FRONT UNDER RUN PROTECTOR<EBE> (D)	8-98135-977-1	01	1	1411-	●	●
30	BRACKET; FRT BUMPER (A)	1-71230-639-0	01	1	1008-1410	●	●
30	BRACKET; FRT BUMPER EXC. FRONT UNDER RUN PROTECTOR<EBE> (D)	8-98135-978-1	01	1	1411-	●	●
34	NUT; BRKT,BUMPER (A) M8 FLANGE	0-91180-108-0	04	1	1008-1410	●	●
34	NUT; BRKT,BUMPER (C) M6 FLANGE	0-91180-106-0	02	1	1411-	●	●
34	NUT; BRKT,BUMPER (A) M8 FLANGE	0-91180-108-0	13	1	1008-1410	●	●
34	NUT; BRKT,BUMPER (D) M10 FLANGE	0-91180-110-0	04	1	1411-	●	●
34	NUT; BRKT,BUMPER (B) M10 CAP NUT	1-09650-480-0	01	1	1008-1410	●	●
42	BOLT; BUMPER FRONT UNDER RUN PROTECTOR<EBE> (D) M10X30 FLANGE	8-98055-942-0	12	1	1511-	●	●
42	BOLT; BUMPER FRONT UNDER RUN PROTECTOR<EBE> (D) M10X30 FLANGE	8-98055-942-0	12	1	1411-1412	●	●
42	BOLT; BUMPER EXC. FRONT UNDER RUN PROTECTOR<EBE> (C) M10X30 FLANGE	0-28051-030-0	04	1	1411-	●	●
42	BOLT; BUMPER EXC. FRONT UNDER RUN PROTECTOR<EBE> (D) M10X30 FLANGE	8-98055-942-0	10	1	1411-	●	●
42	BOLT; BUMPER (A) M10X30 W/LK&PL WASHER	8-94279-213-0	09	1	1008-1410	●	●
42	BOLT; BUMPER (B) M6X20	8-97611-666-0	06	1	1411-	●	●
45	BRACKET; BRKT TO BUMPER	8-98126-935-2	02	1	1411-	●	●
84	HOOK	1-57181-027-1	01	1	1008-1410	●	●
84	HOOK	8-98126-930-0	01	1	1411-	●	●
93	WASHER; LK,HOOK ID=16.2	0-91510-816-0	02	1	1008-	●	●
96	PLATE; DIST,HOOK FRONT UNDER RUN PROTECTOR<EBE>	8-98218-989-0	01	1	1411-	●	●
96	PLATE; DIST,HOOK	1-53497-595-0	01	1	1008-1410	●	●
96	PLATE; DIST,HOOK EXC. FRONT UNDER RUN PROTECTOR<EBE>	8-98169-197-0	01	1	1411-	●	●
101	STEP; BUMPER (A)	8-98123-450-2	01	1	1411-	●	●
101	STEP; BUMPER (B)	8-98123-452-1	01	1	1411-	●	●
101	STEP; BUMPER (B)	8-98123-453-1	01	1	1411-	●	●
160	SCREW M5X16	8-94380-268-0	01	1	1411-	●	●
177	BOLT FRONT UNDER RUN PROTECTOR<EBE> (C) M8X20 FLANGE	0-28650-820-0	04	1	1411-	●	●
177	BOLT EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) M12X25 FLANGE	0-28051-225-0	04	1	1411-	●
177	BOLT DUMP TRUCK<RA1> EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) M12X25 FLANGE	0-28051-225-0	04	1	1411-		●
177	BOLT EXC. FRONT UNDER RUN PROTECTOR<EBE> (A) M8X25 W/LK&PL WASHER	1-09030-093-0	06	1	1411-1510	●	●
197	GRILLE; BUMPER (A)	1-71260-115-1	01	1	1008-1410	●	●
197	GRILLE; BUMPER (B)	8-98144-188-4	01	1	1411-	●	●
197	GRILLE; BUMPER (A)	1-71260-116-1	01	1	1008-1410	●	●
228	BOLT; BRKT FRONT UNDER RUN PROTECTOR<EBE> (C) M16X35 FLANGE	0-28851-635-0	12	1	1411-	●	●
228	BOLT; BRKT (A) M16X40	0-20951-640-0	06	1	1008-1410	●	●
228	BOLT; BRKT FRONT UNDER RUN PROTECTOR<EBE> (D) M16X40 FLANGE	0-28851-640-0	10	1	1411-	●	●
228	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	06	1	1008-1410	●	●
228	BOLT; BRKT EXC. FRONT UNDER RUN PROTECTOR<EBE> (C) M16X35 FLANGE	0-28851-635-0	06	1	1411-	●	●
301	BOLT; HOOK TO FRAME M16X95	0-10811-695-0	01	1	1008-1410	●	●
301	BOLT; HOOK TO FRAME M16X110	8-98074-591-0	02	1	1411-	●	●
301	BOLT; HOOK TO FRAME M16X90	0-10861-690-0	01	1	1008-1410	●	●
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> (G)	8-98223-542-0	01	1	1411-	●	●
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> (G)	8-98223-543-0	01	1	1411-	●	●
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> (H)	8-98290-477-1	01	1	1411-	●	●
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> (H)	8-98290-478-1	01	1	1411-	●	●
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> (F)	8-98304-441-0	01	1	1411-	●	●
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> (F)	8-98304-442-0	01	1	1411-	●	●
607	BRACKET WHEEL BASE 5200MM(52W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (D)	8-98288-160-2	01	1	1411-1510	●
607	BRACKET WHEEL BASE 5200MM(52W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-160-2	01	1	1411-1510	●
607	BRACKET WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (D)	8-98288-160-2	01	1	1411-1510		●
607	BRACKET WHEEL BASE 5500MM(55W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-160-2	01	1	1411-1510		●
607	BRACKET WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (D)	8-98288-160-2	01	1	1411-1510		●
607	BRACKET WHEEL BASE 5200MM(52W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-160-2	01	1	1511-	●
607	BRACKET WHEEL BASE 5200MM(52W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (D)	8-98288-160-2	01	1	1511-	●
607	BRACKET WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (D)	8-98288-160-2	01	1	1511-		●
607	BRACKET WHEEL BASE 5500MM(55W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-160-2	01	1	1511-		●
607	BRACKET WHEEL BASE 5200MM(52W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (D)	8-98288-161-2	01	1	1411-1510	●
607	BRACKET WHEEL BASE 5200MM(52W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-161-2	01	1	1411-1510	●
607	BRACKET WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (D)	8-98288-161-2	01	1	1411-1510		●
607	BRACKET WHEEL BASE 5500MM(55W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-161-2	01	1	1411-1510		●
607	BRACKET WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (D)	8-98288-161-2	01	1	1411-1510		●
607	BRACKET WHEEL BASE 5200MM(52W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-161-2	01	1	1511-	●
607	BRACKET WHEEL BASE 5200MM(52W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (D)	8-98288-161-2	01	1	1511-	●
607	BRACKET WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (D)	8-98288-161-2	01	1	1511-		●
607	BRACKET WHEEL BASE 5500MM(55W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-161-2	01	1	1511-		●
607	BRACKET WHEEL BASE 5200MM(52W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-158-2	01	1	1411-1510	●
607	BRACKET WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-158-2	01	1	1411-1510		●
607	BRACKET WHEEL BASE 5500MM(55W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (D)	8-98288-158-2	01	1	1411-1510		●
607	BRACKET WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-158-2	01	1	1411-1510		●
607	BRACKET WHEEL BASE 5200MM(52W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-158-2	01	1	1511-	●
607	BRACKET WHEEL BASE 5500MM(55W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-158-2	01	1	1511-		●
607	BRACKET WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-158-2	01	1	1511-		●
607	BRACKET WHEEL BASE 5200MM(52W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-159-2	01	1	1411-1510	●
607	BRACKET WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-159-2	01	1	1411-1510		●
607	BRACKET WHEEL BASE 5500MM(55W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (D)	8-98288-159-2	01	1	1411-1510		●
607	BRACKET WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-159-2	01	1	1411-1510		●
607	BRACKET WHEEL BASE 5200MM(52W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-159-2	01	1	1511-	●
607	BRACKET WHEEL BASE 5500MM(55W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-159-2	01	1	1511-		●
607	BRACKET WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-159-2	01	1	1511-		●
607	BRACKET EXC. FRONT UNDER RUN PROTECTOR<EBE> (E)	8-98211-758-0	01	1	1411-	●	●
607	BRACKET EXC. FRONT UNDER RUN PROTECTOR<EBE> (E)	8-98211-759-0	01	1	1411-	●	●
607	BRACKET (A)	8-97608-469-3	01	1	1008-1410	●	●
607	BRACKET (C)	8-98147-053-0	02	1	1411-	●	●
607	BRACKET (A)	8-97608-470-3	01	1	1008-1410	●	●
607	BRACKET (B)	8-98147-054-0	02	1	1411-	●	●
613	CLIP (D)	8-97581-651-2	04	1	1411-	●	●
613	CLIP (A) D8X13.5	1-09987-248-1	05	1	1411-	●	●
613	CLIP (B)	8-98025-698-0	08	1	1411-	●	●
613	CLIP (C)	8-98144-173-1	06	1	1411-	●	●
663	NUT (B) M12 FLANGE	0-91180-212-0	04	1	1411-	●
663	NUT DUMP TRUCK<RA1> (B) M12 FLANGE	0-91180-212-0	04	1	1411-		●
663	NUT (B) M12 FLANGE	0-91180-212-0	08	1	1411-	●	●
663	NUT EXC. FRONT UNDER RUN PROTECTOR<EBE> (A) M8 FLANGE	0-91180-108-0	06	1	1411-1510	●	●
666	PROTECTOR; UNDER FRONT UNDER RUN PROTECTOR<EBE> (D)	8-98288-162-0	01	1	1411-	●
666	PROTECTOR; UNDER DUMP TRUCK<RA1> FRONT UNDER RUN PROTECTOR<EBE> (D)	8-98288-162-0	01	1	1411-		●
666	PROTECTOR; UNDER EXC. FRONT UNDER RUN PROTECTOR<EBE> (D)	8-98194-529-0	01	1	1411-	●
666	PROTECTOR; UNDER DUMP TRUCK<RA1> EXC. FRONT UNDER RUN PROTECTOR<EBE> (D)	8-98194-529-0	01	1	1411-		●
666	PROTECTOR; UNDER (B)	8-97608-467-1	01	1	1008-1410	●	●
666	PROTECTOR; UNDER EXC. FRONT UNDER RUN PROTECTOR<EBE> (C)	8-98198-583-0	01	1	1411-	●	●
666	PROTECTOR; UNDER (A)	8-97608-471-0	01	1	1008-1410	●	●
666	PROTECTOR; UNDER FRONT UNDER RUN PROTECTOR<EBE> (C)	8-98220-526-0	01	1	1411-	●	●
682	BEZEL; BUMPER	8-98123-444-2	01	1	1411-	●	●
682	BEZEL; BUMPER	8-98123-445-2	01	1	1411-	●	●
683	CLIP; BEZEL,BUMPER	8-98144-173-1	16	1	1411-	●	●

1 607 607 125 125 321 125 254 125 42 139 101 42 101 139 607 125 139 139 607 125 125 321 686 229 70 21 125 34 254

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BUMPER ASM; FRT (A)	8-98138-769-3	01	1	1008-1410	●	●
1	BUMPER ASM; FRT (B) WHITE	8-97417-846-3	01	1	1411-	●	●
21	GROMMET; SCREW,BUMPER PROTECTOR (B) D=9X9 L=7 M5	8-94163-979-0	08	1	1008-1410	●	●
21	GROMMET; SCREW,BUMPER PROTECTOR (A) D=9.7X9.7 L=8	8-94222-314-0	04	1	1008-	●	●
34	NUT; BRKT,BUMPER (A) M8 FLANGE	0-91180-108-0	04	1	1008-1410	●	●
34	NUT; BRKT,BUMPER (C) M6 FLANGE	0-91180-106-0	02	1	1411-	●	●
34	NUT; BRKT,BUMPER (A) M8 FLANGE	0-91180-108-0	13	1	1008-1410	●	●
34	NUT; BRKT,BUMPER (D) M10 FLANGE	0-91180-110-0	04	1	1411-	●	●
34	NUT; BRKT,BUMPER (B) M10 CAP NUT	1-09650-480-0	01	1	1008-1410	●	●
42	BOLT; BUMPER FRONT UNDER RUN PROTECTOR<EBE> (D) M10X30 FLANGE	8-98055-942-0	12	1	1511-	●	●
42	BOLT; BUMPER FRONT UNDER RUN PROTECTOR<EBE> (D) M10X30 FLANGE	8-98055-942-0	12	1	1411-1412	●	●
42	BOLT; BUMPER EXC. FRONT UNDER RUN PROTECTOR<EBE> (C) M10X30 FLANGE	0-28051-030-0	04	1	1411-	●	●
42	BOLT; BUMPER EXC. FRONT UNDER RUN PROTECTOR<EBE> (D) M10X30 FLANGE	8-98055-942-0	10	1	1411-	●	●
42	BOLT; BUMPER (A) M10X30 W/LK&PL WASHER	8-94279-213-0	09	1	1008-1410	●	●
42	BOLT; BUMPER (B) M6X20	8-97611-666-0	06	1	1411-	●	●
70	BRACKET; LICENSE PLATE,FRT	8-98128-625-0	04	1	1411-	●	●
101	STEP; BUMPER (A)	8-98123-450-2	01	1	1411-	●	●
101	STEP; BUMPER (B)	8-98123-452-1	01	1	1411-	●	●
101	STEP; BUMPER (B)	8-98123-453-1	01	1	1411-	●	●
125	CLIP; STEP (B)	8-98157-167-0	04	1	1411-	●	●
125	CLIP; STEP (A)	8-98157-186-0	06	1	1411-	●	●
139	NUT; BRKT FIX M8 FLANGE	0-91180-208-0	04	1	1411-	●	●
229	GROMMET D=7X7 L=7.5	8-94291-927-0	01	1	1411-	●	●
254	NUT; STEP M6 FLANGE	0-91180-106-0	06	1	1411-	●	●
321	COVER; BUMPER FRT SIDE (B)	8-98123-447-1	01	1	1411-	●	●
321	COVER; BUMPER FRT SIDE (A)	8-98123-458-1	01	1	1411-	●	●
321	COVER; BUMPER FRT SIDE (C)	8-98132-737-1	01	1	1411-	●	●
321	COVER; BUMPER FRT SIDE (D)	1-71260-263-1	01	1	1008-1410	●	●
321	COVER; BUMPER FRT SIDE (A)	8-98123-457-1	01	1	1411-	●	●
321	COVER; BUMPER FRT SIDE (D)	1-71260-264-1	01	1	1008-1410	●	●
321	COVER; BUMPER FRT SIDE (B)	8-98123-446-1	01	1	1411-	●	●
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> (G)	8-98223-542-0	01	1	1411-	●	●
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> (G)	8-98223-543-0	01	1	1411-	●	●
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> (H)	8-98290-477-1	01	1	1411-	●	●
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> (H)	8-98290-478-1	01	1	1411-	●	●
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> (F)	8-98304-441-0	01	1	1411-	●	●
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> (F)	8-98304-442-0	01	1	1411-	●	●
607	BRACKET WHEEL BASE 5200MM(52W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (D)	8-98288-160-2	01	1	1411-1510	●
607	BRACKET WHEEL BASE 5200MM(52W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-160-2	01	1	1411-1510	●
607	BRACKET WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (D)	8-98288-160-2	01	1	1411-1510		●
607	BRACKET WHEEL BASE 5500MM(55W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-160-2	01	1	1411-1510		●
607	BRACKET WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (D)	8-98288-160-2	01	1	1411-1510		●
607	BRACKET WHEEL BASE 5200MM(52W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-160-2	01	1	1511-	●
607	BRACKET WHEEL BASE 5200MM(52W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (D)	8-98288-160-2	01	1	1511-	●
607	BRACKET WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (D)	8-98288-160-2	01	1	1511-		●
607	BRACKET WHEEL BASE 5500MM(55W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-160-2	01	1	1511-		●
607	BRACKET WHEEL BASE 5200MM(52W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (D)	8-98288-161-2	01	1	1411-1510	●
607	BRACKET WHEEL BASE 5200MM(52W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-161-2	01	1	1411-1510	●
607	BRACKET WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (D)	8-98288-161-2	01	1	1411-1510		●
607	BRACKET WHEEL BASE 5500MM(55W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-161-2	01	1	1411-1510		●
607	BRACKET WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (D)	8-98288-161-2	01	1	1411-1510		●
607	BRACKET WHEEL BASE 5200MM(52W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-161-2	01	1	1511-	●
607	BRACKET WHEEL BASE 5200MM(52W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (D)	8-98288-161-2	01	1	1511-	●
607	BRACKET WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (D)	8-98288-161-2	01	1	1511-		●
607	BRACKET WHEEL BASE 5500MM(55W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-161-2	01	1	1511-		●
607	BRACKET WHEEL BASE 5200MM(52W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-158-2	01	1	1411-1510	●
607	BRACKET WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-158-2	01	1	1411-1510		●
607	BRACKET WHEEL BASE 5500MM(55W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (D)	8-98288-158-2	01	1	1411-1510		●
607	BRACKET WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-158-2	01	1	1411-1510		●
607	BRACKET WHEEL BASE 5200MM(52W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-158-2	01	1	1511-	●
607	BRACKET WHEEL BASE 5500MM(55W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-158-2	01	1	1511-		●
607	BRACKET WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-158-2	01	1	1511-		●
607	BRACKET WHEEL BASE 5200MM(52W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-159-2	01	1	1411-1510	●
607	BRACKET WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-159-2	01	1	1411-1510		●
607	BRACKET WHEEL BASE 5500MM(55W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (D)	8-98288-159-2	01	1	1411-1510		●
607	BRACKET WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-159-2	01	1	1411-1510		●
607	BRACKET WHEEL BASE 5200MM(52W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-159-2	01	1	1511-	●
607	BRACKET WHEEL BASE 5500MM(55W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-159-2	01	1	1511-		●
607	BRACKET WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-159-2	01	1	1511-		●
607	BRACKET EXC. FRONT UNDER RUN PROTECTOR<EBE> (E)	8-98211-758-0	01	1	1411-	●	●
607	BRACKET EXC. FRONT UNDER RUN PROTECTOR<EBE> (E)	8-98211-759-0	01	1	1411-	●	●
607	BRACKET (A)	8-97608-469-3	01	1	1008-1410	●	●
607	BRACKET (C)	8-98147-053-0	02	1	1411-	●	●
607	BRACKET (A)	8-97608-470-3	01	1	1008-1410	●	●
607	BRACKET (B)	8-98147-054-0	02	1	1411-	●	●
686	REFLECTOR; REFLEX	8-98121-023-0	02	1	1411-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
