5-20 — BATTERY CARRIER (#62647) — 107 parça

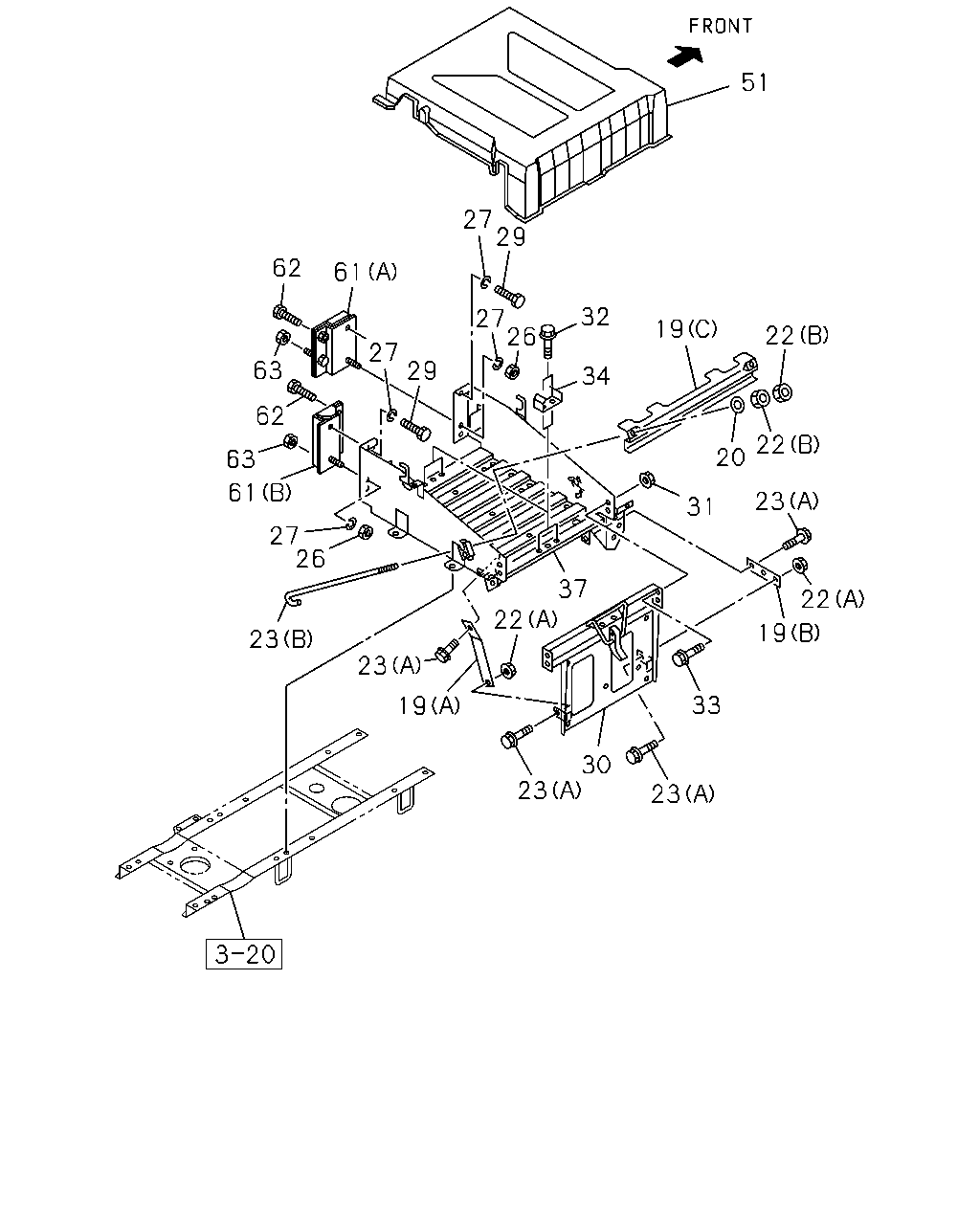

27 51 29 32 26 27 19 22 22 20 31 22 19 33 23 30 23 19 23 23 27 61 63 26 62 63 62 61 29 27 34 23 22 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
19	STAY; BATTERY (B)	1-47479-118-0	01	1	1008-1410	●	●
19	STAY; BATTERY (A)	1-47479-874-0	01	1	1008-1410	●	●
19	STAY; BATTERY (C)	1-53618-039-2	01	1	1008-	●	●
20	WASHER; PL,STAY ID=8.4 OD=22	0-91614-708-0	02	1	1008-	●	●
22	NUT; STAY (B) M8	0-91110-508-0	04	1	1008-	●	●
22	NUT; STAY (A) M8 FLANGE	0-91180-108-0	02	1	1008-1410	●	●
23	BOLT; STAY (A) M8X20 FLANGE	0-28650-820-0	04	1	1008-1410	●	●
23	BOLT; STAY (B) L=250	1-53616-108-0	02	1	1008-	●	●
26	NUT; BRKT M14	0-91110-514-0	02	1	1008-1410	●
26	NUT; BRKT EXC. SILENCER LAYOUT REAR VAR1<JAZ> M14	0-91110-514-0	02	1	1008-1410		●
26	NUT; BRKT M14	0-91110-514-0	02	1	1411-	●
26	NUT; BRKT EXC. BATTERY LAYOUT REAR VAR1<NCT> M14	0-91110-514-0	02	1	1411-		●
26	NUT; BRKT SILENCER LAYOUT REAR VAR1<JAZ> M14	1-09440-072-0	02	1	1008-1410		●
26	NUT; BRKT BATTERY LAYOUT REAR VAR1<NCT> M14	1-09440-072-0	02	1	1411-		●
27	WASHER; LK,BRKT ID=14.2	0-91510-514-0	08	1	1008-1410	●
27	WASHER; LK,BRKT EXC. SILENCER LAYOUT REAR VAR1<JAZ> ID=14.2	0-91510-514-0	08	1	1008-1410		●
27	WASHER; LK,BRKT ID=14.2	0-91510-514-0	08	1	1411-	●
27	WASHER; LK,BRKT EXC. BATTERY LAYOUT REAR VAR1<NCT> ID=14.2	0-91510-514-0	08	1	1411-		●
27	WASHER; LK,BRKT ID=14.2	0-91510-514-0	04	1	1008-	●	●
29	BOLT; BRKT TO FRAME M14X30	0-20851-430-0	02	1	1008-1410	●
29	BOLT; BRKT TO FRAME EXC. SILENCER LAYOUT REAR VAR1<JAZ> M14X30	0-20851-430-0	02	1	1008-1410		●
29	BOLT; BRKT TO FRAME M14X30	0-20851-430-0	02	1	1411-	●
29	BOLT; BRKT TO FRAME EXC. BATTERY LAYOUT REAR VAR1<NCT> M14X30	0-20851-430-0	02	1	1411-		●
29	BOLT; BRKT TO FRAME SILENCER LAYOUT REAR VAR1<JAZ> M14X45	1-09000-764-0	02	1	1008-1410		●
29	BOLT; BRKT TO FRAME BATTERY LAYOUT REAR VAR1<NCT> M14X45	1-09000-764-0	02	1	1411-		●
30	PLATE; BATTERY	1-53619-148-1	01	1	1008-1410	●	●
30	PLATE; BATTERY	8-97635-039-2	01	1	1411-	●	●
31	NUT; PLATE M8 FLANGE	0-91180-108-0	04	1	1008-1410	●	●
32	BOLT; PLATE TO SPACER BATTERY 115F51 N120<SJ3> M8X16 FLANGE	0-28050-816-0	04	1	1008-	●	●
33	BOLT; PLATE TO BRKT M8X20 FLANGE	0-28650-820-0	04	1	1008-	●	●
34	SPACER; BATTERY BRKT BATTERY 115F51 N120<SJ3>	1-53619-084-0	02	1	1008-	●	●
37	BRACKET; BATTERY	1-53610-159-2	01	1	1008-1410	●
37	BRACKET; BATTERY EXC. SILENCER LAYOUT REAR VAR1<JAZ>	1-53610-159-2	01	1	1008-1410		●
37	BRACKET; BATTERY	8-98218-501-2	01	1	1411-	●
37	BRACKET; BATTERY EXC. BATTERY LAYOUT REAR VAR1<NCT>	8-98218-501-2	01	1	1411-		●
37	BRACKET; BATTERY SILENCER LAYOUT REAR VAR1<JAZ>	1-53610-161-3	01	1	1008-1410		●
37	BRACKET; BATTERY BATTERY LAYOUT REAR VAR1<NCT>	8-98097-706-2	01	1	1411-		●
51	COVER; BATTERY	1-53612-068-0	01	1	1008-1410	●	●
51	COVER; BATTERY	8-98097-715-3	01	1	1411-	●	●
61	DISTANCE; BRKT,BATTERY EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-53613-489-0	01	1	1411-	●
61	DISTANCE; BRKT,BATTERY MIXER TRUCK<RA2> SILENCER SINGLE VERTICAL<N28> (A)	8-98177-609-0	01	1	1008-1209	●
61	DISTANCE; BRKT,BATTERY (A)	8-98177-609-0	01	1	1210-1410	●
61	DISTANCE; BRKT,BATTERY SILENCER SINGLE VERTICAL<N28> (A)	8-98177-609-0	01	1	1411-	●
61	DISTANCE; BRKT,BATTERY (B)	1-53613-505-0	01	1	1008-1410	●
61	DISTANCE; BRKT,BATTERY EXC. SILENCER LAYOUT REAR VAR1<JAZ> (B)	1-53613-505-0	01	1	1008-1410		●
61	DISTANCE; BRKT,BATTERY (B)	1-53613-505-0	01	1	1411-	●
61	DISTANCE; BRKT,BATTERY EXC. BATTERY LAYOUT REAR VAR1<NCT> (B)	1-53613-505-0	01	1	1411-		●
61	DISTANCE; BRKT,BATTERY MIXER TRUCK<RA2> EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-53613-489-0	01	1	1008-1209	●
61	DISTANCE; BRKT,BATTERY SILENCER SINGLE VERTICAL<N28> EXC. MIXER TRUCK<RA2> (A)	8-97623-013-0	01	1	1008-1209	●
61	DISTANCE; BRKT,BATTERY SILENCER SINGLE VERTICAL<N28> EXC. SILENCER LAYOUT REAR VAR1<JAZ> (A)	8-97623-013-0	01	1	1008-1209		●
61	DISTANCE; BRKT,BATTERY SILENCER SINGLE VERTICAL<N28> EXC. SILENCER LAYOUT REAR VAR1<JAZ> (A)	8-97623-013-0	01	1	1210-1410		●
61	DISTANCE; BRKT,BATTERY SILENCER SINGLE VERTICAL<N28> EXC. BATTERY LAYOUT REAR VAR1<NCT> (A)	8-97623-013-0	01	1	1411-		●
61	DISTANCE; BRKT,BATTERY EXC. SILENCER SINGLE VERTICAL<N28>,MIXER TRUCK<RA2> (A)	1-53613-504-0	01	1	1008-1209	●
61	DISTANCE; BRKT,BATTERY EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> (A)	1-53613-504-0	01	1	1008-1209		●
61	DISTANCE; BRKT,BATTERY EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> (A)	1-53613-504-0	01	1	1210-1410		●
61	DISTANCE; BRKT,BATTERY EXC. BATTERY LAYOUT REAR VAR1<NCT>,SILENCER SINGLEVERTICAL<N28> (A)	1-53613-504-0	01	1	1411-		●
62	BOLT; DIST TO FRAME,BATTERY M14X45	1-09000-764-0	02	1	1008-1410	●
62	BOLT; DIST TO FRAME,BATTERY EXC. SILENCER LAYOUT REAR VAR1<JAZ> M14X45	1-09000-764-0	02	1	1008-1410		●
62	BOLT; DIST TO FRAME,BATTERY M14X45	1-09000-764-0	02	1	1411-	●
62	BOLT; DIST TO FRAME,BATTERY EXC. BATTERY LAYOUT REAR VAR1<NCT> M14X45	1-09000-764-0	02	1	1411-		●
62	BOLT; DIST TO FRAME,BATTERY M14X60	1-09000-778-0	02	1	1008-1410	●
62	BOLT; DIST TO FRAME,BATTERY EXC. SILENCER LAYOUT REAR VAR1<JAZ> M14X60	1-09000-778-0	02	1	1008-1410		●
62	BOLT; DIST TO FRAME,BATTERY M14X60	1-09000-778-0	02	1	1411-	●
62	BOLT; DIST TO FRAME,BATTERY EXC. BATTERY LAYOUT REAR VAR1<NCT> M14X60	1-09000-778-0	02	1	1411-		●
63	NUT; DIST TO FRAME M14	1-09440-072-0	04	1	1008-1410	●
63	NUT; DIST TO FRAME EXC. SILENCER LAYOUT REAR VAR1<JAZ> M14	1-09440-072-0	04	1	1008-1410		●
63	NUT; DIST TO FRAME M14	1-09440-072-0	04	1	1411-	●
63	NUT; DIST TO FRAME EXC. BATTERY LAYOUT REAR VAR1<NCT> M14	1-09440-072-0	04	1	1411-		●

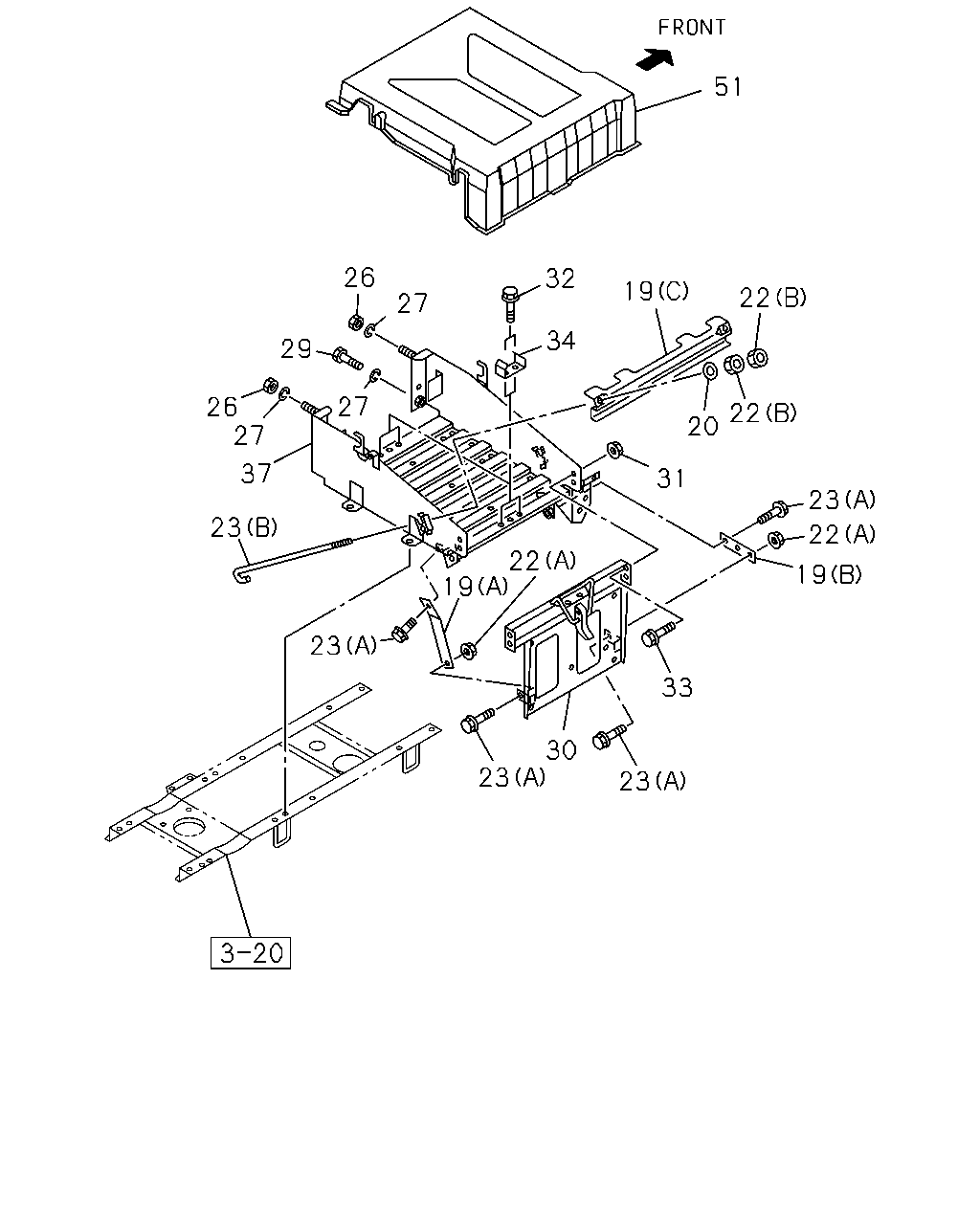

51 19 22 22 20 31 23 19 22 33 23 30 23 23 23 37 27 26 29 26 27 32 34 27 19 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
19	STAY; BATTERY (B)	1-47479-118-0	01	1	1008-1410	●	●
19	STAY; BATTERY (A)	1-47479-874-0	01	1	1008-1410	●	●
19	STAY; BATTERY (C)	1-53618-039-2	01	1	1008-	●	●
20	WASHER; PL,STAY ID=8.4 OD=22	0-91614-708-0	02	1	1008-	●	●
22	NUT; STAY (B) M8	0-91110-508-0	04	1	1008-	●	●
22	NUT; STAY (A) M8 FLANGE	0-91180-108-0	02	1	1008-1410	●	●
23	BOLT; STAY (A) M8X20 FLANGE	0-28650-820-0	04	1	1008-1410	●	●
23	BOLT; STAY (B) L=250	1-53616-108-0	02	1	1008-	●	●
26	NUT; BRKT M14	0-91110-514-0	02	1	1008-1410	●
26	NUT; BRKT EXC. SILENCER LAYOUT REAR VAR1<JAZ> M14	0-91110-514-0	02	1	1008-1410		●
26	NUT; BRKT M14	0-91110-514-0	02	1	1411-	●
26	NUT; BRKT EXC. BATTERY LAYOUT REAR VAR1<NCT> M14	0-91110-514-0	02	1	1411-		●
26	NUT; BRKT SILENCER LAYOUT REAR VAR1<JAZ> M14	1-09440-072-0	02	1	1008-1410		●
26	NUT; BRKT BATTERY LAYOUT REAR VAR1<NCT> M14	1-09440-072-0	02	1	1411-		●
27	WASHER; LK,BRKT ID=14.2	0-91510-514-0	08	1	1008-1410	●
27	WASHER; LK,BRKT EXC. SILENCER LAYOUT REAR VAR1<JAZ> ID=14.2	0-91510-514-0	08	1	1008-1410		●
27	WASHER; LK,BRKT ID=14.2	0-91510-514-0	08	1	1411-	●
27	WASHER; LK,BRKT EXC. BATTERY LAYOUT REAR VAR1<NCT> ID=14.2	0-91510-514-0	08	1	1411-		●
27	WASHER; LK,BRKT ID=14.2	0-91510-514-0	04	1	1008-	●	●
29	BOLT; BRKT TO FRAME M14X30	0-20851-430-0	02	1	1008-1410	●
29	BOLT; BRKT TO FRAME EXC. SILENCER LAYOUT REAR VAR1<JAZ> M14X30	0-20851-430-0	02	1	1008-1410		●
29	BOLT; BRKT TO FRAME M14X30	0-20851-430-0	02	1	1411-	●
29	BOLT; BRKT TO FRAME EXC. BATTERY LAYOUT REAR VAR1<NCT> M14X30	0-20851-430-0	02	1	1411-		●
29	BOLT; BRKT TO FRAME SILENCER LAYOUT REAR VAR1<JAZ> M14X45	1-09000-764-0	02	1	1008-1410		●
29	BOLT; BRKT TO FRAME BATTERY LAYOUT REAR VAR1<NCT> M14X45	1-09000-764-0	02	1	1411-		●
30	PLATE; BATTERY	1-53619-148-1	01	1	1008-1410	●	●
30	PLATE; BATTERY	8-97635-039-2	01	1	1411-	●	●
31	NUT; PLATE M8 FLANGE	0-91180-108-0	04	1	1008-1410	●	●
32	BOLT; PLATE TO SPACER BATTERY 115F51 N120<SJ3> M8X16 FLANGE	0-28050-816-0	04	1	1008-	●	●
33	BOLT; PLATE TO BRKT M8X20 FLANGE	0-28650-820-0	04	1	1008-	●	●
34	SPACER; BATTERY BRKT BATTERY 115F51 N120<SJ3>	1-53619-084-0	02	1	1008-	●	●
37	BRACKET; BATTERY	1-53610-159-2	01	1	1008-1410	●
37	BRACKET; BATTERY EXC. SILENCER LAYOUT REAR VAR1<JAZ>	1-53610-159-2	01	1	1008-1410		●
37	BRACKET; BATTERY	8-98218-501-2	01	1	1411-	●
37	BRACKET; BATTERY EXC. BATTERY LAYOUT REAR VAR1<NCT>	8-98218-501-2	01	1	1411-		●
37	BRACKET; BATTERY SILENCER LAYOUT REAR VAR1<JAZ>	1-53610-161-3	01	1	1008-1410		●
37	BRACKET; BATTERY BATTERY LAYOUT REAR VAR1<NCT>	8-98097-706-2	01	1	1411-		●
51	COVER; BATTERY	1-53612-068-0	01	1	1008-1410	●	●
51	COVER; BATTERY	8-98097-715-3	01	1	1411-	●	●
