Sayfa 5-17 - Isuzu EPC

5-17 — CYLINDER; CAB TILT (#62646) — 66 parça

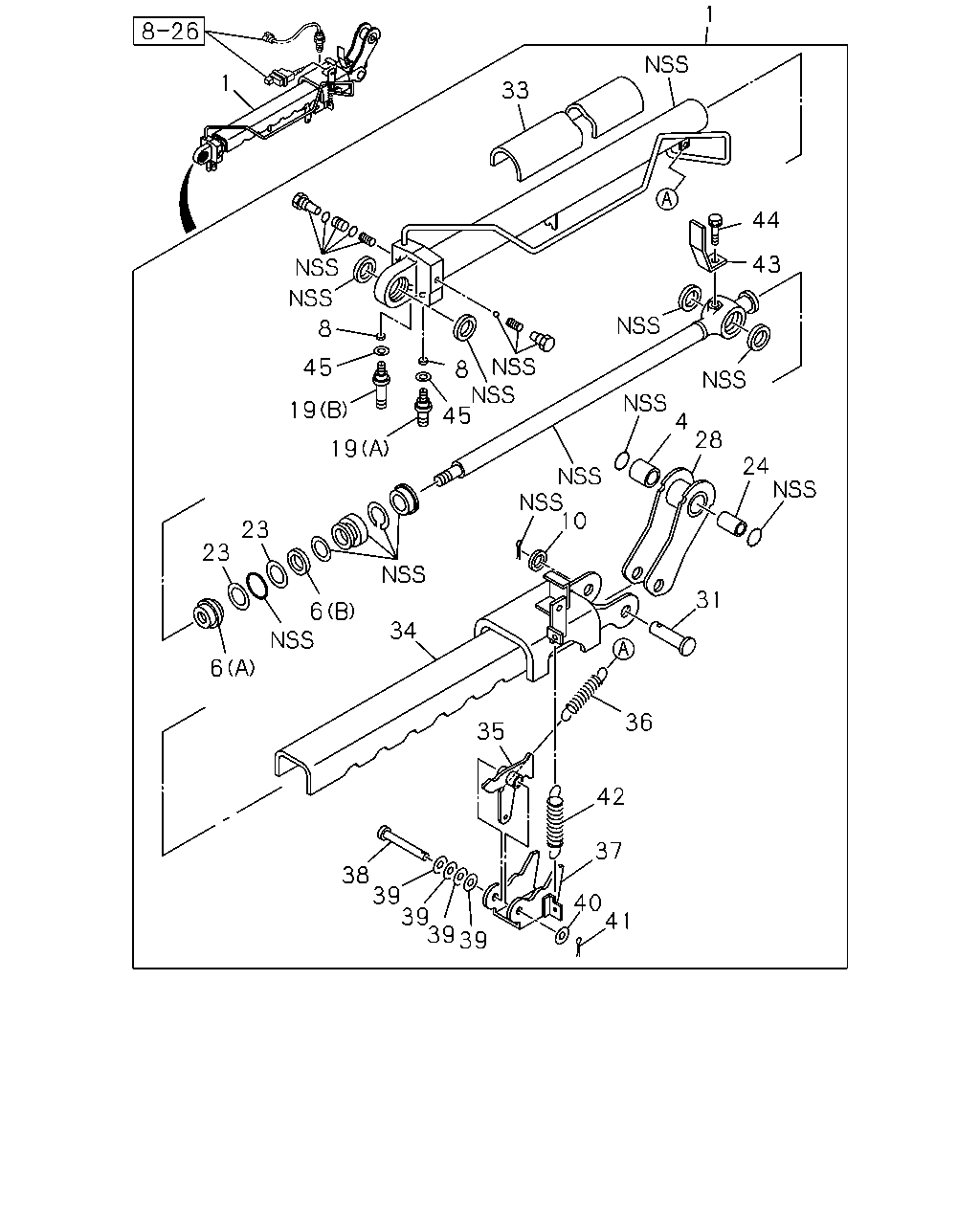

1 44 43 24 4 28 31 36 42 37 40 41 39 39 39 39 38 34 35 10 8 45 19 19 45 8 33 1 23 23 6 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CYLINDER; OIL,CAB TILT	1-53457-139-1	01	1	1008-1410	●	●
1	CYLINDER; OIL,CAB TILT	8-98198-740-0	01	1	1411-	●	●
4	BUSHING; OIL CYL	1-53458-405-0	01	1	1008-	●	●
6	PISTON; OIL CYL (A)	8-98134-365-0	01	1	1008-	●	●
6	PISTON; OIL CYL (B)	8-98134-367-0	01	1	1008-	●	●
8	FILTER; OIL CYL	1-53458-102-0	02	1	1008-	●	●
10	WASHER; OIL CYL	1-53458-401-0	01	1	1008-	●	●
19	NIPPLE; OIL CYL (A)	1-53457-044-0	01	1	1008-	●	●
19	NIPPLE; OIL CYL (B)	1-53457-045-0	01	1	1008-	●	●
23	RING; SNAP	1-53457-048-0	02	1	1008-	●	●
24	COLLAR; LEVER	1-53458-398-0	01	1	1008-	●	●
28	LEVER; OIL CYL	1-53458-557-1	01	1	1008-	●	●
31	PIN; OIL CYL	1-53457-172-0	01	1	1008-	●	●
33	COVER; CYL	1-53458-556-0	01	1	1008-	●	●
34	STOPPER; OIL CYL	1-53458-555-0	01	1	1008-	●	●
35	LEVER; WIRE	1-53458-689-0	01	1	1008-1410	●	●
36	SPRING; WIRE LEVER	1-53458-552-0	01	1	1008-1410	●	●
37	LEVER; STOPPER	1-53458-722-0	01	1	1008-1410	●	●
37	LEVER; STOPPER	8-98235-591-0	01	1	1411-	●	●
38	PIN; STOPPER	1-53458-550-0	01	1	1008-	●	●
39	SHIM; LEVER T=0.7	1-53458-546-0	AR	1	1008-1410	●	●
39	SHIM; LEVER T=0.5	1-53458-547-0	AR	1	1008-1410	●	●
39	SHIM; LEVER T=0.3	1-53458-548-0	AR	1	1008-1410	●	●
39	SHIM; LEVER T=0.1	1-53458-549-0	AR	1	1008-1410	●	●
40	WASHER; STOPPER PIN	1-53458-045-0	01	1	1008-	●	●
41	PIN; SPLIT	1-53458-545-0	01	1	1008-	●	●
42	SPRING; LOCK LEVER	1-53458-544-0	01	1	1008-1410	●	●
42	SPRING; LOCK LEVER	1-53457-168-0	01	1	1411-	●	●
43	PLATE; SW	1-53458-543-0	01	1	1008-1410	●	●
43	PLATE; SW	1-53457-167-0	01	1	1411-	●	●
44	BOLT; SW PLATE M6X12	1-53458-542-0	01	1	1008-	●	●
45	GASKET; OIL CYL	1-53458-073-0	02	1	1008-	●	●

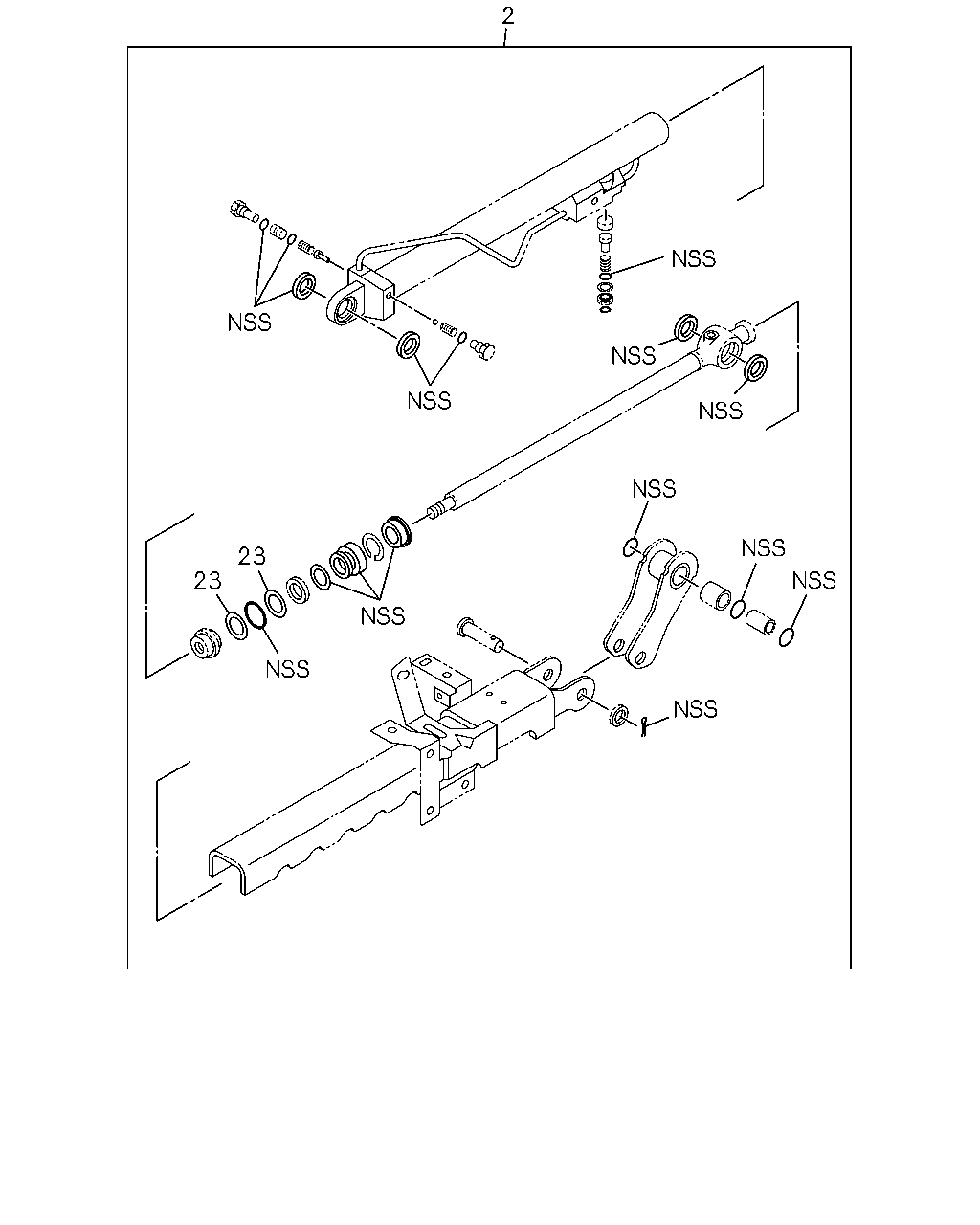

2 23 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	REPAIR KIT; OIL CYL	8-98169-204-0	01	1	1008-1410	●	●
2	REPAIR KIT; OIL CYL	1-85579-068-0	01	1	1411-	●	●
23	RING; SNAP	1-53457-048-0	02	1	1008-	●	●

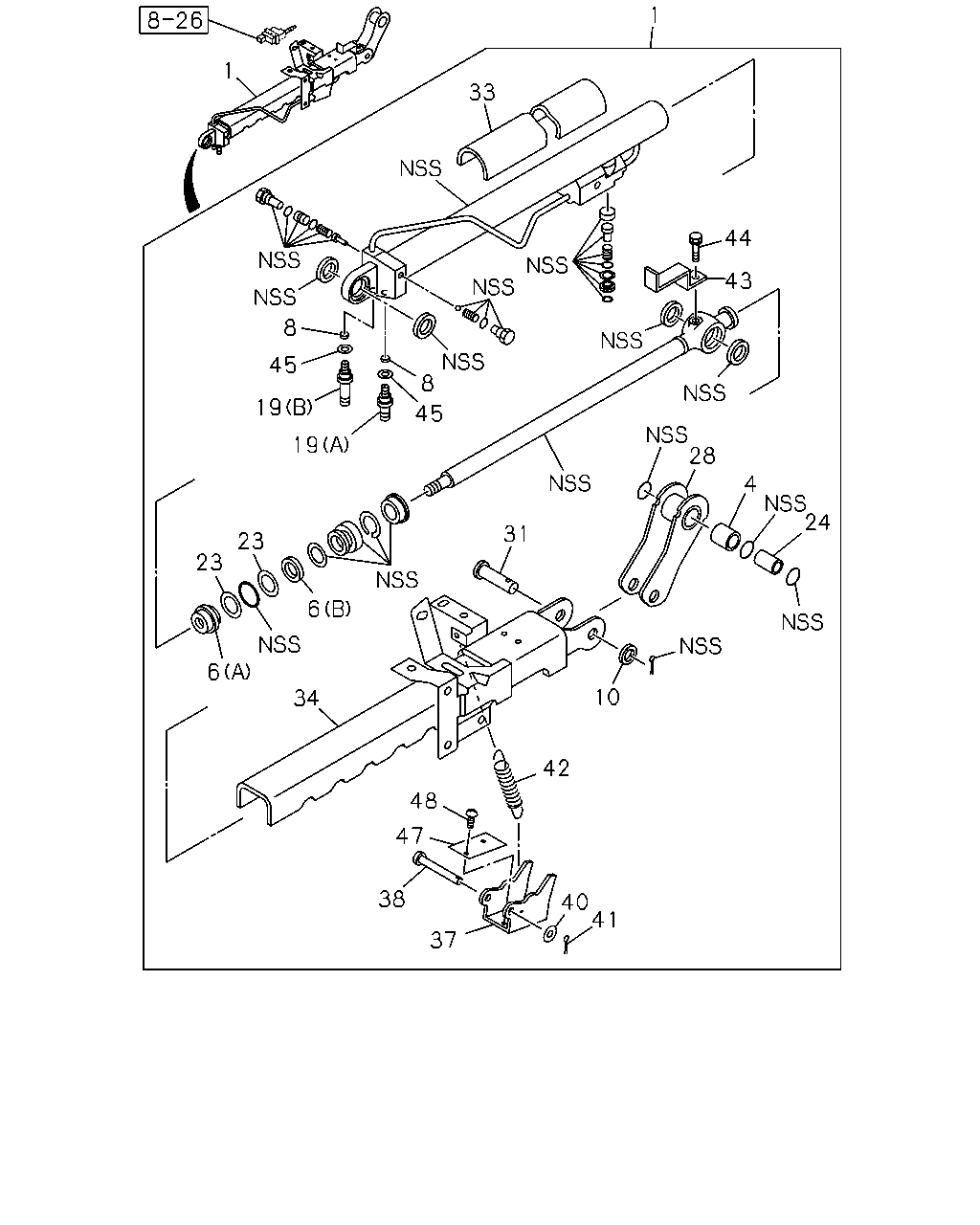

1 33 1 44 43 28 24 4 31 10 42 40 41 37 38 47 48 34 6 23 23 19 19 45 8 8 45 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CYLINDER; OIL,CAB TILT	1-53457-139-1	01	1	1008-1410	●	●
1	CYLINDER; OIL,CAB TILT	8-98198-740-0	01	1	1411-	●	●
4	BUSHING; OIL CYL	1-53458-405-0	01	1	1008-	●	●
6	PISTON; OIL CYL (A)	8-98134-365-0	01	1	1008-	●	●
6	PISTON; OIL CYL (B)	8-98134-367-0	01	1	1008-	●	●
8	FILTER; OIL CYL	1-53458-102-0	02	1	1008-	●	●
10	WASHER; OIL CYL	1-53458-401-0	01	1	1008-	●	●
19	NIPPLE; OIL CYL (A)	1-53457-044-0	01	1	1008-	●	●
19	NIPPLE; OIL CYL (B)	1-53457-045-0	01	1	1008-	●	●
23	RING; SNAP	1-53457-048-0	02	1	1008-	●	●
24	COLLAR; LEVER	1-53458-398-0	01	1	1008-	●	●
28	LEVER; OIL CYL	1-53458-557-1	01	1	1008-	●	●
31	PIN; OIL CYL	1-53457-172-0	01	1	1008-	●	●
33	COVER; CYL	1-53458-556-0	01	1	1008-	●	●
34	STOPPER; OIL CYL	1-53458-555-0	01	1	1008-	●	●
37	LEVER; STOPPER	1-53458-722-0	01	1	1008-1410	●	●
37	LEVER; STOPPER	8-98235-591-0	01	1	1411-	●	●
38	PIN; STOPPER	1-53458-550-0	01	1	1008-	●	●
40	WASHER; STOPPER PIN	1-53458-045-0	01	1	1008-	●	●
41	PIN; SPLIT	1-53458-545-0	01	1	1008-	●	●
42	SPRING; LOCK LEVER	1-53458-544-0	01	1	1008-1410	●	●
42	SPRING; LOCK LEVER	1-53457-168-0	01	1	1411-	●	●
43	PLATE; SW	1-53458-543-0	01	1	1008-1410	●	●
43	PLATE; SW	1-53457-167-0	01	1	1411-	●	●
44	BOLT; SW PLATE M6X12	1-53458-542-0	01	1	1008-	●	●
45	GASKET; OIL CYL	1-53458-073-0	02	1	1008-	●	●
47	PLATE; THRUST,OIL CYL	1-53457-169-0	01	1	1411-	●	●
48	SCREW; OIL CYL M5X8	1-53458-005-0	02	1	1411-	●	●

2 23 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	REPAIR KIT; OIL CYL	8-98169-204-0	01	1	1008-1410	●	●
2	REPAIR KIT; OIL CYL	1-85579-068-0	01	1	1411-	●	●
23	RING; SNAP	1-53457-048-0	02	1	1008-	●	●
