5-01 — FRAME AND OTHER PARTS (#62642) — 160 parça

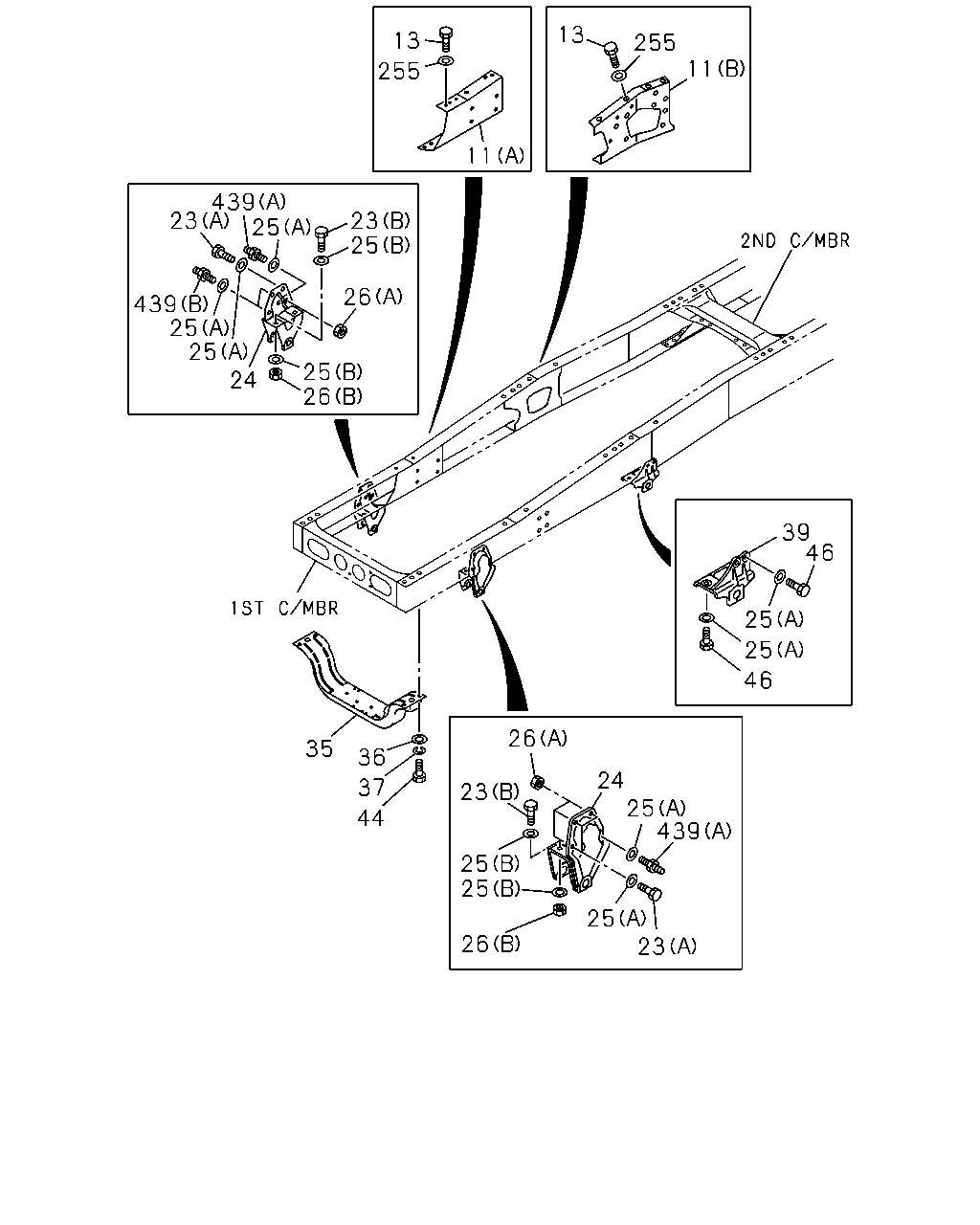

13 255 11 439 25 23 439 25 25 24 25 26 26 25 23 13 255 11 39 46 25 25 46 36 26 23 25 25 26 24 25 439 25 23 37 35 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
11	BRACKET; ENG MTG (B)	1-53239-139-1	01	1	1008-	●
11	BRACKET; ENG MTG (B)	8-97618-424-1	01	1	1008-	●
11	BRACKET; ENG MTG (A)	8-98146-424-0	01	1	1008-1112	●	●
11	BRACKET; ENG MTG SILENCER LAYOUT REAR VAR1<JAZ> (A)	8-98146-424-0	01	1	1008-1112			●
11	BRACKET; ENG MTG (A)	8-98146-425-0	01	1	1008-1112	●	●
11	BRACKET; ENG MTG SILENCER LAYOUT REAR VAR1<JAZ> (A)	8-98146-425-0	01	1	1008-1112			●
11	BRACKET; ENG MTG (B)	1-53239-141-1	01	1	1008-		●	●	●
11	BRACKET; ENG MTG (B)	1-53239-142-1	01	1	1008-		●	●	●
11	BRACKET; ENG MTG (A)	1-53211-399-0	01	1	1008-1112				●
11	BRACKET; ENG MTG EXC. SILENCER LAYOUT REAR VAR1<JAZ> (A)	1-53211-399-0	01	1	1008-1112			●
11	BRACKET; ENG MTG (A)	1-53211-399-0	01	1	1201-	●	●	●	●
11	BRACKET; ENG MTG (A)	1-53211-400-0	01	1	1008-1112				●
11	BRACKET; ENG MTG EXC. SILENCER LAYOUT REAR VAR1<JAZ> (A)	1-53211-400-0	01	1	1008-1112			●
11	BRACKET; ENG MTG (A)	1-53211-400-0	01	1	1201-	●	●	●	●
13	BOLT; BRKT,ENG MTG M14X40	0-20951-440-0	06	1	1008-1410	●	●
13	BOLT; BRKT,ENG MTG SILENCER LAYOUT REAR VAR1<JAZ> M14X40	0-20951-440-0	06	1	1008-1410			●
13	BOLT; BRKT,ENG MTG M14X40	0-20951-440-0	06	1	1411-	●	●
13	BOLT; BRKT,ENG MTG M14X40	0-20951-440-0	04	1	1008-1410				●
13	BOLT; BRKT,ENG MTG EXC. SILENCER LAYOUT REAR VAR1<JAZ> M14X40	0-20951-440-0	04	1	1008-1410			●
13	BOLT; BRKT,ENG MTG M14X40	0-20951-440-0	04	1	1411-			●	●
23	BOLT; BRKT,SPR (A) M14X40	0-20951-440-0	04	1	1008-1410	●	●	●	●
23	BOLT; BRKT,SPR (A) M14X40	0-20951-440-0	06	1	1411-	●	●	●	●
23	BOLT; BRKT,SPR (B) M16X50	0-20951-650-0	04	1	1008-	●	●	●	●
24	BRACKET; FRT SPR,FRT	1-53351-237-1	01	1	1008-	●	●	●	●
24	BRACKET; FRT SPR,FRT	1-53351-238-1	01	1	1008-	●	●	●	●
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-316-0	08	1	1008-	●	●	●	●
25	WASHER; PL,BRKT (A) ID=15	8-98010-627-1	16	1	1008-	●	●	●	●
26	NUT; BRKT,SPR (A) M14	0-91110-514-0	12	1	1008-	●	●	●	●
26	NUT; BRKT,SPR (B) M16	0-91110-516-0	04	1	1008-	●	●	●	●
35	MEMBER; UNDER LONG CHASSIS & LHD(CYZ6MF) CRANE TRUCK<RA4>,CONCRETE PUMP<RA5> FUEL TANK 400L<SDH> EXC. SILENCER LAYOUT REAR VAR1<JAZ>	1-53174-301-3	01	1	1511-	●	●	●	●
35	MEMBER; UNDER	1-53174-263-2	01	1	1008-	●	●	●	●
36	WASHER; PL,UNDER MBR ID=17	9-09164-516-0	04	1	1008-1410	●	●	●	●
36	WASHER; PL,UNDER MBR ID=17	0-91614-516-0	04	1	1411-	●	●	●	●
37	WASHER; LK,UNDER MBR ID=16.2	0-91510-816-0	04	1	1008-	●	●	●	●
39	BRACKET; FRT SPR,RR	1-53352-179-0	01	1	1008-	●	●	●	●
39	BRACKET; FRT SPR,RR	1-53352-180-0	01	1	1008-	●	●	●	●
44	BOLT; UNDER MBR M16X60	0-20951-660-0	04	1	1008-	●	●	●	●
46	BOLT; BRKT FIX M14X50	0-20951-450-0	08	1	1008-	●	●	●	●
255	WASHER; PL,BRKT ID=15	8-98010-627-1	06	1	1008-1112	●	●
255	WASHER; PL,BRKT ID=15	8-98010-627-1	06	1	1201-1410	●	●
255	WASHER; PL,BRKT SILENCER LAYOUT REAR VAR1<JAZ> ID=15	8-98010-627-1	06	1	1201-1410			●
255	WASHER; PL,BRKT ID=15	8-98010-627-1	06	1	1411-	●	●
255	WASHER; PL,BRKT ID=15	8-98010-627-1	08	1	1008-1410				●
255	WASHER; PL,BRKT EXC. SILENCER LAYOUT REAR VAR1<JAZ> ID=15	8-98010-627-1	08	1	1008-1410			●
255	WASHER; PL,BRKT ID=15	8-98010-627-1	08	1	1411-			●	●
255	WASHER; PL,BRKT SILENCER LAYOUT REAR VAR1<JAZ> ID=15	8-98010-627-1	10	1	1008-1112			●
439	STUD; BRKT,SPR (A) M12X35,M14X45 L=100	1-09029-075-0	02	1	1008-1410	●	●	●	●
439	STUD; BRKT,SPR (B) M12X25,M14X45 L=81	1-09029-103-0	02	1	1008-	●	●	●	●

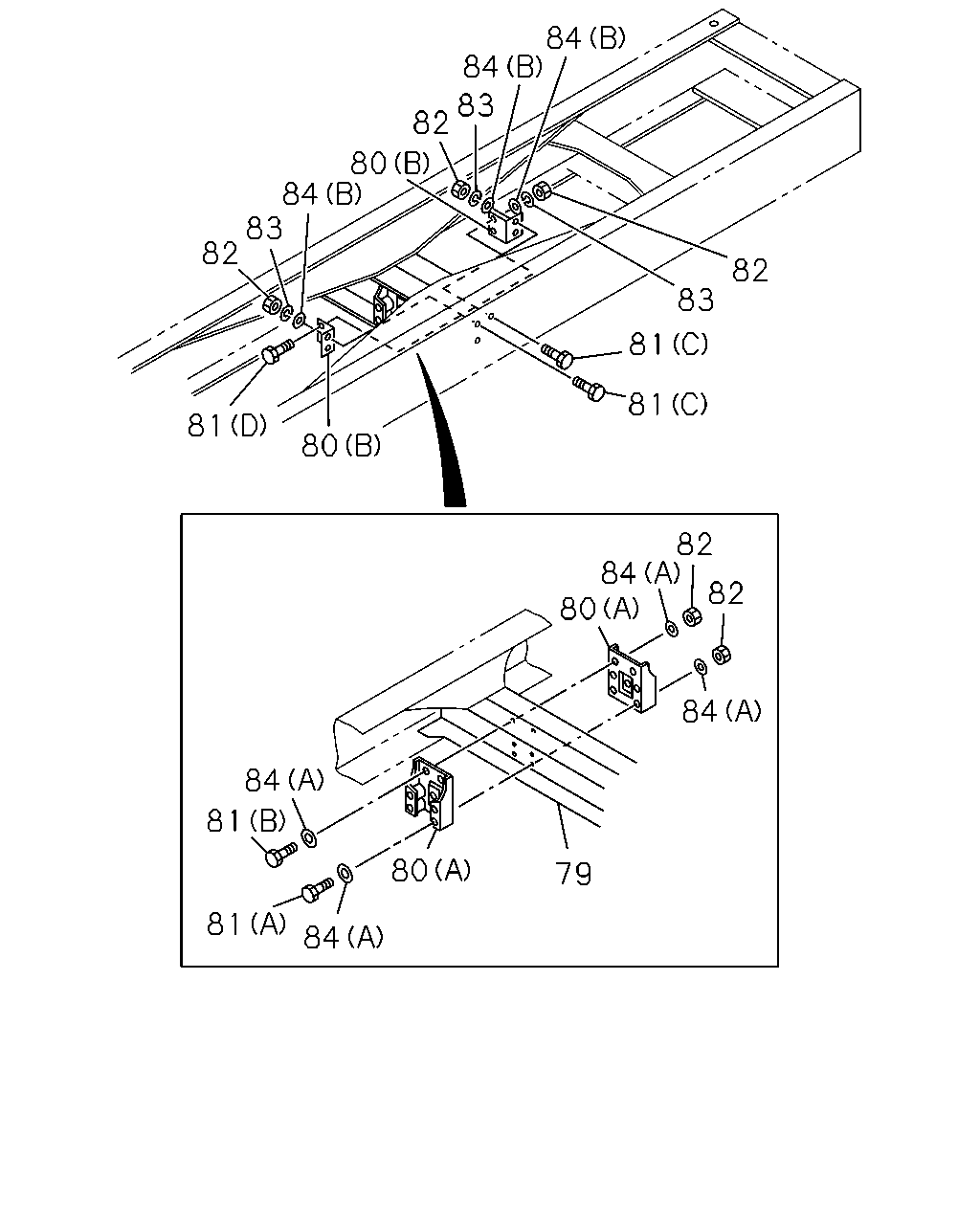

84 84 83 82 80 84 83 82 81 80 81 81 83 82 82 82 84 80 84 79 80 84 81 81 84

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
79	MEMBER; CROSS,TRUNNION ASM	1-53182-054-1	01	1	1008-1410	●	●	●	●
79	MEMBER; CROSS,TRUNNION ASM	8-98224-537-0	01	1	1411-	●	●	●	●
80	BRACKET; C/MBR (A)	1-53363-031-2	02	1	1008-	●	●	●	●
80	BRACKET; C/MBR (B)	1-53167-288-1	04	1	1008-	●	●	●	●
81	BOLT; BRKT (B) M14X50	0-20951-450-0	02	1	1008-	●	●	●	●
81	BOLT; BRKT (A) M14X205	1-09000-147-0	02	1	1008-	●	●	●	●
81	BOLT; BRKT (D) M14X60	0-20951-460-0	04	1	1008-	●	●	●	●
81	BOLT; BRKT (C) M14X45	9-92061-445-0	08	1	1008-1410	●	●	●	●
81	BOLT; BRKT (C) M14X45	0-20951-445-0	08	1	1411-	●	●	●	●
82	NUT; BRKT M14	0-91110-514-0	04	1	1008-1510	●	●	●	●
82	NUT; BRKT M14	0-91110-514-0	12	1	1511-	●	●	●	●
82	NUT; BRKT M14	0-91110-514-0	12	1	1008-1510	●	●	●	●
82	NUT; BRKT M14	0-91110-514-0	04	1	1511-	●	●	●	●
83	WASHER; LK,BRKT ID=14.2	0-91510-614-0	12	1	1008-1410	●	●	●	●
83	WASHER; LK,BRKT ID=14.2	0-91510-814-0	12	1	1411-	●	●	●	●
84	WASHER; PL,BRKT (A) ID=15	8-98010-627-1	08	1	1008-	●	●	●	●
84	WASHER; PL,BRKT (B) ID=15 OD=26	9-09164-514-0	16	1	1008-1104	●	●	●	●
84	WASHER; PL,BRKT (B) ID=15 OD=26	0-91614-514-0	16	1	1105-	●	●	●	●

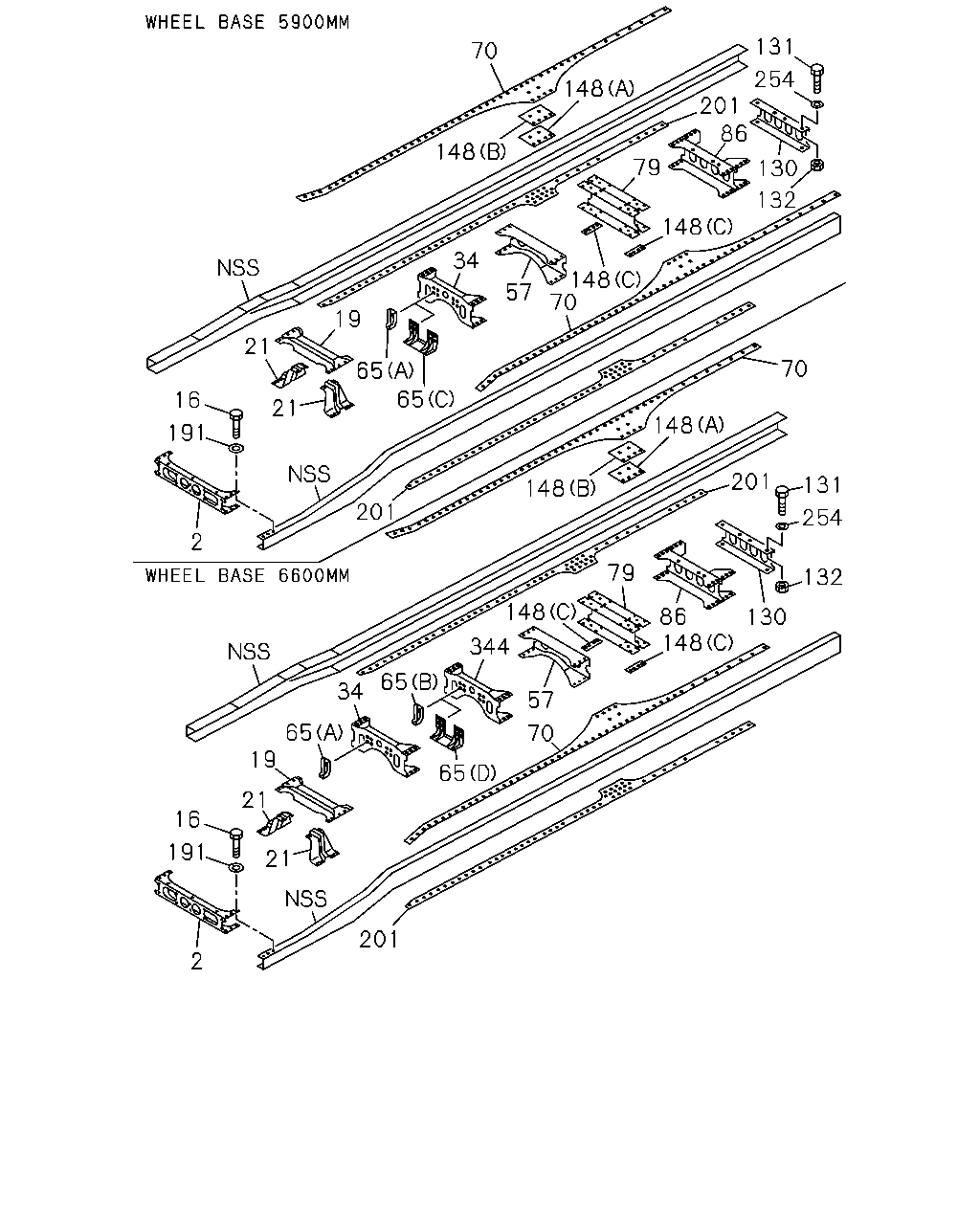

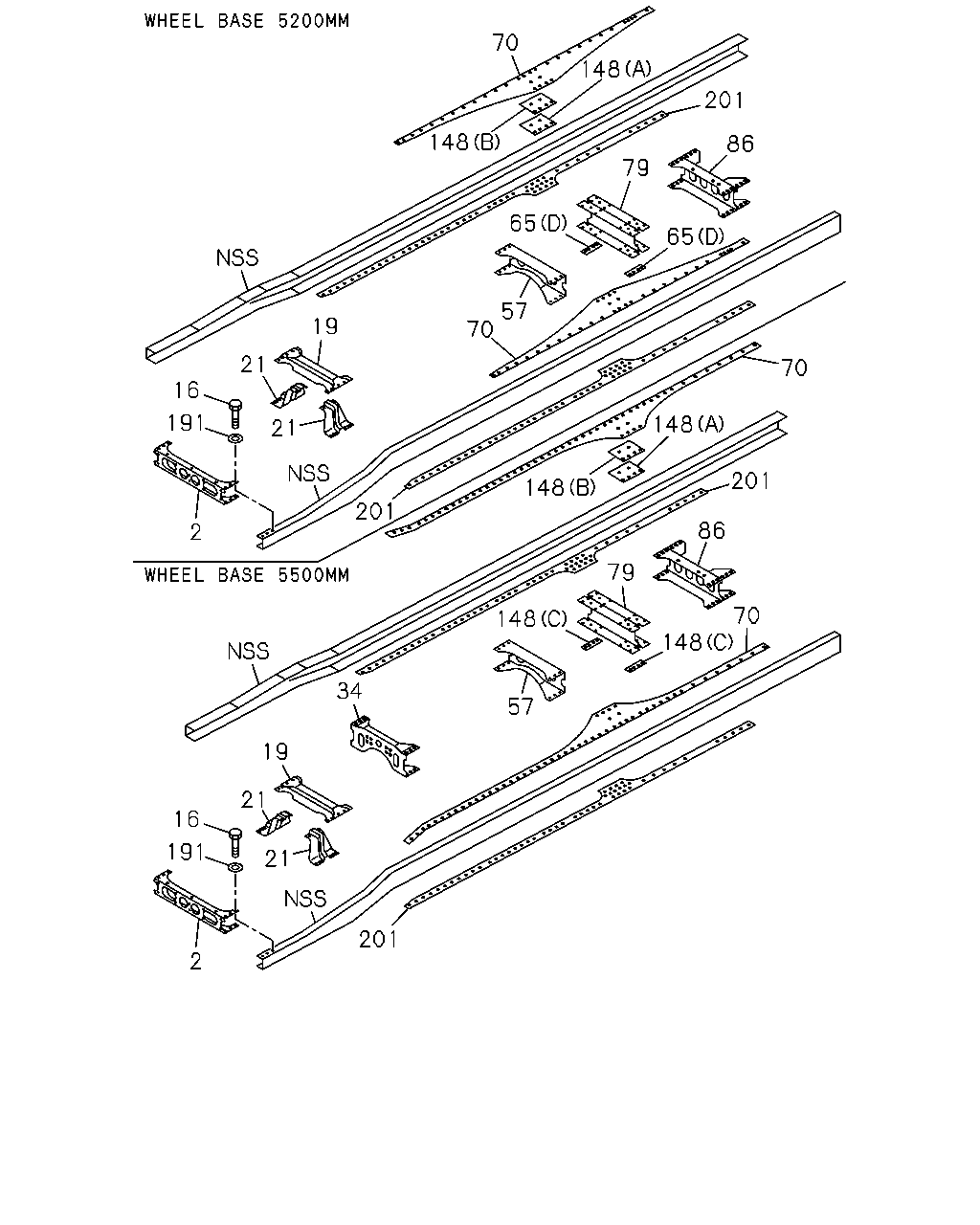

70 148 148 131 254 201 86 130 132 148 79 148 70 57 34 65 65 19 21 21 16 191 201 2 148 148 70 132 254 131 201 86 148 79 148 57 70 344 65 65 34 65 19 21 21 16 191 201 2 130

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	MEMBER; CROSS,1ST	1-53181-975-7	01	1	1008-1410	●	●	●	●
2	MEMBER; CROSS,1ST	8-98226-877-0	01	1	1411-	●	●	●	●
16	BOLT; 1ST C/MBR TO S/MBR M14X40	0-20951-440-0	02	1	1008-1410	●	●	●	●
16	BOLT; 1ST C/MBR TO S/MBR M16X40	0-20951-640-0	02	1	1411-	●	●	●	●
19	MEMBER; CROSS,2ND	1-53174-221-0	01	1	1008-1410	●	●	●	●
19	MEMBER; CROSS,2ND	8-98098-302-0	01	1	1411-	●	●	●	●
21	GUSSET; 2ND CROSS	1-53164-208-0	02	1	1008-1410	●	●	●	●
21	GUSSET; 2ND CROSS	8-98224-525-0	02	1	1411-	●	●	●	●
34	MEMBER; CROSS,3RD	1-53182-070-1	01	1	1008-1410		●	●	●
34	MEMBER; CROSS,3RD	8-98224-576-0	01	1	1411-		●	●	●
57	MEMBER; CROSS,RR SUSP FRT	1-53171-685-3	01	1	1008-1410	●	●	●	●
57	MEMBER; CROSS,RR SUSP FRT	8-98224-535-0	01	1	1411-	●	●	●	●
65	BRACKET; CENTER BRG MJT7S M/T(Y3E) (A) L=325	1-53271-341-0	02	1	1008-1112				●
65	BRACKET; CENTER BRG (A) L=325	1-53271-341-0	02	1	1008-1112			●
65	BRACKET; CENTER BRG MJT7S M/T(Y3E) (A) L=325	1-53271-341-0	02	1	1201-1410				●
65	BRACKET; CENTER BRG MJT7S M/T(Y3E) (A)	8-97614-134-0	02	1	1411-				●
65	BRACKET; CENTER BRG MJX16P M/T(Y3Z) (C)	8-98140-252-0	01	1	1008-1410				●
65	BRACKET; CENTER BRG MJT7S M/T(Y3E) (B) L=350	1-53271-363-0	02	1	1008-1410			●
65	BRACKET; CENTER BRG MJT7S M/T(Y3E) (B)	8-97614-140-0	02	1	1411-			●
65	BRACKET; CENTER BRG MJX16P M/T(Y3Z) (D)	8-98142-203-0	01	1	1008-1410			●
70	GUSSET; TRUNNION,UPR	8-98138-147-0	02	1	1008-	●
70	GUSSET; TRUNNION,UPR	8-98138-148-0	02	1	1008-		●
70	GUSSET; TRUNNION,UPR	8-98164-250-0	02	1	1008-1410				●
70	GUSSET; TRUNNION,UPR MJT7S M/T(Y3E)	8-98164-250-0	02	1	1411-				●
70	GUSSET; TRUNNION,UPR	1-53161-901-1	02	1	1008-1410			●
70	GUSSET; TRUNNION,UPR MJT7S M/T(Y3E)	8-98236-970-0	02	1	1411-			●
79	MEMBER; CROSS,TRUNNION ASM	1-53182-054-1	01	1	1008-1410	●	●	●	●
79	MEMBER; CROSS,TRUNNION ASM	8-98224-537-0	01	1	1411-	●	●	●	●
86	MEMBER; CROSS,RR SUSP RR	1-53181-134-2	01	1	1008-1410	●	●	●	●
86	MEMBER; CROSS,RR SUSP RR	8-98224-542-0	01	1	1411-	●	●	●	●
130	MEMBER; CROSS,END	1-53171-876-4	01	1	1008-1410			●	●
130	MEMBER; CROSS,END	8-98224-587-0	01	1	1411-			●	●
131	BOLT; END C/MBR M14X40	0-20951-440-0	02	1	1008-			●	●
131	BOLT; END C/MBR M14X50	0-20951-450-0	02	1	1008-			●	●
132	NUT; END C/MBR M14	0-91110-514-0	04	1	1008-			●	●
148	SPACER; C/MBR (A) T=7.0	1-53168-486-0	02	1	1008-1410	●	●	●	●
148	SPACER; C/MBR (C)	8-97623-199-0	02	1	1411-	●
148	SPACER; C/MBR (B) T=8.0	1-53168-508-0	02	1	1008-1410	●	●	●	●
148	SPACER; C/MBR (C)	8-97623-202-0	02	1	1411-		●	●	●
148	SPACER; C/MBR (C)	1-53168-350-0	02	1	1008-1410		●	●	●
191	WASHER; PL,1ST C/MBR TO S/MBR ID=15	8-98010-627-1	02	1	1008-1410	●	●	●	●
191	WASHER; PL,1ST C/MBR TO S/MBR ID=16.2	1-09503-316-0	02	1	1411-	●	●	●	●
201	GUSSET; C/MBR	8-98138-151-1	02	1	1008-	●
201	GUSSET; C/MBR	8-98138-152-0	02	1	1008-		●
201	GUSSET; C/MBR	8-98138-153-1	02	1	1008-1410				●
201	GUSSET; C/MBR MJT7S M/T(Y3E)	8-98138-153-1	02	1	1411-				●
201	GUSSET; C/MBR	8-98141-875-1	02	1	1008-1410			●
201	GUSSET; C/MBR MJT7S M/T(Y3E)	8-98141-875-1	02	1	1411-			●
254	WASHER; PL,C/MBR ID=15	8-98010-627-1	04	1	1008-			●	●
344	MEMBER; CROSS,4TH	1-53182-070-1	01	1	1008-1410			●
344	MEMBER; CROSS,4TH MJT7S M/T(Y3E)	8-98224-576-0	01	1	1411-			●

201 86 70 148 79 148 57 34 19 21 21 201 16 191 2 148 148 70 65 86 201 148 70 148 19 21 21 16 191 201 2 79 65 57 70

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	MEMBER; CROSS,1ST	1-53181-975-7	01	1	1008-1410	●	●	●	●
2	MEMBER; CROSS,1ST	8-98226-877-0	01	1	1411-	●	●	●	●
16	BOLT; 1ST C/MBR TO S/MBR M14X40	0-20951-440-0	02	1	1008-1410	●	●	●	●
16	BOLT; 1ST C/MBR TO S/MBR M16X40	0-20951-640-0	02	1	1411-	●	●	●	●
19	MEMBER; CROSS,2ND	1-53174-221-0	01	1	1008-1410	●	●	●	●
19	MEMBER; CROSS,2ND	8-98098-302-0	01	1	1411-	●	●	●	●
21	GUSSET; 2ND CROSS	1-53164-208-0	02	1	1008-1410	●	●	●	●
21	GUSSET; 2ND CROSS	8-98224-525-0	02	1	1411-	●	●	●	●
34	MEMBER; CROSS,3RD	1-53182-070-1	01	1	1008-1410		●	●	●
34	MEMBER; CROSS,3RD	8-98224-576-0	01	1	1411-		●	●	●
57	MEMBER; CROSS,RR SUSP FRT	1-53171-685-3	01	1	1008-1410	●	●	●	●
57	MEMBER; CROSS,RR SUSP FRT	8-98224-535-0	01	1	1411-	●	●	●	●
65	BRACKET; CENTER BRG MJT7S M/T(Y3E) (A) L=325	1-53271-341-0	02	1	1008-1112				●
65	BRACKET; CENTER BRG (A) L=325	1-53271-341-0	02	1	1008-1112			●
65	BRACKET; CENTER BRG MJT7S M/T(Y3E) (A) L=325	1-53271-341-0	02	1	1201-1410				●
65	BRACKET; CENTER BRG MJT7S M/T(Y3E) (A)	8-97614-134-0	02	1	1411-				●
65	BRACKET; CENTER BRG MJX16P M/T(Y3Z) (C)	8-98140-252-0	01	1	1008-1410				●
65	BRACKET; CENTER BRG MJT7S M/T(Y3E) (B) L=350	1-53271-363-0	02	1	1008-1410			●
65	BRACKET; CENTER BRG MJT7S M/T(Y3E) (B)	8-97614-140-0	02	1	1411-			●
65	BRACKET; CENTER BRG MJX16P M/T(Y3Z) (D)	8-98142-203-0	01	1	1008-1410			●
70	GUSSET; TRUNNION,UPR	8-98138-147-0	02	1	1008-	●
70	GUSSET; TRUNNION,UPR	8-98138-148-0	02	1	1008-		●
70	GUSSET; TRUNNION,UPR	8-98164-250-0	02	1	1008-1410				●
70	GUSSET; TRUNNION,UPR MJT7S M/T(Y3E)	8-98164-250-0	02	1	1411-				●
70	GUSSET; TRUNNION,UPR	1-53161-901-1	02	1	1008-1410			●
70	GUSSET; TRUNNION,UPR MJT7S M/T(Y3E)	8-98236-970-0	02	1	1411-			●
79	MEMBER; CROSS,TRUNNION ASM	1-53182-054-1	01	1	1008-1410	●	●	●	●
79	MEMBER; CROSS,TRUNNION ASM	8-98224-537-0	01	1	1411-	●	●	●	●
86	MEMBER; CROSS,RR SUSP RR	1-53181-134-2	01	1	1008-1410	●	●	●	●
86	MEMBER; CROSS,RR SUSP RR	8-98224-542-0	01	1	1411-	●	●	●	●
148	SPACER; C/MBR (A) T=7.0	1-53168-486-0	02	1	1008-1410	●	●	●	●
148	SPACER; C/MBR (C)	8-97623-199-0	02	1	1411-	●
148	SPACER; C/MBR (B) T=8.0	1-53168-508-0	02	1	1008-1410	●	●	●	●
148	SPACER; C/MBR (C)	8-97623-202-0	02	1	1411-		●	●	●
148	SPACER; C/MBR (C)	1-53168-350-0	02	1	1008-1410		●	●	●
191	WASHER; PL,1ST C/MBR TO S/MBR ID=15	8-98010-627-1	02	1	1008-1410	●	●	●	●
191	WASHER; PL,1ST C/MBR TO S/MBR ID=16.2	1-09503-316-0	02	1	1411-	●	●	●	●
201	GUSSET; C/MBR	8-98138-151-1	02	1	1008-	●
201	GUSSET; C/MBR	8-98138-152-0	02	1	1008-		●
201	GUSSET; C/MBR	8-98138-153-1	02	1	1008-1410				●
201	GUSSET; C/MBR MJT7S M/T(Y3E)	8-98138-153-1	02	1	1411-				●
201	GUSSET; C/MBR	8-98141-875-1	02	1	1008-1410			●
201	GUSSET; C/MBR MJT7S M/T(Y3E)	8-98141-875-1	02	1	1411-			●
