◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11323 - CYZ LHD MIDDLE EAST EURO2 WITH 3STEPS ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-80 - ROAD WHEEL ▶
4-80 — ROAD WHEEL (#62641) — 56 parça

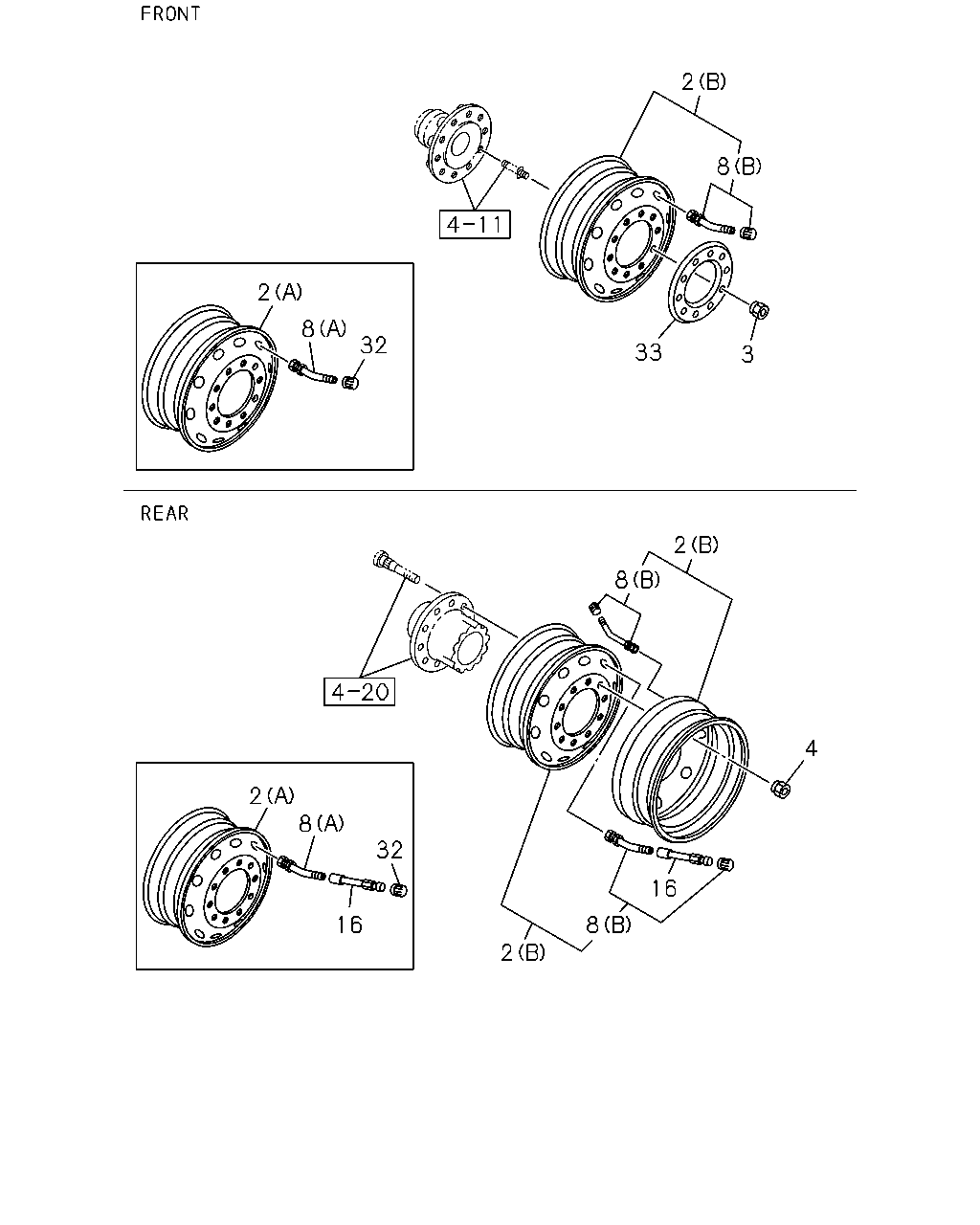

çizim 170327
33 3 8 2 8 2 32 2 8 32 8 2 4 16 8 2 16
BalonParca AdiParca NoAdetTipApplied Date A B
2 WHEEL; DISC
(B) REAR 		1-42350-764-0 08 1 1008-1410 ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50VX20 165-12(Q64) (C) FRONT,REAR 		1-42350-448-0 10 1 1411- ● ●
2 WHEEL; DISC
FT10 9.00X22.5 175-14 RR10 8.25X22.5 165-13(FJH) (A) FRONT 		8-98202-326-0 02 1 1412- ● ●
2 WHEEL; DISC
FT10 9.00X22.5 175-14 RR10 8.25X22.5 165-13(FJH) (A) REAR 		8-98217-247-0 08 1 1412- ● ●
2 WHEEL; DISC
FT10 9.00X22.5 175-14 RR10 8.25X22.5 165-13(FJH) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE 		8-98202-326-0 01 1 1412- ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT,REAR 		8-98281-497-0 10 1 1411- ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE 		8-98281-497-0 01 1 1411- ● ●
2 WHEEL; DISC
(B) FRONT 		1-42350-764-0 02 1 1008-1410 ● ●
2 WHEEL; DISC
WHEEL 10STUD 9.00X22.5 175-14 TC(FJB) (B) FRONT,REAR 		1-42350-764-0 10 1 1411- ● ●
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE 		1-42350-764-0 01 1 1008-1410 ● ●
2 WHEEL; DISC
WHEEL 10STUD 9.00X22.5 175-14 TC(FJB) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE 		1-42350-764-0 01 1 1411- ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (C) SPARE 		1-42350-448-0 01 1 1411- ● ●
3 NUT; WHEEL,FRT AXLE
M22X1.5 		1-42333-055-0 20 1 1008- ● ●
4 NUT; WHEEL,RR AXLE
M22X1.5 		1-42333-055-0 40 1 1008- ● ●
8 VALVE; TIRE
(B) REAR 		1-42370-041-1 08 1 1008-1410 ● ●
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT,REAR 		1-42370-019-3 10 1 1411- ● ●
8 VALVE; TIRE
FT10 9.00X22.5 175-14 RR10 8.25X22.5 165-13(FJH) (A) FRONT,REAR 		1-42370-048-0 10 1 1412- ● ●
8 VALVE; TIRE
FT10 9.00X22.5 175-14 RR10 8.25X22.5 165-13(FJH) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE 		1-42370-048-0 01 1 1412- ● ●
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE 		1-42370-019-3 01 1 1411- ● ●
8 VALVE; TIRE
(B) FRONT 		1-42370-041-1 02 1 1008-1410 ● ●
8 VALVE; TIRE
WHEEL 10STUD 9.00X22.5 175-14 TC(FJB) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE 		1-42370-041-1 01 1 1411- ● ●
8 VALVE; TIRE
SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE 		1-42370-041-1 01 1 1008-1410 ● ●
8 VALVE; TIRE
WHEEL 10STUD 9.00X22.5 175-14 TC(FJB) (B) FRONT,REAR 		1-42370-041-1 10 1 1411- ● ●
16 HOLDER; TIRE VALVE,DISC WHEEL
L=170 		8-98167-052-0 04 1 1008- ● ●
32 CAP; VALVE
DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> 		1-42374-001-0 07 1 1411- ● ●
32 CAP; VALVE
DISC WHEEL 10STUD 7.50VX20 165-12(Q64) EXC. SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> 		1-42374-001-0 06 1 1411- ● ●
32 CAP; VALVE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) 		1-42374-001-0 10 1 1411-1411 ● ●
32 CAP; VALVE
FT10 9.00X22.5 175-14 RR10 8.25X22.5 165-13(FJH), DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) 		1-42374-001-0 10 1 1412- ● ●
32 CAP; VALVE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> 		1-42374-001-0 01 1 1411-1411 ● ●
32 CAP; VALVE
FT10 9.00X22.5 175-14 RR10 8.25X22.5 165-13(FJH), DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> 		1-42374-001-0 01 1 1412- ● ●
33 COVER; WHEEL 1-43139-065-0 02 1 1008-1410 ● ●
33 COVER; WHEEL
WHEEL 10STUD 9.00X22.5 175-14 TC(FJB),DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) FT WHEEL COVER<JEH> 		1-43139-065-1 02 1 1411-1411 ● ●
33 COVER; WHEEL
WHEEL 10STUD 9.00X22.5 175-14 TC(FJB),FT10 9.00X22.5 175-14 RR10 8.25X22.5 165-13(FJH),DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) FT WHEEL COVER<JEH> 		1-43139-065-1 02 1 1412- ● ●
çizim 455014
32 31 2 3 2 2 31 16 32 4 31
BalonParca AdiParca NoAdetTipApplied Date A B
2 WHEEL; DISC
(B) REAR 		1-42350-764-0 08 1 1008-1410 ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50VX20 165-12(Q64) (C) FRONT,REAR 		1-42350-448-0 10 1 1411- ● ●
2 WHEEL; DISC
FT10 9.00X22.5 175-14 RR10 8.25X22.5 165-13(FJH) (A) FRONT 		8-98202-326-0 02 1 1412- ● ●
2 WHEEL; DISC
FT10 9.00X22.5 175-14 RR10 8.25X22.5 165-13(FJH) (A) REAR 		8-98217-247-0 08 1 1412- ● ●
2 WHEEL; DISC
FT10 9.00X22.5 175-14 RR10 8.25X22.5 165-13(FJH) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE 		8-98202-326-0 01 1 1412- ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT,REAR 		8-98281-497-0 10 1 1411- ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE 		8-98281-497-0 01 1 1411- ● ●
2 WHEEL; DISC
(B) FRONT 		1-42350-764-0 02 1 1008-1410 ● ●
2 WHEEL; DISC
WHEEL 10STUD 9.00X22.5 175-14 TC(FJB) (B) FRONT,REAR 		1-42350-764-0 10 1 1411- ● ●
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE 		1-42350-764-0 01 1 1008-1410 ● ●
2 WHEEL; DISC
WHEEL 10STUD 9.00X22.5 175-14 TC(FJB) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE 		1-42350-764-0 01 1 1411- ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (C) SPARE 		1-42350-448-0 01 1 1411- ● ●
3 NUT; WHEEL,FRT AXLE
M22X1.5 		1-42333-055-0 20 1 1008- ● ●
4 NUT; WHEEL,RR AXLE
M22X1.5 		1-42333-055-0 40 1 1008- ● ●
16 HOLDER; TIRE VALVE,DISC WHEEL
L=170 		8-98167-052-0 04 1 1008- ● ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE 		1-42355-014-0 10 1 1411- ● ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE 		1-42355-014-0 01 1 1411- ● ●
32 CAP; VALVE
DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> 		1-42374-001-0 07 1 1411- ● ●
32 CAP; VALVE
DISC WHEEL 10STUD 7.50VX20 165-12(Q64) EXC. SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> 		1-42374-001-0 06 1 1411- ● ●
32 CAP; VALVE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) 		1-42374-001-0 10 1 1411-1411 ● ●
32 CAP; VALVE
FT10 9.00X22.5 175-14 RR10 8.25X22.5 165-13(FJH), DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) 		1-42374-001-0 10 1 1412- ● ●
32 CAP; VALVE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> 		1-42374-001-0 01 1 1411-1411 ● ●
32 CAP; VALVE
FT10 9.00X22.5 175-14 RR10 8.25X22.5 165-13(FJH), DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> 		1-42374-001-0 01 1 1412- ● ●
