◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11323 - CYZ LHD MIDDLE EAST EURO2 WITH 3STEPS ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-60 - REAR SUSPENSION ▶
4-60 — REAR SUSPENSION (#62639) — 89 parça

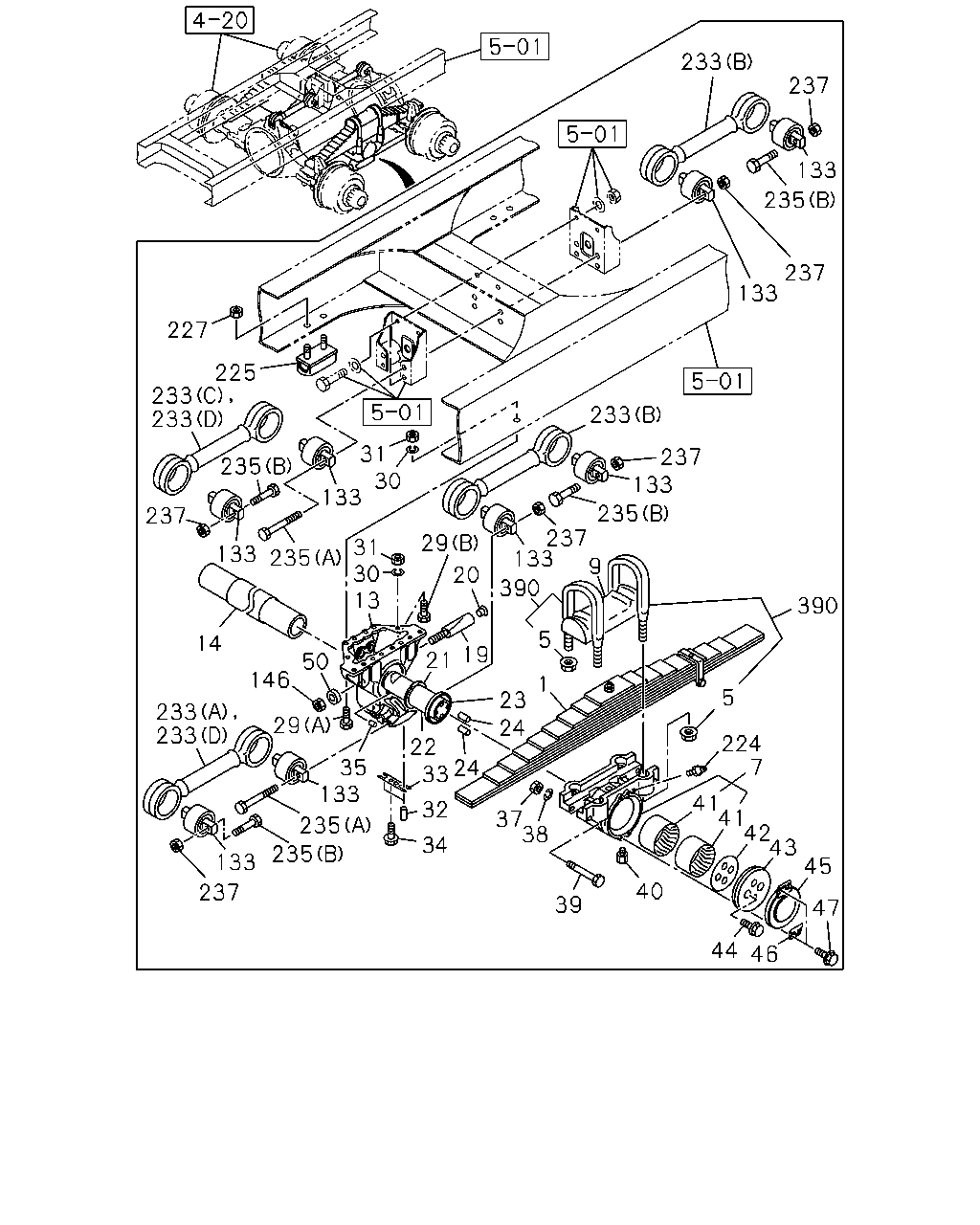

çizim 170348
227 225 233 233 235 237 133 235 133 31 30 29 20 31 30 13 14 146 50 29 233 233 35 133 235 235 133 237 32 34 33 22 21 19 23 24 24 37 38 39 40 44 46 47 45 43 42 41 41 7 224 5 1 5 9 390 235 133 237 237 133 390 233 133 237 235 133 237 233
BalonParca AdiParca NoAdetTipApplied Date A B
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. CRANE TRUCK<RA4>,CONCRETE PUMP<RA5> TAPER LEAF SUSP RR<SAT> 5-LEAF 		8-98101-101-1 02 1 1511- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. MULTI LEAF SUSP RR<SAS> 9-LEAF 		8-98140-159-0 02 1 1411-1510 ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. DUMP TRUCK<RA1> MULTI LEAF SUSP RR<SAS> 9-LEAF 		8-98140-159-0 02 1 1411-1510 ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. MULTI LEAF SUSP RR<SAS> 9-LEAF 		8-98140-159-0 02 1 1511- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. DUMP TRUCK<RA1>,CRANE TRUCK<RA4>,CONCRETE PUMP<RA5> MULTI LEAF SUSP RR<SAS> 9-LEAF 		8-98140-159-0 02 1 1511- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. MULTI LEAF SUSP RR<SAS> EXC. DUMP TRUCK<RA1> 10-LEAF 		8-98157-786-0 02 1 1411- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. HEAVY DUTY PACKAGE TRUCK<RD2> 5-LEAF 		8-98159-622-0 02 1 1008-1209 ● ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 		8-98159-622-0 02 1 1210-1410 ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. HEAVY DUTY PACKAGE TRUCK<RD2> 5-LEAF 		8-98159-622-0 02 1 1210-1410 ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. TAPER LEAF SUSP RR<SAT> 5-LEAF 		8-98159-622-0 02 1 1411-1510 ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. DUMP TRUCK<RA1> TAPER LEAF SUSP RR<SAT> 5-LEAF 		8-98159-622-0 02 1 1411-1510 ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. TAPER LEAF SUSP RR<SAT> 5-LEAF 		8-98159-622-0 02 1 1511- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 5500MM(55W),WHEEL BASE 6600MM(66W) FULL TRACTOR TRUCK<RD6> TAPER LEAF SUSP RR<SAT> 5-LEAF 		8-98159-622-0 02 1 1511- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. DUMP TRUCK<RA1>,CRANE TRUCK<RA4>,CONCRETE PUMP<RA5> TAPER LEAF SUSP RR<SAT> 5-LEAF 		8-98159-622-0 02 1 1511- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 5-LEAF 		8-98138-268-0 02 1 1008-1209 ● ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 5-LEAF 		8-98138-268-0 02 1 1210-1410 ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. TAPER LEAF SUSP RR<SAT> EXC. DUMP TRUCK<RA1> 5-LEAF 		8-98138-268-0 02 1 1411-1510 ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. TAPER LEAF SUSP RR<SAT> EXC. DUMP TRUCK<RA1>,CRANE TRUCK<RA4>,CONCRETE PUMP<RA5> 5-LEAF 		8-98138-268-0 02 1 1511- ●
5 NUT; U-BOLT,RR SPR
M27 FLANGE 		1-09440-058-0 08 1 1008- ● ●
7 SEAT; SPR,LWR 8-97614-049-2 02 1 1008- ● ●
9 PAD; U BOLT,RR SPR 1-51372-019-1 02 1 1008-1010 ● ●
9 PAD; U BOLT,RR SPR 8-98177-265-0 02 1 1011- ● ●
13 BRACKET; TRUNNION SHAFT 1-53361-079-0 02 1 1008- ● ●
14 PIPE; TRUNNION BRKT 1-51389-032-1 01 1 1008- ● ●
19 BOLT; KEY,SHAFT 1-51389-066-0 02 1 1008- ● ●
20 GROMMET; KEY BOLT 1-09333-057-0 02 1 1008- ● ●
21 WASHER; THRUST,TRUNNION SHAFT 1-51389-058-0 02 1 1008- ● ●
22 SHAFT; TRUNNION,RR SUSP 1-51381-022-3 02 1 1008- ● ●
23 SEAL; OIL,TRUNNION SHAFT 1-51389-005-0 02 1 1008- ● ●
24 PIN; SIDE PLATE TO SHAFT 1-09740-009-0 04 1 1008- ● ●
29 BOLT; BRKT TO FRAME
(A) M18X75 		8-98012-872-0 24 1 1008- ●
29 BOLT; BRKT TO FRAME
WHEEL BASE 5500MM(55W),WHEEL BASE 6600MM(66W) (A) M18X75 		8-98012-872-0 24 1 1008- ●
29 BOLT; BRKT TO FRAME
(B) M18X55 		9-92061-855-0 04 1 1008-1510 ● ●
29 BOLT; BRKT TO FRAME
(B) M18X55 		0-20951-855-0 04 1 1511- ● ●
29 BOLT; BRKT TO FRAME
WHEEL BASE 5900MM(59W) (A) M18X80 		1-09000-428-1 24 1 1008- ●
30 WASHER; PL,TRUNNION BRKT
ID=19 		1-09503-162-0 28 1 1008- ● ●
31 NUT; TRUNNION BRKT
M18 		0-91110-518-0 28 1 1008- ● ●
32 PIN; STRAIGHT 1-09740-027-0 04 1 1008- ● ●
33 PLATE; LK KNOCK PIN 1-53369-032-1 02 1 1008- ● ●
34 BOLT; LOCK PLATE
M10X16 FLANGE 		0-28051-016-0 02 1 1008- ● ●
35 PIN; TRUNNION SHAFT 1-09749-030-1 04 1 1008- ● ●
37 NUT; SPR SETTING
M22 		0-91110-522-0 04 1 1008- ● ●
38 WASHER; LK,SPR SETTING
ID=22.5 		0-91510-622-0 04 1 1008- ● ●
39 BOLT; SPR SETTING
M22X155 		9-09801-290-1 04 1 1008- ● ●
40 VALVE; GREASE ESCAPE 9-51389-010-0 02 1 1008- ● ●
41 BUSHING; TRUNNION SHAFT 8-98081-832-0 04 1 1008- ● ●
42 SHIM; SIDE PLATE TO SHAFT 1-51389-033-1 12 1 1008- ● ●
43 PLATE; SIDE,TRUNNION SHAFT 1-51382-010-4 02 1 1008- ● ●
44 BOLT; SIDE PLATE TO SHAFT
M18X48.5 FLANGE 		1-09044-038-2 04 1 1008- ● ●
45 COVER; SPR SEAT 1-51387-013-2 02 1 1008- ● ●
46 BRACKET; COVER 1-51387-015-2 02 1 1008- ● ●
47 BOLT; COVER TO SEAT
M8X12 FLANGE 		0-28050-812-0 08 1 1008- ● ●
50 WASHER; PL,TRUNNION SHAFT
ID=25 		8-98012-871-0 02 1 1008- ● ●
133 BUSHING; RUBBER,TORQUE ROD
OD=105 		1-51519-113-1 06 1 1008-1106 ● ●
133 BUSHING; RUBBER,TORQUE ROD
OD=105 		1-51519-113-1 06 1 1107- ● ●
133 BUSHING; RUBBER,TORQUE ROD
OD=105 		1-51519-113-1 06 1 1107- ● ●
133 BUSHING; RUBBER,TORQUE ROD
BEST VALUE PARTS 		1-87411-074-2 06 1 1008-1106 ● ●
133 BUSHING; RUBBER,TORQUE ROD
BEST VALUE PARTS 		1-87411-074-2 06 1 1107- ● ●
133 BUSHING; RUBBER,TORQUE ROD
BEST VALUE PARTS 		1-87411-074-2 06 1 1107- ● ●
146 NUT; KEY BOLT
M24 		0-91110-524-0 02 1 1008- ● ●
224 NIPPLE; GREASE,SPR SEAT
PT1/8 STRAIGHT 		0-90301-410-0 02 1 1008- ● ●
225 RUBBER; CUSHION,RR SPR
FORWARD RH,REARWARD LH 		1-53366-073-2 02 1 1008- ● ●
225 RUBBER; CUSHION,RR SPR
FORWARD LH,REARWARD RH 		1-53366-143-1 02 1 1008- ● ●
227 NUT; CUSHION RUBBER
M12 FLANGE 		0-91180-212-0 08 1 1008- ● ●
233 ROD ASM; TORQUE,RR SUSP
(B) L=580 		1-51511-661-0 03 1 1008- ● ●
233 ROD ASM; TORQUE,RR SUSP
HEAVY DUTY PACKAGE TRUCK<RD2> (D) L=555 		1-51511-660-0 03 1 1008-1106 ● ●
233 ROD ASM; TORQUE,RR SUSP
(D) L=555 		1-51511-660-0 03 1 1107- ●
233 ROD ASM; TORQUE,RR SUSP
WHEEL BASE 5500MM(55W) (D) L=555 		1-51511-660-0 03 1 1107- ●
233 ROD ASM; TORQUE,RR SUSP
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) L=545 		1-51511-658-0 02 1 1008-1106 ● ●
233 ROD ASM; TORQUE,RR SUSP
WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) (A) L=545 		1-51511-658-0 02 1 1107- ●
233 ROD ASM; TORQUE,RR SUSP
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (C) L=565 		1-51511-685-0 01 1 1008-1106 ● ●
233 ROD ASM; TORQUE,RR SUSP
WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) (C) L=565 		1-51511-685-0 01 1 1107- ●
235 BOLT; TORQUE ROD
(A) M18X265 		8-98012-875-0 06 1 1008- ● ●
235 BOLT; TORQUE ROD
(B) M18X102 		8-98012-877-0 12 1 1008- ● ●
237 NUT; TORQUE ROD
M18 		1-09464-011-0 18 1 1008- ● ●
390 U-BOLT SET; RR SPRING
HEAVY DUTY PACKAGE TRUCK<RD2> L=370 		1-87870-217-3 04 1 1008-1209 ● ●
390 U-BOLT SET; RR SPRING
L=370 		1-87870-217-3 04 1 1210-1410 ●
390 U-BOLT SET; RR SPRING
HEAVY DUTY PACKAGE TRUCK<RD2> L=370 		1-87870-217-3 04 1 1210-1410 ●
390 U-BOLT SET; RR SPRING
TAPER LEAF SUSP RR<SAT> L=370 		1-87870-217-3 04 1 1411-1510 ●
390 U-BOLT SET; RR SPRING
DUMP TRUCK<RA1> TAPER LEAF SUSP RR<SAT> L=370 		1-87870-217-3 04 1 1411-1510 ●
390 U-BOLT SET; RR SPRING
TAPER LEAF SUSP RR<SAT> L=370 		1-87870-217-3 04 1 1511- ●
390 U-BOLT SET; RR SPRING
WHEEL BASE 5500MM(55W),WHEEL BASE 6600MM(66W) FULL TRACTOR TRUCK<RD6> TAPER LEAF SUSP RR<SAT> L=370 		1-87870-217-3 04 1 1511- ●
390 U-BOLT SET; RR SPRING
DUMP TRUCK<RA1>,CRANE TRUCK<RA4>,CONCRETE PUMP<RA5> TAPER LEAF SUSP RR<SAT> L=370 		1-87870-217-3 04 1 1511- ●
390 U-BOLT SET; RR SPRING
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> L=350 		1-87870-392-1 04 1 1008-1209 ● ●
390 U-BOLT SET; RR SPRING
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> L=350 		1-87870-392-1 04 1 1210-1410 ●
390 U-BOLT SET; RR SPRING
MULTI LEAF SUSP RR<SAS> L=350 		1-87870-392-1 04 1 1411-1510 ● ●
390 U-BOLT SET; RR SPRING
TAPER LEAF SUSP RR<SAT> EXC. DUMP TRUCK<RA1> L=350 		1-87870-392-1 04 1 1411-1510 ●
390 U-BOLT SET; RR SPRING
L=350 		1-87870-392-1 04 1 1511- ●
390 U-BOLT SET; RR SPRING
WHEEL BASE 5500MM(55W) L=350 		1-87870-392-1 04 1 1511- ●
