◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11323 - CYZ LHD MIDDLE EAST EURO2 WITH 3STEPS ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-55 - FRONT LEAF SPRING ▶
4-55 — FRONT LEAF SPRING (#62638) — 111 parça

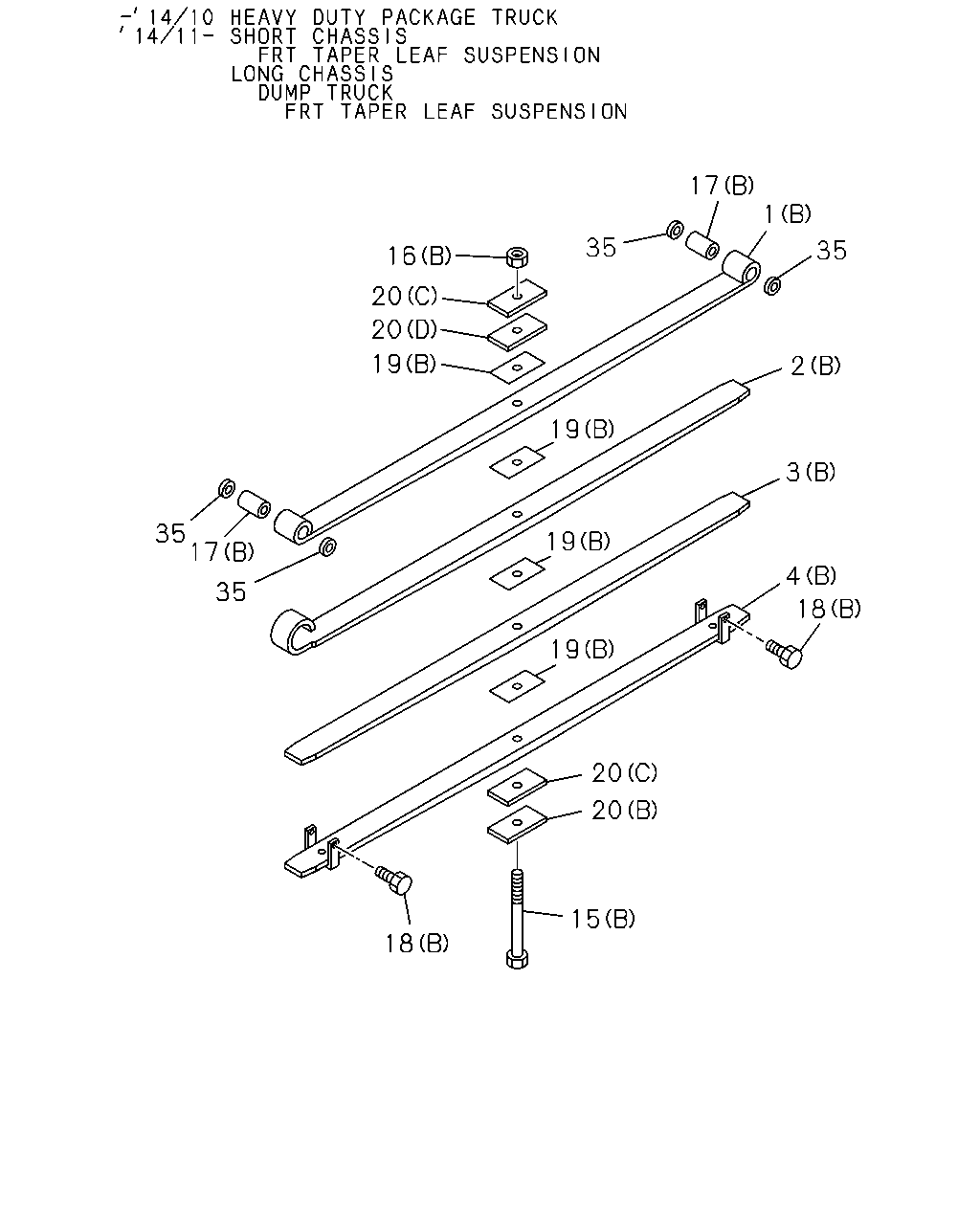

çizim 170341
17 1 35 2 3 4 18 19 35 16 20 20 19 19 19 20 20 15 18 35 17 35
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
(A) ASM PART: A = 8-97617-349-0 		1-51131-890-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(C) ASM PART: C = 8-98157-781-0 		8-98161-575-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(B) ASM PART: B = 8-98157-779-0 		8-98161-610-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(A) ASM PART: D = 8-98229-520-0 		8-98232-150-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(A) ASM PART: A = 8-97617-349-0 		1-51132-890-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(C) ASM PART: C = 8-98157-781-0 		8-98161-576-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(B) ASM PART: B = 8-98157-779-0 		8-98161-611-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(A) ASM PART: D = 8-98229-520-0 		8-98232-151-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(A) ASM PART: A = 8-97617-349-0 		1-51133-890-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(C) ASM PART: C = 8-98157-781-0 		8-98161-577-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(B) ASM PART: B = 8-98157-779-0 		8-98161-612-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(A) ASM PART: D = 8-98229-520-0 		8-98232-152-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(A) ASM PART: A = 8-97617-349-0, D = 8-98229-520-0 		1-51134-890-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(C) ASM PART: C = 8-98157-781-0 		8-98161-578-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(B) ASM PART: B = 8-98157-779-0 		8-98161-613-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(A), L=125 ASM PART: A = 8-97617-349-0, D = 8-98229-520-0 		1-51156-291-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(C), L=165 ASM PART: C = 8-98157-781-0 		1-51156-366-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(B), L=165 ASM PART: B = 8-98157-779-0 		1-51156-414-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
(A), M16 ASM PART: A = 8-97617-349-0, C = 8-98157-781-0, D = 8-98229-520-0 		1-09400-054-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
(B), M16 ASM PART: B = 8-98157-779-0 		1-09400-061-0 01 1 -
17 BUSHING; LEAF SPR,FRT
(C), OD=38 ASM PART: C = 8-98157-781-0 		1-51351-009-0 02 1 -
17 BUSHING; LEAF SPR,FRT
(A), OD=42 ASM PART: A = 8-97617-349-0, D = 8-98229-520-0 		1-51351-044-0 02 1 -
17 BUSHING; LEAF SPR,FRT
(B), OD=42 ASM PART: B = 8-98157-779-0 		1-51351-046-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(A), M10X103 ASM PART: A = 8-97617-349-0, D = 8-98229-520-0 		1-09000-536-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(C), M10X103 ASM PART: C = 8-98157-781-0 		8-97615-331-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(D), M10X99 ASM PART: C = 8-98157-781-0 		8-97615-895-0 01 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(B), M10X99 ASM PART: B = 8-98157-779-0 		8-98161-627-0 02 1 -
19 SPACER; LEAF SPRING,FRT
(A), T=1 ASM PART: A = 8-97617-349-0, D = 8-98229-520-0 		1-51177-071-0 04 1 -
19 SPACER; LEAF SPRING,FRT
(A), T=1 ASM PART: C = 8-98157-781-0 		1-51177-071-0 07 1 -
19 SPACER; LEAF SPRING,FRT
(B), T=1 ASM PART: B = 8-98157-779-0 		1-51177-339-0 04 1 -
20 SEAT; LEAF SPR,FRT
(E), T=7 ASM PART: C = 8-98157-781-0 		1-51177-074-0 02 1 -
20 SEAT; LEAF SPR,FRT
(A), T=14 ASM PART: A = 8-97617-349-0, D = 8-98229-520-0 		1-51177-097-0 01 1 -
20 SEAT; LEAF SPR,FRT
(B), T=11 ASM PART: B = 8-98157-779-0 		1-51177-340-0 01 1 -
20 SEAT; LEAF SPR,FRT
(C), T=10 ASM PART: B = 8-98157-779-0 		1-51377-402-0 02 1 -
20 SEAT; LEAF SPR,FRT
(D), T=10 ASM PART: B = 8-98157-779-0 		8-98161-626-0 01 1 -
35 SEAL; DUST
ASM PART: A = 8-97617-349-0, B = 8-98157-779-0, D = 8-98229-520-0 		1-51177-321-0 04 1 -

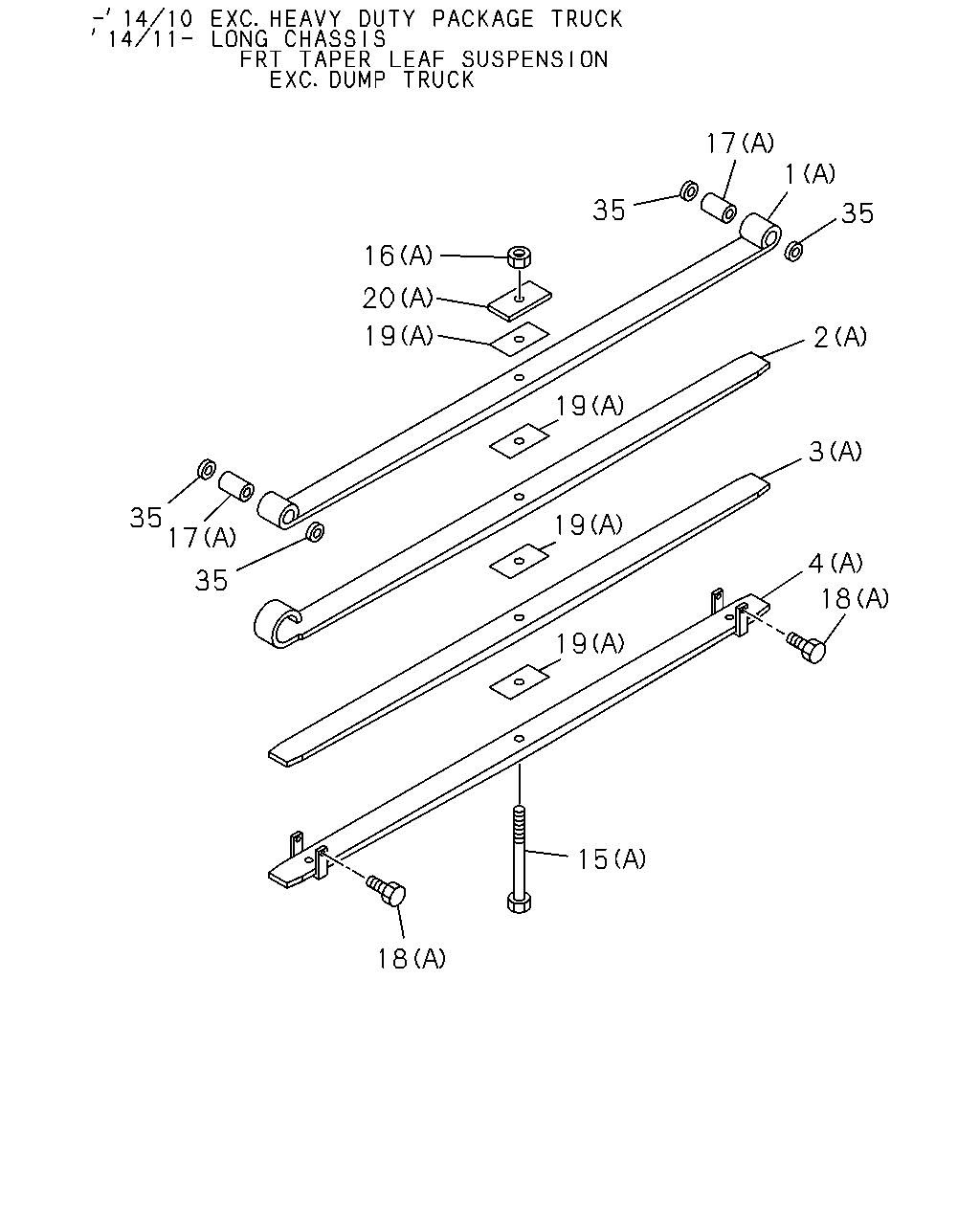

çizim 170412
16 20 19 17 35 1 35 2 3 4 18 19 19 19 35 17 35 18 15
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
(A) ASM PART: A = 8-97617-349-0 		1-51131-890-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(C) ASM PART: C = 8-98157-781-0 		8-98161-575-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(B) ASM PART: B = 8-98157-779-0 		8-98161-610-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(A) ASM PART: D = 8-98229-520-0 		8-98232-150-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(A) ASM PART: A = 8-97617-349-0 		1-51132-890-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(C) ASM PART: C = 8-98157-781-0 		8-98161-576-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(B) ASM PART: B = 8-98157-779-0 		8-98161-611-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(A) ASM PART: D = 8-98229-520-0 		8-98232-151-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(A) ASM PART: A = 8-97617-349-0 		1-51133-890-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(C) ASM PART: C = 8-98157-781-0 		8-98161-577-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(B) ASM PART: B = 8-98157-779-0 		8-98161-612-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(A) ASM PART: D = 8-98229-520-0 		8-98232-152-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(A) ASM PART: A = 8-97617-349-0, D = 8-98229-520-0 		1-51134-890-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(C) ASM PART: C = 8-98157-781-0 		8-98161-578-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(B) ASM PART: B = 8-98157-779-0 		8-98161-613-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(A), L=125 ASM PART: A = 8-97617-349-0, D = 8-98229-520-0 		1-51156-291-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(C), L=165 ASM PART: C = 8-98157-781-0 		1-51156-366-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(B), L=165 ASM PART: B = 8-98157-779-0 		1-51156-414-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
(A), M16 ASM PART: A = 8-97617-349-0, C = 8-98157-781-0, D = 8-98229-520-0 		1-09400-054-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
(B), M16 ASM PART: B = 8-98157-779-0 		1-09400-061-0 01 1 -
17 BUSHING; LEAF SPR,FRT
(C), OD=38 ASM PART: C = 8-98157-781-0 		1-51351-009-0 02 1 -
17 BUSHING; LEAF SPR,FRT
(A), OD=42 ASM PART: A = 8-97617-349-0, D = 8-98229-520-0 		1-51351-044-0 02 1 -
17 BUSHING; LEAF SPR,FRT
(B), OD=42 ASM PART: B = 8-98157-779-0 		1-51351-046-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(A), M10X103 ASM PART: A = 8-97617-349-0, D = 8-98229-520-0 		1-09000-536-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(C), M10X103 ASM PART: C = 8-98157-781-0 		8-97615-331-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(D), M10X99 ASM PART: C = 8-98157-781-0 		8-97615-895-0 01 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(B), M10X99 ASM PART: B = 8-98157-779-0 		8-98161-627-0 02 1 -
19 SPACER; LEAF SPRING,FRT
(A), T=1 ASM PART: A = 8-97617-349-0, D = 8-98229-520-0 		1-51177-071-0 04 1 -
19 SPACER; LEAF SPRING,FRT
(A), T=1 ASM PART: C = 8-98157-781-0 		1-51177-071-0 07 1 -
19 SPACER; LEAF SPRING,FRT
(B), T=1 ASM PART: B = 8-98157-779-0 		1-51177-339-0 04 1 -
20 SEAT; LEAF SPR,FRT
(E), T=7 ASM PART: C = 8-98157-781-0 		1-51177-074-0 02 1 -
20 SEAT; LEAF SPR,FRT
(A), T=14 ASM PART: A = 8-97617-349-0, D = 8-98229-520-0 		1-51177-097-0 01 1 -
20 SEAT; LEAF SPR,FRT
(B), T=11 ASM PART: B = 8-98157-779-0 		1-51177-340-0 01 1 -
20 SEAT; LEAF SPR,FRT
(C), T=10 ASM PART: B = 8-98157-779-0 		1-51377-402-0 02 1 -
20 SEAT; LEAF SPR,FRT
(D), T=10 ASM PART: B = 8-98157-779-0 		8-98161-626-0 01 1 -
35 SEAL; DUST
ASM PART: A = 8-97617-349-0, B = 8-98157-779-0, D = 8-98229-520-0 		1-51177-321-0 04 1 -
çizim 455370
16 17 1 2 3 18 4 5 6 7 8 20 20 19 19 19 19 19 19 19 18 17 18 15
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
(A) ASM PART: A = 8-97617-349-0 		1-51131-890-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(C) ASM PART: C = 8-98157-781-0 		8-98161-575-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(B) ASM PART: B = 8-98157-779-0 		8-98161-610-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(A) ASM PART: D = 8-98229-520-0 		8-98232-150-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(A) ASM PART: A = 8-97617-349-0 		1-51132-890-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(C) ASM PART: C = 8-98157-781-0 		8-98161-576-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(B) ASM PART: B = 8-98157-779-0 		8-98161-611-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(A) ASM PART: D = 8-98229-520-0 		8-98232-151-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(A) ASM PART: A = 8-97617-349-0 		1-51133-890-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(C) ASM PART: C = 8-98157-781-0 		8-98161-577-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(B) ASM PART: B = 8-98157-779-0 		8-98161-612-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(A) ASM PART: D = 8-98229-520-0 		8-98232-152-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(A) ASM PART: A = 8-97617-349-0, D = 8-98229-520-0 		1-51134-890-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(C) ASM PART: C = 8-98157-781-0 		8-98161-578-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(B) ASM PART: B = 8-98157-779-0 		8-98161-613-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
ASM PART: C = 8-98157-781-0 		8-98161-579-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
ASM PART: C = 8-98157-781-0 		8-98161-580-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
ASM PART: C = 8-98157-781-0 		8-98161-581-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
ASM PART: C = 8-98157-781-0 		8-98161-582-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(A), L=125 ASM PART: A = 8-97617-349-0, D = 8-98229-520-0 		1-51156-291-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(C), L=165 ASM PART: C = 8-98157-781-0 		1-51156-366-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(B), L=165 ASM PART: B = 8-98157-779-0 		1-51156-414-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
(A), M16 ASM PART: A = 8-97617-349-0, C = 8-98157-781-0, D = 8-98229-520-0 		1-09400-054-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
(B), M16 ASM PART: B = 8-98157-779-0 		1-09400-061-0 01 1 -
17 BUSHING; LEAF SPR,FRT
(C), OD=38 ASM PART: C = 8-98157-781-0 		1-51351-009-0 02 1 -
17 BUSHING; LEAF SPR,FRT
(A), OD=42 ASM PART: A = 8-97617-349-0, D = 8-98229-520-0 		1-51351-044-0 02 1 -
17 BUSHING; LEAF SPR,FRT
(B), OD=42 ASM PART: B = 8-98157-779-0 		1-51351-046-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(A), M10X103 ASM PART: A = 8-97617-349-0, D = 8-98229-520-0 		1-09000-536-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(C), M10X103 ASM PART: C = 8-98157-781-0 		8-97615-331-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(D), M10X99 ASM PART: C = 8-98157-781-0 		8-97615-895-0 01 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(B), M10X99 ASM PART: B = 8-98157-779-0 		8-98161-627-0 02 1 -
19 SPACER; LEAF SPRING,FRT
(A), T=1 ASM PART: A = 8-97617-349-0, D = 8-98229-520-0 		1-51177-071-0 04 1 -
19 SPACER; LEAF SPRING,FRT
(A), T=1 ASM PART: C = 8-98157-781-0 		1-51177-071-0 07 1 -
19 SPACER; LEAF SPRING,FRT
(B), T=1 ASM PART: B = 8-98157-779-0 		1-51177-339-0 04 1 -
20 SEAT; LEAF SPR,FRT
(E), T=7 ASM PART: C = 8-98157-781-0 		1-51177-074-0 02 1 -
20 SEAT; LEAF SPR,FRT
(A), T=14 ASM PART: A = 8-97617-349-0, D = 8-98229-520-0 		1-51177-097-0 01 1 -
20 SEAT; LEAF SPR,FRT
(B), T=11 ASM PART: B = 8-98157-779-0 		1-51177-340-0 01 1 -
20 SEAT; LEAF SPR,FRT
(C), T=10 ASM PART: B = 8-98157-779-0 		1-51377-402-0 02 1 -
20 SEAT; LEAF SPR,FRT
(D), T=10 ASM PART: B = 8-98157-779-0 		8-98161-626-0 01 1 -
