◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11323 - CYZ LHD MIDDLE EAST EURO2 WITH 3STEPS ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#62637) — 111 parça

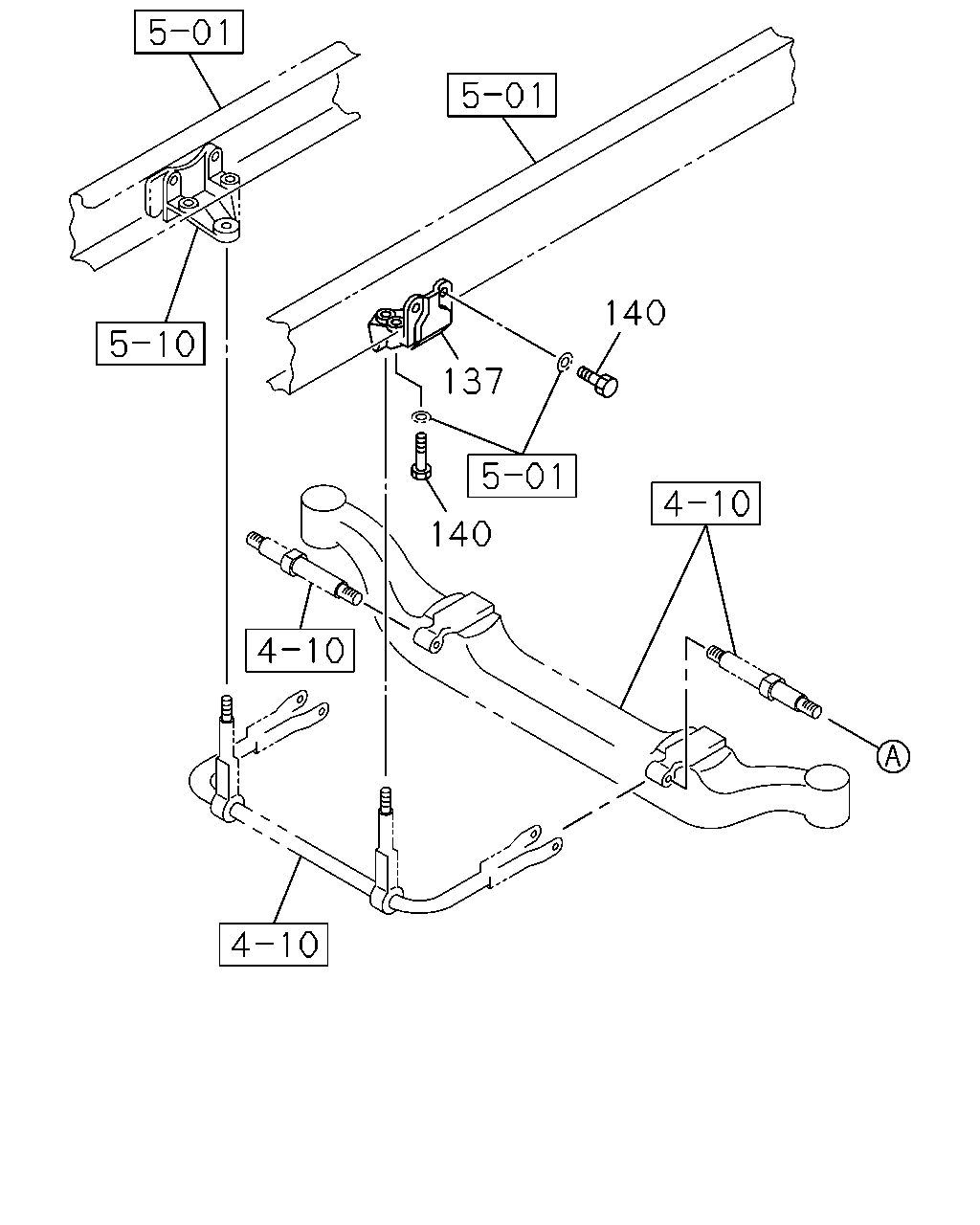

çizim 170332
137 140 140
BalonParca AdiParca NoAdetTipApplied Date A B
137 BRACKET; STAB BAR TO FRAME
WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) 		1-51781-112-0 01 1 1008-1112 ●
137 BRACKET; STAB BAR TO FRAME
WHEEL BASE 6600MM(66W) EXC. SILENCER LAYOUT REAR VAR1<JAZ> 		1-51781-112-0 01 1 1201-1410 ●
137 BRACKET; STAB BAR TO FRAME
WHEEL BASE 5900MM(59W) 		1-51781-112-0 01 1 1201-1410 ●
137 BRACKET; STAB BAR TO FRAME
SILENCER LAYOUT REAR VAR1<JAZ> MJT7S M/T(Y3E) WHEEL BASE 5900MM(59W) FUEL TANK 400L<SDH> EXC. DUMP TRUCK<RA1>,FUEL TANK TRUCK<RD5>,FULL TRACTOR TRUCK<RD6> 		1-51781-112-0 01 1 1411-1510 ●
137 BRACKET; STAB BAR TO FRAME
MJT7S M/T(Y3E) WHEEL BASE 5900MM(59W) FUEL TANK 400L<SDH> EXC. SILENCER LAYOUT REAR VAR1<JAZ>,DUMP TRUCK<RA1>,FULL TRACTOR TRUCK<RD6> 		1-51781-112-0 01 1 1411-1510 ●
137 BRACKET; STAB BAR TO FRAME
MJT7S M/T(Y3E) WHEEL BASE 6600MM(66W) FUEL TANK 400L<SDH> EXC. DUMP TRUCK<RA1>,FUEL TANK TRUCK<RD5>,FULL TRACTOR TRUCK<RD6> 		1-51781-112-0 01 1 1411-1510 ●
137 BRACKET; STAB BAR TO FRAME
SILENCER LAYOUT REAR VAR1<JAZ> MJT7S M/T(Y3E) WHEEL BASE 5900MM(59W) FUEL TANK 400L<SDH> EXC. DUMP TRUCK<RA1>,CRANE TRUCK<RA4>,CONCRETE PUMP<RA5>,FUEL TANK TRUCK<RD5>,FULL TRACTOR TRUCK<RD6> 		1-51781-112-0 01 1 1511- ●
137 BRACKET; STAB BAR TO FRAME
MJT7S M/T(Y3E) WHEEL BASE 5900MM(59W) FUEL TANK 400L<SDH> EXC. SILENCER LAYOUT REAR VAR1<JAZ>,DUMP TRUCK<RA1>,CRANE TRUCK<RA4>,CONCRETE PUMP<RA5>,FULL TRACTORTRUCK<RD6> 		1-51781-112-0 01 1 1511- ●
137 BRACKET; STAB BAR TO FRAME
MJT7S M/T(Y3E) WHEEL BASE 6600MM(66W) FUEL TANK 400L<SDH> EXC. DUMP TRUCK<RA1>,CRANE TRUCK<RA4>,CONCRETE PUMP<RA5>,FUEL TANK TRUCK<RD5>,FULL TRACTOR TRUCK<RD6> 		1-51781-112-0 01 1 1511- ●
140 BOLT; BRKT
WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) M14X50 		0-20951-450-0 04 1 1008-1112 ●
140 BOLT; BRKT
WHEEL BASE 6600MM(66W) EXC. SILENCER LAYOUT REAR VAR1<JAZ> M14X50 		0-20951-450-0 04 1 1201-1410 ●
140 BOLT; BRKT
WHEEL BASE 5900MM(59W) M14X50 		0-20951-450-0 04 1 1201-1410 ●
140 BOLT; BRKT
SILENCER LAYOUT REAR VAR1<JAZ> MJT7S M/T(Y3E) WHEEL BASE 5900MM(59W) FUEL TANK 400L<SDH> EXC. DUMP TRUCK<RA1>,FUEL TANK TRUCK<RD5>,FULL TRACTOR TRUCK<RD6> M14X50 		0-20951-450-0 04 1 1411-1510 ●
140 BOLT; BRKT
MJT7S M/T(Y3E) WHEEL BASE 5900MM(59W) FUEL TANK 400L<SDH> EXC. SILENCER LAYOUT REAR VAR1<JAZ>,DUMP TRUCK<RA1>,FULL TRACTOR TRUCK<RD6> M14X50 		0-20951-450-0 04 1 1411-1510 ●
140 BOLT; BRKT
MJT7S M/T(Y3E) WHEEL BASE 6600MM(66W) FUEL TANK 400L<SDH> EXC. DUMP TRUCK<RA1>,FUEL TANK TRUCK<RD5>,FULL TRACTOR TRUCK<RD6> M14X50 		0-20951-450-0 04 1 1411-1510 ●
140 BOLT; BRKT
SILENCER LAYOUT REAR VAR1<JAZ> MJT7S M/T(Y3E) WHEEL BASE 5900MM(59W) FUEL TANK 400L<SDH> EXC. DUMP TRUCK<RA1>,CRANE TRUCK<RA4>,CONCRETE PUMP<RA5>,FUEL TANK TRUCK<RD5>,FULL TRACTOR TRUCK<RD6> M14X50 		0-20951-450-0 04 1 1511- ●
140 BOLT; BRKT
MJT7S M/T(Y3E) WHEEL BASE 5900MM(59W) FUEL TANK 400L<SDH> EXC. SILENCER LAYOUT REAR VAR1<JAZ>,DUMP TRUCK<RA1>,CRANE TRUCK<RA4>,CONCRETE PUMP<RA5>,FULL TRACTORTRUCK<RD6> M14X50 		0-20951-450-0 04 1 1511- ●
140 BOLT; BRKT
MJT7S M/T(Y3E) WHEEL BASE 6600MM(66W) FUEL TANK 400L<SDH> EXC. DUMP TRUCK<RA1>,CRANE TRUCK<RA4>,CONCRETE PUMP<RA5>,FUEL TANK TRUCK<RD5>,FULL TRACTOR TRUCK<RD6> M14X50 		0-20951-450-0 04 1 1511- ●

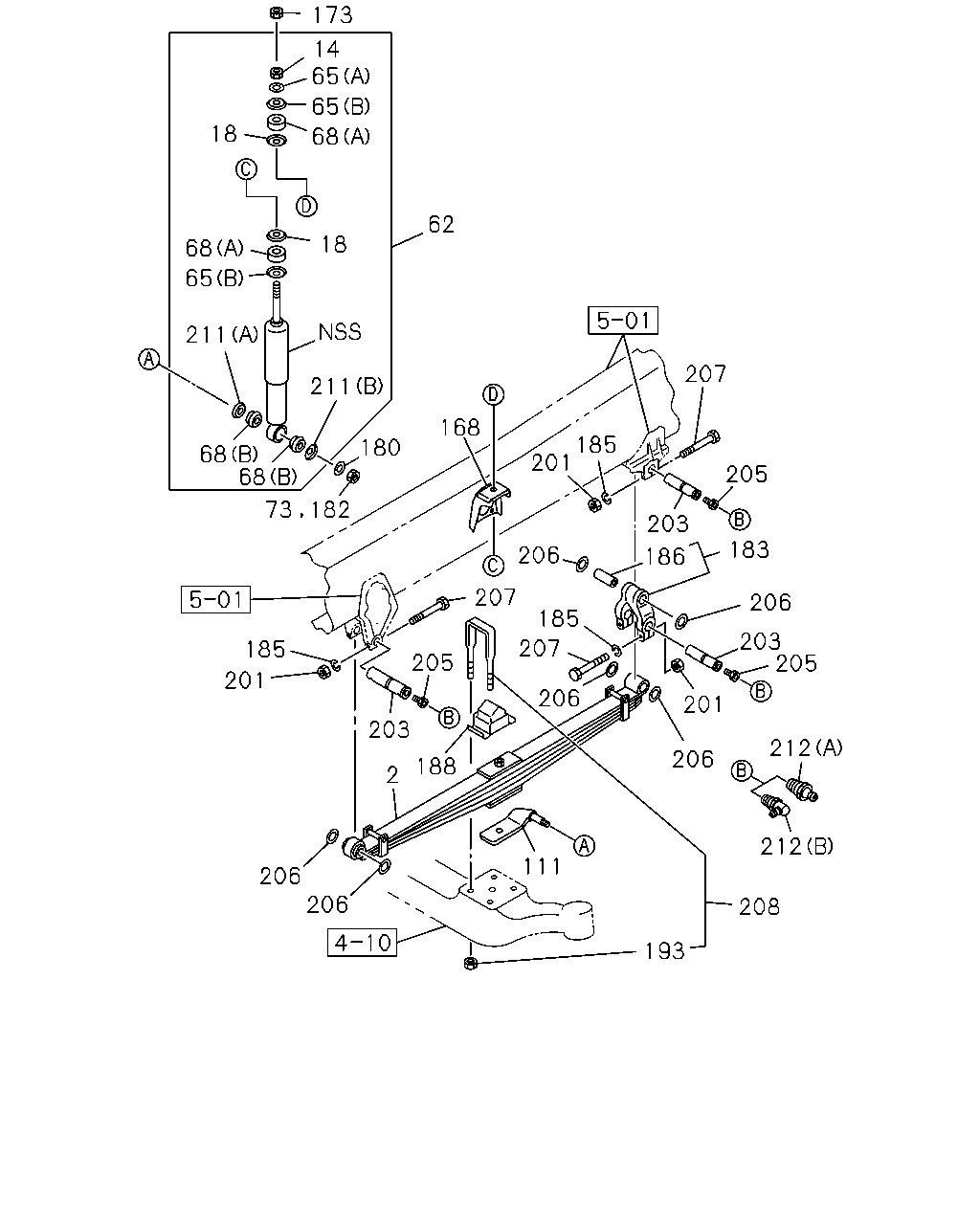

çizim 170394
173 14 65 65 68 18 18 68 65 211 62 207 168 211 68 68 73 182 180 201 185 205 203 206 207 185 201 205 203 188 2 206 206 111 193 208 212 206 212 201 206 207 185 186 183 206 203 205
BalonParca AdiParca NoAdetTipApplied Date A B
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT TAPER LEAF SUSPENSION<SAR> 4-LEAF 		8-98157-779-0 02 1 1411-1510 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. DUMP TRUCK<RA1> FRT TAPER LEAF SUSPENSION<SAR> 4-LEAF 		8-98157-779-0 02 1 1411-1510 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT TAPER LEAF SUSPENSION<SAR> 4-LEAF 		8-98157-779-0 02 1 1511- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. WHEEL BASE 5500MM(55W),WHEEL BASE 6600MM(66W) DUMP TRUCK<RA1> FRT TAPER LEAF SUSPENSION<SAR> 4-LEAF 		8-98157-779-0 02 1 1511- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. HEAVY DUTY PACKAGE TRUCK<RD2> 4-LEAF 		8-98157-779-0 02 1 1008-1209 ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 		8-98157-779-0 02 1 1210-1410 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. HEAVY DUTY PACKAGE TRUCK<RD2> 4-LEAF 		8-98157-779-0 02 1 1210-1410 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. MULTI LEAF SUSPENSION FRT<SAQ> 8-LEAF 		8-98157-781-0 02 1 1411-1510 ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. MJT7S M/T(Y3E) WHEEL BASE 5200MM(52W) MULTI LEAF SUSPENSION FRT<SAQ> 8-LEAF 		8-98157-781-0 02 1 1511- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. WHEEL BASE 5500MM(55W),WHEEL BASE 6600MM(66W) DUMP TRUCK<RA1> MULTI LEAF SUSPENSION FRT<SAQ> 8-LEAF 		8-98157-781-0 02 1 1511- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. WHEEL BASE 5900MM(59W) FULL TRACTOR TRUCK<RD6> MULTI LEAF SUSPENSION FRT<SAQ> 8-LEAF 		8-98157-781-0 02 1 1511- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. MJT7S M/T(Y3E) WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) MULTI LEAF SUSPENSION FRT<SAQ> EXC. DUMP TRUCK<RA1>,CRANE TRUCK<RA4>,CONCRETE PUMP<RA5>,FULL TRACTOR TRUCK<RD6> 8-LEAF 		8-98157-781-0 02 1 1511- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 4-LEAF 		8-97617-349-0 02 1 1008-1209 ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 4-LEAF 		8-97617-349-0 02 1 1210-1407 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 4-LEAF 		8-98229-520-0 02 1 1408-1410 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT TAPER LEAF SUSPENSION<SAR> EXC. DUMP TRUCK<RA1> 4-LEAF 		8-98229-520-0 02 1 1411-1510 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT TAPER LEAF SUSPENSION<SAR> EXC. DUMP TRUCK<RA1> 4-LEAF 		8-98229-520-0 02 1 1511- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. WHEEL BASE 5900MM(59W) FULL TRACTOR TRUCK<RD6> FRT TAPER LEAF SUSPENSION<SAR> 4-LEAF 		8-98229-520-0 02 1 1511- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. MJT7S M/T(Y3E) WHEEL BASE 6600MM(66W) FRT TAPER LEAF SUSPENSION<SAR> EXC. DUMP TRUCK<RA1>,FULL TRACTOR TRUCK<RD6> 4-LEAF 		8-98229-520-0 02 1 1511- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. MJT7S M/T(Y3E) WHEEL BASE 5900MM(59W) FRT TAPER LEAF SUSPENSION<SAR> EXC. DUMP TRUCK<RA1>,CRANE TRUCK<RA4>,CONCRETE PUMP<RA5>,FULL TRACTOR TRUCK<RD6> 4-LEAF 		8-98229-520-0 02 1 1511- ●
14 NUT; S/ABS,UPR
M14 		9-99111-414-0 02 1 1008- ● ●
18 WASHER; CENTERING,S/ABS
ID=24 		1-51631-067-0 04 1 1008- ● ●
62 ABSORBER ASM; SHOCK,FRT
MULTI LEAF SUSPENSION FRT<SAQ> 		1-51630-417-0 02 1 1411-1510 ● ●
62 ABSORBER ASM; SHOCK,FRT
MJT7S M/T(Y3E) WHEEL BASE 5200MM(52W) MULTI LEAF SUSPENSION FRT<SAQ> 		1-51630-417-0 02 1 1511- ●
62 ABSORBER ASM; SHOCK,FRT
WHEEL BASE 5500MM(55W),WHEEL BASE 6600MM(66W) DUMP TRUCK<RA1> MULTI LEAF SUSPENSION FRT<SAQ> 		1-51630-417-0 02 1 1511- ●
62 ABSORBER ASM; SHOCK,FRT
WHEEL BASE 5900MM(59W) FULL TRACTOR TRUCK<RD6> MULTI LEAF SUSPENSION FRT<SAQ> 		1-51630-417-0 02 1 1511- ●
62 ABSORBER ASM; SHOCK,FRT
MJT7S M/T(Y3E) WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) MULTI LEAF SUSPENSION FRT<SAQ> EXC. DUMP TRUCK<RA1>,CRANE TRUCK<RA4>,CONCRETE PUMP<RA5>,FULL TRACTOR TRUCK<RD6> 		1-51630-417-0 02 1 1511- ●
62 ABSORBER ASM; SHOCK,FRT
HEAVY DUTY PACKAGE TRUCK<RD2> 		1-51630-836-0 02 1 1008-1209 ● ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-836-0 02 1 1210-1410 ●
62 ABSORBER ASM; SHOCK,FRT
HEAVY DUTY PACKAGE TRUCK<RD2> 		1-51630-836-0 02 1 1210-1410 ●
62 ABSORBER ASM; SHOCK,FRT
FRT TAPER LEAF SUSPENSION<SAR> 		1-51630-836-0 02 1 1411-1510 ●
62 ABSORBER ASM; SHOCK,FRT
DUMP TRUCK<RA1> FRT TAPER LEAF SUSPENSION<SAR> 		1-51630-836-0 02 1 1411-1510 ●
62 ABSORBER ASM; SHOCK,FRT
FRT TAPER LEAF SUSPENSION<SAR> 		1-51630-836-0 02 1 1511- ●
62 ABSORBER ASM; SHOCK,FRT
WHEEL BASE 5500MM(55W),WHEEL BASE 6600MM(66W) DUMP TRUCK<RA1> FRT TAPER LEAF SUSPENSION<SAR> 		1-51630-836-0 02 1 1511- ●
62 ABSORBER ASM; SHOCK,FRT
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-51630-837-0 02 1 1008-1209 ● ●
62 ABSORBER ASM; SHOCK,FRT
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-51630-837-0 02 1 1210-1410 ●
62 ABSORBER ASM; SHOCK,FRT
FRT TAPER LEAF SUSPENSION<SAR> EXC. DUMP TRUCK<RA1> 		1-51630-837-0 02 1 1411-1510 ●
62 ABSORBER ASM; SHOCK,FRT
WHEEL BASE 5900MM(59W) FULL TRACTOR TRUCK<RD6> FRT TAPER LEAF SUSPENSION<SAR> 		1-51630-837-0 02 1 1511- ●
62 ABSORBER ASM; SHOCK,FRT
MJT7S M/T(Y3E) WHEEL BASE 6600MM(66W) FRT TAPER LEAF SUSPENSION<SAR> EXC. DUMP TRUCK<RA1>,FULL TRACTOR TRUCK<RD6> 		1-51630-837-0 02 1 1511- ●
62 ABSORBER ASM; SHOCK,FRT
MJT7S M/T(Y3E) WHEEL BASE 5900MM(59W) FRT TAPER LEAF SUSPENSION<SAR> EXC. DUMP TRUCK<RA1>,CRANE TRUCK<RA4>,CONCRETE PUMP<RA5>,FULL TRACTOR TRUCK<RD6> 		1-51630-837-0 02 1 1511- ●
62 ABSORBER ASM; SHOCK,FRT
MULTI LEAF SUSPENSION FRT<SAQ> BEST VALUE PARTS 		1-87610-154-0 02 1 1411-1510 ● ●
62 ABSORBER ASM; SHOCK,FRT
MJT7S M/T(Y3E) WHEEL BASE 5200MM(52W) MULTI LEAF SUSPENSION FRT<SAQ> BEST VALUE PARTS 		1-87610-154-0 02 1 1511- ●
62 ABSORBER ASM; SHOCK,FRT
WHEEL BASE 5500MM(55W),WHEEL BASE 6600MM(66W) DUMP TRUCK<RA1> MULTI LEAF SUSPENSION FRT<SAQ> BEST VALUE PARTS 		1-87610-154-0 02 1 1511- ●
62 ABSORBER ASM; SHOCK,FRT
WHEEL BASE 5900MM(59W) FULL TRACTOR TRUCK<RD6> MULTI LEAF SUSPENSION FRT<SAQ> BEST VALUE PARTS 		1-87610-154-0 02 1 1511- ●
62 ABSORBER ASM; SHOCK,FRT
MJT7S M/T(Y3E) WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) MULTI LEAF SUSPENSION FRT<SAQ> EXC. DUMP TRUCK<RA1>,CRANE TRUCK<RA4>,CONCRETE PUMP<RA5>,FULL TRACTOR TRUCK<RD6> BEST VALUE PARTS 		1-87610-154-0 02 1 1511- ●
65 WASHER; S/ABS
(A) ID=16.5 		1-09503-266-0 02 1 1008- ● ●
65 WASHER; S/ABS
(B) ID=16.5 		1-51631-068-0 04 1 1008- ● ●
68 BUSHING; S/ABS
(A) ID=16 T=25 		1-51631-069-0 04 1 1008- ● ●
68 BUSHING; S/ABS
(B) 		9-51631-026-0 04 1 1008- ● ●
73 NUT; BRKT,SHOCK
M20 		0-91110-520-0 02 1 1008- ●
73 NUT; BRKT,SHOCK
EXC. FRONT STABILIZER SHAFT<F59> M20 		0-91110-520-0 02 1 1008- ●
111 SUPPORTER; S/ABS,FRT SUSP 8-98121-195-0 01 1 1008- ●
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> 		8-98121-195-0 01 1 1008- ●
111 SUPPORTER; S/ABS,FRT SUSP 8-98121-193-0 01 1 1008- ●
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> 		8-98121-193-0 01 1 1008- ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-616-0 02 1 1008- ● ●
173 NUT; S/ABS
M14 		0-91111-514-0 02 1 1008- ● ●
180 WASHER; PL,PIN
ID=21 		0-91610-520-0 02 1 1008- ● ●
182 NUT; S/ABS LWR
FRONT STABILIZER SHAFT<F59> M20 		0-91110-520-0 02 1 1008- ●
183 SHACKLE; FRT SUSP 1-51162-029-5 02 1 1008- ● ●
185 WASHER; LK,PIN
ID=12.2 		0-91510-612-0 12 1 1008- ● ●
186 BUSHING; SHACKLE
OD=38 		8-98081-829-0 02 1 1008- ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-085-2 02 1 1008- ● ●
193 NUT; U BOLT
M22 		0-91112-822-0 08 1 1008-1206 ● ●
193 NUT; U BOLT
M22 		8-98179-318-0 08 1 1207- ● ●
201 NUT; PIN LK
M12 		0-91110-512-0 12 1 1008- ● ●
203 PIN; SPR TO SHACKLE 1-51161-031-0 06 1 1008- ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 1008- ● ●
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 12 1 1008- ● ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10856-280-0 12 1 1008- ● ●
208 U-BOLT SET; FRT SPRING
FRT TAPER LEAF SUSPENSION<SAR> EXC. DUMP TRUCK<RA1> L=210 		1-87870-380-2 04 1 1411-1510 ●
208 U-BOLT SET; FRT SPRING
WHEEL BASE 6600MM(66W) FRT TAPER LEAF SUSPENSION<SAR> EXC. DUMP TRUCK<RA1>,FULL TRACTOR TRUCK<RD6> L=210 		1-87870-380-2 04 1 1511- ●
208 U-BOLT SET; FRT SPRING
WHEEL BASE 5900MM(59W) FRT TAPER LEAF SUSPENSION<SAR> EXC. DUMP TRUCK<RA1>,CRANE TRUCK<RA4>,CONCRETE PUMP<RA5> L=210 		1-87870-380-2 04 1 1511- ●
208 U-BOLT SET; FRT SPRING
HEAVY DUTY PACKAGE TRUCK<RD2> L=230 		1-87870-269-2 04 1 1008-1206 ● ●
208 U-BOLT SET; FRT SPRING
HEAVY DUTY PACKAGE TRUCK<RD2> L=230 		1-87870-493-0 04 1 1207-1209 ● ●
208 U-BOLT SET; FRT SPRING
L=230 		1-87870-493-0 04 1 1210-1410 ●
208 U-BOLT SET; FRT SPRING
HEAVY DUTY PACKAGE TRUCK<RD2> L=230 		1-87870-493-0 04 1 1210-1410 ●
208 U-BOLT SET; FRT SPRING
MULTI LEAF SUSPENSION FRT<SAQ> L=240 		1-87870-376-2 04 1 1411-1510 ● ●
208 U-BOLT SET; FRT SPRING
WHEEL BASE 5200MM(52W) MULTI LEAF SUSPENSION FRT<SAQ> L=240 		1-87870-376-2 04 1 1511- ●
208 U-BOLT SET; FRT SPRING
WHEEL BASE 5500MM(55W),WHEEL BASE 6600MM(66W) DUMP TRUCK<RA1> MULTI LEAF SUSPENSION FRT<SAQ> L=240 		1-87870-376-2 04 1 1511- ●
208 U-BOLT SET; FRT SPRING
WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) MULTI LEAF SUSPENSION FRT<SAQ> EXC. DUMP TRUCK<RA1>,CRANE TRUCK<RA4>,CONCRETE PUMP<RA5>,FULL TRACTOR TRUCK<RD6> L=240 		1-87870-376-2 04 1 1511- ●
208 U-BOLT SET; FRT SPRING
WHEEL BASE 5900MM(59W) FULL TRACTOR TRUCK<RD6> MULTI LEAF SUSPENSION FRT<SAQ> L=240 		1-87870-376-2 04 1 1511- ●
208 U-BOLT SET; FRT SPRING
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> L=210 		1-87870-380-1 04 1 1008-1206 ● ●
208 U-BOLT SET; FRT SPRING
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> L=210 		1-87870-498-0 04 1 1207-1209 ● ●
208 U-BOLT SET; FRT SPRING
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> L=210 		1-87870-498-0 04 1 1210-1410 ●
208 U-BOLT SET; FRT SPRING
FRT TAPER LEAF SUSPENSION<SAR> L=230 		1-87870-493-0 04 1 1411-1510 ●
208 U-BOLT SET; FRT SPRING
DUMP TRUCK<RA1> FRT TAPER LEAF SUSPENSION<SAR> L=230 		1-87870-493-0 04 1 1411-1510 ●
208 U-BOLT SET; FRT SPRING
WHEEL BASE 5200MM(52W) FRT TAPER LEAF SUSPENSION<SAR> L=230 		1-87870-493-0 04 1 1511- ●
208 U-BOLT SET; FRT SPRING
WHEEL BASE 5500MM(55W),WHEEL BASE 6600MM(66W) DUMP TRUCK<RA1> FRT TAPER LEAF SUSPENSION<SAR> L=230 		1-87870-493-0 04 1 1511- ●
211 WASHER; BRKT,SHOCK
(A) ID=27 		9-51631-027-0 02 1 1008- ● ●
211 WASHER; BRKT,SHOCK
(B) ID=21 		9-51631-028-0 02 1 1008- ● ●
212 NIPPLE; GREASE,ELBOW
(A) PT1/8 STRAIGHT 		0-90301-410-0 02 1 1008- ● ●
212 NIPPLE; GREASE,ELBOW
(B) PT1/8 ELBOW 		0-90301-610-0 04 1 1008- ● ●
