Sayfa 4-35 - Isuzu EPC

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#62633) — 212 parça

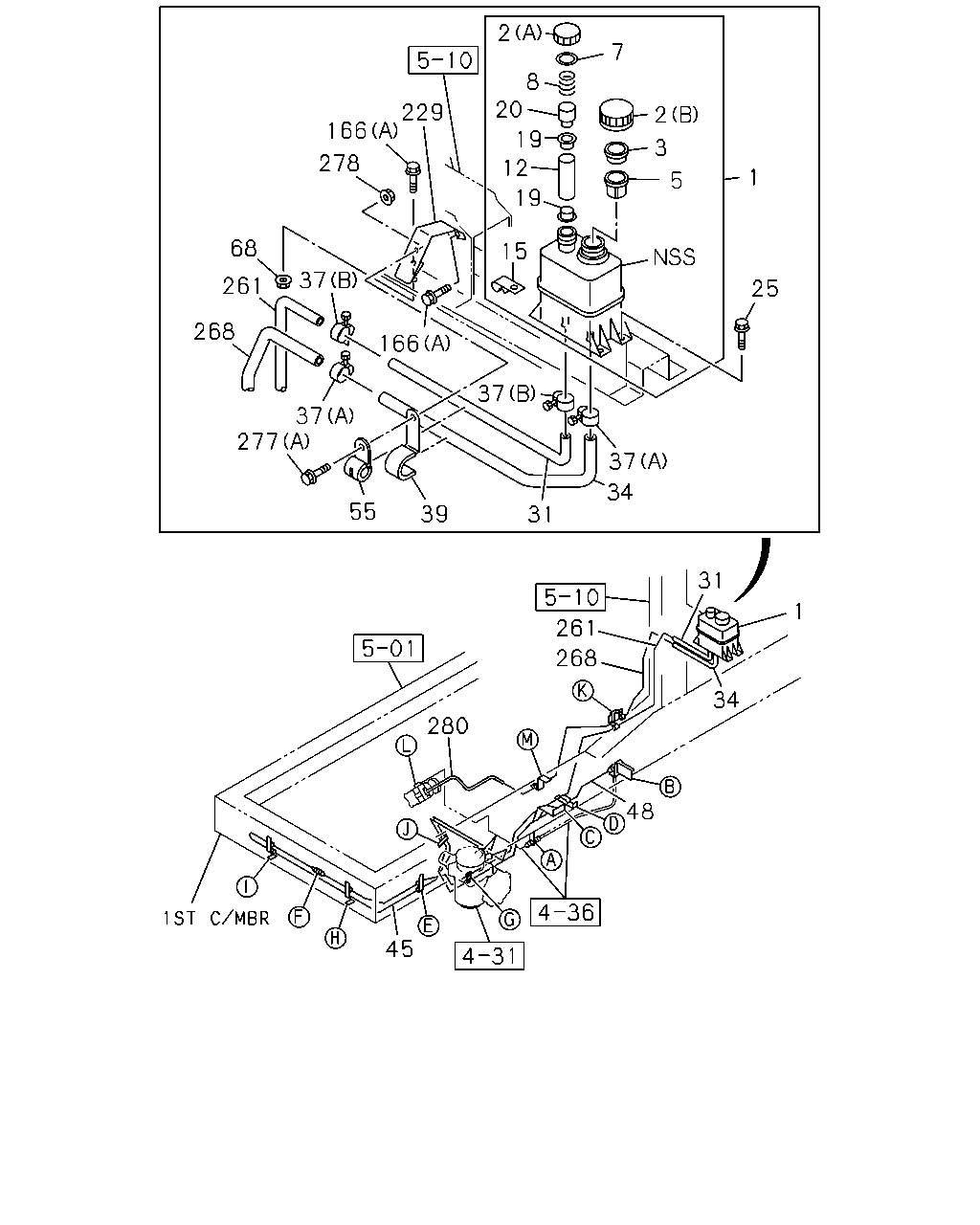

1 25 5 3 2 7 2 8 20 19 12 19 15 37 37 34 31 39 55 37 277 268 261 68 278 166 229 166 37 31 1 34 48 280 261 268 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	1-21210-235-1	01	1	1008-	●	●
2	CAP; OIL TANK,P/S (A) WO/GAUGE	1-21241-003-6	01	1	1008-	●	●
2	CAP; OIL TANK,P/S (B) W/GAUGE	1-21241-006-4	01	1	1008-	●	●
3	GASKET; OIL TANK,P/S	1-21249-006-2	01	1	1008-	●	●
5	STRAINER; OIL TANK,P/S	1-21235-006-1	01	1	1008-	●	●
7	RING; GASKET,OIL TANK,P/S	1-21249-005-0	01	1	1008-	●	●
8	SPRING; OIL TANK,P/S	1-09580-599-0	01	1	1008-	●	●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	1008-	●	●
15	PLATE; FILTER,OIL TANK	1-21249-016-0	04	1	1008-	●	●
19	SEAT; OIL TANK	1-21262-001-0	02	1	1008-	●	●
20	HOLDER; FILTER,OIL TANK,P/S	1-21239-001-2	01	1	1008-	●	●
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28650-820-0	04	1	1008-	●	●
31	HOSE; P/S OIL TANK,INL	1-21114-284-0	01	1	1008-1410	●	●
31	HOSE; P/S OIL TANK,INL	8-98203-561-0	01	1	1411-	●	●
34	HOSE; P/S OIL TANK,OUTLET	1-21114-283-0	01	1	1008-1410	●	●
34	HOSE; P/S OIL TANK,OUTLET	8-98127-737-0	01	1	1411-	●	●
37	CLIP; HOSE,P/S (A) ID=38	9-09915-041-1	02	1	1008-	●	●
37	CLIP; HOSE,P/S (B) ID=28	9-09915-672-1	02	1	1008-	●	●
39	CLIP; FLEX HOSE ID=32 L=75	1-09700-702-0	01	1	1008-1410	●	●
39	CLIP; FLEX HOSE ID=37 L=35	1-09701-109-0	01	1	1411-	●	●
45	PIPE; OIL,P/S UNIT TO UNION EXC. FRONT UNDER RUN PROTECTOR<EBE>	8-98224-869-0	01	1	1411-	●	●
45	PIPE; OIL,P/S UNIT TO UNION L=2457	8-98168-560-0	01	1	1008-1410	●	●
45	PIPE; OIL,P/S UNIT TO UNION FRONT UNDER RUN PROTECTOR<EBE>	8-98287-561-0	01	1	1411-	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT L=1895	8-98168-559-0	01	1	1008-1410	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT	8-98233-229-0	01	1	1411-	●	●
55	CLIP; P/S RUBBER HOSE ID=28 L=30	1-09700-607-1	01	1	1008-1410	●	●
55	CLIP; P/S RUBBER HOSE ID=28 L=32	1-09701-107-1	01	1	1411-	●	●
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	1008-1410	●	●
166	BOLT; CLIP FRONT UNDER RUN PROTECTOR<EBE> (B) M8X45 FLANGE	0-28050-845-0	01	1	1411-	●	●
166	BOLT; CLIP EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) M8X25 FLANGE	0-28650-825-0	01	1	1411-	●	●
166	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	1008-1410	●	●
166	BOLT; CLIP MJT7S M/T(Y3E) (A) M8X20 FLANGE	0-28650-820-0	01	1	1008-1410	●	●
166	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	1411-	●	●
166	BOLT; CLIP MJX16P M/T(Y3Z) (A) M8X20 FLANGE	0-28650-820-0	02	1	1008-1209	●	●
166	BOLT; CLIP MJX16P M/T(Y3Z) (A) M8X20 FLANGE	0-28650-820-0	02	1	1210-1410		●
166	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	1411-	●	●
229	BRACKET; HOSE,POWER STRG	1-21464-407-1	01	1	1008-1410	●	●
261	PIPE; OIL,UNION TO HOSE FRONT UNDER RUN PROTECTOR<EBE>	8-98287-562-0	01	1	1411-	●	●
261	PIPE; OIL,UNION TO HOSE L=2944	8-98169-745-0	01	1	1008-1410	●	●
261	PIPE; OIL,UNION TO HOSE EXC. FRONT UNDER RUN PROTECTOR<EBE>	8-98233-230-0	01	1	1411-	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE L=1276	1-21117-830-0	01	1	1008-1410	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	8-98226-736-0	01	1	1411-	●	●
277	BOLT; HOSE CLIP (B) M8X25 FLANGE	0-28650-825-0	03	1	1008-1410	●	●
277	BOLT; HOSE CLIP (B) M8X25 FLANGE	0-28650-825-0	02	1	1411-	●	●
277	BOLT; HOSE CLIP (A) M10X25 FLANGE	0-28651-025-0	01	1	1008-1410	●	●
277	BOLT; HOSE CLIP (C) M8X20 FLANGE	0-28650-820-0	01	1	1411-	●	●
278	NUT; HOSE CLIP M10 FLANGE	0-91180-210-0	01	1	1008-1410	●	●
280	HOSE; P/S OIL PUMP,INL	1-21117-831-0	01	1	1008-	●	●

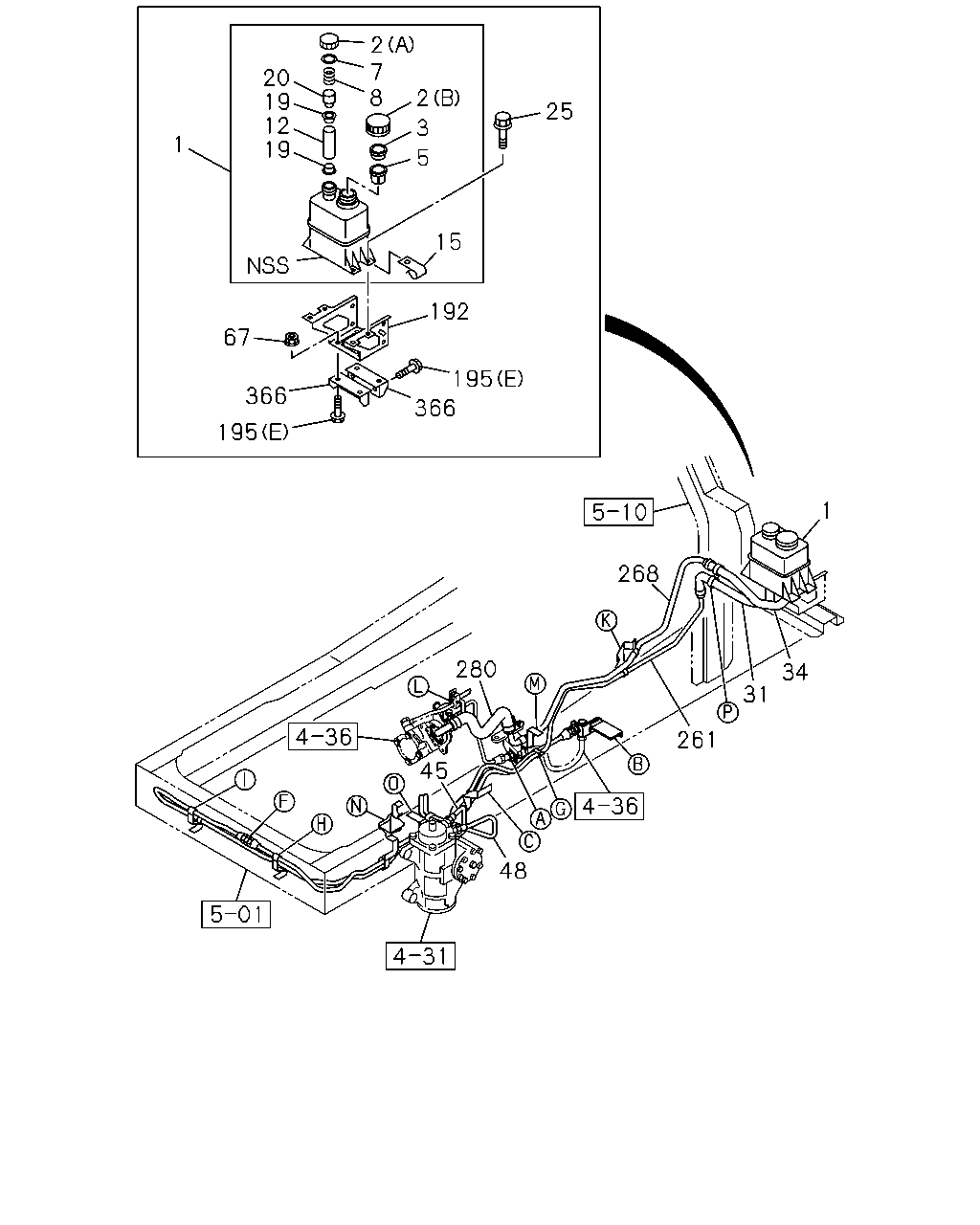

25 2 3 5 15 192 195 366 366 195 67 1 19 20 19 12 2 7 8 1 34 31 261 268 48 280 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	1-21210-235-1	01	1	1008-	●	●
2	CAP; OIL TANK,P/S (A) WO/GAUGE	1-21241-003-6	01	1	1008-	●	●
2	CAP; OIL TANK,P/S (B) W/GAUGE	1-21241-006-4	01	1	1008-	●	●
3	GASKET; OIL TANK,P/S	1-21249-006-2	01	1	1008-	●	●
5	STRAINER; OIL TANK,P/S	1-21235-006-1	01	1	1008-	●	●
7	RING; GASKET,OIL TANK,P/S	1-21249-005-0	01	1	1008-	●	●
8	SPRING; OIL TANK,P/S	1-09580-599-0	01	1	1008-	●	●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	1008-	●	●
15	PLATE; FILTER,OIL TANK	1-21249-016-0	04	1	1008-	●	●
19	SEAT; OIL TANK	1-21262-001-0	02	1	1008-	●	●
20	HOLDER; FILTER,OIL TANK,P/S	1-21239-001-2	01	1	1008-	●	●
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28650-820-0	04	1	1008-	●	●
31	HOSE; P/S OIL TANK,INL	1-21114-284-0	01	1	1008-1410	●	●
31	HOSE; P/S OIL TANK,INL	8-98203-561-0	01	1	1411-	●	●
34	HOSE; P/S OIL TANK,OUTLET	1-21114-283-0	01	1	1008-1410	●	●
34	HOSE; P/S OIL TANK,OUTLET	8-98127-737-0	01	1	1411-	●	●
45	PIPE; OIL,P/S UNIT TO UNION EXC. FRONT UNDER RUN PROTECTOR<EBE>	8-98224-869-0	01	1	1411-	●	●
45	PIPE; OIL,P/S UNIT TO UNION L=2457	8-98168-560-0	01	1	1008-1410	●	●
45	PIPE; OIL,P/S UNIT TO UNION FRONT UNDER RUN PROTECTOR<EBE>	8-98287-561-0	01	1	1411-	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT L=1895	8-98168-559-0	01	1	1008-1410	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT	8-98233-229-0	01	1	1411-	●	●
67	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	1411-	●	●
192	BRACKET; P/S OIL TANK	1-21489-200-1	01	1	1411-	●	●
195	BOLT; BRKT (E) M8X25 FLANGE	0-28650-825-0	08	1	1411-	●	●
195	BOLT; BRKT (D) M10X20 FLANGE	0-28651-020-0	02	1	1411-	●	●
195	BOLT; BRKT (A) M8X12 FLANGE	0-28050-812-0	02	1	1008-	●	●
195	BOLT; BRKT (B) M10X35 FLANGE	0-28151-035-0	01	1	1008-	●	●
195	BOLT; BRKT (C) M8X20 FLANGE	0-28650-820-0	02	1	1008-1410	●	●
195	BOLT; BRKT (E) M8X25 FLANGE	0-28650-825-0	02	1	1411-	●	●
261	PIPE; OIL,UNION TO HOSE FRONT UNDER RUN PROTECTOR<EBE>	8-98287-562-0	01	1	1411-	●	●
261	PIPE; OIL,UNION TO HOSE L=2944	8-98169-745-0	01	1	1008-1410	●	●
261	PIPE; OIL,UNION TO HOSE EXC. FRONT UNDER RUN PROTECTOR<EBE>	8-98233-230-0	01	1	1411-	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE L=1276	1-21117-830-0	01	1	1008-1410	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	8-98226-736-0	01	1	1411-	●	●
280	HOSE; P/S OIL PUMP,INL	1-21117-831-0	01	1	1008-	●	●
366	SPACER; BRKT TO MEMBER	1-21489-196-1	02	1	1411-	●	●

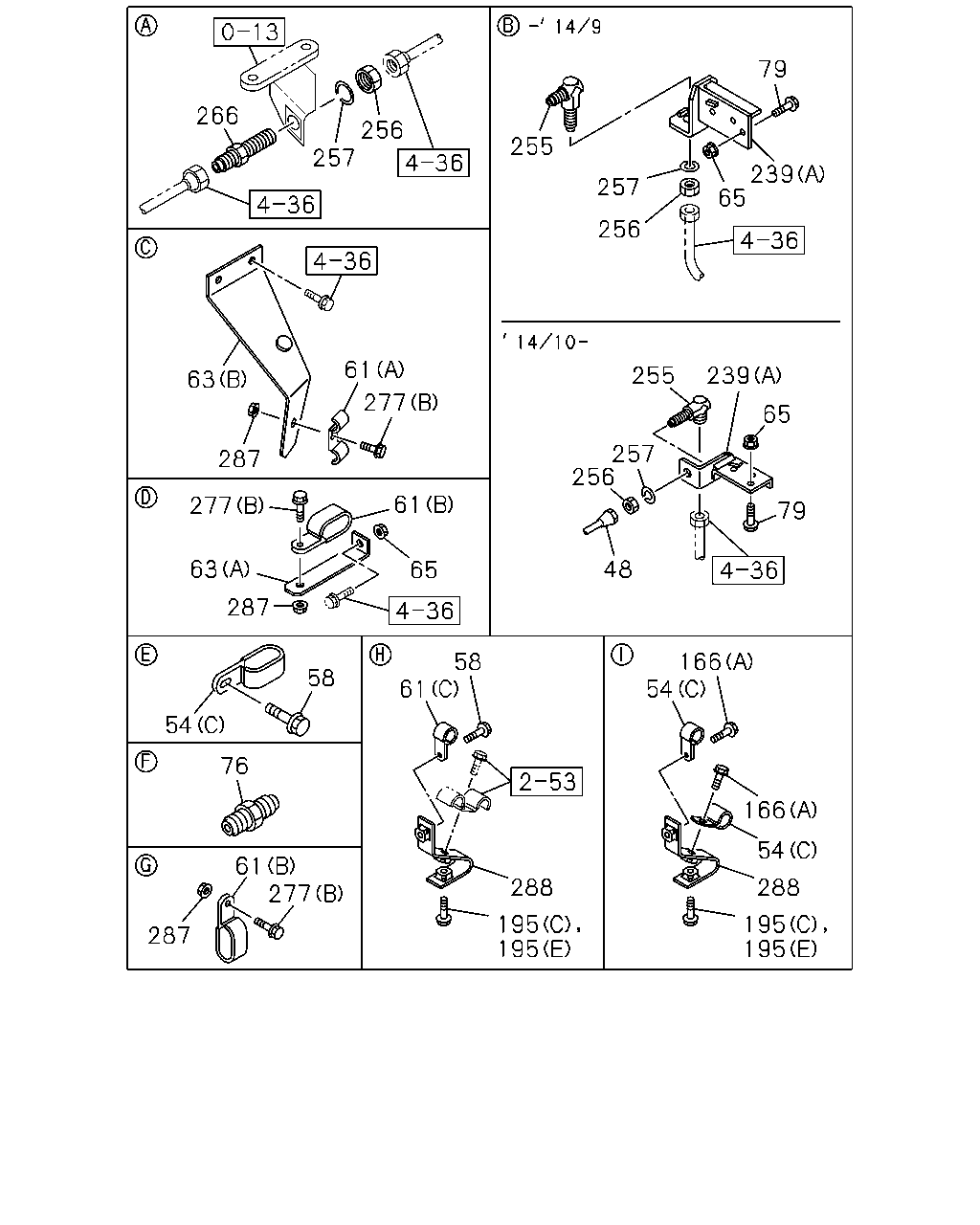

79 255 256 257 239 65 255 239 257 256 65 79 48 166 54 166 54 288 195 195 195 195 288 58 61 58 54 76 61 277 287 277 63 61 65 287 277 61 287 63 257 256 266

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
48	PIPE; OIL,FLEX HOSE TO STRG UNIT L=1895	8-98168-559-0	01	1	1008-1410	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT	8-98233-229-0	01	1	1411-	●	●
54	CLIP; OIL PIPE (C) ID=16X2 L=20	0-95325-535-0	02	1	1008-	●	●
54	CLIP; OIL PIPE (A) ID=23.6 L=35	1-09700-634-0	02	1	1008-	●	●
54	CLIP; OIL PIPE MJT7S M/T(Y3E) (B) ID=16 L=20	0-95235-535-0	01	1	1008-1410	●	●
54	CLIP; OIL PIPE (B) ID=16 L=20	0-95235-535-0	02	1	1411-	●	●
54	CLIP; OIL PIPE MJX16P M/T(Y3Z) (B) ID=16 L=20	0-95235-535-0	02	1	1008-1209	●	●
54	CLIP; OIL PIPE MJX16P M/T(Y3Z) (B) ID=16 L=20	0-95235-535-0	02	1	1210-1410		●
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	1008-1410	●	●
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	1008-1410	●	●
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1411-	●	●
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1411-	●	●
58	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	01	1	1008-1410	●	●
58	BOLT; CLIP M10X20 FLANGE	0-28651-020-0	01	1	1008-1410	●	●
58	BOLT; CLIP M10X25 FLANGE	0-28651-025-0	01	1	1008-1410	●	●
58	BOLT; CLIP M10X25 FLANGE	0-28651-025-0	02	1	1411-	●	●
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-535-0	01	1	1008-	●	●
61	CLIP; OIL PIPE (B) ID=16X2 L=20	0-95325-535-0	02	1	1008-1410	●	●
61	CLIP; OIL PIPE (B) ID=16X2 L=20	0-95325-535-0	01	1	1411-	●	●
61	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	1008-	●	●
63	BRACKET; CLIP,P/S (B)	1-47471-146-0	01	1	1008-	●	●
63	BRACKET; CLIP,P/S (A) L=112	1-47475-694-1	01	1	1008-1410	●	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	1008-1410	●	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1411-	●	●
76	UNION; OIL PIPE M22 L=51	0-92123-015-0	01	1	1008-	●	●
79	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1008-	●	●
166	BOLT; CLIP FRONT UNDER RUN PROTECTOR<EBE> (B) M8X45 FLANGE	0-28050-845-0	01	1	1411-	●	●
166	BOLT; CLIP EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) M8X25 FLANGE	0-28650-825-0	01	1	1411-	●	●
166	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	1008-1410	●	●
166	BOLT; CLIP MJT7S M/T(Y3E) (A) M8X20 FLANGE	0-28650-820-0	01	1	1008-1410	●	●
166	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	1411-	●	●
166	BOLT; CLIP MJX16P M/T(Y3Z) (A) M8X20 FLANGE	0-28650-820-0	02	1	1008-1209	●	●
166	BOLT; CLIP MJX16P M/T(Y3Z) (A) M8X20 FLANGE	0-28650-820-0	02	1	1210-1410		●
166	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	1411-	●	●
195	BOLT; BRKT (E) M8X25 FLANGE	0-28650-825-0	08	1	1411-	●	●
195	BOLT; BRKT (D) M10X20 FLANGE	0-28651-020-0	02	1	1411-	●	●
195	BOLT; BRKT (A) M8X12 FLANGE	0-28050-812-0	02	1	1008-	●	●
195	BOLT; BRKT (B) M10X35 FLANGE	0-28151-035-0	01	1	1008-	●	●
195	BOLT; BRKT (C) M8X20 FLANGE	0-28650-820-0	02	1	1008-1410	●	●
195	BOLT; BRKT (E) M8X25 FLANGE	0-28650-825-0	02	1	1411-	●	●
239	BRACKET; FLEX HOSE (B)	1-21464-780-0	01	1	1411-	●	●
239	BRACKET; FLEX HOSE (A)	8-98144-458-1	01	1	1008-	●	●
255	UNION; FLEX HOSE M22 & M22 ELBOW	1-09650-375-1	01	1	1008-	●	●
256	NUT; UNION M22	0-91111-522-0	01	1	1008-	●	●
256	NUT; UNION M22	0-91111-522-0	01	1	1008-	●	●
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1008-	●	●
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1008-	●	●
266	UNION; OIL PIPE,P/S M20 & M22 STRAIGHT	1-09654-167-1	01	1	1008-	●	●
277	BOLT; HOSE CLIP (B) M8X25 FLANGE	0-28650-825-0	03	1	1008-1410	●	●
277	BOLT; HOSE CLIP (B) M8X25 FLANGE	0-28650-825-0	02	1	1411-	●	●
277	BOLT; HOSE CLIP (A) M10X25 FLANGE	0-28651-025-0	01	1	1008-1410	●	●
277	BOLT; HOSE CLIP (C) M8X20 FLANGE	0-28650-820-0	01	1	1411-	●	●
287	NUT; CLIP M8 FLANGE	0-91180-108-0	03	1	1008-1410	●	●
287	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	1411-	●	●
288	BRACKET; CLIP,P/S	1-47479-521-0	02	1	1008-	●	●

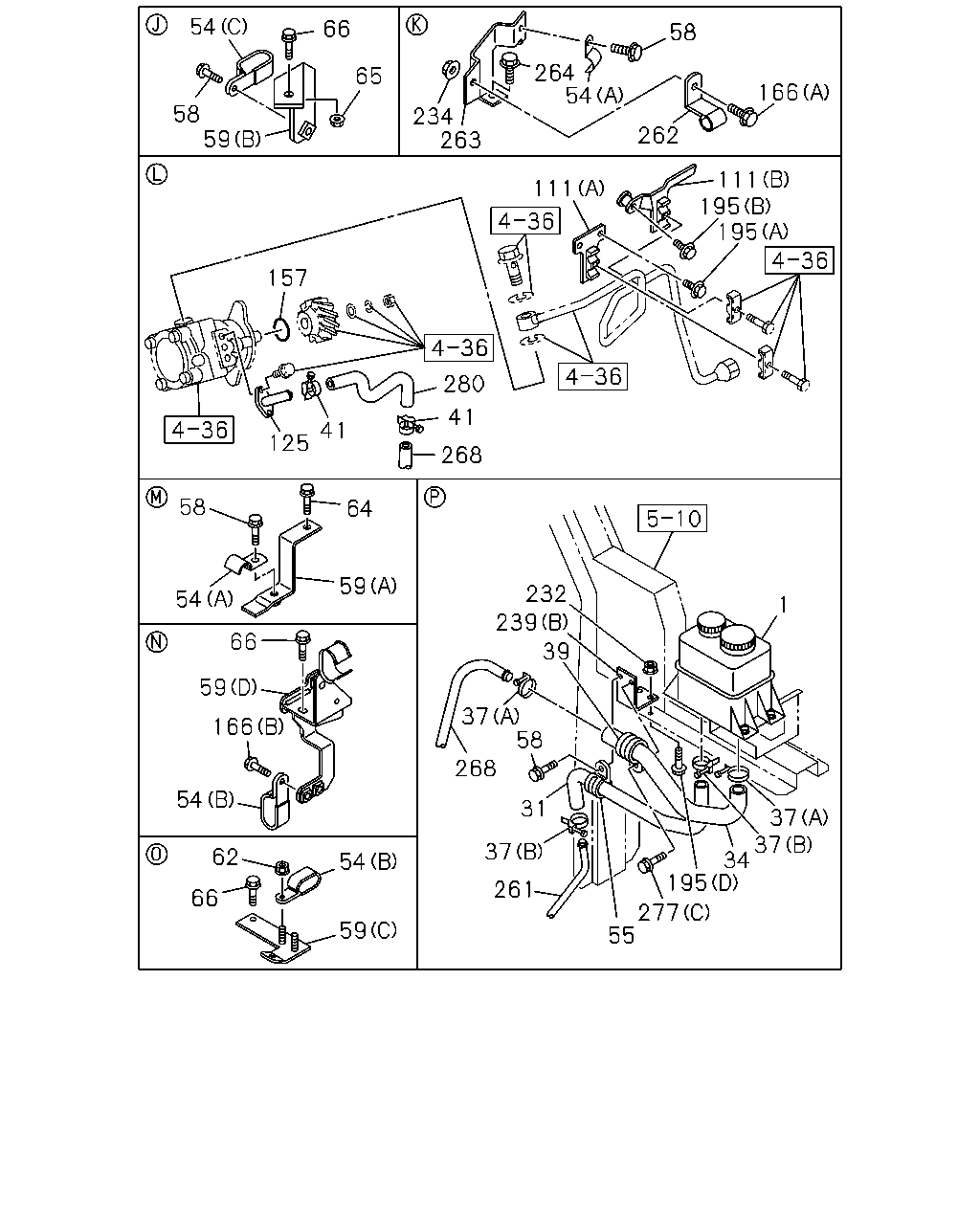

166 58 54 264 262 111 195 195 111 280 268 41 41 157 58 65 66 54 59 234 263 125 58 64 54 59 66 59 166 54 232 1 239 39 37 268 31 37 261 277 55 37 37 34 195 54 59 62 66 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	1-21210-235-1	01	1	1008-	●	●
31	HOSE; P/S OIL TANK,INL	1-21114-284-0	01	1	1008-1410	●	●
31	HOSE; P/S OIL TANK,INL	8-98203-561-0	01	1	1411-	●	●
34	HOSE; P/S OIL TANK,OUTLET	1-21114-283-0	01	1	1008-1410	●	●
34	HOSE; P/S OIL TANK,OUTLET	8-98127-737-0	01	1	1411-	●	●
37	CLIP; HOSE,P/S (A) ID=38	9-09915-041-1	02	1	1008-	●	●
37	CLIP; HOSE,P/S (B) ID=28	9-09915-672-1	02	1	1008-	●	●
39	CLIP; FLEX HOSE ID=32 L=75	1-09700-702-0	01	1	1008-1410	●	●
39	CLIP; FLEX HOSE ID=37 L=35	1-09701-109-0	01	1	1411-	●	●
41	CLIP; HOSE,P/S ID=38	9-09915-041-1	02	1	1008-	●	●
54	CLIP; OIL PIPE (C) ID=16X2 L=20	0-95325-535-0	02	1	1008-	●	●
54	CLIP; OIL PIPE (A) ID=23.6 L=35	1-09700-634-0	02	1	1008-	●	●
54	CLIP; OIL PIPE MJT7S M/T(Y3E) (B) ID=16 L=20	0-95235-535-0	01	1	1008-1410	●	●
54	CLIP; OIL PIPE (B) ID=16 L=20	0-95235-535-0	02	1	1411-	●	●
54	CLIP; OIL PIPE MJX16P M/T(Y3Z) (B) ID=16 L=20	0-95235-535-0	02	1	1008-1209	●	●
54	CLIP; OIL PIPE MJX16P M/T(Y3Z) (B) ID=16 L=20	0-95235-535-0	02	1	1210-1410		●
55	CLIP; P/S RUBBER HOSE ID=28 L=30	1-09700-607-1	01	1	1008-1410	●	●
55	CLIP; P/S RUBBER HOSE ID=28 L=32	1-09701-107-1	01	1	1411-	●	●
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	1008-1410	●	●
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	1008-1410	●	●
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1411-	●	●
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1411-	●	●
58	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	01	1	1008-1410	●	●
58	BOLT; CLIP M10X20 FLANGE	0-28651-020-0	01	1	1008-1410	●	●
58	BOLT; CLIP M10X25 FLANGE	0-28651-025-0	01	1	1008-1410	●	●
58	BOLT; CLIP M10X25 FLANGE	0-28651-025-0	02	1	1411-	●	●
59	BRACKET; CLIP,OIL PIPE FRONT UNDER RUN PROTECTOR<EBE> (D)	8-98287-558-0	01	1	1411-	●	●
59	BRACKET; CLIP,OIL PIPE EXC. FRONT UNDER RUN PROTECTOR<EBE> (D)	8-98239-922-0	01	1	1411-	●	●
59	BRACKET; CLIP,OIL PIPE (A)	1-47477-145-0	01	1	1008-	●	●
59	BRACKET; CLIP,OIL PIPE (B)	1-53441-537-0	01	1	1008-1410	●	●
59	BRACKET; CLIP,OIL PIPE (C)	8-98224-867-0	01	1	1411-	●	●
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	01	1	1411-	●	●
64	BOLT; CLIP BRKT M8X30 FLANGE	0-28050-830-0	01	1	1008-	●	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	1008-1410	●	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1411-	●	●
66	BOLT; BRKT,OIL PIPE M8X30 FLANGE	0-28650-830-0	01	1	1008-1410	●	●
66	BOLT; BRKT,OIL PIPE M8X30 FLANGE	0-28650-830-0	03	1	1411-	●	●
111	BRACKET; OIL PIPE (A)	1-13345-186-0	01	1	1008-	●	●
111	BRACKET; OIL PIPE (B)	1-13345-187-0	01	1	1008-	●	●
125	CONNECTOR; P/S PUMP	1-13313-532-0	01	1	1008-	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=79.6	1-09623-421-0	01	1	1008-	●	●
166	BOLT; CLIP FRONT UNDER RUN PROTECTOR<EBE> (B) M8X45 FLANGE	0-28050-845-0	01	1	1411-	●	●
166	BOLT; CLIP EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) M8X25 FLANGE	0-28650-825-0	01	1	1411-	●	●
166	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	1008-1410	●	●
166	BOLT; CLIP MJT7S M/T(Y3E) (A) M8X20 FLANGE	0-28650-820-0	01	1	1008-1410	●	●
166	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	1411-	●	●
166	BOLT; CLIP MJX16P M/T(Y3Z) (A) M8X20 FLANGE	0-28650-820-0	02	1	1008-1209	●	●
166	BOLT; CLIP MJX16P M/T(Y3Z) (A) M8X20 FLANGE	0-28650-820-0	02	1	1210-1410		●
166	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	1411-	●	●
195	BOLT; BRKT (E) M8X25 FLANGE	0-28650-825-0	08	1	1411-	●	●
195	BOLT; BRKT (D) M10X20 FLANGE	0-28651-020-0	02	1	1411-	●	●
195	BOLT; BRKT (A) M8X12 FLANGE	0-28050-812-0	02	1	1008-	●	●
195	BOLT; BRKT (B) M10X35 FLANGE	0-28151-035-0	01	1	1008-	●	●
195	BOLT; BRKT (C) M8X20 FLANGE	0-28650-820-0	02	1	1008-1410	●	●
195	BOLT; BRKT (E) M8X25 FLANGE	0-28650-825-0	02	1	1411-	●	●
232	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1411-	●	●
234	NUT; PIPE CLIP,P/S M8 FLANGE	0-91180-108-0	01	1	1008-	●	●
239	BRACKET; FLEX HOSE (B)	1-21464-780-0	01	1	1411-	●	●
239	BRACKET; FLEX HOSE (A)	8-98144-458-1	01	1	1008-	●	●
261	PIPE; OIL,UNION TO HOSE FRONT UNDER RUN PROTECTOR<EBE>	8-98287-562-0	01	1	1411-	●	●
261	PIPE; OIL,UNION TO HOSE L=2944	8-98169-745-0	01	1	1008-1410	●	●
261	PIPE; OIL,UNION TO HOSE EXC. FRONT UNDER RUN PROTECTOR<EBE>	8-98233-230-0	01	1	1411-	●	●
262	CLIP; P/S PIPE ID=15 H=24 L=20	1-09700-606-0	01	1	1008-	●	●
263	BRACKET; P/S PIPE	1-47476-483-2	01	1	1008-1410	●	●
263	BRACKET; P/S PIPE	1-47476-483-2	01	1	1411-	●	●
264	BOLT; PIPE BRKT M8X30 FLANGE	0-28650-830-0	01	1	1008-	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE L=1276	1-21117-830-0	01	1	1008-1410	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	8-98226-736-0	01	1	1411-	●	●
277	BOLT; HOSE CLIP (B) M8X25 FLANGE	0-28650-825-0	03	1	1008-1410	●	●
277	BOLT; HOSE CLIP (B) M8X25 FLANGE	0-28650-825-0	02	1	1411-	●	●
277	BOLT; HOSE CLIP (A) M10X25 FLANGE	0-28651-025-0	01	1	1008-1410	●	●
277	BOLT; HOSE CLIP (C) M8X20 FLANGE	0-28650-820-0	01	1	1411-	●	●
280	HOSE; P/S OIL PUMP,INL	1-21117-831-0	01	1	1008-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
