◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11323 - CYZ LHD MIDDLE EAST EURO2 WITH 3STEPS ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-31 - STEERING COLUMN AND SHAFT ▶
4-31 — STEERING COLUMN AND SHAFT (#62631) — 31 parça

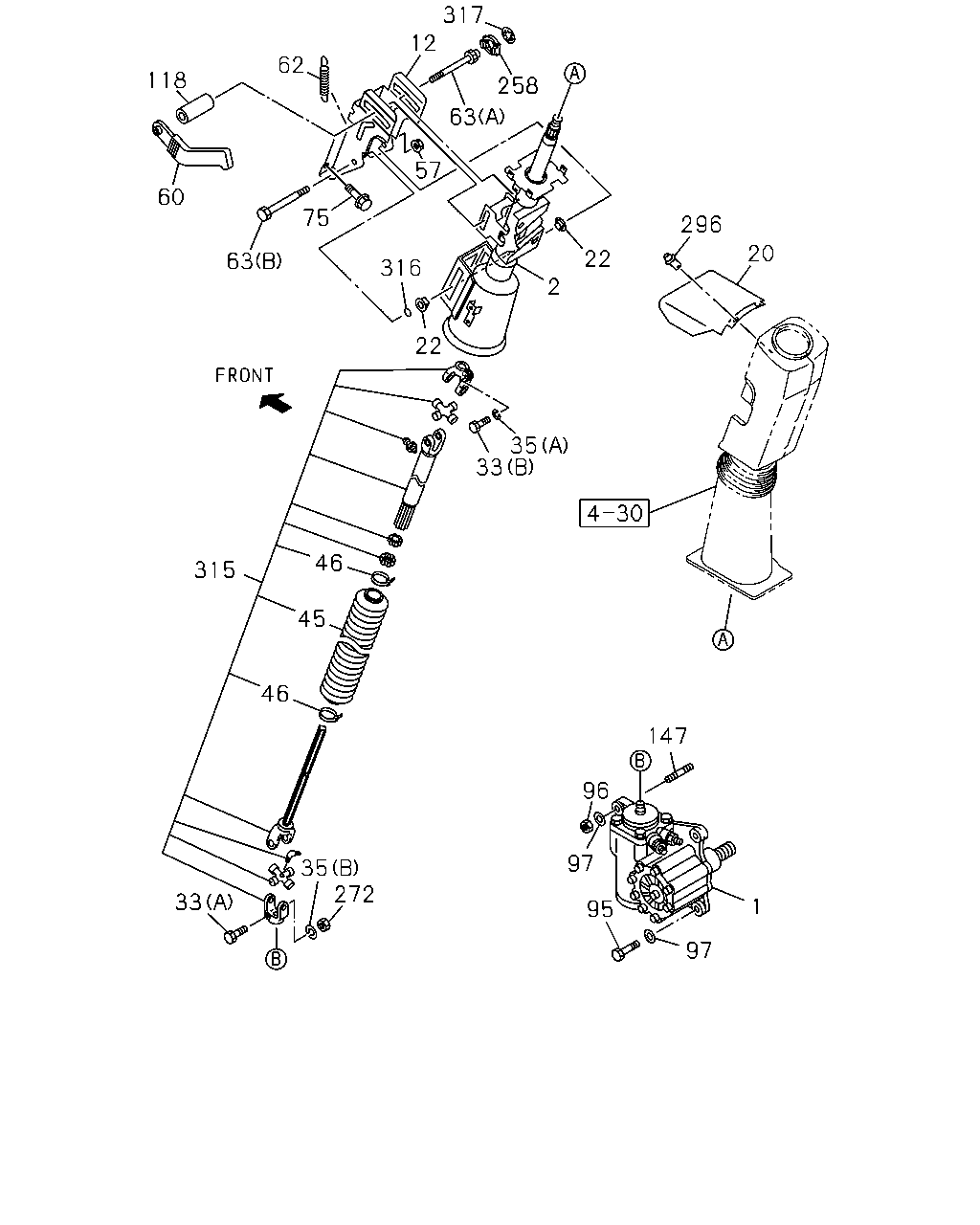

çizim 170325
62 12 317 63 118 60 63 75 57 2 22 296 20 35 33 22 316 315 46 45 46 33 35 272 147 1 97 97 96 95 258
BalonParca AdiParca NoAdetTipApplied Date A B
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		1-44000-957-2 01 1 1008- ● ●
2 SHAFT ASM; STRG 1-44130-689-1 01 1 1008- ● ●
12 BRACKET; LWR,STRG COLUMN 1-44227-167-0 01 1 1008- ● ●
20 COVER; STRG SHAFT 1-72438-121-3 01 1 1008- ● ●
22 BUSHING; STRG COLUMN 1-44227-150-0 02 1 1008- ● ●
33 BOLT; STRG SHAFT TO UNIT
(A) M10X50 		1-09000-786-0 01 1 1008- ● ●
33 BOLT; STRG SHAFT TO UNIT
(B) 		1-44139-153-0 01 1 1008- ● ●
35 WASHER; LK,STRG SHAFT
(B) ID=10.2 		0-91510-810-0 01 1 1008- ● ●
35 WASHER; LK,STRG SHAFT
(A) 		1-44139-154-0 01 1 1008- ● ●
45 BOOT; STRG SHAFT 1-44139-163-0 01 1 1008-1409 ● ●
45 BOOT; STRG SHAFT 1-44139-155-0 01 1 1410-1410 ● ●
45 BOOT; STRG SHAFT 1-44139-155-0 01 1 1410- ● ●
46 CLIP; BOOT 1-44139-156-0 02 1 1008- ● ●
57 NUT; ADJ BOLT 1-44227-151-0 01 1 1008- ● ●
60 LEVER; ADJ,STRG COLUMN 1-44227-144-0 01 1 1008- ● ●
62 SPRING; LK,LEVER 1-44227-153-0 01 1 1008- ● ●
63 BOLT; ADJ LEVER,TILT STRG
(A) 		1-44227-145-0 01 1 1008- ● ●
63 BOLT; ADJ LEVER,TILT STRG
(B) 		1-44227-149-0 01 1 1008- ● ●
75 BOLT; STRG COLUMN
M8X20 FLANGE 		0-28650-820-0 04 1 1008- ● ●
95 BOLT; STRG UNIT
M18X60 		8-98036-497-0 03 1 1008- ● ●
96 NUT; STRG UNIT
M18 		0-91110-518-0 01 1 1008- ● ●
97 WASHER; PL,STRG UNIT
ID=18 		9-09851-862-0 04 1 1008- ● ●
118 NUT; LEVER,TILT BOLT 1-44227-163-0 01 1 1008- ● ●
147 STUD; STRG UNIT
M18X49 L=76 		1-09300-107-0 01 1 1008- ● ●
258 STOPPER; STRG COLUMN,TILT & TELESCOPIC 1-44227-147-0 01 1 1008- ● ●
272 NUT; SHAFT TO YOKE
M10 		0-91110-510-0 01 1 1008- ● ●
296 CLIP; COVER
D6X12.5 		8-94146-425-0 02 1 1008- ● ●
315 JOINT; SPLINE 1-44135-392-0 01 1 1008-1409 ● ●
315 JOINT; SPLINE 1-44135-345-2 01 1 1410- ● ●
316 RING 1-44227-152-0 01 1 1008- ● ●
317 NUT; PUSH 1-44227-148-0 01 1 1008- ● ●
