◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10806 - EXZ RHD FUEL TANK 400L ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-35 - CHARGE AIR COOLER ▶
1-35 — CHARGE AIR COOLER (#6263) — 47 parça

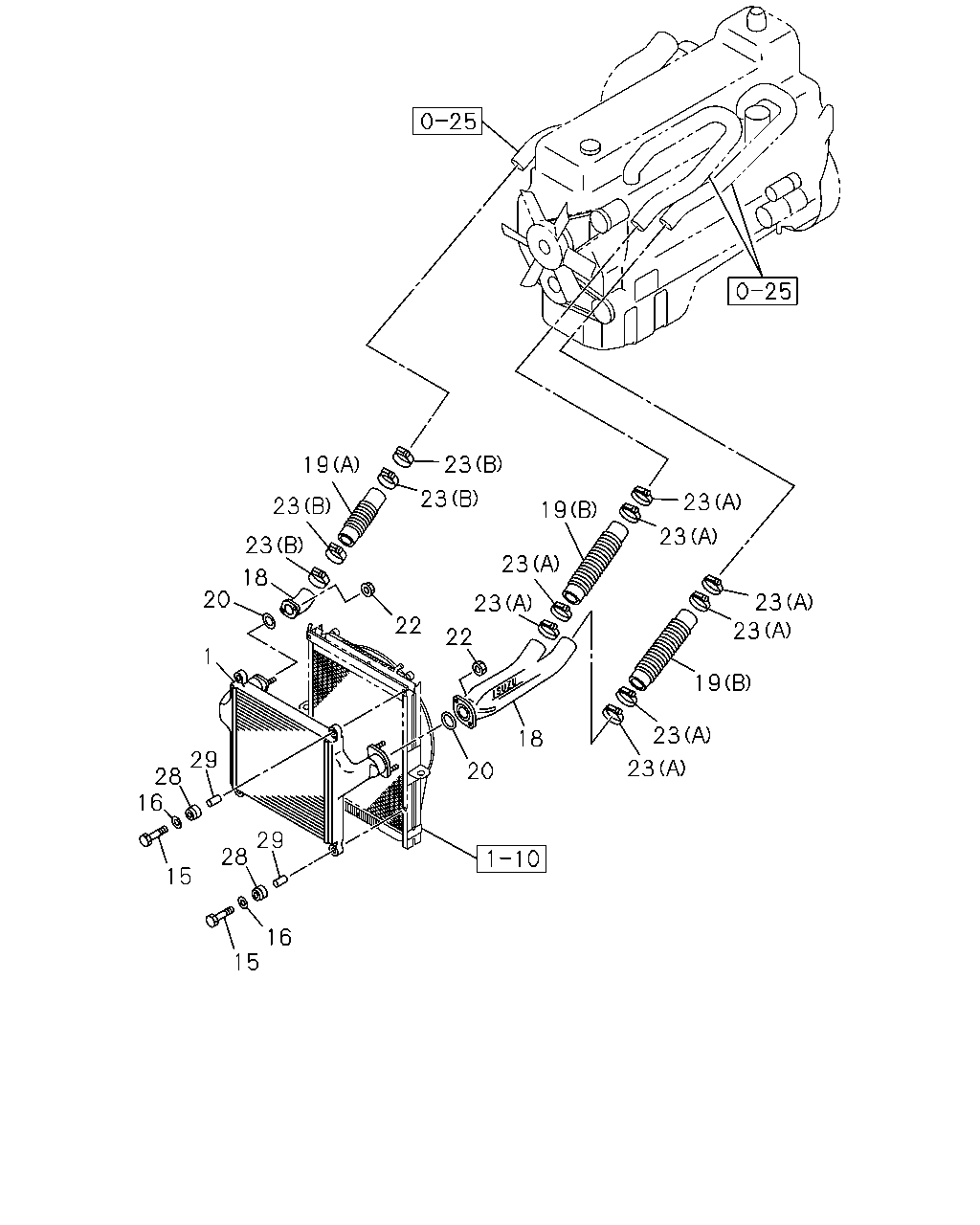

çizim 40994
23 19 23 23 23 19 23 23 23 18 20 23 23 22 23 22 1 19 23 18 29 28 16 23 20 29 28 15 16 15
BalonParca AdiParca NoAdetTipApplied Date A B C
1 COOLER; CHARGE AIR 1-14431-039-0 01 1 9906-9906 ● ●
1 COOLER; CHARGE AIR 1-14431-039-0 01 1 9907-9912 ●
1 COOLER; CHARGE AIR
CAB UP +110MM<TGG> 		1-14431-039-0 01 1 0001- ●
1 COOLER; CHARGE AIR 1-14431-047-0 01 1 9906- ●
15 BOLT; CHARGE AIR COOLER
M8X35 FLANGE 		0-28080-835-0 04 1 9906-9906 ● ●
15 BOLT; CHARGE AIR COOLER
M8X35 FLANGE 		0-28080-835-0 04 1 9907-9912 ●
15 BOLT; CHARGE AIR COOLER
CAB UP +110MM<TGG> M8X35 FLANGE 		0-28080-835-0 04 1 0001- ●
15 BOLT; CHARGE AIR COOLER
M8X35 FLANGE 		0-28080-835-0 02 1 9906- ●
15 BOLT; CHARGE AIR COOLER
M8X50 FLANGE 		0-28080-850-0 02 1 9906- ●
16 WASHER; PL,CHARGE AIR COOLER
ID=10.5 OD=32 		9-09164-810-0 04 1 9906-9906 ● ●
16 WASHER; PL,CHARGE AIR COOLER
ID=10.5 OD=32 		9-09164-810-0 04 1 9907-9912 ●
16 WASHER; PL,CHARGE AIR COOLER
CAB UP +110MM<TGG> ID=10.5 OD=32 		9-09164-810-0 04 1 0001- ●
16 WASHER; PL,CHARGE AIR COOLER
ID=10.5 OD=32 		9-09164-810-0 08 1 9906- ●
18 ADAPTER 1-14112-567-0 01 1 9906-9906 ● ●
18 ADAPTER
EXC. HONG KONG EQUIPMENT(PQ1) 		1-14112-567-0 01 1 9906-9906 ●
18 ADAPTER 1-14112-567-0 01 1 9907-0004 ●
18 ADAPTER
EXC. HONG KONG EQUIPMENT(PQ1) 		1-14112-567-0 01 1 9907-0004 ●
18 ADAPTER 1-14112-567-0 01 1 0005- ●
18 ADAPTER 1-14112-491-1 01 1 9906-9906 ● ● ●
18 ADAPTER 1-14112-491-1 01 1 9907- ● ●
18 ADAPTER
HONG KONG EQUIPMENT(PQ1) 		1-14112-719-0 01 1 9906-0004 ●
18 ADAPTER 1-14112-719-0 01 1 0005- ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD
(B) L=270 		1-09360-914-2 02 1 9906-9906 ● ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD
EXC. HONG KONG EQUIPMENT(PQ1) (B) L=270 		1-09360-914-2 02 1 9906-9906 ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD
(B) L=270 		1-09360-914-2 02 1 9907-0004 ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD
EXC. HONG KONG EQUIPMENT(PQ1) (B) L=270 		1-09360-914-2 02 1 9907-0004 ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD
(B) L=270 		1-09360-914-2 02 1 0005- ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD
(A) L=280 		1-09360-757-3 01 1 9906-9906 ● ● ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD
(A) L=280 		1-09360-757-3 01 1 9907- ● ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD
HONG KONG EQUIPMENT(PQ1) (B) 		1-09361-010-1 02 1 9906-0004 ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD
(B) 		1-09361-010-1 02 1 0005- ●
20 GASKET
ID=84.6 		1-09623-431-0 02 1 9906-9906 ● ● ●
20 GASKET
ID=84.6 		1-09623-431-0 02 1 9907- ● ●
22 NUT
M10 FLANGE 		0-91150-210-0 04 1 9906-9906 ● ● ●
22 NUT
M10 FLANGE 		0-91150-210-0 04 1 9907- ● ●
23 CLIP; HOSE
(B) ID=77-95 		1-09707-114-0 04 1 9906-9906 ● ● ●
23 CLIP; HOSE
(B) ID=77-95 		1-09707-114-0 04 1 9907- ● ●
23 CLIP; HOSE
(A) ID=68-85 		8-94320-428-0 08 1 9906-9906 ● ● ●
23 CLIP; HOSE
(A) ID=68-85 		8-94320-428-0 08 1 9907- ● ●
28 RUBBER; MTG,CHARGE AIR COOLER 1-21467-015-1 04 1 9906-9906 ● ● ●
28 RUBBER; MTG,CHARGE AIR COOLER 1-21467-015-1 04 1 9907-9912 ● ●
28 RUBBER; MTG,CHARGE AIR COOLER
CAB UP +110MM<TGG> 		1-21467-015-1 04 1 0001- ●
28 RUBBER; MTG,CHARGE AIR COOLER 1-21467-015-1 04 1 0001- ●
29 COLLAR; MTG RUBBER,CAC BRKT 1-21469-100-0 04 1 9906-9906 ● ● ●
29 COLLAR; MTG RUBBER,CAC BRKT 1-21469-100-0 04 1 9907-9912 ● ●
29 COLLAR; MTG RUBBER,CAC BRKT
CAB UP +110MM<TGG> 		1-21469-100-0 04 1 0001- ●
29 COLLAR; MTG RUBBER,CAC BRKT 1-21469-100-0 04 1 0001- ●
