4-10 — FRONT AXLE (#62626) — 154 parça

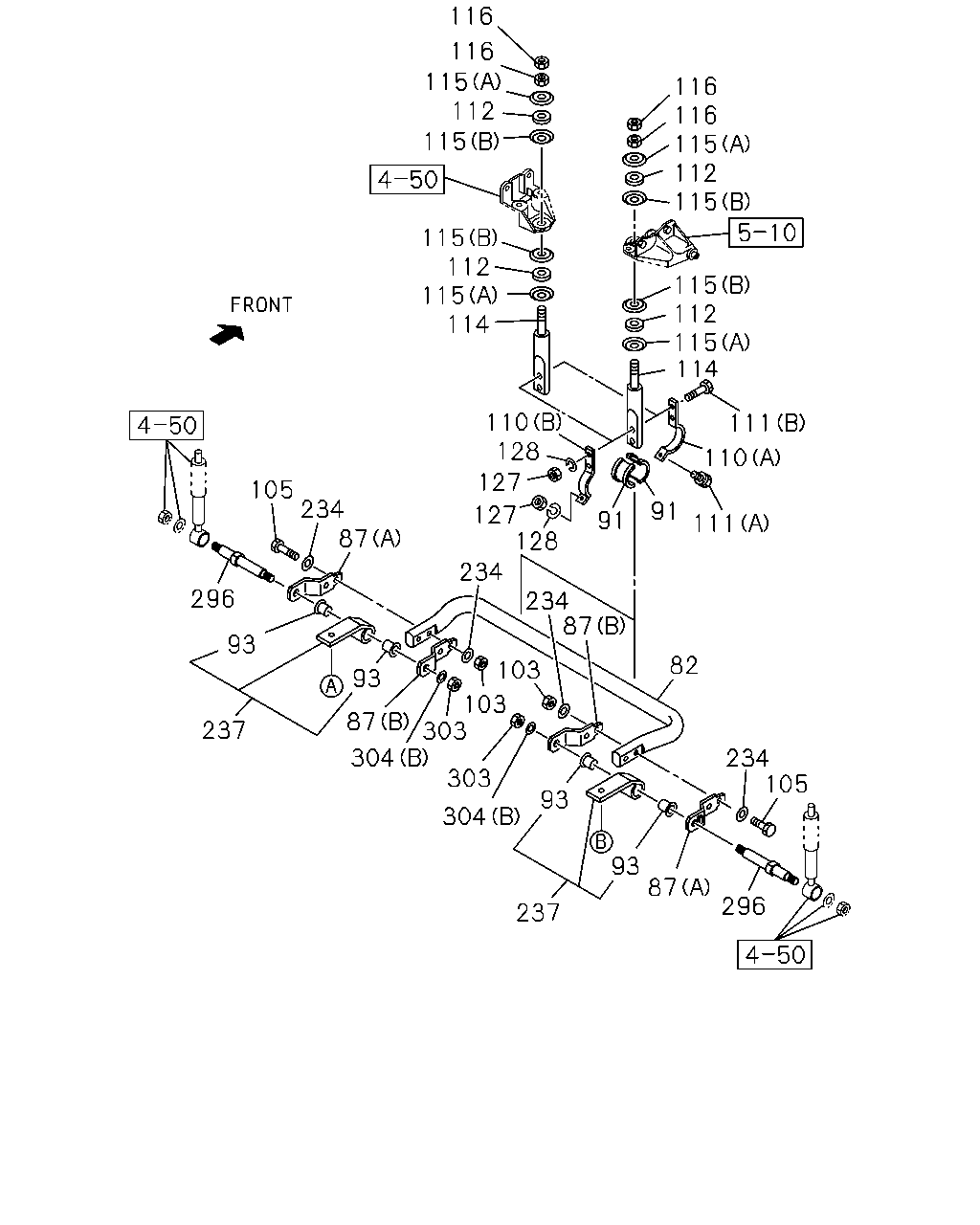

çizim 170320
110 115 114 112 115 115 112 115 116 116 116 115 116 112 115 115 115 112 114 114 110 111 91 91 128 127 127 128 234 234 87 103 82 234 105 296 87 93 237 93 304 303 303 103 93 87 304 237 93 296 87 234 105
BalonParca AdiParca NoAdetTipApplied Date A B
82 BAR; STAB,FRT SUSP
FRONT STABILIZER SHAFT<F59> 		1-51771-136-1 01 1 1008- ●
87 BRACKET; STABILIZER
FRONT STABILIZER SHAFT<F59> (A) 		8-98012-958-0 02 1 1008- ●
87 BRACKET; STABILIZER
FRONT STABILIZER SHAFT<F59> (B) 		8-98012-959-0 02 1 1008- ●
91 BUSHING; RUBBER,STAB BAR
FRONT STABILIZER SHAFT<F59> 		1-51779-087-1 04 1 1008- ●
93 BUSHING; STABILIZER
FRONT STABILIZER SHAFT<F59> 		1-51689-015-3 04 1 1008- ●
103 NUT; BRKT FIX
FRONT STABILIZER SHAFT<F59> M14 		0-91110-514-0 04 1 1008- ●
105 BOLT; BRKT FIX
FRONT STABILIZER SHAFT<F59> M14X70 		0-10956-470-0 04 1 1008- ●
110 CLAMP; STAB TO ROD
FRONT STABILIZER SHAFT<F59> (A) 		1-51789-027-2 02 1 1008- ●
110 CLAMP; STAB TO ROD
FRONT STABILIZER SHAFT<F59> (B) 		1-51789-028-1 02 1 1008- ●
111 BOLT; CLAMP TO ROD
FRONT STABILIZER SHAFT<F59> (A) M12X30 		0-20851-230-0 02 1 1008- ●
111 BOLT; CLAMP TO ROD
FRONT STABILIZER SHAFT<F59> (B) M12X50 		0-20851-250-0 04 1 1008- ●
112 BUSHING; ROD
FRONT STABILIZER SHAFT<F59> 		9-51631-039-0 04 1 1008- ●
114 ROD; STAB BAR
FRONT STABILIZER SHAFT<F59> 		1-51773-072-2 02 1 1008- ●
115 WASHER; CENTER,STAB TO FRAME
FRONT STABILIZER SHAFT<F59> (A) ID=16.5 		9-51631-040-0 04 1 1008- ●
115 WASHER; CENTER,STAB TO FRAME
FRONT STABILIZER SHAFT<F59> (B) ID=20.8 		9-51631-041-0 04 1 1008- ●
116 NUT; LK,STAB TO FRAME
FRONT STABILIZER SHAFT<F59> M14 		0-91111-514-0 04 1 1008- ●
127 NUT; CLAMP
FRONT STABILIZER SHAFT<F59> M12 		0-91110-512-0 06 1 1008- ●
128 WASHER; LK,CLAMP
FRONT STABILIZER SHAFT<F59> ID=12.2 		0-91510-812-0 06 1 1008- ●
234 WASHER; STAB
FRONT STABILIZER SHAFT<F59> ID=15 		8-98010-627-1 08 1 1008- ●
237 SUPPORT; STAB BAR
FRONT STABILIZER SHAFT<F59> 		1-51681-662-0 02 1 1008- ●
296 PIN; STAB
FRONT STABILIZER SHAFT<F59> 		8-98022-874-1 02 1 1008- ●
303 NUT; PIN
FRONT STABILIZER SHAFT<F59> M20 		0-91110-520-0 02 1 1008- ●
304 WASHER; PL
(A) ID=12.5 		0-91614-512-0 04 1 1008- ● ●
304 WASHER; PL
FRONT STABILIZER SHAFT<F59> (B) ID=21 		0-91614-520-0 02 1 1008- ●

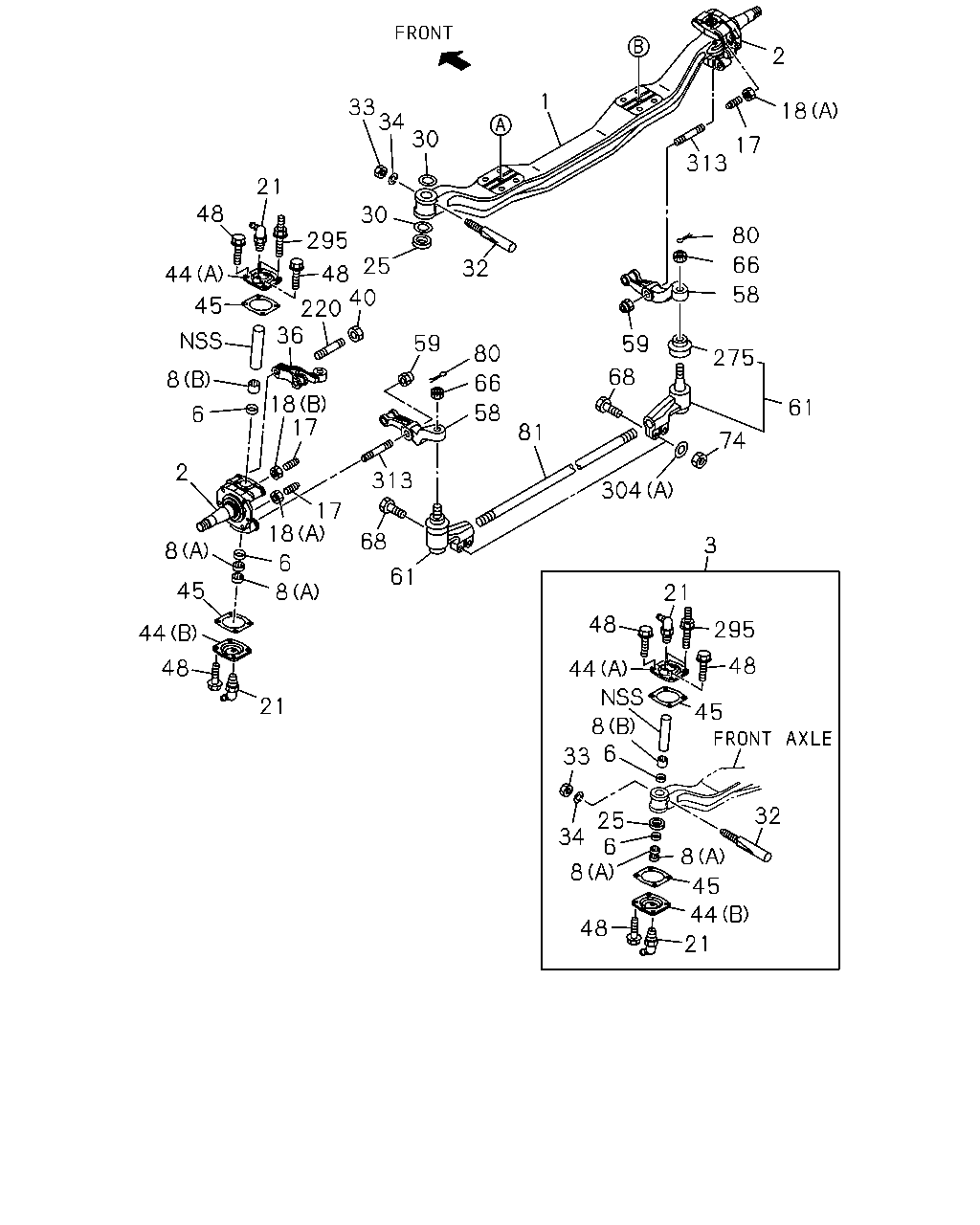

çizim 170361
2 18 17 313 80 58 66 59 275 61 74 304 3 295 48 45 32 8 45 44 21 48 8 34 6 25 33 6 8 44 48 21 58 66 80 81 32 1 30 34 33 30 25 40 59 313 68 61 17 18 8 21 6 17 18 36 220 48 295 21 48 44 8 45 6 2 8 44 45 48 68
BalonParca AdiParca NoAdetTipApplied Date A B
1 AXLE; FRT 1-43111-178-3 01 1 1008- ● ●
2 KNUCKLE; FRT AXLE 1-43131-120-1 01 1 1008- ● ●
2 KNUCKLE; FRT AXLE 1-43132-120-1 01 1 1008- ● ●
3 KING PIN SET 1-87831-349-2 02 1 1008- ● ●
6 SEAL; KING PIN 9-09926-024-0 04 1 1008- ● ●
8 BEARING; NEEDLE,KING PIN
(A) NTN 		9-00096-242-0 04 1 1008- ● ●
8 BEARING; NEEDLE,KING PIN
(B) NTN 		9-00096-243-0 02 1 1008- ● ●
17 BOLT; STOPPER KNUCKLE
M18X53 		1-09009-066-0 01 1 1008- ● ●
17 BOLT; STOPPER KNUCKLE
M18X43 		1-09009-190-0 02 1 1008- ● ●
18 NUT; STOPPER BOLT,KNUCKLE
(A) M18 		0-91110-518-0 02 1 1008- ● ●
18 NUT; STOPPER BOLT,KNUCKLE
(B) OCTAGON M18 		1-09469-011-1 01 1 1008- ● ●
21 NIPPLE; GREASE,KING PIN
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 04 1 1008- ● ●
25 BEARING; THRUST,KING PIN
NSK 		1-09829-043-2 02 1 1008- ● ●
30 WASHER; THRUST,KING PIN
T=4.875 -4.900 		1-43171-185-0 AR 1 1008- ● ●
30 WASHER; THRUST,KING PIN
T=4.900 -4.925 		1-43171-186-0 AR 1 1008- ● ●
30 WASHER; THRUST,KING PIN
T=4.925 -4.950 		1-43171-187-0 AR 1 1008- ● ●
30 WASHER; THRUST,KING PIN
T=4.950 -4.975 		1-43171-188-0 AR 1 1008- ● ●
30 WASHER; THRUST,KING PIN
T=4.975 -5.000 		1-43171-189-0 AR 1 1008- ● ●
30 WASHER; THRUST,KING PIN
T=5.000 -5.025 		1-43171-190-0 AR 1 1008- ● ●
30 WASHER; THRUST,KING PIN
T=5.025 -5.050 		1-43171-191-0 AR 1 1008- ● ●
30 WASHER; THRUST,KING PIN
T=5.050 -5.075 		1-43171-192-0 AR 1 1008- ● ●
30 WASHER; THRUST,KING PIN
T=5.075 -5.100 		1-43171-193-0 AR 1 1008- ● ●
30 WASHER; THRUST,KING PIN
T=5.100 -5.125 		1-43171-194-0 AR 1 1008- ● ●
30 WASHER; THRUST,KING PIN
T=5.125 -5.150 		1-43171-195-0 AR 1 1008- ● ●
30 WASHER; THRUST,KING PIN
T=5.150 -5.175 		1-43171-196-0 AR 1 1008- ● ●
30 WASHER; THRUST,KING PIN
T=5.175 -5.200 		1-43171-197-0 AR 1 1008- ● ●
30 WASHER; THRUST,KING PIN
T=5.200 -5.225 		1-43171-198-0 AR 1 1008- ● ●
30 WASHER; THRUST,KING PIN
T=5.225 -5.250 		1-43171-199-0 AR 1 1008- ● ●
32 BOLT; KEY,KING PIN 1-43116-002-2 02 1 1008- ● ●
33 NUT; KEY BOLT
M10 		0-91110-510-0 02 1 1008- ● ●
34 WASHER; LK,KEY BOLT
ID=10.2 		0-91510-510-0 02 1 1008- ● ●
36 ARM; KNUCKLE 1-43133-083-3 01 1 1008- ● ●
40 NUT; KNUCKLE ARM
M22 		1-09449-084-0 02 1 1008- ● ●
44 COVER; KING PIN
(A) 		8-98100-654-0 02 1 1008- ● ●
44 COVER; KING PIN
(B) 		8-98100-655-0 02 1 1008- ● ●
45 GASKET; KING PIN COVER 8-98100-656-1 04 1 1008- ● ●
48 BOLT; COVER
M10X25 FLANGE 		0-28751-025-0 12 1 1008- ● ●
58 ARM; TIE ROD 8-98145-592-0 01 1 1008- ● ●
58 ARM; TIE ROD 8-98145-593-0 01 1 1008- ● ●
59 NUT; TIE ROD ARM
M22 		1-09449-084-0 04 1 1008- ● ●
61 ROD END; TIE ROD 8-98054-851-0 01 1 1008-1009 ● ●
61 ROD END; TIE ROD 8-98096-753-0 01 1 1010-1306 ● ●
61 ROD END; TIE ROD 8-98228-106-0 01 1 1307- ● ●
61 ROD END; TIE ROD 8-98054-853-0 01 1 1008-1009 ● ●
61 ROD END; TIE ROD 8-98096-754-0 01 1 1010-1306 ● ●
61 ROD END; TIE ROD 8-98228-107-0 01 1 1307- ● ●
66 NUT; TIE ROD END
M24 		1-09442-032-0 02 1 1008- ● ●
68 BOLT; TIE ROD END
M12X65 		8-98053-922-0 04 1 1008- ● ●
74 NUT; TIE ROD END
M12 		0-91110-512-0 04 1 1008- ● ●
80 PIN; SPLIT,ROD END
OD=4.6 L=35 		0-81125-035-0 02 1 1008- ● ●
81 ROD; TIE 1-43151-154-0 01 1 1008-1009 ● ●
81 ROD; TIE 8-98105-064-0 01 1 1010- ● ●
220 STUD; KNUCKLE ARM
M22X145 		1-09300-127-1 02 1 1008- ● ●
275 BOOT; ROD END,TIE 1-43159-107-0 02 1 1008-1009 ● ●
275 BOOT; ROD END,TIE 1-43159-131-0 02 1 1010-1306 ● ●
275 BOOT; ROD END,TIE 8-98229-116-0 02 1 1307- ● ●
295 STUD; COVER,KING PIN
M10X20,M10X26 L=56 		8-98010-334-0 04 1 1008- ● ●
304 WASHER; PL
(A) ID=12.5 		0-91614-512-0 04 1 1008- ● ●
304 WASHER; PL
FRONT STABILIZER SHAFT<F59> (B) ID=21 		0-91614-520-0 02 1 1008- ●
313 STUD; TIE ROD ARM
M22X145 		1-09300-127-1 04 1 1008- ● ●

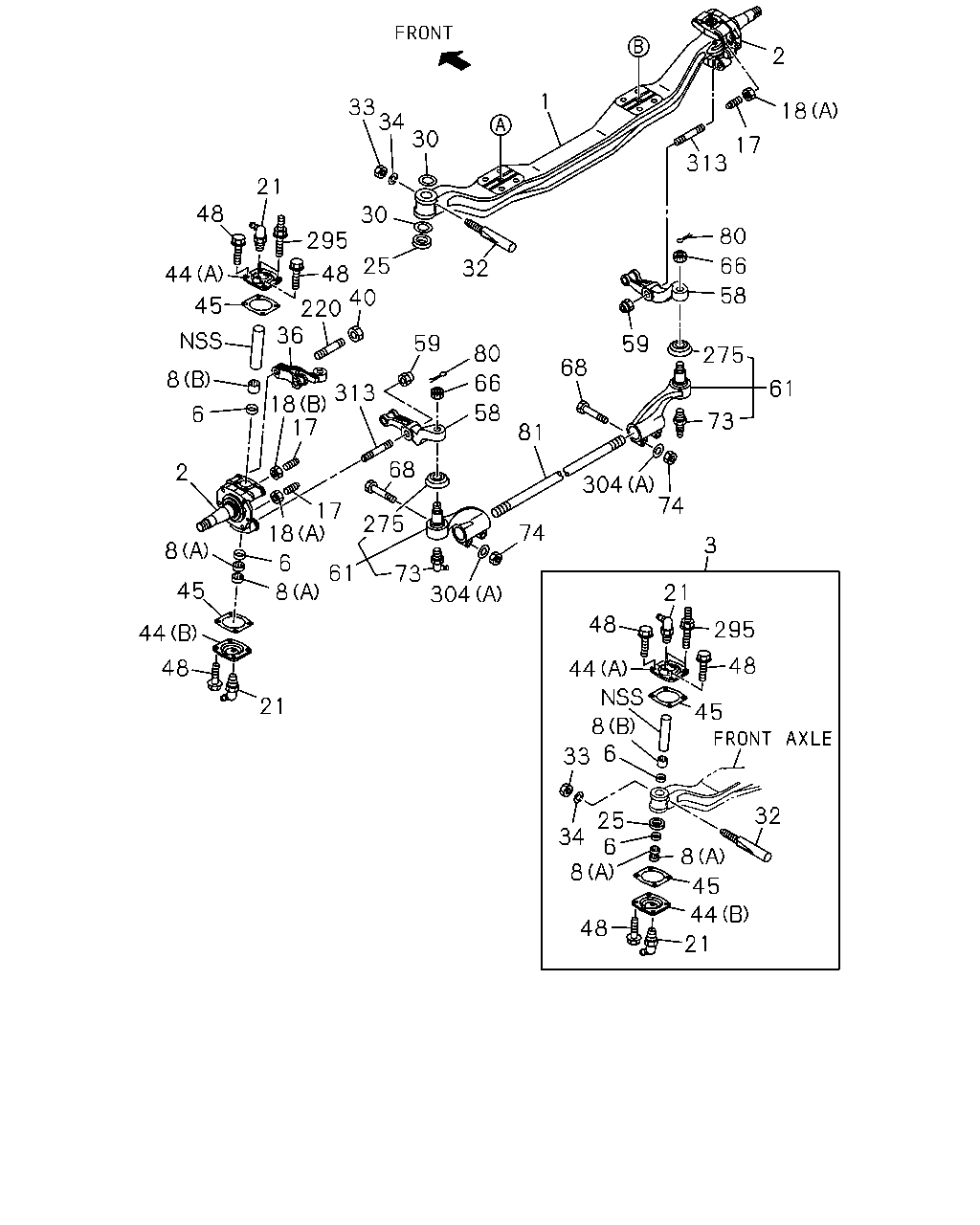

çizim 170362
48 21 44 45 8 6 2 8 45 44 48 8 21 6 18 18 17 48 295 220 36 313 40 25 30 33 30 34 32 59 58 66 80 81 74 68 17 61 275 73 304 1 313 17 2 18 80 66 58 275 59 68 61 73 74 304 3 295 48 21 48 44 8 33 6 25 6 34 8 48 44 21 45 8 32 45
BalonParca AdiParca NoAdetTipApplied Date A B
1 AXLE; FRT 1-43111-178-3 01 1 1008- ● ●
2 KNUCKLE; FRT AXLE 1-43131-120-1 01 1 1008- ● ●
2 KNUCKLE; FRT AXLE 1-43132-120-1 01 1 1008- ● ●
3 KING PIN SET 1-87831-349-2 02 1 1008- ● ●
6 SEAL; KING PIN 9-09926-024-0 04 1 1008- ● ●
8 BEARING; NEEDLE,KING PIN
(A) NTN 		9-00096-242-0 04 1 1008- ● ●
8 BEARING; NEEDLE,KING PIN
(B) NTN 		9-00096-243-0 02 1 1008- ● ●
17 BOLT; STOPPER KNUCKLE
M18X53 		1-09009-066-0 01 1 1008- ● ●
17 BOLT; STOPPER KNUCKLE
M18X43 		1-09009-190-0 02 1 1008- ● ●
18 NUT; STOPPER BOLT,KNUCKLE
(A) M18 		0-91110-518-0 02 1 1008- ● ●
18 NUT; STOPPER BOLT,KNUCKLE
(B) OCTAGON M18 		1-09469-011-1 01 1 1008- ● ●
21 NIPPLE; GREASE,KING PIN
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 04 1 1008- ● ●
25 BEARING; THRUST,KING PIN
NSK 		1-09829-043-2 02 1 1008- ● ●
30 WASHER; THRUST,KING PIN
T=4.875 -4.900 		1-43171-185-0 AR 1 1008- ● ●
30 WASHER; THRUST,KING PIN
T=4.900 -4.925 		1-43171-186-0 AR 1 1008- ● ●
30 WASHER; THRUST,KING PIN
T=4.925 -4.950 		1-43171-187-0 AR 1 1008- ● ●
30 WASHER; THRUST,KING PIN
T=4.950 -4.975 		1-43171-188-0 AR 1 1008- ● ●
30 WASHER; THRUST,KING PIN
T=4.975 -5.000 		1-43171-189-0 AR 1 1008- ● ●
30 WASHER; THRUST,KING PIN
T=5.000 -5.025 		1-43171-190-0 AR 1 1008- ● ●
30 WASHER; THRUST,KING PIN
T=5.025 -5.050 		1-43171-191-0 AR 1 1008- ● ●
30 WASHER; THRUST,KING PIN
T=5.050 -5.075 		1-43171-192-0 AR 1 1008- ● ●
30 WASHER; THRUST,KING PIN
T=5.075 -5.100 		1-43171-193-0 AR 1 1008- ● ●
30 WASHER; THRUST,KING PIN
T=5.100 -5.125 		1-43171-194-0 AR 1 1008- ● ●
30 WASHER; THRUST,KING PIN
T=5.125 -5.150 		1-43171-195-0 AR 1 1008- ● ●
30 WASHER; THRUST,KING PIN
T=5.150 -5.175 		1-43171-196-0 AR 1 1008- ● ●
30 WASHER; THRUST,KING PIN
T=5.175 -5.200 		1-43171-197-0 AR 1 1008- ● ●
30 WASHER; THRUST,KING PIN
T=5.200 -5.225 		1-43171-198-0 AR 1 1008- ● ●
30 WASHER; THRUST,KING PIN
T=5.225 -5.250 		1-43171-199-0 AR 1 1008- ● ●
32 BOLT; KEY,KING PIN 1-43116-002-2 02 1 1008- ● ●
33 NUT; KEY BOLT
M10 		0-91110-510-0 02 1 1008- ● ●
34 WASHER; LK,KEY BOLT
ID=10.2 		0-91510-510-0 02 1 1008- ● ●
36 ARM; KNUCKLE 1-43133-083-3 01 1 1008- ● ●
40 NUT; KNUCKLE ARM
M22 		1-09449-084-0 02 1 1008- ● ●
44 COVER; KING PIN
(A) 		8-98100-654-0 02 1 1008- ● ●
44 COVER; KING PIN
(B) 		8-98100-655-0 02 1 1008- ● ●
45 GASKET; KING PIN COVER 8-98100-656-1 04 1 1008- ● ●
48 BOLT; COVER
M10X25 FLANGE 		0-28751-025-0 12 1 1008- ● ●
58 ARM; TIE ROD 8-98145-592-0 01 1 1008- ● ●
58 ARM; TIE ROD 8-98145-593-0 01 1 1008- ● ●
59 NUT; TIE ROD ARM
M22 		1-09449-084-0 04 1 1008- ● ●
61 ROD END; TIE ROD 8-98054-851-0 01 1 1008-1009 ● ●
61 ROD END; TIE ROD 8-98096-753-0 01 1 1010-1306 ● ●
61 ROD END; TIE ROD 8-98228-106-0 01 1 1307- ● ●
61 ROD END; TIE ROD 8-98054-853-0 01 1 1008-1009 ● ●
61 ROD END; TIE ROD 8-98096-754-0 01 1 1010-1306 ● ●
61 ROD END; TIE ROD 8-98228-107-0 01 1 1307- ● ●
66 NUT; TIE ROD END
M24 		1-09442-032-0 02 1 1008- ● ●
68 BOLT; TIE ROD END
M12X65 		8-98053-922-0 04 1 1008- ● ●
73 NIPPLE; GREASE,TIE ROD END 1-43159-133-0 02 1 1010- ● ●
74 NUT; TIE ROD END
M12 		0-91110-512-0 04 1 1008- ● ●
80 PIN; SPLIT,ROD END
OD=4.6 L=35 		0-81125-035-0 02 1 1008- ● ●
81 ROD; TIE 1-43151-154-0 01 1 1008-1009 ● ●
81 ROD; TIE 8-98105-064-0 01 1 1010- ● ●
220 STUD; KNUCKLE ARM
M22X145 		1-09300-127-1 02 1 1008- ● ●
275 BOOT; ROD END,TIE 1-43159-107-0 02 1 1008-1009 ● ●
275 BOOT; ROD END,TIE 1-43159-131-0 02 1 1010-1306 ● ●
275 BOOT; ROD END,TIE 8-98229-116-0 02 1 1307- ● ●
295 STUD; COVER,KING PIN
M10X20,M10X26 L=56 		8-98010-334-0 04 1 1008- ● ●
304 WASHER; PL
(A) ID=12.5 		0-91614-512-0 04 1 1008- ● ●
304 WASHER; PL
FRONT STABILIZER SHAFT<F59> (B) ID=21 		0-91614-520-0 02 1 1008- ●
313 STUD; TIE ROD ARM
M22X145 		1-09300-127-1 04 1 1008- ● ●

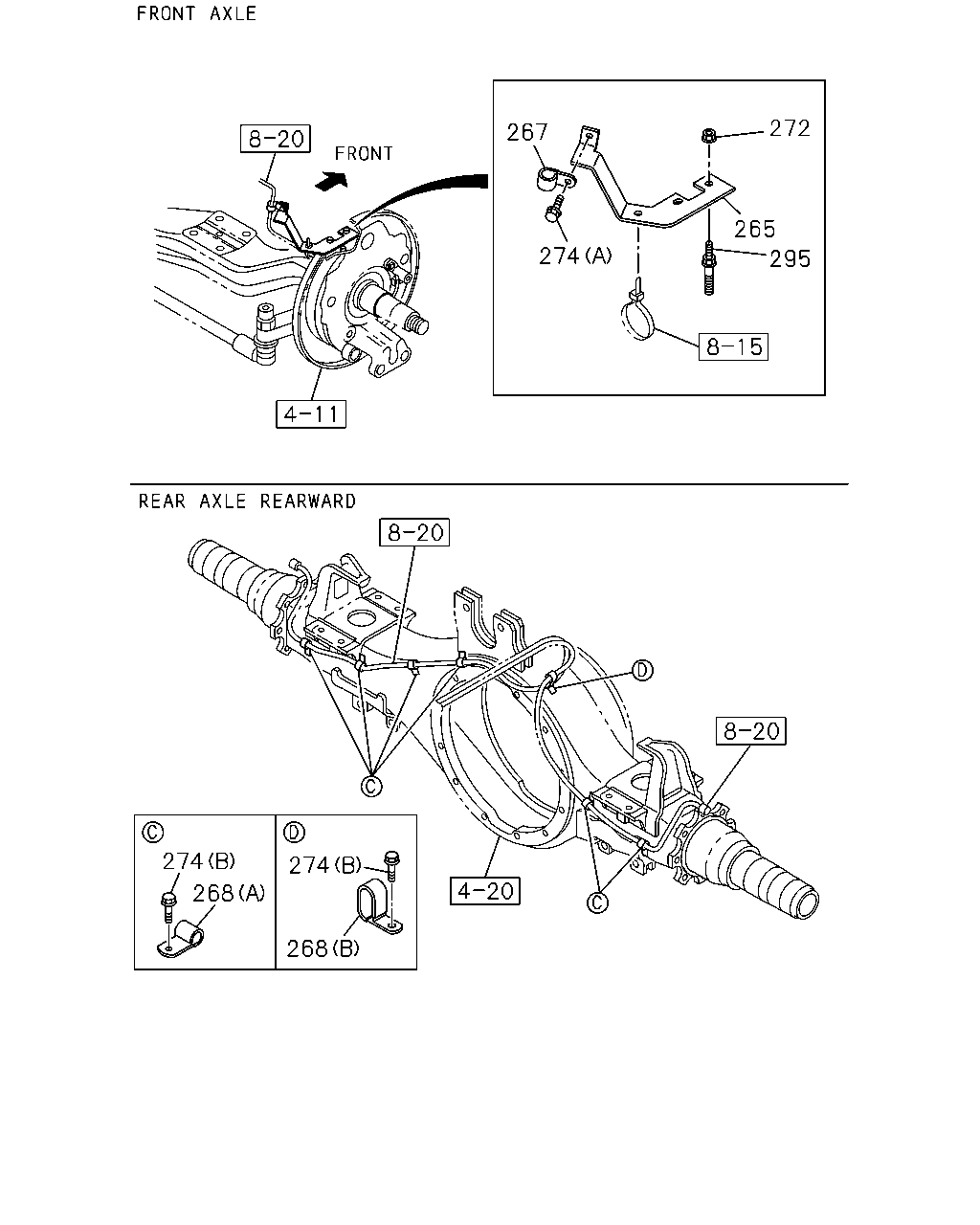

çizim 170458
267 274 265 272 295 274 268 268 274
BalonParca AdiParca NoAdetTipApplied Date A B
265 BRACKET; CLIP I BEAM 1-82698-505-0 01 1 1008- ● ●
265 BRACKET; CLIP I BEAM 1-82698-506-0 01 1 1008- ● ●
267 CLIP; HARNESS
ID=11 L=20 		0-95235-035-0 02 1 1008- ● ●
268 CLIP; HARNESS
(A) ID=11 L=20 		0-95235-035-0 06 1 1008- ● ●
268 CLIP; HARNESS
(B) ID=11X2 L=20 		1-09700-871-0 01 1 1008- ● ●
272 NUT; CLIP
M10 FLANGE 		0-91180-110-0 04 1 1008- ● ●
274 BOLT; CLIP
(B) M8X10 FLANGE 		0-28050-810-0 07 1 1008- ● ●
274 BOLT; CLIP
(A) M8X16 FLANGE 		0-28050-816-0 02 1 1008- ● ●
295 STUD; COVER,KING PIN
M10X20,M10X26 L=56 		8-98010-334-0 04 1 1008- ● ●
