◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11323 - CYZ LHD MIDDLE EAST EURO2 WITH 3STEPS ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#62625) — 286 parça

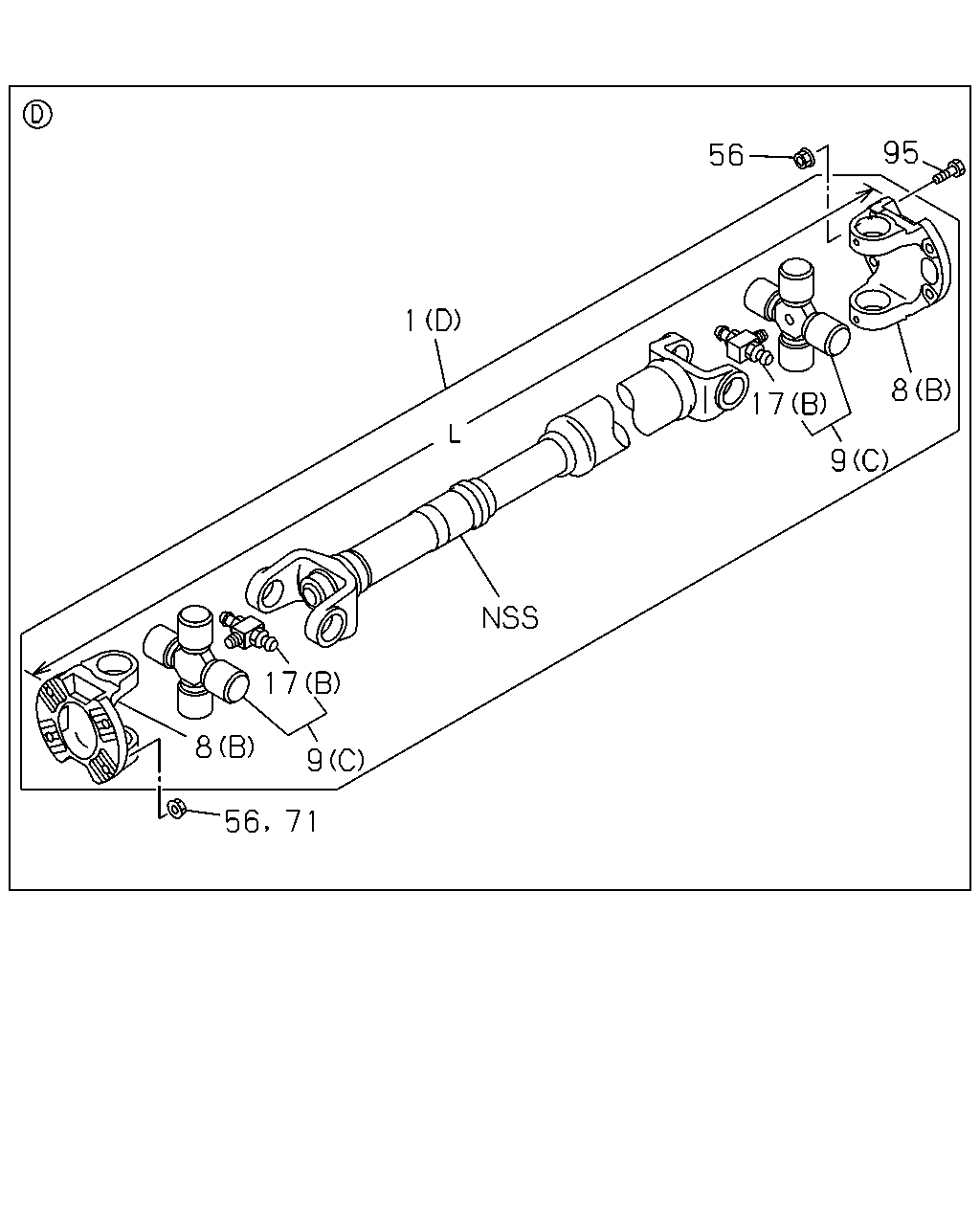

çizim 170283
56 8 9 17 71 1 17 56 95 8 9
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHAFT; PROP
P130 PROP SHAFT(BEE) (D) L=995 		1-37124-762-1 01 1 1511- ●
1 SHAFT; PROP
P115 PROP SHAFT(C5X) EXC. ENGINE REAR PTO(SV1) (B) L=1280 		1-37125-341-0 01 1 1008-1209 ●
1 SHAFT; PROP
P115 PROP SHAFT(C5X) ENGINE REAR PTO(SV1) (B) L=1210 		1-37125-381-0 01 1 1008-1209 ●
1 SHAFT; PROP
(B) L=1210 		1-37125-381-0 01 1 1210- ●
1 SHAFT; PROP
P130 PROP SHAFT(BEE) ENGINE REAR PTO(SV1) (D) L=1475 		1-37124-934-1 01 1 1008-1209 ●
1 SHAFT; PROP
P130 PROP SHAFT(BEE) EXC. ENGINE REAR PTO(SV1) (D) L=1545 		8-98145-468-0 01 1 1008-1209 ●
1 SHAFT; PROP
P115 PROP SHAFT(C5X) (B) L=1615 		1-37125-302-0 01 1 1008- ●
1 SHAFT; PROP
P130 PROP SHAFT(BEE) (D) L=1880 		1-37124-767-1 01 1 1008- ●
1 SHAFT; PROP
P115 PROP SHAFT(C5X) (A) L=844 		1-37153-533-0 01 1 1008- ●
1 SHAFT; PROP
P115 PROP SHAFT(C5X) (B) L=1070 		8-98094-187-0 01 1 1008- ●
1 SHAFT; PROP
P130 PROP SHAFT(BEE) (C) L=840 		8-98145-461-0 01 1 1008-1510 ●
1 SHAFT; PROP
P130 PROP SHAFT(BEE) (E) 		8-98334-763-0 01 1 1511- ●
1 SHAFT; PROP
P130 PROP SHAFT(BEE) (D) L=1415 		8-98145-467-0 01 1 1008- ●
1 SHAFT; PROP
P115 PROP SHAFT(C5X) (B) L=975 		1-37125-338-0 01 1 1008-1410 ●
1 SHAFT; PROP
(B) L=975 		1-37125-338-0 01 1 1411- ●
1 SHAFT; PROP
P115 PROP SHAFT(C5X) (A) L=1674 		1-37153-505-0 01 1 1008-1410 ●
1 SHAFT; PROP
(A) L=1674 		1-37153-505-0 01 1 1411- ●
1 SHAFT; PROP
P130 PROP SHAFT(BEE) (D) L=995 		1-37124-762-1 01 1 1008-1410 ●
1 SHAFT; PROP
P130 PROP SHAFT(BEE) (C) L=1675 		8-98145-462-0 01 1 1008-1410 ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT(C5X) (A) 		1-37211-084-0 02 1 1008- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37211-083-0 02 1 1008-1209 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37211-083-0 02 1 1210-1410 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37211-083-0 02 1 1411-1510 ● ●
8 YOKE; FLANGE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37211-083-0 02 1 1511- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT(C5X) (A) 		1-37211-084-0 01 1 1008- ● ●
8 YOKE; FLANGE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37211-083-0 01 1 1008-1410 ● ●
8 YOKE; FLANGE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37211-083-0 01 1 1411- ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-100-1 01 1 1008- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT(C5X) (A) 		1-37300-112-0 02 1 1008- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P130 PROP SHAFT(BEE) (C) 		1-37300-118-0 02 1 1008-1209 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P130 PROP SHAFT(BEE) (C) 		1-37300-118-0 02 1 1210-1410 ● ● ●
9 JOURNAL ASM; PROP SHAFT
P130 PROP SHAFT(BEE) (C) 		1-37300-118-0 02 1 1411-1510 ● ●
9 JOURNAL ASM; PROP SHAFT
P130 PROP SHAFT(BEE) (C) 		1-37300-118-0 02 1 1511- ● ● ●
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT(C5X) (A) 		1-37300-112-0 01 1 1008- ● ●
9 JOURNAL ASM; PROP SHAFT
P130 PROP SHAFT(BEE) (C) 		1-37300-118-0 01 1 1008-1410 ● ●
9 JOURNAL ASM; PROP SHAFT
P130 PROP SHAFT(BEE) (C) 		1-37300-118-0 01 1 1411- ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1008- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1008- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37319-013-0 02 1 1008-1209 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37319-013-0 02 1 1210-1410 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37319-013-0 02 1 1411-1510 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37319-013-0 02 1 1511- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1008- ● ●
17 NIPPLE; GREASE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37319-013-0 01 1 1008-1410 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37319-013-0 01 1 1411- ●
56 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 1008- ● ● ● ●
56 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 1008- ● ●
71 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 1008- ● ● ● ●
95 BOLT; YOKE,FINAL
M14X50 		1-09000-645-0 04 1 1008- ● ● ● ●
çizim 170316
57 96 15 9 14 17 9 11 10 169 170 4 128 106 104 57 96 15 58
BalonParca AdiParca NoAdetTipApplied Date A B C D
4 SHAFT; PROP
L=418 		1-37171-129-3 01 1 1008- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-100-1 01 1 1008- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT(C5X) (A) 		1-37300-112-0 02 1 1008- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P130 PROP SHAFT(BEE) (C) 		1-37300-118-0 02 1 1008-1209 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P130 PROP SHAFT(BEE) (C) 		1-37300-118-0 02 1 1210-1410 ● ● ●
9 JOURNAL ASM; PROP SHAFT
P130 PROP SHAFT(BEE) (C) 		1-37300-118-0 02 1 1411-1510 ● ●
9 JOURNAL ASM; PROP SHAFT
P130 PROP SHAFT(BEE) (C) 		1-37300-118-0 02 1 1511- ● ● ●
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT(C5X) (A) 		1-37300-112-0 01 1 1008- ● ●
9 JOURNAL ASM; PROP SHAFT
P130 PROP SHAFT(BEE) (C) 		1-37300-118-0 01 1 1008-1410 ● ●
9 JOURNAL ASM; PROP SHAFT
P130 PROP SHAFT(BEE) (C) 		1-37300-118-0 01 1 1411- ●
10 BOLT; UJT
M12X45 		8-98036-382-0 04 1 1008- ● ● ● ●
11 WASHER; LK,UNIVERSAL,PROP SHAFT
ID=12.2 		0-91510-612-0 04 1 1008- ● ● ● ●
14 COVER; DUST,SPIDER
(B) 		1-37319-004-0 08 1 1008- ● ● ● ●
14 COVER; DUST,SPIDER
P115 PROP SHAFT(C5X) (A) 		1-37249-133-0 08 1 1008- ● ● ● ●
14 COVER; DUST,SPIDER
P115 PROP SHAFT(C5X) (A) 		1-37249-133-0 04 1 1008- ● ●
15 UNIVERSAL CENTER 1-37300-100-1 01 1 1008- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1008- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1008- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37319-013-0 02 1 1008-1209 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37319-013-0 02 1 1210-1410 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37319-013-0 02 1 1411-1510 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37319-013-0 02 1 1511- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1008- ● ●
17 NIPPLE; GREASE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37319-013-0 01 1 1008-1410 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37319-013-0 01 1 1411- ●
57 WASHER; LK,YOKE
ID=12.2 		0-91510-612-0 08 1 1008- ● ● ● ●
58 FLANGE; SPLINED
L=265 		1-37245-317-0 01 1 1008- ● ● ● ●
96 BOLT; PROP SHAFT
M12X45 		8-98036-382-0 08 1 1008- ● ● ● ●
104 PLUG; SLEEVE YOKE 1-09600-049-0 01 1 1008- ● ● ● ●
104 PLUG; SLEEVE YOKE
P115 PROP SHAFT(C5X) 		1-09600-049-0 01 1 1008- ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 1008- ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P115 PROP SHAFT(C5X) PT1/8 STRAIGHT 		0-90301-410-0 02 1 1008- ● ● ● ●
128 SEAL; SLEEVE
(B) 		8-97603-618-0 01 1 1008- ● ● ● ●
128 SEAL; SLEEVE
P115 PROP SHAFT(C5X) (A) 		1-37247-020-0 01 1 1008- ● ● ● ●
169 BOLT; YOKE,SLEEVE
M12X45 		8-98036-382-0 04 1 1008- ● ● ● ●
170 WASHER; LK,YOKE,SLEEVE
ID=12.2 		0-91510-612-0 04 1 1008- ● ● ● ●
çizim 170380
1 128 225 104 9 8 56 71 106 9 17 14 19 8 56 95 9
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHAFT; PROP
P130 PROP SHAFT(BEE) (D) L=995 		1-37124-762-1 01 1 1511- ●
1 SHAFT; PROP
P115 PROP SHAFT(C5X) EXC. ENGINE REAR PTO(SV1) (B) L=1280 		1-37125-341-0 01 1 1008-1209 ●
1 SHAFT; PROP
P115 PROP SHAFT(C5X) ENGINE REAR PTO(SV1) (B) L=1210 		1-37125-381-0 01 1 1008-1209 ●
1 SHAFT; PROP
(B) L=1210 		1-37125-381-0 01 1 1210- ●
1 SHAFT; PROP
P130 PROP SHAFT(BEE) ENGINE REAR PTO(SV1) (D) L=1475 		1-37124-934-1 01 1 1008-1209 ●
1 SHAFT; PROP
P130 PROP SHAFT(BEE) EXC. ENGINE REAR PTO(SV1) (D) L=1545 		8-98145-468-0 01 1 1008-1209 ●
1 SHAFT; PROP
P115 PROP SHAFT(C5X) (B) L=1615 		1-37125-302-0 01 1 1008- ●
1 SHAFT; PROP
P130 PROP SHAFT(BEE) (D) L=1880 		1-37124-767-1 01 1 1008- ●
1 SHAFT; PROP
P115 PROP SHAFT(C5X) (A) L=844 		1-37153-533-0 01 1 1008- ●
1 SHAFT; PROP
P115 PROP SHAFT(C5X) (B) L=1070 		8-98094-187-0 01 1 1008- ●
1 SHAFT; PROP
P130 PROP SHAFT(BEE) (C) L=840 		8-98145-461-0 01 1 1008-1510 ●
1 SHAFT; PROP
P130 PROP SHAFT(BEE) (E) 		8-98334-763-0 01 1 1511- ●
1 SHAFT; PROP
P130 PROP SHAFT(BEE) (D) L=1415 		8-98145-467-0 01 1 1008- ●
1 SHAFT; PROP
P115 PROP SHAFT(C5X) (B) L=975 		1-37125-338-0 01 1 1008-1410 ●
1 SHAFT; PROP
(B) L=975 		1-37125-338-0 01 1 1411- ●
1 SHAFT; PROP
P115 PROP SHAFT(C5X) (A) L=1674 		1-37153-505-0 01 1 1008-1410 ●
1 SHAFT; PROP
(A) L=1674 		1-37153-505-0 01 1 1411- ●
1 SHAFT; PROP
P130 PROP SHAFT(BEE) (D) L=995 		1-37124-762-1 01 1 1008-1410 ●
1 SHAFT; PROP
P130 PROP SHAFT(BEE) (C) L=1675 		8-98145-462-0 01 1 1008-1410 ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT(C5X) (A) 		1-37211-084-0 02 1 1008- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37211-083-0 02 1 1008-1209 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37211-083-0 02 1 1210-1410 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37211-083-0 02 1 1411-1510 ● ●
8 YOKE; FLANGE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37211-083-0 02 1 1511- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT(C5X) (A) 		1-37211-084-0 01 1 1008- ● ●
8 YOKE; FLANGE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37211-083-0 01 1 1008-1410 ● ●
8 YOKE; FLANGE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37211-083-0 01 1 1411- ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-100-1 01 1 1008- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT(C5X) (A) 		1-37300-112-0 02 1 1008- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P130 PROP SHAFT(BEE) (C) 		1-37300-118-0 02 1 1008-1209 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P130 PROP SHAFT(BEE) (C) 		1-37300-118-0 02 1 1210-1410 ● ● ●
9 JOURNAL ASM; PROP SHAFT
P130 PROP SHAFT(BEE) (C) 		1-37300-118-0 02 1 1411-1510 ● ●
9 JOURNAL ASM; PROP SHAFT
P130 PROP SHAFT(BEE) (C) 		1-37300-118-0 02 1 1511- ● ● ●
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT(C5X) (A) 		1-37300-112-0 01 1 1008- ● ●
9 JOURNAL ASM; PROP SHAFT
P130 PROP SHAFT(BEE) (C) 		1-37300-118-0 01 1 1008-1410 ● ●
9 JOURNAL ASM; PROP SHAFT
P130 PROP SHAFT(BEE) (C) 		1-37300-118-0 01 1 1411- ●
14 COVER; DUST,SPIDER
(B) 		1-37319-004-0 08 1 1008- ● ● ● ●
14 COVER; DUST,SPIDER
P115 PROP SHAFT(C5X) (A) 		1-37249-133-0 08 1 1008- ● ● ● ●
14 COVER; DUST,SPIDER
P115 PROP SHAFT(C5X) (A) 		1-37249-133-0 04 1 1008- ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1008- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1008- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37319-013-0 02 1 1008-1209 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37319-013-0 02 1 1210-1410 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37319-013-0 02 1 1411-1510 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37319-013-0 02 1 1511- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1008- ● ●
17 NIPPLE; GREASE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37319-013-0 01 1 1008-1410 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37319-013-0 01 1 1411- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P115 PROP SHAFT(C5X) T=2.2 		1-09587-103-1 08 1 1008- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P115 PROP SHAFT(C5X) T=2.17 		1-09587-107-0 08 1 1008- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P115 PROP SHAFT(C5X) T=2.2 		1-09587-103-1 04 1 1008- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P115 PROP SHAFT(C5X) T=2.17 		1-09587-107-0 04 1 1008- ● ●
56 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 1008- ● ● ● ●
56 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 1008- ● ●
71 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 1008- ● ● ● ●
95 BOLT; YOKE,FINAL
M14X50 		1-09000-645-0 04 1 1008- ● ● ● ●
104 PLUG; SLEEVE YOKE 1-09600-049-0 01 1 1008- ● ● ● ●
104 PLUG; SLEEVE YOKE
P115 PROP SHAFT(C5X) 		1-09600-049-0 01 1 1008- ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 1008- ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P115 PROP SHAFT(C5X) PT1/8 STRAIGHT 		0-90301-410-0 02 1 1008- ● ● ● ●
128 SEAL; SLEEVE
(B) 		8-97603-618-0 01 1 1008- ● ● ● ●
128 SEAL; SLEEVE
P115 PROP SHAFT(C5X) (A) 		1-37247-020-0 01 1 1008- ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P115 PROP SHAFT(C5X) L=339 		1-37241-140-0 01 1 1008- ● ● ● ●
çizim 170393
78 46 51 21 24 23 20 21 22 42 25 74 9 79 80 81 17 14 19 1 9 8 71
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHAFT; PROP
P130 PROP SHAFT(BEE) (D) L=995 		1-37124-762-1 01 1 1511- ●
1 SHAFT; PROP
P115 PROP SHAFT(C5X) EXC. ENGINE REAR PTO(SV1) (B) L=1280 		1-37125-341-0 01 1 1008-1209 ●
1 SHAFT; PROP
P115 PROP SHAFT(C5X) ENGINE REAR PTO(SV1) (B) L=1210 		1-37125-381-0 01 1 1008-1209 ●
1 SHAFT; PROP
(B) L=1210 		1-37125-381-0 01 1 1210- ●
1 SHAFT; PROP
P130 PROP SHAFT(BEE) ENGINE REAR PTO(SV1) (D) L=1475 		1-37124-934-1 01 1 1008-1209 ●
1 SHAFT; PROP
P130 PROP SHAFT(BEE) EXC. ENGINE REAR PTO(SV1) (D) L=1545 		8-98145-468-0 01 1 1008-1209 ●
1 SHAFT; PROP
P115 PROP SHAFT(C5X) (B) L=1615 		1-37125-302-0 01 1 1008- ●
1 SHAFT; PROP
P130 PROP SHAFT(BEE) (D) L=1880 		1-37124-767-1 01 1 1008- ●
1 SHAFT; PROP
P115 PROP SHAFT(C5X) (A) L=844 		1-37153-533-0 01 1 1008- ●
1 SHAFT; PROP
P115 PROP SHAFT(C5X) (B) L=1070 		8-98094-187-0 01 1 1008- ●
1 SHAFT; PROP
P130 PROP SHAFT(BEE) (C) L=840 		8-98145-461-0 01 1 1008-1510 ●
1 SHAFT; PROP
P130 PROP SHAFT(BEE) (E) 		8-98334-763-0 01 1 1511- ●
1 SHAFT; PROP
P130 PROP SHAFT(BEE) (D) L=1415 		8-98145-467-0 01 1 1008- ●
1 SHAFT; PROP
P115 PROP SHAFT(C5X) (B) L=975 		1-37125-338-0 01 1 1008-1410 ●
1 SHAFT; PROP
(B) L=975 		1-37125-338-0 01 1 1411- ●
1 SHAFT; PROP
P115 PROP SHAFT(C5X) (A) L=1674 		1-37153-505-0 01 1 1008-1410 ●
1 SHAFT; PROP
(A) L=1674 		1-37153-505-0 01 1 1411- ●
1 SHAFT; PROP
P130 PROP SHAFT(BEE) (D) L=995 		1-37124-762-1 01 1 1008-1410 ●
1 SHAFT; PROP
P130 PROP SHAFT(BEE) (C) L=1675 		8-98145-462-0 01 1 1008-1410 ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT(C5X) (A) 		1-37211-084-0 02 1 1008- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37211-083-0 02 1 1008-1209 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37211-083-0 02 1 1210-1410 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37211-083-0 02 1 1411-1510 ● ●
8 YOKE; FLANGE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37211-083-0 02 1 1511- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT(C5X) (A) 		1-37211-084-0 01 1 1008- ● ●
8 YOKE; FLANGE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37211-083-0 01 1 1008-1410 ● ●
8 YOKE; FLANGE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37211-083-0 01 1 1411- ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-100-1 01 1 1008- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT(C5X) (A) 		1-37300-112-0 02 1 1008- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P130 PROP SHAFT(BEE) (C) 		1-37300-118-0 02 1 1008-1209 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P130 PROP SHAFT(BEE) (C) 		1-37300-118-0 02 1 1210-1410 ● ● ●
9 JOURNAL ASM; PROP SHAFT
P130 PROP SHAFT(BEE) (C) 		1-37300-118-0 02 1 1411-1510 ● ●
9 JOURNAL ASM; PROP SHAFT
P130 PROP SHAFT(BEE) (C) 		1-37300-118-0 02 1 1511- ● ● ●
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT(C5X) (A) 		1-37300-112-0 01 1 1008- ● ●
9 JOURNAL ASM; PROP SHAFT
P130 PROP SHAFT(BEE) (C) 		1-37300-118-0 01 1 1008-1410 ● ●
9 JOURNAL ASM; PROP SHAFT
P130 PROP SHAFT(BEE) (C) 		1-37300-118-0 01 1 1411- ●
14 COVER; DUST,SPIDER
(B) 		1-37319-004-0 08 1 1008- ● ● ● ●
14 COVER; DUST,SPIDER
P115 PROP SHAFT(C5X) (A) 		1-37249-133-0 08 1 1008- ● ● ● ●
14 COVER; DUST,SPIDER
P115 PROP SHAFT(C5X) (A) 		1-37249-133-0 04 1 1008- ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1008- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1008- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37319-013-0 02 1 1008-1209 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37319-013-0 02 1 1210-1410 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37319-013-0 02 1 1411-1510 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37319-013-0 02 1 1511- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1008- ● ●
17 NIPPLE; GREASE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37319-013-0 01 1 1008-1410 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37319-013-0 01 1 1411- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P115 PROP SHAFT(C5X) T=2.2 		1-09587-103-1 08 1 1008- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P115 PROP SHAFT(C5X) T=2.17 		1-09587-107-0 08 1 1008- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P115 PROP SHAFT(C5X) T=2.2 		1-09587-103-1 04 1 1008- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P115 PROP SHAFT(C5X) T=2.17 		1-09587-107-0 04 1 1008- ● ●
20 BEARING ASM; CTR,PROP SHAFT
P115 PROP SHAFT(C5X) ID=65 		1-37510-116-1 01 1 1008- ● ●
21 SEAL; OIL,CENTER BRG
P115 PROP SHAFT(C5X) (A) OD=114 		1-09625-222-1 01 1 1008- ● ●
21 SEAL; OIL,CENTER BRG
P115 PROP SHAFT(C5X) (B) OD=106 		1-09625-622-0 01 1 1008- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P115 PROP SHAFT(C5X) 		1-37516-056-0 01 1 1008- ● ●
23 BEARING; CENTER,PROP SHAFT
P115 PROP SHAFT(C5X) 		1-09800-210-0 01 1 1008- ● ●
24 RETAINER; CENTER BRG,1ST
P115 PROP SHAFT(C5X) 		1-37529-110-0 01 1 1008- ● ●
25 NIPPLE; GREASE,CENTER BRG
P115 PROP SHAFT(C5X) MT6 STRAIGHT 		1-09380-006-0 01 1 1008- ● ●
42 RING; SNAP,CTR BRG
P115 PROP SHAFT(C5X) 		1-09587-085-1 01 1 1008- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P115 PROP SHAFT(C5X) 		1-37245-349-0 01 1 1008- ● ●
51 NUT; FLANGE,SPLINED
P115 PROP SHAFT(C5X) M45 FLAMGE 		1-09449-040-0 01 1 1008- ● ●
71 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 1008- ● ● ● ●
74 BOLT; YOKE,TRANS
M14X50 		1-09000-645-0 04 1 1008- ● ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
P115 PROP SHAFT(C5X) (A) M16X45 		1-09042-030-0 02 1 1008- ● ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
P130 PROP SHAFT(BEE) (B) M14X45 FLANGE 		0-28851-445-0 02 1 1008-1410 ● ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
P130 PROP SHAFT(BEE) (B) M14X45 FLANGE 		0-28851-445-0 02 1 1411-1510 ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
P130 PROP SHAFT(BEE) (B) M14X45 FLANGE 		0-28851-445-0 02 1 1511- ● ●
79 WASHER; PL,HOLDER SET,CENTER BRG
P115 PROP SHAFT(C5X) (A) ID=17 		1-09503-241-1 02 1 1008- ● ●
79 WASHER; PL,HOLDER SET,CENTER BRG
P130 PROP SHAFT(BEE) (B) ID=15 OD=36 		0-91614-714-0 02 1 1008-1410 ● ●
79 WASHER; PL,HOLDER SET,CENTER BRG
P130 PROP SHAFT(BEE) (B) ID=15 		0-91614-614-0 02 1 1411-1510 ●
79 WASHER; PL,HOLDER SET,CENTER BRG
P130 PROP SHAFT(BEE) (B) ID=15 		0-91614-614-0 02 1 1511- ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
P115 PROP SHAFT(C5X) (A) M16 SLOTTED 		0-91116-516-0 02 1 1008-1204 ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
P115 PROP SHAFT(C5X) (A) M16 SLOTTED 		8-98049-689-0 02 1 1205- ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
P130 PROP SHAFT(BEE) (B) M14 FLANGE 		0-91180-214-0 02 1 1008-1410 ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
P130 PROP SHAFT(BEE) (B) M14 FLANGE 		0-91180-214-0 02 1 1411-1510 ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
P130 PROP SHAFT(BEE) (B) M14 FLANGE 		0-91180-214-0 02 1 1511- ● ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
P115 PROP SHAFT(C5X) OD=3.7 L=25 		0-81124-025-0 02 1 1008- ● ●
çizim 170403
1 9 17 1 8 71 79 80 74 78
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHAFT; PROP
P130 PROP SHAFT(BEE) (D) L=995 		1-37124-762-1 01 1 1511- ●
1 SHAFT; PROP
P115 PROP SHAFT(C5X) EXC. ENGINE REAR PTO(SV1) (B) L=1280 		1-37125-341-0 01 1 1008-1209 ●
1 SHAFT; PROP
P115 PROP SHAFT(C5X) ENGINE REAR PTO(SV1) (B) L=1210 		1-37125-381-0 01 1 1008-1209 ●
1 SHAFT; PROP
(B) L=1210 		1-37125-381-0 01 1 1210- ●
1 SHAFT; PROP
P130 PROP SHAFT(BEE) ENGINE REAR PTO(SV1) (D) L=1475 		1-37124-934-1 01 1 1008-1209 ●
1 SHAFT; PROP
P130 PROP SHAFT(BEE) EXC. ENGINE REAR PTO(SV1) (D) L=1545 		8-98145-468-0 01 1 1008-1209 ●
1 SHAFT; PROP
P115 PROP SHAFT(C5X) (B) L=1615 		1-37125-302-0 01 1 1008- ●
1 SHAFT; PROP
P130 PROP SHAFT(BEE) (D) L=1880 		1-37124-767-1 01 1 1008- ●
1 SHAFT; PROP
P115 PROP SHAFT(C5X) (A) L=844 		1-37153-533-0 01 1 1008- ●
1 SHAFT; PROP
P115 PROP SHAFT(C5X) (B) L=1070 		8-98094-187-0 01 1 1008- ●
1 SHAFT; PROP
P130 PROP SHAFT(BEE) (C) L=840 		8-98145-461-0 01 1 1008-1510 ●
1 SHAFT; PROP
P130 PROP SHAFT(BEE) (E) 		8-98334-763-0 01 1 1511- ●
1 SHAFT; PROP
P130 PROP SHAFT(BEE) (D) L=1415 		8-98145-467-0 01 1 1008- ●
1 SHAFT; PROP
P115 PROP SHAFT(C5X) (B) L=975 		1-37125-338-0 01 1 1008-1410 ●
1 SHAFT; PROP
(B) L=975 		1-37125-338-0 01 1 1411- ●
1 SHAFT; PROP
P115 PROP SHAFT(C5X) (A) L=1674 		1-37153-505-0 01 1 1008-1410 ●
1 SHAFT; PROP
(A) L=1674 		1-37153-505-0 01 1 1411- ●
1 SHAFT; PROP
P130 PROP SHAFT(BEE) (D) L=995 		1-37124-762-1 01 1 1008-1410 ●
1 SHAFT; PROP
P130 PROP SHAFT(BEE) (C) L=1675 		8-98145-462-0 01 1 1008-1410 ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT(C5X) (A) 		1-37211-084-0 02 1 1008- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37211-083-0 02 1 1008-1209 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37211-083-0 02 1 1210-1410 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37211-083-0 02 1 1411-1510 ● ●
8 YOKE; FLANGE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37211-083-0 02 1 1511- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT(C5X) (A) 		1-37211-084-0 01 1 1008- ● ●
8 YOKE; FLANGE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37211-083-0 01 1 1008-1410 ● ●
8 YOKE; FLANGE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37211-083-0 01 1 1411- ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-100-1 01 1 1008- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT(C5X) (A) 		1-37300-112-0 02 1 1008- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P130 PROP SHAFT(BEE) (C) 		1-37300-118-0 02 1 1008-1209 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P130 PROP SHAFT(BEE) (C) 		1-37300-118-0 02 1 1210-1410 ● ● ●
9 JOURNAL ASM; PROP SHAFT
P130 PROP SHAFT(BEE) (C) 		1-37300-118-0 02 1 1411-1510 ● ●
9 JOURNAL ASM; PROP SHAFT
P130 PROP SHAFT(BEE) (C) 		1-37300-118-0 02 1 1511- ● ● ●
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT(C5X) (A) 		1-37300-112-0 01 1 1008- ● ●
9 JOURNAL ASM; PROP SHAFT
P130 PROP SHAFT(BEE) (C) 		1-37300-118-0 01 1 1008-1410 ● ●
9 JOURNAL ASM; PROP SHAFT
P130 PROP SHAFT(BEE) (C) 		1-37300-118-0 01 1 1411- ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1008- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1008- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37319-013-0 02 1 1008-1209 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37319-013-0 02 1 1210-1410 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37319-013-0 02 1 1411-1510 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37319-013-0 02 1 1511- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1008- ● ●
17 NIPPLE; GREASE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37319-013-0 01 1 1008-1410 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37319-013-0 01 1 1411- ●
71 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 1008- ● ● ● ●
74 BOLT; YOKE,TRANS
M14X50 		1-09000-645-0 04 1 1008- ● ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
P115 PROP SHAFT(C5X) (A) M16X45 		1-09042-030-0 02 1 1008- ● ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
P130 PROP SHAFT(BEE) (B) M14X45 FLANGE 		0-28851-445-0 02 1 1008-1410 ● ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
P130 PROP SHAFT(BEE) (B) M14X45 FLANGE 		0-28851-445-0 02 1 1411-1510 ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
P130 PROP SHAFT(BEE) (B) M14X45 FLANGE 		0-28851-445-0 02 1 1511- ● ●
79 WASHER; PL,HOLDER SET,CENTER BRG
P115 PROP SHAFT(C5X) (A) ID=17 		1-09503-241-1 02 1 1008- ● ●
79 WASHER; PL,HOLDER SET,CENTER BRG
P130 PROP SHAFT(BEE) (B) ID=15 OD=36 		0-91614-714-0 02 1 1008-1410 ● ●
79 WASHER; PL,HOLDER SET,CENTER BRG
P130 PROP SHAFT(BEE) (B) ID=15 		0-91614-614-0 02 1 1411-1510 ●
79 WASHER; PL,HOLDER SET,CENTER BRG
P130 PROP SHAFT(BEE) (B) ID=15 		0-91614-614-0 02 1 1511- ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
P115 PROP SHAFT(C5X) (A) M16 SLOTTED 		0-91116-516-0 02 1 1008-1204 ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
P115 PROP SHAFT(C5X) (A) M16 SLOTTED 		8-98049-689-0 02 1 1205- ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
P130 PROP SHAFT(BEE) (B) M14 FLANGE 		0-91180-214-0 02 1 1008-1410 ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
P130 PROP SHAFT(BEE) (B) M14 FLANGE 		0-91180-214-0 02 1 1411-1510 ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
P130 PROP SHAFT(BEE) (B) M14 FLANGE 		0-91180-214-0 02 1 1511- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
