11323 - CYZ LHD MIDDLE EAST EURO2 WITH 3STEPS
▶
3 - Brakes, Brake System
▶
3-80 - BRAKE PIPING; TRAILER
▶
3-80 — BRAKE PIPING; TRAILER
(#62623) — 38 parça
Tümü
A - CYZ6MF
B - CYZ6MC
◀

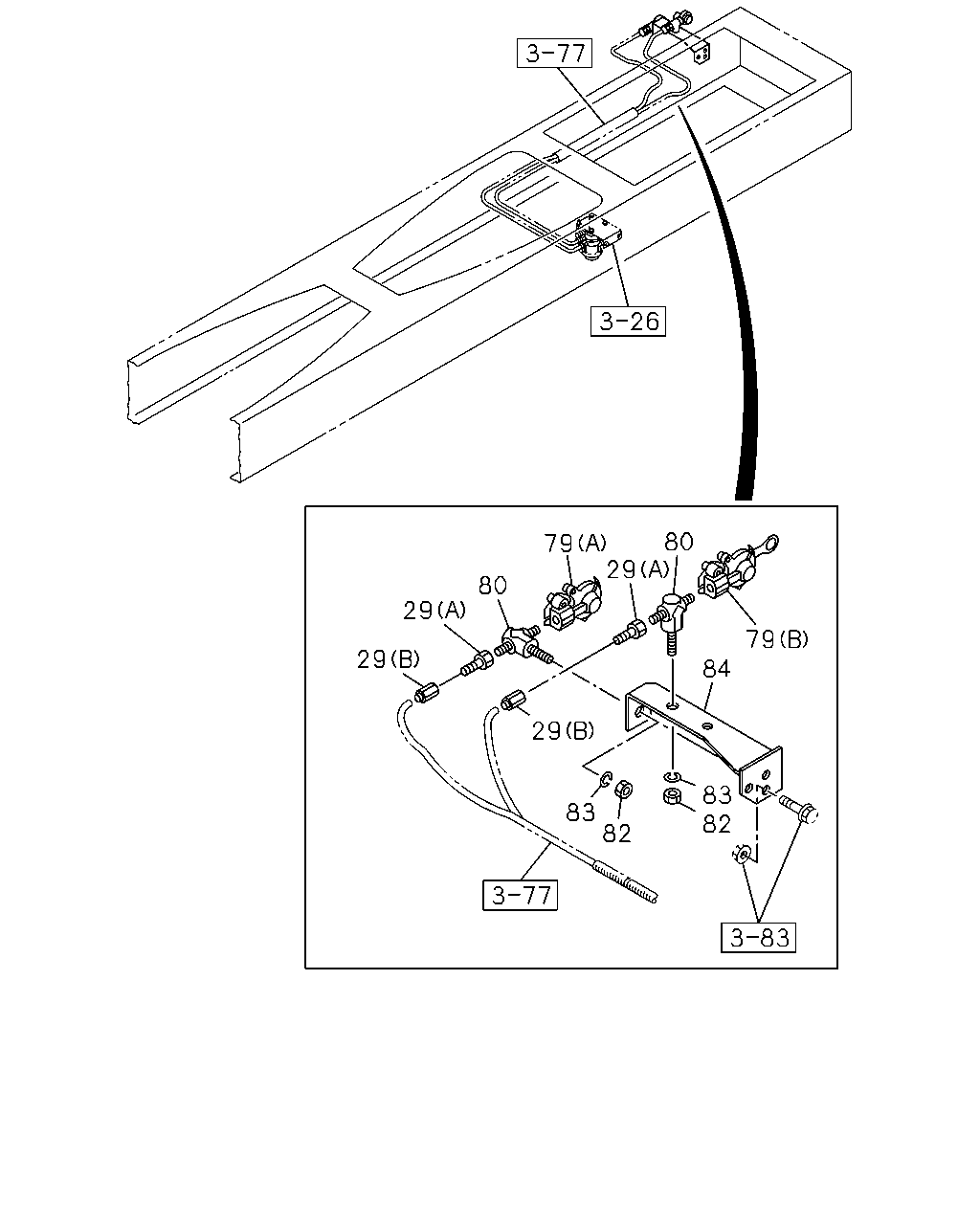

[380A] FRAME SIDE (8 parça)

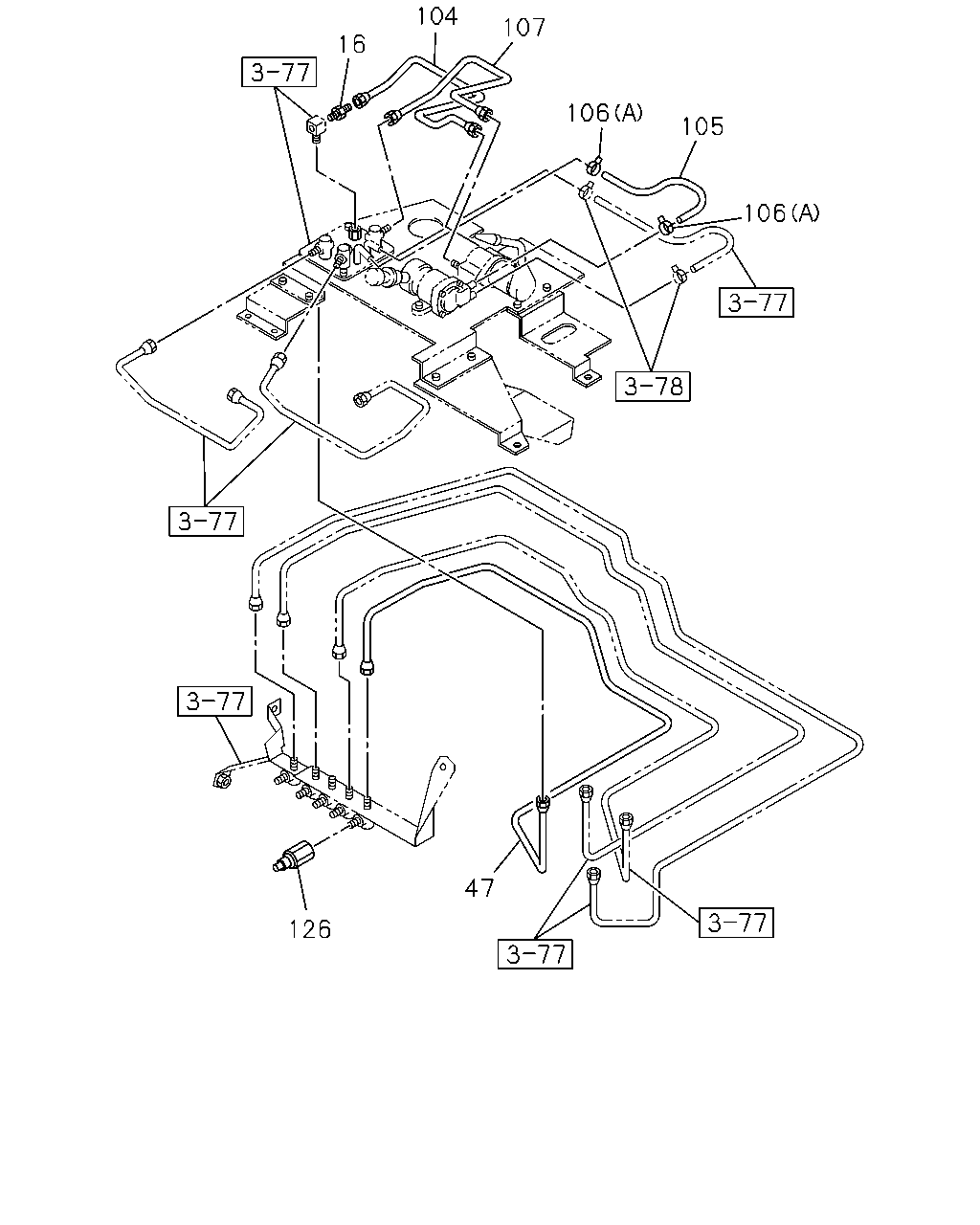

[380A] CAB SIDE;FULL TRAILER PIPING (14 parça)

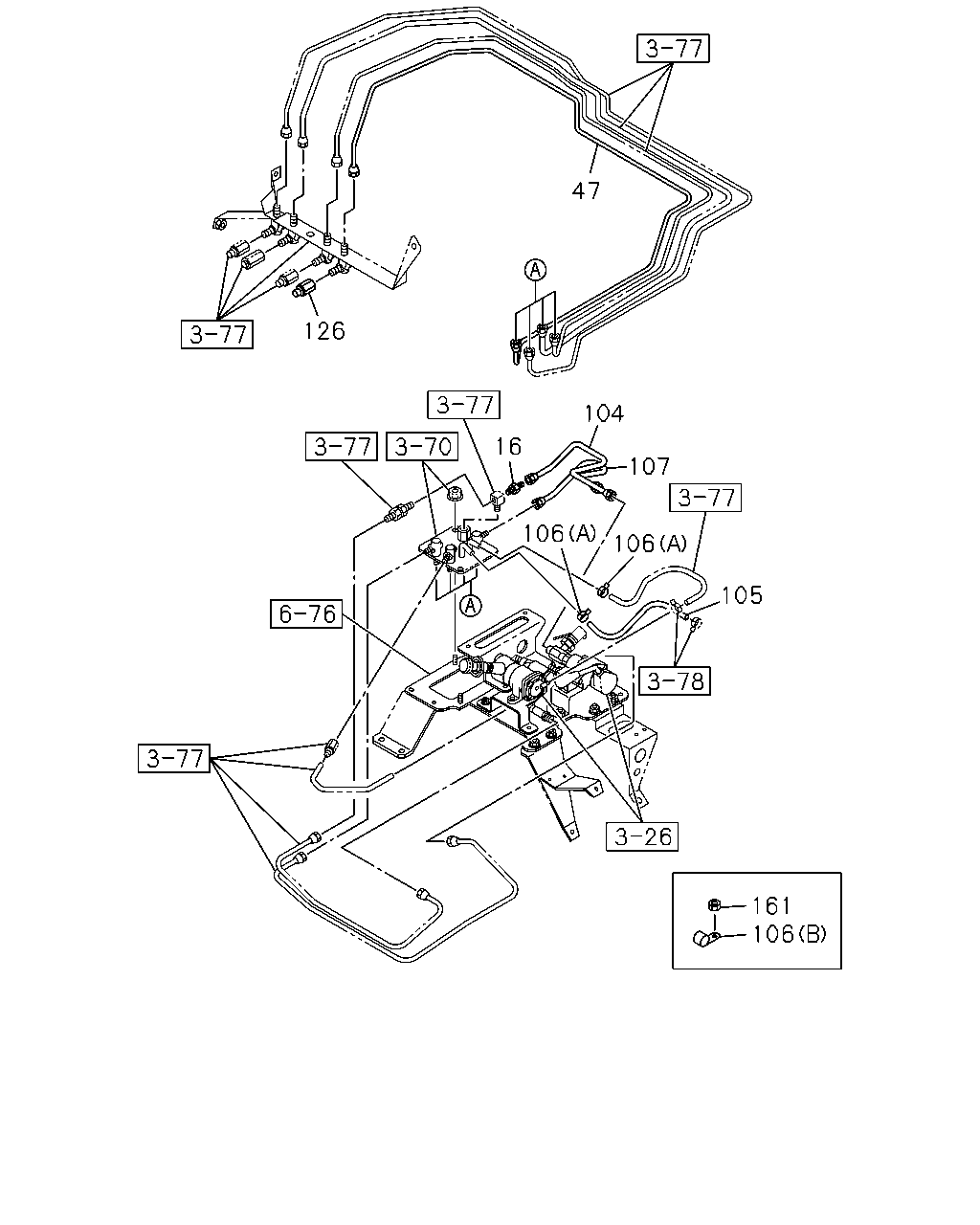

[380A] CAB SIDE;EXC.FULL TRAILER PIPING (16 parça)
▶
79
80
29
29
29
80
79
84
29
83
82
83
82
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
29
CONNECTOR; COCK
FULL TRAILER PIPING<Z25> (A)
1-09650-222-1
02
1
1008-
●
29
CONNECTOR; COCK
FULL TRAILER PIPING<Z25> (B) DIN12 & M16 STRAIGHT
1-09660-876-0
02
1
1008-
●
79
COUPLING; AIR,TRAILER
FULL TRAILER PIPING<Z25> (A) RED
1-47478-466-1
01
1
1008-
●
79
COUPLING; AIR,TRAILER
FULL TRAILER PIPING<Z25> (B) YELLOW
1-47478-467-1
01
1
1008-
●
80
NIPPLE; AIR COUPLING
FULL TRAILER PIPING<Z25>
1-09656-377-1
02
1
1008-
●
82
NUT; LK,CONNECTOR
FULL TRAILER PIPING<Z25> M16
0-91111-516-0
02
1
1008-
●
83
WASHER; LK,CONNECTOR
FULL TRAILER PIPING<Z25> ID=16.2
0-91510-516-0
02
1
1008-
●
84
BRACKET; COUPLER
FULL TRAILER PIPING<Z25>
1-47465-883-1
01
1
1008-
●
107
104
16
106
105
106
47
126
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
16
UNION; AIR PIPE
BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL(NLG) FULL TRAILER PIPING<Z25> M16 & PT1/4 STRAIGHT
0-92121-810-0
01
1
1008-1410
●
16
UNION; AIR PIPE
FULL TRAILER PIPING<Z25> M16 & PT1/4 STRAIGHT
0-92121-810-0
01
1
1411-
●
47
PIPE; AIR,UNION TO UNION
FULL TRAILER PIPING<Z25> L=1894 SERVICED BY L=1950
1-47428-854-0
01
1
1008-
●
104
PIPE; AIR,JOINT TO PARKING BRK VLV
BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL(NLG) FULL TRAILER PIPING<Z25>
1-49122-878-0
01
1
1008-1410
●
104
PIPE; AIR,JOINT TO PARKING BRK VLV
FULL TRAILER PIPING<Z25>
1-49122-878-0
01
1
1411-
●
105
PIPE; VINYL,EXH,PARKING BRK VLV
BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL(NLG) FULL TRAILER PIPING<Z25> L=240 ID=9.5 SERVICED BY L=10000
9-09914-701-0
01
1
1008-1410
●
105
PIPE; VINYL,EXH,PARKING BRK VLV
FULL TRAILER PIPING<Z25> L=240 ID=9.5 SERVICED BY L=10000
9-09914-701-0
01
1
1411-
●
106
CLIP; PIPE
(B) ID=16 L=20
0-95235-536-0
01
1
1008-
●
106
CLIP; PIPE
EXC. FULL TRAILER PIPING<Z25> (B) ID=16 L=20
0-95235-536-0
01
1
1008-
●
106
CLIP; PIPE
BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL(NLG) FULL TRAILER PIPING<Z25> (A) ID=14
8-94238-572-0
02
1
1008-1410
●
106
CLIP; PIPE
FULL TRAILER PIPING<Z25> (A) ID=14
8-94238-572-0
02
1
1411-
●
107
PIPE; AIR,JOINT TO PARKING BRK VLV
BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL(NLG) FULL TRAILER PIPING<Z25>
1-49116-328-1
01
1
1008-1410
●
107
PIPE; AIR,JOINT TO PARKING BRK VLV
FULL TRAILER PIPING<Z25>
1-49116-328-1
01
1
1411-
●
126
CONNECTOR; NYLON TUBE
FULL TRAILER PIPING<Z25> DIN8 & M14 STRAIGHT
1-09660-874-0
01
1
1008-
●
16
47
126
104
107
106
106
105
161
106
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
16
UNION; AIR PIPE
BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL(NLG) FULL TRAILER PIPING<Z25> M16 & PT1/4 STRAIGHT
0-92121-810-0
01
1
1008-1410
●
16
UNION; AIR PIPE
FULL TRAILER PIPING<Z25> M16 & PT1/4 STRAIGHT
0-92121-810-0
01
1
1411-
●
47
PIPE; AIR,UNION TO UNION
FULL TRAILER PIPING<Z25> L=1894 SERVICED BY L=1950
1-47428-854-0
01
1
1008-
●
104
PIPE; AIR,JOINT TO PARKING BRK VLV
BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL(NLG) FULL TRAILER PIPING<Z25>
1-49122-878-0
01
1
1008-1410
●
104
PIPE; AIR,JOINT TO PARKING BRK VLV
FULL TRAILER PIPING<Z25>
1-49122-878-0
01
1
1411-
●
105
PIPE; VINYL,EXH,PARKING BRK VLV
BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL(NLG) FULL TRAILER PIPING<Z25> L=240 ID=9.5 SERVICED BY L=10000
9-09914-701-0
01
1
1008-1410
●
105
PIPE; VINYL,EXH,PARKING BRK VLV
FULL TRAILER PIPING<Z25> L=240 ID=9.5 SERVICED BY L=10000
9-09914-701-0
01
1
1411-
●
106
CLIP; PIPE
(B) ID=16 L=20
0-95235-536-0
01
1
1008-
●
106
CLIP; PIPE
EXC. FULL TRAILER PIPING<Z25> (B) ID=16 L=20
0-95235-536-0
01
1
1008-
●
106
CLIP; PIPE
BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL(NLG) FULL TRAILER PIPING<Z25> (A) ID=14
8-94238-572-0
02
1
1008-1410
●
106
CLIP; PIPE
FULL TRAILER PIPING<Z25> (A) ID=14
8-94238-572-0
02
1
1411-
●
107
PIPE; AIR,JOINT TO PARKING BRK VLV
BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL(NLG) FULL TRAILER PIPING<Z25>
1-49116-328-1
01
1
1008-1410
●
107
PIPE; AIR,JOINT TO PARKING BRK VLV
FULL TRAILER PIPING<Z25>
1-49116-328-1
01
1
1411-
●
126
CONNECTOR; NYLON TUBE
FULL TRAILER PIPING<Z25> DIN8 & M14 STRAIGHT
1-09660-874-0
01
1
1008-
●
161
NUT; CLIP,VINYL PIPE
M8 FLANGE
0-91180-108-0
01
1
1008-
●
161
NUT; CLIP,VINYL PIPE
EXC. FULL TRAILER PIPING<Z25> M8 FLANGE
0-91180-108-0
01
1
1008-
●
