◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11323 - CYZ LHD MIDDLE EAST EURO2 WITH 3STEPS ▶ 3 - Brakes, Brake System ▶ 3-78 - FIXING PARTS; AIR PIPING ▶
3-78 — FIXING PARTS; AIR PIPING (#62622) — 728 parça

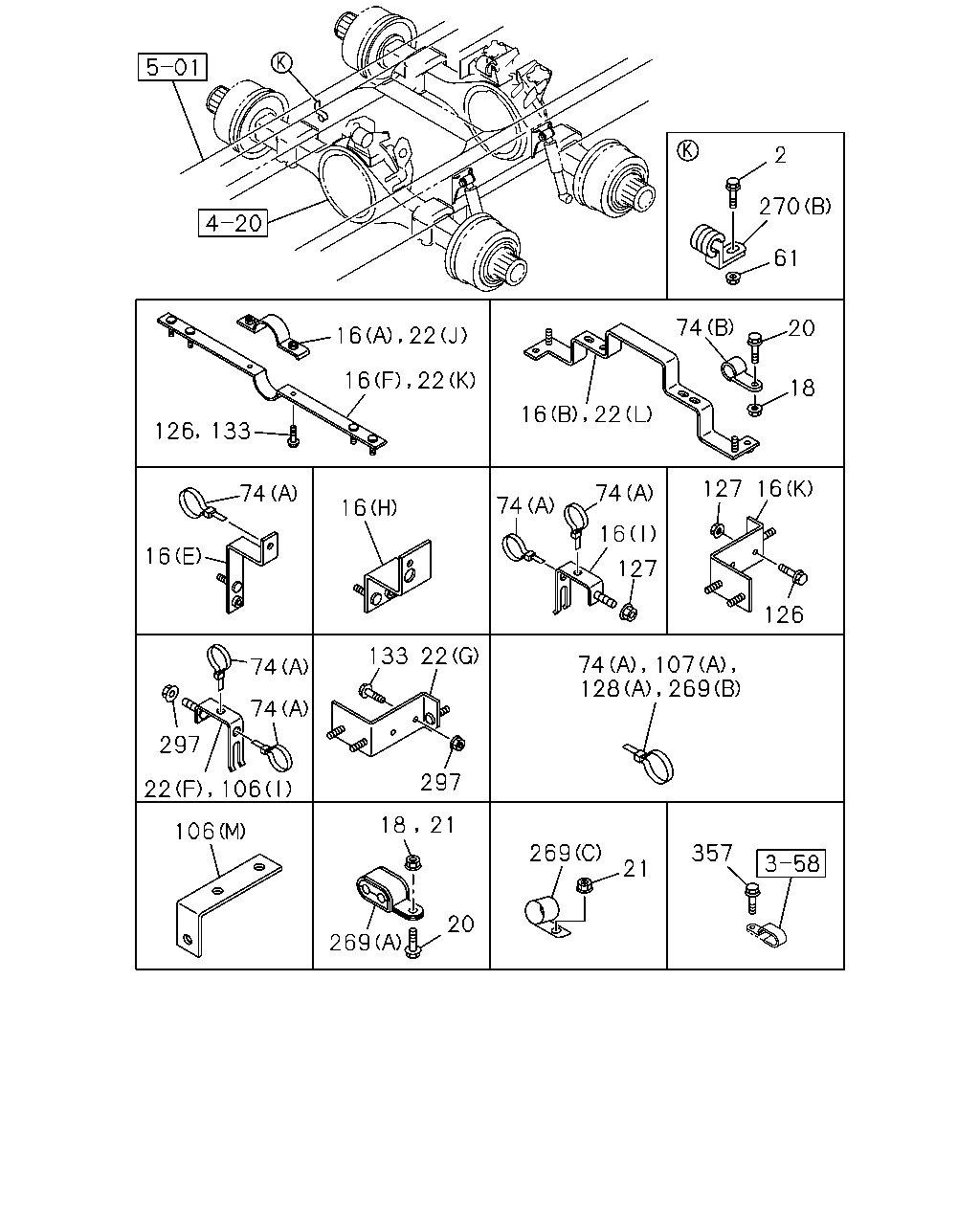

çizim 170286
2 270 61 74 20 18 22 16 22 22 16 16 133 126 74 16 16 74 74 16 127 127 16 126 107 269 128 74 22 133 74 74 106 297 22 106 18 297 21 269 21 357 20 269
BalonParca AdiParca NoAdetTipApplied Date A B
2 BOLT; CLIP FIX
M8X20 FLANGE 		0-28650-820-0 01 1 1008- ● ●
16 BRACKET; PIPE CLIP
(G) 		1-47479-693-0 01 1 1008- ●
16 BRACKET; PIPE CLIP
WHEEL BASE 5200MM(52W) (I) 		1-47479-381-2 01 1 1008-1410 ●
16 BRACKET; PIPE CLIP
WHEEL BASE 5500MM(55W) (I) 		1-47479-381-2 01 1 1008-1410 ●
16 BRACKET; PIPE CLIP
(D) L=30 		1-47479-481-0 01 1 1008-1410 ● ●
16 BRACKET; PIPE CLIP
(B) 		1-47479-898-0 01 1 1411- ● ●
16 BRACKET; PIPE CLIP
(A) 		1-47479-546-0 02 1 1008-1410 ● ●
16 BRACKET; PIPE CLIP
(A) 		1-47479-546-0 01 1 1411- ● ●
16 BRACKET; PIPE CLIP
(C) 		1-47479-554-0 01 1 1008- ● ●
16 BRACKET; PIPE CLIP
(F) 		1-47479-720-0 02 1 1008-1410 ● ●
16 BRACKET; PIPE CLIP
(F) 		1-47479-720-0 01 1 1411- ● ●
16 BRACKET; PIPE CLIP
(E) 		1-47479-721-0 01 1 1008- ● ●
16 BRACKET; PIPE CLIP
(H) 		1-47479-722-1 01 1 1008- ● ●
16 BRACKET; PIPE CLIP
(J) 		1-47479-800-0 01 1 1411- ● ●
16 BRACKET; PIPE CLIP
(B) 		1-47479-898-0 01 1 1008-1410 ● ●
16 BRACKET; PIPE CLIP
(B) 		1-47479-898-0 01 1 1008-1410 ● ●
16 BRACKET; PIPE CLIP
(K) 		8-98142-172-0 01 1 1008- ● ●
16 BRACKET; PIPE CLIP
WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W) (G) 		1-47479-693-0 02 1 1008- ●
16 BRACKET; PIPE CLIP
WHEEL BASE 5900MM(59W) (I) 		1-47479-381-2 02 1 1008-1410 ●
16 BRACKET; PIPE CLIP
WHEEL BASE 6600MM(66W) (I) 		1-47479-381-2 03 1 1008-1410 ●
16 BRACKET; PIPE CLIP
WHEEL BASE 6600MM(66W) (G) 		1-47479-693-0 03 1 1008- ●
18 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1008-1410 ●
18 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 1008- ● ●
18 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1008-1410 ●
20 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 1008-1410 ●
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1008- ● ●
20 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 1008-1410 ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 09 1 1411- ● ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 10 1 1008-1410 ● ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1411- ● ●
22 BRACKET; CLIP
WHEEL BASE 6600MM(66W) BATTERY LAYOUT REAR VAR1<NCT> (D) 		1-47479-870-0 02 1 1111-1410 ●
22 BRACKET; CLIP
WHEEL BASE 6600MM(66W) BATTERY LAYOUT REAR VAR1<NCT> (I) L=150 		1-47471-217-0 03 1 1411- ●
22 BRACKET; CLIP
(E) 		1-47479-693-0 01 1 1008- ●
22 BRACKET; CLIP
WHEEL BASE 5200MM(52W) (A) 		1-47479-329-0 01 1 1008- ●
22 BRACKET; CLIP
WHEEL BASE 5500MM(55W),WHEEL BASE 6600MM(66W) (A) 		1-47479-329-0 01 1 1008- ●
22 BRACKET; CLIP
WHEEL BASE 5200MM(52W) (F) 		1-47479-381-2 01 1 1008-1410 ●
22 BRACKET; CLIP
WHEEL BASE 5500MM(55W) (F) 		1-47479-381-2 01 1 1008-1410 ●
22 BRACKET; CLIP
(I) L=150 		1-47471-217-0 01 1 1411- ●
22 BRACKET; CLIP
(C) L=100 H=30 		1-47477-645-2 02 1 1008-1410 ● ●
22 BRACKET; CLIP
(J) 		1-47479-546-0 01 1 1411- ● ●
22 BRACKET; CLIP
(H) 		1-47479-554-0 01 1 1008- ● ●
22 BRACKET; CLIP
(B) 		1-47479-800-0 01 1 1008- ● ●
22 BRACKET; CLIP
(D) 		1-47479-870-0 01 1 1008-1110 ● ●
22 BRACKET; CLIP
(D) 		1-47479-870-0 01 1 1111-1410 ●
22 BRACKET; CLIP
WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W) (D) 		1-47479-870-0 01 1 1111-1410 ●
22 BRACKET; CLIP
WHEEL BASE 6600MM(66W) EXC. BATTERY LAYOUT REAR VAR1<NCT> (D) 		1-47479-870-0 01 1 1111-1410 ●
22 BRACKET; CLIP
(K) 		1-47479-720-0 01 1 1411- ● ●
22 BRACKET; CLIP
(G) 		8-98142-173-0 01 1 1008- ● ●
22 BRACKET; CLIP
(I) L=130 		1-47478-959-0 01 1 1008-1410 ●
22 BRACKET; CLIP
(I) L=150 		1-47471-217-0 02 1 1411- ●
22 BRACKET; CLIP
FULL TRAILER PIPING<Z25> (C) L=100 H=30 		1-47477-645-2 01 1 1008-1410 ●
22 BRACKET; CLIP
FULL TRAILER PIPING<Z25> (C) L=100 H=30 		1-47477-645-2 02 1 1411- ●
22 BRACKET; CLIP
WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W) (E) 		1-47479-693-0 02 1 1008- ●
22 BRACKET; CLIP
WHEEL BASE 5900MM(59W) (A) 		1-47471-188-0 01 1 1008- ●
22 BRACKET; CLIP
WHEEL BASE 5900MM(59W) (F) 		1-47479-381-2 02 1 1008-1410 ●
22 BRACKET; CLIP
(L) 		1-47479-898-0 01 1 1411- ● ●
22 BRACKET; CLIP
WHEEL BASE 6600MM(66W) (F) 		1-47479-381-2 03 1 1008-1410 ●
22 BRACKET; CLIP
(C) L=100 H=30 		1-47477-645-2 01 1 1411- ●
22 BRACKET; CLIP
EXC. FULL TRAILER PIPING<Z25> (C) L=100 H=30 		1-47477-645-2 01 1 1411- ●
22 BRACKET; CLIP
WHEEL BASE 6600MM(66W) (E) 		1-47479-693-0 03 1 1008- ●
61 NUT; CLIP FIX
M8 FLANGE 		0-91180-108-0 02 1 1411- ● ●
61 NUT; CLIP FIX
M8 FLANGE 		0-91180-108-0 03 1 1008-1410 ● ●
61 NUT; CLIP FIX
M8 FLANGE 		0-91180-108-0 01 1 1411- ● ●
74 CLIP; NYLON TUBE
FULL TRAILER PIPING<Z25> (A) L=350 		1-09707-183-0 02 1 1008-1410 ●
74 CLIP; NYLON TUBE
FULL TRAILER PIPING<Z25> (A) L=350 		1-09707-183-0 04 1 1411- ●
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 18 1 1008- ●
74 CLIP; NYLON TUBE
(B) ID=13 		1-09701-030-1 03 1 1411- ● ●
74 CLIP; NYLON TUBE
(C) ID=16 H=25 L=25 		1-09701-162-0 01 1 1008-1410 ● ●
74 CLIP; NYLON TUBE
(C) ID=35 H=45 L=33 		1-09700-947-0 01 1 1008-1410 ●
74 CLIP; NYLON TUBE
TRAILER BRAKE HAND CONTROL(NLG) FULL TRAILER PIPING<Z25> (A) L=350 		1-09707-183-0 01 1 1008-1410 ●
74 CLIP; NYLON TUBE
WHEEL BASE 5500MM(55W) (A) L=350 		1-09707-183-0 19 1 1008-1410 ●
74 CLIP; NYLON TUBE
WHEEL BASE 5500MM(55W) (A) L=350 		1-09707-183-0 20 1 1411- ●
74 CLIP; NYLON TUBE
WHEEL BASE 5900MM(59W) (A) L=350 		1-09707-183-0 20 1 1008-1410 ●
74 CLIP; NYLON TUBE
WHEEL BASE 5900MM(59W) (A) L=350 		1-09707-183-0 21 1 1411- ●
74 CLIP; NYLON TUBE
WHEEL BASE 6600MM(66W) BATTERY LAYOUT REAR VAR1<NCT> (A) L=350 		1-09707-183-0 24 1 1008- ●
74 CLIP; NYLON TUBE
WHEEL BASE 6600MM(66W) EXC. BATTERY LAYOUT REAR VAR1<NCT> (A) L=350 		1-09707-183-0 22 1 1008-1410 ●
74 CLIP; NYLON TUBE
WHEEL BASE 6600MM(66W) EXC. BATTERY LAYOUT REAR VAR1<NCT> (A) L=350 		1-09707-183-0 23 1 1411- ●
106 BRACKET; TUBE CLIP
(C) 		1-47471-108-0 01 1 1008- ●
106 BRACKET; TUBE CLIP
EXC. BATTERY LAYOUT REAR VAR1<NCT> (C) 		1-47471-108-0 01 1 1008- ●
106 BRACKET; TUBE CLIP
(L) 		1-47479-870-0 01 1 1008- ●
106 BRACKET; TUBE CLIP
EXC. BATTERY LAYOUT REAR VAR1<NCT> (L) 		1-47479-870-0 01 1 1008- ●
106 BRACKET; TUBE CLIP
(A) 		8-98155-060-0 01 1 1008-1410 ●
106 BRACKET; TUBE CLIP
EXC. BATTERY LAYOUT REAR VAR1<NCT> (A) 		8-98155-060-0 01 1 1008-1410 ●
106 BRACKET; TUBE CLIP
(A) 		8-98243-283-0 01 1 1411- ●
106 BRACKET; TUBE CLIP
EXC. BATTERY LAYOUT REAR VAR1<NCT> (A) 		8-98243-283-0 01 1 1411- ●
106 BRACKET; TUBE CLIP
(B) 		1-47477-514-3 01 1 1008-1410 ● ●
106 BRACKET; TUBE CLIP
(B) 		1-47477-514-3 02 1 1411- ● ●
106 BRACKET; TUBE CLIP
(I) 		1-47479-381-2 02 1 1008-1410 ● ●
106 BRACKET; TUBE CLIP
(L) 		8-98224-856-1 01 1 1411- ● ●
106 BRACKET; TUBE CLIP
(J) 		1-47479-553-0 01 1 1008- ● ●
106 BRACKET; TUBE CLIP
(D) 		8-98046-949-0 01 1 1008- ● ●
106 BRACKET; TUBE CLIP
(E) 		8-98052-408-0 01 1 1008-1412 ● ●
106 BRACKET; TUBE CLIP
(E) 		8-98297-188-0 01 1 1501- ● ●
106 BRACKET; TUBE CLIP
(F) 		8-98052-410-0 01 1 1008- ● ●
106 BRACKET; TUBE CLIP
(G) 		8-98057-133-0 01 1 1008-1410 ● ●
106 BRACKET; TUBE CLIP
(M) L=82 B=20 		8-98259-390-0 01 1 1411- ● ●
106 BRACKET; TUBE CLIP
(H) 		8-98061-758-0 01 1 1008- ● ●
106 BRACKET; TUBE CLIP
BATTERY LAYOUT REAR VAR1<NCT> (K) 		1-47479-754-0 01 1 1008- ●
107 CLIP; NYLON TUBE
(A) L=600 		1-09707-107-1 02 1 1203-1410 ● ●
107 CLIP; NYLON TUBE
MJX16P M/T(Y3Z) (B) ID=15 L=28 		1-09701-216-0 01 1 1008-1209 ● ●
107 CLIP; NYLON TUBE
MJX16P M/T(Y3Z) (B) ID=15 L=28 		1-09701-216-0 01 1 1210-1410 ●
107 CLIP; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=15 L=28 		1-09701-216-0 01 1 1411- ● ●
107 CLIP; NYLON TUBE
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=15 L=28 		1-09701-216-0 01 1 1411- ●
107 CLIP; NYLON TUBE
MJX16P M/T(Y3Z) (D) ID=5-12 L=14.5 		1-09987-221-0 02 1 1008-1209 ● ●
107 CLIP; NYLON TUBE
MJX16P M/T(Y3Z) (D) ID=5-12 L=14.5 		1-09987-221-0 02 1 1210-1410 ●
107 CLIP; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) ID=5-12 L=14.5 		1-09987-221-0 02 1 1411- ● ●
107 CLIP; NYLON TUBE
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) ID=5-12 L=14.5 		1-09987-221-0 02 1 1411- ●
107 CLIP; NYLON TUBE
(B) ID=35 L=33 		1-09700-945-0 02 1 1008- ● ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 01 1 1008-1410 ● ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 14 1 1411- ● ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 15 1 1008-1202 ● ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 13 1 1203-1410 ● ●
107 CLIP; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=350 		1-09707-183-0 02 1 1411- ● ●
107 CLIP; NYLON TUBE
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=350 		1-09707-183-0 02 1 1411- ●
107 CLIP; NYLON TUBE
(B) ID=19 L=60 		0-95235-896-0 01 1 1008-1410 ● ●
107 CLIP; NYLON TUBE
(D) ID=13-18 L=14.5 		1-09709-290-0 01 1 1411- ● ●
107 CLIP; NYLON TUBE
(C) ID=21 L=30 H=40 		1-09700-991-1 01 1 1008-1410 ● ●
107 CLIP; NYLON TUBE
(C) ID=31 H=30 L=35 		1-09700-994-0 02 1 1008-1410 ● ●
107 CLIP; NYLON TUBE
(C) ID=35 H=45 L=33 		1-09700-947-0 01 1 1411- ● ●
107 CLIP; NYLON TUBE
(C) ID=45 H=31 L=35 		1-09701-308-0 02 1 1008-1410 ● ●
107 CLIP; NYLON TUBE
(C) ID=45 H=31 L=35 		1-09701-308-0 01 1 1411- ● ●
107 CLIP; NYLON TUBE
(C) ID=45 H=31 L=35 		1-09701-308-0 01 1 1411- ● ●
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 1008- ●
126 BOLT; CLIP BRKT
M8X12 FLANGE 		0-28050-812-0 04 1 1008-1410 ● ●
126 BOLT; CLIP BRKT
M8X12 FLANGE 		0-28050-812-0 02 1 1411- ● ●
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 1008-1410 ● ●
126 BOLT; CLIP BRKT
M8X35 FLANGE 		0-28650-835-0 03 1 1008-1410 ● ●
126 BOLT; CLIP BRKT
M8X35 FLANGE 		0-28650-835-0 02 1 1411- ● ●
126 BOLT; CLIP BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W) M8X25 FLANGE 		0-28650-825-0 02 1 1008-1410 ●
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1411- ● ●
126 BOLT; CLIP BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W) M8X25 FLANGE 		0-28650-825-0 02 1 1411- ●
126 BOLT; CLIP BRKT
WHEEL BASE 6600MM(66W) M8X25 FLANGE 		0-28650-825-0 03 1 1008- ●
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 05 1 1008-1410 ●
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 03 1 1411- ●
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 02 1 1008- ● ●
127 NUT; CLIP BRKT
WHEEL BASE 5500MM(55W) M8 FLANGE 		0-91180-108-0 06 1 1008-1410 ●
127 NUT; CLIP BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W) M8 FLANGE 		0-91180-108-0 04 1 1411- ●
127 NUT; CLIP BRKT
WHEEL BASE 5900MM(59W) M8 FLANGE 		0-91180-108-0 07 1 1008-1410 ●
127 NUT; CLIP BRKT
WHEEL BASE 6600MM(66W) M8 FLANGE 		0-91180-108-0 09 1 1008-1410 ●
127 NUT; CLIP BRKT
WHEEL BASE 6600MM(66W) M8 FLANGE 		0-91180-108-0 05 1 1411- ●
128 CLIP; NYLON TUBE
(B) ID=13-18 L=18 		1-09709-291-0 01 1 1411- ● ●
128 CLIP; NYLON TUBE
WHEEL BASE 5900MM(59W) (A) L=350 		1-09707-183-0 19 1 1008-1410 ●
128 CLIP; NYLON TUBE
WHEEL BASE 5900MM(59W) (A) L=350 		1-09707-183-0 18 1 1411- ●
128 CLIP; NYLON TUBE
WHEEL BASE 6600MM(66W) (A) L=350 		1-09707-183-0 21 1 1008-1410 ●
128 CLIP; NYLON TUBE
WHEEL BASE 6600MM(66W) (A) L=350 		1-09707-183-0 20 1 1411- ●
128 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 17 1 1008-1410 ●
128 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 16 1 1411- ●
128 CLIP; NYLON TUBE
WHEEL BASE 5500MM(55W) (A) L=350 		1-09707-183-0 18 1 1008-1410 ●
128 CLIP; NYLON TUBE
WHEEL BASE 5500MM(55W) (A) L=350 		1-09707-183-0 17 1 1411- ●
133 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 01 1 1312- ●
133 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 02 1 1008-1410 ●
133 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 01 1 1411- ●
133 BOLT; BRKT
EXC. MIXER TRUCK<RA2> M6X10 FLANGE 		0-28050-610-0 01 1 1008-1209 ●
133 BOLT; BRKT
M6X10 FLANGE 		0-28050-610-0 01 1 1008-1209 ●
133 BOLT; BRKT
M6X10 FLANGE 		0-28050-610-0 01 1 1210- ●
133 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 1008- ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1008-1410 ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1008-1410 ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1411- ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 03 1 1008-1410 ● ●
133 BOLT; BRKT
M8X12 FLANGE 		0-28050-812-0 02 1 1411- ● ●
133 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 05 1 1008-1410 ● ●
133 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 05 1 1008-1410 ●
133 BOLT; BRKT
EXC. BATTERY LAYOUT REAR VAR1<NCT> M8X35 FLANGE 		0-28650-835-0 05 1 1008-1410 ●
133 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 02 1 1411- ● ●
133 BOLT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W) M8X35 FLANGE 		0-28650-835-0 02 1 1411- ●
133 BOLT; BRKT
WHEEL BASE 6600MM(66W) EXC. BATTERY LAYOUT REAR VAR1<NCT> M8X35 FLANGE 		0-28650-835-0 02 1 1411- ●
133 BOLT; BRKT
BATTERY LAYOUT REAR VAR1<NCT> M8X35 FLANGE 		0-28650-835-0 01 1 1008-1410 ●
133 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 04 1 1411- ●
133 BOLT; BRKT
EXC. BATTERY LAYOUT REAR VAR1<NCT> M8X35 FLANGE 		0-28650-835-0 04 1 1411- ●
133 BOLT; BRKT
FULL TRAILER PIPING<Z25> M8X25 FLANGE 		0-28650-825-0 01 1 1008- ●
133 BOLT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W) M8X25 FLANGE 		0-28650-825-0 03 1 1008- ●
133 BOLT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W) M8X35 FLANGE 		0-28650-835-0 03 1 1008-1410 ●
133 BOLT; BRKT
WHEEL BASE 6600MM(66W) EXC. BATTERY LAYOUT REAR VAR1<NCT> M8X35 FLANGE 		0-28650-835-0 03 1 1008-1410 ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 03 1 1411- ● ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 03 1 1411- ● ●
133 BOLT; BRKT
WHEEL BASE 6600MM(66W) M8X25 FLANGE 		0-28650-825-0 04 1 1008-1410 ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 1411- ● ●
133 BOLT; BRKT
WHEEL BASE 6600MM(66W) M8X25 FLANGE 		0-28650-825-0 04 1 1411- ●
133 BOLT; BRKT
WHEEL BASE 6600MM(66W) BATTERY LAYOUT REAR VAR1<NCT> M8X35 FLANGE 		0-28650-835-0 04 1 1008-1410 ●
133 BOLT; BRKT
WHEEL BASE 6600MM(66W) BATTERY LAYOUT REAR VAR1<NCT> M8X35 FLANGE 		0-28650-835-0 03 1 1411- ●
269 CLIP; BAND,NYLON TUBE
(C) ID=13 		1-09701-030-1 03 1 1008- ● ●
269 CLIP; BAND,NYLON TUBE
(A) ID=11X2 L=42 		1-09701-306-0 06 1 1008- ● ●
269 CLIP; BAND,NYLON TUBE
(B) L=350 		1-09707-183-0 02 1 1008- ● ●
270 CLIP; NYLON TUBE
(B) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 1008- ● ●
270 CLIP; NYLON TUBE
(A) ID=28 L=32 		1-09701-107-1 03 1 1008- ● ●
270 CLIP; NYLON TUBE
(B) ID=16 H=25 L=25 		1-09701-162-0 02 1 1008- ● ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 08 1 1008-1410 ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 06 1 1411- ●
297 NUT; BRKT
EXC. MIXER TRUCK<RA2> M12 FLANGE 		0-91180-212-0 01 1 1008-1209 ●
297 NUT; BRKT
M12 FLANGE 		0-91180-212-0 01 1 1008-1209 ●
297 NUT; BRKT
M12 FLANGE 		0-91180-212-0 01 1 1210-1410 ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1008-1410 ● ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1411- ● ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1411- ●
297 NUT; BRKT
FULL TRAILER PIPING<Z25> M8 FLANGE 		0-91180-108-0 01 1 1411- ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 05 1 1008-1410 ● ●
297 NUT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6600MM(66W) EXC. BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE 		0-91180-108-0 08 1 1411- ●
297 NUT; BRKT
WHEEL BASE 5900MM(59W) BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE 		0-91180-108-0 08 1 1411- ●
297 NUT; BRKT
FULL TRAILER PIPING<Z25> M8 FLANGE 		0-91180-108-0 01 1 1008-1311 ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1312-1410 ●
297 NUT; BRKT
FULL TRAILER PIPING<Z25> M8 FLANGE 		0-91180-108-0 01 1 1312-1410 ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1411- ● ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1411- ● ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1411- ● ●
297 NUT; BRKT
WHEEL BASE 5500MM(55W) M8 FLANGE 		0-91180-108-0 10 1 1008-1410 ●
297 NUT; BRKT
WHEEL BASE 5900MM(59W) EXC. BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE 		0-91180-108-0 10 1 1008-1410 ●
297 NUT; BRKT
WHEEL BASE 5900MM(59W) EXC. BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE 		0-91180-108-0 07 1 1411- ●
297 NUT; BRKT
WHEEL BASE 5900MM(59W) BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE 		0-91180-108-0 11 1 1008-1410 ●
297 NUT; BRKT
WHEEL BASE 6600MM(66W) BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE 		0-91180-108-0 14 1 1008-1410 ●
297 NUT; BRKT
WHEEL BASE 6600MM(66W) BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE 		0-91180-108-0 10 1 1411- ●
297 NUT; BRKT
WHEEL BASE 6600MM(66W) EXC. BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE 		0-91180-108-0 12 1 1008-1410 ●
357 BOLT; CLIP FIX
M8X10 FLANGE 		0-28050-810-0 02 1 1008- ● ●

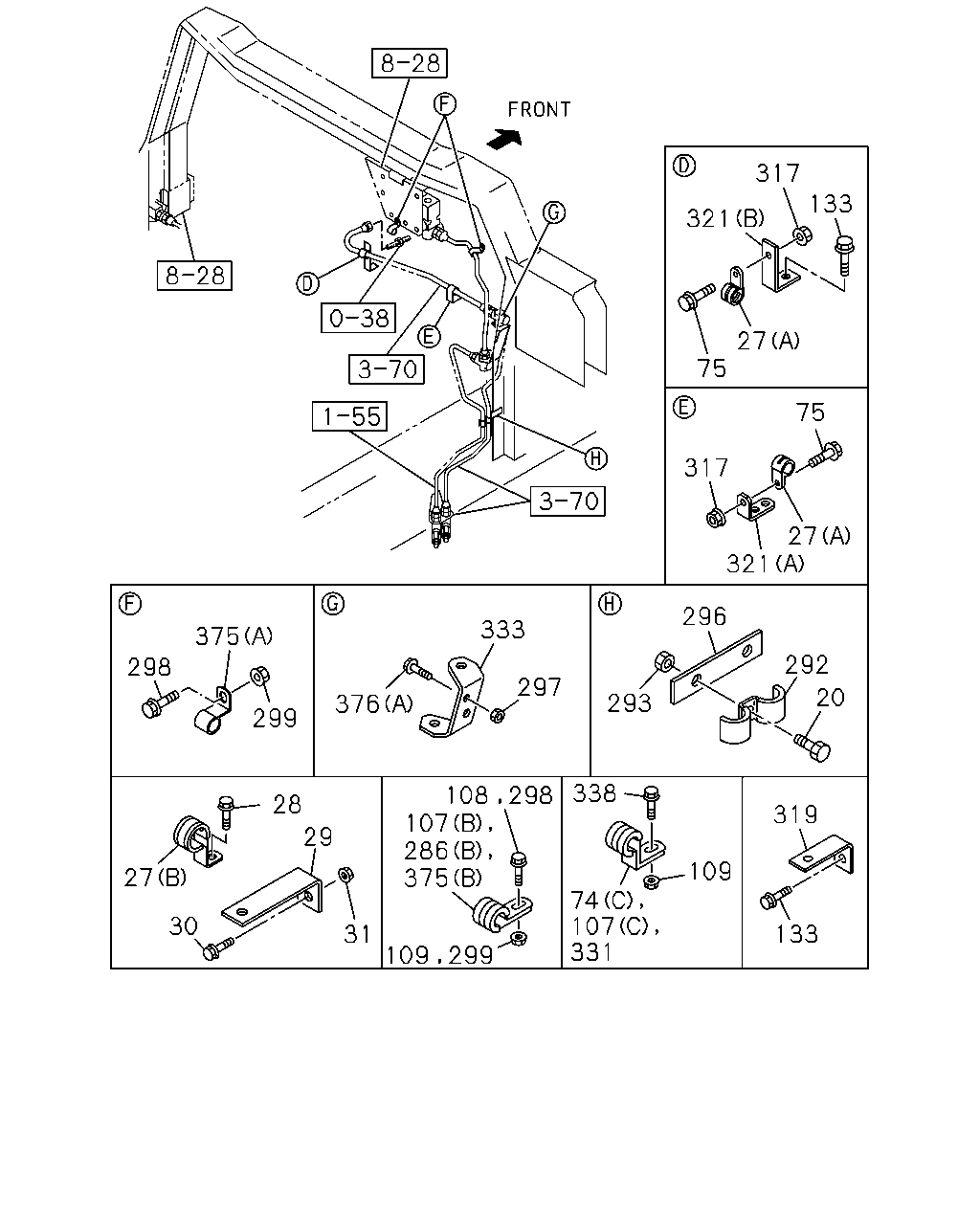

çizim 170287
321 317 133 27 75 75 317 27 321 375 298 299 376 333 297 296 293 292 20 319 133 109 338 298 108 107 286 375 74 107 331 299 109 31 29 28 27 30
BalonParca AdiParca NoAdetTipApplied Date A B
20 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 1008-1410 ●
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1008- ● ●
20 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 1008-1410 ●
27 CLIP; FLEX HOSE
(B) ID=25 H=30 L=35 		1-09700-875-0 02 1 1008- ●
27 CLIP; FLEX HOSE
EXC. BATTERY LAYOUT REAR VAR1<NCT> (B) ID=25 H=30 L=35 		1-09700-875-0 02 1 1008- ●
27 CLIP; FLEX HOSE
EXC. MIXER TRUCK<RA2> (A) ID=15 L=28 		1-09701-216-0 02 1 1008-1209 ●
27 CLIP; FLEX HOSE
(A) ID=15 L=28 		1-09701-216-0 02 1 1008-1209 ●
27 CLIP; FLEX HOSE
(A) ID=15 L=28 		1-09701-216-0 02 1 1210- ●
27 CLIP; FLEX HOSE
BATTERY LAYOUT REAR VAR1<NCT> (A) ID=26 L=27 		1-09701-006-0 01 1 1008- ●
28 BOLT; CLIP,FLEX HOSE
M8X20 FLANGE 		0-28650-820-0 02 1 1008- ●
28 BOLT; CLIP,FLEX HOSE
EXC. BATTERY LAYOUT REAR VAR1<NCT> M8X20 FLANGE 		0-28650-820-0 02 1 1008- ●
28 BOLT; CLIP,FLEX HOSE
BATTERY LAYOUT REAR VAR1<NCT> M8X20 FLANGE 		0-28650-820-0 01 1 1008- ●
29 BRACKET; CLIP,AIR PIPE
BATTERY LAYOUT REAR VAR1<NCT> L=95 		1-82699-085-0 01 1 1008- ●
30 BOLT; CLIP BRKT
BATTERY LAYOUT REAR VAR1<NCT> M8X35 FLANGE 		0-28650-835-0 01 1 1008- ●
31 NUT; CLIP BRKT
BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE 		0-91180-108-0 01 1 1008- ●
74 CLIP; NYLON TUBE
FULL TRAILER PIPING<Z25> (A) L=350 		1-09707-183-0 02 1 1008-1410 ●
74 CLIP; NYLON TUBE
FULL TRAILER PIPING<Z25> (A) L=350 		1-09707-183-0 04 1 1411- ●
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 18 1 1008- ●
74 CLIP; NYLON TUBE
(B) ID=13 		1-09701-030-1 03 1 1411- ● ●
74 CLIP; NYLON TUBE
(C) ID=16 H=25 L=25 		1-09701-162-0 01 1 1008-1410 ● ●
74 CLIP; NYLON TUBE
(C) ID=35 H=45 L=33 		1-09700-947-0 01 1 1008-1410 ●
74 CLIP; NYLON TUBE
TRAILER BRAKE HAND CONTROL(NLG) FULL TRAILER PIPING<Z25> (A) L=350 		1-09707-183-0 01 1 1008-1410 ●
74 CLIP; NYLON TUBE
WHEEL BASE 5500MM(55W) (A) L=350 		1-09707-183-0 19 1 1008-1410 ●
74 CLIP; NYLON TUBE
WHEEL BASE 5500MM(55W) (A) L=350 		1-09707-183-0 20 1 1411- ●
74 CLIP; NYLON TUBE
WHEEL BASE 5900MM(59W) (A) L=350 		1-09707-183-0 20 1 1008-1410 ●
74 CLIP; NYLON TUBE
WHEEL BASE 5900MM(59W) (A) L=350 		1-09707-183-0 21 1 1411- ●
74 CLIP; NYLON TUBE
WHEEL BASE 6600MM(66W) BATTERY LAYOUT REAR VAR1<NCT> (A) L=350 		1-09707-183-0 24 1 1008- ●
74 CLIP; NYLON TUBE
WHEEL BASE 6600MM(66W) EXC. BATTERY LAYOUT REAR VAR1<NCT> (A) L=350 		1-09707-183-0 22 1 1008-1410 ●
74 CLIP; NYLON TUBE
WHEEL BASE 6600MM(66W) EXC. BATTERY LAYOUT REAR VAR1<NCT> (A) L=350 		1-09707-183-0 23 1 1411- ●
75 BOLT; CLIP
EXC. MIXER TRUCK<RA2> M8X20 FLANGE 		0-28650-820-0 02 1 1008-1209 ●
75 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 1008-1209 ●
75 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 1210- ●
107 CLIP; NYLON TUBE
(A) L=600 		1-09707-107-1 02 1 1203-1410 ● ●
107 CLIP; NYLON TUBE
MJX16P M/T(Y3Z) (B) ID=15 L=28 		1-09701-216-0 01 1 1008-1209 ● ●
107 CLIP; NYLON TUBE
MJX16P M/T(Y3Z) (B) ID=15 L=28 		1-09701-216-0 01 1 1210-1410 ●
107 CLIP; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=15 L=28 		1-09701-216-0 01 1 1411- ● ●
107 CLIP; NYLON TUBE
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=15 L=28 		1-09701-216-0 01 1 1411- ●
107 CLIP; NYLON TUBE
MJX16P M/T(Y3Z) (D) ID=5-12 L=14.5 		1-09987-221-0 02 1 1008-1209 ● ●
107 CLIP; NYLON TUBE
MJX16P M/T(Y3Z) (D) ID=5-12 L=14.5 		1-09987-221-0 02 1 1210-1410 ●
107 CLIP; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) ID=5-12 L=14.5 		1-09987-221-0 02 1 1411- ● ●
107 CLIP; NYLON TUBE
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) ID=5-12 L=14.5 		1-09987-221-0 02 1 1411- ●
107 CLIP; NYLON TUBE
(B) ID=35 L=33 		1-09700-945-0 02 1 1008- ● ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 01 1 1008-1410 ● ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 14 1 1411- ● ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 15 1 1008-1202 ● ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 13 1 1203-1410 ● ●
107 CLIP; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=350 		1-09707-183-0 02 1 1411- ● ●
107 CLIP; NYLON TUBE
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=350 		1-09707-183-0 02 1 1411- ●
107 CLIP; NYLON TUBE
(B) ID=19 L=60 		0-95235-896-0 01 1 1008-1410 ● ●
107 CLIP; NYLON TUBE
(D) ID=13-18 L=14.5 		1-09709-290-0 01 1 1411- ● ●
107 CLIP; NYLON TUBE
(C) ID=21 L=30 H=40 		1-09700-991-1 01 1 1008-1410 ● ●
107 CLIP; NYLON TUBE
(C) ID=31 H=30 L=35 		1-09700-994-0 02 1 1008-1410 ● ●
107 CLIP; NYLON TUBE
(C) ID=35 H=45 L=33 		1-09700-947-0 01 1 1411- ● ●
107 CLIP; NYLON TUBE
(C) ID=45 H=31 L=35 		1-09701-308-0 02 1 1008-1410 ● ●
107 CLIP; NYLON TUBE
(C) ID=45 H=31 L=35 		1-09701-308-0 01 1 1411- ● ●
107 CLIP; NYLON TUBE
(C) ID=45 H=31 L=35 		1-09701-308-0 01 1 1411- ● ●
108 BOLT; TUBE CLIP
MJX16P M/T(Y3Z) M8X20 FLANGE 		0-28650-820-0 01 1 1008-1209 ● ●
108 BOLT; TUBE CLIP
MJX16P M/T(Y3Z) M8X20 FLANGE 		0-28650-820-0 01 1 1210-1410 ●
108 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 1008- ● ●
108 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 03 1 1008-1410 ● ●
108 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1411- ● ●
108 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1411- ● ●
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 1008- ● ●
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28650-825-0 03 1 1008-1410 ● ●
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 1411- ● ●
108 BOLT; TUBE CLIP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8X25 FLANGE 		0-28650-825-0 01 1 1411- ● ●
108 BOLT; TUBE CLIP
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8X25 FLANGE 		0-28650-825-0 01 1 1411- ●
108 BOLT; TUBE CLIP
M8X30 FLANGE 		0-28650-830-0 04 1 1008-1410 ● ●
108 BOLT; TUBE CLIP
M8X30 FLANGE 		0-28650-830-0 01 1 1411- ● ●
108 BOLT; TUBE CLIP
M8X35 FLANGE 		0-28650-835-0 01 1 1008- ● ●
109 NUT; TUBE CLIP
MJX16P M/T(Y3Z) M8 FLANGE 		0-91180-108-0 01 1 1008-1209 ● ●
109 NUT; TUBE CLIP
MJX16P M/T(Y3Z) M8 FLANGE 		0-91180-108-0 01 1 1210-1410 ●
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 01 1 1411- ● ●
109 NUT; TUBE CLIP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE 		0-91180-108-0 01 1 1411- ● ●
109 NUT; TUBE CLIP
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE 		0-91180-108-0 01 1 1411- ●
109 NUT; TUBE CLIP
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) M8 FLANGE 		0-91180-108-0 01 1 1411- ●
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 03 1 1008- ● ●
133 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 01 1 1312- ●
133 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 02 1 1008-1410 ●
133 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 01 1 1411- ●
133 BOLT; BRKT
EXC. MIXER TRUCK<RA2> M6X10 FLANGE 		0-28050-610-0 01 1 1008-1209 ●
133 BOLT; BRKT
M6X10 FLANGE 		0-28050-610-0 01 1 1008-1209 ●
133 BOLT; BRKT
M6X10 FLANGE 		0-28050-610-0 01 1 1210- ●
133 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 1008- ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1008-1410 ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1008-1410 ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1411- ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 03 1 1008-1410 ● ●
133 BOLT; BRKT
M8X12 FLANGE 		0-28050-812-0 02 1 1411- ● ●
133 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 05 1 1008-1410 ● ●
133 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 05 1 1008-1410 ●
133 BOLT; BRKT
EXC. BATTERY LAYOUT REAR VAR1<NCT> M8X35 FLANGE 		0-28650-835-0 05 1 1008-1410 ●
133 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 02 1 1411- ● ●
133 BOLT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W) M8X35 FLANGE 		0-28650-835-0 02 1 1411- ●
133 BOLT; BRKT
WHEEL BASE 6600MM(66W) EXC. BATTERY LAYOUT REAR VAR1<NCT> M8X35 FLANGE 		0-28650-835-0 02 1 1411- ●
133 BOLT; BRKT
BATTERY LAYOUT REAR VAR1<NCT> M8X35 FLANGE 		0-28650-835-0 01 1 1008-1410 ●
133 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 04 1 1411- ●
133 BOLT; BRKT
EXC. BATTERY LAYOUT REAR VAR1<NCT> M8X35 FLANGE 		0-28650-835-0 04 1 1411- ●
133 BOLT; BRKT
FULL TRAILER PIPING<Z25> M8X25 FLANGE 		0-28650-825-0 01 1 1008- ●
133 BOLT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W) M8X25 FLANGE 		0-28650-825-0 03 1 1008- ●
133 BOLT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W) M8X35 FLANGE 		0-28650-835-0 03 1 1008-1410 ●
133 BOLT; BRKT
WHEEL BASE 6600MM(66W) EXC. BATTERY LAYOUT REAR VAR1<NCT> M8X35 FLANGE 		0-28650-835-0 03 1 1008-1410 ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 03 1 1411- ● ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 03 1 1411- ● ●
133 BOLT; BRKT
WHEEL BASE 6600MM(66W) M8X25 FLANGE 		0-28650-825-0 04 1 1008-1410 ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 1411- ● ●
133 BOLT; BRKT
WHEEL BASE 6600MM(66W) M8X25 FLANGE 		0-28650-825-0 04 1 1411- ●
133 BOLT; BRKT
WHEEL BASE 6600MM(66W) BATTERY LAYOUT REAR VAR1<NCT> M8X35 FLANGE 		0-28650-835-0 04 1 1008-1410 ●
133 BOLT; BRKT
WHEEL BASE 6600MM(66W) BATTERY LAYOUT REAR VAR1<NCT> M8X35 FLANGE 		0-28650-835-0 03 1 1411- ●
286 CLIP; NYLON TUBE
MJX16P M/T(Y3Z) (B) ID=15 L=28 		1-09701-216-0 01 1 1411- ●
286 CLIP; NYLON TUBE
(A) ID=15 & 7 		1-09709-311-0 01 1 1008-1410 ● ●
286 CLIP; NYLON TUBE
MJT7S M/T(Y3E) (A) ID=15 & 7 		1-09709-311-0 01 1 1411- ● ●
292 CLIP; AIR PIPE
ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 01 1 1008- ● ●
293 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1008- ● ●
296 BRACKET; CLIP 1-47475-648-0 01 1 1411- ● ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 08 1 1008-1410 ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 06 1 1411- ●
297 NUT; BRKT
EXC. MIXER TRUCK<RA2> M12 FLANGE 		0-91180-212-0 01 1 1008-1209 ●
297 NUT; BRKT
M12 FLANGE 		0-91180-212-0 01 1 1008-1209 ●
297 NUT; BRKT
M12 FLANGE 		0-91180-212-0 01 1 1210-1410 ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1008-1410 ● ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1411- ● ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1411- ●
297 NUT; BRKT
FULL TRAILER PIPING<Z25> M8 FLANGE 		0-91180-108-0 01 1 1411- ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 05 1 1008-1410 ● ●
297 NUT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6600MM(66W) EXC. BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE 		0-91180-108-0 08 1 1411- ●
297 NUT; BRKT
WHEEL BASE 5900MM(59W) BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE 		0-91180-108-0 08 1 1411- ●
297 NUT; BRKT
FULL TRAILER PIPING<Z25> M8 FLANGE 		0-91180-108-0 01 1 1008-1311 ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1312-1410 ●
297 NUT; BRKT
FULL TRAILER PIPING<Z25> M8 FLANGE 		0-91180-108-0 01 1 1312-1410 ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1411- ● ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1411- ● ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1411- ● ●
297 NUT; BRKT
WHEEL BASE 5500MM(55W) M8 FLANGE 		0-91180-108-0 10 1 1008-1410 ●
297 NUT; BRKT
WHEEL BASE 5900MM(59W) EXC. BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE 		0-91180-108-0 10 1 1008-1410 ●
297 NUT; BRKT
WHEEL BASE 5900MM(59W) EXC. BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE 		0-91180-108-0 07 1 1411- ●
297 NUT; BRKT
WHEEL BASE 5900MM(59W) BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE 		0-91180-108-0 11 1 1008-1410 ●
297 NUT; BRKT
WHEEL BASE 6600MM(66W) BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE 		0-91180-108-0 14 1 1008-1410 ●
297 NUT; BRKT
WHEEL BASE 6600MM(66W) BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE 		0-91180-108-0 10 1 1411- ●
297 NUT; BRKT
WHEEL BASE 6600MM(66W) EXC. BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE 		0-91180-108-0 12 1 1008-1410 ●
298 BOLT; CLIP
MIXER TRUCK<RA2> M8X20 FLANGE 		0-28650-820-0 01 1 1008-1209 ●
298 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1210-1410 ●
298 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 03 1 1411- ●
298 BOLT; CLIP
MIXER TRUCK<RA2> M8X20 FLANGE 		0-28650-820-0 02 1 1008-1209 ●
298 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 1210-1410 ●
299 NUT; CLIP
MIXER TRUCK<RA2> M8 FLANGE 		0-91180-108-0 01 1 1008-1209 ●
299 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1210-1410 ●
299 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 1411- ●
299 NUT; CLIP
MIXER TRUCK<RA2> M8 FLANGE 		0-91180-108-0 02 1 1008-1209 ●
299 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1210-1410 ●
317 NUT; CLIP
EXC. MIXER TRUCK<RA2> M8 FLANGE 		0-91180-108-0 02 1 1008-1209 ●
317 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1008-1209 ●
317 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1210- ●
319 BRACKET; CLIP
L=75 		1-47477-119-0 01 1 1312- ●
321 BRACKET; CLIP
EXC. MIXER TRUCK<RA2> (A) 		1-47477-337-1 01 1 1008-1209 ●
321 BRACKET; CLIP
(A) 		1-47477-337-1 01 1 1008-1209 ●
321 BRACKET; CLIP
(A) 		1-47477-337-1 01 1 1210-1410 ●
321 BRACKET; CLIP
MJX16P M/T(Y3Z) (A) 		1-47477-337-1 01 1 1411- ●
321 BRACKET; CLIP
EXC. MIXER TRUCK<RA2> (B) L=75 		1-47478-328-0 01 1 1008-1209 ●
321 BRACKET; CLIP
(B) L=75 		1-47478-328-0 01 1 1008-1209 ●
321 BRACKET; CLIP
(B) L=75 		1-47478-328-0 01 1 1210- ●
331 CLIP; NYLON TUBE
BATTERY LAYOUT REAR VAR1<NCT> ID=13 H=75 L=25 		1-09700-601-0 02 1 1008- ●
333 BRACKET; BRK AIR PIPE 1-47477-045-0 01 1 1008- ● ●
338 BOLT; PIPE CLIP
BATTERY LAYOUT REAR VAR1<NCT> M8X30 FLANGE 		0-28650-830-0 02 1 1008- ●
375 CLIP; AIR PIPE
MIXER TRUCK<RA2> (B) ID=7 L=20 		0-95234-635-0 02 1 1008-1209 ●
375 CLIP; AIR PIPE
(B) ID=7 L=20 		0-95234-635-0 02 1 1210- ●
375 CLIP; AIR PIPE
MIXER TRUCK<RA2> (A) ID=6 H=20 L=20 		1-09700-603-0 01 1 1008-1209 ●
375 CLIP; AIR PIPE
(A) ID=6 H=20 L=20 		1-09700-603-0 01 1 1210- ●
376 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 1411-1510 ● ●
376 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1511- ● ●
376 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1008-1410 ● ●
376 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1411- ● ●
376 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1008-1410 ● ●
376 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 1411- ● ●
376 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 1008-1410 ● ●
376 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1411-1510 ● ●
376 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 1511- ● ●
376 BOLT; BRKT
(C) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 1008- ● ●

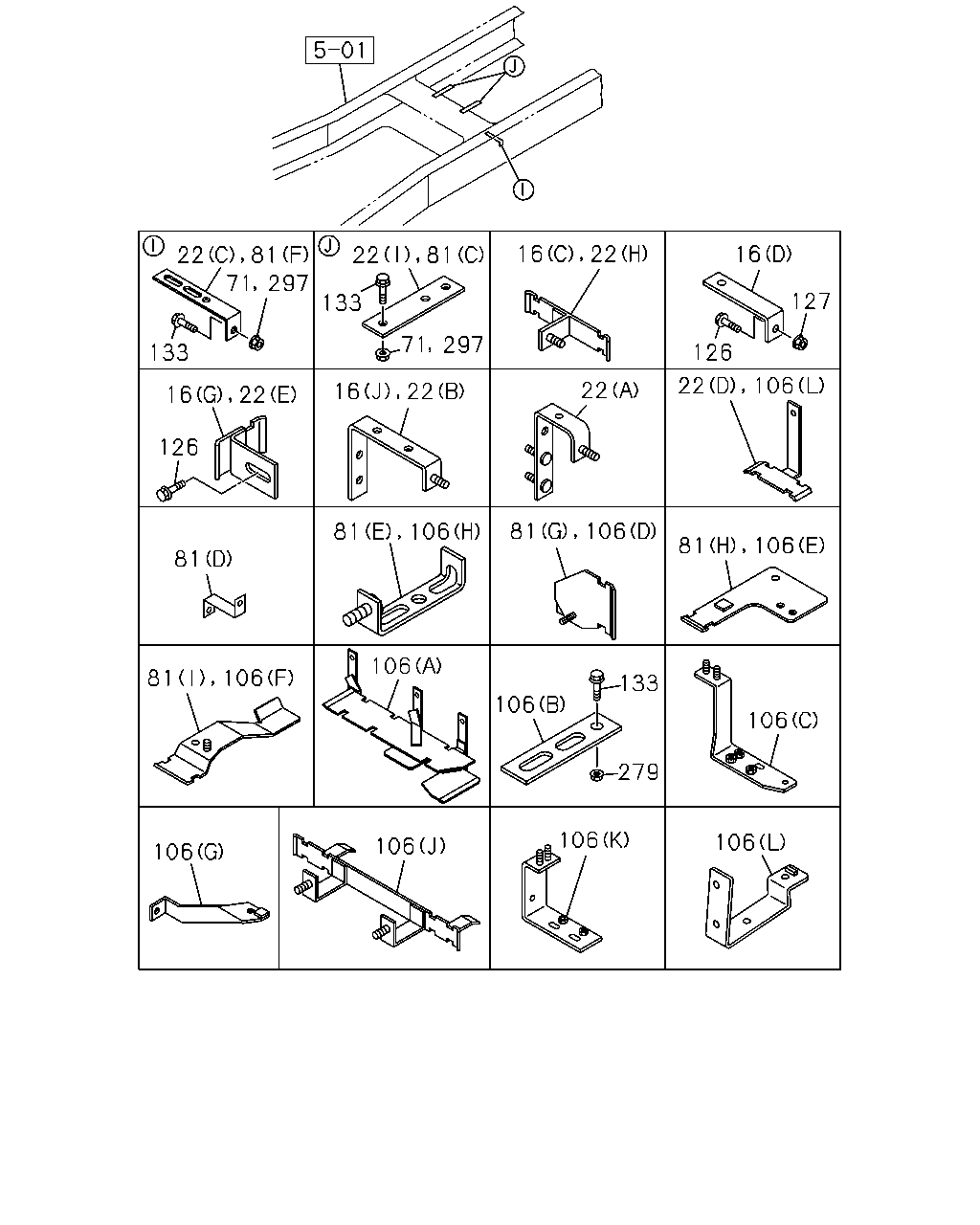

çizim 170305
16 127 126 22 106 16 22 22 81 297 71 133 297 81 71 22 133 16 22 16 22 22 126 81 81 106 81 106 81 106 106 106 81 106 133 106 106 279 106 106 106
BalonParca AdiParca NoAdetTipApplied Date A B
16 BRACKET; PIPE CLIP
(G) 		1-47479-693-0 01 1 1008- ●
16 BRACKET; PIPE CLIP
WHEEL BASE 5200MM(52W) (I) 		1-47479-381-2 01 1 1008-1410 ●
16 BRACKET; PIPE CLIP
WHEEL BASE 5500MM(55W) (I) 		1-47479-381-2 01 1 1008-1410 ●
16 BRACKET; PIPE CLIP
(D) L=30 		1-47479-481-0 01 1 1008-1410 ● ●
16 BRACKET; PIPE CLIP
(B) 		1-47479-898-0 01 1 1411- ● ●
16 BRACKET; PIPE CLIP
(A) 		1-47479-546-0 02 1 1008-1410 ● ●
16 BRACKET; PIPE CLIP
(A) 		1-47479-546-0 01 1 1411- ● ●
16 BRACKET; PIPE CLIP
(C) 		1-47479-554-0 01 1 1008- ● ●
16 BRACKET; PIPE CLIP
(F) 		1-47479-720-0 02 1 1008-1410 ● ●
16 BRACKET; PIPE CLIP
(F) 		1-47479-720-0 01 1 1411- ● ●
16 BRACKET; PIPE CLIP
(E) 		1-47479-721-0 01 1 1008- ● ●
16 BRACKET; PIPE CLIP
(H) 		1-47479-722-1 01 1 1008- ● ●
16 BRACKET; PIPE CLIP
(J) 		1-47479-800-0 01 1 1411- ● ●
16 BRACKET; PIPE CLIP
(B) 		1-47479-898-0 01 1 1008-1410 ● ●
16 BRACKET; PIPE CLIP
(B) 		1-47479-898-0 01 1 1008-1410 ● ●
16 BRACKET; PIPE CLIP
(K) 		8-98142-172-0 01 1 1008- ● ●
16 BRACKET; PIPE CLIP
WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W) (G) 		1-47479-693-0 02 1 1008- ●
16 BRACKET; PIPE CLIP
WHEEL BASE 5900MM(59W) (I) 		1-47479-381-2 02 1 1008-1410 ●
16 BRACKET; PIPE CLIP
WHEEL BASE 6600MM(66W) (I) 		1-47479-381-2 03 1 1008-1410 ●
16 BRACKET; PIPE CLIP
WHEEL BASE 6600MM(66W) (G) 		1-47479-693-0 03 1 1008- ●
22 BRACKET; CLIP
WHEEL BASE 6600MM(66W) BATTERY LAYOUT REAR VAR1<NCT> (D) 		1-47479-870-0 02 1 1111-1410 ●
22 BRACKET; CLIP
WHEEL BASE 6600MM(66W) BATTERY LAYOUT REAR VAR1<NCT> (I) L=150 		1-47471-217-0 03 1 1411- ●
22 BRACKET; CLIP
(E) 		1-47479-693-0 01 1 1008- ●
22 BRACKET; CLIP
WHEEL BASE 5200MM(52W) (A) 		1-47479-329-0 01 1 1008- ●
22 BRACKET; CLIP
WHEEL BASE 5500MM(55W),WHEEL BASE 6600MM(66W) (A) 		1-47479-329-0 01 1 1008- ●
22 BRACKET; CLIP
WHEEL BASE 5200MM(52W) (F) 		1-47479-381-2 01 1 1008-1410 ●
22 BRACKET; CLIP
WHEEL BASE 5500MM(55W) (F) 		1-47479-381-2 01 1 1008-1410 ●
22 BRACKET; CLIP
(I) L=150 		1-47471-217-0 01 1 1411- ●
22 BRACKET; CLIP
(C) L=100 H=30 		1-47477-645-2 02 1 1008-1410 ● ●
22 BRACKET; CLIP
(J) 		1-47479-546-0 01 1 1411- ● ●
22 BRACKET; CLIP
(H) 		1-47479-554-0 01 1 1008- ● ●
22 BRACKET; CLIP
(B) 		1-47479-800-0 01 1 1008- ● ●
22 BRACKET; CLIP
(D) 		1-47479-870-0 01 1 1008-1110 ● ●
22 BRACKET; CLIP
(D) 		1-47479-870-0 01 1 1111-1410 ●
22 BRACKET; CLIP
WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W) (D) 		1-47479-870-0 01 1 1111-1410 ●
22 BRACKET; CLIP
WHEEL BASE 6600MM(66W) EXC. BATTERY LAYOUT REAR VAR1<NCT> (D) 		1-47479-870-0 01 1 1111-1410 ●
22 BRACKET; CLIP
(K) 		1-47479-720-0 01 1 1411- ● ●
22 BRACKET; CLIP
(G) 		8-98142-173-0 01 1 1008- ● ●
22 BRACKET; CLIP
(I) L=130 		1-47478-959-0 01 1 1008-1410 ●
22 BRACKET; CLIP
(I) L=150 		1-47471-217-0 02 1 1411- ●
22 BRACKET; CLIP
FULL TRAILER PIPING<Z25> (C) L=100 H=30 		1-47477-645-2 01 1 1008-1410 ●
22 BRACKET; CLIP
FULL TRAILER PIPING<Z25> (C) L=100 H=30 		1-47477-645-2 02 1 1411- ●
22 BRACKET; CLIP
WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W) (E) 		1-47479-693-0 02 1 1008- ●
22 BRACKET; CLIP
WHEEL BASE 5900MM(59W) (A) 		1-47471-188-0 01 1 1008- ●
22 BRACKET; CLIP
WHEEL BASE 5900MM(59W) (F) 		1-47479-381-2 02 1 1008-1410 ●
22 BRACKET; CLIP
(L) 		1-47479-898-0 01 1 1411- ● ●
22 BRACKET; CLIP
WHEEL BASE 6600MM(66W) (F) 		1-47479-381-2 03 1 1008-1410 ●
22 BRACKET; CLIP
(C) L=100 H=30 		1-47477-645-2 01 1 1411- ●
22 BRACKET; CLIP
EXC. FULL TRAILER PIPING<Z25> (C) L=100 H=30 		1-47477-645-2 01 1 1411- ●
22 BRACKET; CLIP
WHEEL BASE 6600MM(66W) (E) 		1-47479-693-0 03 1 1008- ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 06 1 1008-1410 ● ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 05 1 1411- ● ●
81 BRACKET; CLIP
(C) L=150 		1-47471-217-0 02 1 1008- ● ●
81 BRACKET; CLIP
(F) L=100 H=30 		1-47477-645-2 01 1 1008-1410 ● ●
81 BRACKET; CLIP
(D) 		1-47478-113-0 02 1 1008-1410 ● ●
81 BRACKET; CLIP
(D) 		1-47478-113-0 01 1 1411- ● ●
81 BRACKET; CLIP
(B) 		1-79996-133-2 01 1 1008- ● ●
81 BRACKET; CLIP
(G) 		8-98046-950-0 01 1 1008- ● ●
81 BRACKET; CLIP
(H) 		8-98052-412-0 01 1 1008- ● ●
81 BRACKET; CLIP
(I) 		8-98052-414-0 01 1 1008- ● ●
81 BRACKET; CLIP
(E) 		8-98061-758-0 02 1 1008- ● ●
81 BRACKET; CLIP
(A) 		1-79996-127-2 01 1 1008- ● ●
106 BRACKET; TUBE CLIP
(C) 		1-47471-108-0 01 1 1008- ●
106 BRACKET; TUBE CLIP
EXC. BATTERY LAYOUT REAR VAR1<NCT> (C) 		1-47471-108-0 01 1 1008- ●
106 BRACKET; TUBE CLIP
(L) 		1-47479-870-0 01 1 1008- ●
106 BRACKET; TUBE CLIP
EXC. BATTERY LAYOUT REAR VAR1<NCT> (L) 		1-47479-870-0 01 1 1008- ●
106 BRACKET; TUBE CLIP
(A) 		8-98155-060-0 01 1 1008-1410 ●
106 BRACKET; TUBE CLIP
EXC. BATTERY LAYOUT REAR VAR1<NCT> (A) 		8-98155-060-0 01 1 1008-1410 ●
106 BRACKET; TUBE CLIP
(A) 		8-98243-283-0 01 1 1411- ●
106 BRACKET; TUBE CLIP
EXC. BATTERY LAYOUT REAR VAR1<NCT> (A) 		8-98243-283-0 01 1 1411- ●
106 BRACKET; TUBE CLIP
(B) 		1-47477-514-3 01 1 1008-1410 ● ●
106 BRACKET; TUBE CLIP
(B) 		1-47477-514-3 02 1 1411- ● ●
106 BRACKET; TUBE CLIP
(I) 		1-47479-381-2 02 1 1008-1410 ● ●
106 BRACKET; TUBE CLIP
(L) 		8-98224-856-1 01 1 1411- ● ●
106 BRACKET; TUBE CLIP
(J) 		1-47479-553-0 01 1 1008- ● ●
106 BRACKET; TUBE CLIP
(D) 		8-98046-949-0 01 1 1008- ● ●
106 BRACKET; TUBE CLIP
(E) 		8-98052-408-0 01 1 1008-1412 ● ●
106 BRACKET; TUBE CLIP
(E) 		8-98297-188-0 01 1 1501- ● ●
106 BRACKET; TUBE CLIP
(F) 		8-98052-410-0 01 1 1008- ● ●
106 BRACKET; TUBE CLIP
(G) 		8-98057-133-0 01 1 1008-1410 ● ●
106 BRACKET; TUBE CLIP
(M) L=82 B=20 		8-98259-390-0 01 1 1411- ● ●
106 BRACKET; TUBE CLIP
(H) 		8-98061-758-0 01 1 1008- ● ●
106 BRACKET; TUBE CLIP
BATTERY LAYOUT REAR VAR1<NCT> (K) 		1-47479-754-0 01 1 1008- ●
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 1008- ●
126 BOLT; CLIP BRKT
M8X12 FLANGE 		0-28050-812-0 04 1 1008-1410 ● ●
126 BOLT; CLIP BRKT
M8X12 FLANGE 		0-28050-812-0 02 1 1411- ● ●
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 1008-1410 ● ●
126 BOLT; CLIP BRKT
M8X35 FLANGE 		0-28650-835-0 03 1 1008-1410 ● ●
126 BOLT; CLIP BRKT
M8X35 FLANGE 		0-28650-835-0 02 1 1411- ● ●
126 BOLT; CLIP BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W) M8X25 FLANGE 		0-28650-825-0 02 1 1008-1410 ●
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1411- ● ●
126 BOLT; CLIP BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W) M8X25 FLANGE 		0-28650-825-0 02 1 1411- ●
126 BOLT; CLIP BRKT
WHEEL BASE 6600MM(66W) M8X25 FLANGE 		0-28650-825-0 03 1 1008- ●
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 05 1 1008-1410 ●
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 03 1 1411- ●
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 02 1 1008- ● ●
127 NUT; CLIP BRKT
WHEEL BASE 5500MM(55W) M8 FLANGE 		0-91180-108-0 06 1 1008-1410 ●
127 NUT; CLIP BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W) M8 FLANGE 		0-91180-108-0 04 1 1411- ●
127 NUT; CLIP BRKT
WHEEL BASE 5900MM(59W) M8 FLANGE 		0-91180-108-0 07 1 1008-1410 ●
127 NUT; CLIP BRKT
WHEEL BASE 6600MM(66W) M8 FLANGE 		0-91180-108-0 09 1 1008-1410 ●
127 NUT; CLIP BRKT
WHEEL BASE 6600MM(66W) M8 FLANGE 		0-91180-108-0 05 1 1411- ●
133 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 01 1 1312- ●
133 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 02 1 1008-1410 ●
133 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 01 1 1411- ●
133 BOLT; BRKT
EXC. MIXER TRUCK<RA2> M6X10 FLANGE 		0-28050-610-0 01 1 1008-1209 ●
133 BOLT; BRKT
M6X10 FLANGE 		0-28050-610-0 01 1 1008-1209 ●
133 BOLT; BRKT
M6X10 FLANGE 		0-28050-610-0 01 1 1210- ●
133 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 1008- ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1008-1410 ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1008-1410 ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1411- ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 03 1 1008-1410 ● ●
133 BOLT; BRKT
M8X12 FLANGE 		0-28050-812-0 02 1 1411- ● ●
133 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 05 1 1008-1410 ● ●
133 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 05 1 1008-1410 ●
133 BOLT; BRKT
EXC. BATTERY LAYOUT REAR VAR1<NCT> M8X35 FLANGE 		0-28650-835-0 05 1 1008-1410 ●
133 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 02 1 1411- ● ●
133 BOLT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W) M8X35 FLANGE 		0-28650-835-0 02 1 1411- ●
133 BOLT; BRKT
WHEEL BASE 6600MM(66W) EXC. BATTERY LAYOUT REAR VAR1<NCT> M8X35 FLANGE 		0-28650-835-0 02 1 1411- ●
133 BOLT; BRKT
BATTERY LAYOUT REAR VAR1<NCT> M8X35 FLANGE 		0-28650-835-0 01 1 1008-1410 ●
133 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 04 1 1411- ●
133 BOLT; BRKT
EXC. BATTERY LAYOUT REAR VAR1<NCT> M8X35 FLANGE 		0-28650-835-0 04 1 1411- ●
133 BOLT; BRKT
FULL TRAILER PIPING<Z25> M8X25 FLANGE 		0-28650-825-0 01 1 1008- ●
133 BOLT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W) M8X25 FLANGE 		0-28650-825-0 03 1 1008- ●
133 BOLT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W) M8X35 FLANGE 		0-28650-835-0 03 1 1008-1410 ●
133 BOLT; BRKT
WHEEL BASE 6600MM(66W) EXC. BATTERY LAYOUT REAR VAR1<NCT> M8X35 FLANGE 		0-28650-835-0 03 1 1008-1410 ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 03 1 1411- ● ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 03 1 1411- ● ●
133 BOLT; BRKT
WHEEL BASE 6600MM(66W) M8X25 FLANGE 		0-28650-825-0 04 1 1008-1410 ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 1411- ● ●
133 BOLT; BRKT
WHEEL BASE 6600MM(66W) M8X25 FLANGE 		0-28650-825-0 04 1 1411- ●
133 BOLT; BRKT
WHEEL BASE 6600MM(66W) BATTERY LAYOUT REAR VAR1<NCT> M8X35 FLANGE 		0-28650-835-0 04 1 1008-1410 ●
133 BOLT; BRKT
WHEEL BASE 6600MM(66W) BATTERY LAYOUT REAR VAR1<NCT> M8X35 FLANGE 		0-28650-835-0 03 1 1411- ●
279 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1411- ● ●
279 NUT; BRKT
M8 FLANGE 		0-91180-108-0 11 1 1008-1410 ●
279 NUT; BRKT
EXC. BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE 		0-91180-108-0 11 1 1008-1410 ●
279 NUT; BRKT
M8 FLANGE 		0-91180-108-0 08 1 1411- ●
279 NUT; BRKT
EXC. BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE 		0-91180-108-0 08 1 1411- ●
279 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1008- ● ●
279 NUT; BRKT
BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE 		0-91180-108-0 10 1 1008-1410 ●
279 NUT; BRKT
BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE 		0-91180-108-0 07 1 1411- ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 08 1 1008-1410 ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 06 1 1411- ●
297 NUT; BRKT
EXC. MIXER TRUCK<RA2> M12 FLANGE 		0-91180-212-0 01 1 1008-1209 ●
297 NUT; BRKT
M12 FLANGE 		0-91180-212-0 01 1 1008-1209 ●
297 NUT; BRKT
M12 FLANGE 		0-91180-212-0 01 1 1210-1410 ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1008-1410 ● ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1411- ● ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1411- ●
297 NUT; BRKT
FULL TRAILER PIPING<Z25> M8 FLANGE 		0-91180-108-0 01 1 1411- ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 05 1 1008-1410 ● ●
297 NUT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6600MM(66W) EXC. BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE 		0-91180-108-0 08 1 1411- ●
297 NUT; BRKT
WHEEL BASE 5900MM(59W) BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE 		0-91180-108-0 08 1 1411- ●
297 NUT; BRKT
FULL TRAILER PIPING<Z25> M8 FLANGE 		0-91180-108-0 01 1 1008-1311 ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1312-1410 ●
297 NUT; BRKT
FULL TRAILER PIPING<Z25> M8 FLANGE 		0-91180-108-0 01 1 1312-1410 ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1411- ● ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1411- ● ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1411- ● ●
297 NUT; BRKT
WHEEL BASE 5500MM(55W) M8 FLANGE 		0-91180-108-0 10 1 1008-1410 ●
297 NUT; BRKT
WHEEL BASE 5900MM(59W) EXC. BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE 		0-91180-108-0 10 1 1008-1410 ●
297 NUT; BRKT
WHEEL BASE 5900MM(59W) EXC. BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE 		0-91180-108-0 07 1 1411- ●
297 NUT; BRKT
WHEEL BASE 5900MM(59W) BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE 		0-91180-108-0 11 1 1008-1410 ●
297 NUT; BRKT
WHEEL BASE 6600MM(66W) BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE 		0-91180-108-0 14 1 1008-1410 ●
297 NUT; BRKT
WHEEL BASE 6600MM(66W) BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE 		0-91180-108-0 10 1 1411- ●
297 NUT; BRKT
WHEEL BASE 6600MM(66W) EXC. BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE 		0-91180-108-0 12 1 1008-1410 ●

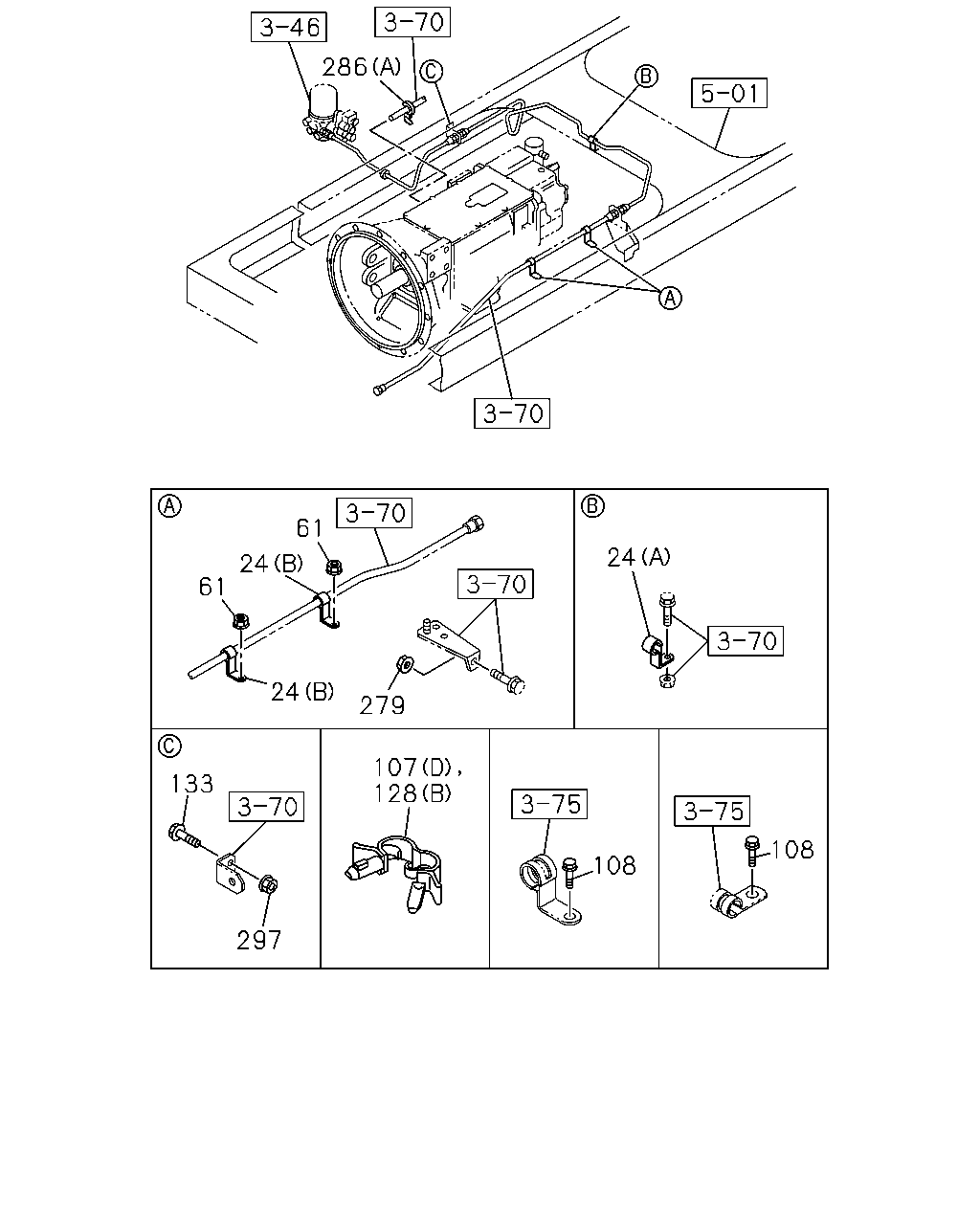

çizim 170357
286 61 24 61 24 279 24 107 128 133 108 108 297
BalonParca AdiParca NoAdetTipApplied Date A B
24 CLIP; PIPE
(A) ID=15 H=24 L=20 		1-09700-606-0 01 1 1008- ● ●
24 CLIP; PIPE
(B) ID=25 H=30 L=35 		1-09700-875-0 02 1 1008- ● ●
61 NUT; CLIP FIX
M8 FLANGE 		0-91180-108-0 02 1 1411- ● ●
61 NUT; CLIP FIX
M8 FLANGE 		0-91180-108-0 03 1 1008-1410 ● ●
61 NUT; CLIP FIX
M8 FLANGE 		0-91180-108-0 01 1 1411- ● ●
107 CLIP; NYLON TUBE
(A) L=600 		1-09707-107-1 02 1 1203-1410 ● ●
107 CLIP; NYLON TUBE
MJX16P M/T(Y3Z) (B) ID=15 L=28 		1-09701-216-0 01 1 1008-1209 ● ●
107 CLIP; NYLON TUBE
MJX16P M/T(Y3Z) (B) ID=15 L=28 		1-09701-216-0 01 1 1210-1410 ●
107 CLIP; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=15 L=28 		1-09701-216-0 01 1 1411- ● ●
107 CLIP; NYLON TUBE
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=15 L=28 		1-09701-216-0 01 1 1411- ●
107 CLIP; NYLON TUBE
MJX16P M/T(Y3Z) (D) ID=5-12 L=14.5 		1-09987-221-0 02 1 1008-1209 ● ●
107 CLIP; NYLON TUBE
MJX16P M/T(Y3Z) (D) ID=5-12 L=14.5 		1-09987-221-0 02 1 1210-1410 ●
107 CLIP; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) ID=5-12 L=14.5 		1-09987-221-0 02 1 1411- ● ●
107 CLIP; NYLON TUBE
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) ID=5-12 L=14.5 		1-09987-221-0 02 1 1411- ●
107 CLIP; NYLON TUBE
(B) ID=35 L=33 		1-09700-945-0 02 1 1008- ● ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 01 1 1008-1410 ● ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 14 1 1411- ● ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 15 1 1008-1202 ● ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 13 1 1203-1410 ● ●
107 CLIP; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=350 		1-09707-183-0 02 1 1411- ● ●
107 CLIP; NYLON TUBE
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=350 		1-09707-183-0 02 1 1411- ●
107 CLIP; NYLON TUBE
(B) ID=19 L=60 		0-95235-896-0 01 1 1008-1410 ● ●
107 CLIP; NYLON TUBE
(D) ID=13-18 L=14.5 		1-09709-290-0 01 1 1411- ● ●
107 CLIP; NYLON TUBE
(C) ID=21 L=30 H=40 		1-09700-991-1 01 1 1008-1410 ● ●
107 CLIP; NYLON TUBE
(C) ID=31 H=30 L=35 		1-09700-994-0 02 1 1008-1410 ● ●
107 CLIP; NYLON TUBE
(C) ID=35 H=45 L=33 		1-09700-947-0 01 1 1411- ● ●
107 CLIP; NYLON TUBE
(C) ID=45 H=31 L=35 		1-09701-308-0 02 1 1008-1410 ● ●
107 CLIP; NYLON TUBE
(C) ID=45 H=31 L=35 		1-09701-308-0 01 1 1411- ● ●
107 CLIP; NYLON TUBE
(C) ID=45 H=31 L=35 		1-09701-308-0 01 1 1411- ● ●
108 BOLT; TUBE CLIP
MJX16P M/T(Y3Z) M8X20 FLANGE 		0-28650-820-0 01 1 1008-1209 ● ●
108 BOLT; TUBE CLIP
MJX16P M/T(Y3Z) M8X20 FLANGE 		0-28650-820-0 01 1 1210-1410 ●
108 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 1008- ● ●
108 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 03 1 1008-1410 ● ●
108 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1411- ● ●
108 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1411- ● ●
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 1008- ● ●
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28650-825-0 03 1 1008-1410 ● ●
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 1411- ● ●
108 BOLT; TUBE CLIP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8X25 FLANGE 		0-28650-825-0 01 1 1411- ● ●
108 BOLT; TUBE CLIP
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8X25 FLANGE 		0-28650-825-0 01 1 1411- ●
108 BOLT; TUBE CLIP
M8X30 FLANGE 		0-28650-830-0 04 1 1008-1410 ● ●
108 BOLT; TUBE CLIP
M8X30 FLANGE 		0-28650-830-0 01 1 1411- ● ●
108 BOLT; TUBE CLIP
M8X35 FLANGE 		0-28650-835-0 01 1 1008- ● ●
128 CLIP; NYLON TUBE
(B) ID=13-18 L=18 		1-09709-291-0 01 1 1411- ● ●
128 CLIP; NYLON TUBE
WHEEL BASE 5900MM(59W) (A) L=350 		1-09707-183-0 19 1 1008-1410 ●
128 CLIP; NYLON TUBE
WHEEL BASE 5900MM(59W) (A) L=350 		1-09707-183-0 18 1 1411- ●
128 CLIP; NYLON TUBE
WHEEL BASE 6600MM(66W) (A) L=350 		1-09707-183-0 21 1 1008-1410 ●
128 CLIP; NYLON TUBE
WHEEL BASE 6600MM(66W) (A) L=350 		1-09707-183-0 20 1 1411- ●
128 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 17 1 1008-1410 ●
128 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 16 1 1411- ●
128 CLIP; NYLON TUBE
WHEEL BASE 5500MM(55W) (A) L=350 		1-09707-183-0 18 1 1008-1410 ●
128 CLIP; NYLON TUBE
WHEEL BASE 5500MM(55W) (A) L=350 		1-09707-183-0 17 1 1411- ●
133 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 01 1 1312- ●
133 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 02 1 1008-1410 ●
133 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 01 1 1411- ●
133 BOLT; BRKT
EXC. MIXER TRUCK<RA2> M6X10 FLANGE 		0-28050-610-0 01 1 1008-1209 ●
133 BOLT; BRKT
M6X10 FLANGE 		0-28050-610-0 01 1 1008-1209 ●
133 BOLT; BRKT
M6X10 FLANGE 		0-28050-610-0 01 1 1210- ●
133 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 1008- ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1008-1410 ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1008-1410 ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1411- ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 03 1 1008-1410 ● ●
133 BOLT; BRKT
M8X12 FLANGE 		0-28050-812-0 02 1 1411- ● ●
133 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 05 1 1008-1410 ● ●
133 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 05 1 1008-1410 ●
133 BOLT; BRKT
EXC. BATTERY LAYOUT REAR VAR1<NCT> M8X35 FLANGE 		0-28650-835-0 05 1 1008-1410 ●
133 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 02 1 1411- ● ●
133 BOLT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W) M8X35 FLANGE 		0-28650-835-0 02 1 1411- ●
133 BOLT; BRKT
WHEEL BASE 6600MM(66W) EXC. BATTERY LAYOUT REAR VAR1<NCT> M8X35 FLANGE 		0-28650-835-0 02 1 1411- ●
133 BOLT; BRKT
BATTERY LAYOUT REAR VAR1<NCT> M8X35 FLANGE 		0-28650-835-0 01 1 1008-1410 ●
133 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 04 1 1411- ●
133 BOLT; BRKT
EXC. BATTERY LAYOUT REAR VAR1<NCT> M8X35 FLANGE 		0-28650-835-0 04 1 1411- ●
133 BOLT; BRKT
FULL TRAILER PIPING<Z25> M8X25 FLANGE 		0-28650-825-0 01 1 1008- ●
133 BOLT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W) M8X25 FLANGE 		0-28650-825-0 03 1 1008- ●
133 BOLT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W) M8X35 FLANGE 		0-28650-835-0 03 1 1008-1410 ●
133 BOLT; BRKT
WHEEL BASE 6600MM(66W) EXC. BATTERY LAYOUT REAR VAR1<NCT> M8X35 FLANGE 		0-28650-835-0 03 1 1008-1410 ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 03 1 1411- ● ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 03 1 1411- ● ●
133 BOLT; BRKT
WHEEL BASE 6600MM(66W) M8X25 FLANGE 		0-28650-825-0 04 1 1008-1410 ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 1411- ● ●
133 BOLT; BRKT
WHEEL BASE 6600MM(66W) M8X25 FLANGE 		0-28650-825-0 04 1 1411- ●
133 BOLT; BRKT
WHEEL BASE 6600MM(66W) BATTERY LAYOUT REAR VAR1<NCT> M8X35 FLANGE 		0-28650-835-0 04 1 1008-1410 ●
133 BOLT; BRKT
WHEEL BASE 6600MM(66W) BATTERY LAYOUT REAR VAR1<NCT> M8X35 FLANGE 		0-28650-835-0 03 1 1411- ●
279 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1411- ● ●
279 NUT; BRKT
M8 FLANGE 		0-91180-108-0 11 1 1008-1410 ●
279 NUT; BRKT
EXC. BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE 		0-91180-108-0 11 1 1008-1410 ●
279 NUT; BRKT
M8 FLANGE 		0-91180-108-0 08 1 1411- ●
279 NUT; BRKT
EXC. BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE 		0-91180-108-0 08 1 1411- ●
279 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1008- ● ●
279 NUT; BRKT
BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE 		0-91180-108-0 10 1 1008-1410 ●
279 NUT; BRKT
BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE 		0-91180-108-0 07 1 1411- ●
286 CLIP; NYLON TUBE
MJX16P M/T(Y3Z) (B) ID=15 L=28 		1-09701-216-0 01 1 1411- ●
286 CLIP; NYLON TUBE
(A) ID=15 & 7 		1-09709-311-0 01 1 1008-1410 ● ●
286 CLIP; NYLON TUBE
MJT7S M/T(Y3E) (A) ID=15 & 7 		1-09709-311-0 01 1 1411- ● ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 08 1 1008-1410 ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 06 1 1411- ●
297 NUT; BRKT
EXC. MIXER TRUCK<RA2> M12 FLANGE 		0-91180-212-0 01 1 1008-1209 ●
297 NUT; BRKT
M12 FLANGE 		0-91180-212-0 01 1 1008-1209 ●
297 NUT; BRKT
M12 FLANGE 		0-91180-212-0 01 1 1210-1410 ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1008-1410 ● ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1411- ● ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1411- ●
297 NUT; BRKT
FULL TRAILER PIPING<Z25> M8 FLANGE 		0-91180-108-0 01 1 1411- ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 05 1 1008-1410 ● ●
297 NUT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6600MM(66W) EXC. BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE 		0-91180-108-0 08 1 1411- ●
297 NUT; BRKT
WHEEL BASE 5900MM(59W) BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE 		0-91180-108-0 08 1 1411- ●
297 NUT; BRKT
FULL TRAILER PIPING<Z25> M8 FLANGE 		0-91180-108-0 01 1 1008-1311 ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1312-1410 ●
297 NUT; BRKT
FULL TRAILER PIPING<Z25> M8 FLANGE 		0-91180-108-0 01 1 1312-1410 ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1411- ● ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1411- ● ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1411- ● ●
297 NUT; BRKT
WHEEL BASE 5500MM(55W) M8 FLANGE 		0-91180-108-0 10 1 1008-1410 ●
297 NUT; BRKT
WHEEL BASE 5900MM(59W) EXC. BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE 		0-91180-108-0 10 1 1008-1410 ●
297 NUT; BRKT
WHEEL BASE 5900MM(59W) EXC. BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE 		0-91180-108-0 07 1 1411- ●
297 NUT; BRKT
WHEEL BASE 5900MM(59W) BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE 		0-91180-108-0 11 1 1008-1410 ●
297 NUT; BRKT
WHEEL BASE 6600MM(66W) BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE 		0-91180-108-0 14 1 1008-1410 ●
297 NUT; BRKT
WHEEL BASE 6600MM(66W) BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE 		0-91180-108-0 10 1 1411- ●
297 NUT; BRKT
WHEEL BASE 6600MM(66W) EXC. BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE 		0-91180-108-0 12 1 1008-1410 ●
çizim 170457
270 300 379 352 270 376 392 388 389 376 81 376 354 353 364 76 361 348 303 231 303 231 348 230 270 376 81 270 230
BalonParca AdiParca NoAdetTipApplied Date A B
76 CLIP; NYLON TUBE
ID=6 & 8.3 		8-94167-742-0 01 1 1008- ● ●
81 BRACKET; CLIP
(C) L=150 		1-47471-217-0 02 1 1008- ● ●
81 BRACKET; CLIP
(F) L=100 H=30 		1-47477-645-2 01 1 1008-1410 ● ●
81 BRACKET; CLIP
(D) 		1-47478-113-0 02 1 1008-1410 ● ●
81 BRACKET; CLIP
(D) 		1-47478-113-0 01 1 1411- ● ●
81 BRACKET; CLIP
(B) 		1-79996-133-2 01 1 1008- ● ●
81 BRACKET; CLIP
(G) 		8-98046-950-0 01 1 1008- ● ●
81 BRACKET; CLIP
(H) 		8-98052-412-0 01 1 1008- ● ●
81 BRACKET; CLIP
(I) 		8-98052-414-0 01 1 1008- ● ●
81 BRACKET; CLIP
(E) 		8-98061-758-0 02 1 1008- ● ●
81 BRACKET; CLIP
(A) 		1-79996-127-2 01 1 1008- ● ●
230 CLIP; PIPE,AIR
BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL(NLG) FULL TRAILER PIPING<Z25> ID=11 & 9 L=15 & 15 		1-09700-062-0 03 1 1008-1410 ●
230 CLIP; PIPE,AIR
FULL TRAILER PIPING<Z25> ID=11 & 9 L=15 & 15 		1-09700-062-0 03 1 1411- ●
231 BOLT; CLIP
BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL(NLG) FULL TRAILER PIPING<Z25> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 1008-1410 ●
231 BOLT; CLIP
FULL TRAILER PIPING<Z25> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 1411- ●
270 CLIP; NYLON TUBE
(B) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 1008- ● ●
270 CLIP; NYLON TUBE
(A) ID=28 L=32 		1-09701-107-1 03 1 1008- ● ●
270 CLIP; NYLON TUBE
(B) ID=16 H=25 L=25 		1-09701-162-0 02 1 1008- ● ●
300 BOLT; TUBE CLIP
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 1008- ● ●
303 BOLT; PIPE CLIP
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 1008-1410 ●
303 BOLT; PIPE CLIP
FULL TRAILER PIPING<Z25> EXC. BRAKE REGULATION ECE<NBE>,TRAILER BRAKE HAND CONTROL(NLG) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 1008-1410 ●
303 BOLT; PIPE CLIP
EXC. FULL TRAILER PIPING<Z25> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 1008-1410 ●
303 BOLT; PIPE CLIP
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 1411- ●
303 BOLT; PIPE CLIP
EXC. FULL TRAILER PIPING<Z25> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 1411- ●
303 BOLT; PIPE CLIP
BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL(NLG) FULL TRAILER PIPING<Z25> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 1008-1410 ●
303 BOLT; PIPE CLIP
FULL TRAILER PIPING<Z25> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 1411- ●
348 CLIP; AIR PIPE
ID=11 & 9 L=15 & 15 		1-09700-062-0 03 1 1008-1410 ●
348 CLIP; AIR PIPE
FULL TRAILER PIPING<Z25> EXC. BRAKE REGULATION ECE<NBE>,TRAILER BRAKE HAND CONTROL(NLG) ID=11 & 9 L=15 & 15 		1-09700-062-0 03 1 1008-1410 ●
348 CLIP; AIR PIPE
EXC. FULL TRAILER PIPING<Z25> ID=11 & 9 L=15 & 15 		1-09700-062-0 03 1 1008-1410 ●
348 CLIP; AIR PIPE
ID=11 & 9 L=15 & 15 		1-09700-062-0 03 1 1411- ●
348 CLIP; AIR PIPE
EXC. FULL TRAILER PIPING<Z25> ID=11 & 9 L=15 & 15 		1-09700-062-0 03 1 1411- ●
348 CLIP; AIR PIPE
ID=9 & 9 L=15 & 15 		1-09700-061-0 03 1 1008- ● ●
352 CLIP; EXH HOSE
ID=14 		8-94238-572-0 02 1 1008- ● ●
353 CLIP; AIR PIPE
FULL TRAILER PIPING<Z25> ID=9 L=16 		0-95234-822-0 01 1 1008- ●
354 BOLT; PIPE CLIP
FULL TRAILER PIPING<Z25> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 1008- ●
361 CLIP; FLEX HOSE,AIR PRESS GAGE
L=250 		5-09707-030-1 01 1 1008- ● ●
364 CLIP; AIR PIPE
FULL TRAILER PIPING<Z25> ID=8.3 & 10 		8-94176-792-0 01 1 1008- ●
376 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 1411-1510 ● ●
376 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1511- ● ●
376 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1008-1410 ● ●
376 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1411- ● ●
376 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1008-1410 ● ●
376 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 1411- ● ●
376 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 1008-1410 ● ●
376 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1411-1510 ● ●
376 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 1511- ● ●
376 BOLT; BRKT
(C) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 1008- ● ●
379 BRACKET; NYLON TUBE 1-79996-110-2 01 1 1008- ● ●
388 SEAL
L=215 		1-79738-794-1 01 1 1008- ● ●
389 BRACKET; UNION 1-79738-790-1 01 1 1008- ● ●
392 COVER; BRKT 1-73996-264-1 01 1 1008- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
