◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11323 - CYZ LHD MIDDLE EAST EURO2 WITH 3STEPS ▶ 3 - Brakes, Brake System ▶ 3-77 - BRAKE PIPING; AIR,REAR ▶
3-77 — BRAKE PIPING; AIR,REAR (#62621) — 171 parça

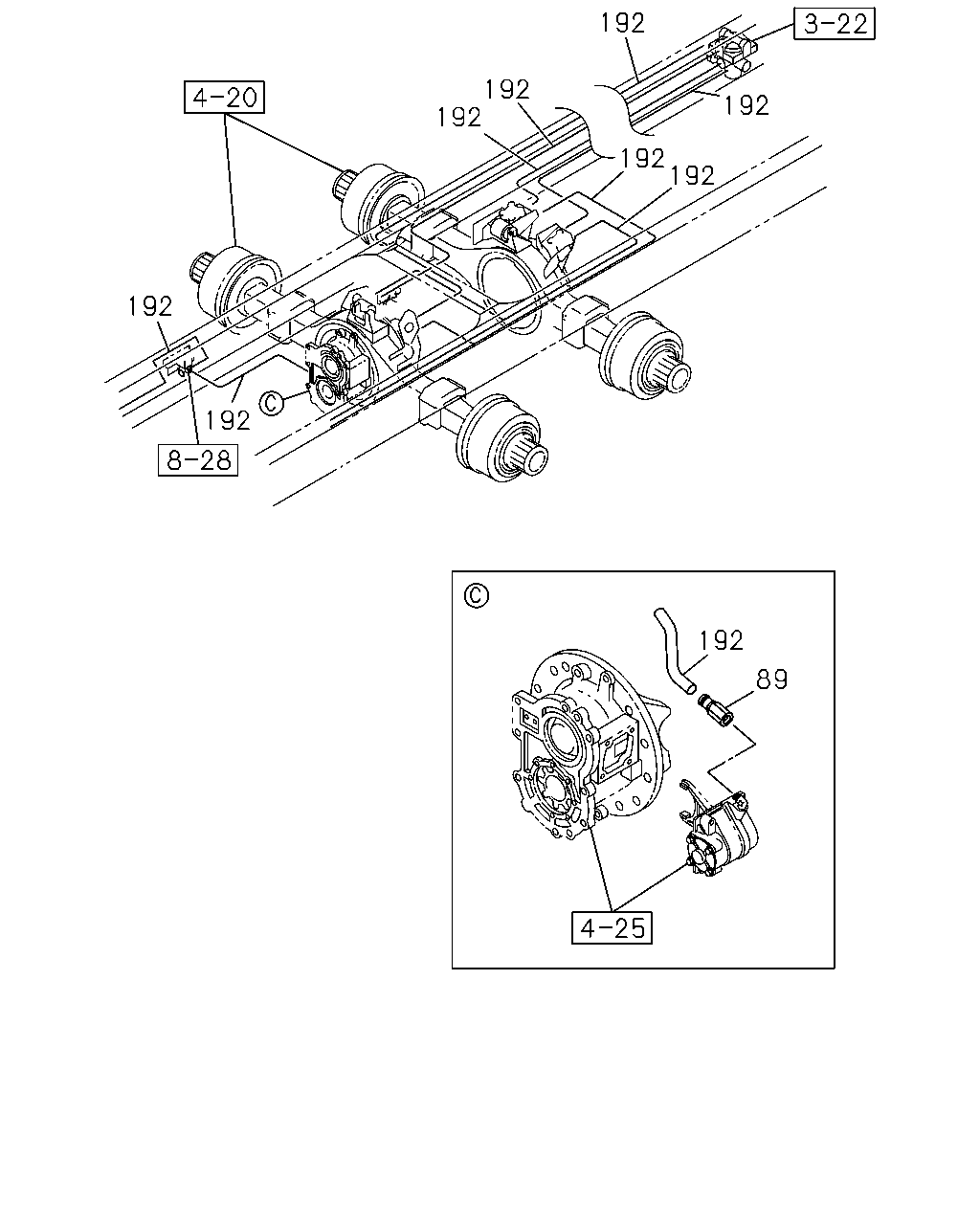

çizim 170288
192 192 192 192 192 192 192 192 192 89
BalonParca AdiParca NoAdetTipApplied Date A B
89 CONNECTOR; NYLON TUBE
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1008- ● ●
192 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1008- ● ●
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1008- ● ●
192 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1008- ● ●
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1008- ● ●
192 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1008- ● ●
192 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1008- ● ●
192 TUBE; NYLON
SERVICED BY L=8000 OD=12 		1-87411-014-0 AR 1 1008- ● ●
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 1008- ● ●
192 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 1008- ● ●

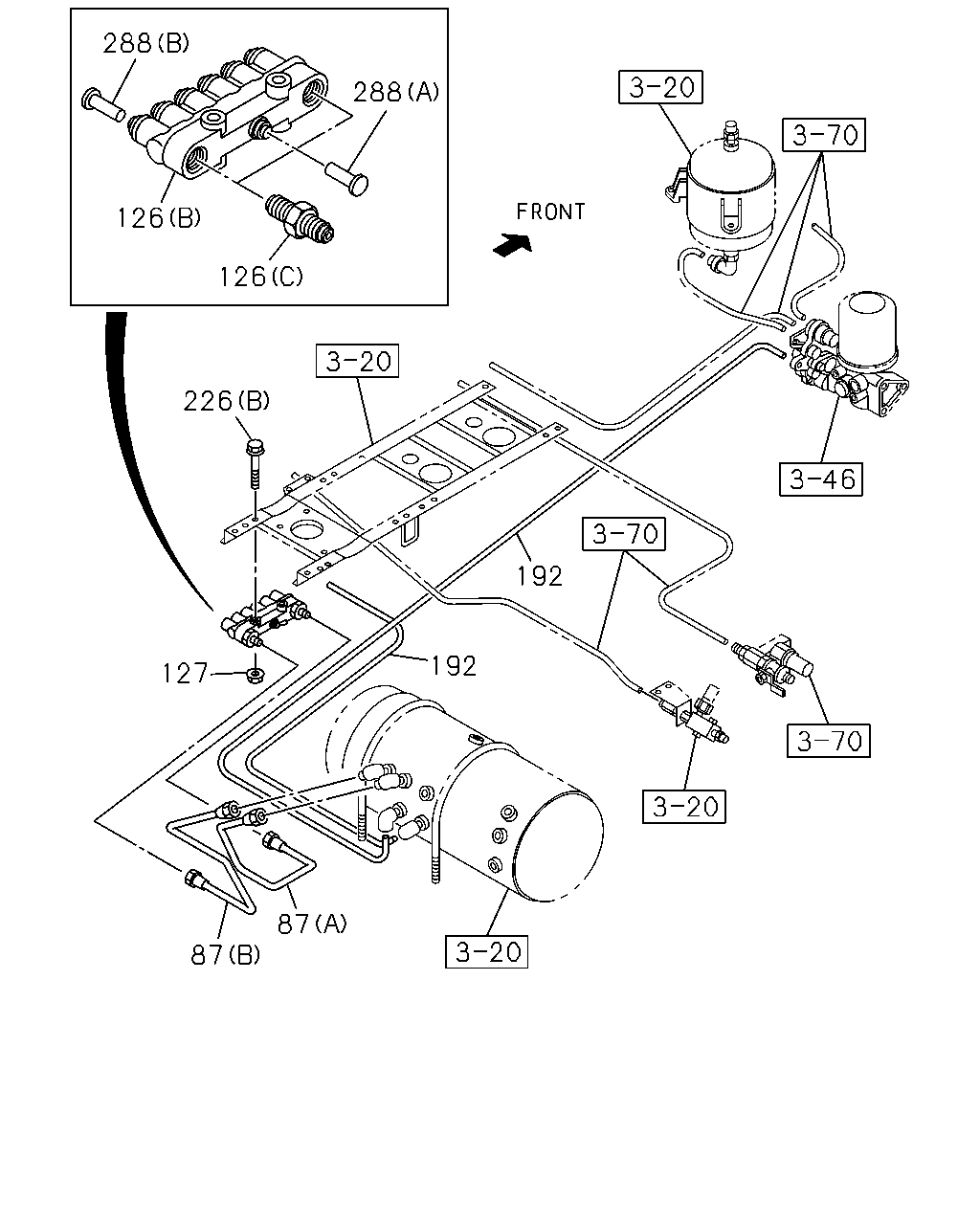

çizim 170289
288 126 126 288 226 127 192 87 87 192
BalonParca AdiParca NoAdetTipApplied Date A B
87 PIPE; AIR,AIR TANK TO UNION
(B) L=425 		1-49124-670-0 01 1 1008-1410 ●
87 PIPE; AIR,AIR TANK TO UNION
EXC. BATTERY LAYOUT REAR VAR1<NCT> (B) L=425 		1-49124-670-0 01 1 1008-1410 ●
87 PIPE; AIR,AIR TANK TO UNION
(B) L=429 		8-98239-053-0 01 1 1411- ●
87 PIPE; AIR,AIR TANK TO UNION
EXC. BATTERY LAYOUT REAR VAR1<NCT> (B) L=429 		8-98239-053-0 01 1 1411- ●
87 PIPE; AIR,AIR TANK TO UNION
(A) L=541 		1-49124-671-0 01 1 1008-1410 ●
87 PIPE; AIR,AIR TANK TO UNION
EXC. BATTERY LAYOUT REAR VAR1<NCT> (A) L=541 		1-49124-671-0 01 1 1008-1410 ●
87 PIPE; AIR,AIR TANK TO UNION
(A) L=543 		8-98239-054-0 01 1 1411- ●
87 PIPE; AIR,AIR TANK TO UNION
EXC. BATTERY LAYOUT REAR VAR1<NCT> (A) L=543 		8-98239-054-0 01 1 1411- ●
87 PIPE; AIR,AIR TANK TO UNION
BATTERY LAYOUT REAR VAR1<NCT> (A) L=561 		1-49124-520-0 01 1 1008-1410 ●
87 PIPE; AIR,AIR TANK TO UNION
BATTERY LAYOUT REAR VAR1<NCT> (A) L=559 		8-98239-051-0 01 1 1411- ●
87 PIPE; AIR,AIR TANK TO UNION
BATTERY LAYOUT REAR VAR1<NCT> (B) L=426 		1-49124-521-0 01 1 1008-1410 ●
87 PIPE; AIR,AIR TANK TO UNION
BATTERY LAYOUT REAR VAR1<NCT> (B) L=424 		8-98239-052-0 01 1 1411- ●
126 UNION; NYLON TUBE
(A) DIN7.5X2 & M8 2WAY 		1-09661-128-0 01 1 1008- ● ●
126 UNION; NYLON TUBE
(B) 		1-09661-612-1 01 1 1008- ● ●
126 UNION; NYLON TUBE
(C) M22X2 STRAIGHT 		8-98107-103-0 02 1 1008- ● ●
127 NUT; UNION
M8 FLANGE 		0-91180-108-0 02 1 1008- ● ●
192 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1008- ● ●
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1008- ● ●
192 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1008- ● ●
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1008- ● ●
192 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1008- ● ●
192 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1008- ● ●
192 TUBE; NYLON
SERVICED BY L=8000 OD=12 		1-87411-014-0 AR 1 1008- ● ●
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 1008- ● ●
192 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 1008- ● ●
226 BOLT; UNION
(A) M8X16 FLANGE 		0-28050-816-0 01 1 1008- ● ●
226 BOLT; UNION
(B) M8X45 FLANGE 		0-28050-845-0 02 1 1008- ● ●
226 BOLT; UNION
(C) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 1008- ● ●
288 PLUG
(A) OD=6 L=27 		1-09661-615-0 01 1 1008- ● ●
288 PLUG
(B) OD=8 PLASTIC 		1-09661-616-0 01 1 1008- ● ●

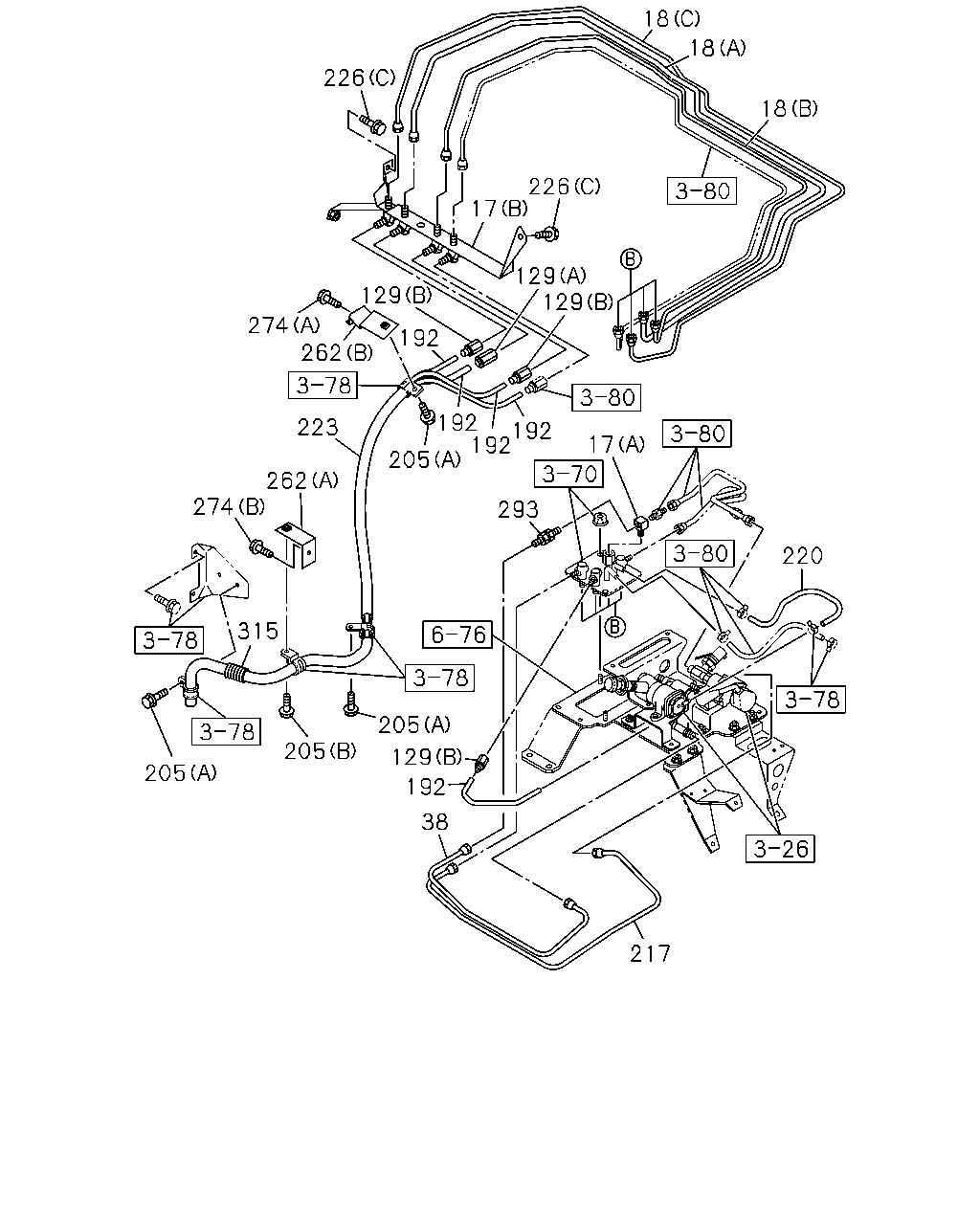

çizim 170298
226 17 129 226 18 18 18 129 129 192 192 192 192 293 205 223 262 274 262 274 315 205 205 192 205 38 129 17 220 217
BalonParca AdiParca NoAdetTipApplied Date A B
17 UNION; AIR PIPE
(B) 		1-47470-464-3 01 1 1008- ●
17 UNION; AIR PIPE
EXC. FULL TRAILER PIPING<Z25> (B) 		1-47470-464-3 01 1 1008- ●
17 UNION; AIR PIPE
BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL(NLG) FULL TRAILER PIPING<Z25> (A) 		1-09656-708-0 01 1 1008-1410 ●
17 UNION; AIR PIPE
FULL TRAILER PIPING<Z25> (A) 		1-09656-708-0 01 1 1411- ●
17 UNION; AIR PIPE
BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL(NLG) FULL TRAILER PIPING<Z25> (B) 		1-47470-656-0 01 1 1008-1410 ●
17 UNION; AIR PIPE
FULL TRAILER PIPING<Z25> (B) 		1-47470-656-0 01 1 1411- ●
17 UNION; AIR PIPE
FULL TRAILER PIPING<Z25> EXC. BRAKE REGULATION ECE<NBE>,TRAILER BRAKE HAND CONTROL(NLG) (A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1008-1410 ●
17 UNION; AIR PIPE
FULL TRAILER PIPING<Z25> EXC. BRAKE REGULATION ECE<NBE>,TRAILER BRAKE HAND CONTROL(NLG) (B) 		8-98151-901-0 01 1 1008-1410 ●
18 PIPE; AIR,UNION TO UNION
(B) L=1931 SERVICED BY L=1950 		1-47428-854-0 01 1 1008-1410 ●
18 PIPE; AIR,UNION TO UNION
EXC. FULL TRAILER PIPING<Z25> (B) L=1931 SERVICED BY L=1950 		1-47428-854-0 01 1 1008-1410 ●
18 PIPE; AIR,UNION TO UNION
(B) L=1931 SERVICED BY L=1950 		1-47428-854-0 01 1 1411- ● ●
18 PIPE; AIR,UNION TO UNION
(A) L=2098 SERVICED BY L=2100 		1-47428-882-0 01 1 1008- ● ●
18 PIPE; AIR,UNION TO UNION
FULL TRAILER PIPING<Z25> (C) L=2316 SERVICED BY L=2400 		1-47428-856-0 01 1 1008- ●
38 PIPE; AIR,UNION TO MAG VLV
FULL TRAILER PIPING<Z25> 		1-49122-879-0 01 1 1008- ●
129 CONNECTOR; NYLON TUBE
(B) DIN8 & M14 STRAIGHT 		1-09660-874-0 01 1 1008- ● ●
129 CONNECTOR; NYLON TUBE
(A) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 1008- ● ●
129 CONNECTOR; NYLON TUBE
BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL(NLG) FULL TRAILER PIPING<Z25> (B) DIN8 & M14 STRAIGHT 		1-09660-874-0 02 1 1008-1410 ●
129 CONNECTOR; NYLON TUBE
FULL TRAILER PIPING<Z25> (B) DIN8 & M14 STRAIGHT 		1-09660-874-0 02 1 1411- ●
192 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1008- ● ●
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1008- ● ●
192 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1008- ● ●
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1008- ● ●
192 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1008- ● ●
192 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1008- ● ●
192 TUBE; NYLON
SERVICED BY L=8000 OD=12 		1-87411-014-0 AR 1 1008- ● ●
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 1008- ● ●
192 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 1008- ● ●
205 BOLT; TUBE CLIP
(A) M8X16 FLANGE 		0-28050-816-0 03 1 1008- ● ●
205 BOLT; TUBE CLIP
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 1008- ● ●
217 PIPE; AIR,PARKING BRK VLV TO UNION 1-49118-159-0 01 1 1008- ●
217 PIPE; AIR,PARKING BRK VLV TO UNION
EXC. FULL TRAILER PIPING<Z25> 		1-49118-159-0 01 1 1008- ●
217 PIPE; AIR,PARKING BRK VLV TO UNION
FULL TRAILER PIPING<Z25> 		1-49123-172-0 01 1 1008- ●
220 HOSE; VINYL,EXH,PARKING BRK VLV
L=350 SERVICED BY L=10000 		9-09914-701-0 01 1 1008- ● ●
223 TUBE; CORRUGATE
WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W) FULL TRAILER PIPING<Z25> SERVICED BY L=2000 ID=25 		1-87411-031-0 01 1 1511- ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1008- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 1008- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=22 		1-87411-029-0 AR 1 1008- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=4000 ID=22 		1-87411-030-0 AR 1 1008- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87411-031-0 AR 1 1008- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 1008- ● ●
226 BOLT; UNION
(A) M8X16 FLANGE 		0-28050-816-0 01 1 1008- ● ●
226 BOLT; UNION
(B) M8X45 FLANGE 		0-28050-845-0 02 1 1008- ● ●
226 BOLT; UNION
(C) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 1008- ● ●
262 BRACKET
(A) 		1-79996-143-0 01 1 1008- ● ●
262 BRACKET
(B) 		1-79996-258-1 01 1 1008- ● ●
274 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 1008- ● ●
274 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 1008- ● ●
293 VALVE; CHECK
BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL(NLG) FULL TRAILER PIPING<Z25> 		1-48410-479-1 01 1 1008-1410 ●
293 VALVE; CHECK
FULL TRAILER PIPING<Z25> 		1-48410-479-1 01 1 1411- ●
293 VALVE; CHECK
FULL TRAILER PIPING<Z25> EXC. BRAKE REGULATION ECE<NBE>,TRAILER BRAKE HAND CONTROL(NLG) PT1/4 & M16 STRAIGHT 		1-09650-352-1 01 1 1008-1410 ●
315 CLIP 8-97332-148-0 01 1 1109- ● ●

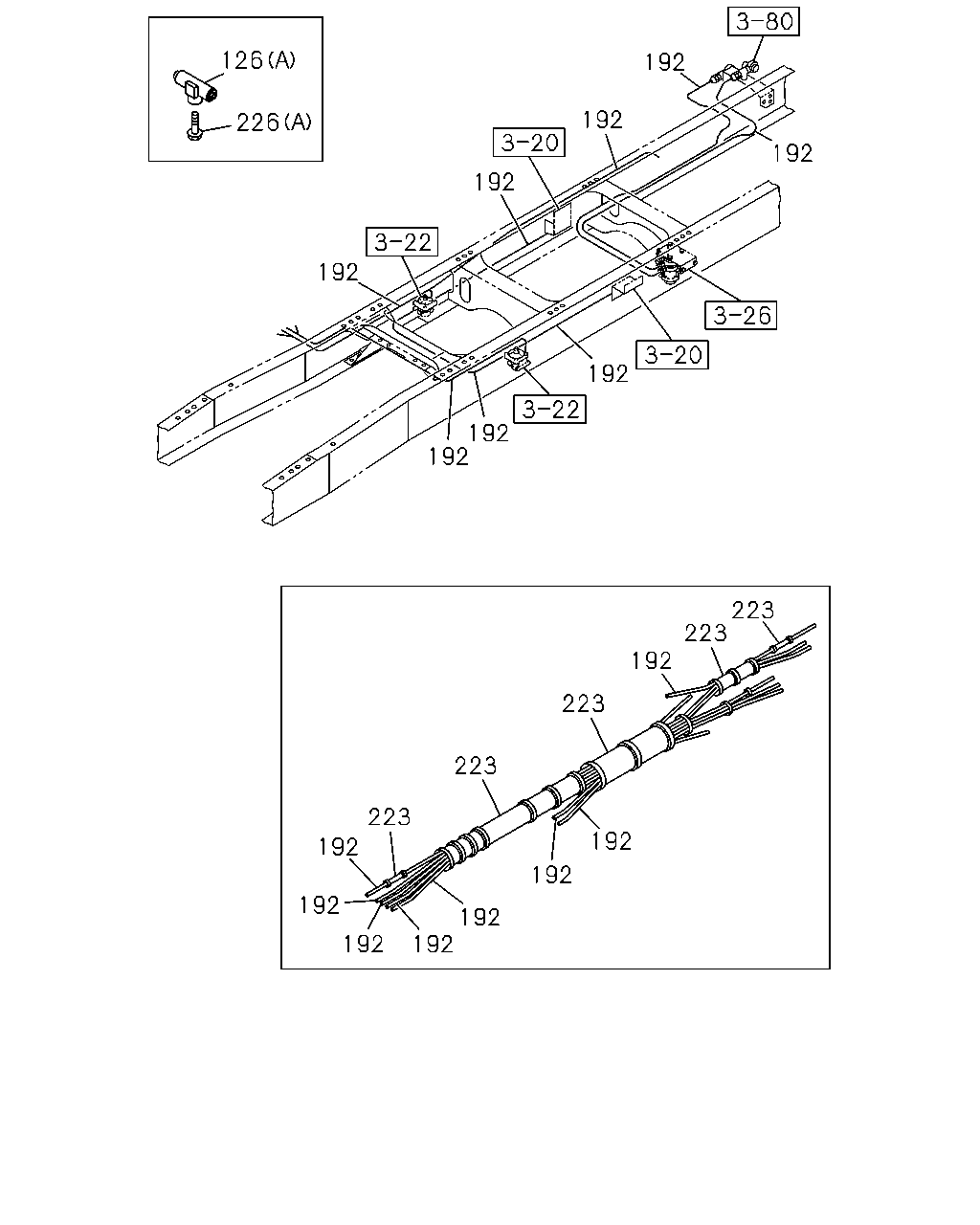

çizim 170303
126 226 192 192 192 192 192 192 192 192 223 223 223 192 192 192 192 192 192 192 192 223 223
BalonParca AdiParca NoAdetTipApplied Date A B
126 UNION; NYLON TUBE
(A) DIN7.5X2 & M8 2WAY 		1-09661-128-0 01 1 1008- ● ●
126 UNION; NYLON TUBE
(B) 		1-09661-612-1 01 1 1008- ● ●
126 UNION; NYLON TUBE
(C) M22X2 STRAIGHT 		8-98107-103-0 02 1 1008- ● ●
192 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1008- ● ●
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1008- ● ●
192 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1008- ● ●
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1008- ● ●
192 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1008- ● ●
192 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1008- ● ●
192 TUBE; NYLON
SERVICED BY L=8000 OD=12 		1-87411-014-0 AR 1 1008- ● ●
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 1008- ● ●
192 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 1008- ● ●
223 TUBE; CORRUGATE
WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W) FULL TRAILER PIPING<Z25> SERVICED BY L=2000 ID=25 		1-87411-031-0 01 1 1511- ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1008- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 1008- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=22 		1-87411-029-0 AR 1 1008- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=4000 ID=22 		1-87411-030-0 AR 1 1008- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87411-031-0 AR 1 1008- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 1008- ● ●
226 BOLT; UNION
(A) M8X16 FLANGE 		0-28050-816-0 01 1 1008- ● ●
226 BOLT; UNION
(B) M8X45 FLANGE 		0-28050-845-0 02 1 1008- ● ●
226 BOLT; UNION
(C) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 1008- ● ●

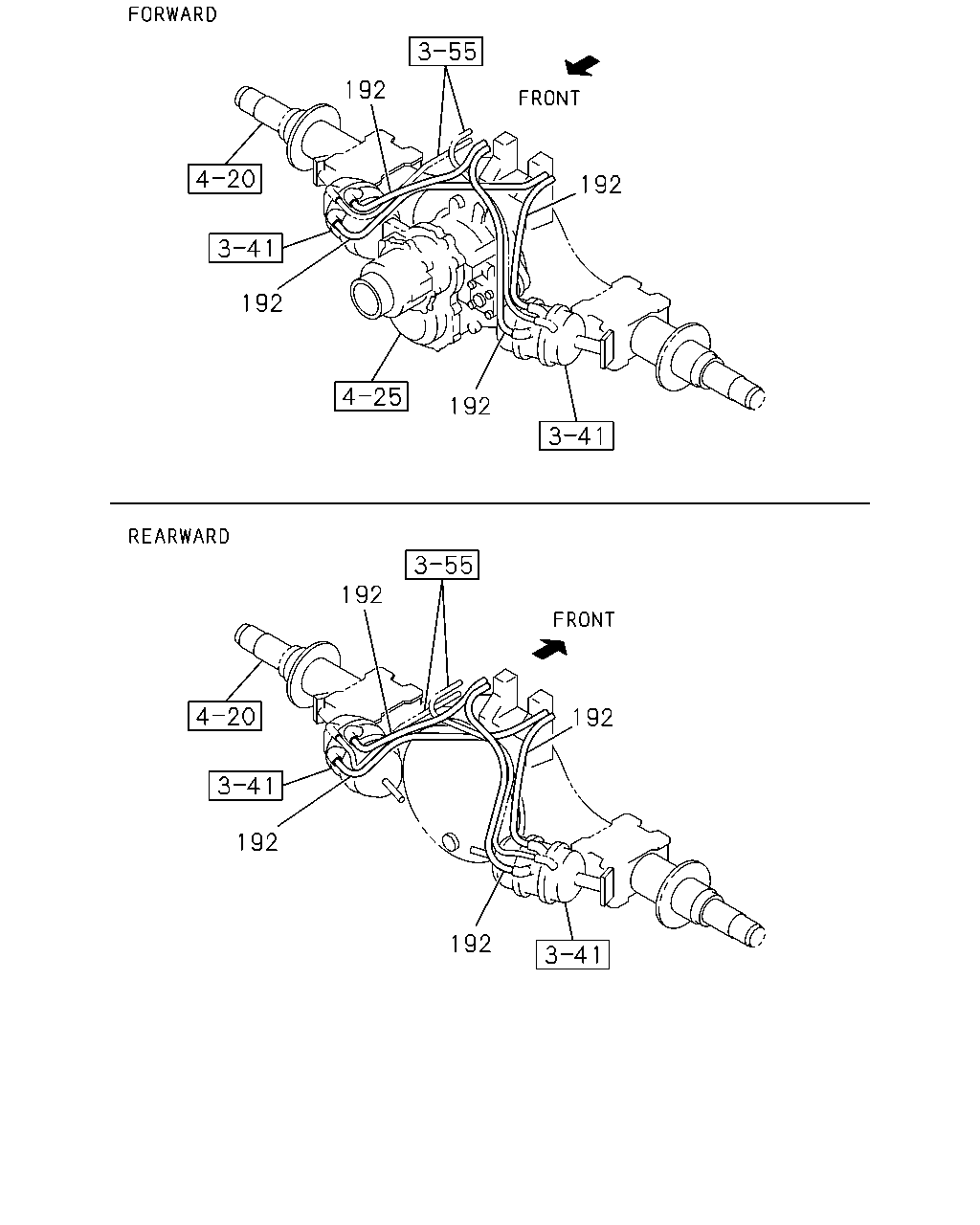

çizim 170329
192 192 192 192 192 192 192 192
BalonParca AdiParca NoAdetTipApplied Date A B
192 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1008- ● ●
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1008- ● ●
192 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1008- ● ●
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1008- ● ●
192 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1008- ● ●
192 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1008- ● ●
192 TUBE; NYLON
SERVICED BY L=8000 OD=12 		1-87411-014-0 AR 1 1008- ● ●
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 1008- ● ●
192 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 1008- ● ●

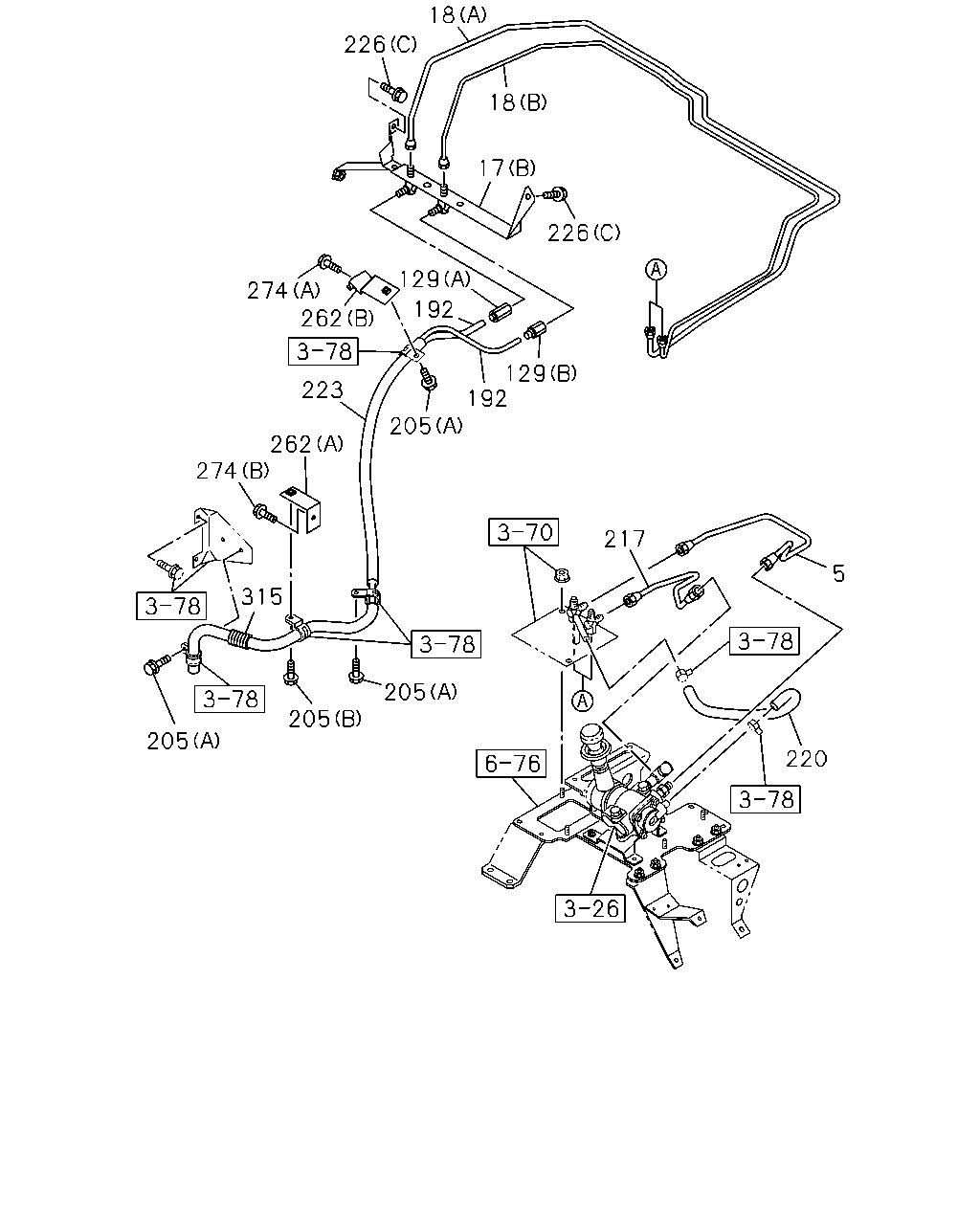

çizim 170487
226 18 18 17 226 129 192 205 223 262 274 262 274 315 205 205 205 220 217 5 192 129
BalonParca AdiParca NoAdetTipApplied Date A B
5 PIPE; AIR,UNION TO PARKING VLV 1-49118-158-0 01 1 1008- ●
5 PIPE; AIR,UNION TO PARKING VLV
EXC. FULL TRAILER PIPING<Z25> 		1-49118-158-0 01 1 1008- ●
17 UNION; AIR PIPE
(B) 		1-47470-464-3 01 1 1008- ●
17 UNION; AIR PIPE
EXC. FULL TRAILER PIPING<Z25> (B) 		1-47470-464-3 01 1 1008- ●
17 UNION; AIR PIPE
BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL(NLG) FULL TRAILER PIPING<Z25> (A) 		1-09656-708-0 01 1 1008-1410 ●
17 UNION; AIR PIPE
FULL TRAILER PIPING<Z25> (A) 		1-09656-708-0 01 1 1411- ●
17 UNION; AIR PIPE
BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL(NLG) FULL TRAILER PIPING<Z25> (B) 		1-47470-656-0 01 1 1008-1410 ●
17 UNION; AIR PIPE
FULL TRAILER PIPING<Z25> (B) 		1-47470-656-0 01 1 1411- ●
17 UNION; AIR PIPE
FULL TRAILER PIPING<Z25> EXC. BRAKE REGULATION ECE<NBE>,TRAILER BRAKE HAND CONTROL(NLG) (A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1008-1410 ●
17 UNION; AIR PIPE
FULL TRAILER PIPING<Z25> EXC. BRAKE REGULATION ECE<NBE>,TRAILER BRAKE HAND CONTROL(NLG) (B) 		8-98151-901-0 01 1 1008-1410 ●
18 PIPE; AIR,UNION TO UNION
(B) L=1931 SERVICED BY L=1950 		1-47428-854-0 01 1 1008-1410 ●
18 PIPE; AIR,UNION TO UNION
EXC. FULL TRAILER PIPING<Z25> (B) L=1931 SERVICED BY L=1950 		1-47428-854-0 01 1 1008-1410 ●
18 PIPE; AIR,UNION TO UNION
(B) L=1931 SERVICED BY L=1950 		1-47428-854-0 01 1 1411- ● ●
18 PIPE; AIR,UNION TO UNION
(A) L=2098 SERVICED BY L=2100 		1-47428-882-0 01 1 1008- ● ●
18 PIPE; AIR,UNION TO UNION
FULL TRAILER PIPING<Z25> (C) L=2316 SERVICED BY L=2400 		1-47428-856-0 01 1 1008- ●
129 CONNECTOR; NYLON TUBE
(B) DIN8 & M14 STRAIGHT 		1-09660-874-0 01 1 1008- ● ●
129 CONNECTOR; NYLON TUBE
(A) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 1008- ● ●
129 CONNECTOR; NYLON TUBE
BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL(NLG) FULL TRAILER PIPING<Z25> (B) DIN8 & M14 STRAIGHT 		1-09660-874-0 02 1 1008-1410 ●
129 CONNECTOR; NYLON TUBE
FULL TRAILER PIPING<Z25> (B) DIN8 & M14 STRAIGHT 		1-09660-874-0 02 1 1411- ●
192 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1008- ● ●
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1008- ● ●
192 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1008- ● ●
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1008- ● ●
192 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1008- ● ●
192 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1008- ● ●
192 TUBE; NYLON
SERVICED BY L=8000 OD=12 		1-87411-014-0 AR 1 1008- ● ●
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 1008- ● ●
192 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 1008- ● ●
205 BOLT; TUBE CLIP
(A) M8X16 FLANGE 		0-28050-816-0 03 1 1008- ● ●
205 BOLT; TUBE CLIP
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 1008- ● ●
217 PIPE; AIR,PARKING BRK VLV TO UNION 1-49118-159-0 01 1 1008- ●
217 PIPE; AIR,PARKING BRK VLV TO UNION
EXC. FULL TRAILER PIPING<Z25> 		1-49118-159-0 01 1 1008- ●
217 PIPE; AIR,PARKING BRK VLV TO UNION
FULL TRAILER PIPING<Z25> 		1-49123-172-0 01 1 1008- ●
220 HOSE; VINYL,EXH,PARKING BRK VLV
L=350 SERVICED BY L=10000 		9-09914-701-0 01 1 1008- ● ●
223 TUBE; CORRUGATE
WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W) FULL TRAILER PIPING<Z25> SERVICED BY L=2000 ID=25 		1-87411-031-0 01 1 1511- ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1008- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 1008- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=22 		1-87411-029-0 AR 1 1008- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=4000 ID=22 		1-87411-030-0 AR 1 1008- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87411-031-0 AR 1 1008- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 1008- ● ●
226 BOLT; UNION
(A) M8X16 FLANGE 		0-28050-816-0 01 1 1008- ● ●
226 BOLT; UNION
(B) M8X45 FLANGE 		0-28050-845-0 02 1 1008- ● ●
226 BOLT; UNION
(C) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 1008- ● ●
262 BRACKET
(A) 		1-79996-143-0 01 1 1008- ● ●
262 BRACKET
(B) 		1-79996-258-1 01 1 1008- ● ●
274 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 1008- ● ●
274 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 1008- ● ●
315 CLIP 8-97332-148-0 01 1 1109- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
