Sayfa 3-75 - Isuzu EPC

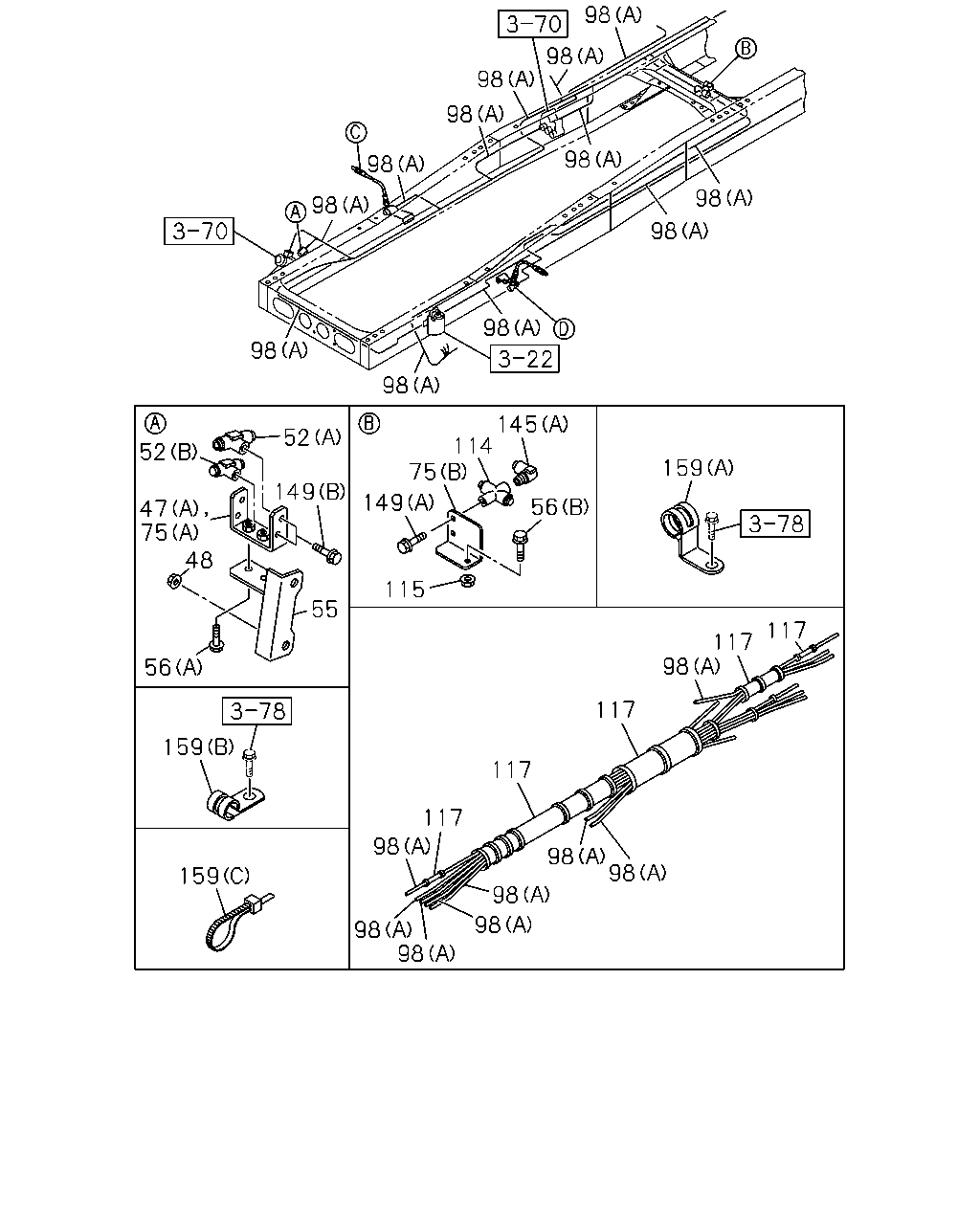

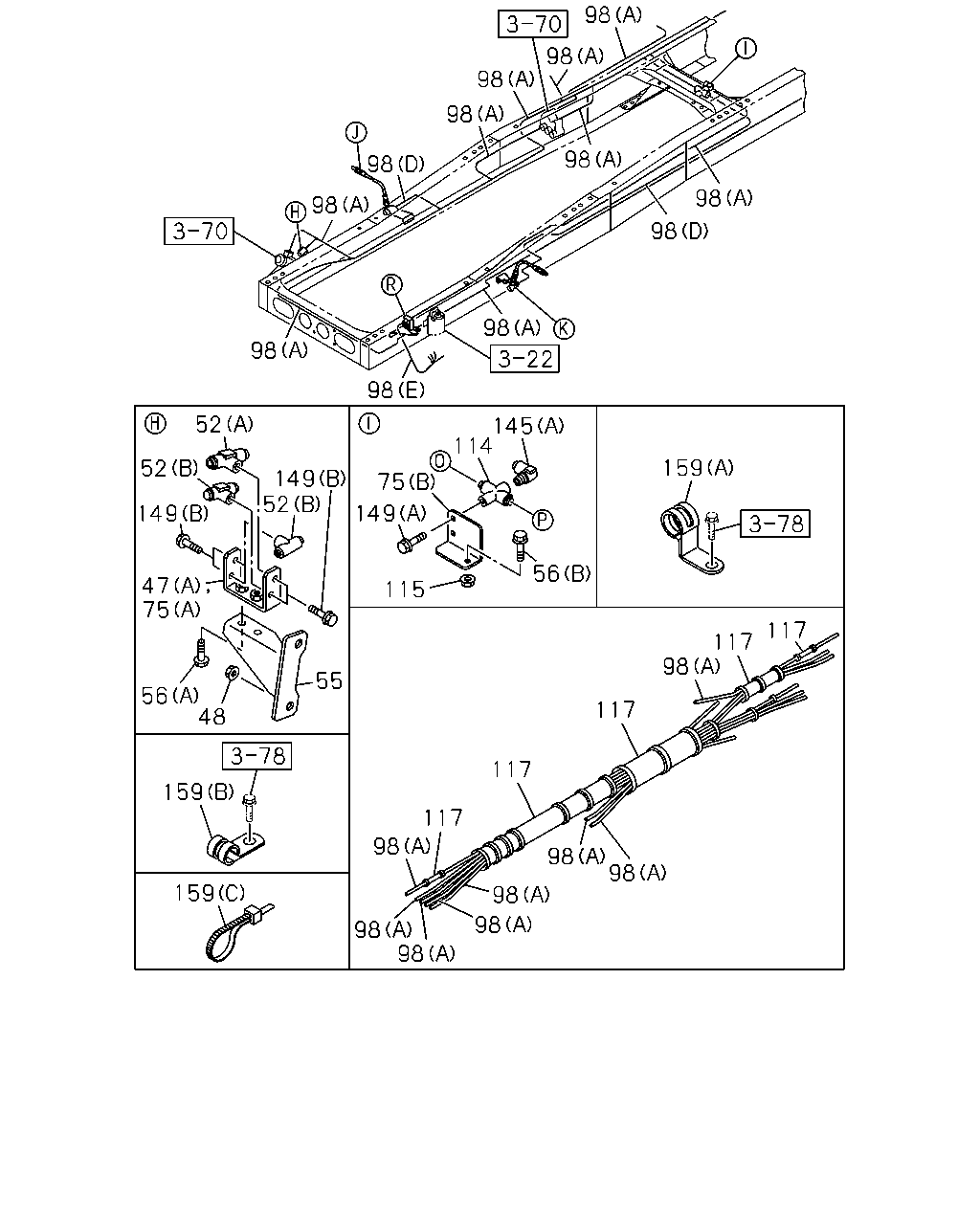

3-75 — BRAKE PIPING; AIR,FRONT (#62620) — 390 parça

98 98 98 98 98 98 98 98 98 98 98 98 52 52 47 75 48 55 149 56 159 159 98 98 117 117 98 98 98 98 117 98 117 117 159 56 115 149 75 114 145 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
47	BRACKET; PIPE UNION (B)	8-98238-525-0	01	1	1411-	●	●
47	BRACKET; PIPE UNION TRAILER BRAKE HAND CONTROL(NLG) FULL TRAILER PIPING<Z25> (A)	1-47471-023-0	01	1	1008-1410		●
47	BRACKET; PIPE UNION FULL TRAILER PIPING<Z25> (A)	1-47471-023-0	01	1	1411-1510		●
47	BRACKET; PIPE UNION TRAILER BRAKE HAND CONTROL(NLG) FULL TRAILER PIPING<Z25> (A)	1-47471-023-0	01	1	1511-		●
48	NUT; UNION BRKT M12 FLANGE	0-91180-212-0	02	1	1008-	●	●
52	CONNECTOR; NYLON TUBE FULL TRAILER PIPING<Z25> EXC. TRAILER BRAKE HAND CONTROL(NLG) (B) DIN8X2 & M8 2WAY	1-09661-133-0	02	1	1511-		●
52	CONNECTOR; NYLON TUBE (A) DIN7.5X2 & M8 2WAY	1-09661-128-0	01	1	1008-1410	●	●
52	CONNECTOR; NYLON TUBE (A) DIN7.5X2 & M8 2WAY	1-09661-128-0	01	1	1411-	●	●
52	CONNECTOR; NYLON TUBE FULL TRAILER PIPING<Z25> EXC. TRAILER BRAKE HAND CONTROL(NLG) (B) DIN8X2 & M8 2WAY	1-09661-133-0	02	1	1008-1410		●
52	CONNECTOR; NYLON TUBE (A) DIN7.5X2 & M8 2WAY	1-09661-128-0	03	1	1411-	●	●
52	CONNECTOR; NYLON TUBE TRAILER BRAKE HAND CONTROL(NLG) FULL TRAILER PIPING<Z25> (B) DIN8X2 & M8 2WAY	1-09661-133-0	03	1	1008-1410		●
52	CONNECTOR; NYLON TUBE FULL TRAILER PIPING<Z25> (B) DIN8X2 & M8 2WAY	1-09661-133-0	03	1	1411-1510		●
52	CONNECTOR; NYLON TUBE TRAILER BRAKE HAND CONTROL(NLG) FULL TRAILER PIPING<Z25> (B) DIN8X2 & M8 2WAY	1-09661-133-0	03	1	1511-		●
55	BRACKET; TUBE UNION	1-47479-993-1	01	1	1008-1410	●	●
55	BRACKET; TUBE UNION	8-98199-427-0	01	1	1411-	●	●
56	BOLT; UNION BRKT (D) M8X30 FLANGE	0-28650-830-0	02	1	1411-	●	●
56	BOLT; UNION BRKT (C) M8X12 FLANGE	0-28050-812-0	02	1	1008-	●	●
56	BOLT; UNION BRKT (A) M8X16 FLANGE	0-28050-816-0	02	1	1008-	●	●
56	BOLT; UNION BRKT (B) M8X25 FLANGE	0-28650-825-0	01	1	1008-	●	●
75	BRACKET; UNION (C)	8-98176-142-0	01	1	1008-	●	●
75	BRACKET; UNION (D)	8-98176-152-0	01	1	1008-	●	●
75	BRACKET; UNION (A)	1-47471-023-0	01	1	1008-1410	●
75	BRACKET; UNION EXC. FULL TRAILER PIPING<Z25> (A)	1-47471-023-0	01	1	1008-1410		●
75	BRACKET; UNION FULL TRAILER PIPING<Z25> EXC. TRAILER BRAKE HAND CONTROL(NLG) (A)	1-47471-023-0	01	1	1008-1410		●
75	BRACKET; UNION (A)	1-47471-023-0	01	1	1411-1510	●
75	BRACKET; UNION EXC. FULL TRAILER PIPING<Z25> (A)	1-47471-023-0	01	1	1411-1510		●
75	BRACKET; UNION (A)	1-47471-023-0	01	1	1511-	●
75	BRACKET; UNION EXC. FULL TRAILER PIPING<Z25> (A)	1-47471-023-0	01	1	1511-		●
75	BRACKET; UNION FULL TRAILER PIPING<Z25> EXC. TRAILER BRAKE HAND CONTROL(NLG) (A)	1-47471-023-0	01	1	1511-		●
75	BRACKET; UNION (B)	1-47471-145-0	01	1	1008-	●	●
98	TUBE; NYLON (C)	8-98224-859-0	01	1	1411-	●	●
98	TUBE; NYLON (E)	8-98238-522-0	01	1	1411-	●	●
98	TUBE; NYLON (D)	8-98240-190-0	01	1	1411-	●	●
98	TUBE; NYLON (D)	8-98240-191-0	01	1	1411-	●	●
98	TUBE; NYLON (B)	8-98169-619-0	02	1	1008-	●	●
98	TUBE; NYLON (A) SERVICED BY L=4000 OD=6	1-87411-002-0	AR	1	1008-	●	●
98	TUBE; NYLON (A) SERVICED BY L=6000 OD=6	1-87411-003-0	AR	1	1008-	●	●
98	TUBE; NYLON (A) SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	1008-	●	●
98	TUBE; NYLON (A) SERVICED BY L=12000 OD=8	1-87411-010-0	AR	1	1008-	●	●
98	TUBE; NYLON (A) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1008-	●	●
98	TUBE; NYLON (A) SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	1008-	●	●
98	TUBE; NYLON (A) SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	1008-	●	●
98	TUBE; NYLON (A) SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	1008-	●	●
114	UNION; NYLON TUBE DIN12X2 & R3/8 3WAY	1-09661-131-0	01	1	1008-	●	●
115	NUT; TUBE UNION M8 FLANGE	0-91180-108-0	01	1	1008-	●	●
117	TUBE; CORRUGATE WHEEL BASE 5900MM(59W) FULL TRAILER PIPING<Z25> EXC. BATTERY LAYOUT REAR VAR1<NCT> SERVICED BY L=2000 ID=22	1-87411-029-0	03	1	1511-		●
117	TUBE; CORRUGATE WHEEL BASE 5900MM(59W) FULL TRAILER PIPING<Z25> EXC. TRAILER BRAKE HAND CONTROL(NLG) SERVICED BY L=2000 ID=22	1-87411-029-0	03	1	1511-		●
117	TUBE; CORRUGATE WHEEL BASE 5200MM(52W) SERVICED BY L=2000 ID=19	1-87411-027-0	01	1	1511-	●
117	TUBE; CORRUGATE WHEEL BASE 5500MM(55W) EXC. FULL TRAILER PIPING<Z25> SERVICED BY L=2000 ID=19	1-87411-027-0	01	1	1511-		●
117	TUBE; CORRUGATE WHEEL BASE 6600MM(66W) SERVICED BY L=2000 ID=19	1-87411-027-0	01	1	1511-		●
117	TUBE; CORRUGATE WHEEL BASE 5200MM(52W) SERVICED BY L=2000 ID=13	1-87411-022-0	02	1	1511-	●
117	TUBE; CORRUGATE WHEEL BASE 5900MM(59W) BATTERY LAYOUT REAR VAR1<NCT> EXC. FULL TRAILER PIPING<Z25> SERVICED BY L=2000 ID=13	1-87411-022-0	02	1	1511-		●
117	TUBE; CORRUGATE WHEEL BASE 5900MM(59W) EXC. BATTERY LAYOUT REAR VAR1<NCT> SERVICED BY L=2000 ID=13	1-87411-022-0	02	1	1511-		●
117	TUBE; CORRUGATE WHEEL BASE 5900MM(59W) FULL TRAILER PIPING<Z25> EXC. TRAILER BRAKE HAND CONTROL(NLG) SERVICED BY L=2000 ID=13	1-87411-022-0	02	1	1511-		●
117	TUBE; CORRUGATE WHEEL BASE 5500MM(55W),WHEEL BASE 6600MM(66W) SERVICED BY L=2000 ID=13	1-87411-022-0	02	1	1511-		●
117	TUBE; CORRUGATE WHEEL BASE 5200MM(52W) SERVICED BY L=2000 ID=25	1-87411-031-0	01	1	1511-	●
117	TUBE; CORRUGATE WHEEL BASE 5200MM(52W) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) SERVICED BY L=2000 ID=25	1-87411-031-0	01	1	1511-	●
117	TUBE; CORRUGATE MJT7S M/T(Y3E) WHEEL BASE 5200MM(52W) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) SERVICED BY L=2000 ID=25	1-87411-031-0	01	1	1511-	●
117	TUBE; CORRUGATE WHEEL BASE 6600MM(66W) SERVICED BY L=2000 ID=25	1-87411-031-0	01	1	1511-		●
117	TUBE; CORRUGATE WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W) FULL TRAILER PIPING<Z25> EXC. TRAILER BRAKE HAND CONTROL(NLG) SERVICED BY L=2000 ID=25	1-87411-031-0	01	1	1511-		●
117	TUBE; CORRUGATE WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W) EXC. FULL TRAILER PIPING<Z25> SERVICED BY L=2000 ID=25	1-87411-031-0	01	1	1511-		●
117	TUBE; CORRUGATE MJT7S M/T(Y3E) WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) SERVICED BY L=2000 ID=25	1-87411-031-0	01	1	1511-		●
117	TUBE; CORRUGATE MJX16P M/T(Y3Z) WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) SERVICED BY L=2000 ID=25	1-87411-031-0	01	1	1511-		●
117	TUBE; CORRUGATE WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) SERVICED BY L=2000 ID=25	1-87411-031-0	01	1	1511-		●
117	TUBE; CORRUGATE WHEEL BASE 5200MM(52W) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) SERVICED BY L=2000 ID=28	1-87411-033-0	01	1	1511-	●
117	TUBE; CORRUGATE MJT7S M/T(Y3E) WHEEL BASE 5200MM(52W) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) SERVICED BY L=2000 ID=28	1-87411-033-0	01	1	1511-	●
117	TUBE; CORRUGATE WHEEL BASE 5500MM(55W) TRAILER BRAKE HAND CONTROL(NLG) FULL TRAILER PIPING<Z25> SERVICED BY L=2000 ID=28	1-87411-033-0	01	1	1511-		●
117	TUBE; CORRUGATE WHEEL BASE 5900MM(59W) FULL TRAILER PIPING<Z25> EXC. BATTERY LAYOUT REAR VAR1<NCT> SERVICED BY L=2000 ID=28	1-87411-033-0	01	1	1511-		●
117	TUBE; CORRUGATE MJT7S M/T(Y3E) WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) SERVICED BY L=2000 ID=28	1-87411-033-0	01	1	1511-		●
117	TUBE; CORRUGATE MJX16P M/T(Y3Z) WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) SERVICED BY L=2000 ID=28	1-87411-033-0	01	1	1511-		●
117	TUBE; CORRUGATE WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) SERVICED BY L=2000 ID=28	1-87411-033-0	01	1	1511-		●
117	TUBE; CORRUGATE WHEEL BASE 5900MM(59W) EXC. FULL TRAILER PIPING<Z25> SERVICED BY L=2000 ID=19	1-87411-027-0	03	1	1511-		●
117	TUBE; CORRUGATE WHEEL BASE 5500MM(55W) FULL TRAILER PIPING<Z25> SERVICED BY L=2000 ID=22	1-87411-029-0	01	1	1511-		●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=7	1-87411-016-0	AR	1	1008-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	1008-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	1008-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87411-027-0	AR	1	1008-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87411-029-0	AR	1	1008-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	1008-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87411-033-0	AR	1	1008-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87411-035-0	AR	1	1008-	●	●
145	PLUG (B) PT1/4	9-99204-513-0	02	1	1411-	●	●
145	PLUG (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1008-	●	●
149	BOLT; UNION (A) M8X12 FLANGE	0-28050-812-0	01	1	1008-	●	●
149	BOLT; UNION (C) M8X30 FLANGE	0-28650-830-0	04	1	1008-1410	●	●
149	BOLT; UNION (B) M8X16 FLANGE	0-28050-816-0	03	1	1411-1510	●	●
149	BOLT; UNION (B) M8X16 FLANGE	0-28050-816-0	03	1	1511-	●	●
149	BOLT; UNION FULL TRAILER PIPING<Z25> EXC. TRAILER BRAKE HAND CONTROL(NLG) (B) M8X16 FLANGE	0-28050-816-0	03	1	1511-		●
149	BOLT; UNION FULL TRAILER PIPING<Z25> EXC. TRAILER BRAKE HAND CONTROL(NLG) (B) M8X16 FLANGE	0-28050-816-0	03	1	1008-1410		●
149	BOLT; UNION (D) M8X35 FLANGE	0-28650-835-0	04	1	1411-	●	●
149	BOLT; UNION TRAILER BRAKE HAND CONTROL(NLG) FULL TRAILER PIPING<Z25> (B) M8X16 FLANGE	0-28050-816-0	04	1	1008-1410		●
149	BOLT; UNION FULL TRAILER PIPING<Z25> (B) M8X16 FLANGE	0-28050-816-0	04	1	1411-1510		●
149	BOLT; UNION TRAILER BRAKE HAND CONTROL(NLG) FULL TRAILER PIPING<Z25> (B) M8X16 FLANGE	0-28050-816-0	04	1	1511-		●
159	CLIP; NYLON TUBE (C) L=350	1-09707-183-0	17	1	1008-1410	●
159	CLIP; NYLON TUBE EXC. BATTERY LAYOUT REAR VAR1<NCT> (C) L=350	1-09707-183-0	17	1	1008-1410		●
159	CLIP; NYLON TUBE (C) L=350	1-09707-183-0	20	1	1411-	●
159	CLIP; NYLON TUBE EXC. BATTERY LAYOUT REAR VAR1<NCT> (C) L=350	1-09707-183-0	20	1	1411-		●
159	CLIP; NYLON TUBE (B) ID=19 L=28	0-95235-856-0	02	1	1008-1410	●	●
159	CLIP; NYLON TUBE (B) ID=21 L=24	8-98019-191-0	01	1	1411-	●	●
159	CLIP; NYLON TUBE (B) ID=35 L=33	1-09700-945-0	01	1	1008-	●	●
159	CLIP; NYLON TUBE (A) ID=35 H=45 L=33	1-09700-947-0	01	1	1008-1410	●	●
159	CLIP; NYLON TUBE (A) ID=21 L=30 H=40	1-09700-991-1	01	1	1008-1410	●	●
159	CLIP; NYLON TUBE (A) ID=31 H=30 L=35	1-09700-994-0	01	1	1008-	●	●
159	CLIP; NYLON TUBE (A) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1008-	●	●
159	CLIP; NYLON TUBE BATTERY LAYOUT REAR VAR1<NCT> (C) L=350	1-09707-183-0	12	1	1008-1410		●
159	CLIP; NYLON TUBE BATTERY LAYOUT REAR VAR1<NCT> (C) L=350	1-09707-183-0	15	1	1411-		●

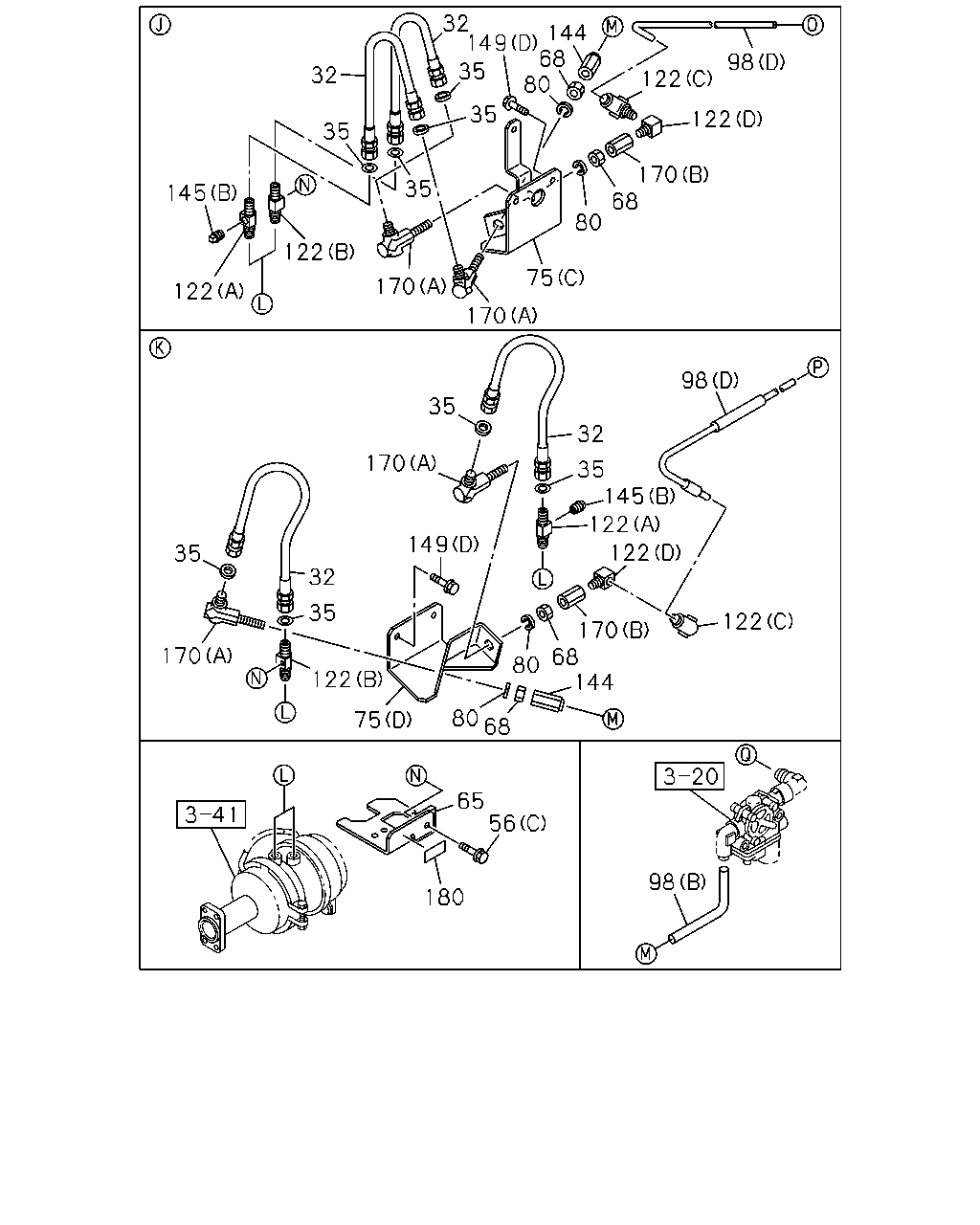

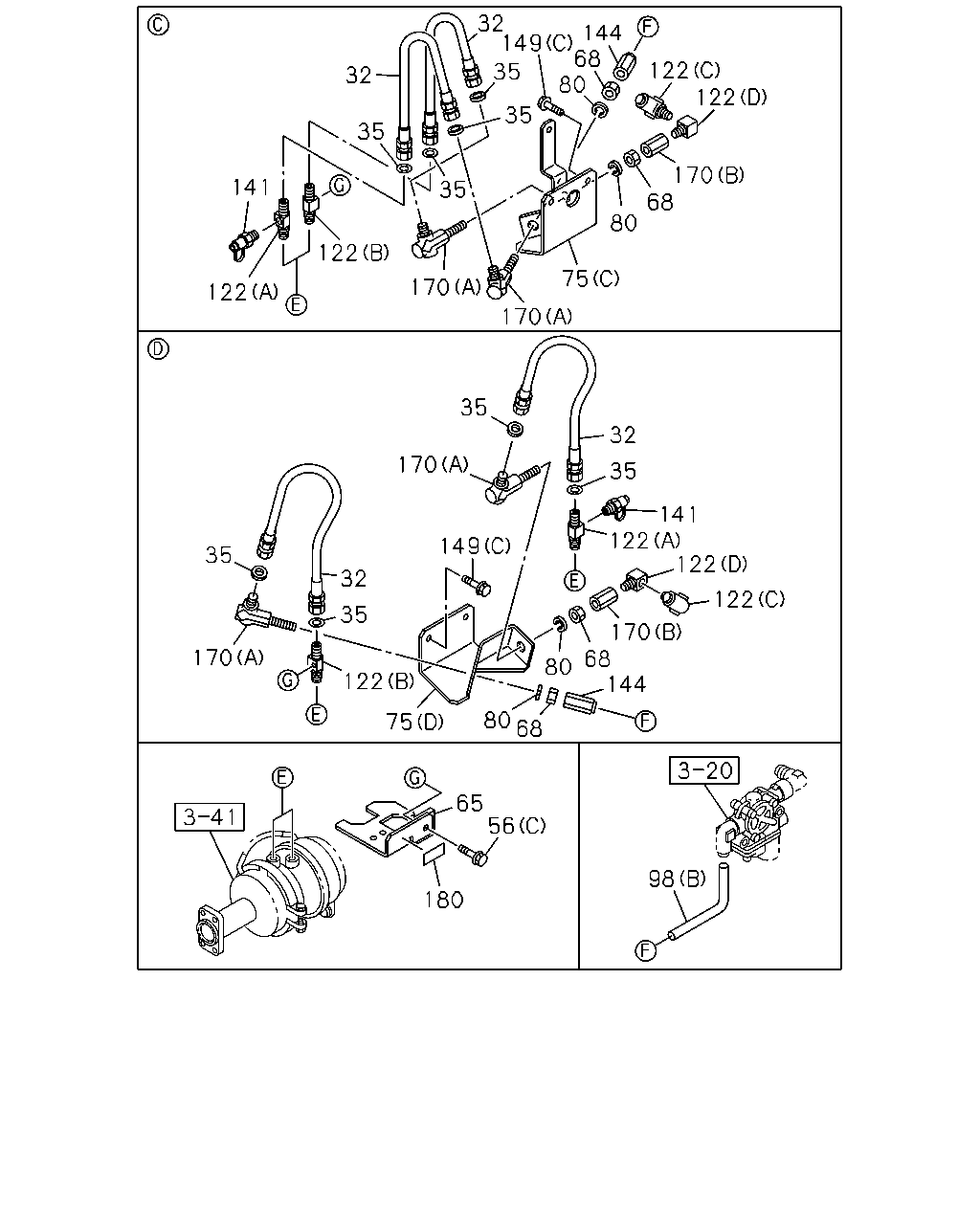

141 122 122 170 170 75 80 68 170 122 122 144 68 80 35 35 149 32 32 35 35 35 32 35 141 170 149 122 122 122 170 68 144 80 68 75 122 170 35 32 35 65 56 180 98 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	HOSE; FLEX,FRT L=470	0-57847-470-1	04	1	1008-	●	●
35	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	08	1	1008-	●	●
56	BOLT; UNION BRKT (D) M8X30 FLANGE	0-28650-830-0	02	1	1411-	●	●
56	BOLT; UNION BRKT (C) M8X12 FLANGE	0-28050-812-0	02	1	1008-	●	●
56	BOLT; UNION BRKT (A) M8X16 FLANGE	0-28050-816-0	02	1	1008-	●	●
56	BOLT; UNION BRKT (B) M8X25 FLANGE	0-28650-825-0	01	1	1008-	●	●
65	BRACKET; FLEX HOSE	8-98163-032-2	01	1	1008-	●	●
65	BRACKET; FLEX HOSE	8-98163-031-2	01	1	1008-	●	●
68	NUT; UNION M20	0-91111-520-0	04	1	1008-1410	●	●
68	NUT; UNION M20	0-91111-520-0	02	1	1411-	●	●
68	NUT; UNION M20	0-91111-520-0	02	1	1411-	●	●
75	BRACKET; UNION (C)	8-98176-142-0	01	1	1008-	●	●
75	BRACKET; UNION (D)	8-98176-152-0	01	1	1008-	●	●
75	BRACKET; UNION (A)	1-47471-023-0	01	1	1008-1410	●
75	BRACKET; UNION EXC. FULL TRAILER PIPING<Z25> (A)	1-47471-023-0	01	1	1008-1410		●
75	BRACKET; UNION FULL TRAILER PIPING<Z25> EXC. TRAILER BRAKE HAND CONTROL(NLG) (A)	1-47471-023-0	01	1	1008-1410		●
75	BRACKET; UNION (A)	1-47471-023-0	01	1	1411-1510	●
75	BRACKET; UNION EXC. FULL TRAILER PIPING<Z25> (A)	1-47471-023-0	01	1	1411-1510		●
75	BRACKET; UNION (A)	1-47471-023-0	01	1	1511-	●
75	BRACKET; UNION EXC. FULL TRAILER PIPING<Z25> (A)	1-47471-023-0	01	1	1511-		●
75	BRACKET; UNION FULL TRAILER PIPING<Z25> EXC. TRAILER BRAKE HAND CONTROL(NLG) (A)	1-47471-023-0	01	1	1511-		●
75	BRACKET; UNION (B)	1-47471-145-0	01	1	1008-	●	●
80	WASHER; LK,UNION ID=20.2	0-91510-520-0	04	1	1008-1410	●	●
80	WASHER; LK,UNION ID=20.2	0-91510-520-0	02	1	1411-	●	●
80	WASHER; LK,UNION ID=20.2	0-91510-520-0	02	1	1411-	●	●
98	TUBE; NYLON (C)	8-98224-859-0	01	1	1411-	●	●
98	TUBE; NYLON (E)	8-98238-522-0	01	1	1411-	●	●
98	TUBE; NYLON (D)	8-98240-190-0	01	1	1411-	●	●
98	TUBE; NYLON (D)	8-98240-191-0	01	1	1411-	●	●
98	TUBE; NYLON (B)	8-98169-619-0	02	1	1008-	●	●
98	TUBE; NYLON (A) SERVICED BY L=4000 OD=6	1-87411-002-0	AR	1	1008-	●	●
98	TUBE; NYLON (A) SERVICED BY L=6000 OD=6	1-87411-003-0	AR	1	1008-	●	●
98	TUBE; NYLON (A) SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	1008-	●	●
98	TUBE; NYLON (A) SERVICED BY L=12000 OD=8	1-87411-010-0	AR	1	1008-	●	●
98	TUBE; NYLON (A) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1008-	●	●
98	TUBE; NYLON (A) SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	1008-	●	●
98	TUBE; NYLON (A) SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	1008-	●	●
98	TUBE; NYLON (A) SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	1008-	●	●
122	CONNECTOR; FLEX HOSE (D) PT3/8 ELBOW	1-09660-696-0	02	1	1008-1410	●	●
122	CONNECTOR; FLEX HOSE (D) PT3/8 ELBOW	1-09660-696-0	01	1	1411-	●	●
122	CONNECTOR; FLEX HOSE (D) PT3/8 ELBOW	1-09660-696-0	01	1	1411-	●	●
122	CONNECTOR; FLEX HOSE (C) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1008-1410	●	●
122	CONNECTOR; FLEX HOSE (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1411-	●	●
122	CONNECTOR; FLEX HOSE (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1411-	●	●
122	CONNECTOR; FLEX HOSE (A)	8-98162-734-0	01	1	1008-	●	●
122	CONNECTOR; FLEX HOSE (B)	8-98162-735-0	01	1	1008-	●	●
122	CONNECTOR; FLEX HOSE (A)	8-98162-043-0	01	1	1008-	●	●
122	CONNECTOR; FLEX HOSE (B)	8-98162-044-0	01	1	1008-	●	●
141	CONNECTOR; TEST R1/4 & M16 TEST CONNECTOR	1-47459-013-1	02	1	1008-1410	●	●
144	ADAPTER DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	1008-1410	●	●
144	ADAPTER DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	1411-	●	●
144	ADAPTER DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	1411-	●	●
149	BOLT; UNION (A) M8X12 FLANGE	0-28050-812-0	01	1	1008-	●	●
149	BOLT; UNION (C) M8X30 FLANGE	0-28650-830-0	04	1	1008-1410	●	●
149	BOLT; UNION (B) M8X16 FLANGE	0-28050-816-0	03	1	1411-1510	●	●
149	BOLT; UNION (B) M8X16 FLANGE	0-28050-816-0	03	1	1511-	●	●
149	BOLT; UNION FULL TRAILER PIPING<Z25> EXC. TRAILER BRAKE HAND CONTROL(NLG) (B) M8X16 FLANGE	0-28050-816-0	03	1	1511-		●
149	BOLT; UNION FULL TRAILER PIPING<Z25> EXC. TRAILER BRAKE HAND CONTROL(NLG) (B) M8X16 FLANGE	0-28050-816-0	03	1	1008-1410		●
149	BOLT; UNION (D) M8X35 FLANGE	0-28650-835-0	04	1	1411-	●	●
149	BOLT; UNION TRAILER BRAKE HAND CONTROL(NLG) FULL TRAILER PIPING<Z25> (B) M8X16 FLANGE	0-28050-816-0	04	1	1008-1410		●
149	BOLT; UNION FULL TRAILER PIPING<Z25> (B) M8X16 FLANGE	0-28050-816-0	04	1	1411-1510		●
149	BOLT; UNION TRAILER BRAKE HAND CONTROL(NLG) FULL TRAILER PIPING<Z25> (B) M8X16 FLANGE	0-28050-816-0	04	1	1511-		●
170	UNION; FLARE (A) M20 & M20 ELBOW	1-09654-397-1	04	1	1008-1410	●	●
170	UNION; FLARE (A) M20 & M20 ELBOW	1-09654-397-1	02	1	1411-	●	●
170	UNION; FLARE (A) M20 & M20 ELBOW	1-09654-397-1	02	1	1411-	●	●
170	UNION; FLARE (B) M20 & RC3/8 STRAIGHT	1-09660-883-0	02	1	1008-1410	●	●
170	UNION; FLARE (B) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	1411-	●	●
170	UNION; FLARE (B) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	1411-	●	●
180	PLATE; CAUTION	8-98164-504-0	02	1	1008-	●	●

52 52 149 52 47 56 98 149 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
47	BRACKET; PIPE UNION (B)	8-98238-525-0	01	1	1411-	●	●
47	BRACKET; PIPE UNION TRAILER BRAKE HAND CONTROL(NLG) FULL TRAILER PIPING<Z25> (A)	1-47471-023-0	01	1	1008-1410		●
47	BRACKET; PIPE UNION FULL TRAILER PIPING<Z25> (A)	1-47471-023-0	01	1	1411-1510		●
47	BRACKET; PIPE UNION TRAILER BRAKE HAND CONTROL(NLG) FULL TRAILER PIPING<Z25> (A)	1-47471-023-0	01	1	1511-		●
52	CONNECTOR; NYLON TUBE FULL TRAILER PIPING<Z25> EXC. TRAILER BRAKE HAND CONTROL(NLG) (B) DIN8X2 & M8 2WAY	1-09661-133-0	02	1	1511-		●
52	CONNECTOR; NYLON TUBE (A) DIN7.5X2 & M8 2WAY	1-09661-128-0	01	1	1008-1410	●	●
52	CONNECTOR; NYLON TUBE (A) DIN7.5X2 & M8 2WAY	1-09661-128-0	01	1	1411-	●	●
52	CONNECTOR; NYLON TUBE FULL TRAILER PIPING<Z25> EXC. TRAILER BRAKE HAND CONTROL(NLG) (B) DIN8X2 & M8 2WAY	1-09661-133-0	02	1	1008-1410		●
52	CONNECTOR; NYLON TUBE (A) DIN7.5X2 & M8 2WAY	1-09661-128-0	03	1	1411-	●	●
52	CONNECTOR; NYLON TUBE TRAILER BRAKE HAND CONTROL(NLG) FULL TRAILER PIPING<Z25> (B) DIN8X2 & M8 2WAY	1-09661-133-0	03	1	1008-1410		●
52	CONNECTOR; NYLON TUBE FULL TRAILER PIPING<Z25> (B) DIN8X2 & M8 2WAY	1-09661-133-0	03	1	1411-1510		●
52	CONNECTOR; NYLON TUBE TRAILER BRAKE HAND CONTROL(NLG) FULL TRAILER PIPING<Z25> (B) DIN8X2 & M8 2WAY	1-09661-133-0	03	1	1511-		●
56	BOLT; UNION BRKT (D) M8X30 FLANGE	0-28650-830-0	02	1	1411-	●	●
56	BOLT; UNION BRKT (C) M8X12 FLANGE	0-28050-812-0	02	1	1008-	●	●
56	BOLT; UNION BRKT (A) M8X16 FLANGE	0-28050-816-0	02	1	1008-	●	●
56	BOLT; UNION BRKT (B) M8X25 FLANGE	0-28650-825-0	01	1	1008-	●	●
98	TUBE; NYLON (C)	8-98224-859-0	01	1	1411-	●	●
98	TUBE; NYLON (E)	8-98238-522-0	01	1	1411-	●	●
98	TUBE; NYLON (D)	8-98240-190-0	01	1	1411-	●	●
98	TUBE; NYLON (D)	8-98240-191-0	01	1	1411-	●	●
98	TUBE; NYLON (B)	8-98169-619-0	02	1	1008-	●	●
98	TUBE; NYLON (A) SERVICED BY L=4000 OD=6	1-87411-002-0	AR	1	1008-	●	●
98	TUBE; NYLON (A) SERVICED BY L=6000 OD=6	1-87411-003-0	AR	1	1008-	●	●
98	TUBE; NYLON (A) SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	1008-	●	●
98	TUBE; NYLON (A) SERVICED BY L=12000 OD=8	1-87411-010-0	AR	1	1008-	●	●
98	TUBE; NYLON (A) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1008-	●	●
98	TUBE; NYLON (A) SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	1008-	●	●
98	TUBE; NYLON (A) SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	1008-	●	●
98	TUBE; NYLON (A) SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	1008-	●	●
149	BOLT; UNION (A) M8X12 FLANGE	0-28050-812-0	01	1	1008-	●	●
149	BOLT; UNION (C) M8X30 FLANGE	0-28650-830-0	04	1	1008-1410	●	●
149	BOLT; UNION (B) M8X16 FLANGE	0-28050-816-0	03	1	1411-1510	●	●
149	BOLT; UNION (B) M8X16 FLANGE	0-28050-816-0	03	1	1511-	●	●
149	BOLT; UNION FULL TRAILER PIPING<Z25> EXC. TRAILER BRAKE HAND CONTROL(NLG) (B) M8X16 FLANGE	0-28050-816-0	03	1	1511-		●
149	BOLT; UNION FULL TRAILER PIPING<Z25> EXC. TRAILER BRAKE HAND CONTROL(NLG) (B) M8X16 FLANGE	0-28050-816-0	03	1	1008-1410		●
149	BOLT; UNION (D) M8X35 FLANGE	0-28650-835-0	04	1	1411-	●	●
149	BOLT; UNION TRAILER BRAKE HAND CONTROL(NLG) FULL TRAILER PIPING<Z25> (B) M8X16 FLANGE	0-28050-816-0	04	1	1008-1410		●
149	BOLT; UNION FULL TRAILER PIPING<Z25> (B) M8X16 FLANGE	0-28050-816-0	04	1	1411-1510		●
149	BOLT; UNION TRAILER BRAKE HAND CONTROL(NLG) FULL TRAILER PIPING<Z25> (B) M8X16 FLANGE	0-28050-816-0	04	1	1511-		●

145 122 122 170 170 75 80 68 170 122 122 98 144 68 35 35 32 35 32 98 32 35 122 122 122 170 68 68 80 80 149 170 35 170 35 32 35 122 75 65 56 180 98 145 35 144 149 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	HOSE; FLEX,FRT L=470	0-57847-470-1	04	1	1008-	●	●
35	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	08	1	1008-	●	●
56	BOLT; UNION BRKT (D) M8X30 FLANGE	0-28650-830-0	02	1	1411-	●	●
56	BOLT; UNION BRKT (C) M8X12 FLANGE	0-28050-812-0	02	1	1008-	●	●
56	BOLT; UNION BRKT (A) M8X16 FLANGE	0-28050-816-0	02	1	1008-	●	●
56	BOLT; UNION BRKT (B) M8X25 FLANGE	0-28650-825-0	01	1	1008-	●	●
65	BRACKET; FLEX HOSE	8-98163-032-2	01	1	1008-	●	●
65	BRACKET; FLEX HOSE	8-98163-031-2	01	1	1008-	●	●
68	NUT; UNION M20	0-91111-520-0	04	1	1008-1410	●	●
68	NUT; UNION M20	0-91111-520-0	02	1	1411-	●	●
68	NUT; UNION M20	0-91111-520-0	02	1	1411-	●	●
75	BRACKET; UNION (C)	8-98176-142-0	01	1	1008-	●	●
75	BRACKET; UNION (D)	8-98176-152-0	01	1	1008-	●	●
75	BRACKET; UNION (A)	1-47471-023-0	01	1	1008-1410	●
75	BRACKET; UNION EXC. FULL TRAILER PIPING<Z25> (A)	1-47471-023-0	01	1	1008-1410		●
75	BRACKET; UNION FULL TRAILER PIPING<Z25> EXC. TRAILER BRAKE HAND CONTROL(NLG) (A)	1-47471-023-0	01	1	1008-1410		●
75	BRACKET; UNION (A)	1-47471-023-0	01	1	1411-1510	●
75	BRACKET; UNION EXC. FULL TRAILER PIPING<Z25> (A)	1-47471-023-0	01	1	1411-1510		●
75	BRACKET; UNION (A)	1-47471-023-0	01	1	1511-	●
75	BRACKET; UNION EXC. FULL TRAILER PIPING<Z25> (A)	1-47471-023-0	01	1	1511-		●
75	BRACKET; UNION FULL TRAILER PIPING<Z25> EXC. TRAILER BRAKE HAND CONTROL(NLG) (A)	1-47471-023-0	01	1	1511-		●
75	BRACKET; UNION (B)	1-47471-145-0	01	1	1008-	●	●
80	WASHER; LK,UNION ID=20.2	0-91510-520-0	04	1	1008-1410	●	●
80	WASHER; LK,UNION ID=20.2	0-91510-520-0	02	1	1411-	●	●
80	WASHER; LK,UNION ID=20.2	0-91510-520-0	02	1	1411-	●	●
98	TUBE; NYLON (C)	8-98224-859-0	01	1	1411-	●	●
98	TUBE; NYLON (E)	8-98238-522-0	01	1	1411-	●	●
98	TUBE; NYLON (D)	8-98240-190-0	01	1	1411-	●	●
98	TUBE; NYLON (D)	8-98240-191-0	01	1	1411-	●	●
98	TUBE; NYLON (B)	8-98169-619-0	02	1	1008-	●	●
98	TUBE; NYLON (A) SERVICED BY L=4000 OD=6	1-87411-002-0	AR	1	1008-	●	●
98	TUBE; NYLON (A) SERVICED BY L=6000 OD=6	1-87411-003-0	AR	1	1008-	●	●
98	TUBE; NYLON (A) SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	1008-	●	●
98	TUBE; NYLON (A) SERVICED BY L=12000 OD=8	1-87411-010-0	AR	1	1008-	●	●
98	TUBE; NYLON (A) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1008-	●	●
98	TUBE; NYLON (A) SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	1008-	●	●
98	TUBE; NYLON (A) SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	1008-	●	●
98	TUBE; NYLON (A) SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	1008-	●	●
122	CONNECTOR; FLEX HOSE (D) PT3/8 ELBOW	1-09660-696-0	02	1	1008-1410	●	●
122	CONNECTOR; FLEX HOSE (D) PT3/8 ELBOW	1-09660-696-0	01	1	1411-	●	●
122	CONNECTOR; FLEX HOSE (D) PT3/8 ELBOW	1-09660-696-0	01	1	1411-	●	●
122	CONNECTOR; FLEX HOSE (C) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1008-1410	●	●
122	CONNECTOR; FLEX HOSE (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1411-	●	●
122	CONNECTOR; FLEX HOSE (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1411-	●	●
122	CONNECTOR; FLEX HOSE (A)	8-98162-734-0	01	1	1008-	●	●
122	CONNECTOR; FLEX HOSE (B)	8-98162-735-0	01	1	1008-	●	●
122	CONNECTOR; FLEX HOSE (A)	8-98162-043-0	01	1	1008-	●	●
122	CONNECTOR; FLEX HOSE (B)	8-98162-044-0	01	1	1008-	●	●
144	ADAPTER DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	1008-1410	●	●
144	ADAPTER DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	1411-	●	●
144	ADAPTER DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	1411-	●	●
145	PLUG (B) PT1/4	9-99204-513-0	02	1	1411-	●	●
145	PLUG (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1008-	●	●
149	BOLT; UNION (A) M8X12 FLANGE	0-28050-812-0	01	1	1008-	●	●
149	BOLT; UNION (C) M8X30 FLANGE	0-28650-830-0	04	1	1008-1410	●	●
149	BOLT; UNION (B) M8X16 FLANGE	0-28050-816-0	03	1	1411-1510	●	●
149	BOLT; UNION (B) M8X16 FLANGE	0-28050-816-0	03	1	1511-	●	●
149	BOLT; UNION FULL TRAILER PIPING<Z25> EXC. TRAILER BRAKE HAND CONTROL(NLG) (B) M8X16 FLANGE	0-28050-816-0	03	1	1511-		●
149	BOLT; UNION FULL TRAILER PIPING<Z25> EXC. TRAILER BRAKE HAND CONTROL(NLG) (B) M8X16 FLANGE	0-28050-816-0	03	1	1008-1410		●
149	BOLT; UNION (D) M8X35 FLANGE	0-28650-835-0	04	1	1411-	●	●
149	BOLT; UNION TRAILER BRAKE HAND CONTROL(NLG) FULL TRAILER PIPING<Z25> (B) M8X16 FLANGE	0-28050-816-0	04	1	1008-1410		●
149	BOLT; UNION FULL TRAILER PIPING<Z25> (B) M8X16 FLANGE	0-28050-816-0	04	1	1411-1510		●
149	BOLT; UNION TRAILER BRAKE HAND CONTROL(NLG) FULL TRAILER PIPING<Z25> (B) M8X16 FLANGE	0-28050-816-0	04	1	1511-		●
170	UNION; FLARE (A) M20 & M20 ELBOW	1-09654-397-1	04	1	1008-1410	●	●
170	UNION; FLARE (A) M20 & M20 ELBOW	1-09654-397-1	02	1	1411-	●	●
170	UNION; FLARE (A) M20 & M20 ELBOW	1-09654-397-1	02	1	1411-	●	●
170	UNION; FLARE (B) M20 & RC3/8 STRAIGHT	1-09660-883-0	02	1	1008-1410	●	●
170	UNION; FLARE (B) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	1411-	●	●
170	UNION; FLARE (B) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	1411-	●	●
180	PLATE; CAUTION	8-98164-504-0	02	1	1008-	●	●

98 98 98 98 98 98 98 98 98 98 98 52 52 149 47 75 56 48 55 52 149 75 114 145 149 115 56 159 117 117 98 117 117 117 98 98 98 98 98 98 98 159 159 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
47	BRACKET; PIPE UNION (B)	8-98238-525-0	01	1	1411-	●	●
47	BRACKET; PIPE UNION TRAILER BRAKE HAND CONTROL(NLG) FULL TRAILER PIPING<Z25> (A)	1-47471-023-0	01	1	1008-1410		●
47	BRACKET; PIPE UNION FULL TRAILER PIPING<Z25> (A)	1-47471-023-0	01	1	1411-1510		●
47	BRACKET; PIPE UNION TRAILER BRAKE HAND CONTROL(NLG) FULL TRAILER PIPING<Z25> (A)	1-47471-023-0	01	1	1511-		●
48	NUT; UNION BRKT M12 FLANGE	0-91180-212-0	02	1	1008-	●	●
52	CONNECTOR; NYLON TUBE FULL TRAILER PIPING<Z25> EXC. TRAILER BRAKE HAND CONTROL(NLG) (B) DIN8X2 & M8 2WAY	1-09661-133-0	02	1	1511-		●
52	CONNECTOR; NYLON TUBE (A) DIN7.5X2 & M8 2WAY	1-09661-128-0	01	1	1008-1410	●	●
52	CONNECTOR; NYLON TUBE (A) DIN7.5X2 & M8 2WAY	1-09661-128-0	01	1	1411-	●	●
52	CONNECTOR; NYLON TUBE FULL TRAILER PIPING<Z25> EXC. TRAILER BRAKE HAND CONTROL(NLG) (B) DIN8X2 & M8 2WAY	1-09661-133-0	02	1	1008-1410		●
52	CONNECTOR; NYLON TUBE (A) DIN7.5X2 & M8 2WAY	1-09661-128-0	03	1	1411-	●	●
52	CONNECTOR; NYLON TUBE TRAILER BRAKE HAND CONTROL(NLG) FULL TRAILER PIPING<Z25> (B) DIN8X2 & M8 2WAY	1-09661-133-0	03	1	1008-1410		●
52	CONNECTOR; NYLON TUBE FULL TRAILER PIPING<Z25> (B) DIN8X2 & M8 2WAY	1-09661-133-0	03	1	1411-1510		●
52	CONNECTOR; NYLON TUBE TRAILER BRAKE HAND CONTROL(NLG) FULL TRAILER PIPING<Z25> (B) DIN8X2 & M8 2WAY	1-09661-133-0	03	1	1511-		●
55	BRACKET; TUBE UNION	1-47479-993-1	01	1	1008-1410	●	●
55	BRACKET; TUBE UNION	8-98199-427-0	01	1	1411-	●	●
56	BOLT; UNION BRKT (D) M8X30 FLANGE	0-28650-830-0	02	1	1411-	●	●
56	BOLT; UNION BRKT (C) M8X12 FLANGE	0-28050-812-0	02	1	1008-	●	●
56	BOLT; UNION BRKT (A) M8X16 FLANGE	0-28050-816-0	02	1	1008-	●	●
56	BOLT; UNION BRKT (B) M8X25 FLANGE	0-28650-825-0	01	1	1008-	●	●
75	BRACKET; UNION (C)	8-98176-142-0	01	1	1008-	●	●
75	BRACKET; UNION (D)	8-98176-152-0	01	1	1008-	●	●
75	BRACKET; UNION (A)	1-47471-023-0	01	1	1008-1410	●
75	BRACKET; UNION EXC. FULL TRAILER PIPING<Z25> (A)	1-47471-023-0	01	1	1008-1410		●
75	BRACKET; UNION FULL TRAILER PIPING<Z25> EXC. TRAILER BRAKE HAND CONTROL(NLG) (A)	1-47471-023-0	01	1	1008-1410		●
75	BRACKET; UNION (A)	1-47471-023-0	01	1	1411-1510	●
75	BRACKET; UNION EXC. FULL TRAILER PIPING<Z25> (A)	1-47471-023-0	01	1	1411-1510		●
75	BRACKET; UNION (A)	1-47471-023-0	01	1	1511-	●
75	BRACKET; UNION EXC. FULL TRAILER PIPING<Z25> (A)	1-47471-023-0	01	1	1511-		●
75	BRACKET; UNION FULL TRAILER PIPING<Z25> EXC. TRAILER BRAKE HAND CONTROL(NLG) (A)	1-47471-023-0	01	1	1511-		●
75	BRACKET; UNION (B)	1-47471-145-0	01	1	1008-	●	●
98	TUBE; NYLON (C)	8-98224-859-0	01	1	1411-	●	●
98	TUBE; NYLON (E)	8-98238-522-0	01	1	1411-	●	●
98	TUBE; NYLON (D)	8-98240-190-0	01	1	1411-	●	●
98	TUBE; NYLON (D)	8-98240-191-0	01	1	1411-	●	●
98	TUBE; NYLON (B)	8-98169-619-0	02	1	1008-	●	●
98	TUBE; NYLON (A) SERVICED BY L=4000 OD=6	1-87411-002-0	AR	1	1008-	●	●
98	TUBE; NYLON (A) SERVICED BY L=6000 OD=6	1-87411-003-0	AR	1	1008-	●	●
98	TUBE; NYLON (A) SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	1008-	●	●
98	TUBE; NYLON (A) SERVICED BY L=12000 OD=8	1-87411-010-0	AR	1	1008-	●	●
98	TUBE; NYLON (A) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1008-	●	●
98	TUBE; NYLON (A) SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	1008-	●	●
98	TUBE; NYLON (A) SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	1008-	●	●
98	TUBE; NYLON (A) SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	1008-	●	●
114	UNION; NYLON TUBE DIN12X2 & R3/8 3WAY	1-09661-131-0	01	1	1008-	●	●
115	NUT; TUBE UNION M8 FLANGE	0-91180-108-0	01	1	1008-	●	●
117	TUBE; CORRUGATE WHEEL BASE 5900MM(59W) FULL TRAILER PIPING<Z25> EXC. BATTERY LAYOUT REAR VAR1<NCT> SERVICED BY L=2000 ID=22	1-87411-029-0	03	1	1511-		●
117	TUBE; CORRUGATE WHEEL BASE 5900MM(59W) FULL TRAILER PIPING<Z25> EXC. TRAILER BRAKE HAND CONTROL(NLG) SERVICED BY L=2000 ID=22	1-87411-029-0	03	1	1511-		●
117	TUBE; CORRUGATE WHEEL BASE 5200MM(52W) SERVICED BY L=2000 ID=19	1-87411-027-0	01	1	1511-	●
117	TUBE; CORRUGATE WHEEL BASE 5500MM(55W) EXC. FULL TRAILER PIPING<Z25> SERVICED BY L=2000 ID=19	1-87411-027-0	01	1	1511-		●
117	TUBE; CORRUGATE WHEEL BASE 6600MM(66W) SERVICED BY L=2000 ID=19	1-87411-027-0	01	1	1511-		●
117	TUBE; CORRUGATE WHEEL BASE 5200MM(52W) SERVICED BY L=2000 ID=13	1-87411-022-0	02	1	1511-	●
117	TUBE; CORRUGATE WHEEL BASE 5900MM(59W) BATTERY LAYOUT REAR VAR1<NCT> EXC. FULL TRAILER PIPING<Z25> SERVICED BY L=2000 ID=13	1-87411-022-0	02	1	1511-		●
117	TUBE; CORRUGATE WHEEL BASE 5900MM(59W) EXC. BATTERY LAYOUT REAR VAR1<NCT> SERVICED BY L=2000 ID=13	1-87411-022-0	02	1	1511-		●
117	TUBE; CORRUGATE WHEEL BASE 5900MM(59W) FULL TRAILER PIPING<Z25> EXC. TRAILER BRAKE HAND CONTROL(NLG) SERVICED BY L=2000 ID=13	1-87411-022-0	02	1	1511-		●
117	TUBE; CORRUGATE WHEEL BASE 5500MM(55W),WHEEL BASE 6600MM(66W) SERVICED BY L=2000 ID=13	1-87411-022-0	02	1	1511-		●
117	TUBE; CORRUGATE WHEEL BASE 5200MM(52W) SERVICED BY L=2000 ID=25	1-87411-031-0	01	1	1511-	●
117	TUBE; CORRUGATE WHEEL BASE 5200MM(52W) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) SERVICED BY L=2000 ID=25	1-87411-031-0	01	1	1511-	●
117	TUBE; CORRUGATE MJT7S M/T(Y3E) WHEEL BASE 5200MM(52W) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) SERVICED BY L=2000 ID=25	1-87411-031-0	01	1	1511-	●
117	TUBE; CORRUGATE WHEEL BASE 6600MM(66W) SERVICED BY L=2000 ID=25	1-87411-031-0	01	1	1511-		●
117	TUBE; CORRUGATE WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W) FULL TRAILER PIPING<Z25> EXC. TRAILER BRAKE HAND CONTROL(NLG) SERVICED BY L=2000 ID=25	1-87411-031-0	01	1	1511-		●
117	TUBE; CORRUGATE WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W) EXC. FULL TRAILER PIPING<Z25> SERVICED BY L=2000 ID=25	1-87411-031-0	01	1	1511-		●
117	TUBE; CORRUGATE MJT7S M/T(Y3E) WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) SERVICED BY L=2000 ID=25	1-87411-031-0	01	1	1511-		●
117	TUBE; CORRUGATE MJX16P M/T(Y3Z) WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) SERVICED BY L=2000 ID=25	1-87411-031-0	01	1	1511-		●
117	TUBE; CORRUGATE WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) SERVICED BY L=2000 ID=25	1-87411-031-0	01	1	1511-		●
117	TUBE; CORRUGATE WHEEL BASE 5200MM(52W) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) SERVICED BY L=2000 ID=28	1-87411-033-0	01	1	1511-	●
117	TUBE; CORRUGATE MJT7S M/T(Y3E) WHEEL BASE 5200MM(52W) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) SERVICED BY L=2000 ID=28	1-87411-033-0	01	1	1511-	●
117	TUBE; CORRUGATE WHEEL BASE 5500MM(55W) TRAILER BRAKE HAND CONTROL(NLG) FULL TRAILER PIPING<Z25> SERVICED BY L=2000 ID=28	1-87411-033-0	01	1	1511-		●
117	TUBE; CORRUGATE WHEEL BASE 5900MM(59W) FULL TRAILER PIPING<Z25> EXC. BATTERY LAYOUT REAR VAR1<NCT> SERVICED BY L=2000 ID=28	1-87411-033-0	01	1	1511-		●
117	TUBE; CORRUGATE MJT7S M/T(Y3E) WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) SERVICED BY L=2000 ID=28	1-87411-033-0	01	1	1511-		●
117	TUBE; CORRUGATE MJX16P M/T(Y3Z) WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) SERVICED BY L=2000 ID=28	1-87411-033-0	01	1	1511-		●
117	TUBE; CORRUGATE WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) SERVICED BY L=2000 ID=28	1-87411-033-0	01	1	1511-		●
117	TUBE; CORRUGATE WHEEL BASE 5900MM(59W) EXC. FULL TRAILER PIPING<Z25> SERVICED BY L=2000 ID=19	1-87411-027-0	03	1	1511-		●
117	TUBE; CORRUGATE WHEEL BASE 5500MM(55W) FULL TRAILER PIPING<Z25> SERVICED BY L=2000 ID=22	1-87411-029-0	01	1	1511-		●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=7	1-87411-016-0	AR	1	1008-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	1008-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	1008-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87411-027-0	AR	1	1008-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87411-029-0	AR	1	1008-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	1008-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87411-033-0	AR	1	1008-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87411-035-0	AR	1	1008-	●	●
145	PLUG (B) PT1/4	9-99204-513-0	02	1	1411-	●	●
145	PLUG (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1008-	●	●
149	BOLT; UNION (A) M8X12 FLANGE	0-28050-812-0	01	1	1008-	●	●
149	BOLT; UNION (C) M8X30 FLANGE	0-28650-830-0	04	1	1008-1410	●	●
149	BOLT; UNION (B) M8X16 FLANGE	0-28050-816-0	03	1	1411-1510	●	●
149	BOLT; UNION (B) M8X16 FLANGE	0-28050-816-0	03	1	1511-	●	●
149	BOLT; UNION FULL TRAILER PIPING<Z25> EXC. TRAILER BRAKE HAND CONTROL(NLG) (B) M8X16 FLANGE	0-28050-816-0	03	1	1511-		●
149	BOLT; UNION FULL TRAILER PIPING<Z25> EXC. TRAILER BRAKE HAND CONTROL(NLG) (B) M8X16 FLANGE	0-28050-816-0	03	1	1008-1410		●
149	BOLT; UNION (D) M8X35 FLANGE	0-28650-835-0	04	1	1411-	●	●
149	BOLT; UNION TRAILER BRAKE HAND CONTROL(NLG) FULL TRAILER PIPING<Z25> (B) M8X16 FLANGE	0-28050-816-0	04	1	1008-1410		●
149	BOLT; UNION FULL TRAILER PIPING<Z25> (B) M8X16 FLANGE	0-28050-816-0	04	1	1411-1510		●
149	BOLT; UNION TRAILER BRAKE HAND CONTROL(NLG) FULL TRAILER PIPING<Z25> (B) M8X16 FLANGE	0-28050-816-0	04	1	1511-		●
159	CLIP; NYLON TUBE (C) L=350	1-09707-183-0	17	1	1008-1410	●
159	CLIP; NYLON TUBE EXC. BATTERY LAYOUT REAR VAR1<NCT> (C) L=350	1-09707-183-0	17	1	1008-1410		●
159	CLIP; NYLON TUBE (C) L=350	1-09707-183-0	20	1	1411-	●
159	CLIP; NYLON TUBE EXC. BATTERY LAYOUT REAR VAR1<NCT> (C) L=350	1-09707-183-0	20	1	1411-		●
159	CLIP; NYLON TUBE (B) ID=19 L=28	0-95235-856-0	02	1	1008-1410	●	●
159	CLIP; NYLON TUBE (B) ID=21 L=24	8-98019-191-0	01	1	1411-	●	●
159	CLIP; NYLON TUBE (B) ID=35 L=33	1-09700-945-0	01	1	1008-	●	●
159	CLIP; NYLON TUBE (A) ID=35 H=45 L=33	1-09700-947-0	01	1	1008-1410	●	●
159	CLIP; NYLON TUBE (A) ID=21 L=30 H=40	1-09700-991-1	01	1	1008-1410	●	●
159	CLIP; NYLON TUBE (A) ID=31 H=30 L=35	1-09700-994-0	01	1	1008-	●	●
159	CLIP; NYLON TUBE (A) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1008-	●	●
159	CLIP; NYLON TUBE BATTERY LAYOUT REAR VAR1<NCT> (C) L=350	1-09707-183-0	12	1	1008-1410		●
159	CLIP; NYLON TUBE BATTERY LAYOUT REAR VAR1<NCT> (C) L=350	1-09707-183-0	15	1	1411-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
