3-41 — REAR BRAKE POWER CHAMBER (#62615) — 142 parça

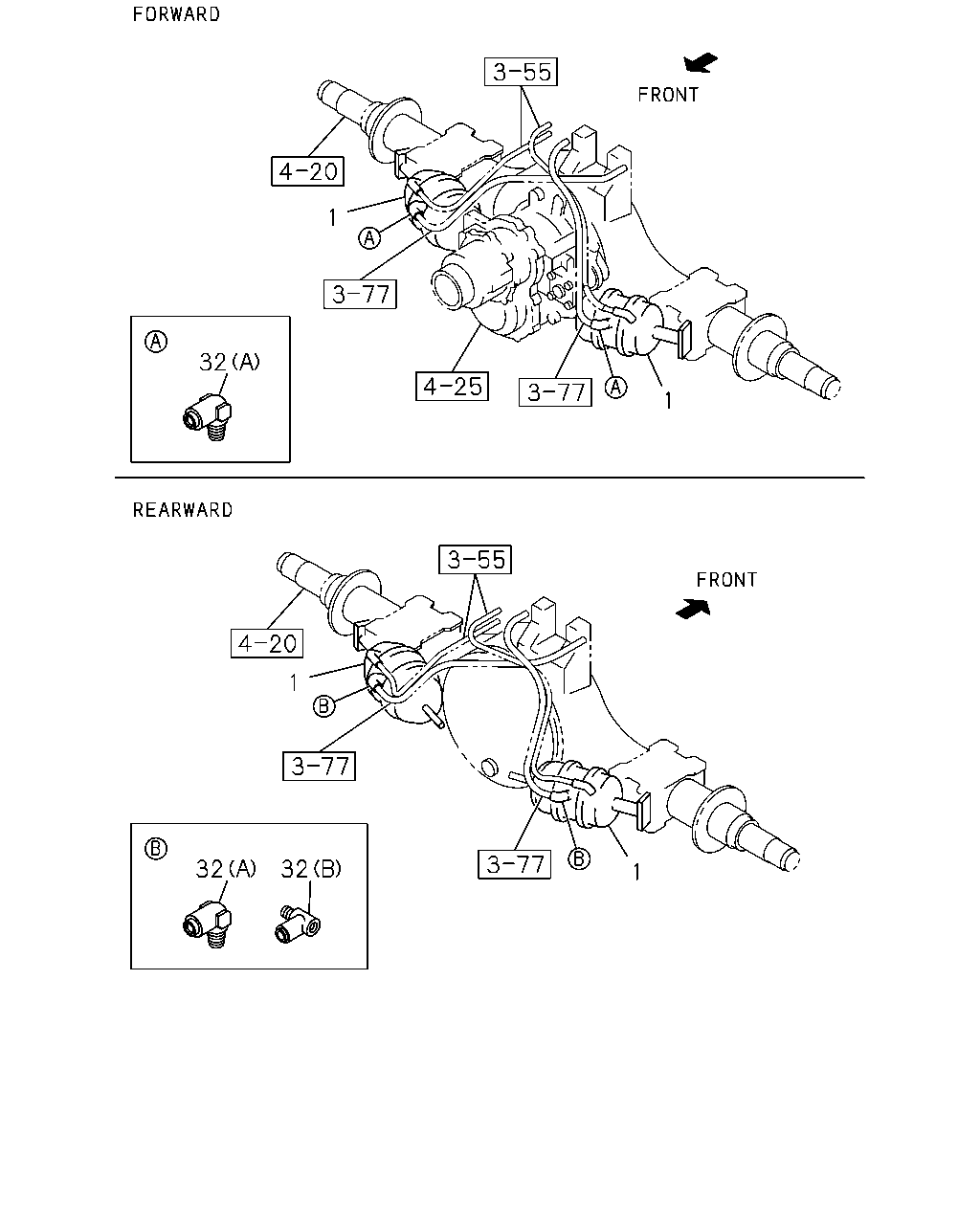

çizim 170295
1 1 32 1 1 32 32
BalonParca AdiParca NoAdetTipApplied Date A B
1 CHAMBER ASM; SPRING
RR BRK AIR D410 WEDGE-220-24/30<B9R> FORWARD RH,REARWARD LH 		1-87412-097-0 02 1 1008-1410 ●
1 CHAMBER ASM; SPRING
RR BRK AIR D410 WEDGE-220-24/30<B9R> FORWARD LH,REARWARD RH 		1-87412-098-0 02 1 1008-1410 ●
1 CHAMBER ASM; SPRING
FORWARD RH,REARWARD LH 		1-87412-101-0 02 1 1008-1410 ●
1 CHAMBER ASM; SPRING
RR BRK AIR D410 WEDGE-220-30/30<B9V> FORWARD RH,REARWARD LH 		1-87412-101-0 02 1 1008-1410 ●
1 CHAMBER ASM; SPRING
FORWARD RH,REARWARD LH 		1-87412-101-0 01 1 1411- ● ●
1 CHAMBER ASM; SPRING
FORWARD RH,REARWARD LH 		1-87412-101-0 01 1 1411- ● ●
1 CHAMBER ASM; SPRING
FORWARD LH,REARWARD RH 		1-87412-102-0 02 1 1008-1410 ●
1 CHAMBER ASM; SPRING
RR BRK AIR D410 WEDGE-220-30/30<B9V> FORWARD LH,REARWARD RH 		1-87412-102-0 02 1 1008-1410 ●
1 CHAMBER ASM; SPRING
FORWARD LH,REARWARD RH 		1-87412-102-0 01 1 1411- ● ●
1 CHAMBER ASM; SPRING
FORWARD LH,REARWARD RH 		1-87412-102-0 01 1 1411- ● ●
32 CONNECTOR; SPR CHAMBER
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 07 1 1008-1410 ● ●
32 CONNECTOR; SPR CHAMBER
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 1411- ● ●
32 CONNECTOR; SPR CHAMBER
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 1411- ● ●
32 CONNECTOR; SPR CHAMBER
(B) DIN12 & RC1/4 & R3/8 3WAY 		1-09661-132-0 01 1 1008-1410 ● ●

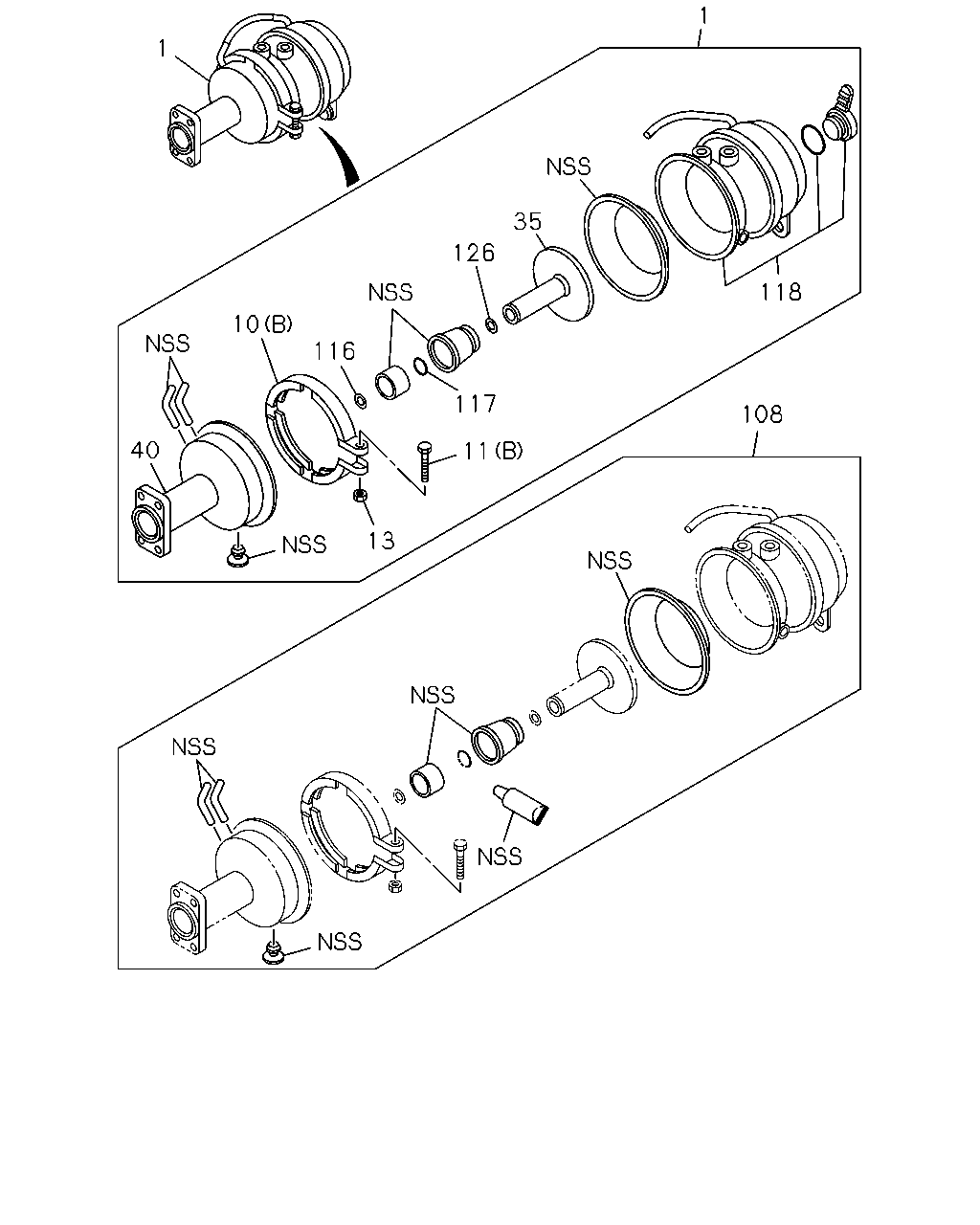

çizim 170333
1 10 40 116 117 11 13 126 35 1 118 108
BalonParca AdiParca NoAdetTipApplied Date A B
1 CHAMBER ASM; SPRING
RR BRK AIR D410 WEDGE-220-24/30<B9R> FORWARD RH,REARWARD LH 		1-87412-097-0 02 1 1008-1410 ●
1 CHAMBER ASM; SPRING
RR BRK AIR D410 WEDGE-220-24/30<B9R> FORWARD LH,REARWARD RH 		1-87412-098-0 02 1 1008-1410 ●
1 CHAMBER ASM; SPRING
FORWARD RH,REARWARD LH 		1-87412-101-0 02 1 1008-1410 ●
1 CHAMBER ASM; SPRING
RR BRK AIR D410 WEDGE-220-30/30<B9V> FORWARD RH,REARWARD LH 		1-87412-101-0 02 1 1008-1410 ●
1 CHAMBER ASM; SPRING
FORWARD RH,REARWARD LH 		1-87412-101-0 01 1 1411- ● ●
1 CHAMBER ASM; SPRING
FORWARD RH,REARWARD LH 		1-87412-101-0 01 1 1411- ● ●
1 CHAMBER ASM; SPRING
FORWARD LH,REARWARD RH 		1-87412-102-0 02 1 1008-1410 ●
1 CHAMBER ASM; SPRING
RR BRK AIR D410 WEDGE-220-30/30<B9V> FORWARD LH,REARWARD RH 		1-87412-102-0 02 1 1008-1410 ●
1 CHAMBER ASM; SPRING
FORWARD LH,REARWARD RH 		1-87412-102-0 01 1 1411- ● ●
1 CHAMBER ASM; SPRING
FORWARD LH,REARWARD RH 		1-87412-102-0 01 1 1411- ● ●
10 RING; CLAMP,SPR CHAMBER
RR BRK AIR D410 WEDGE-220-24/30<B9R> (B) 		1-48269-256-0 04 1 1008-1410 ●
10 RING; CLAMP,SPR CHAMBER
(A) 		1-48269-150-0 04 1 1008-1410 ●
10 RING; CLAMP,SPR CHAMBER
RR BRK AIR D410 WEDGE-220-30/30<B9V> (A) 		1-48269-150-0 04 1 1008-1410 ●
10 RING; CLAMP,SPR CHAMBER
(A) 		1-48269-150-0 02 1 1411- ● ●
10 RING; CLAMP,SPR CHAMBER
(A) 		1-48269-150-0 02 1 1411- ● ●
11 BOLT; CLAMP RING
RR BRK AIR D410 WEDGE-220-24/30<B9R> (B) 		1-48269-257-0 04 1 1008-1410 ●
11 BOLT; CLAMP RING
(A) 		1-48269-146-0 08 1 1008-1410 ●
11 BOLT; CLAMP RING
RR BRK AIR D410 WEDGE-220-30/30<B9V> (A) 		1-48269-146-0 08 1 1008-1410 ●
11 BOLT; CLAMP RING
(A) 		1-48269-146-0 04 1 1411- ● ●
11 BOLT; CLAMP RING
(A) 		1-48269-146-0 04 1 1411- ● ●
13 NUT; CLAMP RING
RR BRK AIR D410 WEDGE-220-24/30<B9R> 		1-48269-147-0 04 1 1008-1410 ●
13 NUT; CLAMP RING 1-48269-147-0 08 1 1008-1410 ●
13 NUT; CLAMP RING
RR BRK AIR D410 WEDGE-220-30/30<B9V> 		1-48269-147-0 08 1 1008-1410 ●
13 NUT; CLAMP RING 1-48269-147-0 04 1 1411- ● ●
13 NUT; CLAMP RING 1-48269-147-0 04 1 1411- ● ●
35 PLATE; ROD END,SPR CHAMBER
RR BRK AIR D410 WEDGE-220-24/30<B9R> 		8-98146-974-0 04 1 1008-1410 ●
35 PLATE; ROD END,SPR CHAMBER 8-98146-975-0 04 1 1008-1410 ●
35 PLATE; ROD END,SPR CHAMBER
RR BRK AIR D410 WEDGE-220-30/30<B9V> 		8-98146-975-0 04 1 1008-1410 ●
35 PLATE; ROD END,SPR CHAMBER 8-98146-975-0 02 1 1411- ● ●
35 PLATE; ROD END,SPR CHAMBER 8-98146-975-0 02 1 1411- ● ●
40 COVER ASM; LWR,SPR CHAMBER
RR BRK AIR D410 WEDGE-220-24/30<B9R> FORWARD RH,REARWARD LH 		1-48251-140-1 02 1 1008-1410 ●
40 COVER ASM; LWR,SPR CHAMBER
RR BRK AIR D410 WEDGE-220-24/30<B9R> FORWARD LH,REARWARD RH 		1-48251-141-1 02 1 1008-1410 ●
40 COVER ASM; LWR,SPR CHAMBER
FORWARD RH,REARWARD LH 		1-48251-155-1 02 1 1008-1410 ●
40 COVER ASM; LWR,SPR CHAMBER
RR BRK AIR D410 WEDGE-220-30/30<B9V> FORWARD RH,REARWARD LH 		1-48251-155-1 02 1 1008-1410 ●
40 COVER ASM; LWR,SPR CHAMBER
FORWARD RH,REARWARD LH 		1-48251-155-1 01 1 1411- ● ●
40 COVER ASM; LWR,SPR CHAMBER
FORWARD RH,REARWARD LH 		1-48251-155-1 01 1 1411- ● ●
40 COVER ASM; LWR,SPR CHAMBER
FORWARD LH,REARWARD RH 		1-48251-156-1 02 1 1008-1410 ●
40 COVER ASM; LWR,SPR CHAMBER
RR BRK AIR D410 WEDGE-220-30/30<B9V> FORWARD LH,REARWARD RH 		1-48251-156-1 02 1 1008-1410 ●
40 COVER ASM; LWR,SPR CHAMBER
FORWARD LH,REARWARD RH 		1-48251-156-1 01 1 1411- ● ●
40 COVER ASM; LWR,SPR CHAMBER
FORWARD LH,REARWARD RH 		1-48251-156-1 01 1 1411- ● ●
108 REPAIR KIT; SPR CHAMBER
RR BRK AIR D410 WEDGE-220-24/30<B9R> 		8-98146-982-0 04 1 1008-1410 ●
108 REPAIR KIT; SPR CHAMBER 8-98146-983-0 04 1 1008-1410 ●
108 REPAIR KIT; SPR CHAMBER
RR BRK AIR D410 WEDGE-220-30/30<B9V> 		8-98146-983-0 04 1 1008-1410 ●
108 REPAIR KIT; SPR CHAMBER 8-98146-983-0 02 1 1411- ● ●
108 REPAIR KIT; SPR CHAMBER 8-98146-983-0 02 1 1411- ● ●
116 GUIDE; SPR CHAMBER 8-98146-963-0 04 1 1008-1410 ● ●
116 GUIDE; SPR CHAMBER 8-98146-963-0 02 1 1411- ● ●
116 GUIDE; SPR CHAMBER 8-98146-963-0 02 1 1411- ● ●
117 RING; SPR CHAMBER 8-98146-966-0 04 1 1008-1410 ● ●
117 RING; SPR CHAMBER 8-98146-966-0 02 1 1411- ● ●
117 RING; SPR CHAMBER 8-98146-966-0 02 1 1411- ● ●
118 CHAMBER; PIGGY BACK
RR BRK AIR D410 WEDGE-220-24/30<B9R> FORWARD RH,REARWARD LH 		1-87412-113-0 02 1 1008-1410 ●
118 CHAMBER; PIGGY BACK
RR BRK AIR D410 WEDGE-220-24/30<B9R> FORWARD LH,REARWARD RH 		1-87412-114-0 02 1 1008-1410 ●
118 CHAMBER; PIGGY BACK
FORWARD RH,REARWARD LH 		1-87412-115-0 02 1 1008-1410 ●
118 CHAMBER; PIGGY BACK
RR BRK AIR D410 WEDGE-220-30/30<B9V> FORWARD RH,REARWARD LH 		1-87412-115-0 02 1 1008-1410 ●
118 CHAMBER; PIGGY BACK
FORWARD RH,REARWARD LH 		1-87412-115-0 01 1 1411- ● ●
118 CHAMBER; PIGGY BACK
FORWARD RH,REARWARD LH 		1-87412-115-0 01 1 1411- ● ●
118 CHAMBER; PIGGY BACK
FORWARD LH,REARWARD RH 		1-87412-116-0 02 1 1008-1410 ●
118 CHAMBER; PIGGY BACK
RR BRK AIR D410 WEDGE-220-30/30<B9V> FORWARD LH,REARWARD RH 		1-87412-116-0 02 1 1008-1410 ●
118 CHAMBER; PIGGY BACK
FORWARD LH,REARWARD RH 		1-87412-116-0 01 1 1411- ● ●
118 CHAMBER; PIGGY BACK
FORWARD LH,REARWARD RH 		1-87412-116-0 01 1 1411- ● ●
126 SHIM 8-98146-965-0 AR 1 1008-1410 ● ●
126 SHIM 8-98146-965-0 AR 1 1411- ● ●
126 SHIM 8-98146-965-0 AR 1 1411- ● ●

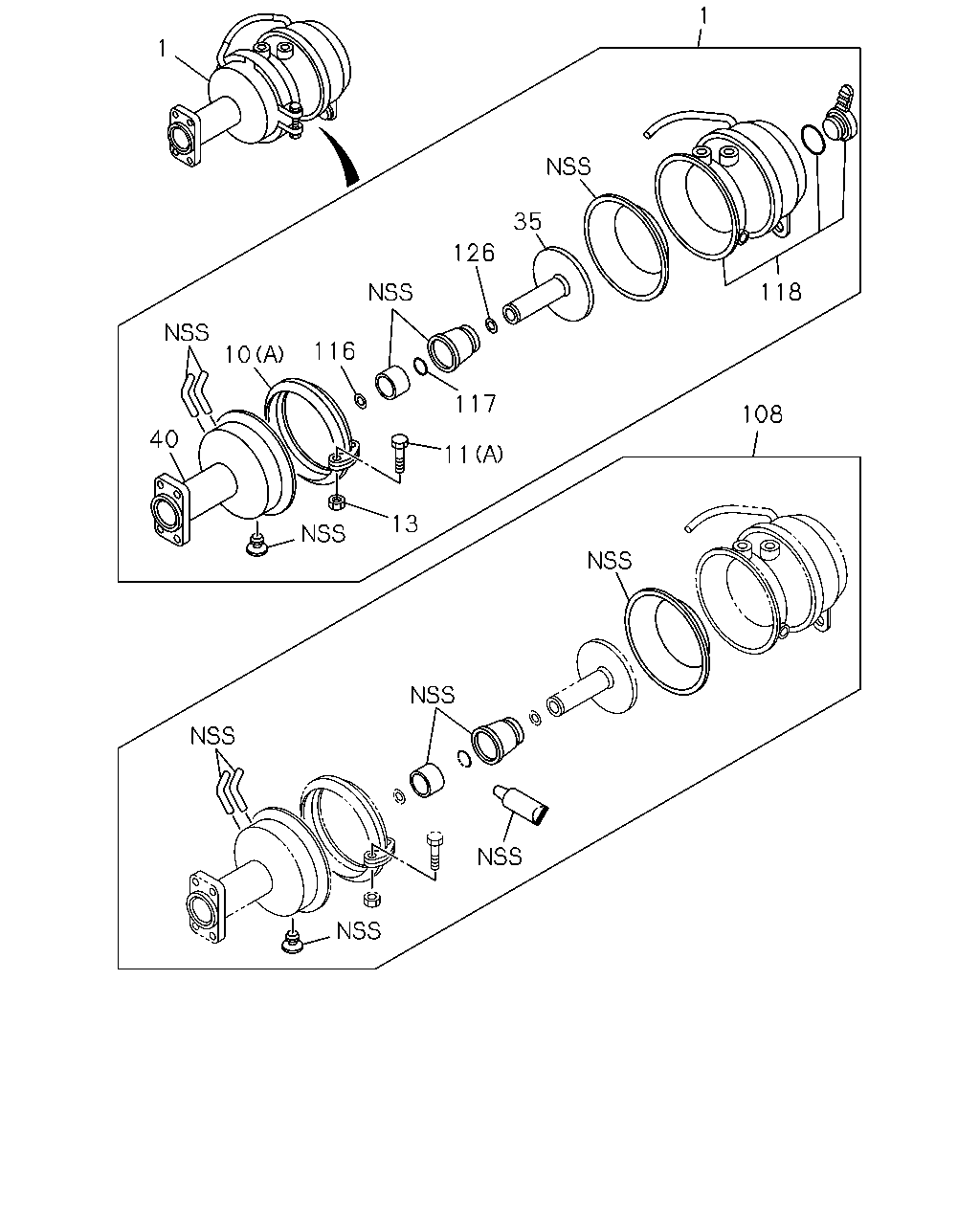

çizim 170359
108 118 1 35 126 117 11 13 116 10 40 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 CHAMBER ASM; SPRING
RR BRK AIR D410 WEDGE-220-24/30<B9R> FORWARD RH,REARWARD LH 		1-87412-097-0 02 1 1008-1410 ●
1 CHAMBER ASM; SPRING
RR BRK AIR D410 WEDGE-220-24/30<B9R> FORWARD LH,REARWARD RH 		1-87412-098-0 02 1 1008-1410 ●
1 CHAMBER ASM; SPRING
FORWARD RH,REARWARD LH 		1-87412-101-0 02 1 1008-1410 ●
1 CHAMBER ASM; SPRING
RR BRK AIR D410 WEDGE-220-30/30<B9V> FORWARD RH,REARWARD LH 		1-87412-101-0 02 1 1008-1410 ●
1 CHAMBER ASM; SPRING
FORWARD RH,REARWARD LH 		1-87412-101-0 01 1 1411- ● ●
1 CHAMBER ASM; SPRING
FORWARD RH,REARWARD LH 		1-87412-101-0 01 1 1411- ● ●
1 CHAMBER ASM; SPRING
FORWARD LH,REARWARD RH 		1-87412-102-0 02 1 1008-1410 ●
1 CHAMBER ASM; SPRING
RR BRK AIR D410 WEDGE-220-30/30<B9V> FORWARD LH,REARWARD RH 		1-87412-102-0 02 1 1008-1410 ●
1 CHAMBER ASM; SPRING
FORWARD LH,REARWARD RH 		1-87412-102-0 01 1 1411- ● ●
1 CHAMBER ASM; SPRING
FORWARD LH,REARWARD RH 		1-87412-102-0 01 1 1411- ● ●
10 RING; CLAMP,SPR CHAMBER
RR BRK AIR D410 WEDGE-220-24/30<B9R> (B) 		1-48269-256-0 04 1 1008-1410 ●
10 RING; CLAMP,SPR CHAMBER
(A) 		1-48269-150-0 04 1 1008-1410 ●
10 RING; CLAMP,SPR CHAMBER
RR BRK AIR D410 WEDGE-220-30/30<B9V> (A) 		1-48269-150-0 04 1 1008-1410 ●
10 RING; CLAMP,SPR CHAMBER
(A) 		1-48269-150-0 02 1 1411- ● ●
10 RING; CLAMP,SPR CHAMBER
(A) 		1-48269-150-0 02 1 1411- ● ●
11 BOLT; CLAMP RING
RR BRK AIR D410 WEDGE-220-24/30<B9R> (B) 		1-48269-257-0 04 1 1008-1410 ●
11 BOLT; CLAMP RING
(A) 		1-48269-146-0 08 1 1008-1410 ●
11 BOLT; CLAMP RING
RR BRK AIR D410 WEDGE-220-30/30<B9V> (A) 		1-48269-146-0 08 1 1008-1410 ●
11 BOLT; CLAMP RING
(A) 		1-48269-146-0 04 1 1411- ● ●
11 BOLT; CLAMP RING
(A) 		1-48269-146-0 04 1 1411- ● ●
13 NUT; CLAMP RING
RR BRK AIR D410 WEDGE-220-24/30<B9R> 		1-48269-147-0 04 1 1008-1410 ●
13 NUT; CLAMP RING 1-48269-147-0 08 1 1008-1410 ●
13 NUT; CLAMP RING
RR BRK AIR D410 WEDGE-220-30/30<B9V> 		1-48269-147-0 08 1 1008-1410 ●
13 NUT; CLAMP RING 1-48269-147-0 04 1 1411- ● ●
13 NUT; CLAMP RING 1-48269-147-0 04 1 1411- ● ●
35 PLATE; ROD END,SPR CHAMBER
RR BRK AIR D410 WEDGE-220-24/30<B9R> 		8-98146-974-0 04 1 1008-1410 ●
35 PLATE; ROD END,SPR CHAMBER 8-98146-975-0 04 1 1008-1410 ●
35 PLATE; ROD END,SPR CHAMBER
RR BRK AIR D410 WEDGE-220-30/30<B9V> 		8-98146-975-0 04 1 1008-1410 ●
35 PLATE; ROD END,SPR CHAMBER 8-98146-975-0 02 1 1411- ● ●
35 PLATE; ROD END,SPR CHAMBER 8-98146-975-0 02 1 1411- ● ●
40 COVER ASM; LWR,SPR CHAMBER
RR BRK AIR D410 WEDGE-220-24/30<B9R> FORWARD RH,REARWARD LH 		1-48251-140-1 02 1 1008-1410 ●
40 COVER ASM; LWR,SPR CHAMBER
RR BRK AIR D410 WEDGE-220-24/30<B9R> FORWARD LH,REARWARD RH 		1-48251-141-1 02 1 1008-1410 ●
40 COVER ASM; LWR,SPR CHAMBER
FORWARD RH,REARWARD LH 		1-48251-155-1 02 1 1008-1410 ●
40 COVER ASM; LWR,SPR CHAMBER
RR BRK AIR D410 WEDGE-220-30/30<B9V> FORWARD RH,REARWARD LH 		1-48251-155-1 02 1 1008-1410 ●
40 COVER ASM; LWR,SPR CHAMBER
FORWARD RH,REARWARD LH 		1-48251-155-1 01 1 1411- ● ●
40 COVER ASM; LWR,SPR CHAMBER
FORWARD RH,REARWARD LH 		1-48251-155-1 01 1 1411- ● ●
40 COVER ASM; LWR,SPR CHAMBER
FORWARD LH,REARWARD RH 		1-48251-156-1 02 1 1008-1410 ●
40 COVER ASM; LWR,SPR CHAMBER
RR BRK AIR D410 WEDGE-220-30/30<B9V> FORWARD LH,REARWARD RH 		1-48251-156-1 02 1 1008-1410 ●
40 COVER ASM; LWR,SPR CHAMBER
FORWARD LH,REARWARD RH 		1-48251-156-1 01 1 1411- ● ●
40 COVER ASM; LWR,SPR CHAMBER
FORWARD LH,REARWARD RH 		1-48251-156-1 01 1 1411- ● ●
108 REPAIR KIT; SPR CHAMBER
RR BRK AIR D410 WEDGE-220-24/30<B9R> 		8-98146-982-0 04 1 1008-1410 ●
108 REPAIR KIT; SPR CHAMBER 8-98146-983-0 04 1 1008-1410 ●
108 REPAIR KIT; SPR CHAMBER
RR BRK AIR D410 WEDGE-220-30/30<B9V> 		8-98146-983-0 04 1 1008-1410 ●
108 REPAIR KIT; SPR CHAMBER 8-98146-983-0 02 1 1411- ● ●
108 REPAIR KIT; SPR CHAMBER 8-98146-983-0 02 1 1411- ● ●
116 GUIDE; SPR CHAMBER 8-98146-963-0 04 1 1008-1410 ● ●
116 GUIDE; SPR CHAMBER 8-98146-963-0 02 1 1411- ● ●
116 GUIDE; SPR CHAMBER 8-98146-963-0 02 1 1411- ● ●
117 RING; SPR CHAMBER 8-98146-966-0 04 1 1008-1410 ● ●
117 RING; SPR CHAMBER 8-98146-966-0 02 1 1411- ● ●
117 RING; SPR CHAMBER 8-98146-966-0 02 1 1411- ● ●
118 CHAMBER; PIGGY BACK
RR BRK AIR D410 WEDGE-220-24/30<B9R> FORWARD RH,REARWARD LH 		1-87412-113-0 02 1 1008-1410 ●
118 CHAMBER; PIGGY BACK
RR BRK AIR D410 WEDGE-220-24/30<B9R> FORWARD LH,REARWARD RH 		1-87412-114-0 02 1 1008-1410 ●
118 CHAMBER; PIGGY BACK
FORWARD RH,REARWARD LH 		1-87412-115-0 02 1 1008-1410 ●
118 CHAMBER; PIGGY BACK
RR BRK AIR D410 WEDGE-220-30/30<B9V> FORWARD RH,REARWARD LH 		1-87412-115-0 02 1 1008-1410 ●
118 CHAMBER; PIGGY BACK
FORWARD RH,REARWARD LH 		1-87412-115-0 01 1 1411- ● ●
118 CHAMBER; PIGGY BACK
FORWARD RH,REARWARD LH 		1-87412-115-0 01 1 1411- ● ●
118 CHAMBER; PIGGY BACK
FORWARD LH,REARWARD RH 		1-87412-116-0 02 1 1008-1410 ●
118 CHAMBER; PIGGY BACK
RR BRK AIR D410 WEDGE-220-30/30<B9V> FORWARD LH,REARWARD RH 		1-87412-116-0 02 1 1008-1410 ●
118 CHAMBER; PIGGY BACK
FORWARD LH,REARWARD RH 		1-87412-116-0 01 1 1411- ● ●
118 CHAMBER; PIGGY BACK
FORWARD LH,REARWARD RH 		1-87412-116-0 01 1 1411- ● ●
126 SHIM 8-98146-965-0 AR 1 1008-1410 ● ●
126 SHIM 8-98146-965-0 AR 1 1411- ● ●
126 SHIM 8-98146-965-0 AR 1 1411- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
