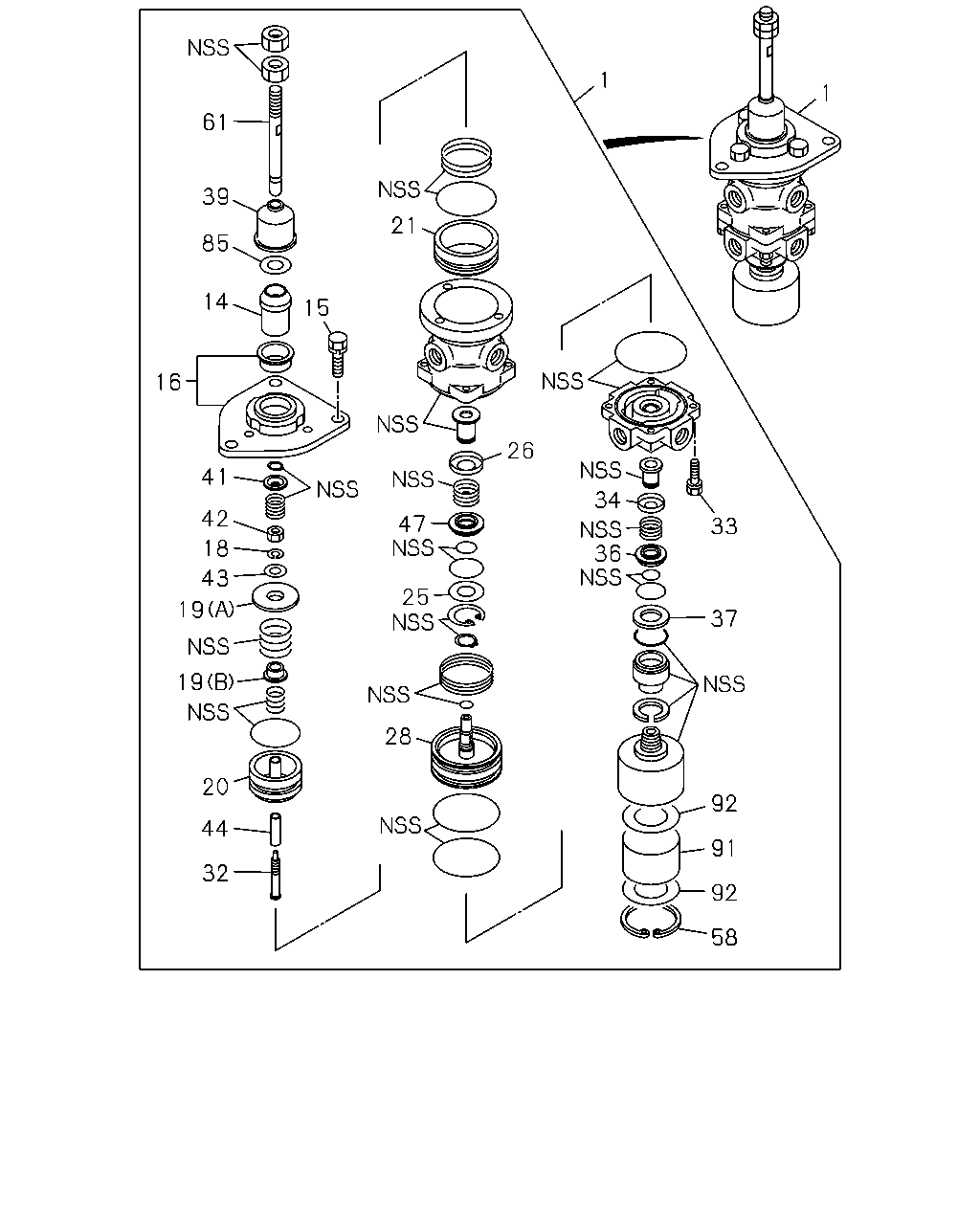

3-34 — BRAKE VALVE; AIR (#62613) — 62 parça

1 1 33 37 92 91 92 58 36 34 26 47 25 28 21 61 39 85 14 15 16 41 18 42 43 19 19 20 44 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	VALVE; BRK	8-98139-251-1	01	1	1008-1410	●	●
1	VALVE; BRK	8-98166-520-0	01	1	1411-	●	●
14	PLUNGER; BRK VLV	1-48119-365-0	01	1	1008-	●	●
15	BOLT; PLATE,BRK VLV	1-48119-232-1	03	1	1008-	●	●
16	PLATE; MTG,BRKT VLV	1-48119-364-3	01	1	1008-	●	●
18	WASHER; LK,SEAT,BRK VLV	1-48199-024-0	01	1	1008-	●	●
19	SEAT; SPRING,BRK VLV (B)	1-48119-370-1	01	1	1008-	●	●
19	SEAT; SPRING,BRK VLV (A)	1-48119-371-0	01	1	1008-	●	●
20	PISTON; UPR,BRK VLV	1-48119-318-0	01	1	1008-	●	●
21	BUSHING; UPR BODY	1-48119-317-0	01	1	1008-	●	●
25	WASHER; PISTON,BRK VLV	1-48129-149-0	01	1	1008-	●	●
26	RETAINER; VLV,BRK VLV	1-48122-003-0	01	1	1008-	●	●
28	PISTON; LWR,BRK VLV	1-48119-337-0	01	1	1008-	●	●
32	SCREW; BRK VLV	1-48119-323-0	01	1	1008-	●	●
33	BOLT; BODY,BRK VLV	1-48129-068-0	04	1	1008-	●	●
34	RETAINER; VLV,BRK VLV	1-48122-010-0	01	1	1008-	●	●
36	RETAINER; GASKET,BRK VLV	1-48129-298-0	01	1	1008-	●	●
37	WASHER; VLV LWR,BRK VLV	1-48129-321-0	01	1	1008-	●	●
39	BOOT; PLUNGER,BRK VLV	1-48119-438-0	01	1	1008-	●	●
41	PLATE; STEM,BRK VLV	1-48129-167-0	01	1	1008-	●	●
42	NUT; SPR SEAT,BRK VLV	1-48199-025-0	01	1	1008-	●	●
43	WASHER; SPR SEAT,BRK VLV	1-48129-170-0	01	1	1008-	●	●
44	SLEEVE; PISTON,BRK VLV	1-48119-322-0	01	1	1008-	●	●
47	RETAINER; GASKET,BRK VLV	1-48129-297-0	01	1	1008-	●	●
58	RING; RET,EXH,BRK VLV	8-98140-079-0	01	1	1008-1410	●	●
61	ROD; PUSH,BRK VLV	1-48119-363-0	01	1	1008-	●	●
85	WASHER; PUSH ROD	1-48119-366-0	01	1	1008-	●	●
91	FILTER; SILENCER	8-98140-078-0	01	1	1008-1410	●	●
92	PLATE; FILTER	8-98140-077-0	02	1	1008-1410	●	●

3 4

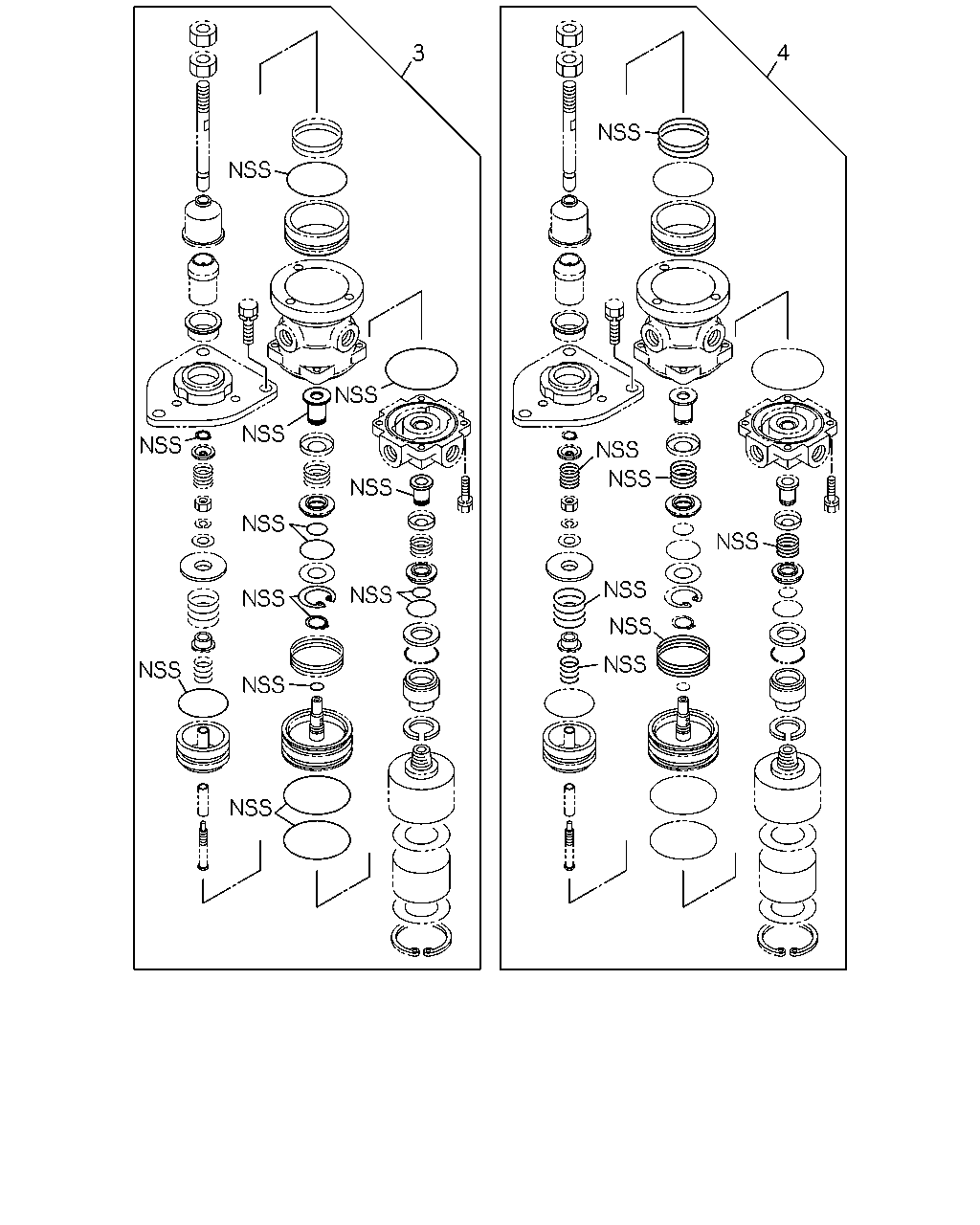

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	REPAIR KIT; RUBBER,BRK VLV	8-98140-081-0	01	1	1008-1410	●	●
3	REPAIR KIT; RUBBER,BRK VLV	1-85576-391-0	01	1	1411-	●	●
4	REPAIR KIT; SPRING,BRK VLV	1-85576-179-0	01	1	1008-	●	●

3 4

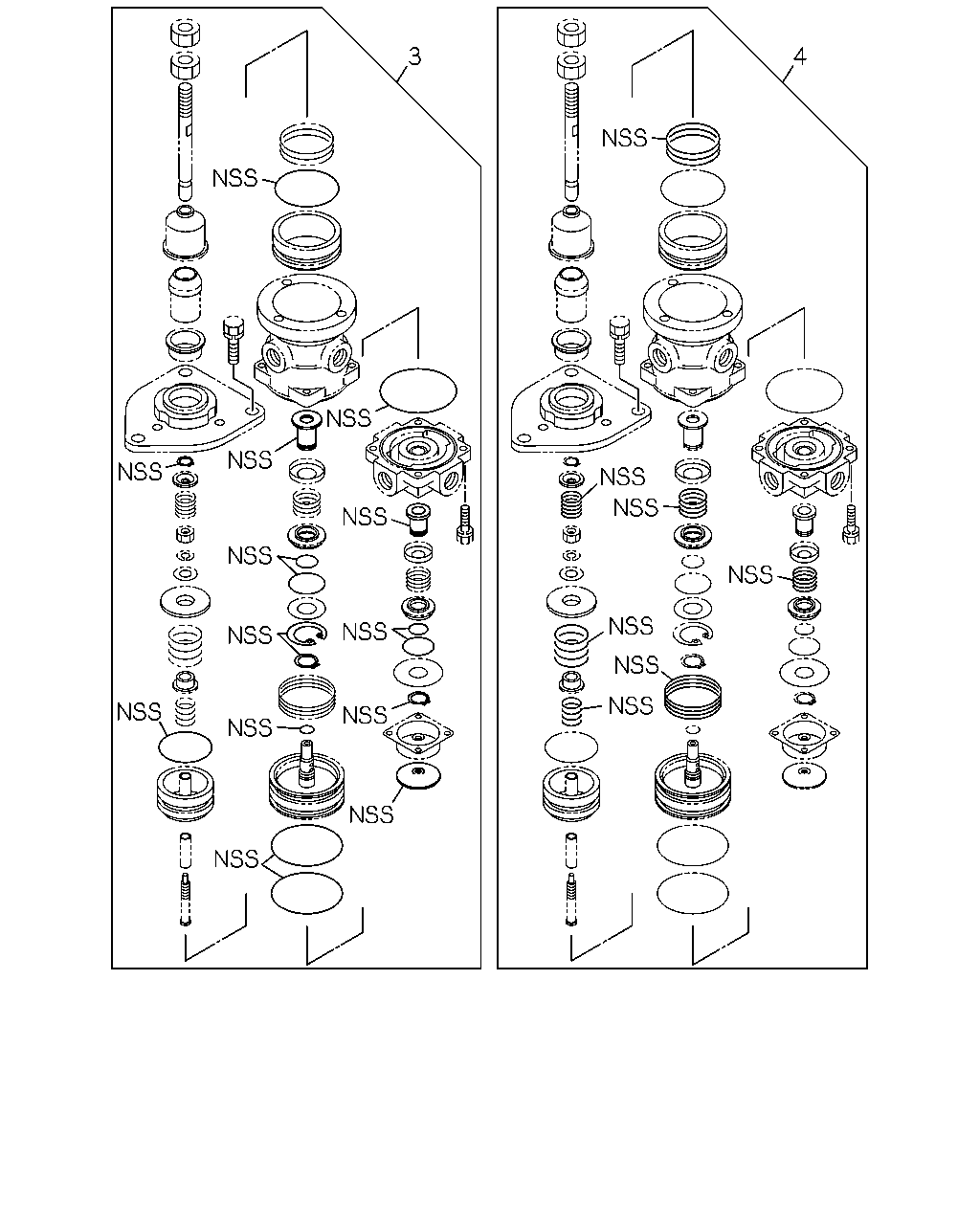

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	REPAIR KIT; RUBBER,BRK VLV	8-98140-081-0	01	1	1008-1410	●	●
3	REPAIR KIT; RUBBER,BRK VLV	1-85576-391-0	01	1	1411-	●	●
4	REPAIR KIT; SPRING,BRK VLV	1-85576-179-0	01	1	1008-	●	●

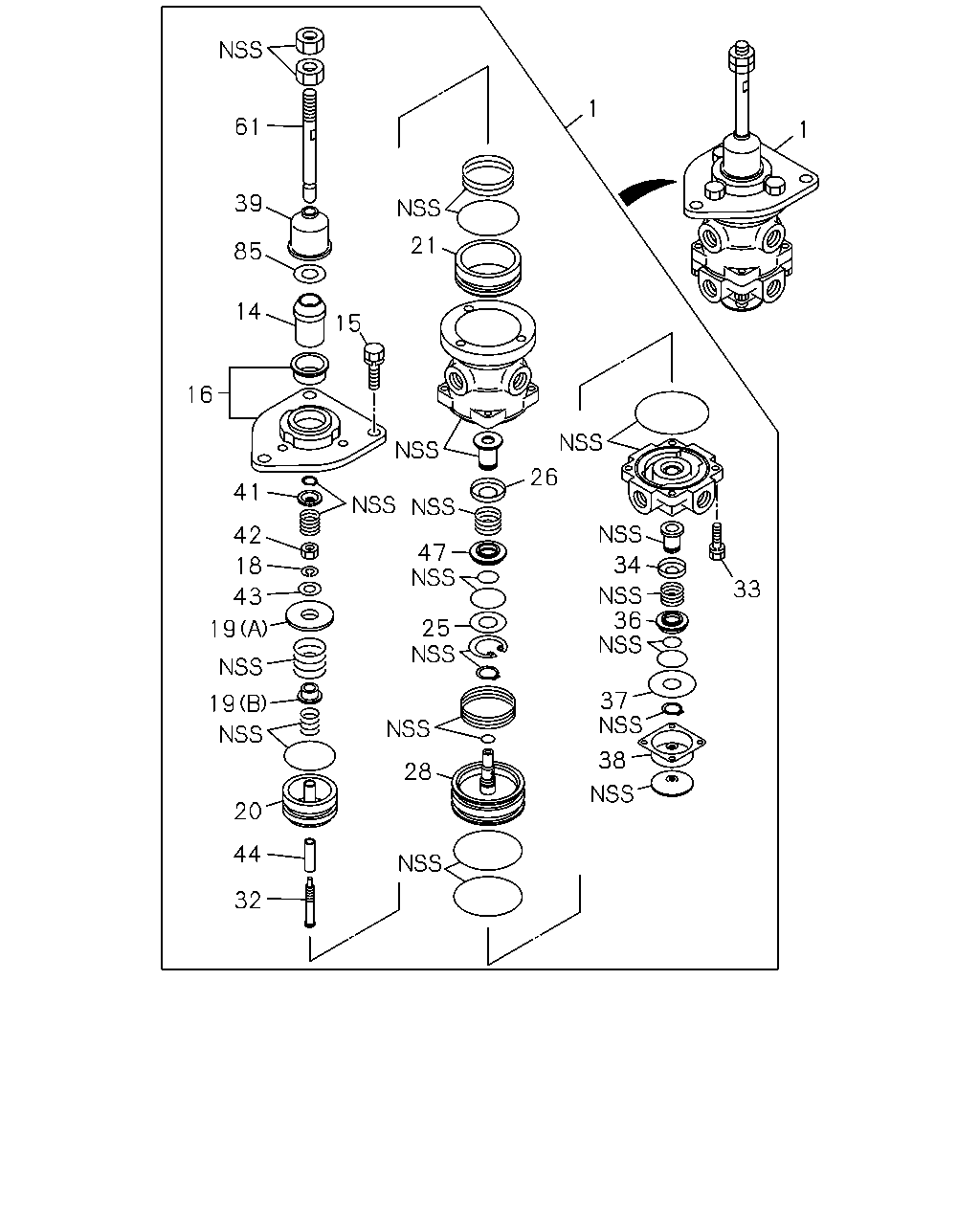

1 1 21 61 39 85 14 16 15 41 18 42 43 19 19 20 44 32 47 25 28 26 33 34 36 37 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	VALVE; BRK	8-98139-251-1	01	1	1008-1410	●	●
1	VALVE; BRK	8-98166-520-0	01	1	1411-	●	●
14	PLUNGER; BRK VLV	1-48119-365-0	01	1	1008-	●	●
15	BOLT; PLATE,BRK VLV	1-48119-232-1	03	1	1008-	●	●
16	PLATE; MTG,BRKT VLV	1-48119-364-3	01	1	1008-	●	●
18	WASHER; LK,SEAT,BRK VLV	1-48199-024-0	01	1	1008-	●	●
19	SEAT; SPRING,BRK VLV (B)	1-48119-370-1	01	1	1008-	●	●
19	SEAT; SPRING,BRK VLV (A)	1-48119-371-0	01	1	1008-	●	●
20	PISTON; UPR,BRK VLV	1-48119-318-0	01	1	1008-	●	●
21	BUSHING; UPR BODY	1-48119-317-0	01	1	1008-	●	●
25	WASHER; PISTON,BRK VLV	1-48129-149-0	01	1	1008-	●	●
26	RETAINER; VLV,BRK VLV	1-48122-003-0	01	1	1008-	●	●
28	PISTON; LWR,BRK VLV	1-48119-337-0	01	1	1008-	●	●
32	SCREW; BRK VLV	1-48119-323-0	01	1	1008-	●	●
33	BOLT; BODY,BRK VLV	1-48129-068-0	04	1	1008-	●	●
34	RETAINER; VLV,BRK VLV	1-48122-010-0	01	1	1008-	●	●
36	RETAINER; GASKET,BRK VLV	1-48129-298-0	01	1	1008-	●	●
37	WASHER; VLV LWR,BRK VLV	1-48129-321-0	01	1	1008-	●	●
38	COVER; EXH,BRK VLV	1-48119-597-0	01	1	1411-	●	●
39	BOOT; PLUNGER,BRK VLV	1-48119-438-0	01	1	1008-	●	●
41	PLATE; STEM,BRK VLV	1-48129-167-0	01	1	1008-	●	●
42	NUT; SPR SEAT,BRK VLV	1-48199-025-0	01	1	1008-	●	●
43	WASHER; SPR SEAT,BRK VLV	1-48129-170-0	01	1	1008-	●	●
44	SLEEVE; PISTON,BRK VLV	1-48119-322-0	01	1	1008-	●	●
47	RETAINER; GASKET,BRK VLV	1-48129-297-0	01	1	1008-	●	●
61	ROD; PUSH,BRK VLV	1-48119-363-0	01	1	1008-	●	●
85	WASHER; PUSH ROD	1-48119-366-0	01	1	1008-	●	●
