◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11323 - CYZ LHD MIDDLE EAST EURO2 WITH 3STEPS ▶ 3 - Brakes, Brake System ▶ 3-20 - AIR TANK ▶
3-20 — AIR TANK (#62610) — 454 parça

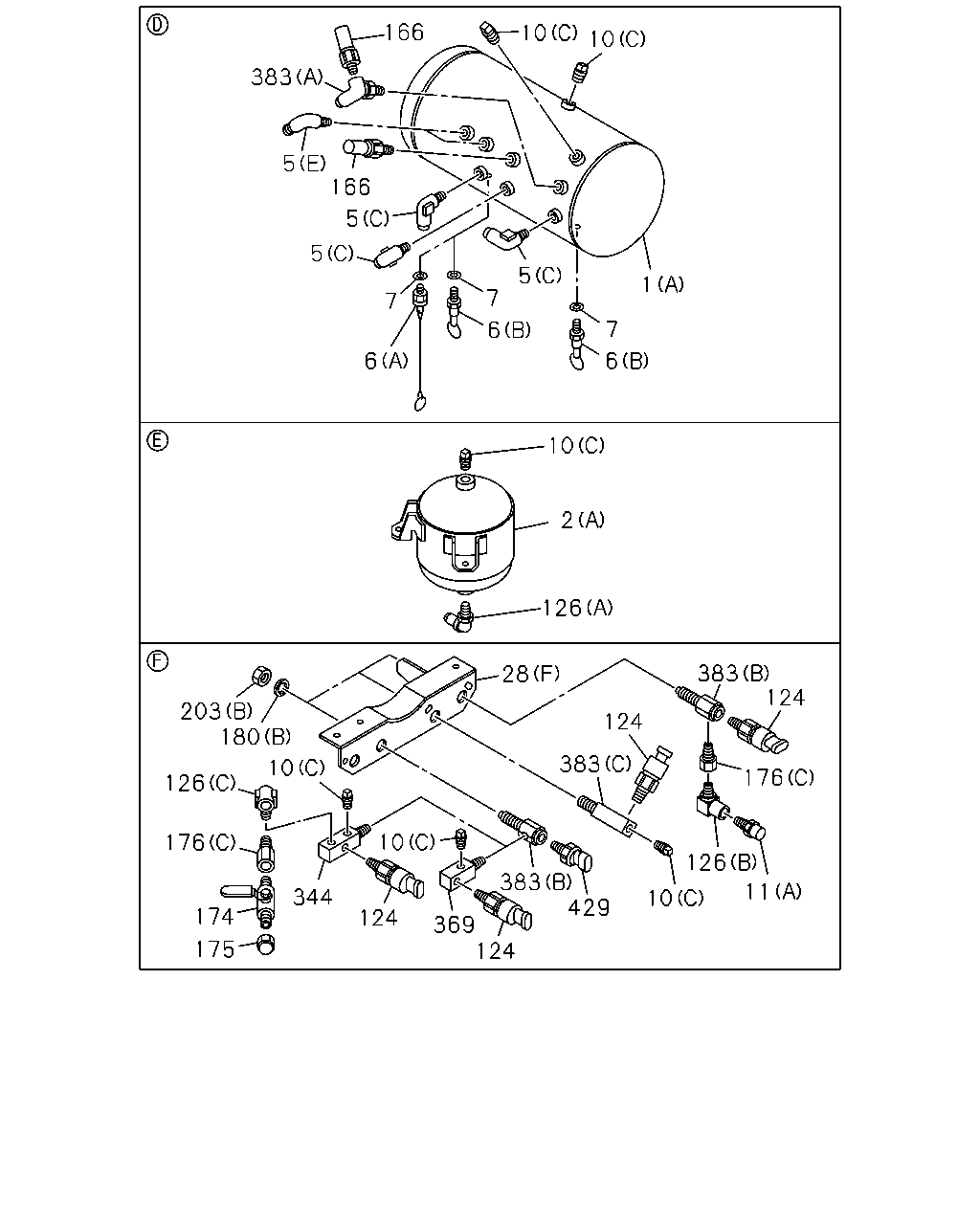

çizim 170231
10 10 166 383 5 5 166 5 7 7 6 5 7 1 6 6 2 126 383 124 383 383 429 126 176 124 203 180 11 124 126 176 174 175 344 369 124 28 10 10 10 10
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK ASM; AIR
(A) 		1-48371-387-1 01 1 1008- ● ●
1 TANK ASM; AIR
(A) 		1-48371-387-1 01 1 1008- ● ●
1 TANK ASM; AIR
(B) 		1-48371-434-1 01 1 1008- ● ●
2 TANK; AIR
(A) 		1-48371-166-3 01 1 1008- ● ●
2 TANK; AIR
(B) 		8-98145-093-0 01 1 1008- ● ●
5 UNION; AIR TANK
(A) PT1/4 2WAY 		1-09660-693-0 02 1 1008-1410 ● ●
5 UNION; AIR TANK
(B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1008- ● ●
5 UNION; AIR TANK
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 1008-1410 ● ●
5 UNION; AIR TANK
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 05 1 1411- ● ●
5 UNION; AIR TANK
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 05 1 1008-1410 ● ●
5 UNION; AIR TANK
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 1411- ● ●
5 UNION; AIR TANK
(D) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1008- ● ●
5 UNION; AIR TANK
(E) 		1-09661-550-0 02 1 1008- ● ●
6 COCK; DRAIN,AIR TANK
(B) 		1-48312-017-0 06 1 1008- ● ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-006-1 01 1 1008-1410 ● ●
6 COCK; DRAIN,AIR TANK
WHEEL BASE 5200MM(52W) (A) 		1-48312-006-1 01 1 1411- ●
6 COCK; DRAIN,AIR TANK
WHEEL BASE 5500MM(55W) (A) 		1-48312-006-1 01 1 1411- ●
6 COCK; DRAIN,AIR TANK
(B) 		1-48312-017-0 01 1 1008-1410 ● ●
6 COCK; DRAIN,AIR TANK
WHEEL BASE 5200MM(52W) (B) 		1-48312-017-0 01 1 1411- ●
6 COCK; DRAIN,AIR TANK
WHEEL BASE 5500MM(55W) (B) 		1-48312-017-0 01 1 1411- ●
6 COCK; DRAIN,AIR TANK
WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) (B) 		1-48312-017-0 02 1 1411- ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 1008- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 06 1 1008- ● ●
10 PLUG; AIR TANK
(C) PT1/4 		9-99204-513-0 04 1 1008-1410 ● ●
10 PLUG; AIR TANK
(C) PT1/4 		9-99204-513-0 02 1 1411- ● ●
10 PLUG; AIR TANK
(C) PT1/4 		9-99204-513-0 02 1 1411- ● ●
10 PLUG; AIR TANK
(A) M22 		1-09661-502-0 03 1 1008- ● ●
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 01 1 1008- ● ●
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 03 1 1008- ● ●
10 PLUG; AIR TANK
(C) PT1/4 		9-99204-513-0 01 1 1008-1410 ● ●
10 PLUG; AIR TANK
(C) PT1/4 		9-99204-513-0 04 1 1411- ● ●
11 VALVE; SAFETY,AIR TANK
(A) 		1-48320-012-2 01 1 1008- ● ●
11 VALVE; SAFETY,AIR TANK
(B) 		1-48320-047-2 01 1 1008-1410 ● ●
28 BRACKET; AIR TANK
(A) 		1-48316-024-3 01 1 1008- ● ●
28 BRACKET; AIR TANK
(B) 		1-48316-026-0 02 1 1008- ● ●
28 BRACKET; AIR TANK
(C) 		1-48317-994-2 02 1 1008- ● ●
28 BRACKET; AIR TANK
(D) 		8-98142-179-2 01 1 1008-1410 ● ●
28 BRACKET; AIR TANK
(F) 		8-98200-121-2 01 1 1411- ● ●
28 BRACKET; AIR TANK
(E) 		8-98145-275-1 01 1 1008- ● ●
124 SWITCH; AIR PRESSURE 1-48340-065-0 02 1 1008-1410 ● ●
124 SWITCH; AIR PRESSURE
STAMP 5.5 		8-97609-249-0 03 1 1411- ● ●
126 CONNECTOR; ELBOW
TIRE INFLATOR DEVICE<SG4> (C) PT1/4 2WAY 		1-09660-693-0 01 1 1411- ● ●
126 CONNECTOR; ELBOW
(B) 		8-98227-936-0 01 1 1411- ● ●
126 CONNECTOR; ELBOW
(A) DIN8 & M22 ELBOW 		1-09661-495-0 01 1 1008- ● ●
166 SWITCH ASM; LOW PRESSURE,MAIN TANK 1-48340-058-2 02 1 1008-1410 ● ●
166 SWITCH ASM; LOW PRESSURE,MAIN TANK
STAMP 5.5 		8-97609-249-0 02 1 1411- ● ●
174 COCK; AIR,INFLATOR
TIRE INFLATOR DEVICE<SG4> 		1-09680-099-0 01 1 1411- ● ●
175 CAP; AIR COCK
TIRE INFLATOR DEVICE<SG4> 		9-48319-102-0 01 1 1411- ● ●
176 ADAPTER
(D) INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 1008- ● ●
176 ADAPTER
TIRE INFLATOR DEVICE<SG4> (C) PS1/4 & PT1/4 STRAIGHT 		1-09660-090-0 02 1 1411- ● ●
176 ADAPTER
EXC. TIRE INFLATOR DEVICE<SG4> (C) PS1/4 & PT1/4 STRAIGHT 		1-09660-090-0 01 1 1411- ● ●
176 ADAPTER
(A) PT3/8 ELBOW 		1-09660-696-0 01 1 1008- ● ●
176 ADAPTER
(A) PT3/8 ELBOW 		1-09660-696-0 01 1 1008- ● ●
176 ADAPTER
(B) PT3/8 3WAY 		1-09661-300-0 01 1 1008- ● ●
176 ADAPTER
(B) PT3/8 3WAY 		1-09661-300-0 01 1 1008- ● ●
180 WASHER; LK
(A) ID=16.2 		0-91510-516-0 01 1 1008-1410 ● ●
180 WASHER; LK
(B) ID=18.2 		0-91510-518-0 01 1 1008-1410 ● ●
180 WASHER; LK
(B) ID=18.2 		0-91510-518-0 03 1 1411- ● ●
203 NUT
(A) M16 		0-91110-516-0 01 1 1008-1410 ● ●
203 NUT
(B) M18 		0-91110-518-0 01 1 1008-1410 ● ●
203 NUT
(B) M18 		0-91110-518-0 03 1 1411- ● ●
344 CONNECTOR; 4WAY 1-09660-521-2 01 1 1008-1410 ● ●
344 CONNECTOR; 4WAY
TIRE INFLATOR DEVICE<SG4> PT1/4 4WAY 		1-09660-358-0 01 1 1411- ● ●
369 CONNECTOR; 3WAY 1-09661-593-0 01 1 1008-1410 ● ●
369 CONNECTOR; 3WAY
EXC. TIRE INFLATOR DEVICE<SG4> DIN14 & R1/4 & RC1/4 		1-09661-729-0 01 1 1411- ● ●
383 UNION; 3 WAY
(A) DIN12 & R3/8 ELBOW 		1-09661-233-0 01 1 1411- ● ●
383 UNION; 3 WAY
(C) 		1-09661-593-0 01 1 1411- ● ●
383 UNION; 3 WAY
(A) DIN12 & R3/8 ELBOW 		1-09661-233-0 01 1 1008-1410 ● ●
383 UNION; 3 WAY
(B) 		1-09661-092-0 02 1 1411- ● ●
429 SENSOR
THREAD R1/4 		1-80220-023-1 01 1 1411- ● ●

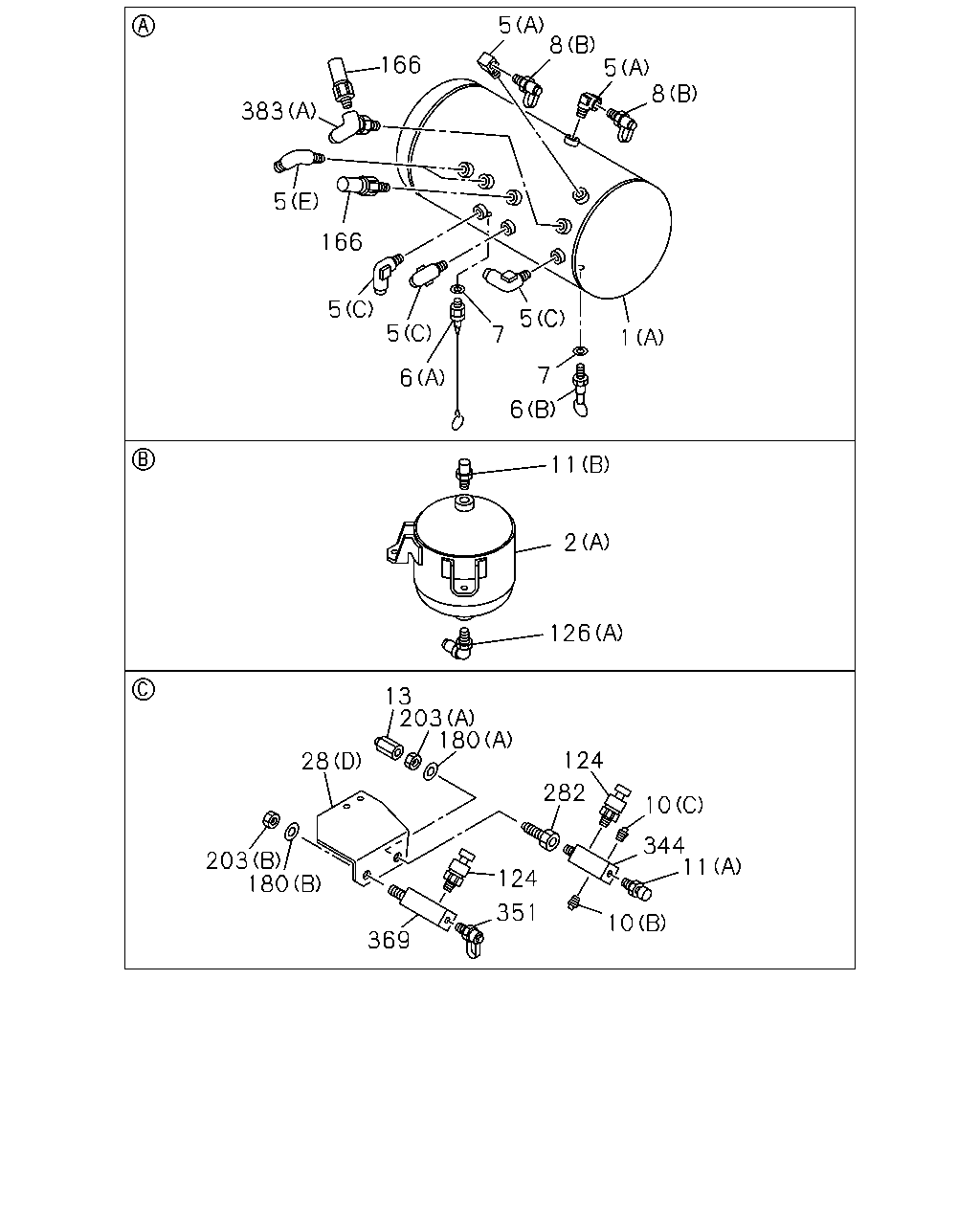

çizim 170243
383 166 5 8 5 8 166 5 5 5 6 7 5 7 1 6 11 2 126 13 203 180 28 203 180 369 124 351 10 11 344 10 282 124
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK ASM; AIR
(A) 		1-48371-387-1 01 1 1008- ● ●
1 TANK ASM; AIR
(A) 		1-48371-387-1 01 1 1008- ● ●
1 TANK ASM; AIR
(B) 		1-48371-434-1 01 1 1008- ● ●
2 TANK; AIR
(A) 		1-48371-166-3 01 1 1008- ● ●
2 TANK; AIR
(B) 		8-98145-093-0 01 1 1008- ● ●
5 UNION; AIR TANK
(A) PT1/4 2WAY 		1-09660-693-0 02 1 1008-1410 ● ●
5 UNION; AIR TANK
(B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1008- ● ●
5 UNION; AIR TANK
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 1008-1410 ● ●
5 UNION; AIR TANK
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 05 1 1411- ● ●
5 UNION; AIR TANK
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 05 1 1008-1410 ● ●
5 UNION; AIR TANK
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 1411- ● ●
5 UNION; AIR TANK
(D) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1008- ● ●
5 UNION; AIR TANK
(E) 		1-09661-550-0 02 1 1008- ● ●
6 COCK; DRAIN,AIR TANK
(B) 		1-48312-017-0 06 1 1008- ● ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-006-1 01 1 1008-1410 ● ●
6 COCK; DRAIN,AIR TANK
WHEEL BASE 5200MM(52W) (A) 		1-48312-006-1 01 1 1411- ●
6 COCK; DRAIN,AIR TANK
WHEEL BASE 5500MM(55W) (A) 		1-48312-006-1 01 1 1411- ●
6 COCK; DRAIN,AIR TANK
(B) 		1-48312-017-0 01 1 1008-1410 ● ●
6 COCK; DRAIN,AIR TANK
WHEEL BASE 5200MM(52W) (B) 		1-48312-017-0 01 1 1411- ●
6 COCK; DRAIN,AIR TANK
WHEEL BASE 5500MM(55W) (B) 		1-48312-017-0 01 1 1411- ●
6 COCK; DRAIN,AIR TANK
WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) (B) 		1-48312-017-0 02 1 1411- ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 1008- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 06 1 1008- ● ●
8 CONNECTOR; AIR TANK
(A) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 1008- ● ●
8 CONNECTOR; AIR TANK
(B) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 02 1 1008-1410 ● ●
10 PLUG; AIR TANK
(C) PT1/4 		9-99204-513-0 04 1 1008-1410 ● ●
10 PLUG; AIR TANK
(C) PT1/4 		9-99204-513-0 02 1 1411- ● ●
10 PLUG; AIR TANK
(C) PT1/4 		9-99204-513-0 02 1 1411- ● ●
10 PLUG; AIR TANK
(A) M22 		1-09661-502-0 03 1 1008- ● ●
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 01 1 1008- ● ●
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 03 1 1008- ● ●
10 PLUG; AIR TANK
(C) PT1/4 		9-99204-513-0 01 1 1008-1410 ● ●
10 PLUG; AIR TANK
(C) PT1/4 		9-99204-513-0 04 1 1411- ● ●
11 VALVE; SAFETY,AIR TANK
(A) 		1-48320-012-2 01 1 1008- ● ●
11 VALVE; SAFETY,AIR TANK
(B) 		1-48320-047-2 01 1 1008-1410 ● ●
13 ADAPTER; NYLON TUBE
DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 1008-1410 ● ●
28 BRACKET; AIR TANK
(A) 		1-48316-024-3 01 1 1008- ● ●
28 BRACKET; AIR TANK
(B) 		1-48316-026-0 02 1 1008- ● ●
28 BRACKET; AIR TANK
(C) 		1-48317-994-2 02 1 1008- ● ●
28 BRACKET; AIR TANK
(D) 		8-98142-179-2 01 1 1008-1410 ● ●
28 BRACKET; AIR TANK
(F) 		8-98200-121-2 01 1 1411- ● ●
28 BRACKET; AIR TANK
(E) 		8-98145-275-1 01 1 1008- ● ●
124 SWITCH; AIR PRESSURE 1-48340-065-0 02 1 1008-1410 ● ●
124 SWITCH; AIR PRESSURE
STAMP 5.5 		8-97609-249-0 03 1 1411- ● ●
126 CONNECTOR; ELBOW
TIRE INFLATOR DEVICE<SG4> (C) PT1/4 2WAY 		1-09660-693-0 01 1 1411- ● ●
126 CONNECTOR; ELBOW
(B) 		8-98227-936-0 01 1 1411- ● ●
126 CONNECTOR; ELBOW
(A) DIN8 & M22 ELBOW 		1-09661-495-0 01 1 1008- ● ●
166 SWITCH ASM; LOW PRESSURE,MAIN TANK 1-48340-058-2 02 1 1008-1410 ● ●
166 SWITCH ASM; LOW PRESSURE,MAIN TANK
STAMP 5.5 		8-97609-249-0 02 1 1411- ● ●
180 WASHER; LK
(A) ID=16.2 		0-91510-516-0 01 1 1008-1410 ● ●
180 WASHER; LK
(B) ID=18.2 		0-91510-518-0 01 1 1008-1410 ● ●
180 WASHER; LK
(B) ID=18.2 		0-91510-518-0 03 1 1411- ● ●
203 NUT
(A) M16 		0-91110-516-0 01 1 1008-1410 ● ●
203 NUT
(B) M18 		0-91110-518-0 01 1 1008-1410 ● ●
203 NUT
(B) M18 		0-91110-518-0 03 1 1411- ● ●
282 UNION; 2 WAY 1-09650-222-1 01 1 1008-1410 ● ●
344 CONNECTOR; 4WAY 1-09660-521-2 01 1 1008-1410 ● ●
344 CONNECTOR; 4WAY
TIRE INFLATOR DEVICE<SG4> PT1/4 4WAY 		1-09660-358-0 01 1 1411- ● ●
351 CONNECTOR; TEST
R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 1008-1410 ● ●
369 CONNECTOR; 3WAY 1-09661-593-0 01 1 1008-1410 ● ●
369 CONNECTOR; 3WAY
EXC. TIRE INFLATOR DEVICE<SG4> DIN14 & R1/4 & RC1/4 		1-09661-729-0 01 1 1411- ● ●
383 UNION; 3 WAY
(A) DIN12 & R3/8 ELBOW 		1-09661-233-0 01 1 1411- ● ●
383 UNION; 3 WAY
(C) 		1-09661-593-0 01 1 1411- ● ●
383 UNION; 3 WAY
(A) DIN12 & R3/8 ELBOW 		1-09661-233-0 01 1 1008-1410 ● ●
383 UNION; 3 WAY
(B) 		1-09661-092-0 02 1 1411- ● ●
çizim 170253
10 10 10 10 7 6 5 5 5 8 10 5 10 10 10 10 5 5 5 10 7 6 1 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK ASM; AIR
(A) 		1-48371-387-1 01 1 1008- ● ●
1 TANK ASM; AIR
(A) 		1-48371-387-1 01 1 1008- ● ●
1 TANK ASM; AIR
(B) 		1-48371-434-1 01 1 1008- ● ●
5 UNION; AIR TANK
(A) PT1/4 2WAY 		1-09660-693-0 02 1 1008-1410 ● ●
5 UNION; AIR TANK
(B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1008- ● ●
5 UNION; AIR TANK
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 1008-1410 ● ●
5 UNION; AIR TANK
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 05 1 1411- ● ●
5 UNION; AIR TANK
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 05 1 1008-1410 ● ●
5 UNION; AIR TANK
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 1411- ● ●
5 UNION; AIR TANK
(D) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1008- ● ●
5 UNION; AIR TANK
(E) 		1-09661-550-0 02 1 1008- ● ●
6 COCK; DRAIN,AIR TANK
(B) 		1-48312-017-0 06 1 1008- ● ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-006-1 01 1 1008-1410 ● ●
6 COCK; DRAIN,AIR TANK
WHEEL BASE 5200MM(52W) (A) 		1-48312-006-1 01 1 1411- ●
6 COCK; DRAIN,AIR TANK
WHEEL BASE 5500MM(55W) (A) 		1-48312-006-1 01 1 1411- ●
6 COCK; DRAIN,AIR TANK
(B) 		1-48312-017-0 01 1 1008-1410 ● ●
6 COCK; DRAIN,AIR TANK
WHEEL BASE 5200MM(52W) (B) 		1-48312-017-0 01 1 1411- ●
6 COCK; DRAIN,AIR TANK
WHEEL BASE 5500MM(55W) (B) 		1-48312-017-0 01 1 1411- ●
6 COCK; DRAIN,AIR TANK
WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) (B) 		1-48312-017-0 02 1 1411- ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 1008- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 06 1 1008- ● ●
8 CONNECTOR; AIR TANK
(A) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 1008- ● ●
8 CONNECTOR; AIR TANK
(B) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 02 1 1008-1410 ● ●
10 PLUG; AIR TANK
(C) PT1/4 		9-99204-513-0 04 1 1008-1410 ● ●
10 PLUG; AIR TANK
(C) PT1/4 		9-99204-513-0 02 1 1411- ● ●
10 PLUG; AIR TANK
(C) PT1/4 		9-99204-513-0 02 1 1411- ● ●
10 PLUG; AIR TANK
(A) M22 		1-09661-502-0 03 1 1008- ● ●
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 01 1 1008- ● ●
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 03 1 1008- ● ●
10 PLUG; AIR TANK
(C) PT1/4 		9-99204-513-0 01 1 1008-1410 ● ●
10 PLUG; AIR TANK
(C) PT1/4 		9-99204-513-0 04 1 1411- ● ●

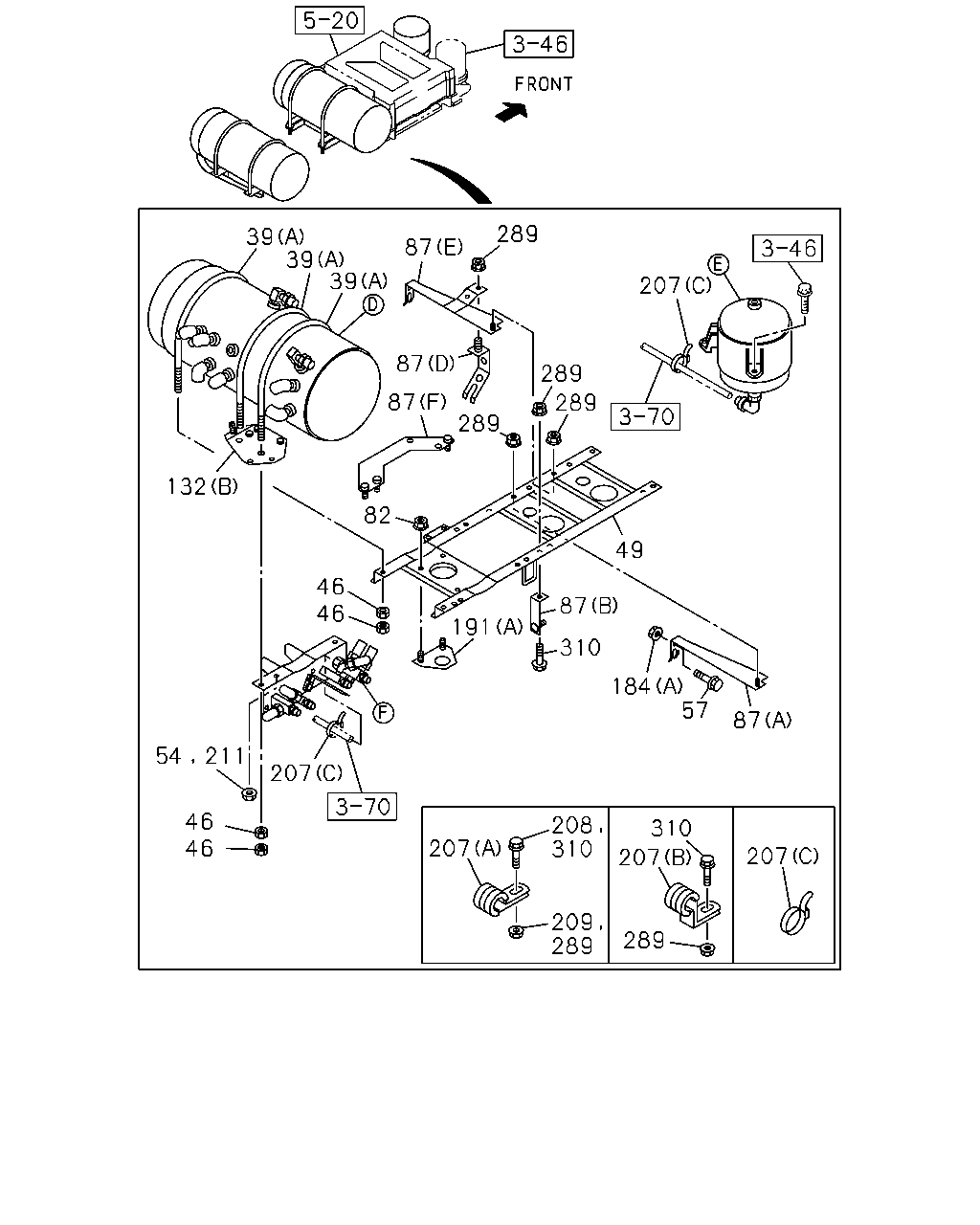

çizim 170254
39 39 39 87 87 87 82 132 46 46 211 54 46 46 207 191 310 87 184 57 87 49 289 289 289 289 207 207 310 208 207 310 207 289 209 289
BalonParca AdiParca NoAdetTipApplied Date A B
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 04 1 1411- ● ●
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 06 1 1008-1410 ● ●
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 03 1 1411- ● ●
39 U-BOLT; AIR TANK
(B) L=253 		1-48317-248-1 02 1 1008- ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 16 1 1511- ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1008-1410 ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 12 1 1411- ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 24 1 1008-1510 ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1511- ● ●
49 BRACKET; AIR TANK 1-48316-065-1 01 1 1008-1410 ● ●
49 BRACKET; AIR TANK 8-98241-376-0 01 1 1411- ● ●
54 NUT; STAY
M8 FLANGE 		0-91180-108-0 02 1 1008-1410 ● ●
54 NUT; STAY
M8 FLANGE 		0-91180-108-0 01 1 1411- ● ●
57 BOLT; BRKT,AIR TANK TO FRAME
M10X25 FLANGE 		0-28651-025-0 04 1 1008- ● ●
82 NUT; STAY,AIR MASTER BRKT
M8 FLANGE 		0-91180-108-0 02 1 1008- ● ●
87 BRACKET; AIR PIPE JOINT
(B) 		1-47471-189-0 02 1 1008- ● ●
87 BRACKET; AIR PIPE JOINT
(A) 		1-47471-241-0 01 1 1008- ● ●
87 BRACKET; AIR PIPE JOINT
(C) 		8-98053-747-0 02 1 1008- ● ●
87 BRACKET; AIR PIPE JOINT
(E) 		8-98054-525-0 01 1 1008- ● ●
87 BRACKET; AIR PIPE JOINT
(D) 		8-98060-053-0 01 1 1008- ● ●
87 BRACKET; AIR PIPE JOINT
(F) 		8-98169-166-0 01 1 1008- ● ●
132 BRACKET; STRING GUIDE
(A) 		8-98140-096-0 01 1 1008-1410 ● ●
132 BRACKET; STRING GUIDE
(B) 		8-98200-122-0 01 1 1411- ● ●
184 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 04 1 1008- ● ●
184 NUT; BRKT
(B) M12 FLANGE 		0-91180-212-0 02 1 1008- ● ●
191 BRACKET; STOPPER,AIR TANK
(A) 		1-48316-015-1 01 1 1008- ●
191 BRACKET; STOPPER,AIR TANK
EXC. BATTERY LAYOUT REAR VAR1<NCT> (A) 		1-48316-015-1 01 1 1008- ●
191 BRACKET; STOPPER,AIR TANK
(B) 		1-48316-014-1 01 1 1008- ● ●
191 BRACKET; STOPPER,AIR TANK
(C) 		8-98167-792-0 01 1 1008- ● ●
191 BRACKET; STOPPER,AIR TANK
BATTERY LAYOUT REAR VAR1<NCT> (A) 		1-48316-023-1 01 1 1008- ●
207 CLIP; AIR PIPE
WHEEL BASE 5200MM(52W) (A) ID=16 L=20 		0-95235-535-0 01 1 1411-1510 ●
207 CLIP; AIR PIPE
WHEEL BASE 5500MM(55W) (A) ID=16 L=20 		0-95235-535-0 01 1 1411-1510 ●
207 CLIP; AIR PIPE
SPARE WHEEL CARRIER FRAME SIDE<P13> (A) ID=16 L=20 		0-95235-535-0 01 1 1511- ● ●
207 CLIP; AIR PIPE
BATTERY LAYOUT REAR VAR1<NCT> (C) L=350 		1-09707-183-0 13 1 1411- ●
207 CLIP; AIR PIPE
(C) L=256 		1-09707-189-0 02 1 1008- ●
207 CLIP; AIR PIPE
EXC. BATTERY LAYOUT REAR VAR1<NCT> (C) L=256 		1-09707-189-0 02 1 1008- ●
207 CLIP; AIR PIPE
(A) ID=7 L=20 		0-95234-635-0 01 1 1008-1410 ● ●
207 CLIP; AIR PIPE
WHEEL BASE 5200MM(52W) (A) ID=7 L=20 		0-95234-635-0 01 1 1411-1510 ●
207 CLIP; AIR PIPE
WHEEL BASE 5500MM(55W) (A) ID=7 L=20 		0-95234-635-0 01 1 1411-1510 ●
207 CLIP; AIR PIPE
SPARE WHEEL CARRIER FRAME SIDE<P13> (A) ID=7 L=20 		0-95234-635-0 01 1 1511- ● ●
207 CLIP; AIR PIPE
(A) ID=16 L=20 		0-95235-535-0 01 1 1008-1410 ● ●
207 CLIP; AIR PIPE
(A) ID=35 L=35 		1-09700-895-0 01 1 1411- ● ●
207 CLIP; AIR PIPE
(A) ID=35 L=33 		1-09700-945-0 02 1 1008-1410 ● ●
207 CLIP; AIR PIPE
(A) ID=35 L=33 		1-09700-945-0 01 1 1411- ● ●
207 CLIP; AIR PIPE
(B) ID=35 H=45 L=33 		1-09700-947-0 03 1 1008- ● ●
207 CLIP; AIR PIPE
(C) L=350 		1-09707-183-0 14 1 1008-1410 ● ●
207 CLIP; AIR PIPE
(C) L=350 		1-09707-183-0 14 1 1411- ●
207 CLIP; AIR PIPE
EXC. BATTERY LAYOUT REAR VAR1<NCT> (C) L=350 		1-09707-183-0 14 1 1411- ●
207 CLIP; AIR PIPE
BATTERY LAYOUT REAR VAR1<NCT> (C) L=256 		1-09707-189-0 01 1 1008- ●
208 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 1008-1410 ● ●
208 BOLT; CLIP
WHEEL BASE 5200MM(52W) M8X16 FLANGE 		0-28050-816-0 01 1 1411-1510 ●
208 BOLT; CLIP
WHEEL BASE 5500MM(55W) M8X16 FLANGE 		0-28050-816-0 01 1 1411-1510 ●
208 BOLT; CLIP
SPARE WHEEL CARRIER FRAME SIDE<P13> M8X16 FLANGE 		0-28050-816-0 01 1 1511- ● ●
209 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1008-1410 ● ●
209 NUT; CLIP
WHEEL BASE 5200MM(52W) M8 FLANGE 		0-91180-108-0 02 1 1411-1510 ●
209 NUT; CLIP
WHEEL BASE 5500MM(55W) M8 FLANGE 		0-91180-108-0 02 1 1411-1510 ●
209 NUT; CLIP
SPARE WHEEL CARRIER FRAME SIDE<P13> M8 FLANGE 		0-91180-108-0 02 1 1511- ● ●
211 NUT; STRING GUIDE
M8 FLANGE 		0-91180-108-0 02 1 1008- ● ●
289 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91180-108-0 09 1 1008- ● ●
310 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28650-825-0 01 1 1411- ● ●
310 BOLT; CLIP,AIR PIPE
M8X20 FLANGE 		0-28650-820-0 09 1 1008-1410 ● ●
310 BOLT; CLIP,AIR PIPE
M8X20 FLANGE 		0-28650-820-0 08 1 1411- ● ●
çizim 170269
131 137 46 46 2 27 26 164 27 27 39 39 7 6 26 30 30 30 80
BalonParca AdiParca NoAdetTipApplied Date A B
2 TANK; AIR
(A) 		1-48371-166-3 01 1 1008- ● ●
2 TANK; AIR
(B) 		8-98145-093-0 01 1 1008- ● ●
6 COCK; DRAIN,AIR TANK
(B) 		1-48312-017-0 06 1 1008- ● ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-006-1 01 1 1008-1410 ● ●
6 COCK; DRAIN,AIR TANK
WHEEL BASE 5200MM(52W) (A) 		1-48312-006-1 01 1 1411- ●
6 COCK; DRAIN,AIR TANK
WHEEL BASE 5500MM(55W) (A) 		1-48312-006-1 01 1 1411- ●
6 COCK; DRAIN,AIR TANK
(B) 		1-48312-017-0 01 1 1008-1410 ● ●
6 COCK; DRAIN,AIR TANK
WHEEL BASE 5200MM(52W) (B) 		1-48312-017-0 01 1 1411- ●
6 COCK; DRAIN,AIR TANK
WHEEL BASE 5500MM(55W) (B) 		1-48312-017-0 01 1 1411- ●
6 COCK; DRAIN,AIR TANK
WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) (B) 		1-48312-017-0 02 1 1411- ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 1008- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 06 1 1008- ● ●
26 PLUG; SUB AIR TANK
PT3/8 		9-09204-517-0 02 1 1008- ● ●
27 UNION; ELBOW,AIR TANK
(A) 		1-09660-778-1 02 1 1008- ● ●
27 UNION; ELBOW,AIR TANK
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1008- ● ●
30 BRACKET; AIR TANK,SUB
(C) 		8-98177-422-0 01 1 1008- ● ●
30 BRACKET; AIR TANK,SUB
(A) 		8-98100-865-0 01 1 1008- ● ●
30 BRACKET; AIR TANK,SUB
(B) 		8-98100-866-0 01 1 1008- ● ●
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 04 1 1411- ● ●
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 06 1 1008-1410 ● ●
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 03 1 1411- ● ●
39 U-BOLT; AIR TANK
(B) L=253 		1-48317-248-1 02 1 1008- ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 16 1 1511- ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1008-1410 ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 12 1 1411- ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 24 1 1008-1510 ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1511- ● ●
80 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1008- ● ●
80 BOLT; BRKT
(B) M12X25 FLANGE 		0-28651-225-0 07 1 1008- ● ●
80 BOLT; BRKT
(C) M12X30 FLANGE 		0-28651-230-0 02 1 1008- ● ●
131 NUT; BRKT FIX
M12 FLANGE 		0-91180-212-0 04 1 1008- ● ●
137 BOLT; BRKT
M12X30 FLANGE 		0-28651-230-0 02 1 1008- ● ●
164 CONNECTOR; SUB AIR TANK
DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 1008- ● ●
çizim 170273
39 39 28 80 191 28 80 131 184 46 46 28 310 87 32 117 31
BalonParca AdiParca NoAdetTipApplied Date A B
28 BRACKET; AIR TANK
(A) 		1-48316-024-3 01 1 1008- ● ●
28 BRACKET; AIR TANK
(B) 		1-48316-026-0 02 1 1008- ● ●
28 BRACKET; AIR TANK
(C) 		1-48317-994-2 02 1 1008- ● ●
28 BRACKET; AIR TANK
(D) 		8-98142-179-2 01 1 1008-1410 ● ●
28 BRACKET; AIR TANK
(F) 		8-98200-121-2 01 1 1411- ● ●
28 BRACKET; AIR TANK
(E) 		8-98145-275-1 01 1 1008- ● ●
31 BOLT; BRKT TO FRAME
M14X50 		0-20851-450-0 08 1 1008- ● ●
32 NUT; BRKT TO FRAME
M14 		0-91110-514-0 08 1 1008- ● ●
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 04 1 1411- ● ●
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 06 1 1008-1410 ● ●
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 03 1 1411- ● ●
39 U-BOLT; AIR TANK
(B) L=253 		1-48317-248-1 02 1 1008- ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 16 1 1511- ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1008-1410 ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 12 1 1411- ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 24 1 1008-1510 ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1511- ● ●
80 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1008- ● ●
80 BOLT; BRKT
(B) M12X25 FLANGE 		0-28651-225-0 07 1 1008- ● ●
80 BOLT; BRKT
(C) M12X30 FLANGE 		0-28651-230-0 02 1 1008- ● ●
87 BRACKET; AIR PIPE JOINT
(B) 		1-47471-189-0 02 1 1008- ● ●
87 BRACKET; AIR PIPE JOINT
(A) 		1-47471-241-0 01 1 1008- ● ●
87 BRACKET; AIR PIPE JOINT
(C) 		8-98053-747-0 02 1 1008- ● ●
87 BRACKET; AIR PIPE JOINT
(E) 		8-98054-525-0 01 1 1008- ● ●
87 BRACKET; AIR PIPE JOINT
(D) 		8-98060-053-0 01 1 1008- ● ●
87 BRACKET; AIR PIPE JOINT
(F) 		8-98169-166-0 01 1 1008- ● ●
117 WASHER; LK,BRKT
ID=14.2 		0-91510-514-0 08 1 1008- ● ●
131 NUT; BRKT FIX
M12 FLANGE 		0-91180-212-0 04 1 1008- ● ●
184 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 04 1 1008- ● ●
184 NUT; BRKT
(B) M12 FLANGE 		0-91180-212-0 02 1 1008- ● ●
191 BRACKET; STOPPER,AIR TANK
(A) 		1-48316-015-1 01 1 1008- ●
191 BRACKET; STOPPER,AIR TANK
EXC. BATTERY LAYOUT REAR VAR1<NCT> (A) 		1-48316-015-1 01 1 1008- ●
191 BRACKET; STOPPER,AIR TANK
(B) 		1-48316-014-1 01 1 1008- ● ●
191 BRACKET; STOPPER,AIR TANK
(C) 		8-98167-792-0 01 1 1008- ● ●
191 BRACKET; STOPPER,AIR TANK
BATTERY LAYOUT REAR VAR1<NCT> (A) 		1-48316-023-1 01 1 1008- ●
310 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28650-825-0 01 1 1411- ● ●
310 BOLT; CLIP,AIR PIPE
M8X20 FLANGE 		0-28650-820-0 09 1 1008-1410 ● ●
310 BOLT; CLIP,AIR PIPE
M8X20 FLANGE 		0-28650-820-0 08 1 1411- ● ●
çizim 170290
39 39 28 80 191 80 28 31 117 32 87 310 28 46 46 131 184
BalonParca AdiParca NoAdetTipApplied Date A B
28 BRACKET; AIR TANK
(A) 		1-48316-024-3 01 1 1008- ● ●
28 BRACKET; AIR TANK
(B) 		1-48316-026-0 02 1 1008- ● ●
28 BRACKET; AIR TANK
(C) 		1-48317-994-2 02 1 1008- ● ●
28 BRACKET; AIR TANK
(D) 		8-98142-179-2 01 1 1008-1410 ● ●
28 BRACKET; AIR TANK
(F) 		8-98200-121-2 01 1 1411- ● ●
28 BRACKET; AIR TANK
(E) 		8-98145-275-1 01 1 1008- ● ●
31 BOLT; BRKT TO FRAME
M14X50 		0-20851-450-0 08 1 1008- ● ●
32 NUT; BRKT TO FRAME
M14 		0-91110-514-0 08 1 1008- ● ●
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 04 1 1411- ● ●
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 06 1 1008-1410 ● ●
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 03 1 1411- ● ●
39 U-BOLT; AIR TANK
(B) L=253 		1-48317-248-1 02 1 1008- ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 16 1 1511- ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1008-1410 ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 12 1 1411- ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 24 1 1008-1510 ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1511- ● ●
80 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1008- ● ●
80 BOLT; BRKT
(B) M12X25 FLANGE 		0-28651-225-0 07 1 1008- ● ●
80 BOLT; BRKT
(C) M12X30 FLANGE 		0-28651-230-0 02 1 1008- ● ●
87 BRACKET; AIR PIPE JOINT
(B) 		1-47471-189-0 02 1 1008- ● ●
87 BRACKET; AIR PIPE JOINT
(A) 		1-47471-241-0 01 1 1008- ● ●
87 BRACKET; AIR PIPE JOINT
(C) 		8-98053-747-0 02 1 1008- ● ●
87 BRACKET; AIR PIPE JOINT
(E) 		8-98054-525-0 01 1 1008- ● ●
87 BRACKET; AIR PIPE JOINT
(D) 		8-98060-053-0 01 1 1008- ● ●
87 BRACKET; AIR PIPE JOINT
(F) 		8-98169-166-0 01 1 1008- ● ●
117 WASHER; LK,BRKT
ID=14.2 		0-91510-514-0 08 1 1008- ● ●
131 NUT; BRKT FIX
M12 FLANGE 		0-91180-212-0 04 1 1008- ● ●
184 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 04 1 1008- ● ●
184 NUT; BRKT
(B) M12 FLANGE 		0-91180-212-0 02 1 1008- ● ●
191 BRACKET; STOPPER,AIR TANK
(A) 		1-48316-015-1 01 1 1008- ●
191 BRACKET; STOPPER,AIR TANK
EXC. BATTERY LAYOUT REAR VAR1<NCT> (A) 		1-48316-015-1 01 1 1008- ●
191 BRACKET; STOPPER,AIR TANK
(B) 		1-48316-014-1 01 1 1008- ● ●
191 BRACKET; STOPPER,AIR TANK
(C) 		8-98167-792-0 01 1 1008- ● ●
191 BRACKET; STOPPER,AIR TANK
BATTERY LAYOUT REAR VAR1<NCT> (A) 		1-48316-023-1 01 1 1008- ●
310 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28650-825-0 01 1 1411- ● ●
310 BOLT; CLIP,AIR PIPE
M8X20 FLANGE 		0-28650-820-0 09 1 1008-1410 ● ●
310 BOLT; CLIP,AIR PIPE
M8X20 FLANGE 		0-28650-820-0 08 1 1411- ● ●

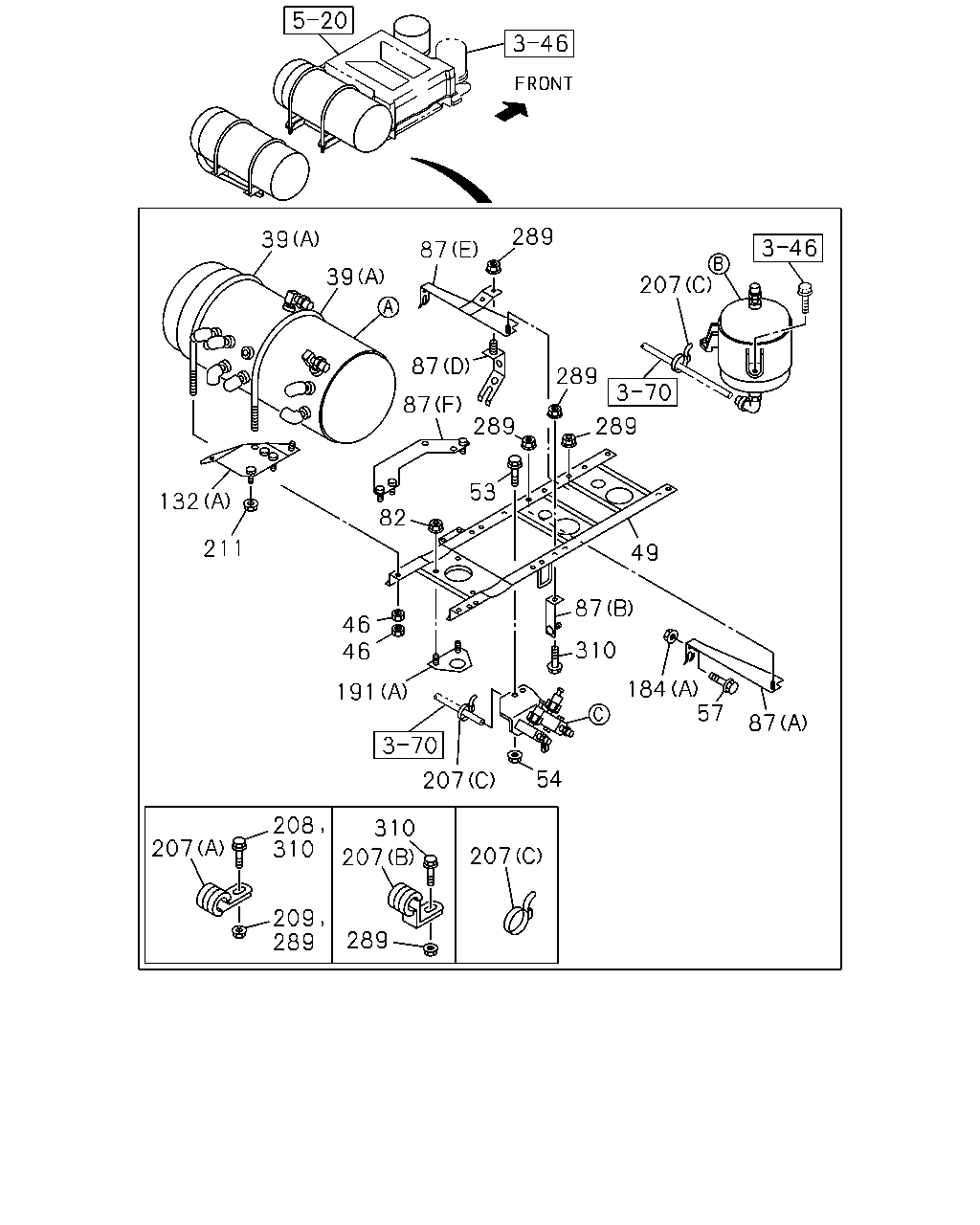

çizim 170297
289 87 39 39 87 87 289 53 82 211 132 289 289 207 49 87 310 184 57 87 54 207 191 46 46 207 289 207 310 208 310 209 289 207
BalonParca AdiParca NoAdetTipApplied Date A B
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 04 1 1411- ● ●
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 06 1 1008-1410 ● ●
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 03 1 1411- ● ●
39 U-BOLT; AIR TANK
(B) L=253 		1-48317-248-1 02 1 1008- ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 16 1 1511- ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1008-1410 ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 12 1 1411- ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 24 1 1008-1510 ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1511- ● ●
49 BRACKET; AIR TANK 1-48316-065-1 01 1 1008-1410 ● ●
49 BRACKET; AIR TANK 8-98241-376-0 01 1 1411- ● ●
53 BOLT; STAY,AIR TANK
M8X20 FLANGE 		0-28650-820-0 02 1 1008-1410 ● ●
54 NUT; STAY
M8 FLANGE 		0-91180-108-0 02 1 1008-1410 ● ●
54 NUT; STAY
M8 FLANGE 		0-91180-108-0 01 1 1411- ● ●
57 BOLT; BRKT,AIR TANK TO FRAME
M10X25 FLANGE 		0-28651-025-0 04 1 1008- ● ●
82 NUT; STAY,AIR MASTER BRKT
M8 FLANGE 		0-91180-108-0 02 1 1008- ● ●
87 BRACKET; AIR PIPE JOINT
(B) 		1-47471-189-0 02 1 1008- ● ●
87 BRACKET; AIR PIPE JOINT
(A) 		1-47471-241-0 01 1 1008- ● ●
87 BRACKET; AIR PIPE JOINT
(C) 		8-98053-747-0 02 1 1008- ● ●
87 BRACKET; AIR PIPE JOINT
(E) 		8-98054-525-0 01 1 1008- ● ●
87 BRACKET; AIR PIPE JOINT
(D) 		8-98060-053-0 01 1 1008- ● ●
87 BRACKET; AIR PIPE JOINT
(F) 		8-98169-166-0 01 1 1008- ● ●
132 BRACKET; STRING GUIDE
(A) 		8-98140-096-0 01 1 1008-1410 ● ●
132 BRACKET; STRING GUIDE
(B) 		8-98200-122-0 01 1 1411- ● ●
184 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 04 1 1008- ● ●
184 NUT; BRKT
(B) M12 FLANGE 		0-91180-212-0 02 1 1008- ● ●
191 BRACKET; STOPPER,AIR TANK
(A) 		1-48316-015-1 01 1 1008- ●
191 BRACKET; STOPPER,AIR TANK
EXC. BATTERY LAYOUT REAR VAR1<NCT> (A) 		1-48316-015-1 01 1 1008- ●
191 BRACKET; STOPPER,AIR TANK
(B) 		1-48316-014-1 01 1 1008- ● ●
191 BRACKET; STOPPER,AIR TANK
(C) 		8-98167-792-0 01 1 1008- ● ●
191 BRACKET; STOPPER,AIR TANK
BATTERY LAYOUT REAR VAR1<NCT> (A) 		1-48316-023-1 01 1 1008- ●
207 CLIP; AIR PIPE
WHEEL BASE 5200MM(52W) (A) ID=16 L=20 		0-95235-535-0 01 1 1411-1510 ●
207 CLIP; AIR PIPE
WHEEL BASE 5500MM(55W) (A) ID=16 L=20 		0-95235-535-0 01 1 1411-1510 ●
207 CLIP; AIR PIPE
SPARE WHEEL CARRIER FRAME SIDE<P13> (A) ID=16 L=20 		0-95235-535-0 01 1 1511- ● ●
207 CLIP; AIR PIPE
BATTERY LAYOUT REAR VAR1<NCT> (C) L=350 		1-09707-183-0 13 1 1411- ●
207 CLIP; AIR PIPE
(C) L=256 		1-09707-189-0 02 1 1008- ●
207 CLIP; AIR PIPE
EXC. BATTERY LAYOUT REAR VAR1<NCT> (C) L=256 		1-09707-189-0 02 1 1008- ●
207 CLIP; AIR PIPE
(A) ID=7 L=20 		0-95234-635-0 01 1 1008-1410 ● ●
207 CLIP; AIR PIPE
WHEEL BASE 5200MM(52W) (A) ID=7 L=20 		0-95234-635-0 01 1 1411-1510 ●
207 CLIP; AIR PIPE
WHEEL BASE 5500MM(55W) (A) ID=7 L=20 		0-95234-635-0 01 1 1411-1510 ●
207 CLIP; AIR PIPE
SPARE WHEEL CARRIER FRAME SIDE<P13> (A) ID=7 L=20 		0-95234-635-0 01 1 1511- ● ●
207 CLIP; AIR PIPE
(A) ID=16 L=20 		0-95235-535-0 01 1 1008-1410 ● ●
207 CLIP; AIR PIPE
(A) ID=35 L=35 		1-09700-895-0 01 1 1411- ● ●
207 CLIP; AIR PIPE
(A) ID=35 L=33 		1-09700-945-0 02 1 1008-1410 ● ●
207 CLIP; AIR PIPE
(A) ID=35 L=33 		1-09700-945-0 01 1 1411- ● ●
207 CLIP; AIR PIPE
(B) ID=35 H=45 L=33 		1-09700-947-0 03 1 1008- ● ●
207 CLIP; AIR PIPE
(C) L=350 		1-09707-183-0 14 1 1008-1410 ● ●
207 CLIP; AIR PIPE
(C) L=350 		1-09707-183-0 14 1 1411- ●
207 CLIP; AIR PIPE
EXC. BATTERY LAYOUT REAR VAR1<NCT> (C) L=350 		1-09707-183-0 14 1 1411- ●
207 CLIP; AIR PIPE
BATTERY LAYOUT REAR VAR1<NCT> (C) L=256 		1-09707-189-0 01 1 1008- ●
208 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 1008-1410 ● ●
208 BOLT; CLIP
WHEEL BASE 5200MM(52W) M8X16 FLANGE 		0-28050-816-0 01 1 1411-1510 ●
208 BOLT; CLIP
WHEEL BASE 5500MM(55W) M8X16 FLANGE 		0-28050-816-0 01 1 1411-1510 ●
208 BOLT; CLIP
SPARE WHEEL CARRIER FRAME SIDE<P13> M8X16 FLANGE 		0-28050-816-0 01 1 1511- ● ●
209 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1008-1410 ● ●
209 NUT; CLIP
WHEEL BASE 5200MM(52W) M8 FLANGE 		0-91180-108-0 02 1 1411-1510 ●
209 NUT; CLIP
WHEEL BASE 5500MM(55W) M8 FLANGE 		0-91180-108-0 02 1 1411-1510 ●
209 NUT; CLIP
SPARE WHEEL CARRIER FRAME SIDE<P13> M8 FLANGE 		0-91180-108-0 02 1 1511- ● ●
211 NUT; STRING GUIDE
M8 FLANGE 		0-91180-108-0 02 1 1008- ● ●
289 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91180-108-0 09 1 1008- ● ●
310 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28650-825-0 01 1 1411- ● ●
310 BOLT; CLIP,AIR PIPE
M8X20 FLANGE 		0-28650-820-0 09 1 1008-1410 ● ●
310 BOLT; CLIP,AIR PIPE
M8X20 FLANGE 		0-28650-820-0 08 1 1411- ● ●

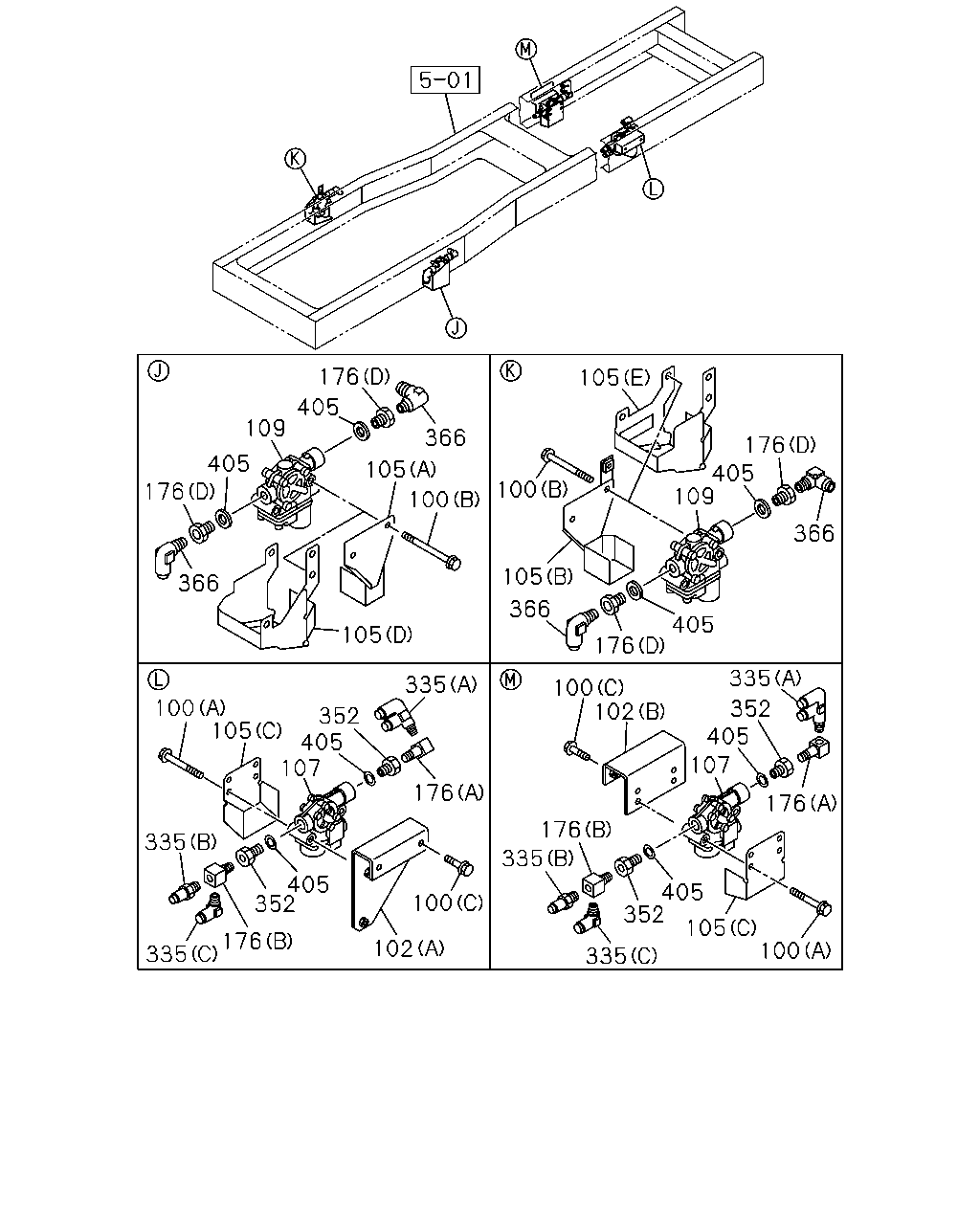

çizim 455633
176 405 109 405 176 366 105 100 105 366 100 105 176 405 109 366 405 176 366 105 100 102 335 352 405 107 176 100 105 405 352 335 335 176 102 100 176 335 352 405 107 105 100 335 405 352 176 335
BalonParca AdiParca NoAdetTipApplied Date A B
100 BOLT; MODULATOR
(A) M8X80 FLANGE 		0-28050-880-0 02 1 1008-1504 ● ●
100 BOLT; MODULATOR
(A) M8X80 FLANGE 		0-28050-880-0 02 1 1008-1504 ● ●
100 BOLT; MODULATOR
(A) M8X85 		1-09044-074-0 02 1 1505- ● ●
100 BOLT; MODULATOR
(A) M8X85 		1-09044-074-0 02 1 1505- ● ●
100 BOLT; MODULATOR
(B) M8X90 FLANGE 		0-28050-890-0 04 1 1008- ● ●
100 BOLT; MODULATOR
(C) M8X35 FLANGE 		0-28650-835-0 04 1 1008- ● ●
102 BRACKET; MODULATOR
WHEEL BASE 5900MM(59W) (A) 		8-98300-017-0 01 1 1505- ●
102 BRACKET; MODULATOR
WHEEL BASE 5200MM(52W) (A) 		1-47471-373-0 01 1 1008-1504 ●
102 BRACKET; MODULATOR
WHEEL BASE 5500MM(55W),WHEEL BASE 6600MM(66W) (A) 		1-47471-373-0 01 1 1008-1504 ●
102 BRACKET; MODULATOR
WHEEL BASE 5200MM(52W) (A) 		8-98300-015-0 01 1 1505- ●
102 BRACKET; MODULATOR
WHEEL BASE 5500MM(55W),WHEEL BASE 6600MM(66W) (A) 		8-98300-015-0 01 1 1505- ●
102 BRACKET; MODULATOR
(B) 		1-47471-372-0 01 1 1008-1504 ● ●
102 BRACKET; MODULATOR
WHEEL BASE 5900MM(59W) (B) 		1-47471-372-0 01 1 1008-1504 ●
102 BRACKET; MODULATOR
(B) 		8-98300-012-0 01 1 1505- ● ●
105 COVER; MODULATOR
(C) 		8-98302-925-0 01 1 1505- ● ●
105 COVER; MODULATOR
(C) 		1-47471-354-0 01 1 1008-1504 ● ●
105 COVER; MODULATOR
(C) 		1-47471-354-0 01 1 1008-1504 ● ●
105 COVER; MODULATOR
(C) 		8-98302-924-0 01 1 1505- ● ●
105 COVER; MODULATOR
(A) 		8-98147-199-0 01 1 1008-1504 ● ●
105 COVER; MODULATOR
(D) 		8-98300-150-0 01 1 1505- ● ●
105 COVER; MODULATOR
(B) 		8-98147-206-0 01 1 1008-1504 ● ●
105 COVER; MODULATOR
(E) 		8-98300-154-0 01 1 1505- ● ●
107 MODULATOR; RR 1-48240-115-0 01 1 1008-1504 ● ●
107 MODULATOR; RR 1-48240-115-0 01 1 1008-1504 ● ●
107 MODULATOR; RR 8-98215-454-0 01 1 1505- ● ●
107 MODULATOR; RR 8-98215-454-0 01 1 1505- ● ●
109 MODULATOR; FRT 1-48240-115-0 02 1 1008-1504 ● ●
109 MODULATOR; FRT 8-98215-454-0 02 1 1505- ● ●
176 ADAPTER
(D) INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 1008- ● ●
176 ADAPTER
TIRE INFLATOR DEVICE<SG4> (C) PS1/4 & PT1/4 STRAIGHT 		1-09660-090-0 02 1 1411- ● ●
176 ADAPTER
EXC. TIRE INFLATOR DEVICE<SG4> (C) PS1/4 & PT1/4 STRAIGHT 		1-09660-090-0 01 1 1411- ● ●
176 ADAPTER
(A) PT3/8 ELBOW 		1-09660-696-0 01 1 1008- ● ●
176 ADAPTER
(A) PT3/8 ELBOW 		1-09660-696-0 01 1 1008- ● ●
176 ADAPTER
(B) PT3/8 3WAY 		1-09661-300-0 01 1 1008- ● ●
176 ADAPTER
(B) PT3/8 3WAY 		1-09661-300-0 01 1 1008- ● ●
335 CONNECTOR; MODULATOR
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1008- ● ●
335 CONNECTOR; MODULATOR
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1008- ● ●
335 CONNECTOR; MODULATOR
(B) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1008- ● ●
335 CONNECTOR; MODULATOR
(B) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1008- ● ●
335 CONNECTOR; MODULATOR
(A) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 1008- ● ●
335 CONNECTOR; MODULATOR
(A) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 1008- ● ●
352 CONNECTOR; STRAIGHT
INNER PT3/8,OUTER M22 		1-09650-494-1 02 1 1008- ● ●
352 CONNECTOR; STRAIGHT
INNER PT3/8,OUTER M22 		1-09650-494-1 02 1 1008- ● ●
366 CONNECTOR; NYLON TUBE
DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 1008- ● ●
405 GASKET
ID=22.5 		9-09571-422-0 02 1 1008-1410 ● ●
405 GASKET
ID=22.5 		9-09571-422-0 02 1 1411- ● ●
405 GASKET
ID=22.5 		9-09571-422-0 02 1 1411- ● ●
405 GASKET
ID=22.5 		9-09571-422-0 06 1 1008-1410 ● ●
405 GASKET
ID=22.5 		9-09571-422-0 04 1 1411- ● ●
çizim 455646
241
BalonParca AdiParca NoAdetTipApplied Date A B
241 BOLT; SET,CONT VLV
M8X70 FLANGE 		0-28050-870-0 02 1 1008-1410 ●
241 BOLT; SET,CONT VLV
EXC. FULL TRAILER PIPING<Z25> M8X70 FLANGE 		0-28050-870-0 02 1 1008-1410 ●
241 BOLT; SET,CONT VLV
M8X70 FLANGE 		0-28050-870-0 02 1 1411- ●
241 BOLT; SET,CONT VLV
EXC. FULL TRAILER PIPING<Z25> M8X70 FLANGE 		0-28050-870-0 02 1 1411- ●
241 BOLT; SET,CONT VLV
FULL TRAILER PIPING<Z25> M8X30 W/LK&PL WASHER 		0-50640-830-0 01 1 1008- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
