2-53 — TRANSMISSION OIL COOLER SYSTEM (#62603) — 321 parça

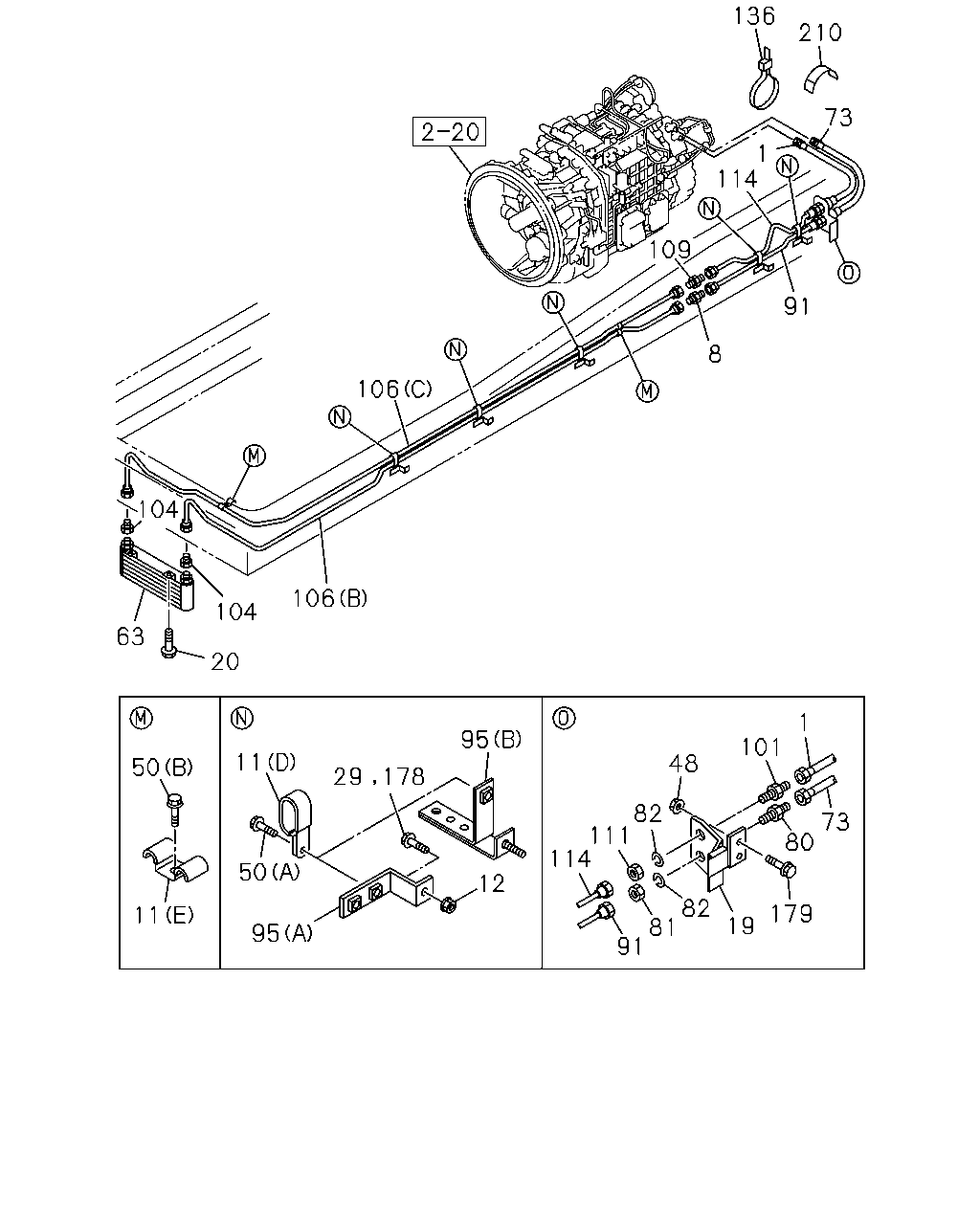

12 50 11 8 109 50 11 91 114 116 117 48 1 73 179 19 77 76 95 50 12 178 29 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; ATF MJT7S M/T(Y3E) L=430	1-09364-872-0	01	1	1008-	●	●
1	HOSE; ATF MJX16P M/T(Y3Z) L=600	1-09365-232-0	01	1	1008-1410		●
1	HOSE; ATF MJX16P M/T(Y3Z) L=710	8-97635-173-0	01	1	1411-		●
8	UNION MJT7S M/T(Y3E) M16 STRAIGHT L=42	0-92123-010-0	01	1	1008-	●	●
8	UNION MJX16P M/T(Y3Z) M22 L=51	0-92123-015-0	01	1	1008-1209	●	●
8	UNION MJX16P M/T(Y3Z) M22 L=51	0-92123-015-0	01	1	1210-		●
11	CLIP; PIPE MJT7S M/T(Y3E) (A) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	01	1	1008-1410	●	●
11	CLIP; PIPE MJT7S M/T(Y3E) (C) ID=11X2 L=20	0-95325-035-0	05	1	1411-	●	●
11	CLIP; PIPE MJT7S M/T(Y3E) (B) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	02	1	1008-1410	●	●
11	CLIP; PIPE MJT7S M/T(Y3E) (B) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	01	1	1411-	●	●
11	CLIP; PIPE MJT7S M/T(Y3E) (C) ID=11X2 L=20	9-09535-036-0	05	1	1008-1410	●	●
11	CLIP; PIPE MJX16P M/T(Y3Z) (D) ID=16X2 L=20	0-95325-535-0	01	1	1008-1209	●	●
11	CLIP; PIPE MJX16P M/T(Y3Z) (D) ID=16X2 L=20	0-95325-535-0	01	1	1210-1410		●
11	CLIP; PIPE MJX16P M/T(Y3Z) (D) ID=16X2 L=20	0-95325-535-0	05	1	1411-		●
11	CLIP; PIPE MJX16P M/T(Y3Z) (D) ID=16X2 L=20	0-95325-535-0	04	1	1008-1410		●
11	CLIP; PIPE MJX16P M/T(Y3Z) (E) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	1008-		●
12	NUT; BRKT M8 FLANGE	0-91180-108-0	05	1	1008-1410	●	●
12	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	1411-	●	●
19	BRACKET; FLEX HOSE MJT7S M/T(Y3E)	1-47479-559-0	01	1	1008-	●	●
19	BRACKET; FLEX HOSE MJX16P M/T(Y3Z)	1-47479-561-1	01	1	1008-		●
29	BOLT; FILTER TO BRKT M8X35 FLANGE	0-28650-835-0	04	1	1008-1410	●	●
29	BOLT; FILTER TO BRKT M8X35 FLANGE	0-28650-835-0	02	1	1411-	●	●
29	BOLT; FILTER TO BRKT MJT7S M/T(Y3E) M10X30 FLANGE	0-28651-030-0	02	1	1008-1410	●	●
48	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1008-	●	●
50	BOLT; CLIP (A) M8X25 FLANGE	0-28650-825-0	05	1	1008-	●	●
50	BOLT; CLIP MJT7S M/T(Y3E) (C) M8X16 FLANGE	0-28050-816-0	01	1	1008-1410	●	●
50	BOLT; CLIP MJT7S M/T(Y3E) (B) M8X20 FLANGE	0-28650-820-0	02	1	1008-1410	●	●
50	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	01	1	1411-	●	●
50	BOLT; CLIP MJX16P M/T(Y3Z) (B) M8X20 FLANGE	0-28650-820-0	01	1	1008-1410		●
73	HOSE; FLEX,TRANS MJT7S M/T(Y3E) L=430	1-09364-872-0	01	1	1008-	●	●
73	HOSE; FLEX,TRANS MJX16P M/T(Y3Z) L=530	1-09365-248-0	01	1	1008-1410		●
73	HOSE; FLEX,TRANS MJX16P M/T(Y3Z) L=630	8-97635-172-0	01	1	1411-		●
76	NUT; FLEX HOSE MJT7S M/T(Y3E) M16	0-91111-516-0	01	1	1008-	●	●
77	WASHER; LK MJT7S M/T(Y3E) ID=16.2	0-91510-516-0	01	1	1008-	●	●
91	PIPE; OIL,FLEX HOSE TO UNION MJT7S M/T(Y3E) MIXER TRUCK<RA2> L=768	8-98170-741-0	01	1	1008-1209	●
91	PIPE; OIL,FLEX HOSE TO UNION MJT7S M/T(Y3E) L=768	8-98170-741-0	01	1	1210-1410	●
91	PIPE; OIL,FLEX HOSE TO UNION MJT7S M/T(Y3E) L=792	8-98234-202-0	01	1	1411-	●	●
91	PIPE; OIL,FLEX HOSE TO UNION MJT7S M/T(Y3E) EXC. MIXER TRUCK<RA2> L=775	8-98168-253-0	01	1	1008-1209	●
91	PIPE; OIL,FLEX HOSE TO UNION MJT7S M/T(Y3E) L=775	8-98168-253-0	01	1	1008-1209		●
91	PIPE; OIL,FLEX HOSE TO UNION MJT7S M/T(Y3E) L=775	8-98168-253-0	01	1	1210-1410		●
91	PIPE; OIL,FLEX HOSE TO UNION MJX16P M/T(Y3Z) L=918	8-98145-195-0	01	1	1008-1209	●	●
91	PIPE; OIL,FLEX HOSE TO UNION MJX16P M/T(Y3Z) L=918	8-98145-195-0	01	1	1210-		●
95	BRACKET; CLIP (B)	8-98199-287-2	01	1	1411-	●	●
95	BRACKET; CLIP (A)	1-47479-482-0	05	1	1008-1410	●	●
95	BRACKET; CLIP (A)	1-47479-482-0	03	1	1411-	●	●
109	UNION MJT7S M/T(Y3E) M16 STRAIGHT L=42	0-92123-010-0	02	1	1008-1410	●	●
109	UNION MJT7S M/T(Y3E) M16 STRAIGHT L=42	0-92123-010-0	01	1	1411-	●	●
109	UNION MJX16P M/T(Y3Z) M22 L=51	0-92123-015-0	01	1	1008-1410		●
109	UNION MJX16P M/T(Y3Z) M22 L=51	0-92123-015-0	01	1	1411-		●
114	PIPE; OIL,UNION TO FLEX HOSE MJT7S M/T(Y3E) MIXER TRUCK<RA2> L=861 SERVICED BY L=900	1-47428-873-0	01	1	1008-1209	●
114	PIPE; OIL,UNION TO FLEX HOSE MJT7S M/T(Y3E) L=861 SERVICED BY L=900	1-47428-873-0	01	1	1210-1410	●
114	PIPE; OIL,UNION TO FLEX HOSE MJT7S M/T(Y3E) L=853	8-98234-203-0	01	1	1411-	●	●
114	PIPE; OIL,UNION TO FLEX HOSE MJT7S M/T(Y3E) EXC. MIXER TRUCK<RA2> L=857	8-98145-198-0	01	1	1008-1209	●
114	PIPE; OIL,UNION TO FLEX HOSE MJT7S M/T(Y3E) L=857	8-98145-198-0	01	1	1008-1209		●
114	PIPE; OIL,UNION TO FLEX HOSE MJT7S M/T(Y3E) L=857	8-98145-198-0	01	1	1210-1410		●
114	PIPE; OIL,UNION TO FLEX HOSE MJX16P M/T(Y3Z) L=860	8-98169-359-0	01	1	1008-1209	●	●
114	PIPE; OIL,UNION TO FLEX HOSE MJX16P M/T(Y3Z) L=860	8-98169-359-0	01	1	1210-		●
116	NUT; BRKT,FLEX HOSE MJT7S M/T(Y3E) M16	0-91111-516-0	01	1	1008-	●	●
117	WASHER; LK,FLEX HOSE MJT7S M/T(Y3E) ID=16.2	0-91510-516-0	01	1	1008-	●	●
178	BOLT; BRKT,CLIP M8X35 FLANGE	0-28650-835-0	01	1	1008-	●	●
179	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1008-	●	●

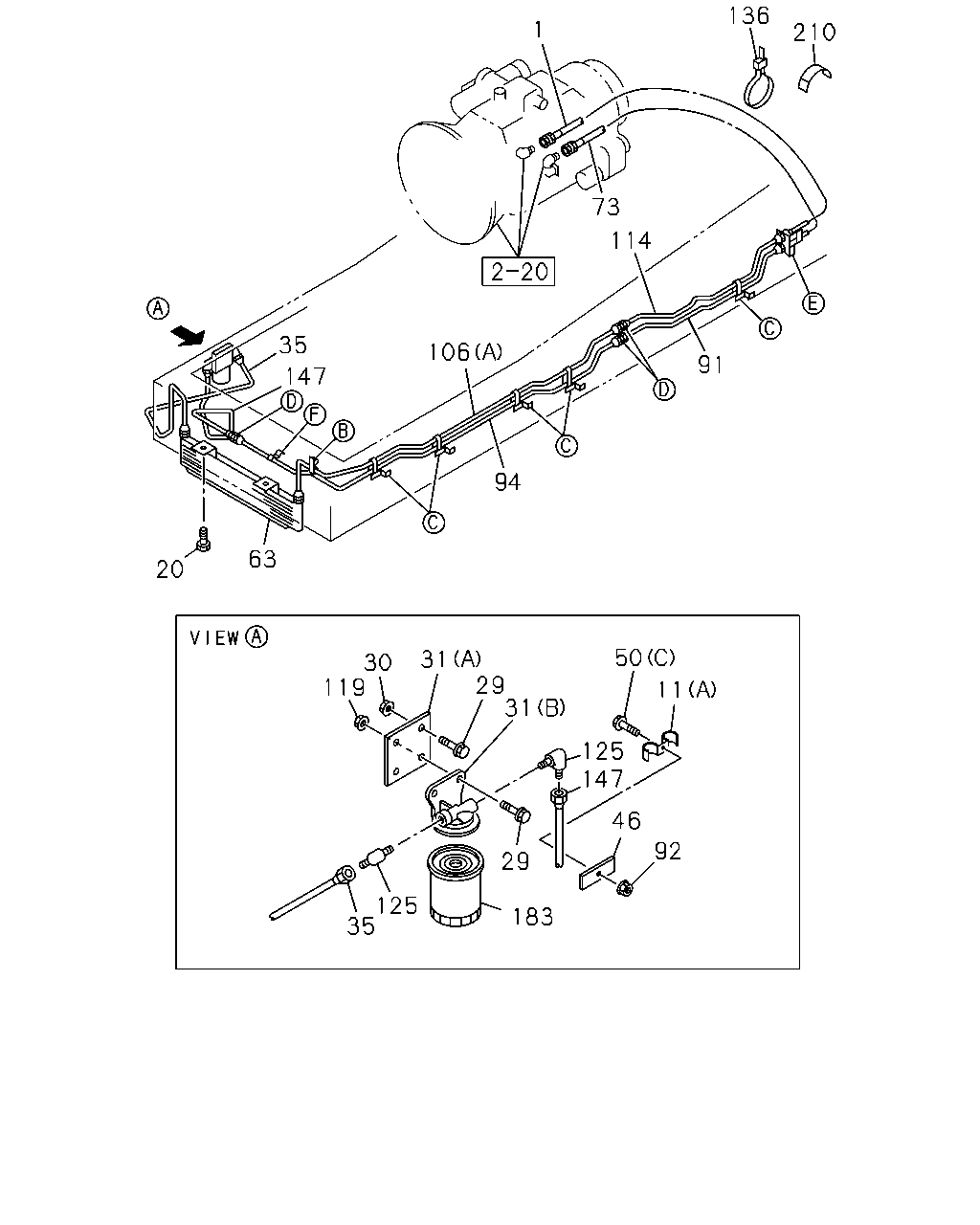

1 136 73 210 114 91 106 94 63 20 147 35 50 11 125 147 46 92 183 29 31 29 31 30 119 35 125

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; ATF MJT7S M/T(Y3E) L=430	1-09364-872-0	01	1	1008-	●	●
1	HOSE; ATF MJX16P M/T(Y3Z) L=600	1-09365-232-0	01	1	1008-1410		●
1	HOSE; ATF MJX16P M/T(Y3Z) L=710	8-97635-173-0	01	1	1411-		●
11	CLIP; PIPE MJT7S M/T(Y3E) (A) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	01	1	1008-1410	●	●
11	CLIP; PIPE MJT7S M/T(Y3E) (C) ID=11X2 L=20	0-95325-035-0	05	1	1411-	●	●
11	CLIP; PIPE MJT7S M/T(Y3E) (B) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	02	1	1008-1410	●	●
11	CLIP; PIPE MJT7S M/T(Y3E) (B) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	01	1	1411-	●	●
11	CLIP; PIPE MJT7S M/T(Y3E) (C) ID=11X2 L=20	9-09535-036-0	05	1	1008-1410	●	●
11	CLIP; PIPE MJX16P M/T(Y3Z) (D) ID=16X2 L=20	0-95325-535-0	01	1	1008-1209	●	●
11	CLIP; PIPE MJX16P M/T(Y3Z) (D) ID=16X2 L=20	0-95325-535-0	01	1	1210-1410		●
11	CLIP; PIPE MJX16P M/T(Y3Z) (D) ID=16X2 L=20	0-95325-535-0	05	1	1411-		●
11	CLIP; PIPE MJX16P M/T(Y3Z) (D) ID=16X2 L=20	0-95325-535-0	04	1	1008-1410		●
11	CLIP; PIPE MJX16P M/T(Y3Z) (E) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	1008-		●
20	BOLT; COOLER TO BRKT M10X20 FLANGE	0-28051-020-0	02	1	1008-	●	●
29	BOLT; FILTER TO BRKT M8X35 FLANGE	0-28650-835-0	04	1	1008-1410	●	●
29	BOLT; FILTER TO BRKT M8X35 FLANGE	0-28650-835-0	02	1	1411-	●	●
29	BOLT; FILTER TO BRKT MJT7S M/T(Y3E) M10X30 FLANGE	0-28651-030-0	02	1	1008-1410	●	●
30	NUT; BRKT MJT7S M/T(Y3E) M10 FLANGE	0-91180-210-0	02	1	1008-1410	●	●
31	BRACKET; OIL FILTER MJT7S M/T(Y3E) (B)	1-33119-222-0	01	1	1008-1410	●	●
31	BRACKET; OIL FILTER MJT7S M/T(Y3E) (A)	1-47471-155-0	01	1	1008-1410	●	●
35	PIPE; OIL,OIL COOLER TO FILTER MJT7S M/T(Y3E) L=787	1-49167-386-0	01	1	1008-1410	●	●
46	BRACKET; OIL PIPE MJT7S M/T(Y3E) L=50	1-47475-299-2	01	1	1008-1410	●	●
50	BOLT; CLIP (A) M8X25 FLANGE	0-28650-825-0	05	1	1008-	●	●
50	BOLT; CLIP MJT7S M/T(Y3E) (C) M8X16 FLANGE	0-28050-816-0	01	1	1008-1410	●	●
50	BOLT; CLIP MJT7S M/T(Y3E) (B) M8X20 FLANGE	0-28650-820-0	02	1	1008-1410	●	●
50	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	01	1	1411-	●	●
50	BOLT; CLIP MJX16P M/T(Y3Z) (B) M8X20 FLANGE	0-28650-820-0	01	1	1008-1410		●
63	COOLER; OIL MJX16P M/T(Y3Z)	8-98240-507-0	01	1	1411-		●
63	COOLER; OIL	1-21700-394-0	01	1	1008-1405	●	●
63	COOLER; OIL	8-98269-766-0	01	1	1406-1410	●	●
63	COOLER; OIL MJT7S M/T(Y3E)	8-98269-767-0	01	1	1411-	●	●
73	HOSE; FLEX,TRANS MJT7S M/T(Y3E) L=430	1-09364-872-0	01	1	1008-	●	●
73	HOSE; FLEX,TRANS MJX16P M/T(Y3Z) L=530	1-09365-248-0	01	1	1008-1410		●
73	HOSE; FLEX,TRANS MJX16P M/T(Y3Z) L=630	8-97635-172-0	01	1	1411-		●
91	PIPE; OIL,FLEX HOSE TO UNION MJT7S M/T(Y3E) MIXER TRUCK<RA2> L=768	8-98170-741-0	01	1	1008-1209	●
91	PIPE; OIL,FLEX HOSE TO UNION MJT7S M/T(Y3E) L=768	8-98170-741-0	01	1	1210-1410	●
91	PIPE; OIL,FLEX HOSE TO UNION MJT7S M/T(Y3E) L=792	8-98234-202-0	01	1	1411-	●	●
91	PIPE; OIL,FLEX HOSE TO UNION MJT7S M/T(Y3E) EXC. MIXER TRUCK<RA2> L=775	8-98168-253-0	01	1	1008-1209	●
91	PIPE; OIL,FLEX HOSE TO UNION MJT7S M/T(Y3E) L=775	8-98168-253-0	01	1	1008-1209		●
91	PIPE; OIL,FLEX HOSE TO UNION MJT7S M/T(Y3E) L=775	8-98168-253-0	01	1	1210-1410		●
91	PIPE; OIL,FLEX HOSE TO UNION MJX16P M/T(Y3Z) L=918	8-98145-195-0	01	1	1008-1209	●	●
91	PIPE; OIL,FLEX HOSE TO UNION MJX16P M/T(Y3Z) L=918	8-98145-195-0	01	1	1210-		●
92	NUT; CLIP MJT7S M/T(Y3E) M8 FLANGE	0-91180-108-0	01	1	1008-1410	●	●
94	PIPE; OIL,UNION TO UNION MJT7S M/T(Y3E) L=2325 SERVICED BY L=2500	1-47428-883-0	01	1	1008-1410	●	●
106	PIPE ASM; OIL,COOLER TO UNION MJT7S M/T(Y3E) (D)	8-98240-384-0	01	1	1411-	●	●
106	PIPE ASM; OIL,COOLER TO UNION MJT7S M/T(Y3E) (A) L=1747 SERVICED BY L=1900	1-47428-881-0	01	1	1008-1410	●	●
106	PIPE ASM; OIL,COOLER TO UNION MJT7S M/T(Y3E) (E)	8-98240-380-0	01	1	1411-	●	●
106	PIPE ASM; OIL,COOLER TO UNION MJX16P M/T(Y3Z) (B) L=1731	8-98158-373-0	01	1	1008-1209	●	●
106	PIPE ASM; OIL,COOLER TO UNION MJX16P M/T(Y3Z) (B) L=1731	8-98158-373-0	01	1	1210-1410		●
106	PIPE ASM; OIL,COOLER TO UNION MJX16P M/T(Y3Z) (B)	8-98233-260-0	01	1	1411-		●
106	PIPE ASM; OIL,COOLER TO UNION MJX16P M/T(Y3Z) (C) L=2313	8-98158-374-0	01	1	1008-1209	●	●
106	PIPE ASM; OIL,COOLER TO UNION MJX16P M/T(Y3Z) (C) L=2313	8-98158-374-0	01	1	1210-1410		●
106	PIPE ASM; OIL,COOLER TO UNION MJX16P M/T(Y3Z) (C)	8-98233-261-0	01	1	1411-		●
114	PIPE; OIL,UNION TO FLEX HOSE MJT7S M/T(Y3E) MIXER TRUCK<RA2> L=861 SERVICED BY L=900	1-47428-873-0	01	1	1008-1209	●
114	PIPE; OIL,UNION TO FLEX HOSE MJT7S M/T(Y3E) L=861 SERVICED BY L=900	1-47428-873-0	01	1	1210-1410	●
114	PIPE; OIL,UNION TO FLEX HOSE MJT7S M/T(Y3E) L=853	8-98234-203-0	01	1	1411-	●	●
114	PIPE; OIL,UNION TO FLEX HOSE MJT7S M/T(Y3E) EXC. MIXER TRUCK<RA2> L=857	8-98145-198-0	01	1	1008-1209	●
114	PIPE; OIL,UNION TO FLEX HOSE MJT7S M/T(Y3E) L=857	8-98145-198-0	01	1	1008-1209		●
114	PIPE; OIL,UNION TO FLEX HOSE MJT7S M/T(Y3E) L=857	8-98145-198-0	01	1	1210-1410		●
114	PIPE; OIL,UNION TO FLEX HOSE MJX16P M/T(Y3Z) L=860	8-98169-359-0	01	1	1008-1209	●	●
114	PIPE; OIL,UNION TO FLEX HOSE MJX16P M/T(Y3Z) L=860	8-98169-359-0	01	1	1210-		●
119	NUT; FILTER TO BRKT MJT7S M/T(Y3E) M10 FLANGE	0-91180-210-0	02	1	1008-1410	●	●
125	CONNECTOR; OIL FILTER MJT7S M/T(Y3E) M16 & PT1/4 ELBOW	0-92134-310-0	02	1	1008-1410	●	●
136	CLIP; FLEX HOSE MJX16P M/T(Y3Z) L=350	1-09707-183-0	02	1	1411-		●
136	CLIP; FLEX HOSE L=350	1-09707-183-0	01	1	1008-1410	●	●
136	CLIP; FLEX HOSE MJT7S M/T(Y3E) L=350	1-09707-183-0	01	1	1411-	●	●
147	PIPE; OIL,UNION TO FILTER MJT7S M/T(Y3E) L=739 SERVICED BY L=800	1-47428-872-0	01	1	1008-1410	●	●
183	CARTRIDGE; OIL FILTER MJT7S M/T(Y3E)	8-94459-700-1	01	1	1008-1410	●	●
210	BAND; FLEX HOSE MJX16P M/T(Y3Z) L=175	1-09707-178-0	02	1	1411-		●
210	BAND; FLEX HOSE L=175	1-09707-178-0	01	1	1008-1410	●	●
210	BAND; FLEX HOSE MJT7S M/T(Y3E) L=175	1-09707-178-0	01	1	1411-	●	●

106 106 136 114 1 73 91 63 20 210

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; ATF MJT7S M/T(Y3E) L=430	1-09364-872-0	01	1	1008-	●	●
1	HOSE; ATF MJX16P M/T(Y3Z) L=600	1-09365-232-0	01	1	1008-1410		●
1	HOSE; ATF MJX16P M/T(Y3Z) L=710	8-97635-173-0	01	1	1411-		●
20	BOLT; COOLER TO BRKT M10X20 FLANGE	0-28051-020-0	02	1	1008-	●	●
63	COOLER; OIL MJX16P M/T(Y3Z)	8-98240-507-0	01	1	1411-		●
63	COOLER; OIL	1-21700-394-0	01	1	1008-1405	●	●
63	COOLER; OIL	8-98269-766-0	01	1	1406-1410	●	●
63	COOLER; OIL MJT7S M/T(Y3E)	8-98269-767-0	01	1	1411-	●	●
73	HOSE; FLEX,TRANS MJT7S M/T(Y3E) L=430	1-09364-872-0	01	1	1008-	●	●
73	HOSE; FLEX,TRANS MJX16P M/T(Y3Z) L=530	1-09365-248-0	01	1	1008-1410		●
73	HOSE; FLEX,TRANS MJX16P M/T(Y3Z) L=630	8-97635-172-0	01	1	1411-		●
91	PIPE; OIL,FLEX HOSE TO UNION MJT7S M/T(Y3E) MIXER TRUCK<RA2> L=768	8-98170-741-0	01	1	1008-1209	●
91	PIPE; OIL,FLEX HOSE TO UNION MJT7S M/T(Y3E) L=768	8-98170-741-0	01	1	1210-1410	●
91	PIPE; OIL,FLEX HOSE TO UNION MJT7S M/T(Y3E) L=792	8-98234-202-0	01	1	1411-	●	●
91	PIPE; OIL,FLEX HOSE TO UNION MJT7S M/T(Y3E) EXC. MIXER TRUCK<RA2> L=775	8-98168-253-0	01	1	1008-1209	●
91	PIPE; OIL,FLEX HOSE TO UNION MJT7S M/T(Y3E) L=775	8-98168-253-0	01	1	1008-1209		●
91	PIPE; OIL,FLEX HOSE TO UNION MJT7S M/T(Y3E) L=775	8-98168-253-0	01	1	1210-1410		●
91	PIPE; OIL,FLEX HOSE TO UNION MJX16P M/T(Y3Z) L=918	8-98145-195-0	01	1	1008-1209	●	●
91	PIPE; OIL,FLEX HOSE TO UNION MJX16P M/T(Y3Z) L=918	8-98145-195-0	01	1	1210-		●
106	PIPE ASM; OIL,COOLER TO UNION MJT7S M/T(Y3E) (D)	8-98240-384-0	01	1	1411-	●	●
106	PIPE ASM; OIL,COOLER TO UNION MJT7S M/T(Y3E) (A) L=1747 SERVICED BY L=1900	1-47428-881-0	01	1	1008-1410	●	●
106	PIPE ASM; OIL,COOLER TO UNION MJT7S M/T(Y3E) (E)	8-98240-380-0	01	1	1411-	●	●
106	PIPE ASM; OIL,COOLER TO UNION MJX16P M/T(Y3Z) (B) L=1731	8-98158-373-0	01	1	1008-1209	●	●
106	PIPE ASM; OIL,COOLER TO UNION MJX16P M/T(Y3Z) (B) L=1731	8-98158-373-0	01	1	1210-1410		●
106	PIPE ASM; OIL,COOLER TO UNION MJX16P M/T(Y3Z) (B)	8-98233-260-0	01	1	1411-		●
106	PIPE ASM; OIL,COOLER TO UNION MJX16P M/T(Y3Z) (C) L=2313	8-98158-374-0	01	1	1008-1209	●	●
106	PIPE ASM; OIL,COOLER TO UNION MJX16P M/T(Y3Z) (C) L=2313	8-98158-374-0	01	1	1210-1410		●
106	PIPE ASM; OIL,COOLER TO UNION MJX16P M/T(Y3Z) (C)	8-98233-261-0	01	1	1411-		●
114	PIPE; OIL,UNION TO FLEX HOSE MJT7S M/T(Y3E) MIXER TRUCK<RA2> L=861 SERVICED BY L=900	1-47428-873-0	01	1	1008-1209	●
114	PIPE; OIL,UNION TO FLEX HOSE MJT7S M/T(Y3E) L=861 SERVICED BY L=900	1-47428-873-0	01	1	1210-1410	●
114	PIPE; OIL,UNION TO FLEX HOSE MJT7S M/T(Y3E) L=853	8-98234-203-0	01	1	1411-	●	●
114	PIPE; OIL,UNION TO FLEX HOSE MJT7S M/T(Y3E) EXC. MIXER TRUCK<RA2> L=857	8-98145-198-0	01	1	1008-1209	●
114	PIPE; OIL,UNION TO FLEX HOSE MJT7S M/T(Y3E) L=857	8-98145-198-0	01	1	1008-1209		●
114	PIPE; OIL,UNION TO FLEX HOSE MJT7S M/T(Y3E) L=857	8-98145-198-0	01	1	1210-1410		●
114	PIPE; OIL,UNION TO FLEX HOSE MJX16P M/T(Y3Z) L=860	8-98169-359-0	01	1	1008-1209	●	●
114	PIPE; OIL,UNION TO FLEX HOSE MJX16P M/T(Y3Z) L=860	8-98169-359-0	01	1	1210-		●
136	CLIP; FLEX HOSE MJX16P M/T(Y3Z) L=350	1-09707-183-0	02	1	1411-		●
136	CLIP; FLEX HOSE L=350	1-09707-183-0	01	1	1008-1410	●	●
136	CLIP; FLEX HOSE MJT7S M/T(Y3E) L=350	1-09707-183-0	01	1	1411-	●	●
210	BAND; FLEX HOSE MJX16P M/T(Y3Z) L=175	1-09707-178-0	02	1	1411-		●
210	BAND; FLEX HOSE L=175	1-09707-178-0	01	1	1008-1410	●	●
210	BAND; FLEX HOSE MJT7S M/T(Y3E) L=175	1-09707-178-0	01	1	1411-	●	●

11 178 29 50 95 12 8 109 50 11 1 73 179 19 77 76 91 114 116 117 48 11 50 11 50 95 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; ATF MJT7S M/T(Y3E) L=430	1-09364-872-0	01	1	1008-	●	●
1	HOSE; ATF MJX16P M/T(Y3Z) L=600	1-09365-232-0	01	1	1008-1410		●
1	HOSE; ATF MJX16P M/T(Y3Z) L=710	8-97635-173-0	01	1	1411-		●
8	UNION MJT7S M/T(Y3E) M16 STRAIGHT L=42	0-92123-010-0	01	1	1008-	●	●
8	UNION MJX16P M/T(Y3Z) M22 L=51	0-92123-015-0	01	1	1008-1209	●	●
8	UNION MJX16P M/T(Y3Z) M22 L=51	0-92123-015-0	01	1	1210-		●
11	CLIP; PIPE MJT7S M/T(Y3E) (A) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	01	1	1008-1410	●	●
11	CLIP; PIPE MJT7S M/T(Y3E) (C) ID=11X2 L=20	0-95325-035-0	05	1	1411-	●	●
11	CLIP; PIPE MJT7S M/T(Y3E) (B) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	02	1	1008-1410	●	●
11	CLIP; PIPE MJT7S M/T(Y3E) (B) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	01	1	1411-	●	●
11	CLIP; PIPE MJT7S M/T(Y3E) (C) ID=11X2 L=20	9-09535-036-0	05	1	1008-1410	●	●
11	CLIP; PIPE MJX16P M/T(Y3Z) (D) ID=16X2 L=20	0-95325-535-0	01	1	1008-1209	●	●
11	CLIP; PIPE MJX16P M/T(Y3Z) (D) ID=16X2 L=20	0-95325-535-0	01	1	1210-1410		●
11	CLIP; PIPE MJX16P M/T(Y3Z) (D) ID=16X2 L=20	0-95325-535-0	05	1	1411-		●
11	CLIP; PIPE MJX16P M/T(Y3Z) (D) ID=16X2 L=20	0-95325-535-0	04	1	1008-1410		●
11	CLIP; PIPE MJX16P M/T(Y3Z) (E) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	1008-		●
12	NUT; BRKT M8 FLANGE	0-91180-108-0	05	1	1008-1410	●	●
12	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	1411-	●	●
19	BRACKET; FLEX HOSE MJT7S M/T(Y3E)	1-47479-559-0	01	1	1008-	●	●
19	BRACKET; FLEX HOSE MJX16P M/T(Y3Z)	1-47479-561-1	01	1	1008-		●
29	BOLT; FILTER TO BRKT M8X35 FLANGE	0-28650-835-0	04	1	1008-1410	●	●
29	BOLT; FILTER TO BRKT M8X35 FLANGE	0-28650-835-0	02	1	1411-	●	●
29	BOLT; FILTER TO BRKT MJT7S M/T(Y3E) M10X30 FLANGE	0-28651-030-0	02	1	1008-1410	●	●
48	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1008-	●	●
50	BOLT; CLIP (A) M8X25 FLANGE	0-28650-825-0	05	1	1008-	●	●
50	BOLT; CLIP MJT7S M/T(Y3E) (C) M8X16 FLANGE	0-28050-816-0	01	1	1008-1410	●	●
50	BOLT; CLIP MJT7S M/T(Y3E) (B) M8X20 FLANGE	0-28650-820-0	02	1	1008-1410	●	●
50	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	01	1	1411-	●	●
50	BOLT; CLIP MJX16P M/T(Y3Z) (B) M8X20 FLANGE	0-28650-820-0	01	1	1008-1410		●
73	HOSE; FLEX,TRANS MJT7S M/T(Y3E) L=430	1-09364-872-0	01	1	1008-	●	●
73	HOSE; FLEX,TRANS MJX16P M/T(Y3Z) L=530	1-09365-248-0	01	1	1008-1410		●
73	HOSE; FLEX,TRANS MJX16P M/T(Y3Z) L=630	8-97635-172-0	01	1	1411-		●
76	NUT; FLEX HOSE MJT7S M/T(Y3E) M16	0-91111-516-0	01	1	1008-	●	●
77	WASHER; LK MJT7S M/T(Y3E) ID=16.2	0-91510-516-0	01	1	1008-	●	●
91	PIPE; OIL,FLEX HOSE TO UNION MJT7S M/T(Y3E) MIXER TRUCK<RA2> L=768	8-98170-741-0	01	1	1008-1209	●
91	PIPE; OIL,FLEX HOSE TO UNION MJT7S M/T(Y3E) L=768	8-98170-741-0	01	1	1210-1410	●
91	PIPE; OIL,FLEX HOSE TO UNION MJT7S M/T(Y3E) L=792	8-98234-202-0	01	1	1411-	●	●
91	PIPE; OIL,FLEX HOSE TO UNION MJT7S M/T(Y3E) EXC. MIXER TRUCK<RA2> L=775	8-98168-253-0	01	1	1008-1209	●
91	PIPE; OIL,FLEX HOSE TO UNION MJT7S M/T(Y3E) L=775	8-98168-253-0	01	1	1008-1209		●
91	PIPE; OIL,FLEX HOSE TO UNION MJT7S M/T(Y3E) L=775	8-98168-253-0	01	1	1210-1410		●
91	PIPE; OIL,FLEX HOSE TO UNION MJX16P M/T(Y3Z) L=918	8-98145-195-0	01	1	1008-1209	●	●
91	PIPE; OIL,FLEX HOSE TO UNION MJX16P M/T(Y3Z) L=918	8-98145-195-0	01	1	1210-		●
95	BRACKET; CLIP (B)	8-98199-287-2	01	1	1411-	●	●
95	BRACKET; CLIP (A)	1-47479-482-0	05	1	1008-1410	●	●
95	BRACKET; CLIP (A)	1-47479-482-0	03	1	1411-	●	●
109	UNION MJT7S M/T(Y3E) M16 STRAIGHT L=42	0-92123-010-0	02	1	1008-1410	●	●
109	UNION MJT7S M/T(Y3E) M16 STRAIGHT L=42	0-92123-010-0	01	1	1411-	●	●
109	UNION MJX16P M/T(Y3Z) M22 L=51	0-92123-015-0	01	1	1008-1410		●
109	UNION MJX16P M/T(Y3Z) M22 L=51	0-92123-015-0	01	1	1411-		●
114	PIPE; OIL,UNION TO FLEX HOSE MJT7S M/T(Y3E) MIXER TRUCK<RA2> L=861 SERVICED BY L=900	1-47428-873-0	01	1	1008-1209	●
114	PIPE; OIL,UNION TO FLEX HOSE MJT7S M/T(Y3E) L=861 SERVICED BY L=900	1-47428-873-0	01	1	1210-1410	●
114	PIPE; OIL,UNION TO FLEX HOSE MJT7S M/T(Y3E) L=853	8-98234-203-0	01	1	1411-	●	●
114	PIPE; OIL,UNION TO FLEX HOSE MJT7S M/T(Y3E) EXC. MIXER TRUCK<RA2> L=857	8-98145-198-0	01	1	1008-1209	●
114	PIPE; OIL,UNION TO FLEX HOSE MJT7S M/T(Y3E) L=857	8-98145-198-0	01	1	1008-1209		●
114	PIPE; OIL,UNION TO FLEX HOSE MJT7S M/T(Y3E) L=857	8-98145-198-0	01	1	1210-1410		●
114	PIPE; OIL,UNION TO FLEX HOSE MJX16P M/T(Y3Z) L=860	8-98169-359-0	01	1	1008-1209	●	●
114	PIPE; OIL,UNION TO FLEX HOSE MJX16P M/T(Y3Z) L=860	8-98169-359-0	01	1	1210-		●
116	NUT; BRKT,FLEX HOSE MJT7S M/T(Y3E) M16	0-91111-516-0	01	1	1008-	●	●
117	WASHER; LK,FLEX HOSE MJT7S M/T(Y3E) ID=16.2	0-91510-516-0	01	1	1008-	●	●
178	BOLT; BRKT,CLIP M8X35 FLANGE	0-28650-835-0	01	1	1008-	●	●
179	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1008-	●	●

104 104 63 20 106 106 109 114 1 91 8 136 73 210 50 11 11 29 50 95 178 95 12 111 114 48 82 101 73 1 80 179 19 82 81 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; ATF MJT7S M/T(Y3E) L=430	1-09364-872-0	01	1	1008-	●	●
1	HOSE; ATF MJX16P M/T(Y3Z) L=600	1-09365-232-0	01	1	1008-1410		●
1	HOSE; ATF MJX16P M/T(Y3Z) L=710	8-97635-173-0	01	1	1411-		●
8	UNION MJT7S M/T(Y3E) M16 STRAIGHT L=42	0-92123-010-0	01	1	1008-	●	●
8	UNION MJX16P M/T(Y3Z) M22 L=51	0-92123-015-0	01	1	1008-1209	●	●
8	UNION MJX16P M/T(Y3Z) M22 L=51	0-92123-015-0	01	1	1210-		●
11	CLIP; PIPE MJT7S M/T(Y3E) (A) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	01	1	1008-1410	●	●
11	CLIP; PIPE MJT7S M/T(Y3E) (C) ID=11X2 L=20	0-95325-035-0	05	1	1411-	●	●
11	CLIP; PIPE MJT7S M/T(Y3E) (B) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	02	1	1008-1410	●	●
11	CLIP; PIPE MJT7S M/T(Y3E) (B) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	01	1	1411-	●	●
11	CLIP; PIPE MJT7S M/T(Y3E) (C) ID=11X2 L=20	9-09535-036-0	05	1	1008-1410	●	●
11	CLIP; PIPE MJX16P M/T(Y3Z) (D) ID=16X2 L=20	0-95325-535-0	01	1	1008-1209	●	●
11	CLIP; PIPE MJX16P M/T(Y3Z) (D) ID=16X2 L=20	0-95325-535-0	01	1	1210-1410		●
11	CLIP; PIPE MJX16P M/T(Y3Z) (D) ID=16X2 L=20	0-95325-535-0	05	1	1411-		●
11	CLIP; PIPE MJX16P M/T(Y3Z) (D) ID=16X2 L=20	0-95325-535-0	04	1	1008-1410		●
11	CLIP; PIPE MJX16P M/T(Y3Z) (E) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	1008-		●
12	NUT; BRKT M8 FLANGE	0-91180-108-0	05	1	1008-1410	●	●
12	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	1411-	●	●
19	BRACKET; FLEX HOSE MJT7S M/T(Y3E)	1-47479-559-0	01	1	1008-	●	●
19	BRACKET; FLEX HOSE MJX16P M/T(Y3Z)	1-47479-561-1	01	1	1008-		●
20	BOLT; COOLER TO BRKT M10X20 FLANGE	0-28051-020-0	02	1	1008-	●	●
29	BOLT; FILTER TO BRKT M8X35 FLANGE	0-28650-835-0	04	1	1008-1410	●	●
29	BOLT; FILTER TO BRKT M8X35 FLANGE	0-28650-835-0	02	1	1411-	●	●
29	BOLT; FILTER TO BRKT MJT7S M/T(Y3E) M10X30 FLANGE	0-28651-030-0	02	1	1008-1410	●	●
48	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1008-	●	●
50	BOLT; CLIP (A) M8X25 FLANGE	0-28650-825-0	05	1	1008-	●	●
50	BOLT; CLIP MJT7S M/T(Y3E) (C) M8X16 FLANGE	0-28050-816-0	01	1	1008-1410	●	●
50	BOLT; CLIP MJT7S M/T(Y3E) (B) M8X20 FLANGE	0-28650-820-0	02	1	1008-1410	●	●
50	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	01	1	1411-	●	●
50	BOLT; CLIP MJX16P M/T(Y3Z) (B) M8X20 FLANGE	0-28650-820-0	01	1	1008-1410		●
63	COOLER; OIL MJX16P M/T(Y3Z)	8-98240-507-0	01	1	1411-		●
63	COOLER; OIL	1-21700-394-0	01	1	1008-1405	●	●
63	COOLER; OIL	8-98269-766-0	01	1	1406-1410	●	●
63	COOLER; OIL MJT7S M/T(Y3E)	8-98269-767-0	01	1	1411-	●	●
73	HOSE; FLEX,TRANS MJT7S M/T(Y3E) L=430	1-09364-872-0	01	1	1008-	●	●
73	HOSE; FLEX,TRANS MJX16P M/T(Y3Z) L=530	1-09365-248-0	01	1	1008-1410		●
73	HOSE; FLEX,TRANS MJX16P M/T(Y3Z) L=630	8-97635-172-0	01	1	1411-		●
80	UNION; FLEX HOSE MJX16P M/T(Y3Z) M22 & M22 STRAIGHT	1-09654-204-2	01	1	1008-		●
81	NUT; UNION MJX16P M/T(Y3Z) M22	0-91111-522-0	01	1	1008-1410		●
81	NUT; UNION MJX16P M/T(Y3Z) M22	0-91111-522-0	01	1	1411-		●
82	WASHER; LK,UNION MJX16P M/T(Y3Z) ID=22.5	0-91510-522-0	02	1	1008-1410		●
82	WASHER; LK,UNION MJX16P M/T(Y3Z) ID=22.5	0-91510-522-0	02	1	1411-		●
91	PIPE; OIL,FLEX HOSE TO UNION MJT7S M/T(Y3E) MIXER TRUCK<RA2> L=768	8-98170-741-0	01	1	1008-1209	●
91	PIPE; OIL,FLEX HOSE TO UNION MJT7S M/T(Y3E) L=768	8-98170-741-0	01	1	1210-1410	●
91	PIPE; OIL,FLEX HOSE TO UNION MJT7S M/T(Y3E) L=792	8-98234-202-0	01	1	1411-	●	●
91	PIPE; OIL,FLEX HOSE TO UNION MJT7S M/T(Y3E) EXC. MIXER TRUCK<RA2> L=775	8-98168-253-0	01	1	1008-1209	●
91	PIPE; OIL,FLEX HOSE TO UNION MJT7S M/T(Y3E) L=775	8-98168-253-0	01	1	1008-1209		●
91	PIPE; OIL,FLEX HOSE TO UNION MJT7S M/T(Y3E) L=775	8-98168-253-0	01	1	1210-1410		●
91	PIPE; OIL,FLEX HOSE TO UNION MJX16P M/T(Y3Z) L=918	8-98145-195-0	01	1	1008-1209	●	●
91	PIPE; OIL,FLEX HOSE TO UNION MJX16P M/T(Y3Z) L=918	8-98145-195-0	01	1	1210-		●
95	BRACKET; CLIP (B)	8-98199-287-2	01	1	1411-	●	●
95	BRACKET; CLIP (A)	1-47479-482-0	05	1	1008-1410	●	●
95	BRACKET; CLIP (A)	1-47479-482-0	03	1	1411-	●	●
101	UNION; FLEX HOSE MJX16P M/T(Y3Z) M22 & M22 STRAIGHT	1-09654-204-2	01	1	1008-		●
104	CONNECTOR; COOLER MJX16P M/T(Y3Z)	1-09654-398-0	02	1	1008-1410		●
106	PIPE ASM; OIL,COOLER TO UNION MJT7S M/T(Y3E) (D)	8-98240-384-0	01	1	1411-	●	●
106	PIPE ASM; OIL,COOLER TO UNION MJT7S M/T(Y3E) (A) L=1747 SERVICED BY L=1900	1-47428-881-0	01	1	1008-1410	●	●
106	PIPE ASM; OIL,COOLER TO UNION MJT7S M/T(Y3E) (E)	8-98240-380-0	01	1	1411-	●	●
106	PIPE ASM; OIL,COOLER TO UNION MJX16P M/T(Y3Z) (B) L=1731	8-98158-373-0	01	1	1008-1209	●	●
106	PIPE ASM; OIL,COOLER TO UNION MJX16P M/T(Y3Z) (B) L=1731	8-98158-373-0	01	1	1210-1410		●
106	PIPE ASM; OIL,COOLER TO UNION MJX16P M/T(Y3Z) (B)	8-98233-260-0	01	1	1411-		●
106	PIPE ASM; OIL,COOLER TO UNION MJX16P M/T(Y3Z) (C) L=2313	8-98158-374-0	01	1	1008-1209	●	●
106	PIPE ASM; OIL,COOLER TO UNION MJX16P M/T(Y3Z) (C) L=2313	8-98158-374-0	01	1	1210-1410		●
106	PIPE ASM; OIL,COOLER TO UNION MJX16P M/T(Y3Z) (C)	8-98233-261-0	01	1	1411-		●
109	UNION MJT7S M/T(Y3E) M16 STRAIGHT L=42	0-92123-010-0	02	1	1008-1410	●	●
109	UNION MJT7S M/T(Y3E) M16 STRAIGHT L=42	0-92123-010-0	01	1	1411-	●	●
109	UNION MJX16P M/T(Y3Z) M22 L=51	0-92123-015-0	01	1	1008-1410		●
109	UNION MJX16P M/T(Y3Z) M22 L=51	0-92123-015-0	01	1	1411-		●
111	NUT; UNION MJX16P M/T(Y3Z) M22	0-91111-522-0	01	1	1008-1410		●
111	NUT; UNION MJX16P M/T(Y3Z) M22	0-91111-522-0	01	1	1411-		●
114	PIPE; OIL,UNION TO FLEX HOSE MJT7S M/T(Y3E) MIXER TRUCK<RA2> L=861 SERVICED BY L=900	1-47428-873-0	01	1	1008-1209	●
114	PIPE; OIL,UNION TO FLEX HOSE MJT7S M/T(Y3E) L=861 SERVICED BY L=900	1-47428-873-0	01	1	1210-1410	●
114	PIPE; OIL,UNION TO FLEX HOSE MJT7S M/T(Y3E) L=853	8-98234-203-0	01	1	1411-	●	●
114	PIPE; OIL,UNION TO FLEX HOSE MJT7S M/T(Y3E) EXC. MIXER TRUCK<RA2> L=857	8-98145-198-0	01	1	1008-1209	●
114	PIPE; OIL,UNION TO FLEX HOSE MJT7S M/T(Y3E) L=857	8-98145-198-0	01	1	1008-1209		●
114	PIPE; OIL,UNION TO FLEX HOSE MJT7S M/T(Y3E) L=857	8-98145-198-0	01	1	1210-1410		●
114	PIPE; OIL,UNION TO FLEX HOSE MJX16P M/T(Y3Z) L=860	8-98169-359-0	01	1	1008-1209	●	●
114	PIPE; OIL,UNION TO FLEX HOSE MJX16P M/T(Y3Z) L=860	8-98169-359-0	01	1	1210-		●
136	CLIP; FLEX HOSE MJX16P M/T(Y3Z) L=350	1-09707-183-0	02	1	1411-		●
136	CLIP; FLEX HOSE L=350	1-09707-183-0	01	1	1008-1410	●	●
136	CLIP; FLEX HOSE MJT7S M/T(Y3E) L=350	1-09707-183-0	01	1	1411-	●	●
178	BOLT; BRKT,CLIP M8X35 FLANGE	0-28650-835-0	01	1	1008-	●	●
179	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1008-	●	●
210	BAND; FLEX HOSE MJX16P M/T(Y3Z) L=175	1-09707-178-0	02	1	1411-		●
210	BAND; FLEX HOSE L=175	1-09707-178-0	01	1	1008-1410	●	●
210	BAND; FLEX HOSE MJT7S M/T(Y3E) L=175	1-09707-178-0	01	1	1411-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
