◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11323 - CYZ LHD MIDDLE EAST EURO2 WITH 3STEPS ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-39 - POWER ASSISTOR ▶
2-39 — POWER ASSISTOR (#62602) — 62 parça

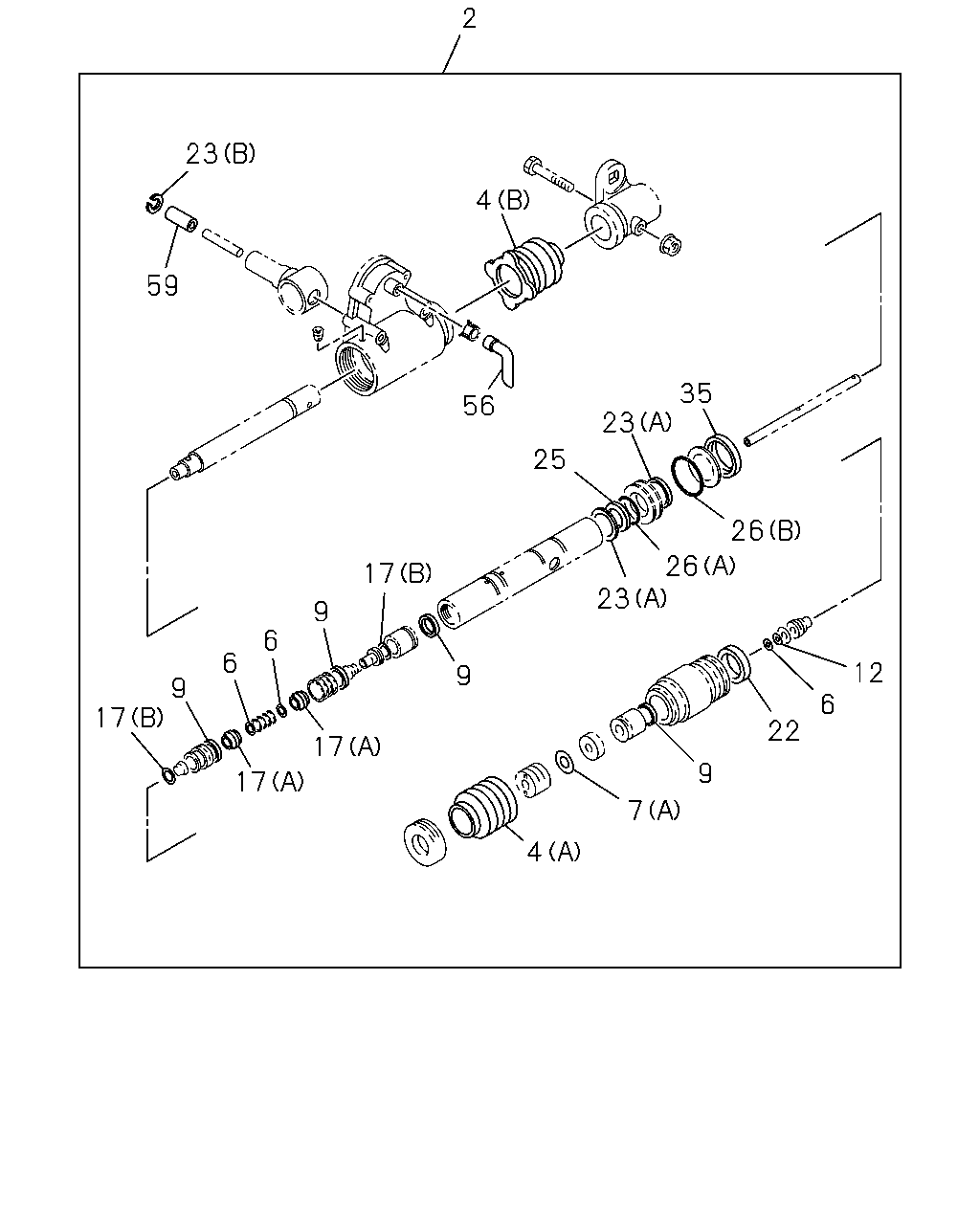

çizim 170292
2 4 23 59 56 25 23 35 26 26 23 9 17 9 6 6 9 17 17 17 4 7 9 22 6 12
BalonParca AdiParca NoAdetTipApplied Date A B
2 REPAIR KIT; POWER SHIFTER 1-33738-106-0 01 1 1008- ● ●
4 BOOT; POWER SHIFTER
(B) 		1-33738-101-0 01 1 1008- ● ●
4 BOOT; POWER SHIFTER
(A) 		1-33739-038-0 01 1 1008- ● ●
6 GASKET 1-33739-013-0 03 1 1008- ● ●
7 FILTER; AIR
(B) 		1-33738-036-0 01 1 1008- ● ●
7 FILTER; AIR
(A) 		1-33739-033-0 01 1 1008- ● ●
9 RING; SQUARE 1-33739-086-0 04 1 1008- ● ●
12 RING; RET 1-33739-016-0 01 1 1008- ● ●
17 SEAL ASM; VALVE
(A) 		1-33739-012-0 02 1 1008- ● ●
17 SEAL ASM; VALVE
(B) 		9-83335-055-0 02 1 1008- ● ●
22 SEAL; OIL 1-33739-353-0 01 1 1008- ● ●
23 RING; RET
(A) 		1-33739-022-0 02 1 1008- ● ●
23 RING; RET
(B) 		1-33739-564-0 01 1 1008- ● ●
25 RING; "X",PISTON 1-33739-613-0 01 1 1008- ● ●
26 GASKET
(A) 		1-33739-124-0 01 1 1008- ● ●
26 GASKET
(B) 		1-33739-604-0 01 1 1008- ● ●
35 GASKET; CUP 1-33739-073-0 01 1 1008- ● ●
56 HOSE; POWER SHIFTER 1-33739-570-0 01 1 1008- ● ●
59 SHIM; POWER SHIFTER 1-33738-102-0 01 1 1008- ● ●

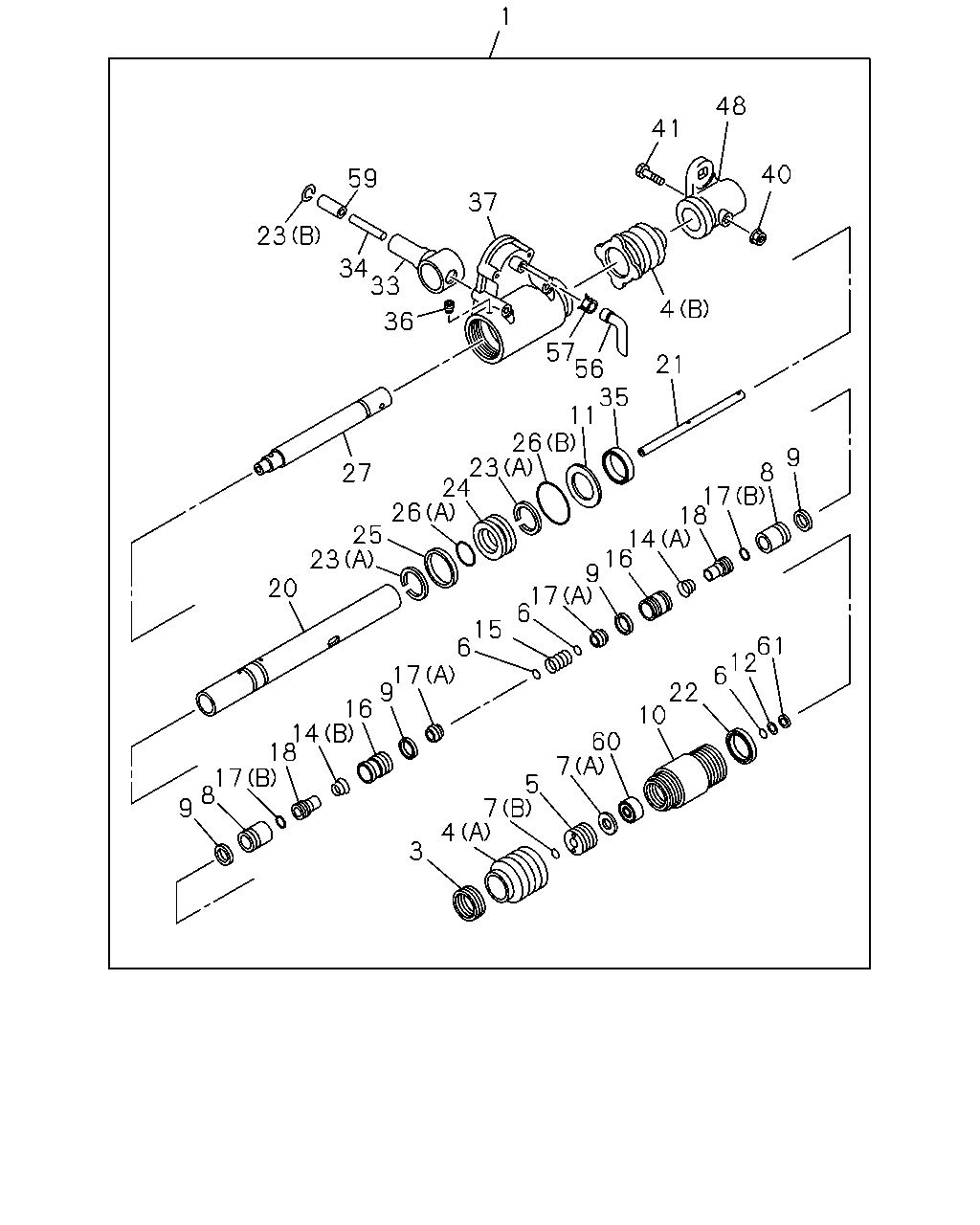

çizim 170313
1 59 23 34 33 36 37 41 48 40 4 21 57 56 35 11 26 23 27 24 26 25 23 20 9 8 17 18 14 16 9 17 6 15 6 17 9 16 14 18 17 8 9 3 4 7 5 7 60 10 22 6 12 61
BalonParca AdiParca NoAdetTipApplied Date A B
1 ASSISTOR ASM; POWER,SHIFT 1-33730-270-1 01 1 1008- ● ●
3 NUT; LK,ROD 1-33739-025-0 01 1 1008- ● ●
4 BOOT; POWER SHIFTER
(B) 		1-33738-101-0 01 1 1008- ● ●
4 BOOT; POWER SHIFTER
(A) 		1-33739-038-0 01 1 1008- ● ●
5 CONNECTOR; CYL 1-33739-596-0 01 1 1008- ● ●
6 GASKET 1-33739-013-0 03 1 1008- ● ●
7 FILTER; AIR
(B) 		1-33738-036-0 01 1 1008- ● ●
7 FILTER; AIR
(A) 		1-33739-033-0 01 1 1008- ● ●
8 TUBE 1-33739-560-0 02 1 1008- ● ●
9 RING; SQUARE 1-33739-086-0 04 1 1008- ● ●
10 CYLINDER; POWER SHIFTER 1-33739-605-0 01 1 1008- ● ●
11 PLATE; CYL 1-33739-600-0 01 1 1008- ● ●
12 RING; RET 1-33739-016-0 01 1 1008- ● ●
14 SPRING; VALVE LIFTER
(A) 		1-33739-347-0 01 1 1008- ● ●
14 SPRING; VALVE LIFTER
(B) 		1-33739-354-0 01 1 1008- ● ●
15 SPRING; VALVE SEAL 1-33739-014-0 01 1 1008- ● ●
16 SEAT; VALVE 1-33739-067-0 02 1 1008- ● ●
17 SEAL ASM; VALVE
(A) 		1-33739-012-0 02 1 1008- ● ●
17 SEAL ASM; VALVE
(B) 		9-83335-055-0 02 1 1008- ● ●
18 LIFTER; VALVE 1-33739-586-0 02 1 1008- ● ●
20 ROD ASM; W/CAP 1-33739-599-0 01 1 1008- ● ●
21 PIPE; AIR,POWER SHIFTER 1-33739-598-0 01 1 1008- ● ●
22 SEAL; OIL 1-33739-353-0 01 1 1008- ● ●
23 RING; RET
(A) 		1-33739-022-0 02 1 1008- ● ●
23 RING; RET
(B) 		1-33739-564-0 01 1 1008- ● ●
24 PISTON 1-33739-601-0 01 1 1008- ● ●
25 RING; "X",PISTON 1-33739-613-0 01 1 1008- ● ●
26 GASKET
(A) 		1-33739-124-0 01 1 1008- ● ●
26 GASKET
(B) 		1-33739-604-0 01 1 1008- ● ●
27 ROD; POWER SHIFTER 1-33739-597-0 01 1 1008- ● ●
33 STRIKER; POWER SHIFTER 1-33739-609-0 01 1 1008- ● ●
34 PIN; STRAIGHT,POWER SHIFTER 1-33739-575-0 01 1 1008- ● ●
35 GASKET; CUP 1-33739-073-0 01 1 1008- ● ●
36 SCREW; SET 1-33739-040-0 01 1 1008- ● ●
37 HOUSING; POWER SHIFTER 1-33739-603-0 01 1 1008- ● ●
40 NUT; LEVER 1-33739-940-0 01 1 1008- ● ●
41 BOLT; SET,LEVER 1-33739-939-0 01 1 1008- ● ●
48 LEVER; CONT,CABLE 1-33739-591-1 01 1 1008- ● ●
56 HOSE; POWER SHIFTER 1-33739-570-0 01 1 1008- ● ●
57 CLAMP; HOSE 1-33739-569-0 01 1 1008- ● ●
59 SHIM; POWER SHIFTER 1-33738-102-0 01 1 1008- ● ●
60 COLLAR; CYL 1-33739-595-0 01 1 1008- ● ●
61 PLATE; VLV LIFTER 1-33739-581-0 01 1 1008- ● ●
