Sayfa 2-37 - Isuzu EPC

2-37 — MANUAL TRANSMISSION CONT; MISSION SIDE (#62600) — 52 parça

24 112 15 25 22 24 32 30 35 25 5 35 30 32 47 45 49 8 49 45 47 38 36 44 6 44 38 36 28 25 15 28 22 25 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	ROD; LINK,3RD SHIFT MIXER TRUCK<RA2> L=1190	1-33652-922-0	01	1	1008-1209	●
5	ROD; LINK,3RD SHIFT L=1190	1-33652-922-0	01	1	1210-1410	●
5	ROD; LINK,3RD SHIFT EXC. MIXER TRUCK<RA2> L=1120	1-33652-603-0	01	1	1008-1209	●
5	ROD; LINK,3RD SHIFT L=1120	1-33652-603-0	01	1	1008-1209		●
5	ROD; LINK,3RD SHIFT L=1120	1-33652-603-0	01	1	1210-1410		●
6	ROD; LINK,3RD SELECT MJT7S M/T(Y3E) MIXER TRUCK<RA2> L=1722	1-33662-003-2	01	1	1008-1209	●
6	ROD; LINK,3RD SELECT MJT7S M/T(Y3E) L=1722	1-33662-003-2	01	1	1210-1410	●
6	ROD; LINK,3RD SELECT MJT7S M/T(Y3E) EXC. MIXER TRUCK<RA2> L=1652	1-33652-935-2	01	1	1008-1209	●
6	ROD; LINK,3RD SELECT MJT7S M/T(Y3E) L=1652	1-33652-935-2	01	1	1008-1209		●
6	ROD; LINK,3RD SELECT MJT7S M/T(Y3E) L=1652	1-33652-935-2	01	1	1210-1410		●
6	ROD; LINK,3RD SELECT MJX16P M/T(Y3Z) L=1692	1-33662-004-2	01	1	1008-1209	●	●
6	ROD; LINK,3RD SELECT MJX16P M/T(Y3Z) L=1692	1-33662-004-2	01	1	1210-1410		●
8	ROD; LINK,4TH SHIFT MJT7S M/T(Y3E) L=370	1-33652-654-1	01	1	1008-1410	●	●
8	ROD; LINK,4TH SHIFT MJX16P M/T(Y3Z) L=410	1-33652-947-0	01	1	1008-1209	●	●
8	ROD; LINK,4TH SHIFT MJX16P M/T(Y3Z) L=410	1-33652-947-0	01	1	1210-1410		●
15	ROD; LINK 1ST SHIFT (A) L=556	1-33652-744-0	01	1	1008-1410	●	●
15	ROD; LINK 1ST SHIFT (B) L=474	1-33652-803-2	01	1	1008-1410	●	●
15	ROD; LINK 1ST SHIFT (C) L=446	1-33652-998-2	01	1	1008-1410	●	●
22	JOINT; BALL,SCREW,LINK ROD (B)	1-09760-109-0	02	1	1008-1410	●	●
22	JOINT; BALL,SCREW,LINK ROD (A)	1-09760-125-0	01	1	1008-1410	●	●
24	NUT; 2ND LINK ROD,SHIFT M10 FLANGE	1-09440-061-0	02	1	1008-1410	●	●
25	NUT; LK,RIGHT SCREW,LINK ROD (B) M10	0-91111-510-0	02	1	1008-1410	●	●
25	NUT; LK,RIGHT SCREW,LINK ROD (A) M12	0-91111-512-0	02	1	1008-1410	●	●
28	NUT; 2ND LINK ROD M8 FLANGE	1-09440-062-1	02	1	1008-1410	●	●
30	JOINT; BALL,RIGHT SCREW,LINK ROD	1-09760-124-0	02	1	1008-1410	●	●
32	NUT; 3RD LINK ROD M10 FLANGE	1-09440-061-0	02	1	1008-1410	●	●
35	NUT; LK,RIGHT SCREW,LINK ROD M10	0-91111-510-0	02	1	1008-1410	●	●
36	JOINT; BALL,RIGHT SCREW,LINK ROD	1-09760-124-0	02	1	1008-1410	●	●
38	NUT; 3RD LINK ROD M10 FLANGE	1-09440-061-0	02	1	1008-1410	●	●
44	NUT; LK,RIGHT SCREW,LINK ROD M10	0-91111-510-0	02	1	1008-1410	●	●
45	JOINT; BALL,RIGHT SCREW,LINK ROD	1-09760-125-0	02	1	1008-1410	●	●
47	NUT; 4TH LINK ROD M10 FLANGE	1-09440-061-0	02	1	1008-1410	●	●
49	NUT; LK,RIGHT SCREW,LINK ROD M12	0-91111-512-0	02	1	1008-1410	●	●
112	JOINT; RUBBER	1-33670-413-1	01	1	1008-1410	●	●
112	JOINT; RUBBER	1-33670-413-1	01	1	1008-1410	●	●

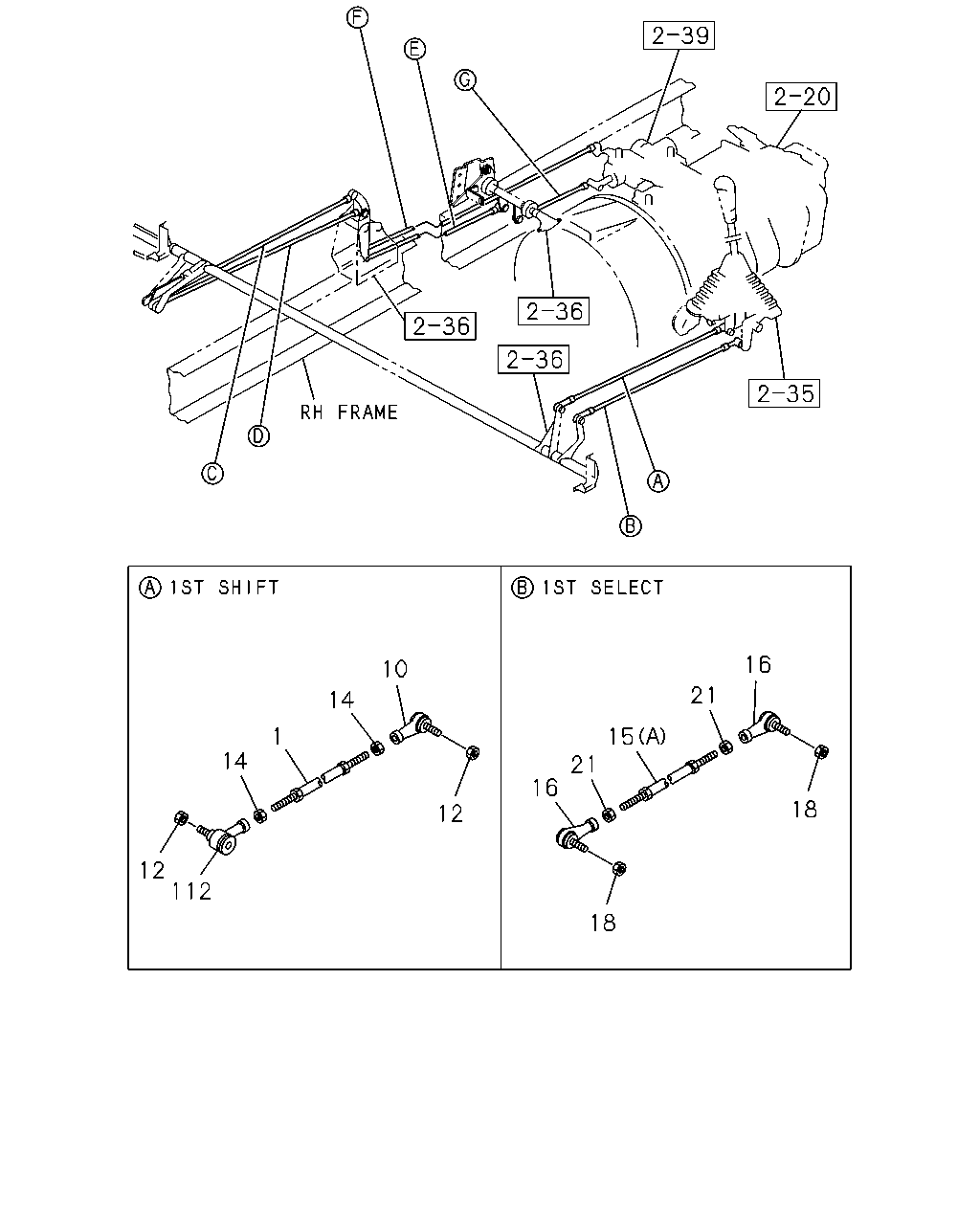

14 10 1 14 12 12 112 16 21 15 21 16 18 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	ROD; LINK,1ST SHIFT L=480	9-08401-248-0	01	1	1008-1410	●	●
10	JOINT ASM; BALL,SELECT ROD	1-09760-125-0	01	1	1008-1410	●	●
12	NUT; 1ST LINK ROD,SHIFT M10 FLANGE	1-09440-061-0	02	1	1008-1410	●	●
14	NUT; LK,RIGHT SCREW,LINK ROD M12	0-91111-512-0	02	1	1008-1410	●	●
15	ROD; LINK 1ST SHIFT (A) L=556	1-33652-744-0	01	1	1008-1410	●	●
15	ROD; LINK 1ST SHIFT (B) L=474	1-33652-803-2	01	1	1008-1410	●	●
15	ROD; LINK 1ST SHIFT (C) L=446	1-33652-998-2	01	1	1008-1410	●	●
16	JOINT ASM; BALL,CONT ROD	1-09760-108-0	02	1	1008-1410	●	●
18	NUT; 1ST LINK ROD M8 FLANGE	1-09440-062-1	02	1	1008-1410	●	●
21	NUT; LK,RIGHT SCREW,LINK ROD M8	0-91111-508-0	02	1	1008-1410	●	●
112	JOINT; RUBBER	1-33670-413-1	01	1	1008-1410	●	●
112	JOINT; RUBBER	1-33670-413-1	01	1	1008-1410	●	●

130 128 131 129 131 130 128

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
128	NUT; LINK ROD M10 FLANGE	1-09440-061-0	02	1	1411-	●	●
129	ROD; LINK MJT7S M/T(Y3E) L=405	1-33652-650-0	01	1	1411-	●	●
129	ROD; LINK MJX16P M/T(Y3Z) L=445	1-33662-036-0	01	1	1411-		●
130	JOINT; BALL,RIGHT SCREW,LINK ROD	1-09760-125-0	02	1	1411-	●	●
131	NUT; LK,RIGHT SCREW,LINK ROD M12	0-91111-512-0	02	1	1411-	●	●
