0-35 — ENGINE CONTROL VALVE AND LEVER (#626) — 12 parça

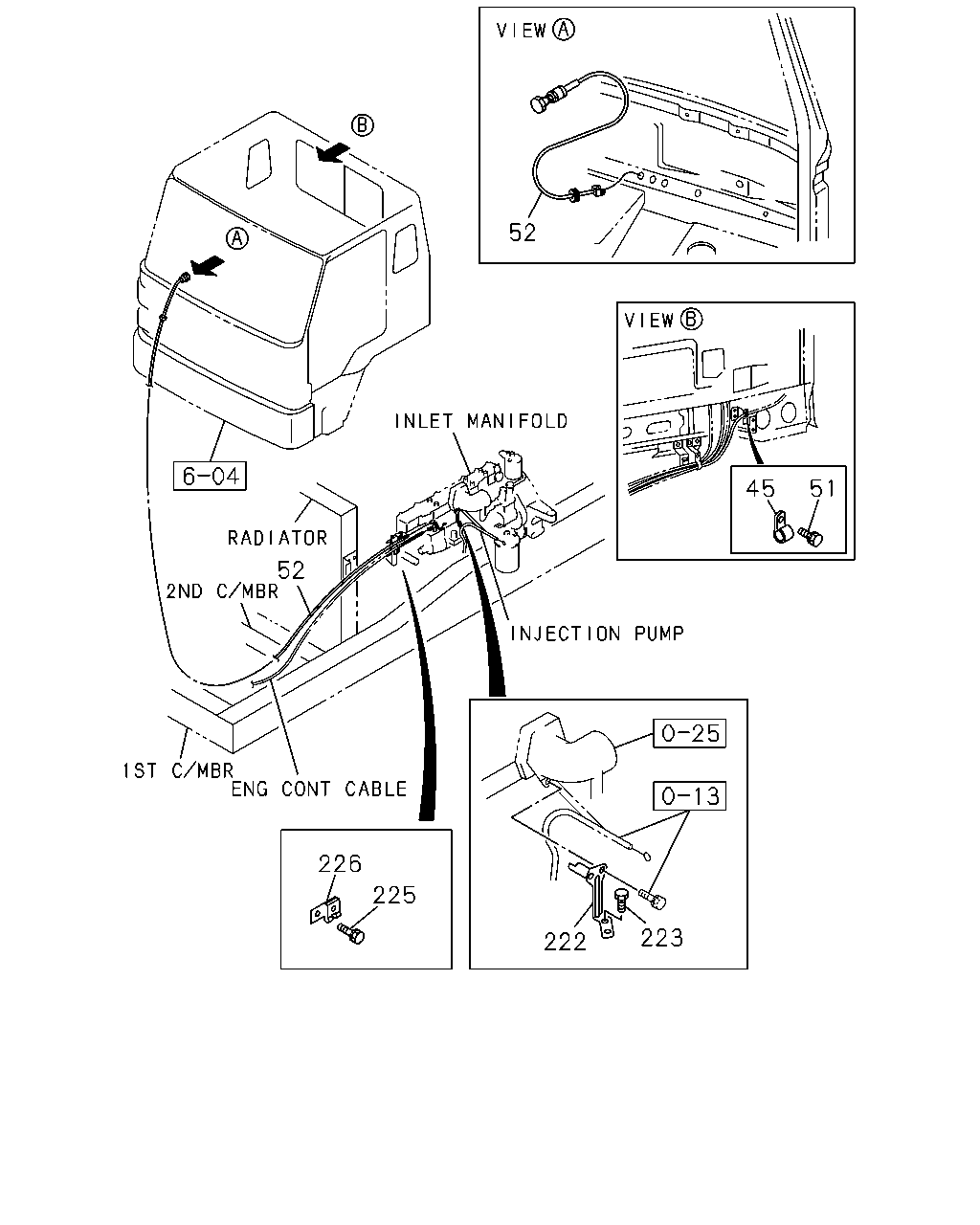

çizim 94497
52 45 51 52 226 225 223 222
BalonParca AdiParca NoAdetTipApplied Date A B
45 CLIP; FUEL CUT CABLE
EXC. AUTO ENG SHUTOFF<KB6> ID=7 L=20 		9-09524-632-0 01 1 9205-9205 ● ●
45 CLIP; FUEL CUT CABLE
EXC. AUTO ENG SHUTOFF<KB6> ID=7 L=16 		9-09524-622-0 01 1 9206- ● ●
51 BOLT; CLIP,FUEL CUT CABLE
EXC. AUTO ENG SHUTOFF<KB6> M6X20 W/LK&PL WASHER 		1-09980-493-0 01 1 9205- ● ●
52 CABLE; FUEL CUT
EXC. AUTO ENG SHUTOFF<KB6> L=2315 		1-23210-998-3 01 1 9202- ● ●
222 BRACKET; ACTUATOR WIRE
A/T<X9D> ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> 		8-94394-839-0 01 1 9209- ●
222 BRACKET; ACTUATOR WIRE
A/T<X9D> 		8-94396-540-0 01 1 9202-9208 ● ●
222 BRACKET; ACTUATOR WIRE
A/T<X9D> EXC. ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> 		8-94396-540-0 01 1 9209- ● ●
223 BOLT; BRKT FIX
A/T<X9D> M10X80 FLANGE 		0-28181-080-0 01 1 9202- ● ●
225 BOLT; CLIP FIX
M8X18 		0-28010-818-0 02 1 9202-9204 ● ●
225 BOLT; CLIP FIX
M8X18 FLANGE 		0-28080-818-0 02 1 9205-9207 ● ●
225 BOLT; CLIP FIX
M8X20 FLANGE 		0-28080-820-0 02 1 9208- ● ●
226 CLIP; CABLE END 1-09700-787-1 01 1 9202- ● ●
