2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#62599) — 181 parça

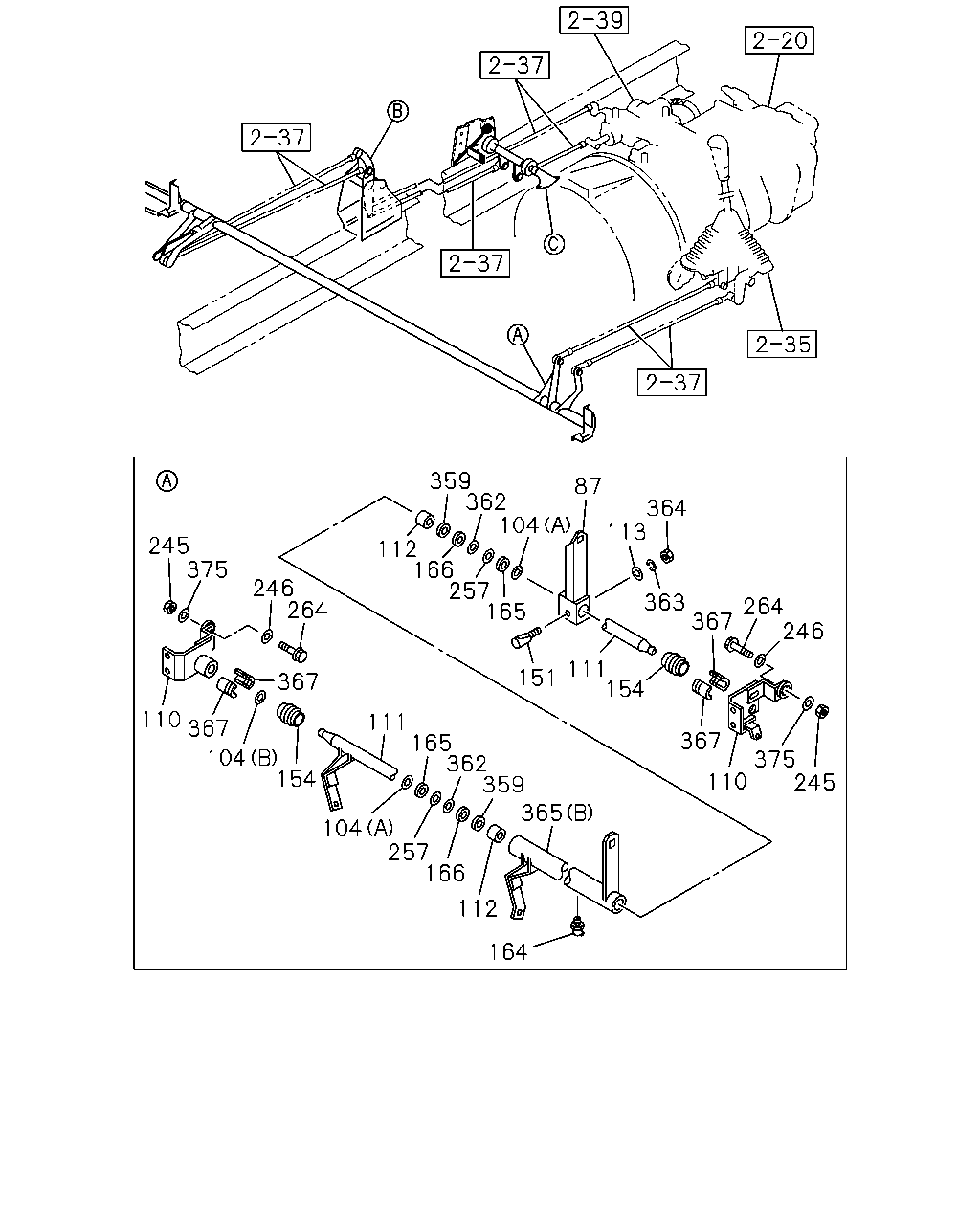

359 104 362 87 113 363 364 264 367 246 367 110 245 375 365 359 362 165 111 367 264 246 375 245 110 367 104 154 104 257 166 112 112 165 257 166 151 111 154 164

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
87	LEVER; RELAY,SELECT	1-33651-666-0	01	1	1008-1410	●	●
104	RING; SNAP (A) ID=32.2	9-09180-035-0	02	1	1008-1410	●	●
104	RING; SNAP (B) OD=23.5	9-09180-122-0	01	1	1008-1410	●	●
110	BRACKET; RELAY LEVER,1ST	1-33657-617-0	01	1	1008-1410	●	●
110	BRACKET; RELAY LEVER,1ST	1-33657-618-0	01	1	1008-1410	●	●
111	SHAFT; RELAY LEVER,1ST	1-33659-239-0	01	1	1008-1410	●	●
112	BUSHING; RELAY LEVER	1-09330-143-0	02	1	1008-1410	●	●
113	WASHER; RELAY LEVER ID=10.5 OD=26	9-09160-710-0	01	1	1008-1205	●	●
113	WASHER; RELAY LEVER ID=10.5	0-91610-710-0	01	1	1206-1410	●	●
151	BOLT; KEY,RELAY LEVER	1-33659-063-0	01	1	1008-1410	●	●
154	COVER; DUST,RELAY LEVER	1-33659-068-0	02	1	1008-1410	●	●
164	NIPPLE; GREASE,RELAY LEVER,SHIFT ROD PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	1008-1205	●	●
165	WASHER; RELAY LEVER	1-09503-148-0	AR	1	1008-1410	●	●
166	WASHER; NYLON,RELAY LEVER	1-09509-040-0	02	1	1008-1410	●	●
245	NUT; BRKT,RELAY LEVER M10	1-09984-142-0	02	1	1008-1410	●	●
246	WASHER; LK,BRKT,RELAY LEVER ID=10	1-09985-185-0	02	1	1008-1410	●	●
257	PIECE; DIST,RELAY LEVER	1-09503-198-0	AR	1	1008-1410	●	●
264	BOLT; BRKT,RELAY LEVER M10X30 FLANGE	0-28651-030-0	02	1	1008-1410	●	●
264	BOLT; BRKT,RELAY LEVER M10X105	1-79198-008-1	02	1	1008-1410	●	●
359	SEAL; RUBBER,RELAY LEVER	1-09625-005-1	02	1	1008-1410	●	●
362	SHIM	1-09503-172-0	AR	1	1008-1410	●	●
363	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	01	1	1008-1410	●	●
364	NUT; KEY BOLT M10	0-91111-510-0	01	1	1008-1410	●	●
365	LEVER; RELAY,SELECT (A)	1-33651-771-1	01	1	1008-1410	●	●
365	LEVER; RELAY,SELECT (B)	1-33659-242-1	01	1	1008-1410	●	●
367	SEAT; BALL,CONT SHAFT	1-33659-053-0	04	1	1008-1410	●	●
375	WASHER; PL,BRKT,RELAY LEVER ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	1008-1410	●	●

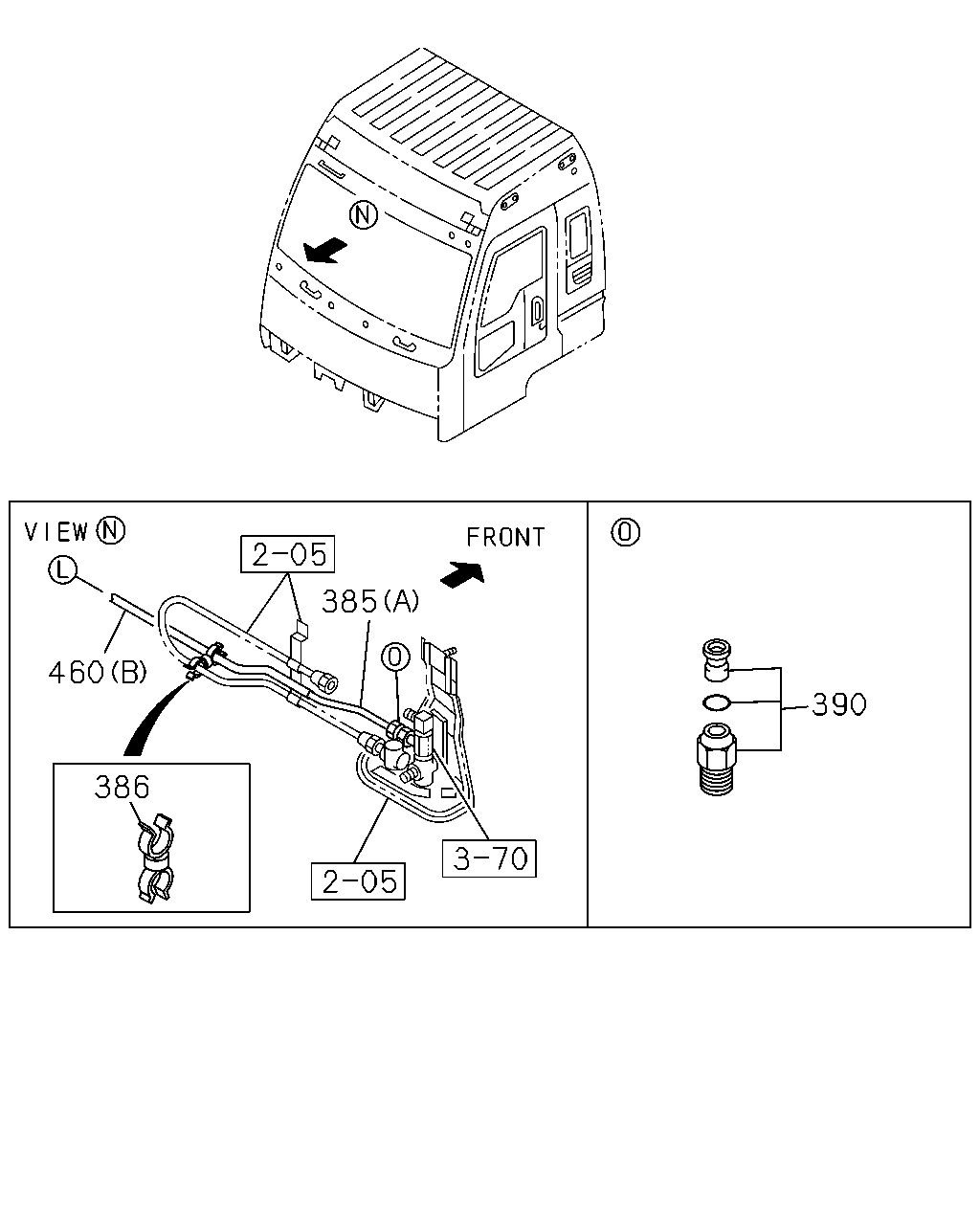

460 385 460 385 460 385 501 387

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B
385	TUBE; NYLON MJX16P M/T(Y3Z) (B) L=150 SERVICED BY L=8000	1-09369-762-0	01	1	1008-	●
385	TUBE; NYLON MJX16P M/T(Y3Z) (C) L=1500 SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	1008-1410	●
385	TUBE; NYLON MJX16P M/T(Y3Z) (C) L=1500 SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	1411-	●
385	TUBE; NYLON MJX16P M/T(Y3Z) (A) L=1340 SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	1008-	●
387	GROMMET; CONT TUBE,FULLER MJX16P M/T(Y3Z)	1-09332-102-0	01	1	1008-	●
460	TUBE; CORRUGATE MJX16P M/T(Y3Z) (B) SERVICED BY L=800 ID=7	1-83129-031-1	01	1	1008-	●
460	TUBE; CORRUGATE MJX16P M/T(Y3Z) (B) L=250 ID=7 SERVICED BY L=800 ID=7	1-83129-031-1	01	1	1008-	●
460	TUBE; CORRUGATE MJX16P M/T(Y3Z) (A) L=900 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	1008-1410	●
460	TUBE; CORRUGATE MJX16P M/T(Y3Z) (A) L=960 ID=7 SERVICED BY L=2000 ID=7	1-87410-085-0	01	1	1411-	●
501	SEAL; HARNESS PROTECTOR MJX16P M/T(Y3Z) 100X40	1-72498-022-1	04	1	1008-	●

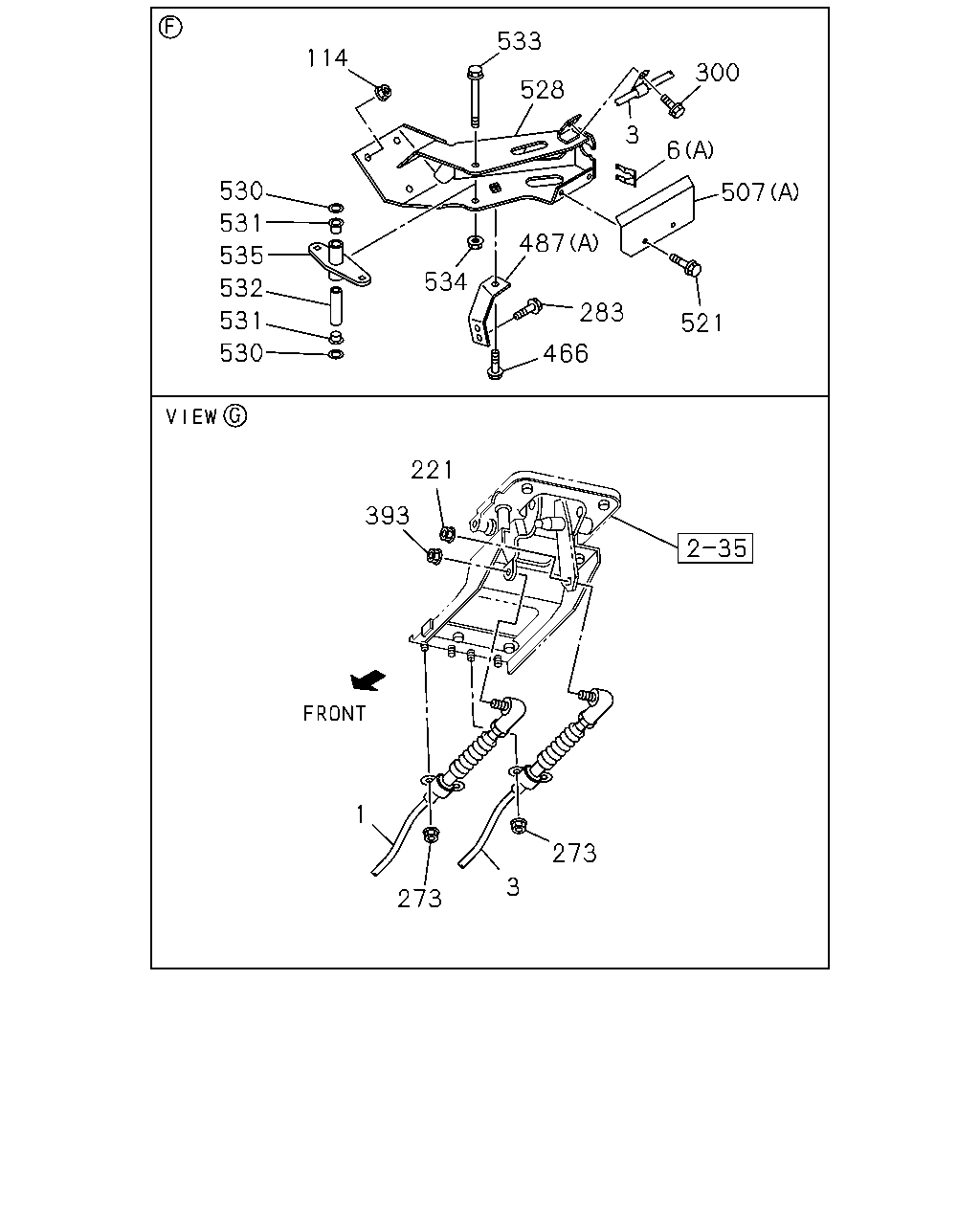

114 530 531 535 532 531 530 533 528 300 3 6 507 521 283 466 534 487 221 393 1 273 3 273

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CABLE; SHIFT,TRANS CONT L=3387	8-98222-327-2	01	1	1411-	●
1	CABLE; SHIFT,TRANS CONT L=3316	8-98216-277-2	01	1	1411-		●
3	CABLE; SELECT,TRANS CONT L=4045	8-98222-328-3	01	1	1411-	●
3	CABLE; SELECT,TRANS CONT MJT7S M/T(Y3E) L=3974	8-98222-464-2	01	1	1411-		●
3	CABLE; SELECT,TRANS CONT MJX16P M/T(Y3Z) L=4125	8-98222-465-2	01	1	1411-		●
6	CLIP; CABLE (A) ID=22.2	1-09701-209-1	02	1	1411-	●	●
6	CLIP; CABLE (B) ID=13 & 13 L=32	8-97389-264-0	01	1	1411-	●	●
114	NUT; RELAY LEVER M12 FLANGE	0-91180-212-0	03	1	1411-	●	●
221	NUT; SHIFT WIRE TO LEVER M10 FLANGE	1-09440-061-0	01	1	1411-	●	●
273	NUT; CONT CABLE M10 FLANGE	0-91180-110-0	04	1	1411-	●	●
283	BOLT; RELAY LEVER M10X110	9-09801-316-1	02	1	1008-1410	●	●
283	BOLT; RELAY LEVER M10X20 FLANGE	0-28151-020-0	02	1	1411-	●	●
300	BOLT; CLIP M8X20 FLANGE	0-28050-820-0	03	1	1411-	●	●
393	NUT; SELECT CABLE,CAB M8 FLANGE	1-09440-062-1	01	1	1411-	●	●
466	BOLT; FIX M6X16 FLANGE	0-28050-616-0	04	1	1411-	●	●
466	BOLT; FIX M10X35 FLANGE	0-28651-035-0	01	1	1411-	●	●
466	BOLT; FIX M14X45 FLANGE	0-28851-445-0	01	1	1411-	●	●
466	BOLT; FIX M8X20 FLANGE	0-28650-820-0	02	1	1008-1410	●	●
466	BOLT; FIX M10X20 FLANGE	0-28651-020-0	01	1	1411-	●	●
487	BRACKET; CONT CABLE MJT7S M/T(Y3E) (C)	8-98232-379-1	01	1	1411-	●
487	BRACKET; CONT CABLE (A)	8-98049-854-0	01	1	1411-	●	●
487	BRACKET; CONT CABLE (B)	8-98131-521-2	01	1	1411-	●	●
487	BRACKET; CONT CABLE (D)	8-98198-836-1	01	1	1411-	●	●
487	BRACKET; CONT CABLE (F)	8-98216-298-1	01	1	1411-	●	●
487	BRACKET; CONT CABLE MJT7S M/T(Y3E) (C)	1-33657-872-2	01	1	1411-		●
487	BRACKET; CONT CABLE MJX16P M/T(Y3Z) (E)	1-33657-873-0	01	1	1411-		●
507	PROTECTOR; HEAT (A)	8-98127-702-0	01	1	1411-	●
507	PROTECTOR; HEAT TRANSMISSION CONTROL CABLE TYPE(C1A) (A)	8-98171-722-0	01	1	1411-		●
507	PROTECTOR; HEAT (C)	1-14181-287-1	01	1	1008-1410	●	●
507	PROTECTOR; HEAT (B)	8-98151-604-0	01	1	1411-	●	●
521	BOLT; PROTECTOR M8X20 FLANGE	0-28050-820-0	02	1	1411-	●	●
528	BRACKET; LOWER,RELAY LEVER	8-98127-718-0	01	1	1411-	●
528	BRACKET; LOWER,RELAY LEVER TRANSMISSION CONTROL CABLE TYPE(C1A)	8-98049-809-1	01	1	1411-		●
530	RING; RELAY LEVER	1-09623-636-0	02	1	1411-	●	●
531	BUSHING; RELAY LEVER	1-09330-119-0	02	1	1411-	●	●
532	COLLAR; RELAY LEVER	8-98049-429-0	01	1	1411-	●	●
533	BOLT; RELAY LEVER M10X100 FLANGE	0-28051-000-0	01	1	1411-	●	●
534	NUT; RELAY LEVER M10 FLANGE	1-09440-056-0	01	1	1411-	●	●
535	LEVER; RELAY,SHIFT	8-98049-430-0	01	1	1411-	●	●

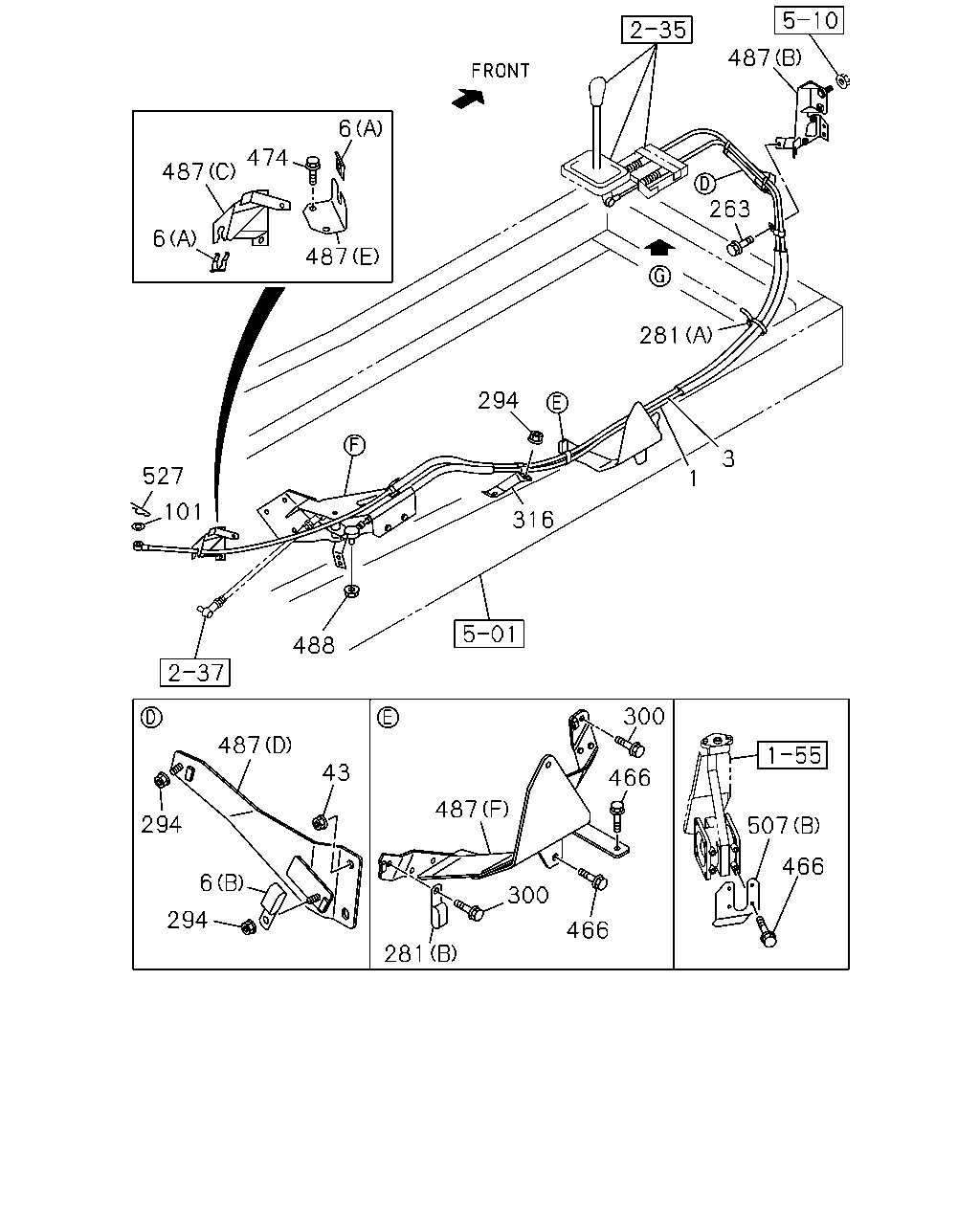

6 474 487 6 487 527 101 294 316 488 487 43 294 6 294 487 300 466 466 300 507 466 281 3 1 263 487 281

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CABLE; SHIFT,TRANS CONT L=3387	8-98222-327-2	01	1	1411-	●
1	CABLE; SHIFT,TRANS CONT L=3316	8-98216-277-2	01	1	1411-		●
3	CABLE; SELECT,TRANS CONT L=4045	8-98222-328-3	01	1	1411-	●
3	CABLE; SELECT,TRANS CONT MJT7S M/T(Y3E) L=3974	8-98222-464-2	01	1	1411-		●
3	CABLE; SELECT,TRANS CONT MJX16P M/T(Y3Z) L=4125	8-98222-465-2	01	1	1411-		●
6	CLIP; CABLE (A) ID=22.2	1-09701-209-1	02	1	1411-	●	●
6	CLIP; CABLE (B) ID=13 & 13 L=32	8-97389-264-0	01	1	1411-	●	●
43	NUT; BRKT M10 FLANGE	0-91180-110-0	02	1	1411-	●	●
101	WASHER; PL ID=8.4 OD=16	0-91610-508-0	01	1	1411-	●	●
263	BOLT; CLIP,TRANS CONT WIRE M8X16 FLANGE	0-28050-816-0	02	1	1411-	●	●
281	CLIP; BAND (A) L=350	1-09707-183-0	01	1	1411-	●	●
281	CLIP; BAND (B) ID=13 & 13 L=32	8-97389-264-0	01	1	1411-	●	●
294	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1411-	●	●
294	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	1411-	●	●
300	BOLT; CLIP M8X20 FLANGE	0-28050-820-0	03	1	1411-	●	●
316	BRACKET; CLIP	8-98150-331-0	01	1	1411-	●	●
466	BOLT; FIX M6X16 FLANGE	0-28050-616-0	04	1	1411-	●	●
466	BOLT; FIX M10X35 FLANGE	0-28651-035-0	01	1	1411-	●	●
466	BOLT; FIX M14X45 FLANGE	0-28851-445-0	01	1	1411-	●	●
466	BOLT; FIX M8X20 FLANGE	0-28650-820-0	02	1	1008-1410	●	●
466	BOLT; FIX M10X20 FLANGE	0-28651-020-0	01	1	1411-	●	●
474	BOLT; BRKT MJX16P M/T(Y3Z) M10X20 FLANGE	0-28151-020-0	02	1	1411-		●
487	BRACKET; CONT CABLE MJT7S M/T(Y3E) (C)	8-98232-379-1	01	1	1411-	●
487	BRACKET; CONT CABLE (A)	8-98049-854-0	01	1	1411-	●	●
487	BRACKET; CONT CABLE (B)	8-98131-521-2	01	1	1411-	●	●
487	BRACKET; CONT CABLE (D)	8-98198-836-1	01	1	1411-	●	●
487	BRACKET; CONT CABLE (F)	8-98216-298-1	01	1	1411-	●	●
487	BRACKET; CONT CABLE MJT7S M/T(Y3E) (C)	1-33657-872-2	01	1	1411-		●
487	BRACKET; CONT CABLE MJX16P M/T(Y3Z) (E)	1-33657-873-0	01	1	1411-		●
488	NUT; CABLE M10 FLANGE	1-09440-056-0	01	1	1411-	●	●
507	PROTECTOR; HEAT (A)	8-98127-702-0	01	1	1411-	●
507	PROTECTOR; HEAT TRANSMISSION CONTROL CABLE TYPE(C1A) (A)	8-98171-722-0	01	1	1411-		●
507	PROTECTOR; HEAT (C)	1-14181-287-1	01	1	1008-1410	●	●
507	PROTECTOR; HEAT (B)	8-98151-604-0	01	1	1411-	●	●
527	PIN; SNAP L=23	8-94170-378-0	01	1	1411-	●	●

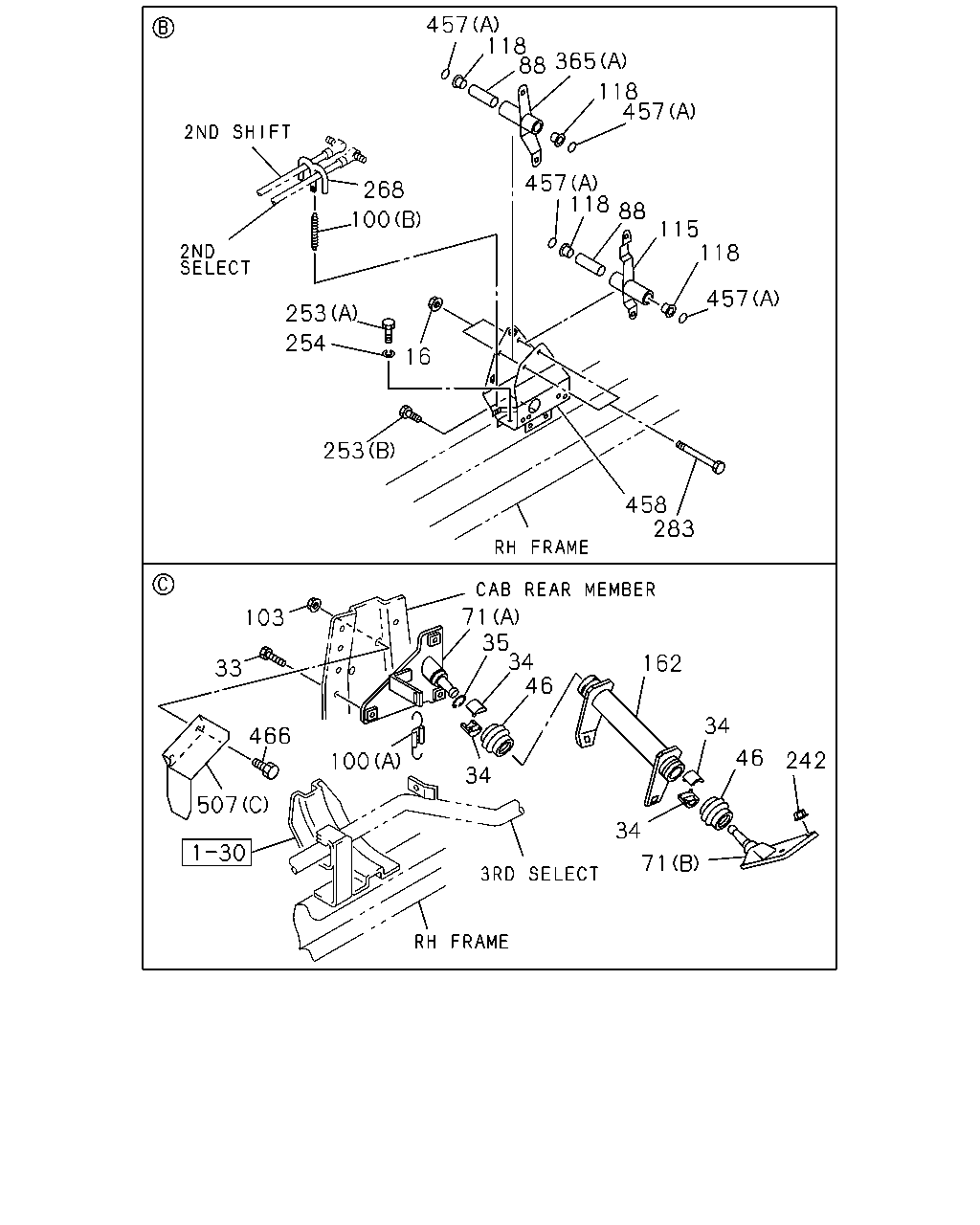

457 365 88 118 118 457 457 118 88 115 118 457 458 283 71 35 34 46 162 34 46 242 34 71 34 100 466 33 103 507 253 254 16 253 100 268

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	NUT; RELAY LEVER M10 FLANGE	0-91180-110-0	02	1	1008-1410	●	●
33	BOLT; BRKT,3RD RELAY LEVER M10X35 FLANGE	0-28651-035-0	03	1	1008-1410	●	●
34	SEAT; BALL,RELAY LEVER	1-33659-165-0	04	1	1008-1410	●	●
35	RING; SNAP,RELAY LEVER OD=34.4	9-09180-132-0	01	1	1008-1410	●	●
46	SEAL; DUST,RELAY LEVER	1-33659-248-0	02	1	1008-1410	●	●
71	BRACKET; 3RD RELAY LEVER,FRAME MIXER TRUCK<RA2> (A)	1-33657-827-0	01	1	1008-1209	●
71	BRACKET; 3RD RELAY LEVER,FRAME (A)	1-33657-827-0	01	1	1210-1410	●
71	BRACKET; 3RD RELAY LEVER,FRAME EXC. MIXER TRUCK<RA2> (A)	1-33657-706-0	01	1	1008-1209	●
71	BRACKET; 3RD RELAY LEVER,FRAME (A)	1-33657-706-0	01	1	1008-1209		●
71	BRACKET; 3RD RELAY LEVER,FRAME (A)	1-33657-706-0	01	1	1210-1410		●
71	BRACKET; 3RD RELAY LEVER,FRAME (B)	1-33657-481-0	01	1	1008-1410	●	●
88	COLLAR; RELAY LEVER	1-33659-191-1	02	1	1008-1410	●	●
100	SPRING (A)	1-09583-319-0	01	1	1008-1410	●	●
100	SPRING (B)	1-09583-351-0	01	1	1008-1410	●	●
103	NUT M8 FLANGE	0-91180-108-0	01	1	1008-1410	●	●
115	LEVER; RELAY,2ND SHIFT	1-33651-769-1	01	1	1008-1410	●	●
118	BUSHING; RELAY LEVER	1-09330-119-0	04	1	1008-1410	●	●
162	LEVER; RELAY	1-33651-625-1	01	1	1008-1410	●	●
242	NUT; FLANGE 3RD RELAY LEVER M12 FLANGE	0-91180-212-0	03	1	1008-1410	●	●
253	BOLT; BRKT,2ND RELAY LEVER (A) M14X45	0-20801-445-0	02	1	1008-1410	●	●
253	BOLT; BRKT,2ND RELAY LEVER (B) M10X25 FLANGE	0-28051-025-0	02	1	1008-1410	●	●
254	WASHER; LK,RELAY LEVER ID=14.2	0-91510-614-0	02	1	1008-1410	●	●
268	BRACKET; LINK ROD	1-33657-216-0	01	1	1008-1410	●	●
283	BOLT; RELAY LEVER M10X110	9-09801-316-1	02	1	1008-1410	●	●
283	BOLT; RELAY LEVER M10X20 FLANGE	0-28151-020-0	02	1	1411-	●	●
365	LEVER; RELAY,SELECT (A)	1-33651-771-1	01	1	1008-1410	●	●
365	LEVER; RELAY,SELECT (B)	1-33659-242-1	01	1	1008-1410	●	●
457	GASKET (A)	1-09623-594-0	04	1	1008-1410	●	●
457	GASKET MJX16P M/T(Y3Z) (B) ID=10.2 OD=15.2	1-09630-083-0	01	1	1008-		●
458	BRACKET; 2ND RELAY LEVER	1-33657-664-1	01	1	1008-1410	●	●
466	BOLT; FIX M6X16 FLANGE	0-28050-616-0	04	1	1411-	●	●
466	BOLT; FIX M10X35 FLANGE	0-28651-035-0	01	1	1411-	●	●
466	BOLT; FIX M14X45 FLANGE	0-28851-445-0	01	1	1411-	●	●
466	BOLT; FIX M8X20 FLANGE	0-28650-820-0	02	1	1008-1410	●	●
466	BOLT; FIX M10X20 FLANGE	0-28651-020-0	01	1	1411-	●	●
507	PROTECTOR; HEAT (A)	8-98127-702-0	01	1	1411-	●
507	PROTECTOR; HEAT TRANSMISSION CONTROL CABLE TYPE(C1A) (A)	8-98171-722-0	01	1	1411-		●
507	PROTECTOR; HEAT (C)	1-14181-287-1	01	1	1008-1410	●	●
507	PROTECTOR; HEAT (B)	8-98151-604-0	01	1	1411-	●	●

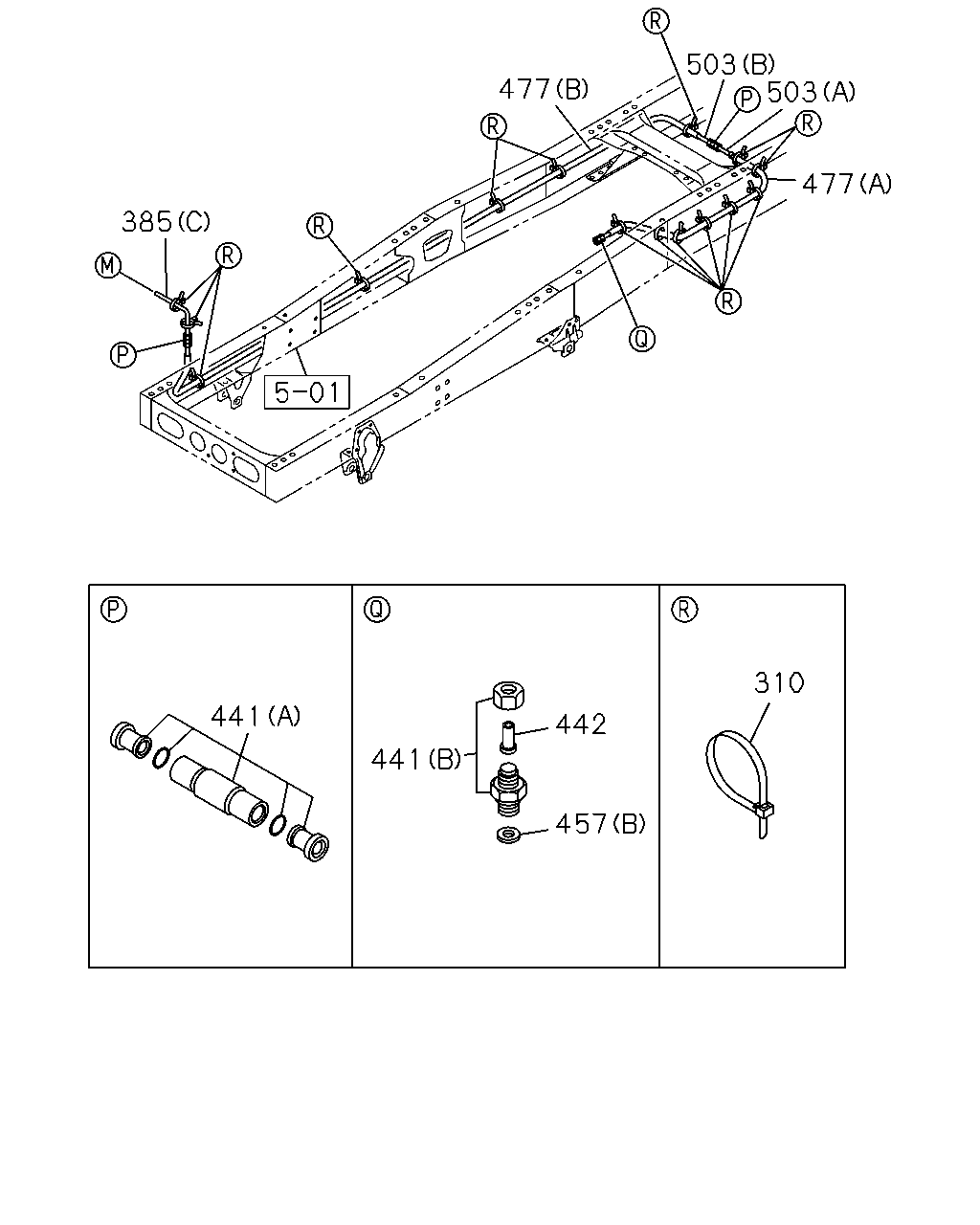

441 441 442 457 310 385 477 503 503 477

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
310	CLIP; TUBE MJX16P M/T(Y3Z) L=350	1-09707-183-0	01	1	1111-1209	●	●
310	CLIP; TUBE MJX16P M/T(Y3Z) L=350	1-09707-183-0	01	1	1210-1410		●
310	CLIP; TUBE MJX16P M/T(Y3Z) L=350	1-09707-183-0	27	1	1411-		●
310	CLIP; TUBE MJX16P M/T(Y3Z) L=350	1-09707-183-0	19	1	1008-1410		●
385	TUBE; NYLON MJX16P M/T(Y3Z) (B) L=150 SERVICED BY L=8000	1-09369-762-0	01	1	1008-		●
385	TUBE; NYLON MJX16P M/T(Y3Z) (C) L=1500 SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	1008-1410		●
385	TUBE; NYLON MJX16P M/T(Y3Z) (C) L=1500 SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	1411-		●
385	TUBE; NYLON MJX16P M/T(Y3Z) (A) L=1340 SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	1008-		●
441	CONNECTOR; NYLON TUBE MJX16P M/T(Y3Z) (B)	1-09660-466-0	01	1	1008-		●
441	CONNECTOR; NYLON TUBE MJX16P M/T(Y3Z) (A)	8-98134-660-0	02	1	1008-		●
442	INSERT; NYLON TUBE MJX16P M/T(Y3Z) ID=1.4 OD=2.0 L=18	1-09669-100-0	01	1	1008-		●
457	GASKET (A)	1-09623-594-0	04	1	1008-1410	●	●
457	GASKET MJX16P M/T(Y3Z) (B) ID=10.2 OD=15.2	1-09630-083-0	01	1	1008-		●
477	TUBE; CORRUGATE MJX16P M/T(Y3Z) (A) SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	1008-		●
477	TUBE; CORRUGATE MJX16P M/T(Y3Z) (B) SERVICED BY L=6000 ID=7	1-87411-018-0	01	1	1008-1209	●	●
477	TUBE; CORRUGATE MJX16P M/T(Y3Z) (B) SERVICED BY L=6000 ID=7	1-87411-018-0	01	1	1210-1410		●
477	TUBE; CORRUGATE MJX16P M/T(Y3Z) (B) SERVICED BY L=6000 ID=7	1-87411-018-0	01	1	1411-		●
503	TUBE; NYLON MJX16P M/T(Y3Z) (A) SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	1008-		●
503	TUBE; NYLON MJX16P M/T(Y3Z) (B) SERVICED BY L=6000 OD=4	1-87410-079-0	01	1	1008-1209	●	●
503	TUBE; NYLON MJX16P M/T(Y3Z) (B) SERVICED BY L=6000 OD=4	1-87410-079-0	01	1	1210-1410		●
503	TUBE; NYLON MJX16P M/T(Y3Z) (B) SERVICED BY L=6000 OD=4	1-87410-079-0	01	1	1411-		●

385 460 386 390

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B
385	TUBE; NYLON MJX16P M/T(Y3Z) (B) L=150 SERVICED BY L=8000	1-09369-762-0	01	1	1008-	●
385	TUBE; NYLON MJX16P M/T(Y3Z) (C) L=1500 SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	1008-1410	●
385	TUBE; NYLON MJX16P M/T(Y3Z) (C) L=1500 SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	1411-	●
385	TUBE; NYLON MJX16P M/T(Y3Z) (A) L=1340 SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	1008-	●
386	CLIP; CONT CABLE & TUBE MJX16P M/T(Y3Z) ID=8.3 & 8.3	8-94426-175-0	01	1	1008-	●
390	CONNECTOR; STRAIGHT,TRANS SIDE MJX16P M/T(Y3Z)	1-09661-174-0	01	1	1008-	●
460	TUBE; CORRUGATE MJX16P M/T(Y3Z) (B) SERVICED BY L=800 ID=7	1-83129-031-1	01	1	1008-	●
460	TUBE; CORRUGATE MJX16P M/T(Y3Z) (B) L=250 ID=7 SERVICED BY L=800 ID=7	1-83129-031-1	01	1	1008-	●
460	TUBE; CORRUGATE MJX16P M/T(Y3Z) (A) L=900 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	1008-1410	●
460	TUBE; CORRUGATE MJX16P M/T(Y3Z) (A) L=960 ID=7 SERVICED BY L=2000 ID=7	1-87410-085-0	01	1	1411-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
