Sayfa 2-30 - Isuzu EPC

2-30 — GEAR SHIFTER AND QUADRANT BOX (#62597) — 615 parça

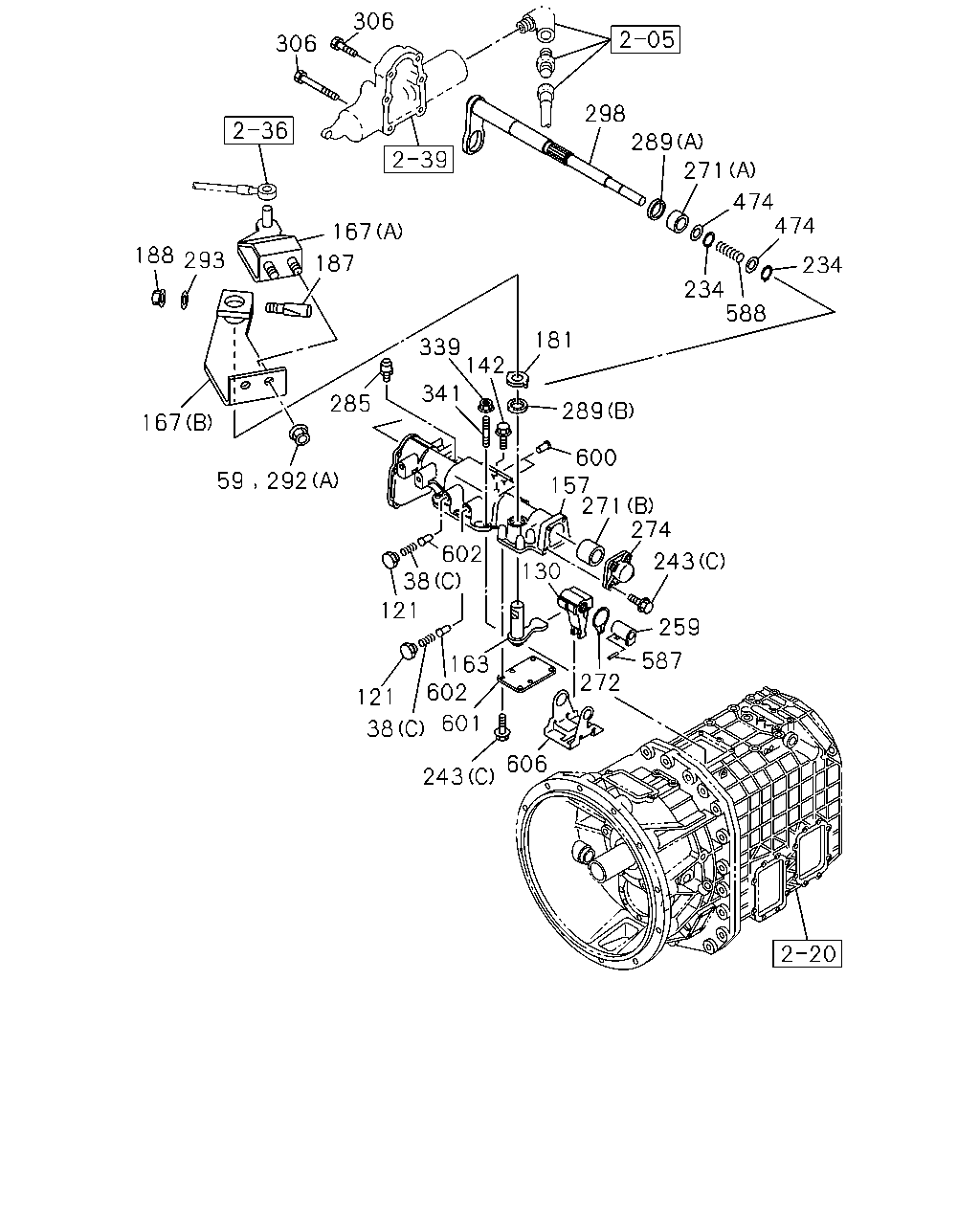

298 271 474 474 234 588 234 181 142 339 285 292 59 167 121 121 163 602 601 606 243 272 259 587 243 274 271 157 600 289 341 187 167 293 188 306 306 289 130 602 38 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
38	SPRING; DETENT (A)	1-09580-379-0	04	1	1008-	●
38	SPRING; DETENT (B)	1-09580-374-0	01	1	1008-		●
38	SPRING; DETENT (A)	1-09580-379-0	03	1	1008-		●
38	SPRING; DETENT (C)	1-09580-574-0	01	1	1008-1410		●
38	SPRING; DETENT (D)	1-09580-580-0	01	1	1008-1410		●
38	SPRING; DETENT (D)	1-09580-580-0	02	1	1411-		●
59	NUT M8 FLANGE	0-91180-108-0	02	1	1411-		●
59	NUT	1-09440-068-0	04	1	1008-		●
121	PLUG; DETENT SPR M16X12	0-92002-416-0	01	1	1008-		●
121	PLUG; DETENT SPR M14X9	8-98042-944-0	02	1	1008-		●
130	LEVER; SHIFT,INTERNAL	1-33521-124-0	01	1	1008-	●
130	LEVER; SHIFT,INTERNAL	1-33521-189-0	01	1	1008-		●
142	BOLT; QUAD BOX M10X30 FLANGE	0-28751-030-0	01	1	1008-		●
157	BOX; QUAD,TRANS	1-33541-507-3	01	1	1008-1311	●
157	BOX; QUAD,TRANS	8-98231-390-0	01	1	1312-	●
157	BOX; QUAD,TRANS	1-33541-534-0	01	1	1008-1410		●
157	BOX; QUAD,TRANS	8-98220-885-0	01	1	1411-		●
163	LEVER; SELECT,INTERNAL	1-33522-162-1	01	1	1008-1410	●
163	LEVER; SELECT,INTERNAL	1-33522-201-0	01	1	1411-	●
163	LEVER; SELECT,INTERNAL	1-33522-171-1	01	1	1008-1410		●
163	LEVER; SELECT,INTERNAL	1-33522-202-0	01	1	1411-		●
167	LEVER; SELECT,EXTERNAL (B)	1-33521-194-0	01	1	1411-		●
167	LEVER; SELECT,EXTERNAL (A)	8-98052-192-0	01	1	1411-		●
167	LEVER; SELECT,EXTERNAL (C)	1-33521-163-0	01	1	1008-1410	●
167	LEVER; SELECT,EXTERNAL (B)	1-33521-192-1	01	1	1411-	●
167	LEVER; SELECT,EXTERNAL (C)	1-33521-190-0	01	1	1008-1410		●
167	LEVER; SELECT,EXTERNAL (A)	1-33521-193-1	01	1	1411-	●
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	1008-	●	●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	1008-	●	●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-062-1	01	1	1008-	●	●
234	RING; SNAP ID=14.7	0-91800-616-0	02	1	1008-		●
243	BOLT; COVER (C) M8X20 FLANGE	0-28050-820-0	06	1	1411-		●
243	BOLT; COVER (A) M10X30 FLANGE	0-28151-030-0	08	1	1008-	●
243	BOLT; COVER (B) M10X28 FLANGE REAMER	8-97365-375-0	04	1	1008-	●
243	BOLT; COVER (C) M8X35 FLANGE	0-28650-835-0	10	1	1008-1410		●
243	BOLT; COVER (C) M8X35 FLANGE	0-28650-835-0	04	1	1411-		●
259	GUIDE; SELECT,CONT BOX	1-33519-135-0	01	1	1008-1410		●
259	GUIDE; SELECT,CONT BOX	8-98222-568-0	01	1	1411-		●
271	BUSHING; QUAD BOX (B) ID=20 OD=23	1-33549-016-0	01	1	1008-	●	●
271	BUSHING; QUAD BOX (A) ID=28 OD=32	1-33549-104-0	01	1	1008-	●	●
272	RING; SNAP,QUAD BOX	1-09588-175-0	01	1	1008-	●
272	RING; SNAP,QUAD BOX	1-09588-213-0	01	1	1008-		●
274	COVER; SHAFT,QUAD BOX	9-33545-017-1	01	1	1008-	●
274	COVER; SHAFT,QUAD BOX	1-33545-010-0	01	1	1008-1410		●
274	COVER; SHAFT,QUAD BOX	8-98220-886-0	01	1	1411-		●
285	BREATHER; AIR,QUAD BOX	1-33149-008-0	01	1	1008-	●
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	1008-		●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30	1-09625-386-0	01	1	1008-	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-647-0	01	1	1008-	●	●
292	NUT; LINK ROD (A) M8	0-91111-508-0	02	1	1008-1410	●	●
292	NUT; LINK ROD (A) M8 FLANGE	0-91180-108-0	02	1	1411-	●
292	NUT; LINK ROD (B) M8 FLANGE	1-09440-062-1	02	1	1008-1410	●	●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	0-91610-708-0	01	1	1008-	●	●
298	SHAFT; SHIFT LEVER	1-33522-180-0	01	1	1008-	●
298	SHAFT; SHIFT LEVER	1-33522-196-0	01	1	1008-1410		●
298	SHAFT; SHIFT LEVER	8-98222-566-0	01	1	1411-		●
306	BOLT; SHIFT ASSISTOR M10X45 FLANGE	0-28151-045-0	02	1	1008-	●	●
306	BOLT; SHIFT ASSISTOR M10X80 FLANGE	0-28151-080-0	04	1	1008-	●	●
339	NUT; QUAD BOX M10 FLANGE	0-91180-210-0	06	1	1008-	●
339	NUT; QUAD BOX M10 FLANGE	0-91180-210-0	05	1	1008-		●
341	STUD; QUAD BOX M10X25 L=40	0-44011-025-0	06	1	1008-	●
341	STUD; QUAD BOX M10X35 L=50	0-44011-035-0	05	1	1008-		●
474	WASHER; SPRING STOPPER	9-09160-716-0	02	1	1008-1410		●
474	WASHER; SPRING STOPPER	8-98222-569-0	02	1	1411-		●
587	PIN; SHIFT GUIDE	9-08160-420-0	01	1	1008-		●
588	SPRING; RETURN,QUADRANT BOX	1-09580-576-0	01	1	1008-		●
600	PLUNGER; VLV	1-33263-037-0	02	1	1008-		●
601	COVER; SHAFT,SELECT	1-33545-011-0	01	1	1008-		●
602	PLUNGER; DETENT	1-33263-037-0	02	1	1008-		●
606	INHIBITOR	1-33529-116-0	01	1	1008-		●

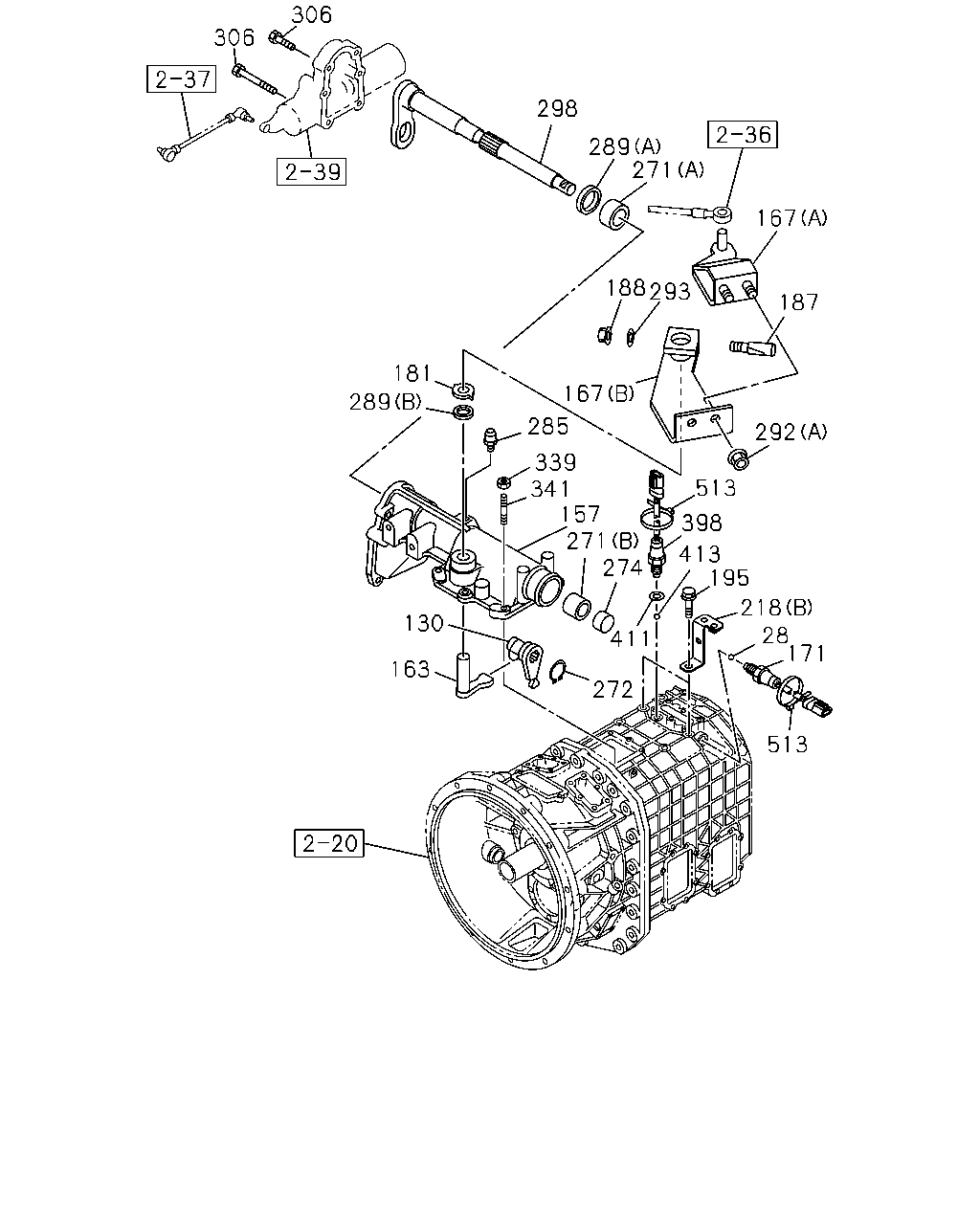

306 306 298 289 167 187 292 188 293 167 285 339 341 271 157 274 411 272 163 130 289 181 513 398 413 195 218 28 171 513 271

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
28	BALL; INTER LK	9-00097-501-0	04	1	1008-	●
28	BALL; INTER LK	9-00097-501-0	02	1	1008-		●
130	LEVER; SHIFT,INTERNAL	1-33521-124-0	01	1	1008-	●
130	LEVER; SHIFT,INTERNAL	1-33521-189-0	01	1	1008-		●
157	BOX; QUAD,TRANS	1-33541-507-3	01	1	1008-1311	●
157	BOX; QUAD,TRANS	8-98231-390-0	01	1	1312-	●
157	BOX; QUAD,TRANS	1-33541-534-0	01	1	1008-1410		●
157	BOX; QUAD,TRANS	8-98220-885-0	01	1	1411-		●
163	LEVER; SELECT,INTERNAL	1-33522-162-1	01	1	1008-1410	●
163	LEVER; SELECT,INTERNAL	1-33522-201-0	01	1	1411-	●
163	LEVER; SELECT,INTERNAL	1-33522-171-1	01	1	1008-1410		●
163	LEVER; SELECT,INTERNAL	1-33522-202-0	01	1	1411-		●
167	LEVER; SELECT,EXTERNAL (B)	1-33521-194-0	01	1	1411-		●
167	LEVER; SELECT,EXTERNAL (A)	8-98052-192-0	01	1	1411-		●
167	LEVER; SELECT,EXTERNAL (C)	1-33521-163-0	01	1	1008-1410	●
167	LEVER; SELECT,EXTERNAL (B)	1-33521-192-1	01	1	1411-	●
167	LEVER; SELECT,EXTERNAL (C)	1-33521-190-0	01	1	1008-1410		●
167	LEVER; SELECT,EXTERNAL (A)	1-33521-193-1	01	1	1411-	●
171	SWITCH; NEUTRAL	8-98166-989-0	01	1	1008-1109	●	●
171	SWITCH; NEUTRAL	8-97640-725-0	01	1	1110-	●	●
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	1008-	●	●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	1008-	●	●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-062-1	01	1	1008-	●	●
195	BOLT M10X25 FLANGE	0-28751-025-0	02	1	1008-	●
195	BOLT M8X16 FLANGE	0-28050-816-0	02	1	1008-		●
218	BRACKET; HARNESS CLIP,QUAD BOX (C)	1-82699-639-1	02	1	1008-1410	●
218	BRACKET; HARNESS CLIP,QUAD BOX (C)	8-98133-847-0	02	1	1411-	●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-82698-350-0	01	1	1008-		●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-82698-490-0	01	1	1008-1410		●
271	BUSHING; QUAD BOX (B) ID=20 OD=23	1-33549-016-0	01	1	1008-	●	●
271	BUSHING; QUAD BOX (A) ID=28 OD=32	1-33549-104-0	01	1	1008-	●	●
272	RING; SNAP,QUAD BOX	1-09588-175-0	01	1	1008-	●
272	RING; SNAP,QUAD BOX	1-09588-213-0	01	1	1008-		●
274	COVER; SHAFT,QUAD BOX	9-33545-017-1	01	1	1008-	●
274	COVER; SHAFT,QUAD BOX	1-33545-010-0	01	1	1008-1410		●
274	COVER; SHAFT,QUAD BOX	8-98220-886-0	01	1	1411-		●
285	BREATHER; AIR,QUAD BOX	1-33149-008-0	01	1	1008-	●
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	1008-		●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30	1-09625-386-0	01	1	1008-	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-647-0	01	1	1008-	●	●
292	NUT; LINK ROD (A) M8	0-91111-508-0	02	1	1008-1410	●	●
292	NUT; LINK ROD (A) M8 FLANGE	0-91180-108-0	02	1	1411-	●
292	NUT; LINK ROD (B) M8 FLANGE	1-09440-062-1	02	1	1008-1410	●	●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	0-91610-708-0	01	1	1008-	●	●
298	SHAFT; SHIFT LEVER	1-33522-180-0	01	1	1008-	●
298	SHAFT; SHIFT LEVER	1-33522-196-0	01	1	1008-1410		●
298	SHAFT; SHIFT LEVER	8-98222-566-0	01	1	1411-		●
306	BOLT; SHIFT ASSISTOR M10X45 FLANGE	0-28151-045-0	02	1	1008-	●	●
306	BOLT; SHIFT ASSISTOR M10X80 FLANGE	0-28151-080-0	04	1	1008-	●	●
339	NUT; QUAD BOX M10 FLANGE	0-91180-210-0	06	1	1008-	●
339	NUT; QUAD BOX M10 FLANGE	0-91180-210-0	05	1	1008-		●
341	STUD; QUAD BOX M10X25 L=40	0-44011-025-0	06	1	1008-	●
341	STUD; QUAD BOX M10X35 L=50	0-44011-035-0	05	1	1008-		●
398	SWITCH; REV LAMP	8-98042-853-0	01	1	1008-1209	●	●
398	SWITCH; REV LAMP	8-98228-482-0	01	1	1210-	●	●
411	GASKET; REV LAMP SW ALSO INCLUDED IN GASKET SET(M/T). ID=14.2	8-94462-114-0	01	1	1008-	●
413	BALL; BACK SW	9-00097-013-0	01	1	1008-	●
513	CLIP; BAND L=140	5-09707-031-1	02	1	1411-	●	●

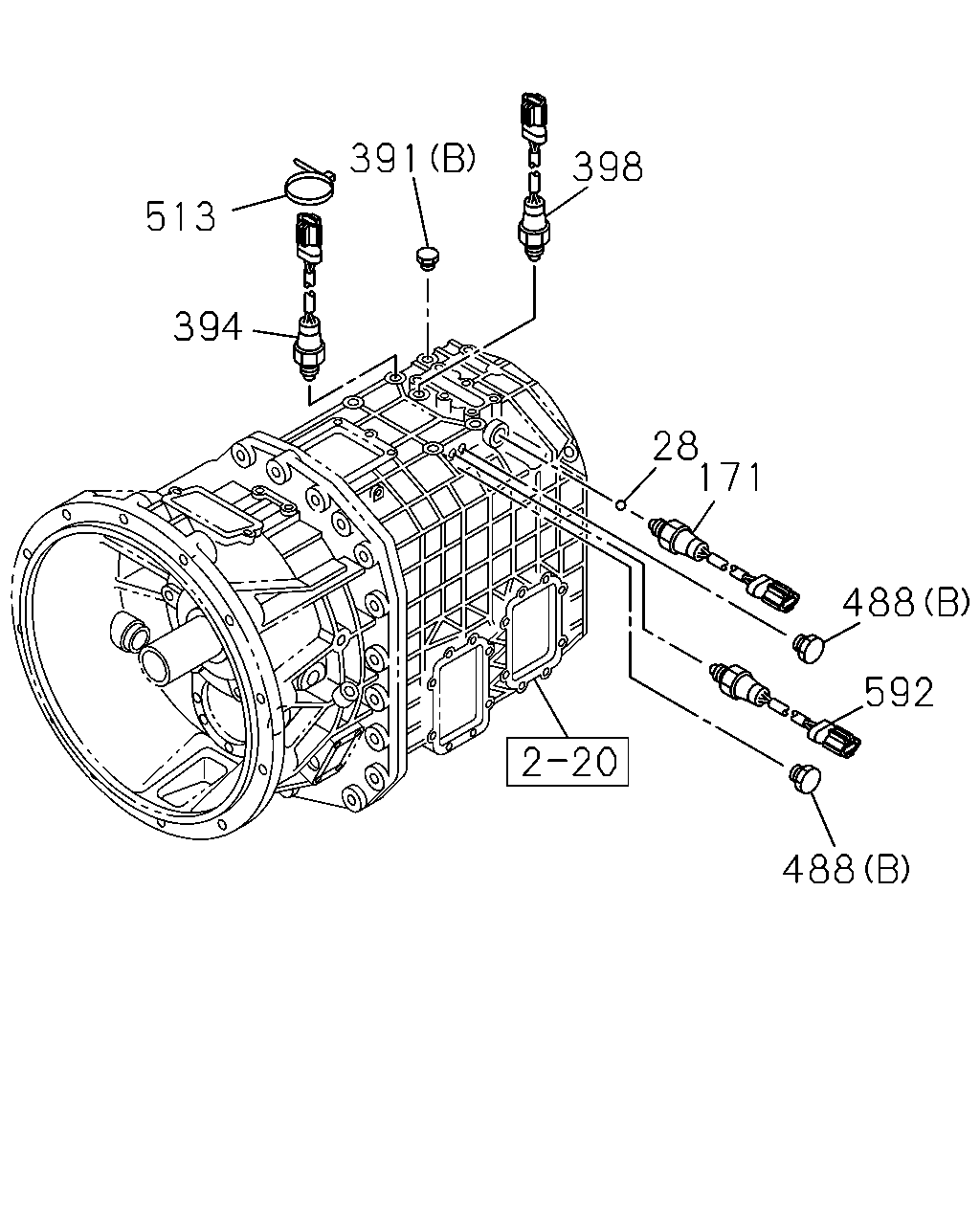

391 513 394 398 28 171 488 592 488

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
28	BALL; INTER LK	9-00097-501-0	04	1	1008-	●
28	BALL; INTER LK	9-00097-501-0	02	1	1008-		●
171	SWITCH; NEUTRAL	8-98166-989-0	01	1	1008-1109	●	●
171	SWITCH; NEUTRAL	8-97640-725-0	01	1	1110-	●	●
391	PLUG; SW HOLE (B) M14X9	8-98042-944-0	02	1	1008-1410		●
391	PLUG; SW HOLE (A) M12X9	9-99202-312-0	01	1	1008-1304		●
391	PLUG; SW HOLE (A) M12X9	0-92002-412-0	01	1	1305-		●
394	SWITCH; RANGE CHANGE	8-98228-482-0	02	1	1411-		●
398	SWITCH; REV LAMP	8-98042-853-0	01	1	1008-1209	●	●
398	SWITCH; REV LAMP	8-98228-482-0	01	1	1210-	●	●
488	PLUG; AIR CYL (B) M14X9	8-98042-944-0	02	1	1008-		●
488	PLUG; AIR CYL (A)	9-09204-510-0	01	1	1008-		●
488	PLUG; AIR CYL (C) PT1/4	9-99204-513-0	01	1	1008-		●
513	CLIP; BAND L=140	5-09707-031-1	02	1	1411-	●	●
592	SWITCH; POSITION	8-98042-853-0	01	1	1008-1209		●
592	SWITCH; POSITION	8-98228-482-0	01	1	1210-		●

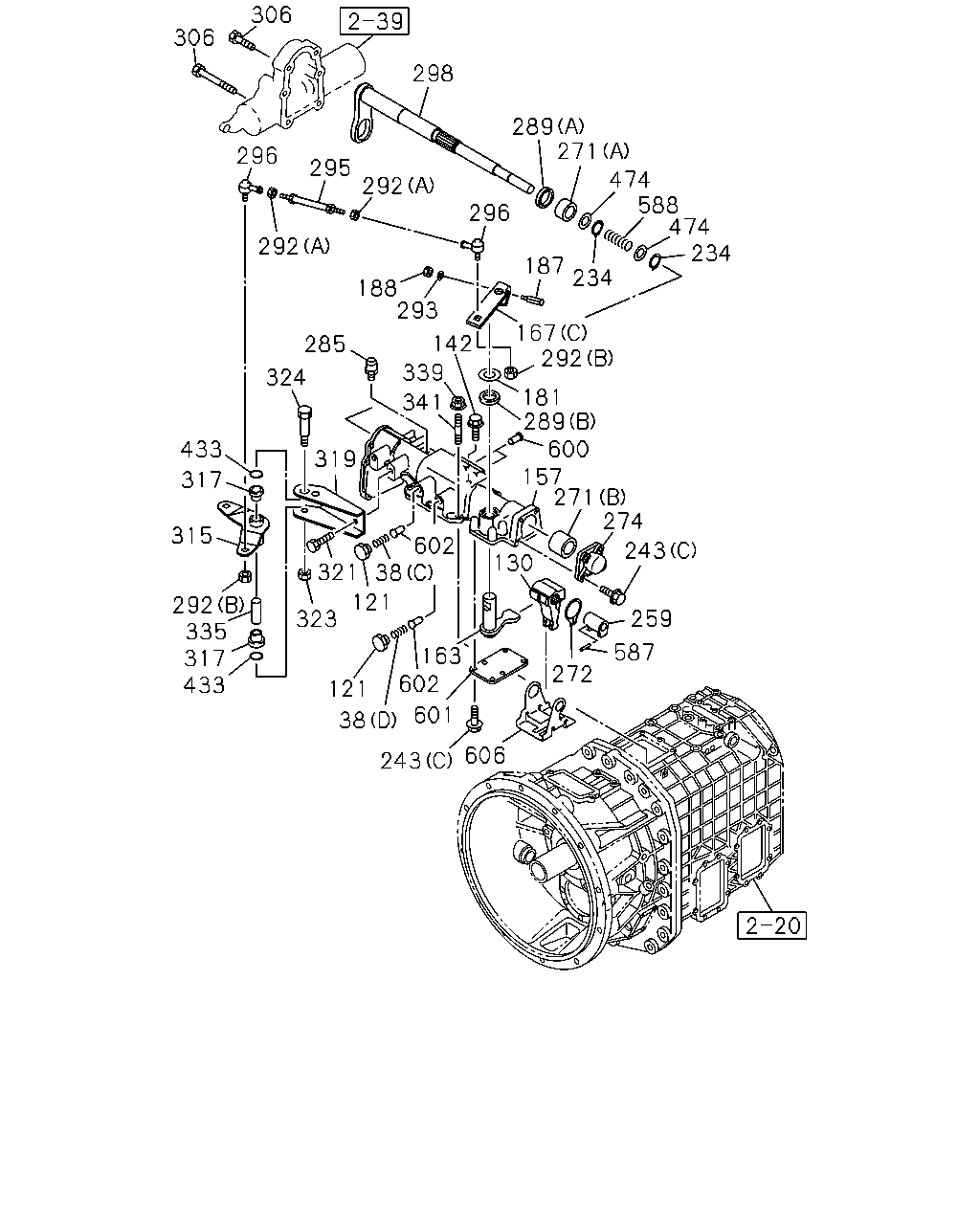

306 306 296 295 292 298 289 271 474 588 474 234 234 187 296 188 142 292 285 324 319 433 317 315 292 335 317 433 323 321 602 38 121 163 602 121 38 243 606 601 272 259 243 274 271 157 600 289 181 292 167 293 339 341 587 130

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
38	SPRING; DETENT (A)	1-09580-379-0	04	1	1008-	●
38	SPRING; DETENT (B)	1-09580-374-0	01	1	1008-		●
38	SPRING; DETENT (A)	1-09580-379-0	03	1	1008-		●
38	SPRING; DETENT (C)	1-09580-574-0	01	1	1008-1410		●
38	SPRING; DETENT (D)	1-09580-580-0	01	1	1008-1410		●
38	SPRING; DETENT (D)	1-09580-580-0	02	1	1411-		●
121	PLUG; DETENT SPR M16X12	0-92002-416-0	01	1	1008-		●
121	PLUG; DETENT SPR M14X9	8-98042-944-0	02	1	1008-		●
130	LEVER; SHIFT,INTERNAL	1-33521-124-0	01	1	1008-	●
130	LEVER; SHIFT,INTERNAL	1-33521-189-0	01	1	1008-		●
142	BOLT; QUAD BOX M10X30 FLANGE	0-28751-030-0	01	1	1008-		●
157	BOX; QUAD,TRANS	1-33541-507-3	01	1	1008-1311	●
157	BOX; QUAD,TRANS	8-98231-390-0	01	1	1312-	●
157	BOX; QUAD,TRANS	1-33541-534-0	01	1	1008-1410		●
157	BOX; QUAD,TRANS	8-98220-885-0	01	1	1411-		●
163	LEVER; SELECT,INTERNAL	1-33522-162-1	01	1	1008-1410	●
163	LEVER; SELECT,INTERNAL	1-33522-201-0	01	1	1411-	●
163	LEVER; SELECT,INTERNAL	1-33522-171-1	01	1	1008-1410		●
163	LEVER; SELECT,INTERNAL	1-33522-202-0	01	1	1411-		●
167	LEVER; SELECT,EXTERNAL (B)	1-33521-194-0	01	1	1411-		●
167	LEVER; SELECT,EXTERNAL (A)	8-98052-192-0	01	1	1411-		●
167	LEVER; SELECT,EXTERNAL (C)	1-33521-163-0	01	1	1008-1410	●
167	LEVER; SELECT,EXTERNAL (B)	1-33521-192-1	01	1	1411-	●
167	LEVER; SELECT,EXTERNAL (C)	1-33521-190-0	01	1	1008-1410		●
167	LEVER; SELECT,EXTERNAL (A)	1-33521-193-1	01	1	1411-	●
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	1008-	●	●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	1008-	●	●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-062-1	01	1	1008-	●	●
234	RING; SNAP ID=14.7	0-91800-616-0	02	1	1008-		●
243	BOLT; COVER (C) M8X20 FLANGE	0-28050-820-0	06	1	1411-		●
243	BOLT; COVER (A) M10X30 FLANGE	0-28151-030-0	08	1	1008-	●
243	BOLT; COVER (B) M10X28 FLANGE REAMER	8-97365-375-0	04	1	1008-	●
243	BOLT; COVER (C) M8X35 FLANGE	0-28650-835-0	10	1	1008-1410		●
243	BOLT; COVER (C) M8X35 FLANGE	0-28650-835-0	04	1	1411-		●
259	GUIDE; SELECT,CONT BOX	1-33519-135-0	01	1	1008-1410		●
259	GUIDE; SELECT,CONT BOX	8-98222-568-0	01	1	1411-		●
271	BUSHING; QUAD BOX (B) ID=20 OD=23	1-33549-016-0	01	1	1008-	●	●
271	BUSHING; QUAD BOX (A) ID=28 OD=32	1-33549-104-0	01	1	1008-	●	●
272	RING; SNAP,QUAD BOX	1-09588-175-0	01	1	1008-	●
272	RING; SNAP,QUAD BOX	1-09588-213-0	01	1	1008-		●
274	COVER; SHAFT,QUAD BOX	9-33545-017-1	01	1	1008-	●
274	COVER; SHAFT,QUAD BOX	1-33545-010-0	01	1	1008-1410		●
274	COVER; SHAFT,QUAD BOX	8-98220-886-0	01	1	1411-		●
285	BREATHER; AIR,QUAD BOX	1-33149-008-0	01	1	1008-	●
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	1008-		●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30	1-09625-386-0	01	1	1008-	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-647-0	01	1	1008-	●	●
292	NUT; LINK ROD (A) M8	0-91111-508-0	02	1	1008-1410	●	●
292	NUT; LINK ROD (A) M8 FLANGE	0-91180-108-0	02	1	1411-	●
292	NUT; LINK ROD (B) M8 FLANGE	1-09440-062-1	02	1	1008-1410	●	●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	0-91610-708-0	01	1	1008-	●	●
295	ROD; LINK,RELAY LEVER	9-08400-816-0	01	1	1008-1410	●
295	ROD; LINK,RELAY LEVER	1-33652-924-0	01	1	1008-1410		●
296	ROD END	1-09760-108-0	02	1	1008-1410	●	●
298	SHAFT; SHIFT LEVER	1-33522-180-0	01	1	1008-	●
298	SHAFT; SHIFT LEVER	1-33522-196-0	01	1	1008-1410		●
298	SHAFT; SHIFT LEVER	8-98222-566-0	01	1	1411-		●
306	BOLT; SHIFT ASSISTOR M10X45 FLANGE	0-28151-045-0	02	1	1008-	●	●
306	BOLT; SHIFT ASSISTOR M10X80 FLANGE	0-28151-080-0	04	1	1008-	●	●
315	LEVER; SELECT	1-33651-754-0	01	1	1008-1410	●	●
317	BUSHING; LEVER	1-09330-119-0	02	1	1008-1410	●	●
319	BRACKET; SELECT LEVER	1-33657-753-0	01	1	1008-1410	●	●
321	BOLT; BRKT,RELAY LEVER M10X22 FLANGE	0-28181-022-0	02	1	1008-1410	●	●
323	NUT; LK,SELECT LEVER	1-33659-219-0	01	1	1008-1410	●	●
324	BOLT; SHAFT M10X60 FLANGE	0-28081-060-0	01	1	1008-1410	●	●
335	COLLAR; DIST,RELAY LEVER ASM	1-33659-220-0	01	1	1008-1410	●	●
339	NUT; QUAD BOX M10 FLANGE	0-91180-210-0	06	1	1008-	●
339	NUT; QUAD BOX M10 FLANGE	0-91180-210-0	05	1	1008-		●
341	STUD; QUAD BOX M10X25 L=40	0-44011-025-0	06	1	1008-	●
341	STUD; QUAD BOX M10X35 L=50	0-44011-035-0	05	1	1008-		●
433	GASKET; BUSHING	1-09623-636-0	02	1	1008-1410	●	●
474	WASHER; SPRING STOPPER	9-09160-716-0	02	1	1008-1410		●
474	WASHER; SPRING STOPPER	8-98222-569-0	02	1	1411-		●
587	PIN; SHIFT GUIDE	9-08160-420-0	01	1	1008-		●
588	SPRING; RETURN,QUADRANT BOX	1-09580-576-0	01	1	1008-		●
600	PLUNGER; VLV	1-33263-037-0	02	1	1008-		●
601	COVER; SHAFT,SELECT	1-33545-011-0	01	1	1008-		●
602	PLUNGER; DETENT	1-33263-037-0	02	1	1008-		●
606	INHIBITOR	1-33529-116-0	01	1	1008-		●

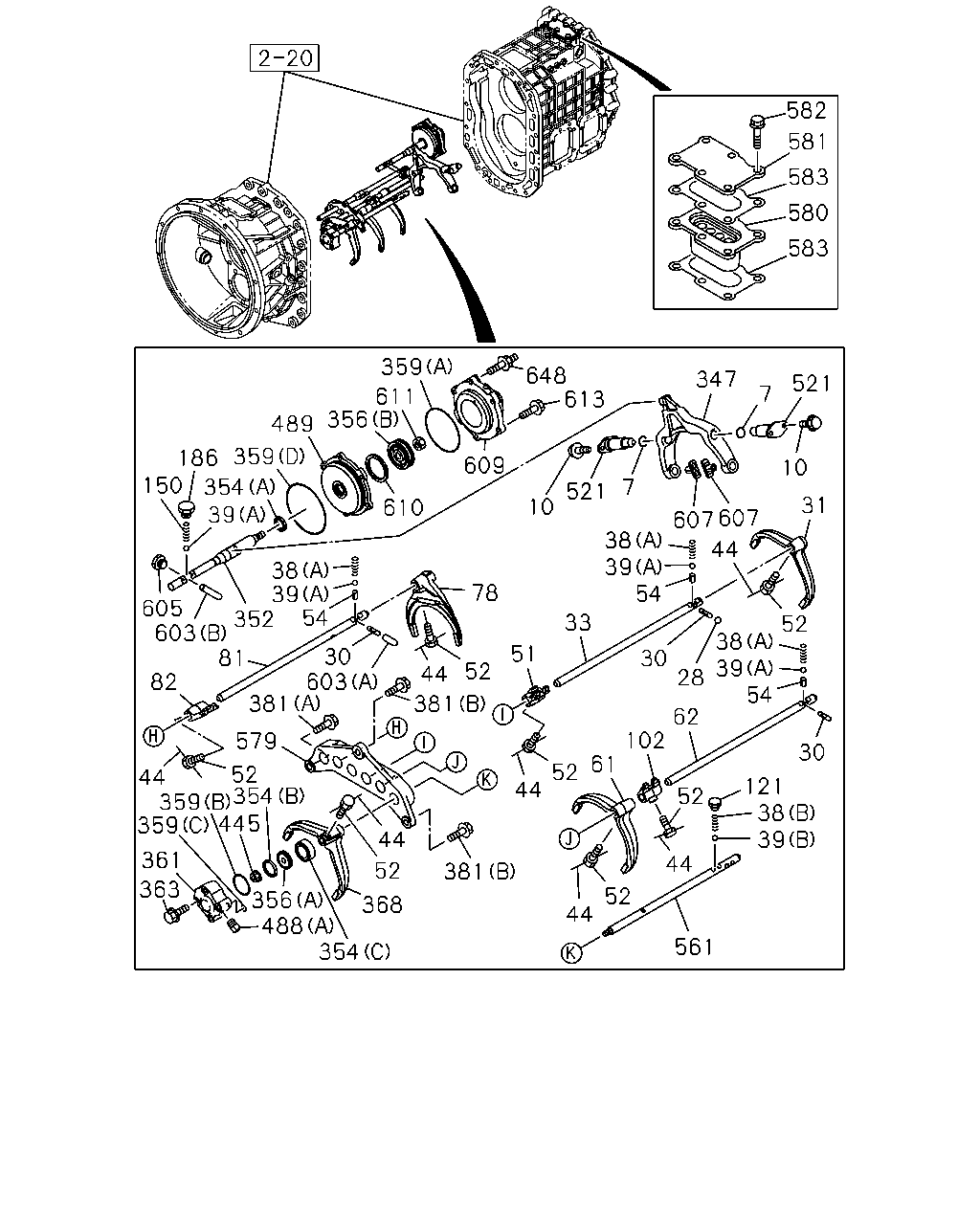

582 581 583 580 583 521 7 10 31 607 607 44 38 39 54 38 52 39 54 30 121 38 39 52 44 561 52 44 61 102 62 28 30 33 51 52 44 381 44 52 381 44 52 368 354 488 356 363 361 359 359 445 354 52 579 381 30 603 54 38 39 352 81 603 605 150 354 609 613 648 521 7 347 10 78 610 359 611 356 489 359 186 39 82 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
7	GASKET; SPINDLE ALSO INCLUDED IN GASKET SET(M/T). ID=24.4	1-09623-057-0	02	1	1008-		●
10	BOLT; SPINDLE M10X30 FLANGE	0-28751-030-0	04	1	1008-		●
28	BALL; INTER LK	9-00097-501-0	04	1	1008-	●
28	BALL; INTER LK	9-00097-501-0	02	1	1008-		●
30	PIN; INTER LK	9-33534-003-0	03	1	1008-	●	●
31	ARM; SHIFT,LOW & 2ND	1-33511-587-0	01	1	1008-		●
33	ROD; SHIFT,LOW & 2ND	1-33531-458-0	01	1	1008-		●
38	SPRING; DETENT (A)	1-09580-379-0	04	1	1008-	●
38	SPRING; DETENT (B)	1-09580-374-0	01	1	1008-		●
38	SPRING; DETENT (A)	1-09580-379-0	03	1	1008-		●
38	SPRING; DETENT (C)	1-09580-574-0	01	1	1008-1410		●
38	SPRING; DETENT (D)	1-09580-580-0	01	1	1008-1410		●
38	SPRING; DETENT (D)	1-09580-580-0	02	1	1411-		●
39	BALL; DETENT (A)	1-09843-012-0	04	1	1008-	●	●
39	BALL; DETENT (B)	9-00097-013-0	01	1	1008-		●
44	WIRE; LK L=180	1-09780-024-0	10	1	1008-	●
44	WIRE; LK L=200	9-08351-020-0	02	1	1008-	●
44	WIRE; LK L=200	9-08351-020-0	07	1	1008-		●
51	BLOCK; SHIFT,1ST & 2ND	1-33511-617-0	01	1	1008-		●
52	BOLT; SHIFT ARM M12X20 W/HOLE	1-09052-038-0	12	1	1008-	●
52	BOLT; SHIFT ARM M12X20 W/HOLE	1-09052-038-0	07	1	1008-		●
54	PIN; SPR,SHIFT BLOCK	1-09748-014-0	03	1	1008-	●	●
61	ARM; SHIFT,3RD & 4TH	1-33511-586-0	01	1	1008-		●
62	ROD; SHIFT,3RD & 4TH	1-33531-459-0	01	1	1008-		●
78	ARM; SHIFT,REV	1-33511-589-0	01	1	1008-		●
81	ROD; SHIFT,REV BLOCK	1-33531-457-0	01	1	1008-		●
82	BLOCK; SHIFT,REV	1-33511-600-0	01	1	1008-		●
102	BLOCK; SHIFT,3RD & 4TH	1-33511-615-0	01	1	1008-		●
121	PLUG; DETENT SPR M16X12	0-92002-416-0	01	1	1008-		●
121	PLUG; DETENT SPR M14X9	8-98042-944-0	02	1	1008-		●
150	SPRING; DETENT BALL	1-09580-379-0	01	1	1008-		●
186	PLUG; SHIFTER ROD M16X12	0-92002-416-0	01	1	1008-		●
347	ARM; SHIFT,RANGE CHANGE	1-33511-585-0	01	1	1008-		●
352	ROD; SHIFT,RANGE CHANGE	1-33531-482-0	01	1	1008-		●
354	SEAL; AIR CYL (A)	1-19387-056-0	01	1	1008-		●
354	SEAL; AIR CYL (B)	1-33739-978-0	01	1	1008-		●
354	SEAL; AIR CYL (C)	1-33739-981-0	01	1	1008-		●
356	PISTON; AIR CYL (A)	1-33551-017-0	01	1	1008-		●
356	PISTON; AIR CYL (B)	1-33551-025-0	01	1	1008-		●
359	GASKET; AIR CYL (A) ID=124.6	1-09623-468-0	01	1	1008-		●
359	GASKET; AIR CYL (B) ID=55.6	8-98075-598-0	01	1	1008-		●
359	GASKET; AIR CYL (C) ID=6.8	9-09565-107-0	01	1	1008-		●
359	GASKET; AIR CYL (D) ID=144.4	9-09920-735-0	01	1	1008-		●
361	CYLINDER; AIR,SHIFT	1-33561-019-0	01	1	1008-		●
363	BOLT; AIR CYL M10X60 FLANGE	8-98169-763-0	04	1	1008-		●
368	ARM; SHIFT,SPLITTER GEAR	1-33511-588-0	01	1	1008-1510		●
368	ARM; SHIFT,SPLITTER GEAR	8-98318-482-0	01	1	1511-		●
381	BOLT (A) M10X35 FLANGE	0-28751-035-0	01	1	1008-	●	●
381	BOLT (B) M10X34 FLANGE REAMER	1-09040-091-1	02	1	1008-	●	●
381	BOLT (C)	1-09044-111-0	04	1	1008-		●
445	NUT; SHIFT CYL M12 LOCK NUT FLANGE	0-91380-012-0	01	1	1008-		●
488	PLUG; AIR CYL (B) M14X9	8-98042-944-0	02	1	1008-		●
488	PLUG; AIR CYL (A)	9-09204-510-0	01	1	1008-		●
488	PLUG; AIR CYL (C) PT1/4	9-99204-513-0	01	1	1008-		●
489	COVER; AIR CYL	1-33569-052-0	01	1	1008-		●
521	SPINDLE; 6TH	1-33519-131-0	02	1	1008-		●
561	ROD; SHIFT	1-33531-466-0	01	1	1008-		●
579	BLOCK; SHIFT,ROD GUIDE	1-33539-065-1	01	1	1008-	●
579	BLOCK; SHIFT,ROD GUIDE	1-33539-066-2	01	1	1008-		●
580	BLOCK; INTERLOCK	1-33539-064-1	01	1	1008-	●	●
581	COVER; BLOCK	1-33141-056-0	01	1	1008-	●	●
582	BOLT; SPRING GUIDE M10X35 FLANGE	0-28151-035-0	06	1	1008-	●	●
583	GASKET; SPRING GUIDE	1-33142-047-0	02	1	1008-	●	●
603	ROD; INTER LK (A) L=49	1-33534-005-0	01	1	1008-		●
603	ROD; INTER LK (B) L=77	1-33534-010-0	01	1	1008-		●
605	PLUG; INTER LK M18X12	0-92002-418-0	01	1	1008-		●
607	PIECE; SHIFT	1-33518-010-0	02	1	1008-		●
609	BODY; AIR,CYL	1-33561-018-0	01	1	1008-		●
610	SEAL; PISTON	1-33738-054-0	01	1	1008-		●
611	NUT; SHAFT	8-97324-304-0	01	1	1008-		●
613	BOLT; AIR CYL M10X45 FLANGE	0-28151-045-0	03	1	1008-		●
648	STUD; AIR CYL M10X20,M10X45 L=75	8-98010-335-0	03	1	1008-		●

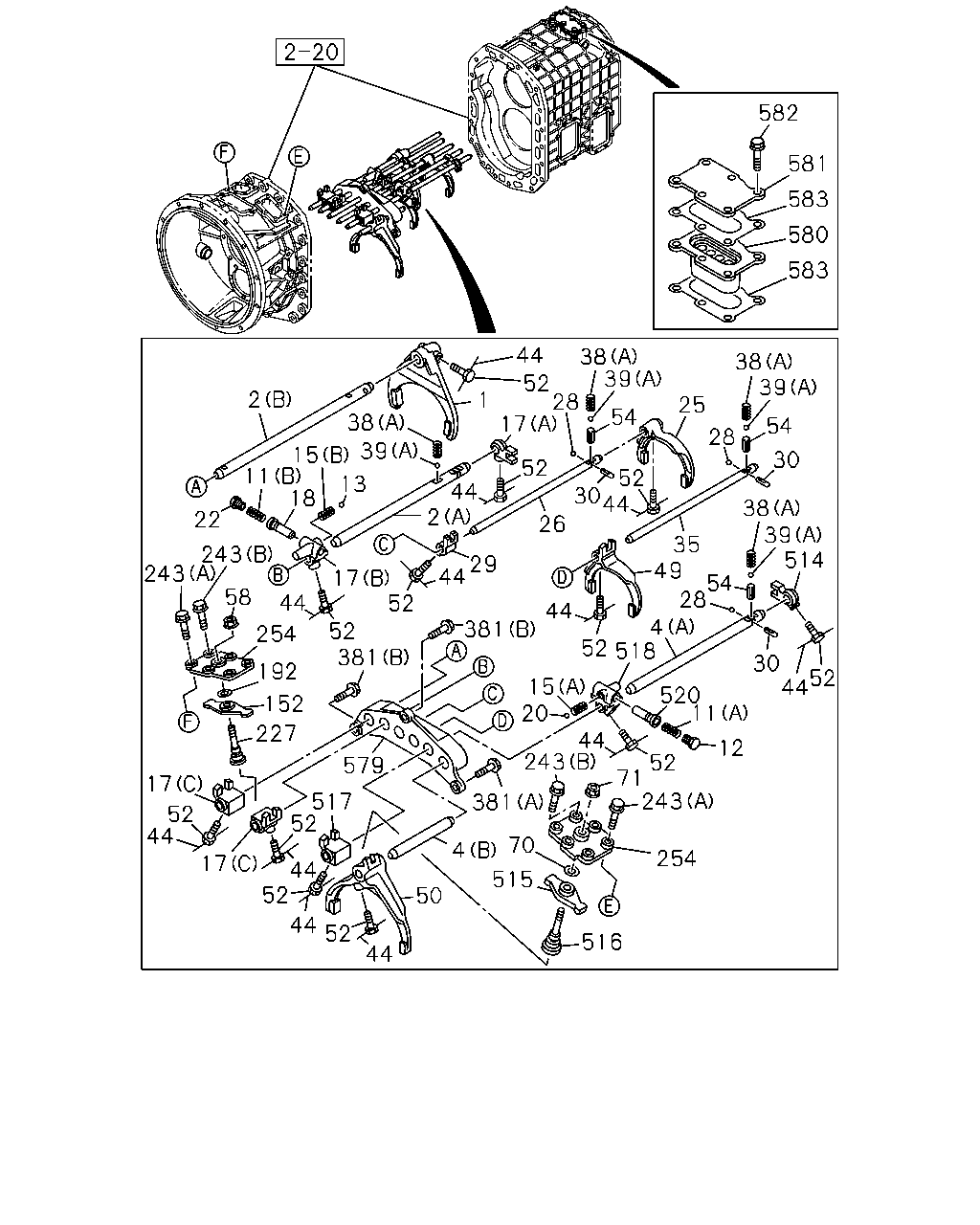

582 581 583 580 583 38 39 54 30 38 39 514 52 44 30 12 11 520 52 243 254 71 44 243 381 70 515 516 4 50 44 52 44 44 52 52 517 381 381 52 15 20 44 518 4 28 54 35 49 28 25 54 39 38 52 44 28 17 1 52 44 52 30 44 26 29 2 44 52 17 254 52 44 192 152 227 579 17 52 44 243 22 2 11 15 38 39 13 18 243 58 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	ARM; SHIFT,1ST & REV	1-33511-579-0	01	1	1008-	●
2	ROD; SHIFT,1ST & REV (A)	1-33531-438-0	01	1	1008-	●
2	ROD; SHIFT,1ST & REV (B)	1-33531-456-0	01	1	1008-	●
4	ROD; SHIFT,6TH (A)	1-33531-443-1	01	1	1008-	●
4	ROD; SHIFT,6TH (B)	1-33531-445-0	01	1	1008-	●
11	SPRING; RETURN,SHIFT SLEEVE (B)	1-09580-444-0	01	1	1008-	●
11	SPRING; RETURN,SHIFT SLEEVE (A)	9-09941-160-0	01	1	1008-1510	●
11	SPRING; RETURN,SHIFT SLEEVE (A)	8-98294-206-0	01	1	1511-	●
12	CAP; RETURN SPR,SHIFT BLOCK	1-33516-039-1	01	1	1008-	●
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	1008-	●
15	SPRING; LK,SHIFT SLEEVE (B)	1-09580-438-0	01	1	1008-1410	●
15	SPRING; LK,SHIFT SLEEVE (B)	1-09580-439-0	01	1	1411-	●
15	SPRING; LK,SHIFT SLEEVE (A)	9-09941-007-0	01	1	1008-	●
17	BLOCK; SHIFT,1ST & REV (A)	1-33511-202-3	01	1	1008-	●
17	BLOCK; SHIFT,1ST & REV (B)	1-33511-552-1	01	1	1008-	●
17	BLOCK; SHIFT,1ST & REV (C)	1-33511-557-0	02	1	1008-	●
18	SLEEVE; 1ST & REV,SHIFT BLOCK	1-33516-022-1	01	1	1008-	●
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	1008-	●
22	CAP; RETURN SPR,SHIFT BLOCK	1-33516-039-1	01	1	1008-	●
25	ARM; SHIFT,2ND & 3RD	1-33511-435-0	01	1	1008-	●
26	ROD; SHIFT,2ND & 3RD	1-33531-440-1	01	1	1008-	●
28	BALL; INTER LK	9-00097-501-0	04	1	1008-	●
28	BALL; INTER LK	9-00097-501-0	02	1	1008-		●
29	BLOCK; SHIFT,2ND & 3RD	1-33511-376-1	01	1	1008-	●
30	PIN; INTER LK	9-33534-003-0	03	1	1008-	●	●
35	ROD; SHIFT,4TH & 5TH BLOCK	1-33531-442-1	01	1	1008-	●
38	SPRING; DETENT (A)	1-09580-379-0	04	1	1008-	●
38	SPRING; DETENT (B)	1-09580-374-0	01	1	1008-		●
38	SPRING; DETENT (A)	1-09580-379-0	03	1	1008-		●
38	SPRING; DETENT (C)	1-09580-574-0	01	1	1008-1410		●
38	SPRING; DETENT (D)	1-09580-580-0	01	1	1008-1410		●
38	SPRING; DETENT (D)	1-09580-580-0	02	1	1411-		●
39	BALL; DETENT (A)	1-09843-012-0	04	1	1008-	●	●
39	BALL; DETENT (B)	9-00097-013-0	01	1	1008-		●
44	WIRE; LK L=180	1-09780-024-0	10	1	1008-	●
44	WIRE; LK L=200	9-08351-020-0	02	1	1008-	●
44	WIRE; LK L=200	9-08351-020-0	07	1	1008-		●
49	ARM; SHIFT,4TH & 5TH	1-33511-466-1	01	1	1008-	●
50	ARM; SHIFT,6TH	1-33511-550-0	01	1	1008-	●
52	BOLT; SHIFT ARM M12X20 W/HOLE	1-09052-038-0	12	1	1008-	●
52	BOLT; SHIFT ARM M12X20 W/HOLE	1-09052-038-0	07	1	1008-		●
54	PIN; SPR,SHIFT BLOCK	1-09748-014-0	03	1	1008-	●	●
58	NUT M12 FLANGE	0-91180-212-0	01	1	1008-	●
70	WASHER; PL,SHIFT LEVER ID=16.5	9-09857-042-0	01	1	1008-	●
71	NUT; SHIFT LEVER M12 FLANGE	0-91180-212-0	01	1	1008-	●
152	LEVER; RELAY,SELECT	1-33511-560-1	01	1	1008-	●
192	WASHER; PL ID=16.5	9-09857-042-0	01	1	1008-	●
192	WASHER; PL	1-09503-310-0	04	1	1008-		●
227	SPINDLE; 1ST & REV	1-33519-104-0	01	1	1008-	●
243	BOLT; COVER (C) M8X20 FLANGE	0-28050-820-0	06	1	1411-		●
243	BOLT; COVER (A) M10X30 FLANGE	0-28151-030-0	08	1	1008-	●
243	BOLT; COVER (B) M10X28 FLANGE REAMER	8-97365-375-0	04	1	1008-	●
243	BOLT; COVER (C) M8X35 FLANGE	0-28650-835-0	10	1	1008-1410		●
243	BOLT; COVER (C) M8X35 FLANGE	0-28650-835-0	04	1	1411-		●
254	COVER; LEVER	1-33141-054-0	02	1	1008-	●
381	BOLT (A) M10X35 FLANGE	0-28751-035-0	01	1	1008-	●	●
381	BOLT (B) M10X34 FLANGE REAMER	1-09040-091-1	02	1	1008-	●	●
381	BOLT (C)	1-09044-111-0	04	1	1008-		●
514	BLOCK; 6-7 SETTING	1-33511-605-0	01	1	1008-	●
515	LEVER; SHIFT,6TH & 7TH	1-33511-560-1	01	1	1008-	●
516	SPINDLE; 6TH & 7TH	1-33519-104-0	01	1	1008-	●
517	BLOCK; SHIFT,6TH & 7TH	1-33511-557-0	01	1	1008-	●
518	BLOCK ASM; SHIFT,6TH & 7TH	1-33511-558-1	01	1	1008-	●
520	SLEEVE; 6TH & 7TH	1-33516-022-1	01	1	1008-	●
579	BLOCK; SHIFT,ROD GUIDE	1-33539-065-1	01	1	1008-	●
579	BLOCK; SHIFT,ROD GUIDE	1-33539-066-2	01	1	1008-		●
580	BLOCK; INTERLOCK	1-33539-064-1	01	1	1008-	●	●
581	COVER; BLOCK	1-33141-056-0	01	1	1008-	●	●
582	BOLT; SPRING GUIDE M10X35 FLANGE	0-28151-035-0	06	1	1008-	●	●
583	GASKET; SPRING GUIDE	1-33142-047-0	02	1	1008-	●	●

171 28 218 195 413 398 274 411 272 271 157 341 339 285 188 293 292 167 296 271 289 298 295 292 292 289 181 187 324 433 317 296 306 306 315 317 433 335 323 321 319 163 130 292

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
28	BALL; INTER LK	9-00097-501-0	04	1	1008-	●
28	BALL; INTER LK	9-00097-501-0	02	1	1008-		●
130	LEVER; SHIFT,INTERNAL	1-33521-124-0	01	1	1008-	●
130	LEVER; SHIFT,INTERNAL	1-33521-189-0	01	1	1008-		●
157	BOX; QUAD,TRANS	1-33541-507-3	01	1	1008-1311	●
157	BOX; QUAD,TRANS	8-98231-390-0	01	1	1312-	●
157	BOX; QUAD,TRANS	1-33541-534-0	01	1	1008-1410		●
157	BOX; QUAD,TRANS	8-98220-885-0	01	1	1411-		●
163	LEVER; SELECT,INTERNAL	1-33522-162-1	01	1	1008-1410	●
163	LEVER; SELECT,INTERNAL	1-33522-201-0	01	1	1411-	●
163	LEVER; SELECT,INTERNAL	1-33522-171-1	01	1	1008-1410		●
163	LEVER; SELECT,INTERNAL	1-33522-202-0	01	1	1411-		●
167	LEVER; SELECT,EXTERNAL (B)	1-33521-194-0	01	1	1411-		●
167	LEVER; SELECT,EXTERNAL (A)	8-98052-192-0	01	1	1411-		●
167	LEVER; SELECT,EXTERNAL (C)	1-33521-163-0	01	1	1008-1410	●
167	LEVER; SELECT,EXTERNAL (B)	1-33521-192-1	01	1	1411-	●
167	LEVER; SELECT,EXTERNAL (C)	1-33521-190-0	01	1	1008-1410		●
167	LEVER; SELECT,EXTERNAL (A)	1-33521-193-1	01	1	1411-	●
171	SWITCH; NEUTRAL	8-98166-989-0	01	1	1008-1109	●	●
171	SWITCH; NEUTRAL	8-97640-725-0	01	1	1110-	●	●
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	1008-	●	●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	1008-	●	●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-062-1	01	1	1008-	●	●
195	BOLT M10X25 FLANGE	0-28751-025-0	02	1	1008-	●
195	BOLT M8X16 FLANGE	0-28050-816-0	02	1	1008-		●
218	BRACKET; HARNESS CLIP,QUAD BOX (C)	1-82699-639-1	02	1	1008-1410	●
218	BRACKET; HARNESS CLIP,QUAD BOX (C)	8-98133-847-0	02	1	1411-	●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-82698-350-0	01	1	1008-		●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-82698-490-0	01	1	1008-1410		●
271	BUSHING; QUAD BOX (B) ID=20 OD=23	1-33549-016-0	01	1	1008-	●	●
271	BUSHING; QUAD BOX (A) ID=28 OD=32	1-33549-104-0	01	1	1008-	●	●
272	RING; SNAP,QUAD BOX	1-09588-175-0	01	1	1008-	●
272	RING; SNAP,QUAD BOX	1-09588-213-0	01	1	1008-		●
274	COVER; SHAFT,QUAD BOX	9-33545-017-1	01	1	1008-	●
274	COVER; SHAFT,QUAD BOX	1-33545-010-0	01	1	1008-1410		●
274	COVER; SHAFT,QUAD BOX	8-98220-886-0	01	1	1411-		●
285	BREATHER; AIR,QUAD BOX	1-33149-008-0	01	1	1008-	●
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	1008-		●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30	1-09625-386-0	01	1	1008-	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-647-0	01	1	1008-	●	●
292	NUT; LINK ROD (A) M8	0-91111-508-0	02	1	1008-1410	●	●
292	NUT; LINK ROD (A) M8 FLANGE	0-91180-108-0	02	1	1411-	●
292	NUT; LINK ROD (B) M8 FLANGE	1-09440-062-1	02	1	1008-1410	●	●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	0-91610-708-0	01	1	1008-	●	●
295	ROD; LINK,RELAY LEVER	9-08400-816-0	01	1	1008-1410	●
295	ROD; LINK,RELAY LEVER	1-33652-924-0	01	1	1008-1410		●
296	ROD END	1-09760-108-0	02	1	1008-1410	●	●
298	SHAFT; SHIFT LEVER	1-33522-180-0	01	1	1008-	●
298	SHAFT; SHIFT LEVER	1-33522-196-0	01	1	1008-1410		●
298	SHAFT; SHIFT LEVER	8-98222-566-0	01	1	1411-		●
306	BOLT; SHIFT ASSISTOR M10X45 FLANGE	0-28151-045-0	02	1	1008-	●	●
306	BOLT; SHIFT ASSISTOR M10X80 FLANGE	0-28151-080-0	04	1	1008-	●	●
315	LEVER; SELECT	1-33651-754-0	01	1	1008-1410	●	●
317	BUSHING; LEVER	1-09330-119-0	02	1	1008-1410	●	●
319	BRACKET; SELECT LEVER	1-33657-753-0	01	1	1008-1410	●	●
321	BOLT; BRKT,RELAY LEVER M10X22 FLANGE	0-28181-022-0	02	1	1008-1410	●	●
323	NUT; LK,SELECT LEVER	1-33659-219-0	01	1	1008-1410	●	●
324	BOLT; SHAFT M10X60 FLANGE	0-28081-060-0	01	1	1008-1410	●	●
335	COLLAR; DIST,RELAY LEVER ASM	1-33659-220-0	01	1	1008-1410	●	●
339	NUT; QUAD BOX M10 FLANGE	0-91180-210-0	06	1	1008-	●
339	NUT; QUAD BOX M10 FLANGE	0-91180-210-0	05	1	1008-		●
341	STUD; QUAD BOX M10X25 L=40	0-44011-025-0	06	1	1008-	●
341	STUD; QUAD BOX M10X35 L=50	0-44011-035-0	05	1	1008-		●
398	SWITCH; REV LAMP	8-98042-853-0	01	1	1008-1209	●	●
398	SWITCH; REV LAMP	8-98228-482-0	01	1	1210-	●	●
411	GASKET; REV LAMP SW ALSO INCLUDED IN GASKET SET(M/T). ID=14.2	8-94462-114-0	01	1	1008-	●
413	BALL; BACK SW	9-00097-013-0	01	1	1008-	●
433	GASKET; BUSHING	1-09623-636-0	02	1	1008-1410	●	●

353 443 353 353 443 443 552 443 342 443 346 578 562 346 346 562 617 374 374 342 578 578 158 615 617 615 618 618 342

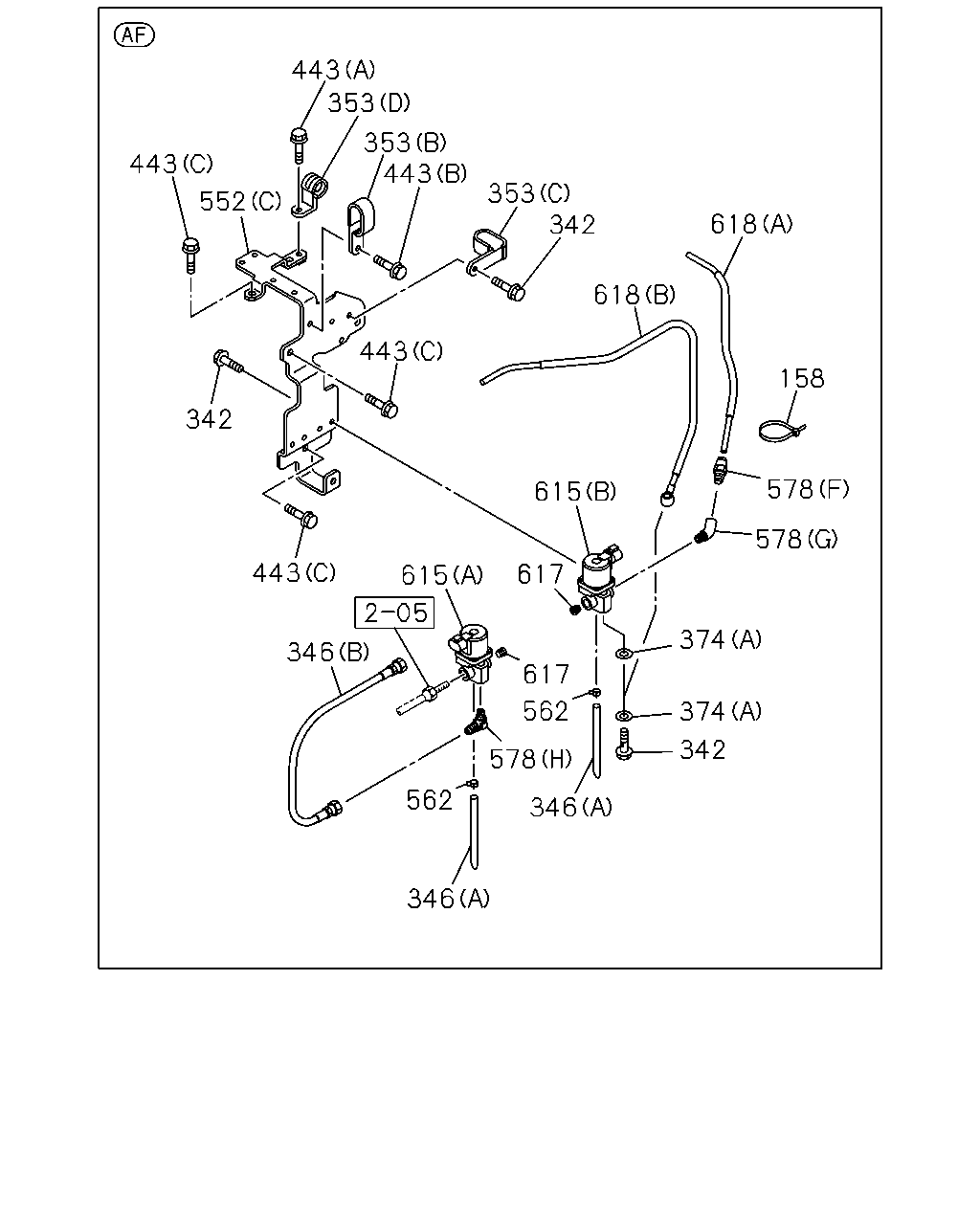

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B
158	CLIP; HARNESS L=140	5-09707-031-1	02	1	1008-	●
342	BOLT M8X16 FLANGE	0-28050-816-0	05	1	1411-	●
342	BOLT M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	1411-	●
346	HOSE; AIR (A) ID=6 OD=9 L=150	1-33739-872-0	01	1	1402-1410	●
346	HOSE; AIR (A) ID=6 OD=9 L=150	1-33739-872-0	03	1	1411-	●
346	HOSE; AIR (B) L=450	1-09363-965-0	01	1	1411-	●
353	CLIP; AIR HOSE (D) ID=12 H=24 L=20	1-09700-605-0	01	1	1411-	●
353	CLIP; AIR HOSE (C) ID=33X16.5 L=50	5-09700-341-0	01	1	1411-	●
353	CLIP; AIR HOSE (A) ID=20 H=23 L=27	1-09700-861-0	01	1	1008-	●
353	CLIP; AIR HOSE (B) ID=16X2 L=40	9-09535-576-0	01	1	1008-	●
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). (A) ID=12.2	8-98251-344-0	02	1	1411-	●
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). (B)	1-09661-390-0	01	1	1008-	●
443	BOLT; CLIP (D) M8X20 FLANGE	0-28650-820-0	01	1	1411-	●
443	BOLT; CLIP (C) M10X25 FLANGE	0-28751-025-0	05	1	1411-	●
443	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	02	1	1008-	●
443	BOLT; CLIP (B) M8X90 FLANGE	0-28050-890-0	04	1	1008-	●
552	BRACKET (C)	8-98222-117-0	01	1	1411-	●
552	BRACKET (A)	1-33719-082-0	01	1	1008-	●
552	BRACKET (B)	1-33719-083-0	01	1	1008-	●
562	CLAMP; LOCKING ID=7.8	8-94246-958-0	02	1	1411-	●
578	CONNECTOR (I) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	1411-	●
578	CONNECTOR (H) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1411-	●
578	CONNECTOR (F) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	1411-	●
578	CONNECTOR (G) R1/4 & RC1/4	1-09664-211-0	02	1	1411-	●
578	CONNECTOR (D) DIN8 & R1/4 ELBOW	1-09660-649-1	02	1	1008-	●
578	CONNECTOR (E)	1-09661-292-0	02	1	1008-	●
578	CONNECTOR (C)	1-33712-023-0	02	1	1008-	●
578	CONNECTOR (A)	1-33712-024-0	01	1	1008-	●
578	CONNECTOR (B)	1-33712-026-0	01	1	1008-	●
615	VALVE; MAGNETIC (A)	8-98222-558-0	01	1	1411-	●
615	VALVE; MAGNETIC (B)	8-98222-559-0	01	1	1411-	●
617	PLUG	8-97320-204-0	02	1	1411-	●
618	TUBE; NYLON (B) L=730	8-98222-118-0	01	1	1411-	●
618	TUBE; NYLON (A) L=400	8-98222-734-0	01	1	1411-	●

621 622 621 622 621 622 621 622 599 621

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B
599	TUBE; NYLON (A)	1-09377-036-1	01	1	1008-	●
599	TUBE; NYLON (B)	1-33712-027-0	01	1	1008-	●
621	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87410-073-0	02	1	1008-1410	●
621	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	1411-	●
621	TUBE; NYLON (B) SERVICED BY L=2000 OD=8	1-87411-006-0	03	1	1008-	●
622	TUBE; CORRUGATE (A) SERVICED BY L=2000 ID=10	1-87410-088-0	02	1	1008-1410	●
622	TUBE; CORRUGATE (A) SERVICED BY L=2000 ID=10	1-87410-088-0	01	1	1411-	●
622	TUBE; CORRUGATE (B) SERVICED BY L=2000 ID=10	1-87411-019-0	02	1	1008-	●

595 578 578 599 578 578 621 443 195 552 444 621 427 548 594 391 346 443 353 218 353 443 488 158 578 427 218 427 427 598 374 553 578 593 552 59 191 578 548 381 192 444

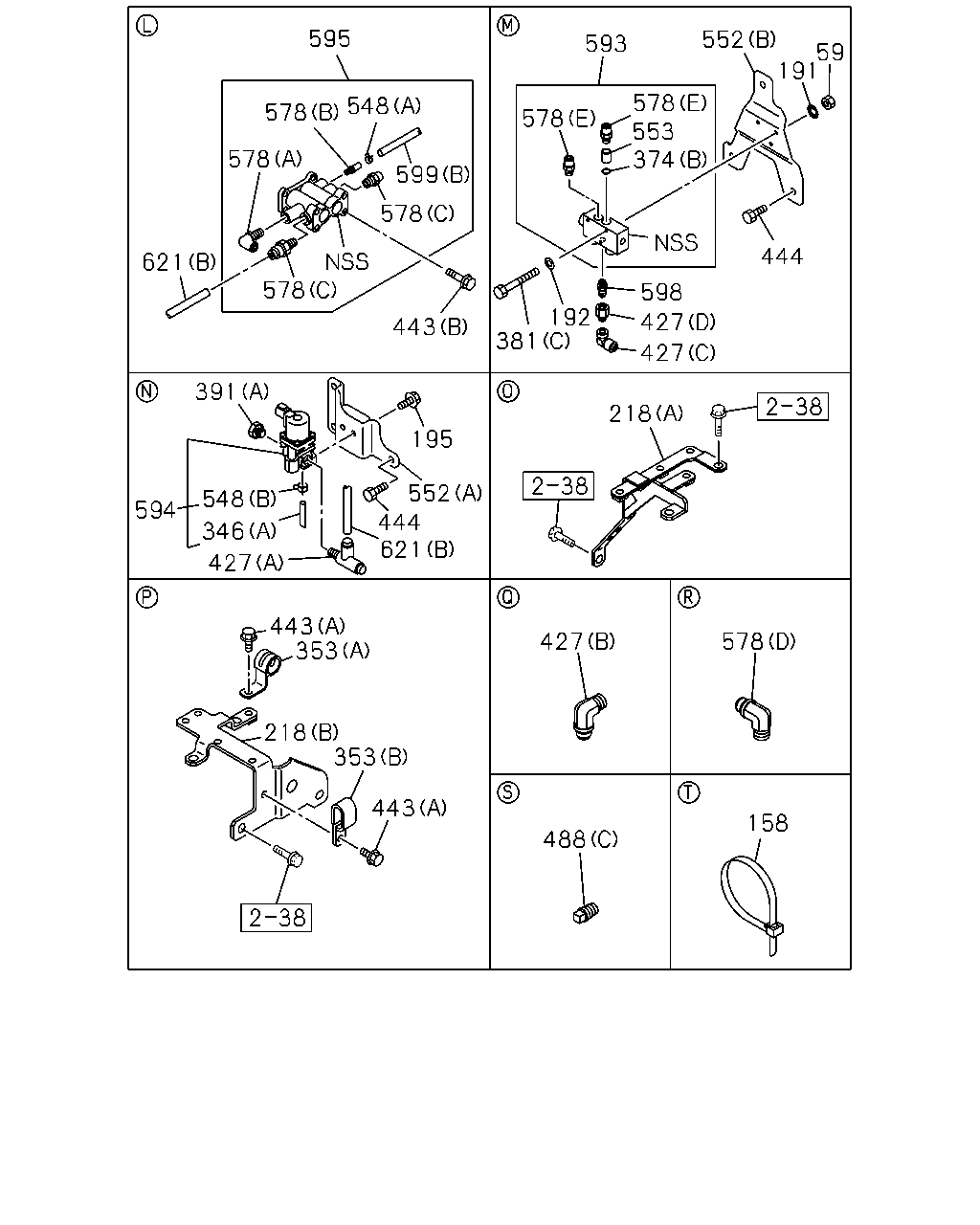

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
59	NUT M8 FLANGE	0-91180-108-0	02	1	1411-		●
59	NUT	1-09440-068-0	04	1	1008-		●
158	CLIP; HARNESS L=140	5-09707-031-1	02	1	1008-		●
191	WASHER; LK	1-09503-311-0	04	1	1008-		●
192	WASHER; PL ID=16.5	9-09857-042-0	01	1	1008-	●
192	WASHER; PL	1-09503-310-0	04	1	1008-		●
195	BOLT M10X25 FLANGE	0-28751-025-0	02	1	1008-	●
195	BOLT M8X16 FLANGE	0-28050-816-0	02	1	1008-		●
218	BRACKET; HARNESS CLIP,QUAD BOX (C)	1-82699-639-1	02	1	1008-1410	●
218	BRACKET; HARNESS CLIP,QUAD BOX (C)	8-98133-847-0	02	1	1411-	●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-82698-350-0	01	1	1008-		●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-82698-490-0	01	1	1008-1410		●
346	HOSE; AIR (A) ID=6 OD=9 L=150	1-33739-872-0	01	1	1402-1410		●
346	HOSE; AIR (A) ID=6 OD=9 L=150	1-33739-872-0	03	1	1411-		●
346	HOSE; AIR (B) L=450	1-09363-965-0	01	1	1411-		●
353	CLIP; AIR HOSE (D) ID=12 H=24 L=20	1-09700-605-0	01	1	1411-		●
353	CLIP; AIR HOSE (C) ID=33X16.5 L=50	5-09700-341-0	01	1	1411-		●
353	CLIP; AIR HOSE (A) ID=20 H=23 L=27	1-09700-861-0	01	1	1008-		●
353	CLIP; AIR HOSE (B) ID=16X2 L=40	9-09535-576-0	01	1	1008-		●
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). (A) ID=12.2	8-98251-344-0	02	1	1411-		●
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). (B)	1-09661-390-0	01	1	1008-		●
381	BOLT (A) M10X35 FLANGE	0-28751-035-0	01	1	1008-	●	●
381	BOLT (B) M10X34 FLANGE REAMER	1-09040-091-1	02	1	1008-	●	●
381	BOLT (C)	1-09044-111-0	04	1	1008-		●
391	PLUG; SW HOLE (B) M14X9	8-98042-944-0	02	1	1008-1410		●
391	PLUG; SW HOLE (A) M12X9	9-99202-312-0	01	1	1008-1304		●
391	PLUG; SW HOLE (A) M12X9	0-92002-412-0	01	1	1305-		●
427	CONNECTOR; NYLON TUBE (B) DIN8 & R1/4 ELBOW	1-09660-649-1	02	1	1008-		●
427	CONNECTOR; NYLON TUBE (C) DIN8 ELBOW	1-09660-924-1	01	1	1008-		●
427	CONNECTOR; NYLON TUBE (D) M12	1-09660-931-1	01	1	1008-		●
427	CONNECTOR; NYLON TUBE (A) DIN8X2 & R3/8 3WAY	1-09660-997-0	01	1	1008-		●
443	BOLT; CLIP (D) M8X20 FLANGE	0-28650-820-0	01	1	1411-		●
443	BOLT; CLIP (C) M10X25 FLANGE	0-28751-025-0	05	1	1411-		●
443	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	02	1	1008-		●
443	BOLT; CLIP (B) M8X90 FLANGE	0-28050-890-0	04	1	1008-		●
444	BOLT; CLIP M10X25 FLANGE	0-28751-025-0	06	1	1008-		●
488	PLUG; AIR CYL (B) M14X9	8-98042-944-0	02	1	1008-		●
488	PLUG; AIR CYL (A)	9-09204-510-0	01	1	1008-		●
488	PLUG; AIR CYL (C) PT1/4	9-99204-513-0	01	1	1008-		●
548	CLIP; HOSE (B) ID=7.8	8-94246-958-0	01	1	1008-		●
548	CLIP; HOSE (A)	1-33712-028-0	01	1	1008-		●
552	BRACKET (C)	8-98222-117-0	01	1	1411-		●
552	BRACKET (A)	1-33719-082-0	01	1	1008-		●
552	BRACKET (B)	1-33719-083-0	01	1	1008-		●
553	ADAPTER; AIR	1-09661-389-0	01	1	1008-		●
578	CONNECTOR (I) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	1411-		●
578	CONNECTOR (H) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1411-		●
578	CONNECTOR (F) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	1411-		●
578	CONNECTOR (G) R1/4 & RC1/4	1-09664-211-0	02	1	1411-		●
578	CONNECTOR (D) DIN8 & R1/4 ELBOW	1-09660-649-1	02	1	1008-		●
578	CONNECTOR (E)	1-09661-292-0	02	1	1008-		●
578	CONNECTOR (C)	1-33712-023-0	02	1	1008-		●
578	CONNECTOR (A)	1-33712-024-0	01	1	1008-		●
578	CONNECTOR (B)	1-33712-026-0	01	1	1008-		●
593	VALVE; SPLITTER	1-33712-009-0	01	1	1008-		●
594	VALVE; MAGNETIC,AIR	1-82564-069-0	01	1	1008-		●
595	VALVE; RANGE	1-33712-029-1	01	1	1008-		●
598	UNION M10 & M12 STRAIGHT	1-09664-235-0	01	1	1008-		●
599	TUBE; NYLON (A)	1-09377-036-1	01	1	1008-		●
599	TUBE; NYLON (B)	1-33712-027-0	01	1	1008-		●
621	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87410-073-0	02	1	1008-1410		●
621	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	1411-		●
621	TUBE; NYLON (B) SERVICED BY L=2000 OD=8	1-87411-006-0	03	1	1008-		●

595 548 578 578 621 578 578 599 443 381 427 427 598 374 553 578 578 552 593 191 59 444 218 578 488 427 408 578 622 621 621 622 158 340 340 338 594 346 427 548 444 621 552 195 391 192 353 443

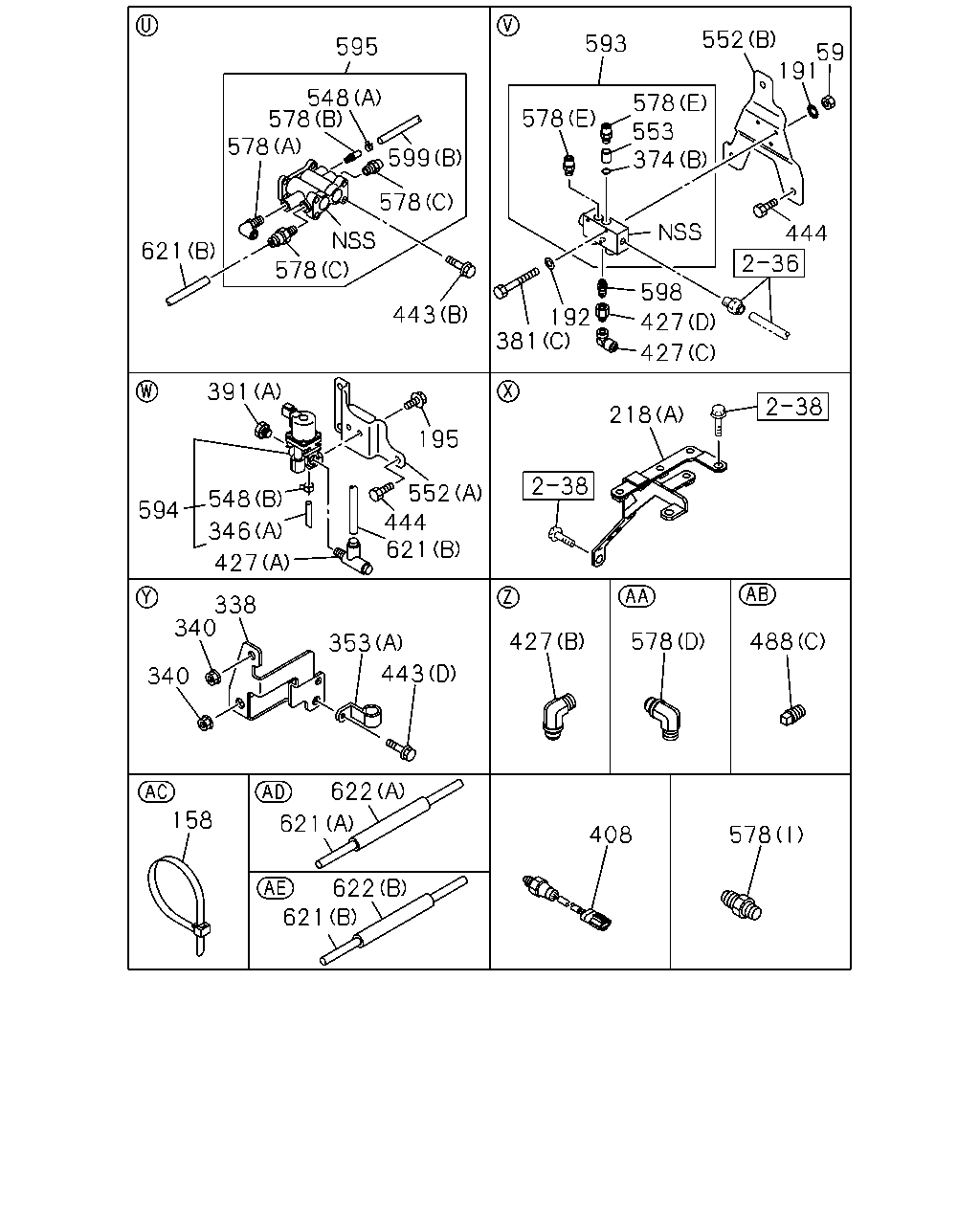

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
59	NUT M8 FLANGE	0-91180-108-0	02	1	1411-		●
59	NUT	1-09440-068-0	04	1	1008-		●
158	CLIP; HARNESS L=140	5-09707-031-1	02	1	1008-		●
191	WASHER; LK	1-09503-311-0	04	1	1008-		●
192	WASHER; PL ID=16.5	9-09857-042-0	01	1	1008-	●
192	WASHER; PL	1-09503-310-0	04	1	1008-		●
195	BOLT M10X25 FLANGE	0-28751-025-0	02	1	1008-	●
195	BOLT M8X16 FLANGE	0-28050-816-0	02	1	1008-		●
218	BRACKET; HARNESS CLIP,QUAD BOX (C)	1-82699-639-1	02	1	1008-1410	●
218	BRACKET; HARNESS CLIP,QUAD BOX (C)	8-98133-847-0	02	1	1411-	●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-82698-350-0	01	1	1008-		●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-82698-490-0	01	1	1008-1410		●
338	BRACKET; FLEX TUBE	8-98222-750-1	01	1	1411-		●
340	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1411-		●
346	HOSE; AIR (A) ID=6 OD=9 L=150	1-33739-872-0	01	1	1402-1410		●
346	HOSE; AIR (A) ID=6 OD=9 L=150	1-33739-872-0	03	1	1411-		●
346	HOSE; AIR (B) L=450	1-09363-965-0	01	1	1411-		●
353	CLIP; AIR HOSE (D) ID=12 H=24 L=20	1-09700-605-0	01	1	1411-		●
353	CLIP; AIR HOSE (C) ID=33X16.5 L=50	5-09700-341-0	01	1	1411-		●
353	CLIP; AIR HOSE (A) ID=20 H=23 L=27	1-09700-861-0	01	1	1008-		●
353	CLIP; AIR HOSE (B) ID=16X2 L=40	9-09535-576-0	01	1	1008-		●
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). (A) ID=12.2	8-98251-344-0	02	1	1411-		●
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). (B)	1-09661-390-0	01	1	1008-		●
381	BOLT (A) M10X35 FLANGE	0-28751-035-0	01	1	1008-	●	●
381	BOLT (B) M10X34 FLANGE REAMER	1-09040-091-1	02	1	1008-	●	●
381	BOLT (C)	1-09044-111-0	04	1	1008-		●
391	PLUG; SW HOLE (B) M14X9	8-98042-944-0	02	1	1008-1410		●
391	PLUG; SW HOLE (A) M12X9	9-99202-312-0	01	1	1008-1304		●
391	PLUG; SW HOLE (A) M12X9	0-92002-412-0	01	1	1305-		●
408	SWITCH; SELECT,4TH 5TH	8-98228-507-0	01	1	1411-		●
427	CONNECTOR; NYLON TUBE (B) DIN8 & R1/4 ELBOW	1-09660-649-1	02	1	1008-		●
427	CONNECTOR; NYLON TUBE (C) DIN8 ELBOW	1-09660-924-1	01	1	1008-		●
427	CONNECTOR; NYLON TUBE (D) M12	1-09660-931-1	01	1	1008-		●
427	CONNECTOR; NYLON TUBE (A) DIN8X2 & R3/8 3WAY	1-09660-997-0	01	1	1008-		●
443	BOLT; CLIP (D) M8X20 FLANGE	0-28650-820-0	01	1	1411-		●
443	BOLT; CLIP (C) M10X25 FLANGE	0-28751-025-0	05	1	1411-		●
443	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	02	1	1008-		●
443	BOLT; CLIP (B) M8X90 FLANGE	0-28050-890-0	04	1	1008-		●
444	BOLT; CLIP M10X25 FLANGE	0-28751-025-0	06	1	1008-		●

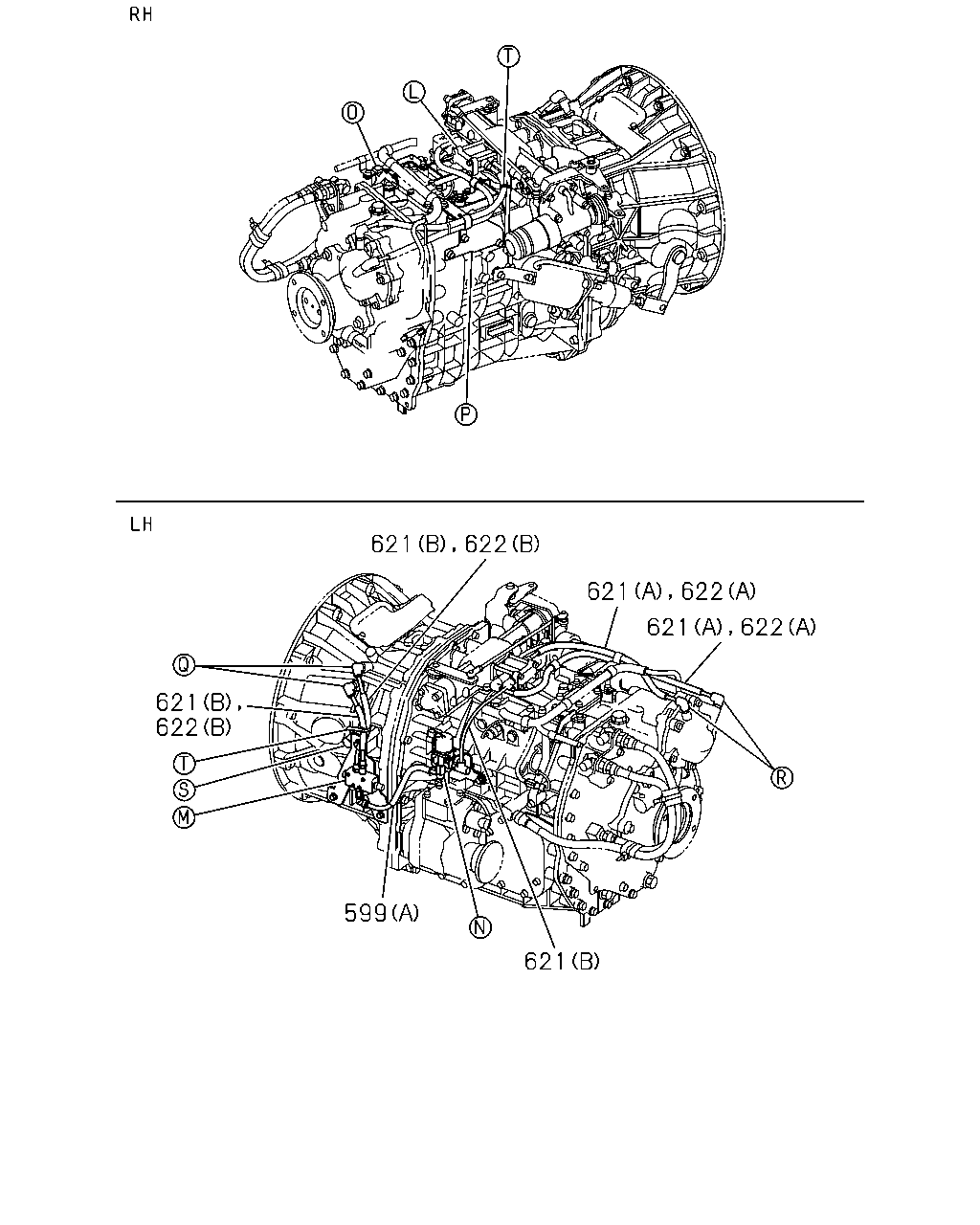

488	PLUG; AIR CYL (B) M14X9	8-98042-944-0	02	1	1008-		●
488	PLUG; AIR CYL (A)	9-09204-510-0	01	1	1008-		●
488	PLUG; AIR CYL (C) PT1/4	9-99204-513-0	01	1	1008-		●
548	CLIP; HOSE (B) ID=7.8	8-94246-958-0	01	1	1008-		●
548	CLIP; HOSE (A)	1-33712-028-0	01	1	1008-		●
552	BRACKET (C)	8-98222-117-0	01	1	1411-		●
552	BRACKET (A)	1-33719-082-0	01	1	1008-		●
552	BRACKET (B)	1-33719-083-0	01	1	1008-		●
553	ADAPTER; AIR	1-09661-389-0	01	1	1008-		●
578	CONNECTOR (I) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	1411-		●
578	CONNECTOR (H) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1411-		●
578	CONNECTOR (F) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	1411-		●
578	CONNECTOR (G) R1/4 & RC1/4	1-09664-211-0	02	1	1411-		●
578	CONNECTOR (D) DIN8 & R1/4 ELBOW	1-09660-649-1	02	1	1008-		●
578	CONNECTOR (E)	1-09661-292-0	02	1	1008-		●
578	CONNECTOR (C)	1-33712-023-0	02	1	1008-		●
578	CONNECTOR (A)	1-33712-024-0	01	1	1008-		●
578	CONNECTOR (B)	1-33712-026-0	01	1	1008-		●
593	VALVE; SPLITTER	1-33712-009-0	01	1	1008-		●
594	VALVE; MAGNETIC,AIR	1-82564-069-0	01	1	1008-		●
595	VALVE; RANGE	1-33712-029-1	01	1	1008-		●
598	UNION M10 & M12 STRAIGHT	1-09664-235-0	01	1	1008-		●
599	TUBE; NYLON (A)	1-09377-036-1	01	1	1008-		●
599	TUBE; NYLON (B)	1-33712-027-0	01	1	1008-		●
621	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87410-073-0	02	1	1008-1410		●
621	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	1411-		●
621	TUBE; NYLON (B) SERVICED BY L=2000 OD=8	1-87411-006-0	03	1	1008-		●
622	TUBE; CORRUGATE (A) SERVICED BY L=2000 ID=10	1-87410-088-0	02	1	1008-1410		●
622	TUBE; CORRUGATE (A) SERVICED BY L=2000 ID=10	1-87410-088-0	01	1	1411-		●
622	TUBE; CORRUGATE (B) SERVICED BY L=2000 ID=10	1-87411-019-0	02	1	1008-		●

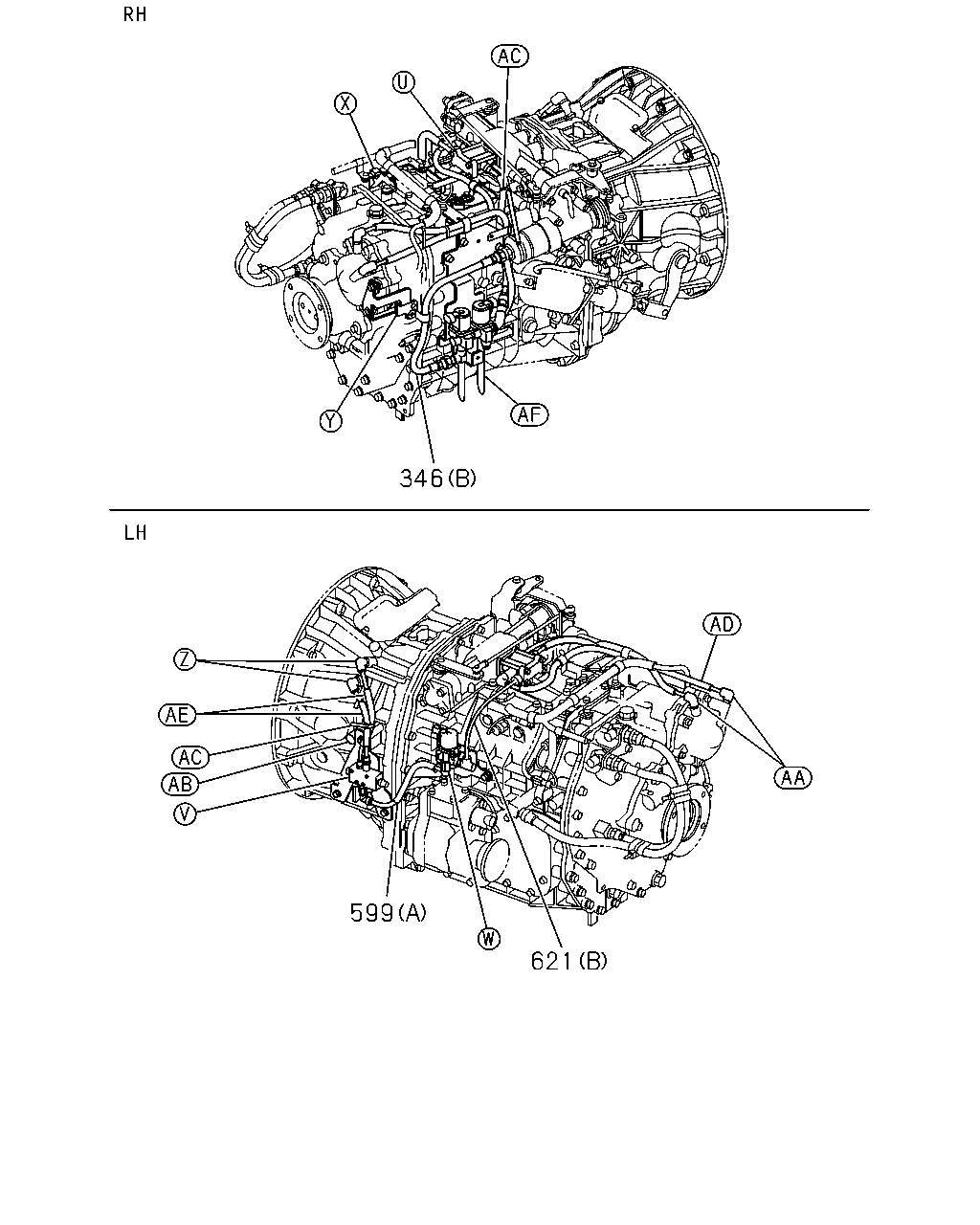

346 599 621

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B
346	HOSE; AIR (A) ID=6 OD=9 L=150	1-33739-872-0	01	1	1402-1410	●
346	HOSE; AIR (A) ID=6 OD=9 L=150	1-33739-872-0	03	1	1411-	●
346	HOSE; AIR (B) L=450	1-09363-965-0	01	1	1411-	●
599	TUBE; NYLON (A)	1-09377-036-1	01	1	1008-	●
599	TUBE; NYLON (B)	1-33712-027-0	01	1	1008-	●
621	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87410-073-0	02	1	1008-1410	●
621	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	1411-	●
621	TUBE; NYLON (B) SERVICED BY L=2000 OD=8	1-87411-006-0	03	1	1008-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
