Sayfa 2-20 - Isuzu EPC

2-20 — MANUAL TRANSMISSION ASM AND CASE (#62594) — 252 parça

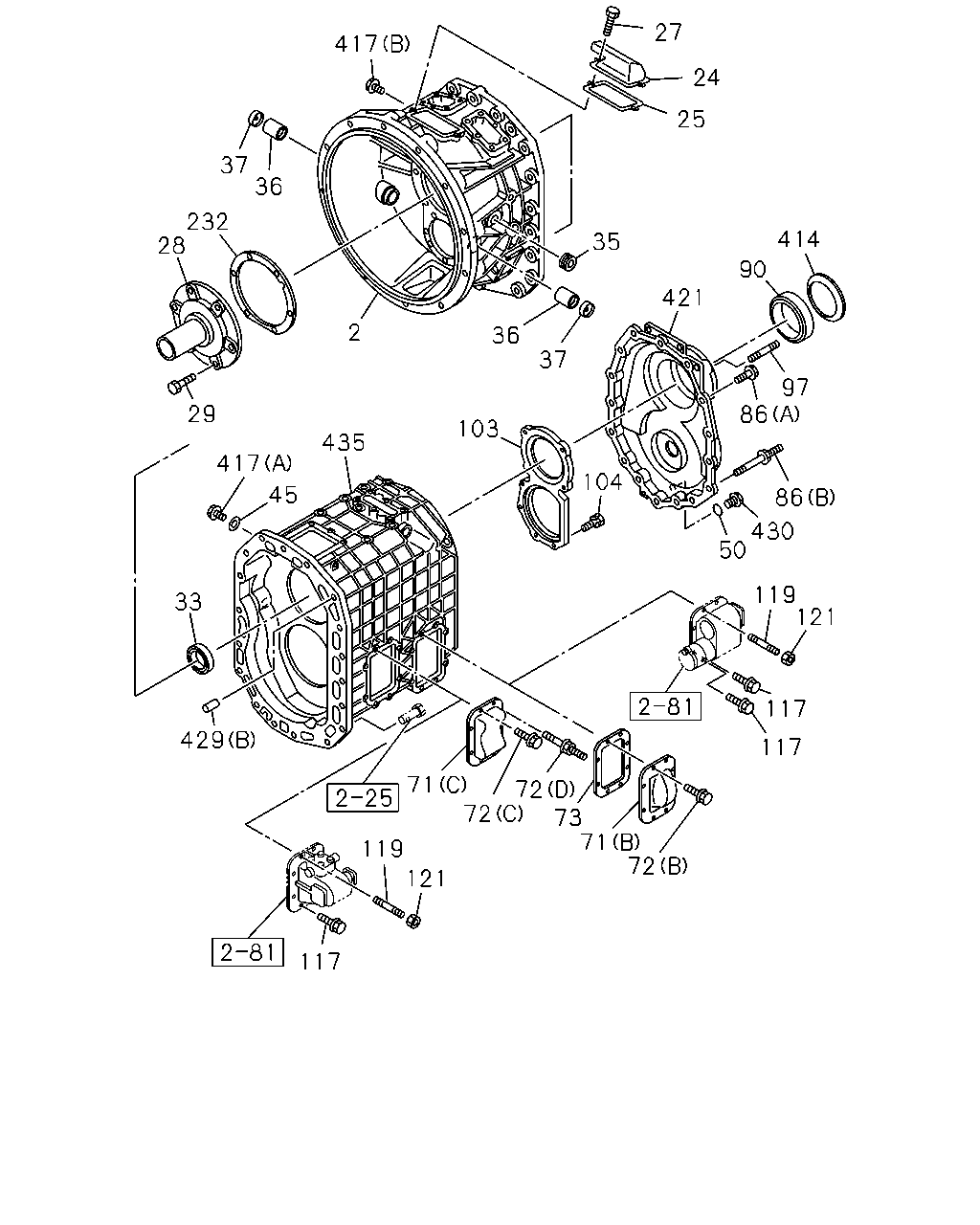

417 27 24 25 414 90 421 35 37 36 36 37 232 28 2 29 435 103 417 33 45 429 104 86 97 86 430 50 119 121 117 117 72 71 73 72 72 71 121 119 117

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	HOUSING; CLU	8-98077-166-1	01	1	1008-1405	●
2	HOUSING; CLU	8-98200-947-0	01	1	1406-	●
2	HOUSING; CLU	8-98168-737-0	01	1	1008-		●
24	COVER; CHECK HOLE,DUST	1-31131-037-0	01	1	1008-	●	●
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	1-31139-008-0	01	1	1008-1406	●	●
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	8-98283-291-0	01	1	1407-	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28050-812-0	04	1	1008-	●	●
28	COVER; FRT,TRANS CASE	1-33121-158-3	01	1	1008-	●
28	COVER; FRT,TRANS CASE	1-33121-153-0	01	1	1008-		●
29	BOLT; FRT COVER M10X40 FLANGE	0-28161-040-0	06	1	1008-1211	●	●
29	BOLT; FRT COVER M10X40 FLANGE	8-98230-249-0	06	1	1212-	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-562-0	01	1	1008-	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-624-0	01	1	1008-		●
35	GROMMET; CLU HSG OD=45	9-31139-007-0	01	1	1008-	●
35	GROMMET; CLU HSG OD=31	9-09575-796-0	01	1	1008-		●
36	BEARING; NEEDLE,CLU HSG	1-09811-087-0	02	1	1008-	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-003-0	02	1	1008-	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	1008-	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	1008-	●
71	COVER; SIDE,TRANS CASE (A)	1-33141-058-0	01	1	1008-	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	1-33141-044-1	01	1	1008-	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C)	1-33141-057-1	01	1	1008-	●	●
71	COVER; SIDE,TRANS CASE (D)	1-33141-066-0	01	1	1008-1410		●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (D)	1-33141-066-0	01	1	1411-		●
72	BOLT; SIDE COVER (A) M10X30 FLANGE	0-28151-030-0	04	1	1008-	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C) M12X40 FLANGE	0-28151-240-0	07	1	1008-	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (D) M10X16,M12X40 L=67.7	1-09029-082-0	01	1	1008-	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M12X30 FLANGE	0-28751-230-0	08	1	1008-	●
72	BOLT; SIDE COVER (E) M10X35 FLANGE	0-28751-035-0	08	1	1008-1410		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (E) M10X35 FLANGE	0-28751-035-0	08	1	1411-		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (F) M12X30 FLANGE	1-09044-086-0	08	1	1008-		●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33142-041-0	01	1	1008-	●
86	BOLT; RR COVER (A) M12X40 FLANGE	0-28151-240-0	14	1	1008-	●
86	BOLT; RR COVER (B) M10X16,M12X40 L=67.7	1-09029-082-0	02	1	1008-	●
86	BOLT; RR COVER (C) M17X35	1-09044-076-0	06	1	1008-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-577-1	01	1	1008-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-625-0	01	1	1008-		●
97	STUD; PARKING BRK M16X41 L=62	1-09302-151-0	01	1	1008-	●
103	RETAINER; BRG	1-33151-059-0	01	1	1008-	●
103	RETAINER; BRG	1-33151-061-0	01	1	1008-		●
104	BOLT; BRG RET M10X38 FLANGE	1-09049-029-1	08	1	1008-	●	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO HEAVY DUTY(B4P) M10X28 FLANGE	8-98044-944-0	02	1	1411-		●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M12X40 FLANGE	0-28151-240-0	04	1	1008-1111	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M12X45 FLANGE	0-28151-245-0	04	1	1112-	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X35 FLANGE	0-28151-235-0	02	1	1008-	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X130 FLANGE	0-28166-213-0	02	1	1008-	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M12X35 FLANGE	0-28751-235-0	04	1	1008-		●
119	STUD; PTO FIX TRANSMISSION SIDE PTO HEAVY DUTY(B4P) M10X25 L=40	0-44011-025-0	06	1	1411-		●
119	STUD; PTO FIX TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M12X35 L=63	1-09302-178-0	04	1	1008-	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X25 L=43	0-44011-225-0	04	1	1008-	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M12X30 L=48	8-98059-951-0	04	1	1008-		●
121	NUT; PTO FIX TRANSMISSION SIDE PTO HEAVY DUTY(B4P) M10 FLANGE	0-91180-210-0	06	1	1411-		●
121	NUT; PTO FIX TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 FLANGE	0-91180-212-0	04	1	1008-	●	●
232	GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33142-051-1	01	1	1008-	●	●
414	COVER; DUST,RR COVER	1-33139-011-1	01	1	1008-1211	●
417	PLUG; OIL FILLER,TRANS (A) M24X17 FLANGE	1-09604-022-0	01	1	1008-	●	●
417	PLUG; OIL FILLER,TRANS (B) M22X12	1-09604-035-0	01	1	1008-	●	●
421	COVER; RR,TRANS	8-98077-636-0	01	1	1008-1110	●
421	COVER; RR,TRANS	8-98191-936-1	01	1	1111-1502	●
421	COVER; RR,TRANS	8-98304-558-0	01	1	1503-	●
421	COVER; RR,TRANS	1-33131-238-0	01	1	1008-		●
429	PIN; STRAIGHT (B) OD=10 L=18	9-08151-018-0	06	1	1008-	●	●
429	PIN; STRAIGHT (A) OD=12 L=32	9-08161-232-0	01	1	1008-		●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	1008-	●
435	CASE; TRANS	8-98132-970-0	01	1	1008-	●
435	CASE; TRANS	1-33111-361-1	01	1	1008-		●

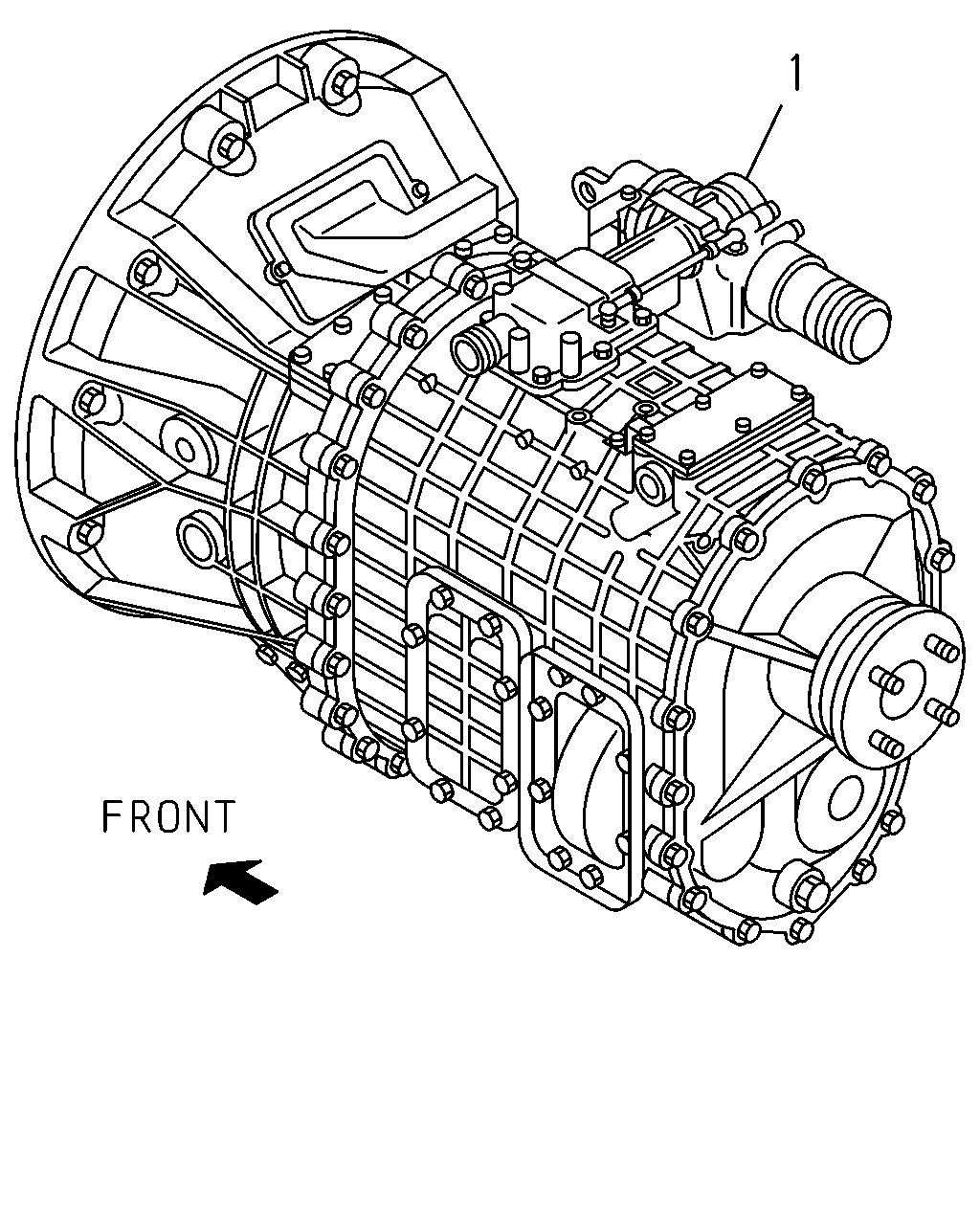

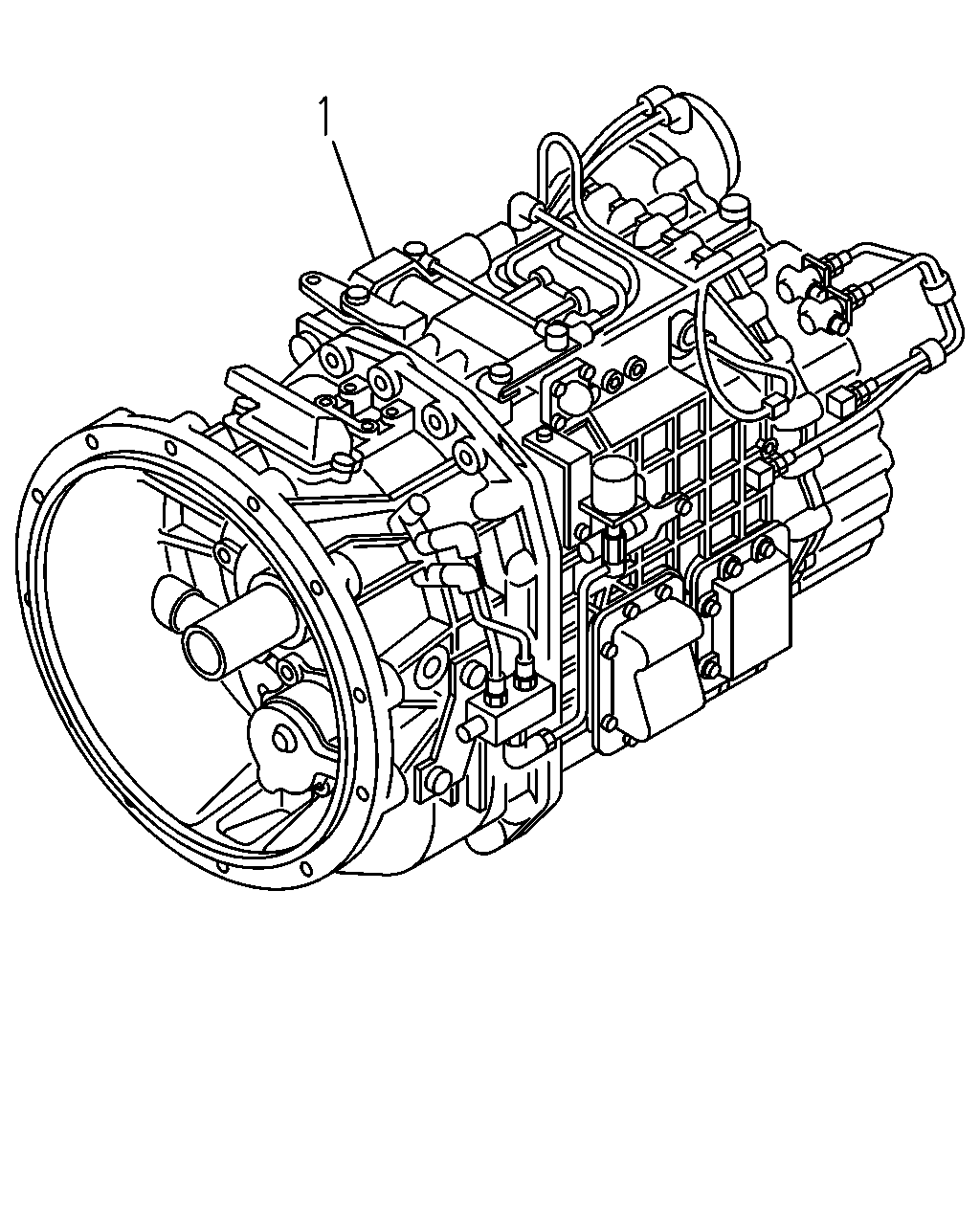

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P)	1-33044-615-0	01	1	1411-		●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-33043-967-0	01	1	1008-1410	●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-33044-653-0	01	1	1411-	●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33043-967-0	01	1	1008-1410	●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33044-653-0	01	1	1411-	●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33043-967-0	01	1	1008-1410	●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33044-653-0	01	1	1411-	●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-33043-987-0	01	1	1008-1410		●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-33044-615-0	01	1	1411-		●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-33043-987-0	01	1	1008-1410		●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO HEAVY DUTY(B4P)	1-33044-615-0	01	1	1411-		●

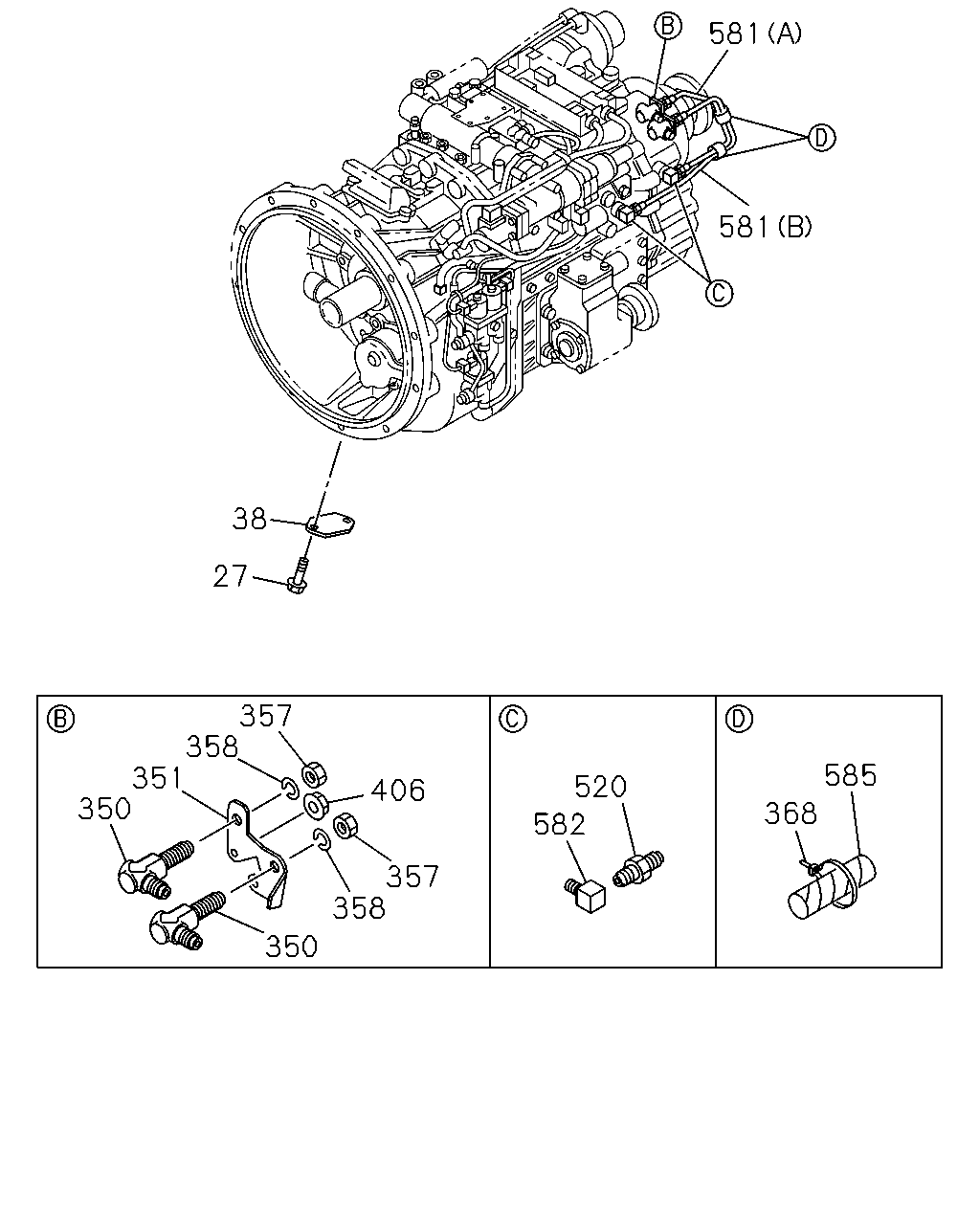

581 581 38 27 357 358 351 406 350 350 358 357 582 520 368 585

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28050-812-0	04	1	1008-	●	●
38	COVER; CHECK HOLE,LWR	1-31131-003-0	01	1	1008-	●	●
350	UNION; FLEX HOSE,BRKT	1-09664-257-0	02	1	1008-1410		●
351	BRACKET; UNION,FLEX HOSE	1-46147-308-1	01	1	1008-1410		●
357	NUT; UNION,FLEX HOSE M22	0-91111-522-0	02	1	1008-1410		●
358	WASHER; LK,UNION ID=22.5	0-91510-522-0	02	1	1008-1410		●
368	CLIP; BAND,CABLE L=250	1-09707-126-0	02	1	1008-1410		●
368	CLIP; BAND,CABLE L=250	1-09707-126-0	01	1	1411-		●
406	NUT; BRKT M10 FLANGE	0-91180-110-0	02	1	1008-		●
520	CONNECTOR R1/4 & M20	0-92306-010-0	02	1	1008-1410		●
520	CONNECTOR R1/4 & M16	0-92306-008-0	02	1	1411-		●
581	HOSE; OIL COOLER (A) L=520	1-09365-144-0	01	1	1008-1410		●
581	HOSE; OIL COOLER (C) L=360	1-09365-234-0	02	1	1411-		●
581	HOSE; OIL COOLER (B) L=650	1-09365-145-0	01	1	1008-1410		●
582	NIPPLE; ELBOW R1/4 & RC1/4 ELBOW	1-09660-501-0	02	1	1008-1410		●
582	NIPPLE; ELBOW R3/8 & M22 ELBOW	1-09660-612-1	02	1	1411-		●
585	BAND; FLEX HOSE L=175	1-09707-178-0	02	1	1008-1410		●
585	BAND; FLEX HOSE L=175	1-09707-178-0	01	1	1411-		●

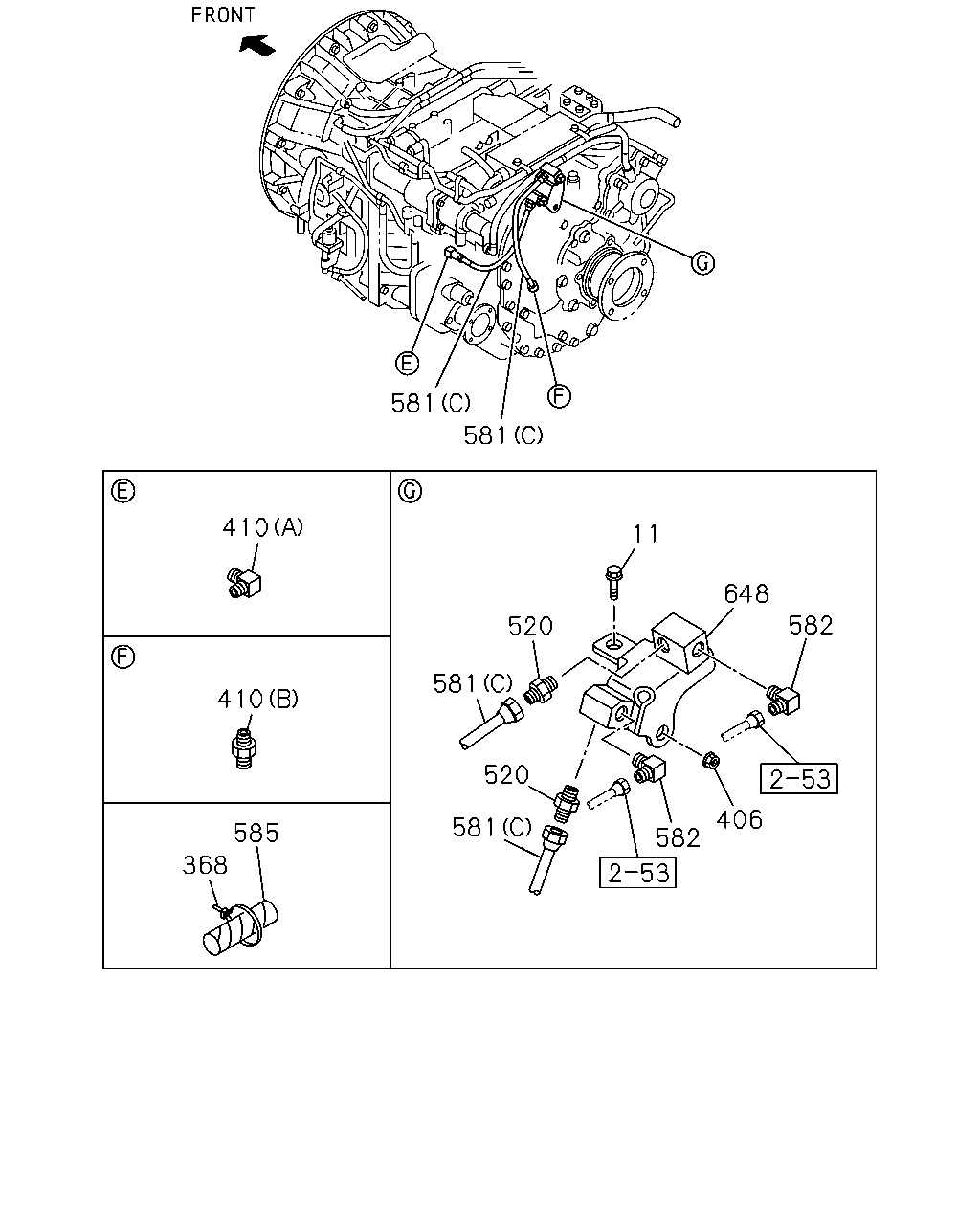

581 581 410 410 585 368 581 520 11 648 582 406 582 520 581

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	BOLT; BRKT M10X25 FLANGE	0-28751-025-0	01	1	1411-		●
368	CLIP; BAND,CABLE L=250	1-09707-126-0	02	1	1008-1410		●
368	CLIP; BAND,CABLE L=250	1-09707-126-0	01	1	1411-		●
406	NUT; BRKT M10 FLANGE	0-91180-110-0	02	1	1008-		●
410	UNION; OIL PIPE (B) R1/4 & M16	0-92306-008-0	01	1	1411-		●
410	UNION; OIL PIPE (A) R1/4 & M16 ELBOW	1-09660-800-1	01	1	1411-		●
410	UNION; OIL PIPE (A) R1/4 & M16 ELBOW	1-09660-800-1	02	1	1008-	●
520	CONNECTOR R1/4 & M20	0-92306-010-0	02	1	1008-1410		●
520	CONNECTOR R1/4 & M16	0-92306-008-0	02	1	1411-		●
581	HOSE; OIL COOLER (A) L=520	1-09365-144-0	01	1	1008-1410		●
581	HOSE; OIL COOLER (C) L=360	1-09365-234-0	02	1	1411-		●
581	HOSE; OIL COOLER (B) L=650	1-09365-145-0	01	1	1008-1410		●
582	NIPPLE; ELBOW R1/4 & RC1/4 ELBOW	1-09660-501-0	02	1	1008-1410		●
582	NIPPLE; ELBOW R3/8 & M22 ELBOW	1-09660-612-1	02	1	1411-		●
585	BAND; FLEX HOSE L=175	1-09707-178-0	02	1	1008-1410		●
585	BAND; FLEX HOSE L=175	1-09707-178-0	01	1	1411-		●
648	UNION ASM	8-98131-605-2	01	1	1411-		●

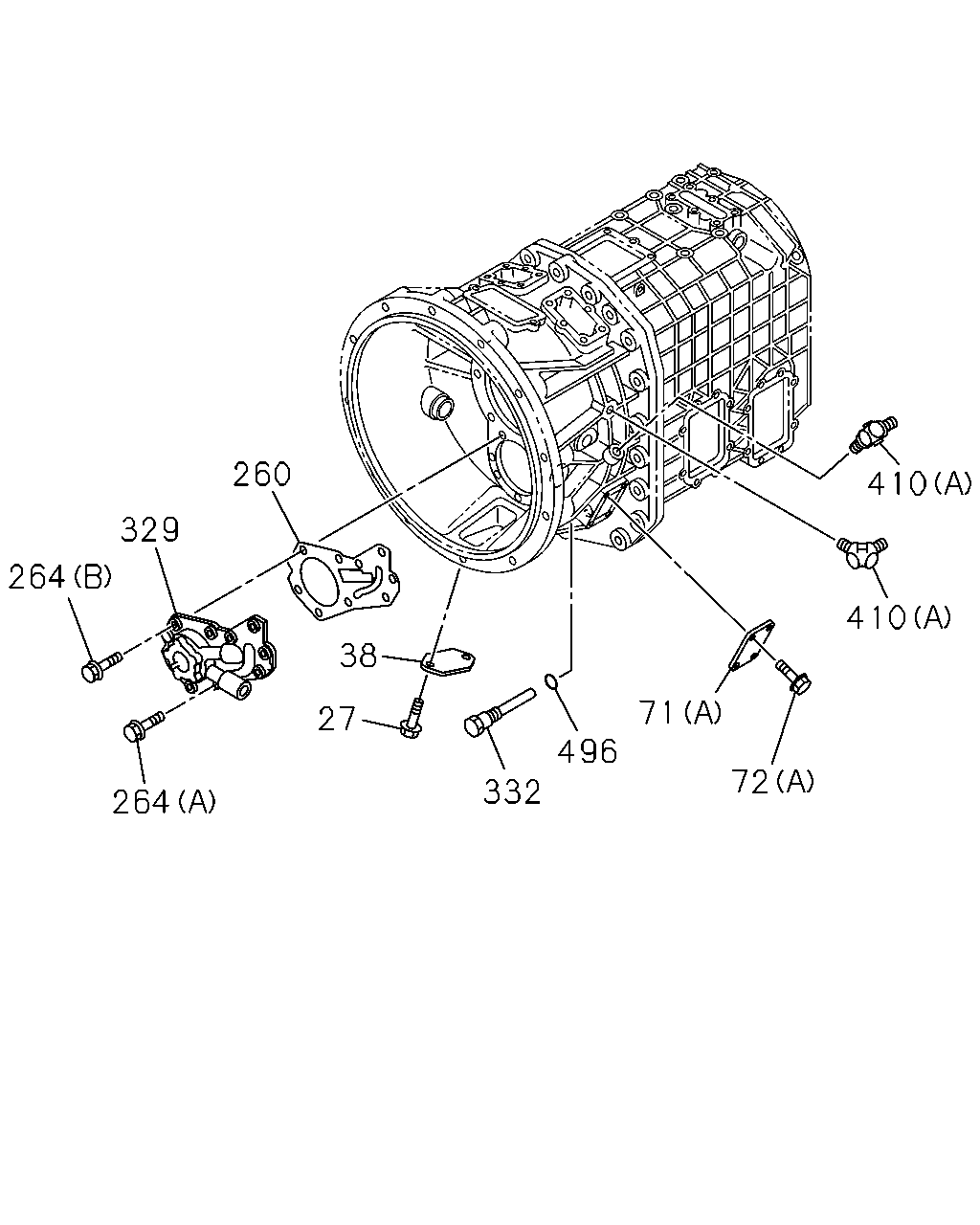

264 329 260 38 27 264 332 496 72 71 410 410

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28050-812-0	04	1	1008-	●	●
38	COVER; CHECK HOLE,LWR	1-31131-003-0	01	1	1008-	●	●
71	COVER; SIDE,TRANS CASE (A)	1-33141-058-0	01	1	1008-	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	1-33141-044-1	01	1	1008-	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C)	1-33141-057-1	01	1	1008-	●	●
71	COVER; SIDE,TRANS CASE (D)	1-33141-066-0	01	1	1008-1410		●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (D)	1-33141-066-0	01	1	1411-		●
72	BOLT; SIDE COVER (A) M10X30 FLANGE	0-28151-030-0	04	1	1008-	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C) M12X40 FLANGE	0-28151-240-0	07	1	1008-	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (D) M10X16,M12X40 L=67.7	1-09029-082-0	01	1	1008-	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M12X30 FLANGE	0-28751-230-0	08	1	1008-	●
72	BOLT; SIDE COVER (E) M10X35 FLANGE	0-28751-035-0	08	1	1008-1410		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (E) M10X35 FLANGE	0-28751-035-0	08	1	1411-		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (F) M12X30 FLANGE	1-09044-086-0	08	1	1008-		●
260	GASKET; OIL PUMP	1-34142-031-0	01	1	1008-	●
264	BOLT; OIL PUMP (B) M10X40 FLANGE	0-28151-040-0	09	1	1008-1211	●
264	BOLT; OIL PUMP (B) M10X40 FLANGE	8-98230-249-0	09	1	1212-	●
264	BOLT; OIL PUMP (A) M10X70 FLANGE	0-28151-070-0	01	1	1008-	●
264	BOLT; OIL PUMP (C) M8X65	0-10805-865-0	02	1	1008-		●
264	BOLT; OIL PUMP (C) M8X50	0-10855-850-0	02	1	1008-		●
329	PUMP ASM; OIL	1-34150-112-0	01	1	1008-	●
329	PUMP ASM; OIL	1-34150-117-0	01	1	1008-1408		●
329	PUMP ASM; OIL	8-98283-996-0	01	1	1409-		●
332	FILTER; OIL	1-34159-050-1	01	1	1008-	●
410	UNION; OIL PIPE (B) R1/4 & M16	0-92306-008-0	01	1	1411-		●
410	UNION; OIL PIPE (A) R1/4 & M16 ELBOW	1-09660-800-1	01	1	1411-		●
410	UNION; OIL PIPE (A) R1/4 & M16 ELBOW	1-09660-800-1	02	1	1008-	●
496	GASKET; OIL FILTER ID=24.2	1-09630-090-0	01	1	1008-	●

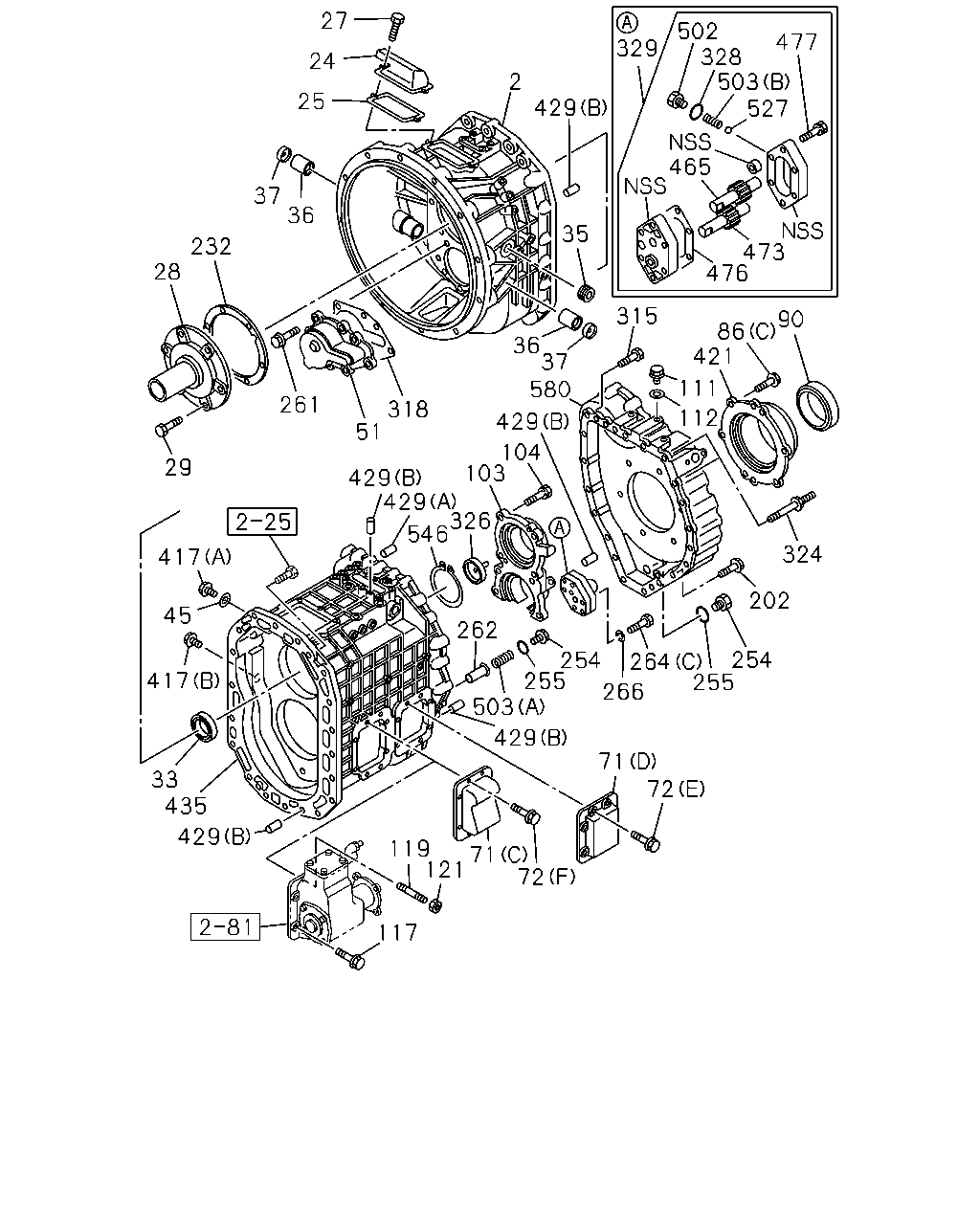

329 502 328 477 503 527 465 476 473 429 2 27 24 25 37 36 232 28 29 261 318 51 36 35 315 86 90 421 111 112 37 580 429 324 202 254 255 264 266 71 72 72 71 117 121 119 429 435 33 417 45 417 429 429 546 326 262 503 429 255 254 103 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	HOUSING; CLU	8-98077-166-1	01	1	1008-1405	●
2	HOUSING; CLU	8-98200-947-0	01	1	1406-	●
2	HOUSING; CLU	8-98168-737-0	01	1	1008-		●
24	COVER; CHECK HOLE,DUST	1-31131-037-0	01	1	1008-	●	●
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	1-31139-008-0	01	1	1008-1406	●	●
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	8-98283-291-0	01	1	1407-	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28050-812-0	04	1	1008-	●	●
28	COVER; FRT,TRANS CASE	1-33121-158-3	01	1	1008-	●
28	COVER; FRT,TRANS CASE	1-33121-153-0	01	1	1008-		●
29	BOLT; FRT COVER M10X40 FLANGE	0-28161-040-0	06	1	1008-1211	●	●
29	BOLT; FRT COVER M10X40 FLANGE	8-98230-249-0	06	1	1212-	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-562-0	01	1	1008-	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-624-0	01	1	1008-		●
35	GROMMET; CLU HSG OD=45	9-31139-007-0	01	1	1008-	●
35	GROMMET; CLU HSG OD=31	9-09575-796-0	01	1	1008-		●
36	BEARING; NEEDLE,CLU HSG	1-09811-087-0	02	1	1008-	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-003-0	02	1	1008-	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	1008-	●	●
51	COVER; SEAL,COUNTER,FRT	1-33319-200-1	01	1	1008-		●
71	COVER; SIDE,TRANS CASE (A)	1-33141-058-0	01	1	1008-	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	1-33141-044-1	01	1	1008-	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C)	1-33141-057-1	01	1	1008-	●	●
71	COVER; SIDE,TRANS CASE (D)	1-33141-066-0	01	1	1008-1410		●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (D)	1-33141-066-0	01	1	1411-		●
72	BOLT; SIDE COVER (A) M10X30 FLANGE	0-28151-030-0	04	1	1008-	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C) M12X40 FLANGE	0-28151-240-0	07	1	1008-	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (D) M10X16,M12X40 L=67.7	1-09029-082-0	01	1	1008-	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M12X30 FLANGE	0-28751-230-0	08	1	1008-	●
72	BOLT; SIDE COVER (E) M10X35 FLANGE	0-28751-035-0	08	1	1008-1410		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (E) M10X35 FLANGE	0-28751-035-0	08	1	1411-		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (F) M12X30 FLANGE	1-09044-086-0	08	1	1008-		●
86	BOLT; RR COVER (A) M12X40 FLANGE	0-28151-240-0	14	1	1008-	●
86	BOLT; RR COVER (B) M10X16,M12X40 L=67.7	1-09029-082-0	02	1	1008-	●
86	BOLT; RR COVER (C) M17X35	1-09044-076-0	06	1	1008-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-577-1	01	1	1008-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-625-0	01	1	1008-		●
103	RETAINER; BRG	1-33151-059-0	01	1	1008-	●
103	RETAINER; BRG	1-33151-061-0	01	1	1008-		●
104	BOLT; BRG RET M10X38 FLANGE	1-09049-029-1	08	1	1008-	●	●
111	PLUG; DRAIN FILLER M24X17 FLANGE	1-09604-022-0	01	1	1008-		●
112	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	1008-		●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO HEAVY DUTY(B4P) M10X28 FLANGE	8-98044-944-0	02	1	1411-		●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M12X40 FLANGE	0-28151-240-0	04	1	1008-1111	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M12X45 FLANGE	0-28151-245-0	04	1	1112-	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X35 FLANGE	0-28151-235-0	02	1	1008-	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X130 FLANGE	0-28166-213-0	02	1	1008-	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M12X35 FLANGE	0-28751-235-0	04	1	1008-		●
119	STUD; PTO FIX TRANSMISSION SIDE PTO HEAVY DUTY(B4P) M10X25 L=40	0-44011-025-0	06	1	1411-		●
119	STUD; PTO FIX TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M12X35 L=63	1-09302-178-0	04	1	1008-	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X25 L=43	0-44011-225-0	04	1	1008-	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M12X30 L=48	8-98059-951-0	04	1	1008-		●
121	NUT; PTO FIX TRANSMISSION SIDE PTO HEAVY DUTY(B4P) M10 FLANGE	0-91180-210-0	06	1	1411-		●
121	NUT; PTO FIX TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 FLANGE	0-91180-212-0	04	1	1008-	●	●
202	BOLT; PLATE M12X35 FLANGE	0-28751-235-0	09	1	1008-		●
232	GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33142-051-1	01	1	1008-	●	●
254	PLUG; DRAIN,OIL M24X17 FLANGE	1-09604-023-0	02	1	1008-		●
255	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	02	1	1008-		●
261	BOLT; COVER M10X30 FLANGE	0-28151-030-0	07	1	1008-		●
262	STRAINER; OIL PUMP	1-41383-003-0	01	1	1008-		●
264	BOLT; OIL PUMP (B) M10X40 FLANGE	0-28151-040-0	09	1	1008-1211	●
264	BOLT; OIL PUMP (B) M10X40 FLANGE	8-98230-249-0	09	1	1212-	●
264	BOLT; OIL PUMP (A) M10X70 FLANGE	0-28151-070-0	01	1	1008-	●
264	BOLT; OIL PUMP (C) M8X65	0-10805-865-0	02	1	1008-		●
264	BOLT; OIL PUMP (C) M8X50	0-10855-850-0	02	1	1008-		●
266	WASHER; LK ID=8.2	0-91510-508-0	04	1	1008-		●
315	BOLT; CASE M12X50 FLANGE	0-28151-250-0	11	1	1008-		●
315	BOLT; CASE M12X110 FLANGE	0-28156-211-0	05	1	1008-		●
315	BOLT; CASE M12X35 FLANGE	0-28751-235-0	02	1	1008-		●
318	GASKET; COVER	1-34142-034-0	01	1	1008-		●
324	STUD; RR COVER M10X18,M12X110 L=139.5	1-09049-033-1	02	1	1008-		●
326	NOZZLE; OIL,OUTLET	1-33219-272-0	01	1	1008-		●
328	GASKET; PLUG	1-34159-100-0	01	1	1008-		●
329	PUMP ASM; OIL	1-34150-112-0	01	1	1008-	●
329	PUMP ASM; OIL	1-34150-117-0	01	1	1008-1408		●
329	PUMP ASM; OIL	8-98283-996-0	01	1	1409-		●
417	PLUG; OIL FILLER,TRANS (A) M24X17 FLANGE	1-09604-022-0	01	1	1008-	●	●
417	PLUG; OIL FILLER,TRANS (B) M22X12	1-09604-035-0	01	1	1008-	●	●
421	COVER; RR,TRANS	8-98077-636-0	01	1	1008-1110	●
421	COVER; RR,TRANS	8-98191-936-1	01	1	1111-1502	●
421	COVER; RR,TRANS	8-98304-558-0	01	1	1503-	●
421	COVER; RR,TRANS	1-33131-238-0	01	1	1008-		●
429	PIN; STRAIGHT (B) OD=10 L=18	9-08151-018-0	06	1	1008-	●	●
429	PIN; STRAIGHT (A) OD=12 L=32	9-08161-232-0	01	1	1008-		●
435	CASE; TRANS	8-98132-970-0	01	1	1008-	●
435	CASE; TRANS	1-33111-361-1	01	1	1008-		●
465	GEAR; IDLE,OIL PUMP	1-34151-013-0	01	1	1008-1408		●
473	GEAR; OUTPUT,OIL PUMP	1-34151-012-0	01	1	1008-1408		●
476	GASKET; COVER,OIL PUMP	1-34159-099-0	01	1	1008-		●
477	BOLT; OIL PUMP M8X32 W/LK WASHER	9-01900-832-0	02	1	1008-1408		●
502	PLUG; OIL PUMP	1-34159-101-0	01	1	1008-		●
503	SPRING; OIL PUMP (A)	1-09580-504-0	01	1	1008-		●
503	SPRING; OIL PUMP (B)	1-34159-102-0	01	1	1008-		●
527	BALL; OIL PUMP	9-00097-531-0	01	1	1008-		●
546	RING; SNAP,BRG T=2.00	1-09588-150-1	01	1	1008-		●
580	CASE; RANGE	1-33115-051-2	01	1	1008-		●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P)	1-33044-615-0	01	1	1411-		●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-33043-967-0	01	1	1008-1410	●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-33044-653-0	01	1	1411-	●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33043-967-0	01	1	1008-1410	●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33044-653-0	01	1	1411-	●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33043-967-0	01	1	1008-1410	●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33044-653-0	01	1	1411-	●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-33043-987-0	01	1	1008-1410		●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-33044-615-0	01	1	1411-		●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-33043-987-0	01	1	1008-1410		●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO HEAVY DUTY(B4P)	1-33044-615-0	01	1	1411-		●

303 511 265 353 150

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B
150	NUT M8 FLANGE	0-91180-108-0	01	1	1008-	●
265	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1008-	●
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	1008-1410	●
303	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	01	1	1411-	●
353	CLIP; NYLON TUBE ID=18 H=23 L=28	1-09701-070-0	01	1	1008-	●
511	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	1008-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
