1-10 — RADIATOR (#6259) — 178 parça

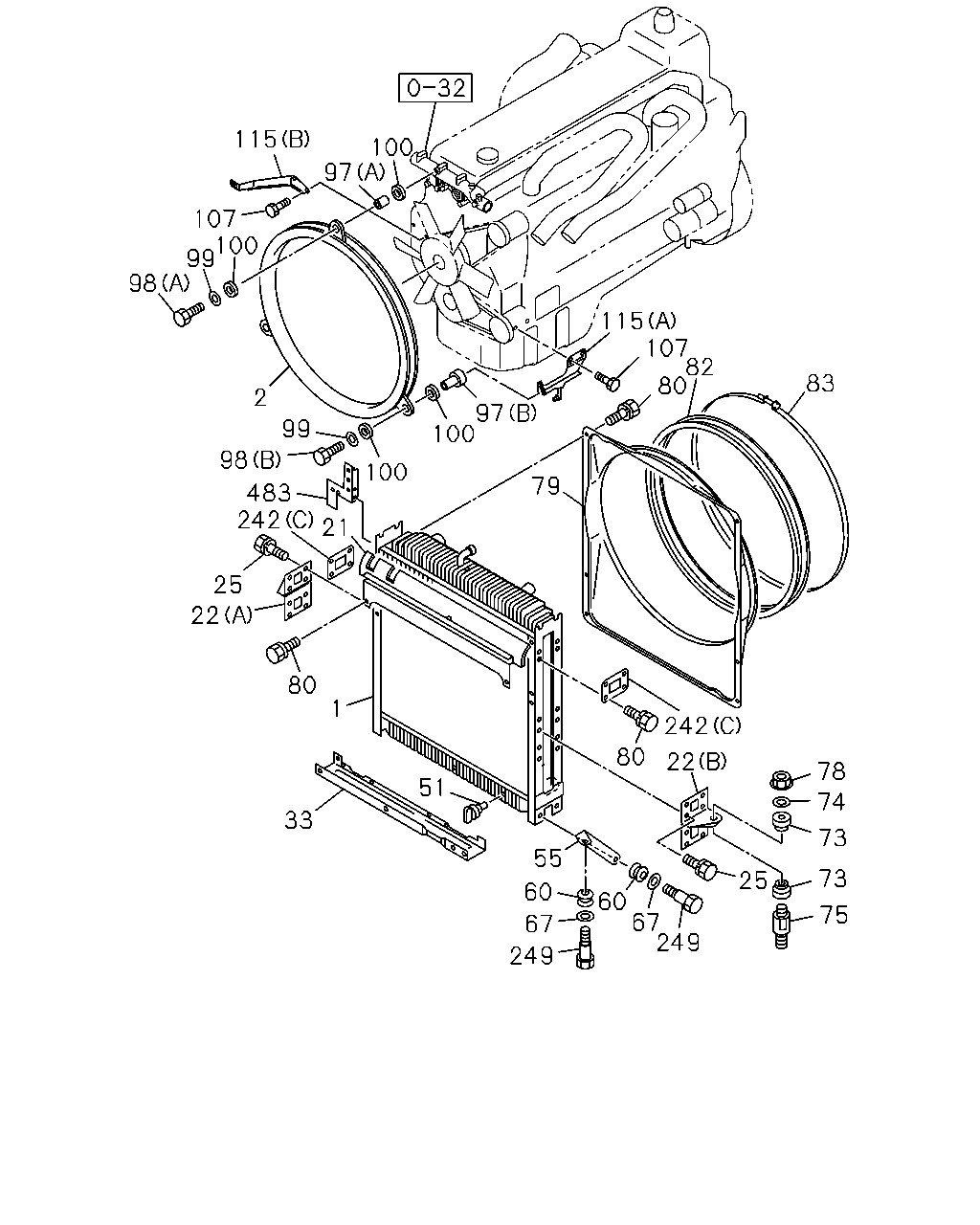

115 100 97 107 100 99 98 115 107 82 80 83 97 100 2 99 98 79 100 483 242 21 25 22 80 1 242 80 22 78 51 74 33 73 55 60 67 249 73 25 60 75 67 249

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	RADIATOR ASM	1-21410-729-0	01	1	9906-9912	●
1	RADIATOR ASM CAB UP +110MM<TGG>	1-21410-729-1	01	1	0001-	●
1	RADIATOR ASM	1-21410-693-0	01	1	9906-9906		●
1	RADIATOR ASM	1-21410-806-0	01	1	9906-			●
2	GUIDE; FAN	1-21551-369-0	01	1	9906-9906	●	●
2	GUIDE; FAN	1-21551-369-0	01	1	9907-	●
2	GUIDE; FAN	1-21551-420-0	01	1	9906-			●
21	SEAL; RAD	1-21460-097-0	01	1	9906-9912	●
21	SEAL; RAD CAB UP +110MM<TGG>	1-21460-097-0	01	1	0001-	●
21	SEAL; RAD	1-21460-096-0	01	1	9906-			●
22	BRACKET; RAD MTG (A)	1-21464-443-0	01	1	9906-9906	●	●
22	BRACKET; RAD MTG (A)	1-21464-443-0	01	1	9907-9912	●
22	BRACKET; RAD MTG CAB UP +110MM<TGG> (A)	1-21464-443-0	01	1	0001-	●
22	BRACKET; RAD MTG (B)	1-21464-444-0	01	1	9906-9906	●	●
22	BRACKET; RAD MTG (B)	1-21464-444-0	01	1	9907-9912	●
22	BRACKET; RAD MTG CAB UP +110MM<TGG> (B)	1-21464-444-0	01	1	0001-	●
22	BRACKET; RAD MTG (B)	1-21464-658-0	01	1	9906-			●
22	BRACKET; RAD MTG (A)	1-21464-659-0	01	1	9906-			●
25	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	18	1	9906-9912	●		●
25	BOLT; BRKT CAB UP +110MM<TGG> M8X16 FLANGE	0-28080-816-0	18	1	0001-	●
25	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	18	1	0001-			●
25	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	14	1	9906-9906		●
33	PROTECTOR; RAD	1-21419-050-0	01	1	9906-9906	●	●
33	PROTECTOR; RAD	1-21419-050-0	01	1	9907-9912	●
33	PROTECTOR; RAD CAB UP +110MM<TGG>	1-21419-050-0	01	1	0001-	●
33	PROTECTOR; RAD	1-21419-049-0	01	1	9906-			●
51	PLUG; DRAIN W/GASKET	1-09609-009-0	01	1	9906-9906	●	●	●
51	PLUG; DRAIN W/GASKET	1-09609-009-0	01	1	9907-9912	●		●
51	PLUG; DRAIN CAB UP +110MM<TGG> W/GASKET	1-09609-009-0	01	1	0001-	●
51	PLUG; DRAIN W/GASKET	1-09609-009-0	01	1	0001-			●
55	STAY; RAD TO UPR MBR	1-21464-638-0	01	1	9906-9912	●
55	STAY; RAD TO UPR MBR CAB UP +110MM<TGG>	1-21464-638-0	01	1	0001-	●
55	STAY; RAD TO UPR MBR	1-21464-637-0	01	1	9906-9912	●
55	STAY; RAD TO UPR MBR CAB UP +110MM<TGG>	1-21464-637-0	01	1	0001-	●
55	STAY; RAD TO UPR MBR	1-21464-397-0	01	1	9906-9906		●
55	STAY; RAD TO UPR MBR	1-21464-396-0	01	1	9906-9906		●
55	STAY; RAD TO UPR MBR	1-21464-653-0	01	1	9906-			●
55	STAY; RAD TO UPR MBR	1-21464-652-0	01	1	9906-			●
60	GROMMET	1-09332-117-0	04	1	9906-	●	●	●
67	WASHER; PL,STAY,RAD MBR ID=12.5 OD=26	9-09160-612-0	04	1	9906-	●	●	●
73	RUBBER; CUSHION,RAD MTG T=14	1-21467-004-0	04	1	9906-	●	●	●
74	WASHER; PL,CUSHION RUBBER ID=8.4 OD=22	1-09503-154-1	02	1	9906-	●	●	●
75	BOLT; CUSHION RUBBER,RAD MTG	1-21466-005-0	02	1	9906-	●	●	●
78	NUT; CUSHION RUBBER M10 FLANGE	0-91150-210-0	02	1	9906-	●	●	●
79	GUIDE; FAN,RAD	1-21551-415-0	01	1	9906-9912	●
79	GUIDE; FAN,RAD CAB UP +110MM<TGG>	1-21551-415-0	01	1	0001-	●
79	GUIDE; FAN,RAD	1-21551-384-0	01	1	9906-9906		●
79	GUIDE; FAN,RAD	1-21551-422-1	01	1	9906-			●
80	BOLT; FAN GUIDE M8X12 FLANGE	0-28080-812-0	15	1	9906-9912	●
80	BOLT; FAN GUIDE CAB UP +110MM<TGG> M8X12 FLANGE	0-28080-812-0	15	1	0001-	●
80	BOLT; FAN GUIDE M8X12 FLANGE	0-28080-812-0	16	1	9906-9906		●
80	BOLT; FAN GUIDE M8X12 FLANGE	0-28080-812-0	18	1	9906-			●
82	COVER; FAN,RAD	1-21559-134-1	01	1	9906-9906	●	●
82	COVER; FAN,RAD	1-21559-134-1	01	1	9907-	●
82	COVER; FAN,RAD	1-21559-262-1	01	1	9906-			●
83	CLIP; FAN COVER	1-09707-127-1	01	1	9906-9906	●	●
83	CLIP; FAN COVER	1-09707-127-1	01	1	9907-	●
83	CLIP; FAN COVER	1-09707-152-2	02	1	9906-			●
97	TUBE; DIST,FAN GUIDE (A) ID=11.8 L=27	1-21559-149-0	01	1	9906-9906	●	●
97	TUBE; DIST,FAN GUIDE (A) ID=11.8 L=27	1-21559-149-0	01	1	9907-	●
97	TUBE; DIST,FAN GUIDE (B)	1-21559-273-0	02	1	9906-9906	●	●
97	TUBE; DIST,FAN GUIDE (B)	1-21559-273-0	02	1	9907-	●
97	TUBE; DIST,FAN GUIDE (C) ID=11.8 L=27	1-21559-149-0	03	1	9906-			●
98	BOLT; RAD FAN GUIDE (A) M10X40 FLANGE	0-28081-040-0	01	1	9906-9906	●	●	●
98	BOLT; RAD FAN GUIDE (A) M10X40 FLANGE	0-28081-040-0	01	1	9907-0005	●		●
98	BOLT; RAD FAN GUIDE (A) M10X40 FLANGE	0-28081-040-0	01	1	0006-	●	●	●
98	BOLT; RAD FAN GUIDE (B) M10X60 FLANGE	0-28081-060-0	02	1	9906-9906	●	●	●
98	BOLT; RAD FAN GUIDE (B) M10X60 FLANGE	0-28081-060-0	02	1	9907-0005	●		●
98	BOLT; RAD FAN GUIDE (B) M10X60 FLANGE	0-28081-060-0	02	1	0006-	●	●	●
99	WASHER; PL ID=10.5 OD=26	9-09164-710-0	03	1	9906-9906	●	●	●
99	WASHER; PL ID=10.5 OD=26	9-09164-710-0	03	1	9907-0005	●		●
99	WASHER; PL ID=10.5 OD=26	9-09164-710-0	03	1	0006-	●	●	●
100	RUBBER; MTG	1-09337-017-0	06	1	9906-	●	●	●
107	BOLT; BRKT TO STAY M14X25 FLANGE	0-28981-425-0	02	1	9906-9906	●	●	●
107	BOLT; BRKT TO STAY M14X25 FLANGE	0-28981-425-0	02	1	9907-	●		●
115	BRACKET; FAN GUIDE (A)	1-21559-353-0	01	1	9906-9906	●	●	●
115	BRACKET; FAN GUIDE (A)	1-21559-353-0	01	1	9907-	●		●
115	BRACKET; FAN GUIDE (B)	1-21559-354-0	01	1	9906-9906	●	●	●
115	BRACKET; FAN GUIDE (B)	1-21559-354-0	01	1	9907-	●		●
242	BRACKET; RAD (C)	1-21464-461-1	02	1	9906-9906	●	●
242	BRACKET; RAD (C)	1-21464-461-1	02	1	9907-9912	●
242	BRACKET; RAD CAB UP +110MM<TGG> (C)	1-21464-461-1	02	1	0001-	●
242	BRACKET; RAD (A)	1-21464-661-0	01	1	9906-			●
242	BRACKET; RAD (B)	1-21464-662-0	01	1	9906-			●
249	BOLT; STAY,RAD MBR M8X30	1-09009-020-1	04	1	9906-	●	●	●
483	BRACKET; SEAL	1-21460-092-1	01	1	9906-9912	●		●
483	BRACKET; SEAL CAB UP +110MM<TGG>	1-21460-092-1	01	1	0001-	●
483	BRACKET; SEAL	1-21460-092-1	01	1	0001-			●
483	BRACKET; SEAL	1-21460-091-1	01	1	9906-			●

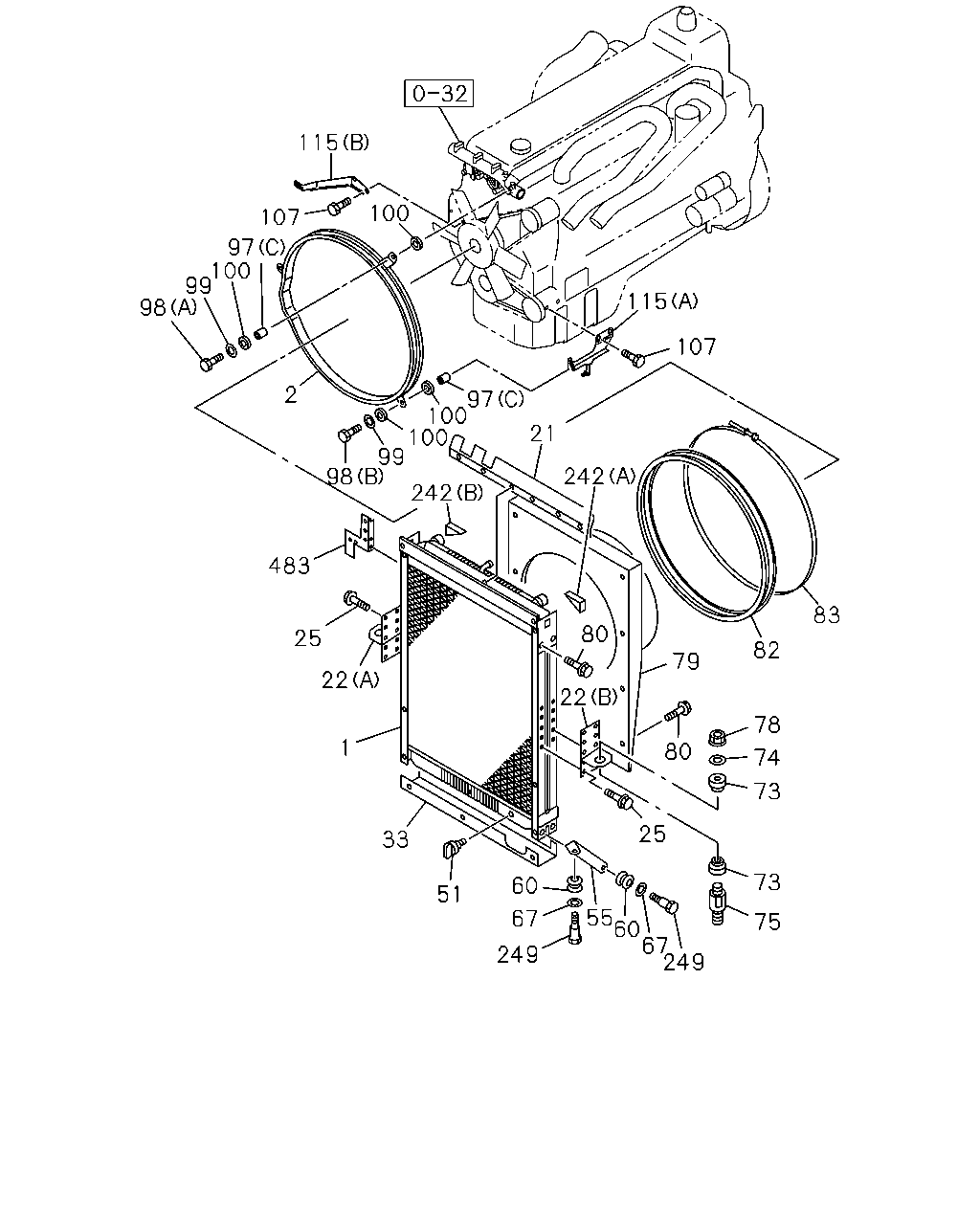

115 100 107 97 100 99 98 115 107 2 97 100 100 99 98 21 242 242 483 83 80 25 82 79 22 22 78 1 80 74 73 25 33 73 60 51 55 60 67 249 67 75 249

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	RADIATOR ASM	1-21410-729-0	01	1	9906-9912	●
1	RADIATOR ASM CAB UP +110MM<TGG>	1-21410-729-1	01	1	0001-	●
1	RADIATOR ASM	1-21410-693-0	01	1	9906-9906		●
1	RADIATOR ASM	1-21410-806-0	01	1	9906-			●
2	GUIDE; FAN	1-21551-369-0	01	1	9906-9906	●	●
2	GUIDE; FAN	1-21551-369-0	01	1	9907-	●
2	GUIDE; FAN	1-21551-420-0	01	1	9906-			●
21	SEAL; RAD	1-21460-097-0	01	1	9906-9912	●
21	SEAL; RAD CAB UP +110MM<TGG>	1-21460-097-0	01	1	0001-	●
21	SEAL; RAD	1-21460-096-0	01	1	9906-			●
22	BRACKET; RAD MTG (A)	1-21464-443-0	01	1	9906-9906	●	●
22	BRACKET; RAD MTG (A)	1-21464-443-0	01	1	9907-9912	●
22	BRACKET; RAD MTG CAB UP +110MM<TGG> (A)	1-21464-443-0	01	1	0001-	●
22	BRACKET; RAD MTG (B)	1-21464-444-0	01	1	9906-9906	●	●
22	BRACKET; RAD MTG (B)	1-21464-444-0	01	1	9907-9912	●
22	BRACKET; RAD MTG CAB UP +110MM<TGG> (B)	1-21464-444-0	01	1	0001-	●
22	BRACKET; RAD MTG (B)	1-21464-658-0	01	1	9906-			●
22	BRACKET; RAD MTG (A)	1-21464-659-0	01	1	9906-			●
25	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	18	1	9906-9912	●		●
25	BOLT; BRKT CAB UP +110MM<TGG> M8X16 FLANGE	0-28080-816-0	18	1	0001-	●
25	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	18	1	0001-			●
25	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	14	1	9906-9906		●
33	PROTECTOR; RAD	1-21419-050-0	01	1	9906-9906	●	●
33	PROTECTOR; RAD	1-21419-050-0	01	1	9907-9912	●
33	PROTECTOR; RAD CAB UP +110MM<TGG>	1-21419-050-0	01	1	0001-	●
33	PROTECTOR; RAD	1-21419-049-0	01	1	9906-			●
51	PLUG; DRAIN W/GASKET	1-09609-009-0	01	1	9906-9906	●	●	●
51	PLUG; DRAIN W/GASKET	1-09609-009-0	01	1	9907-9912	●		●
51	PLUG; DRAIN CAB UP +110MM<TGG> W/GASKET	1-09609-009-0	01	1	0001-	●
51	PLUG; DRAIN W/GASKET	1-09609-009-0	01	1	0001-			●
55	STAY; RAD TO UPR MBR	1-21464-638-0	01	1	9906-9912	●
55	STAY; RAD TO UPR MBR CAB UP +110MM<TGG>	1-21464-638-0	01	1	0001-	●
55	STAY; RAD TO UPR MBR	1-21464-637-0	01	1	9906-9912	●
55	STAY; RAD TO UPR MBR CAB UP +110MM<TGG>	1-21464-637-0	01	1	0001-	●
55	STAY; RAD TO UPR MBR	1-21464-397-0	01	1	9906-9906		●
55	STAY; RAD TO UPR MBR	1-21464-396-0	01	1	9906-9906		●
55	STAY; RAD TO UPR MBR	1-21464-653-0	01	1	9906-			●
55	STAY; RAD TO UPR MBR	1-21464-652-0	01	1	9906-			●
60	GROMMET	1-09332-117-0	04	1	9906-	●	●	●
67	WASHER; PL,STAY,RAD MBR ID=12.5 OD=26	9-09160-612-0	04	1	9906-	●	●	●
73	RUBBER; CUSHION,RAD MTG T=14	1-21467-004-0	04	1	9906-	●	●	●
74	WASHER; PL,CUSHION RUBBER ID=8.4 OD=22	1-09503-154-1	02	1	9906-	●	●	●
75	BOLT; CUSHION RUBBER,RAD MTG	1-21466-005-0	02	1	9906-	●	●	●
78	NUT; CUSHION RUBBER M10 FLANGE	0-91150-210-0	02	1	9906-	●	●	●
79	GUIDE; FAN,RAD	1-21551-415-0	01	1	9906-9912	●
79	GUIDE; FAN,RAD CAB UP +110MM<TGG>	1-21551-415-0	01	1	0001-	●
79	GUIDE; FAN,RAD	1-21551-384-0	01	1	9906-9906		●
79	GUIDE; FAN,RAD	1-21551-422-1	01	1	9906-			●
80	BOLT; FAN GUIDE M8X12 FLANGE	0-28080-812-0	15	1	9906-9912	●
80	BOLT; FAN GUIDE CAB UP +110MM<TGG> M8X12 FLANGE	0-28080-812-0	15	1	0001-	●
80	BOLT; FAN GUIDE M8X12 FLANGE	0-28080-812-0	16	1	9906-9906		●
80	BOLT; FAN GUIDE M8X12 FLANGE	0-28080-812-0	18	1	9906-			●
82	COVER; FAN,RAD	1-21559-134-1	01	1	9906-9906	●	●
82	COVER; FAN,RAD	1-21559-134-1	01	1	9907-	●
82	COVER; FAN,RAD	1-21559-262-1	01	1	9906-			●
83	CLIP; FAN COVER	1-09707-127-1	01	1	9906-9906	●	●
83	CLIP; FAN COVER	1-09707-127-1	01	1	9907-	●
83	CLIP; FAN COVER	1-09707-152-2	02	1	9906-			●
97	TUBE; DIST,FAN GUIDE (A) ID=11.8 L=27	1-21559-149-0	01	1	9906-9906	●	●
97	TUBE; DIST,FAN GUIDE (A) ID=11.8 L=27	1-21559-149-0	01	1	9907-	●
97	TUBE; DIST,FAN GUIDE (B)	1-21559-273-0	02	1	9906-9906	●	●
97	TUBE; DIST,FAN GUIDE (B)	1-21559-273-0	02	1	9907-	●
97	TUBE; DIST,FAN GUIDE (C) ID=11.8 L=27	1-21559-149-0	03	1	9906-			●
98	BOLT; RAD FAN GUIDE (A) M10X40 FLANGE	0-28081-040-0	01	1	9906-9906	●	●	●
98	BOLT; RAD FAN GUIDE (A) M10X40 FLANGE	0-28081-040-0	01	1	9907-0005	●		●
98	BOLT; RAD FAN GUIDE (A) M10X40 FLANGE	0-28081-040-0	01	1	0006-	●	●	●
98	BOLT; RAD FAN GUIDE (B) M10X60 FLANGE	0-28081-060-0	02	1	9906-9906	●	●	●
98	BOLT; RAD FAN GUIDE (B) M10X60 FLANGE	0-28081-060-0	02	1	9907-0005	●		●
98	BOLT; RAD FAN GUIDE (B) M10X60 FLANGE	0-28081-060-0	02	1	0006-	●	●	●
99	WASHER; PL ID=10.5 OD=26	9-09164-710-0	03	1	9906-9906	●	●	●
99	WASHER; PL ID=10.5 OD=26	9-09164-710-0	03	1	9907-0005	●		●
99	WASHER; PL ID=10.5 OD=26	9-09164-710-0	03	1	0006-	●	●	●
100	RUBBER; MTG	1-09337-017-0	06	1	9906-	●	●	●
107	BOLT; BRKT TO STAY M14X25 FLANGE	0-28981-425-0	02	1	9906-9906	●	●	●
107	BOLT; BRKT TO STAY M14X25 FLANGE	0-28981-425-0	02	1	9907-	●		●
115	BRACKET; FAN GUIDE (A)	1-21559-353-0	01	1	9906-9906	●	●	●
115	BRACKET; FAN GUIDE (A)	1-21559-353-0	01	1	9907-	●		●
115	BRACKET; FAN GUIDE (B)	1-21559-354-0	01	1	9906-9906	●	●	●
115	BRACKET; FAN GUIDE (B)	1-21559-354-0	01	1	9907-	●		●
242	BRACKET; RAD (C)	1-21464-461-1	02	1	9906-9906	●	●
242	BRACKET; RAD (C)	1-21464-461-1	02	1	9907-9912	●
242	BRACKET; RAD CAB UP +110MM<TGG> (C)	1-21464-461-1	02	1	0001-	●
242	BRACKET; RAD (A)	1-21464-661-0	01	1	9906-			●
242	BRACKET; RAD (B)	1-21464-662-0	01	1	9906-			●
249	BOLT; STAY,RAD MBR M8X30	1-09009-020-1	04	1	9906-	●	●	●
483	BRACKET; SEAL	1-21460-092-1	01	1	9906-9912	●		●
483	BRACKET; SEAL CAB UP +110MM<TGG>	1-21460-092-1	01	1	0001-	●
483	BRACKET; SEAL	1-21460-092-1	01	1	0001-			●
483	BRACKET; SEAL	1-21460-091-1	01	1	9906-			●
