1-55 — EXHAUST BRAKE VALVE AND CONTROL CYLINDER (#62587) — 8 parça

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

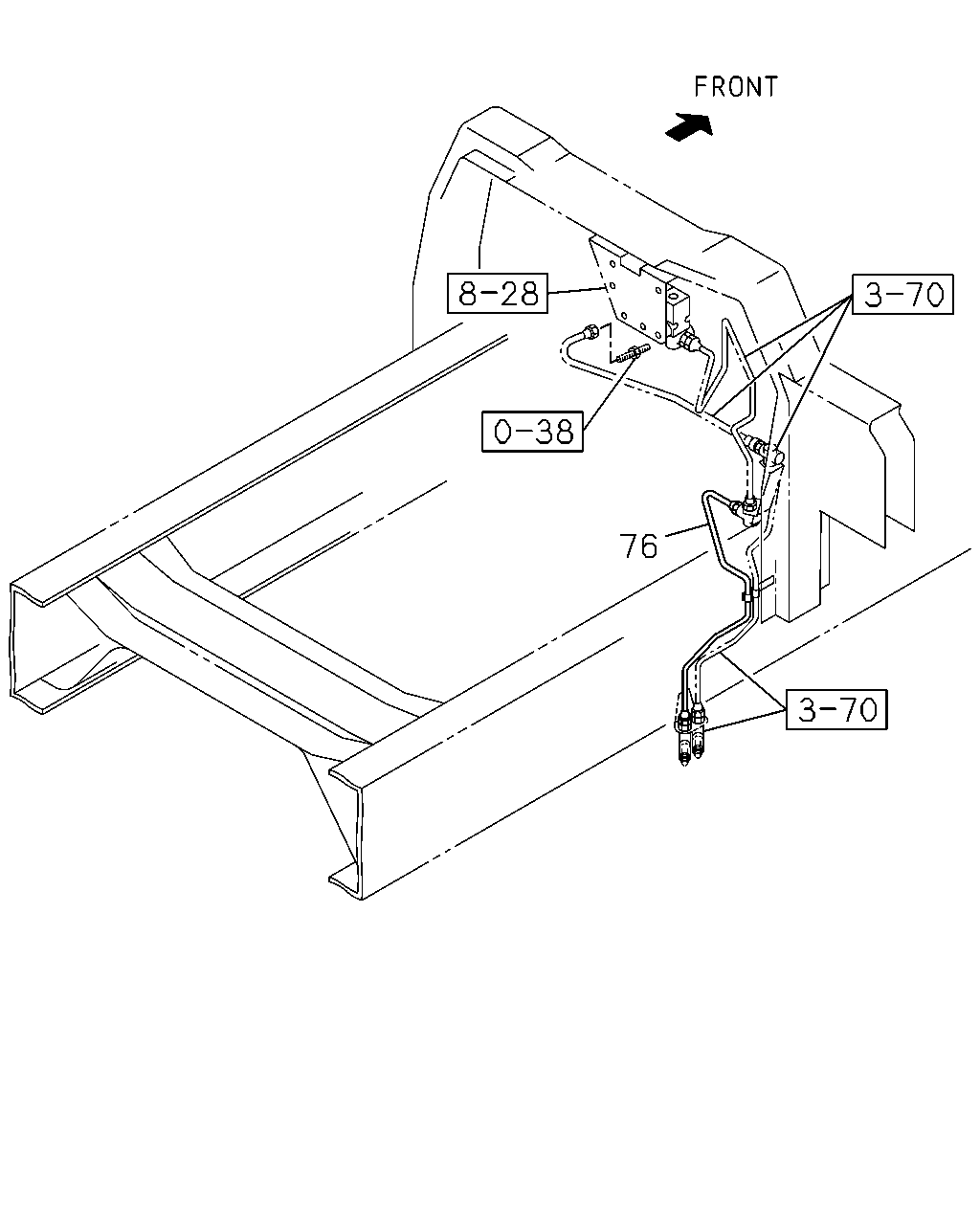

	76	PIPE ASM; AIR UNION TO UNION BATTERY LAYOUT REAR VAR1<NCT> L=558 SERVICED BY L=600	1-47428-809-0	01	1	1008-
	76	PIPE ASM; AIR UNION TO UNION EXC. BATTERY LAYOUT REAR VAR1<NCT> L=603 SERVICED BY L=650	1-47428-810-0	01	1	1008-

42 139 42 74 6 74 139

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	VALVE; EXH BRAKE	8-97629-737-3	01	1	1008-
42	HOSE; FLEX,EXH BRK L=470	1-09363-714-0	01	1	1008-1410
42	HOSE; FLEX,EXH BRK L=400	1-09363-743-0	01	1	1411-
74	CONNECTOR; EXH BRK VLV (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1008-1410
74	CONNECTOR; EXH BRK VLV (B) R1/4 & RC1/4	1-09664-211-0	01	1	1411-
139	GASKET; EXH BRK VLV ID=100	1-14145-175-0	02	1	1008-
