Sayfa 1-50 - Isuzu EPC

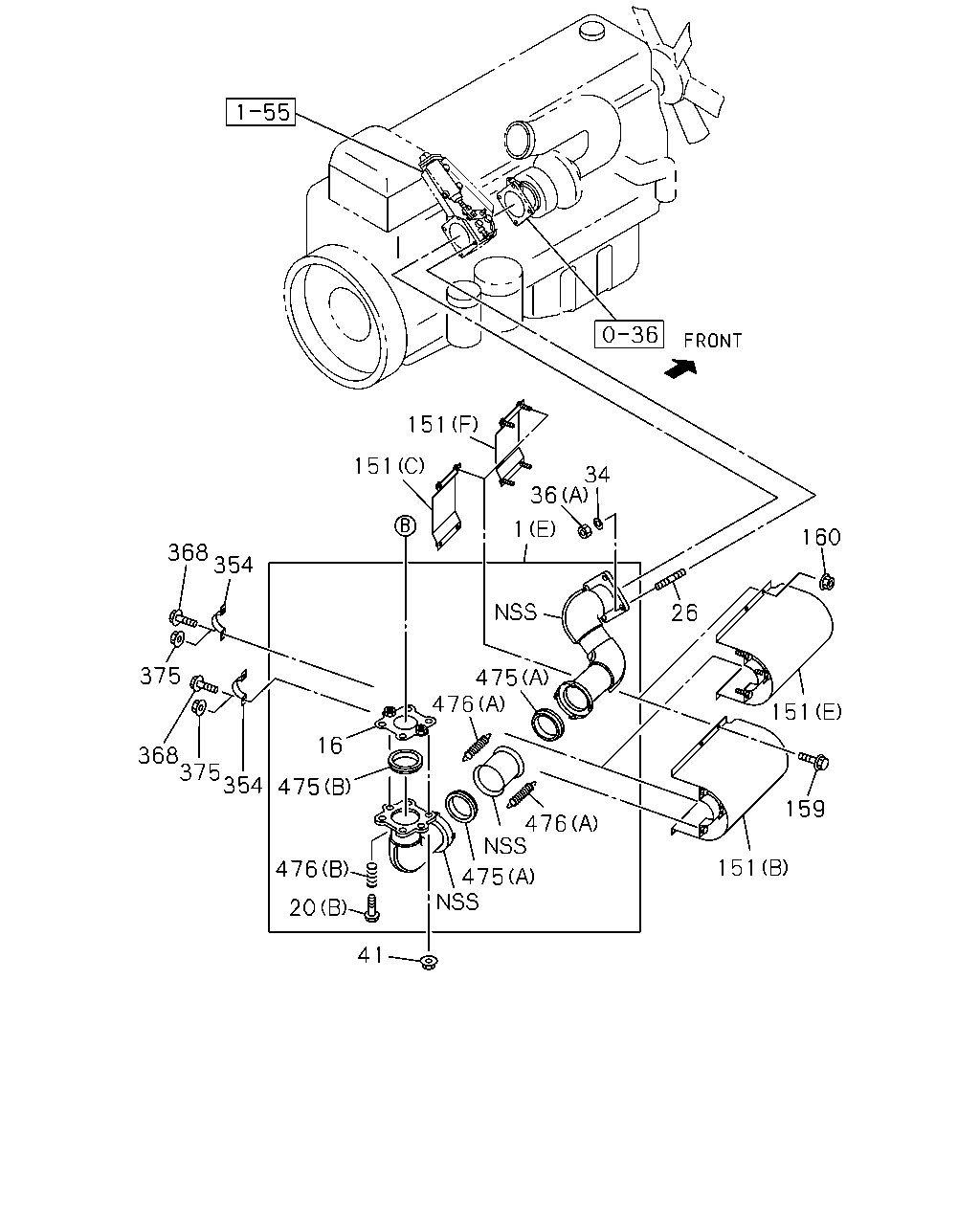

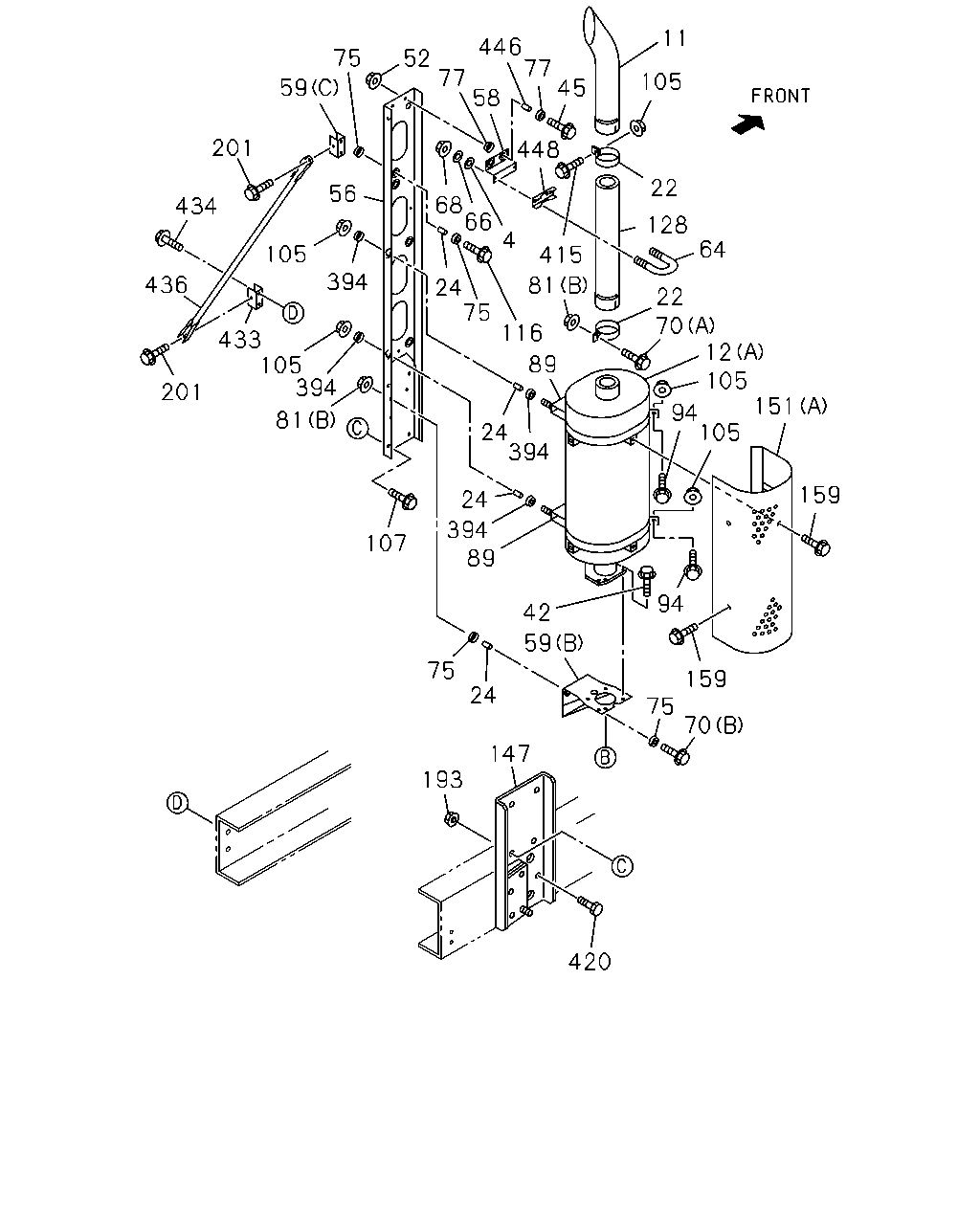

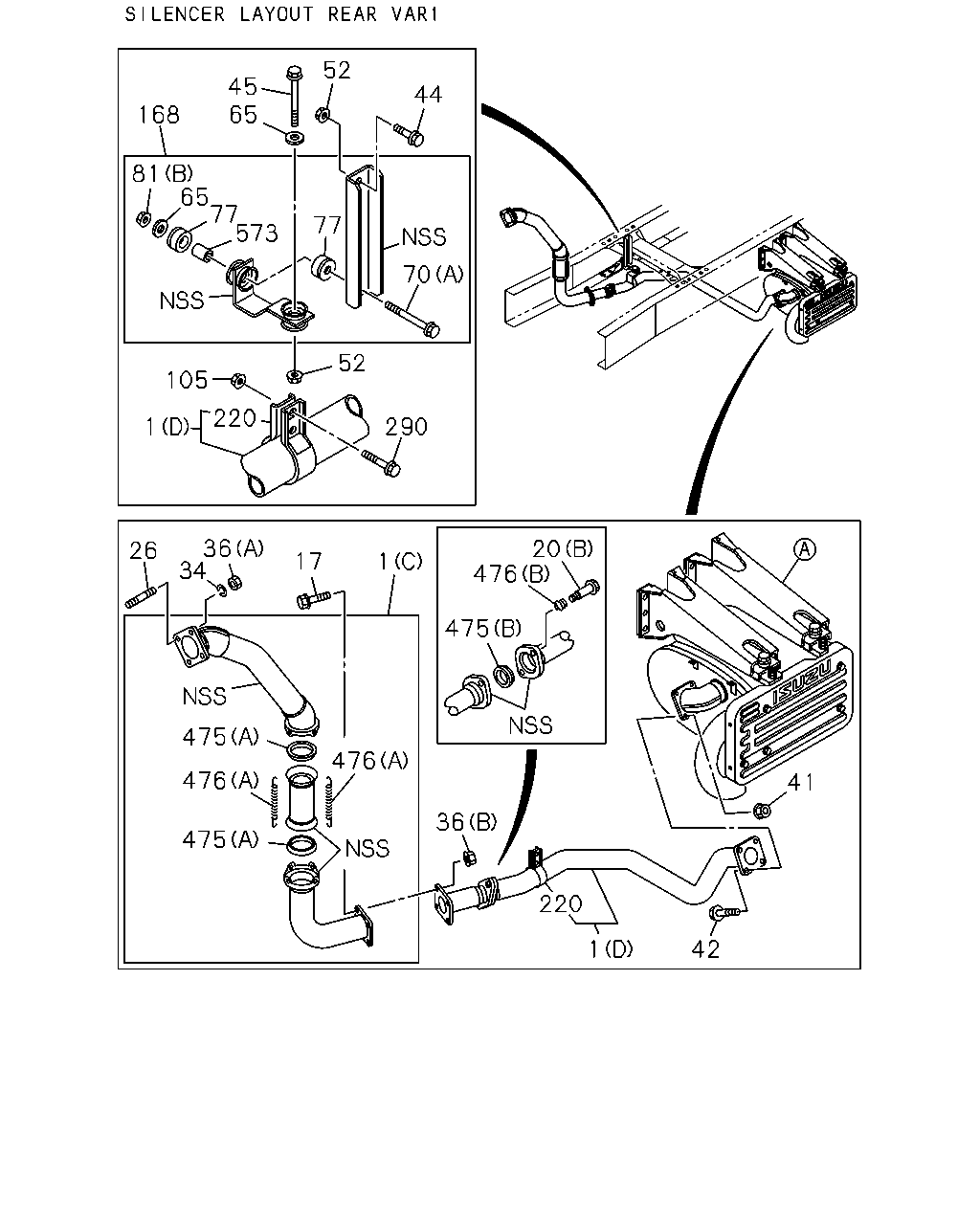

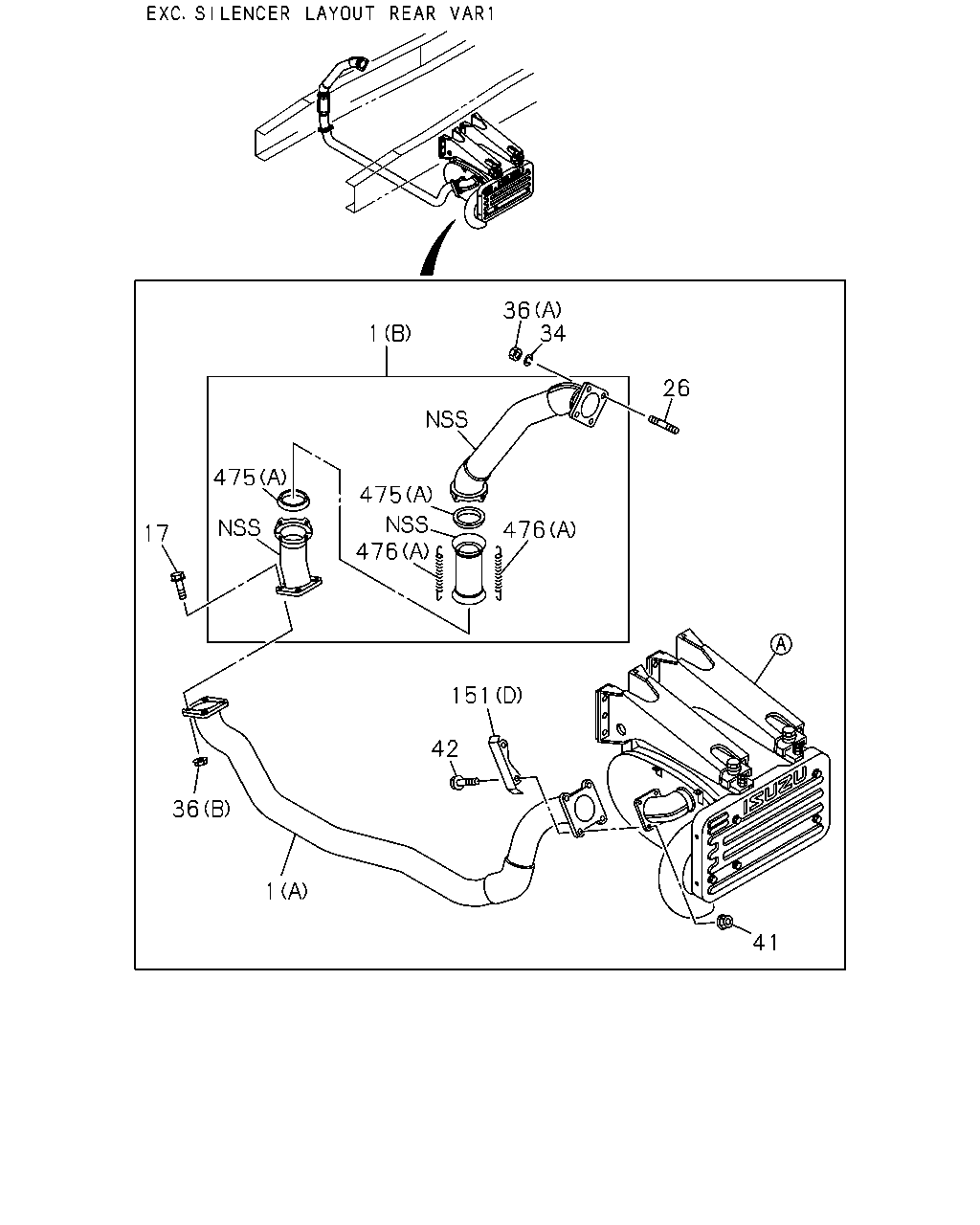

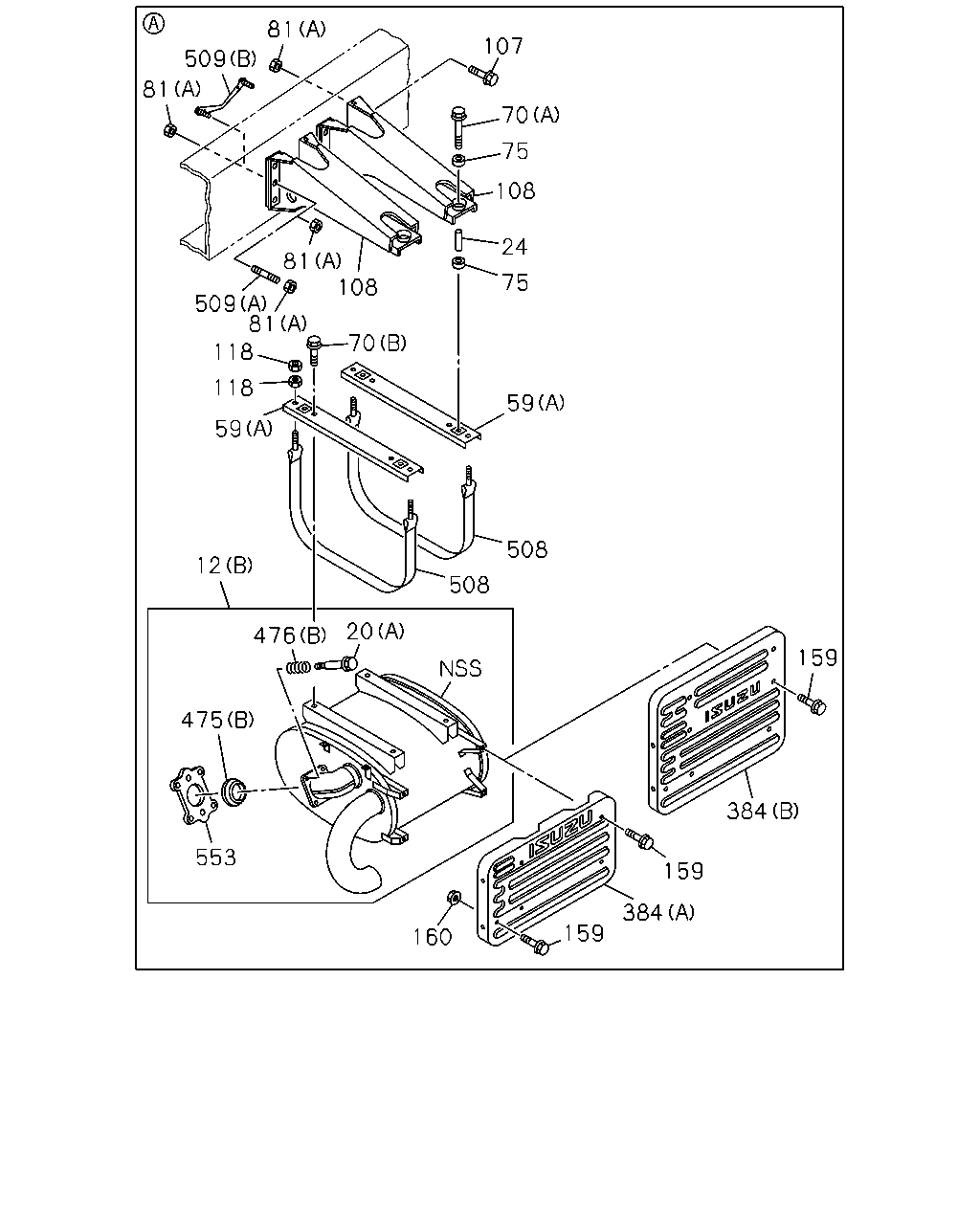

1-50 — EXHAUST PIPE AND SILENCER (#62586) — 695 parça

75 59 201 434 436 201 433 105 394 81 394 105 56 52 77 446 77 45 58 448 68 66 4 24 75 116 89 81 415 22 105 11 128 64 22 70 12 105 151 159 105 94 24 394 24 394 89 42 59 75 107 193 24 147 420 75 159 70 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	WASHER; PL,U BOLT SILENCER SINGLE VERTICAL<N28> ID=8.4 OD=22	0-91610-708-0	02	1	1008-1209	●	●
4	WASHER; PL,U BOLT ID=8.4 OD=22	0-91610-708-0	02	1	1210-1410	●
4	WASHER; PL,U BOLT SILENCER SINGLE VERTICAL<N28> ID=8.4 OD=22	0-91610-708-0	02	1	1210-1410		●
4	WASHER; PL,U BOLT SILENCER SINGLE VERTICAL<N28> ID=8.4 OD=22	0-91610-708-0	02	1	1411-	●	●
11	PIPE; EXH,RR SILENCER SINGLE VERTICAL<N28>	1-22123-979-1	01	1	1008-1209	●	●
11	PIPE; EXH,RR	1-22123-979-1	01	1	1210-1410	●
11	PIPE; EXH,RR SILENCER SINGLE VERTICAL<N28>	1-22123-979-1	01	1	1210-1410		●
11	PIPE; EXH,RR SILENCER SINGLE VERTICAL<N28>	1-22123-979-1	01	1	1411-	●	●
12	SILENCER ASM; EXH SILENCER SINGLE VERTICAL<N28> (A)	8-97634-120-1	01	1	1008-1209	●	●
12	SILENCER ASM; EXH (A)	8-97634-120-1	01	1	1210-1410	●
12	SILENCER ASM; EXH SILENCER SINGLE VERTICAL<N28> (A)	8-97634-120-1	01	1	1210-1410		●
12	SILENCER ASM; EXH SILENCER SINGLE VERTICAL<N28> (A)	8-97634-120-1	01	1	1411-	●	●
12	SILENCER ASM; EXH EXC. SILENCER SINGLE VERTICAL<N28> (B)	8-97637-113-1	01	1	1008-1209	●	●
12	SILENCER ASM; EXH EXC. SILENCER SINGLE VERTICAL<N28> (B)	8-97637-113-1	01	1	1210-1410		●
12	SILENCER ASM; EXH EXC. SILENCER SINGLE VERTICAL<N28> (B)	8-97637-113-1	01	1	1411-	●	●
22	CLAMP; EXH PIPE SILENCER SINGLE VERTICAL<N28>	1-22133-266-1	01	1	1008-1209	●	●
22	CLAMP; EXH PIPE SILENCER SINGLE VERTICAL<N28>	1-22133-266-1	01	1	1008-1209	●	●
22	CLAMP; EXH PIPE	1-22133-266-1	01	1	1210-1410	●
22	CLAMP; EXH PIPE	1-22133-266-1	01	1	1210-1410	●
22	CLAMP; EXH PIPE SILENCER SINGLE VERTICAL<N28>	1-22133-266-1	01	1	1210-1410		●
22	CLAMP; EXH PIPE SILENCER SINGLE VERTICAL<N28>	1-22133-266-1	01	1	1210-1410		●
22	CLAMP; EXH PIPE SILENCER SINGLE VERTICAL<N28>	1-22133-266-1	02	1	1411-1510	●	●
22	CLAMP; EXH PIPE SILENCER SINGLE VERTICAL<N28>	1-22133-266-1	01	1	1511-	●	●
22	CLAMP; EXH PIPE SILENCER SINGLE VERTICAL<N28>	1-22133-266-1	01	1	1511-	●	●
24	COLLAR; DIST,CLAMP SILENCER SINGLE VERTICAL<N28> L=25	1-14234-083-0	10	1	1008-1209	●	●
24	COLLAR; DIST,CLAMP L=25	1-14234-083-0	10	1	1210-1410	●
24	COLLAR; DIST,CLAMP SILENCER SINGLE VERTICAL<N28> L=25	1-14234-083-0	10	1	1210-1410		●
24	COLLAR; DIST,CLAMP SILENCER SINGLE VERTICAL<N28> L=25	1-14234-083-0	10	1	1411-	●	●
24	COLLAR; DIST,CLAMP EXC. SILENCER SINGLE VERTICAL<N28> L=22	9-22159-024-0	04	1	1008-1209	●	●
24	COLLAR; DIST,CLAMP EXC. SILENCER SINGLE VERTICAL<N28> L=22	9-22159-024-0	04	1	1210-1410		●
24	COLLAR; DIST,CLAMP EXC. SILENCER SINGLE VERTICAL<N28> L=22	9-22159-024-0	04	1	1411-	●	●
42	BOLT; EXH PIPE TO EXH SILENCER EXC. SILENCER SINGLE VERTICAL<N28> M12X30 FLANGE	0-28051-230-0	04	1	1008-1209	●
42	BOLT; EXH PIPE TO EXH SILENCER EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> M12X30 FLANGE	0-28051-230-0	04	1	1008-1209		●
42	BOLT; EXH PIPE TO EXH SILENCER EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> M12X30 FLANGE	0-28051-230-0	04	1	1210-1410		●
42	BOLT; EXH PIPE TO EXH SILENCER EXC. SILENCER SINGLE VERTICAL<N28> M12X30 FLANGE	0-28051-230-0	04	1	1411-	●
42	BOLT; EXH PIPE TO EXH SILENCER EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> M12X30 FLANGE	0-28051-230-0	04	1	1411-		●
42	BOLT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> M12X35 FLANGE	1-09000-653-0	04	1	1008-1209	●	●
42	BOLT; EXH PIPE TO EXH SILENCER M12X35 FLANGE	1-09000-653-0	04	1	1210-1410	●
42	BOLT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> M12X35 FLANGE	1-09000-653-0	04	1	1210-1410		●
42	BOLT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> M12X35 FLANGE	1-09000-653-0	04	1	1411-	●	●
42	BOLT; EXH PIPE TO EXH SILENCER SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> M12X25 FLANGE	1-09000-604-0	04	1	1008-		●
45	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M10X50 FLANGE	0-28051-050-0	02	1	1008-1209	●	●
45	BOLT; BRKT M10X50 FLANGE	0-28051-050-0	02	1	1210-1410	●
45	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M10X50 FLANGE	0-28051-050-0	02	1	1210-1410		●
45	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M10X50 FLANGE	0-28051-050-0	02	1	1411-	●	●
52	NUT; BRKT SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91180-210-0	02	1	1008-1209	●	●
52	NUT; BRKT SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91180-210-0	02	1	1008-1209		●
52	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1210-1410	●
52	NUT; BRKT SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91180-210-0	02	1	1210-1410		●
52	NUT; BRKT SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91180-210-0	02	1	1210-1410		●
52	NUT; BRKT SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91180-210-0	02	1	1411-1510	●	●
52	NUT; BRKT SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91180-210-0	02	1	1411-1510		●
52	NUT; BRKT SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91180-210-0	02	1	1511-	●	●
52	NUT; BRKT SILENCER LAYOUT REAR VAR1<JAZ> WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) EXC. SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91180-210-0	02	1	1511-		●
56	BRACKET; CLAMP,EXH PIPE SILENCER SINGLE VERTICAL<N28>	8-97632-335-0	01	1	1008-1209	●	●
56	BRACKET; CLAMP,EXH PIPE	8-97632-335-0	01	1	1210-1410	●
56	BRACKET; CLAMP,EXH PIPE SILENCER SINGLE VERTICAL<N28>	8-97632-335-0	01	1	1210-1410		●
56	BRACKET; CLAMP,EXH PIPE SILENCER SINGLE VERTICAL<N28>	8-97632-335-0	01	1	1411-	●	●
58	BRACKET; EXH PIPE,RR SILENCER SINGLE VERTICAL<N28>	1-22131-799-0	01	1	1008-1209	●	●
58	BRACKET; EXH PIPE,RR	1-22131-799-0	01	1	1210-1410	●
58	BRACKET; EXH PIPE,RR SILENCER SINGLE VERTICAL<N28>	1-22131-799-0	01	1	1210-1410		●
58	BRACKET; EXH PIPE,RR SILENCER SINGLE VERTICAL<N28>	1-22131-799-0	01	1	1411-	●	●
59	BRACKET; EXH SILENCER,FRT SILENCER SINGLE VERTICAL<N28> (B)	1-22151-768-1	01	1	1008-1209	●	●
59	BRACKET; EXH SILENCER,FRT (B)	1-22151-768-1	01	1	1210-1410	●
59	BRACKET; EXH SILENCER,FRT SILENCER SINGLE VERTICAL<N28> (B)	1-22151-768-1	01	1	1210-1410		●
59	BRACKET; EXH SILENCER,FRT SILENCER SINGLE VERTICAL<N28> (B)	1-22151-768-1	01	1	1411-	●	●
59	BRACKET; EXH SILENCER,FRT SILENCER SINGLE VERTICAL<N28> (C)	8-97632-549-0	01	1	1008-1209	●	●
59	BRACKET; EXH SILENCER,FRT (C)	8-97632-549-0	01	1	1210-1410	●
59	BRACKET; EXH SILENCER,FRT SILENCER SINGLE VERTICAL<N28> (C)	8-97632-549-0	01	1	1210-1410		●
59	BRACKET; EXH SILENCER,FRT SILENCER SINGLE VERTICAL<N28> (C)	8-97632-549-0	01	1	1411-	●	●
59	BRACKET; EXH SILENCER,FRT EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22134-147-1	02	1	1008-1209	●	●
59	BRACKET; EXH SILENCER,FRT EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22134-147-1	02	1	1210-1410		●
59	BRACKET; EXH SILENCER,FRT EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22134-147-1	02	1	1411-	●	●
64	U-BOLT; EXH PIPE,RR SILENCER SINGLE VERTICAL<N28>	1-22113-097-0	01	1	1008-1209	●	●
64	U-BOLT; EXH PIPE,RR	1-22113-097-0	01	1	1210-1410	●
64	U-BOLT; EXH PIPE,RR SILENCER SINGLE VERTICAL<N28>	1-22113-097-0	01	1	1210-1410		●
64	U-BOLT; EXH PIPE,RR SILENCER SINGLE VERTICAL<N28>	1-22113-097-0	01	1	1411-	●	●
66	WASHER; LK,U BOLT SILENCER SINGLE VERTICAL<N28> ID=8.2	0-91510-508-0	02	1	1008-1209	●	●
66	WASHER; LK,U BOLT ID=8.2	0-91510-508-0	02	1	1210-1410	●
66	WASHER; LK,U BOLT SILENCER SINGLE VERTICAL<N28> ID=8.2	0-91510-508-0	02	1	1210-1410		●
66	WASHER; LK,U BOLT SILENCER SINGLE VERTICAL<N28> ID=8.2	0-91510-508-0	02	1	1411-	●	●
68	NUT; U BOLT SILENCER SINGLE VERTICAL<N28> M8	0-91110-508-0	02	1	1008-1209	●	●
68	NUT; U BOLT M8	0-91110-508-0	02	1	1210-1410	●
68	NUT; U BOLT SILENCER SINGLE VERTICAL<N28> M8	0-91110-508-0	02	1	1210-1410		●
68	NUT; U BOLT SILENCER SINGLE VERTICAL<N28> M8	0-91110-508-0	02	1	1411-	●	●
70	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> (A) M10X40 FLANGE	0-28051-040-0	01	1	1008-1209	●	●
70	BOLT; BRKT (A) M10X40 FLANGE	0-28051-040-0	01	1	1210-1410	●
70	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> (A) M10X40 FLANGE	0-28051-040-0	01	1	1210-1410		●
70	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> (A) M10X40 FLANGE	0-28051-040-0	01	1	1411-	●	●
70	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> (A) M10X60 FLANGE	0-28051-060-0	04	1	1008-1209	●	●
70	BOLT; BRKT (A) M10X60 FLANGE	0-28051-060-0	04	1	1210-1410	●
70	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> (A) M10X60 FLANGE	0-28051-060-0	04	1	1210-1410		●
70	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> (A) M10X60 FLANGE	0-28051-060-0	04	1	1411-	●	●
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (B) M10X35 FLANGE	0-28051-035-0	04	1	1008-1209	●	●
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (B) M10X35 FLANGE	0-28051-035-0	04	1	1210-1410		●
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (B) M10X35 FLANGE	0-28051-035-0	04	1	1411-	●	●
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M10X50 FLANGE	0-28051-050-0	04	1	1008-1209	●	●
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M10X50 FLANGE	0-28051-050-0	04	1	1210-1410		●
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M10X50 FLANGE	0-28051-050-0	04	1	1411-	●	●
70	BOLT; BRKT SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (A) M10X60 FLANGE	0-28051-060-0	02	1	1008-1510		●
70	BOLT; BRKT SILENCER LAYOUT REAR VAR1<JAZ> WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) EXC. SILENCER SINGLE VERTICAL<N28> M10X60 FLANGE	0-28051-060-0	02	1	1511-		●
75	RUBBER; SUPPORT,BRKT OD=40	1-22159-094-0	08	1	1008-	●	●
75	RUBBER; SUPPORT,BRKT SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	04	1	1008-1209	●	●
75	RUBBER; SUPPORT,BRKT OD=40	1-22159-094-0	04	1	1210-1410	●
75	RUBBER; SUPPORT,BRKT SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	04	1	1210-1410		●
75	RUBBER; SUPPORT,BRKT SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	04	1	1411-	●	●
77	RUBBER; CUSHION,BRKT SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	04	1	1008-1209	●	●
77	RUBBER; CUSHION,BRKT SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	04	1	1008-1209		●
77	RUBBER; CUSHION,BRKT OD=40	1-22159-094-0	04	1	1210-1410	●
77	RUBBER; CUSHION,BRKT SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	04	1	1210-1410		●
77	RUBBER; CUSHION,BRKT SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	04	1	1210-1410		●
77	RUBBER; CUSHION,BRKT SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	04	1	1411-1510	●	●
77	RUBBER; CUSHION,BRKT SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	04	1	1411-1510		●
77	RUBBER; CUSHION,BRKT SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	04	1	1511-	●	●
77	RUBBER; CUSHION,BRKT SILENCER LAYOUT REAR VAR1<JAZ> WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) EXC. SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	04	1	1511-		●
81	NUT; BRKT SILENCER LAYOUT REAR VAR1<JAZ> WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) EXC. SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91180-210-0	02	1	1511-		●
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91180-210-0	01	1	1008-1209	●	●
81	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	01	1	1210-1410	●
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91180-210-0	01	1	1210-1410		●
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91180-210-0	05	1	1411-1510	●	●
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91180-210-0	01	1	1511-	●	●
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91180-210-0	04	1	1008-1209	●	●
81	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	04	1	1210-1410	●
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91180-210-0	04	1	1210-1410		●
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> (A) M12 FLANGE	0-91180-212-0	02	1	1008-1209	●	●
81	NUT; BRKT (A) M12 FLANGE	0-91180-212-0	02	1	1210-1410	●
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> (A) M12 FLANGE	0-91180-212-0	02	1	1210-1410		●
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> (A) M12 FLANGE	0-91180-212-0	02	1	1411-	●	●
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M12 FLANGE	0-91180-212-0	12	1	1008-1209	●	●
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M12 FLANGE	0-91180-212-0	12	1	1210-1410		●
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M12 FLANGE	0-91180-212-0	12	1	1411-	●	●
81	NUT; BRKT SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91180-210-0	02	1	1008-1510		●
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91180-210-0	04	1	1511-	●	●
89	CLAMP; EXH SILENCER,RR SILENCER SINGLE VERTICAL<N28>	1-22133-270-0	02	1	1008-1209	●	●
89	CLAMP; EXH SILENCER,RR	1-22133-270-0	02	1	1210-1410	●
89	CLAMP; EXH SILENCER,RR SILENCER SINGLE VERTICAL<N28>	1-22133-270-0	02	1	1210-1410		●
89	CLAMP; EXH SILENCER,RR SILENCER SINGLE VERTICAL<N28>	1-22133-270-0	02	1	1411-	●	●
94	BOLT; CLAMP SILENCER SINGLE VERTICAL<N28> M10X40 FLANGE	0-28051-040-0	02	1	1008-1209	●	●
94	BOLT; CLAMP M10X40 FLANGE	0-28051-040-0	02	1	1210-1410	●
94	BOLT; CLAMP SILENCER SINGLE VERTICAL<N28> M10X40 FLANGE	0-28051-040-0	02	1	1210-1410		●
94	BOLT; CLAMP SILENCER SINGLE VERTICAL<N28> M10X40 FLANGE	0-28051-040-0	02	1	1411-	●	●
105	NUT; CLAMP SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91180-210-0	07	1	1008-1209	●	●
105	NUT; CLAMP M10 FLANGE	0-91180-210-0	07	1	1210-1410	●
105	NUT; CLAMP SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91180-210-0	07	1	1210-1410		●
105	NUT; CLAMP SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91180-210-0	07	1	1411-	●	●
105	NUT; CLAMP SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91180-108-0	02	1	1008-1510		●
105	NUT; CLAMP SILENCER LAYOUT REAR VAR1<JAZ> WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) EXC. SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91180-108-0	02	1	1511-		●
107	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> M12X40 FLANGE	0-28051-240-0	06	1	1008-1209	●
107	BOLT; BRKT EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> M12X40 FLANGE	0-28051-240-0	06	1	1008-1209		●
107	BOLT; BRKT EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> M12X40 FLANGE	0-28051-240-0	06	1	1210-1410		●
107	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> M12X40 FLANGE	0-28051-240-0	06	1	1411-	●
107	BOLT; BRKT EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> M12X40 FLANGE	0-28051-240-0	06	1	1411-		●
107	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M12X45 FLANGE	0-28051-245-0	04	1	1008-1209	●	●
107	BOLT; BRKT SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> M12X45 FLANGE	0-28051-245-0	04	1	1008-1209		●
107	BOLT; BRKT M12X45 FLANGE	0-28051-245-0	04	1	1210-1410	●
107	BOLT; BRKT SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> M12X45 FLANGE	0-28051-245-0	04	1	1210-1410		●
107	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M12X45 FLANGE	0-28051-245-0	04	1	1210-1410		●
107	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M12X45 FLANGE	0-28051-245-0	04	1	1411-	●	●
107	BOLT; BRKT SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> M12X45 FLANGE	0-28051-245-0	04	1	1411-		●
116	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M10X50 FLANGE	0-28051-050-0	02	1	1008-1209	●	●
116	BOLT; BRKT M10X50 FLANGE	0-28051-050-0	02	1	1210-1410	●
116	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M10X50 FLANGE	0-28051-050-0	02	1	1210-1410		●
116	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M10X50 FLANGE	0-28051-050-0	02	1	1411-	●	●
128	PIPE; EXH,RR SILENCER SINGLE VERTICAL<N28>	1-22123-087-1	01	1	1008-1209	●	●
128	PIPE; EXH,RR	1-22123-087-1	01	1	1210-1410	●
128	PIPE; EXH,RR SILENCER SINGLE VERTICAL<N28>	1-22123-087-1	01	1	1210-1410		●
128	PIPE; EXH,RR SILENCER SINGLE VERTICAL<N28>	1-22123-087-1	01	1	1411-	●	●
147	BRACKET; VERTICAL PIPE SILENCER SINGLE VERTICAL<N28>	8-97632-342-1	01	1	1008-1209	●	●
147	BRACKET; VERTICAL PIPE	8-97632-342-1	01	1	1210-1410	●
147	BRACKET; VERTICAL PIPE SILENCER SINGLE VERTICAL<N28>	8-97632-342-1	01	1	1210-1410		●
147	BRACKET; VERTICAL PIPE SILENCER SINGLE VERTICAL<N28>	8-97632-342-1	01	1	1411-	●	●
151	PROTECTOR; HEAT,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (D)	8-97635-597-0	01	1	1008-1209	●
151	PROTECTOR; HEAT,EXH PIPE EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> (D)	8-97635-597-0	01	1	1008-1209		●
151	PROTECTOR; HEAT,EXH PIPE EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> (D)	8-97635-597-0	01	1	1210-1410		●
151	PROTECTOR; HEAT,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (D)	8-97635-597-0	01	1	1411-	●
151	PROTECTOR; HEAT,EXH PIPE EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> (D)	8-97635-597-0	01	1	1411-		●
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (A)	1-22159-334-0	01	1	1008-1209	●	●
151	PROTECTOR; HEAT,EXH PIPE (A)	1-22159-334-0	01	1	1210-1410	●
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (A)	1-22159-334-0	01	1	1210-1410		●
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (A)	1-22159-334-0	01	1	1411-	●	●
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (B)	8-97632-332-1	01	1	1008-1207	●	●
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (E)	8-97641-322-0	01	1	1208-1209	●	●
151	PROTECTOR; HEAT,EXH PIPE (E)	8-97641-322-0	01	1	1210-1410	●
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (E)	8-97641-322-0	01	1	1210-1410		●
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (E)	8-97644-313-0	01	1	1411-	●	●
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (C)	8-97632-334-0	01	1	1008-1207	●	●
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (F)	8-97641-323-0	01	1	1208-1209	●	●
151	PROTECTOR; HEAT,EXH PIPE (F)	8-97641-323-0	01	1	1210-1410	●
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (F)	8-97641-323-0	01	1	1210-1410		●
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (F)	8-97644-314-0	01	1	1411-	●	●
159	BOLT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> M8X20 FLANGE	0-28050-820-0	04	1	1008-1207	●	●
159	BOLT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> M8X25 W/LK&PL WASHER	1-09030-027-0	06	1	1008-1209	●	●
159	BOLT; HEAT PROTECTOR M8X25 W/LK&PL WASHER	1-09030-027-0	06	1	1210-1410	●
159	BOLT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> M8X25 W/LK&PL WASHER	1-09030-027-0	06	1	1210-1410		●
159	BOLT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> M8X25 W/LK&PL WASHER	1-09030-027-0	06	1	1411-	●	●
159	BOLT; HEAT PROTECTOR EXC. SILENCER SINGLE VERTICAL<N28> M8X22 W/LK&PL WASHER	1-09030-042-0	05	1	1008-1209	●	●
159	BOLT; HEAT PROTECTOR EXC. SILENCER SINGLE VERTICAL<N28> M8X22 W/LK&PL WASHER	1-09030-042-0	05	1	1210-1410		●
159	BOLT; HEAT PROTECTOR EXC. SILENCER SINGLE VERTICAL<N28> M8X22 W/LK&PL WASHER	1-09030-042-0	05	1	1411-	●	●
193	NUT; BRKT,VERTICAL PIPE SILENCER LAYOUT REAR VAR1<JAZ> SILENCER SINGLE VERTICAL<N28> M12 FLANGE	0-91180-212-0	04	1	1008-		●
201	BOLT; STAY SILENCER SINGLE VERTICAL<N28> M10X25 FLANGE	0-28051-025-0	04	1	1008-1209	●	●
201	BOLT; STAY M10X25 FLANGE	0-28051-025-0	04	1	1210-1410	●
201	BOLT; STAY SILENCER SINGLE VERTICAL<N28> M10X25 FLANGE	0-28051-025-0	04	1	1210-1410		●
201	BOLT; STAY SILENCER SINGLE VERTICAL<N28> M10X25 FLANGE	0-28051-025-0	04	1	1411-	●	●
394	RUBBER; SUPPORT,CLAMP SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	08	1	1008-1209	●	●
394	RUBBER; SUPPORT,CLAMP OD=40	1-22159-094-0	08	1	1210-1410	●
394	RUBBER; SUPPORT,CLAMP SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	08	1	1210-1410		●
394	RUBBER; SUPPORT,CLAMP SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	08	1	1411-	●	●
415	BOLT; CLAMP SILENCER SINGLE VERTICAL<N28> M10X40 FLANGE	0-28051-040-0	01	1	1008-1209	●	●
415	BOLT; CLAMP M10X40 FLANGE	0-28051-040-0	01	1	1210-1410	●
415	BOLT; CLAMP SILENCER SINGLE VERTICAL<N28> M10X40 FLANGE	0-28051-040-0	01	1	1210-1410		●
415	BOLT; CLAMP SILENCER SINGLE VERTICAL<N28> M10X40 FLANGE	0-28051-040-0	01	1	1411-	●	●
420	BOLT; BRKT,VERTICAL PIPE SILENCER SINGLE VERTICAL<N28> M12X35 FLANGE	0-28061-235-0	02	1	1008-1209	●
420	BOLT; BRKT,VERTICAL PIPE SILENCER SINGLE VERTICAL<N28> EXC. SILENCER LAYOUT REAR VAR1<JAZ> M12X35 FLANGE	0-28061-235-0	02	1	1008-1209		●
420	BOLT; BRKT,VERTICAL PIPE M12X35 FLANGE	0-28061-235-0	02	1	1210-1410	●
420	BOLT; BRKT,VERTICAL PIPE SILENCER SINGLE VERTICAL<N28> EXC. SILENCER LAYOUT REAR VAR1<JAZ> M12X35 FLANGE	0-28061-235-0	02	1	1210-1410		●
420	BOLT; BRKT,VERTICAL PIPE SILENCER SINGLE VERTICAL<N28> M12X35 FLANGE	0-28061-235-0	02	1	1411-	●
420	BOLT; BRKT,VERTICAL PIPE SILENCER SINGLE VERTICAL<N28> EXC. SILENCER LAYOUT REAR VAR1<JAZ> M12X35 FLANGE	0-28061-235-0	02	1	1411-		●
420	BOLT; BRKT,VERTICAL PIPE SILENCER LAYOUT REAR VAR1<JAZ> SILENCER SINGLE VERTICAL<N28> M12X35 FLANGE	0-28061-235-0	06	1	1008-		●
433	BRACKET; STAY,EXH PIPE SILENCER SINGLE VERTICAL<N28>	8-97634-890-0	01	1	1008-1209	●	●
433	BRACKET; STAY,EXH PIPE	8-97634-890-0	01	1	1210-1410	●
433	BRACKET; STAY,EXH PIPE SILENCER SINGLE VERTICAL<N28>	8-97634-890-0	01	1	1210-1410		●
433	BRACKET; STAY,EXH PIPE SILENCER SINGLE VERTICAL<N28>	8-97634-890-0	01	1	1411-	●	●
434	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M12X30 FLANGE	0-28051-230-0	02	1	1008-1209	●	●
434	BOLT; BRKT M12X30 FLANGE	0-28051-230-0	02	1	1210-1410	●
434	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M12X30 FLANGE	0-28051-230-0	02	1	1210-1410		●
434	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M12X30 FLANGE	0-28051-230-0	02	1	1411-	●	●
436	STAY; SUPPORT,EXH SILENCER SINGLE VERTICAL<N28>	8-97616-276-0	02	1	1008-1209	●	●
436	STAY; SUPPORT,EXH	8-97616-276-0	02	1	1210-1410	●
436	STAY; SUPPORT,EXH SILENCER SINGLE VERTICAL<N28>	8-97616-276-0	02	1	1210-1410		●
436	STAY; SUPPORT,EXH SILENCER SINGLE VERTICAL<N28>	8-97616-276-0	02	1	1411-	●	●
446	PIECE; DIST,EXH PIPE,RR SILENCER SINGLE VERTICAL<N28> L=25	1-14234-083-0	02	1	1008-1209	●	●
446	PIECE; DIST,EXH PIPE,RR L=25	1-14234-083-0	02	1	1210-1410	●
446	PIECE; DIST,EXH PIPE,RR SILENCER SINGLE VERTICAL<N28> L=25	1-14234-083-0	02	1	1210-1410		●
446	PIECE; DIST,EXH PIPE,RR SILENCER SINGLE VERTICAL<N28> L=25	1-14234-083-0	02	1	1411-	●	●
448	PIECE; DIST,U-BOLT SILENCER SINGLE VERTICAL<N28>	1-22113-095-0	01	1	1008-1209	●	●
448	PIECE; DIST,U-BOLT	1-22113-095-0	01	1	1210-1410	●
448	PIECE; DIST,U-BOLT SILENCER SINGLE VERTICAL<N28>	1-22113-095-0	01	1	1210-1410		●
448	PIECE; DIST,U-BOLT SILENCER SINGLE VERTICAL<N28>	1-22113-095-0	01	1	1411-	●	●

41 151 42 1 36 17 475 475 476 1 36 26 34 476

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; EXH EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22123-762-1	01	1	1008-1209	●
1	PIPE; EXH EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> (A)	1-22123-762-1	01	1	1008-1209		●
1	PIPE; EXH EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> (A)	1-22123-762-1	01	1	1210-1410		●
1	PIPE; EXH EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22123-762-1	01	1	1411-	●
1	PIPE; EXH EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> (A)	1-22123-762-1	01	1	1411-		●
1	PIPE; EXH EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-22124-033-0	01	1	1008-1209	●
1	PIPE; EXH EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> (B)	1-22124-033-0	01	1	1008-1209		●
1	PIPE; EXH EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> (B)	1-22124-033-0	01	1	1210-1410		●
1	PIPE; EXH EXC. SILENCER SINGLE VERTICAL<N28> (B)	8-97645-637-0	01	1	1411-	●
1	PIPE; EXH EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> (B)	8-97645-637-0	01	1	1411-		●
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> (E)	8-97636-102-1	01	1	1008-1209	●	●
1	PIPE; EXH (E)	8-97636-102-1	01	1	1210-1410	●
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> (E)	8-97636-102-1	01	1	1210-1410		●
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> (E)	8-97644-311-0	01	1	1411-	●	●
1	PIPE; EXH SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (C)	8-97632-394-0	01	1	1008-1410		●
1	PIPE; EXH SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (C)	8-97645-640-0	01	1	1411-		●
1	PIPE; EXH SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (D)	8-97634-143-1	01	1	1008-		●
17	BOLT; EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> M12X25 FLANGE	1-09000-604-0	04	1	1008-1209	●	●
17	BOLT; EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> M12X25 FLANGE	1-09000-604-0	04	1	1210-1410		●
17	BOLT; EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> M12X25 FLANGE	1-09000-604-0	04	1	1411-	●	●
26	STUD; EXH MANIF SILENCER SINGLE VERTICAL<N28> M12X125 L=145	8-97617-265-0	04	1	1008-1209	●	●
26	STUD; EXH MANIF M12X125 L=145	8-97617-265-0	04	1	1210-1402	●
26	STUD; EXH MANIF SILENCER SINGLE VERTICAL<N28> M12X125 L=145	8-97617-265-0	04	1	1210-1402		●
26	STUD; EXH MANIF M12X125 L=145	8-97648-063-0	04	1	1403-1410	●
26	STUD; EXH MANIF SILENCER SINGLE VERTICAL<N28> M12X125 L=145	8-97648-063-0	04	1	1403-1410		●
26	STUD; EXH MANIF M12X125 L=145	8-97648-063-0	04	1	1411-	●	●
26	STUD; EXH MANIF EXC. SILENCER SINGLE VERTICAL<N28> M12X140 L=160	1-09302-163-0	04	1	1008-1209	●	●
26	STUD; EXH MANIF EXC. SILENCER SINGLE VERTICAL<N28> M12X140 L=160	1-09302-163-0	04	1	1210-1410		●
34	WASHER; EXH PIPE ID=13 OD=26	1-09556-020-0	04	1	1008-	●	●
36	NUT; EXH PIPE (A) M12	1-09400-131-0	04	1	1008-	●	●
36	NUT; EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (B) M12	0-91110-512-0	04	1	1008-1209	●	●
36	NUT; EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (B) M12	0-91110-512-0	04	1	1210-1410		●
36	NUT; EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (B) M12	0-91110-512-0	04	1	1411-	●	●
41	NUT; EXH PIPE TO EXH SILENCER M12	0-91110-512-0	04	1	1008-	●	●
42	BOLT; EXH PIPE TO EXH SILENCER EXC. SILENCER SINGLE VERTICAL<N28> M12X30 FLANGE	0-28051-230-0	04	1	1008-1209	●
42	BOLT; EXH PIPE TO EXH SILENCER EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> M12X30 FLANGE	0-28051-230-0	04	1	1008-1209		●
42	BOLT; EXH PIPE TO EXH SILENCER EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> M12X30 FLANGE	0-28051-230-0	04	1	1210-1410		●
42	BOLT; EXH PIPE TO EXH SILENCER EXC. SILENCER SINGLE VERTICAL<N28> M12X30 FLANGE	0-28051-230-0	04	1	1411-	●
42	BOLT; EXH PIPE TO EXH SILENCER EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> M12X30 FLANGE	0-28051-230-0	04	1	1411-		●
42	BOLT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> M12X35 FLANGE	1-09000-653-0	04	1	1008-1209	●	●
42	BOLT; EXH PIPE TO EXH SILENCER M12X35 FLANGE	1-09000-653-0	04	1	1210-1410	●
42	BOLT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> M12X35 FLANGE	1-09000-653-0	04	1	1210-1410		●
42	BOLT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> M12X35 FLANGE	1-09000-653-0	04	1	1411-	●	●
42	BOLT; EXH PIPE TO EXH SILENCER SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> M12X25 FLANGE	1-09000-604-0	04	1	1008-		●
151	PROTECTOR; HEAT,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (D)	8-97635-597-0	01	1	1008-1209	●
151	PROTECTOR; HEAT,EXH PIPE EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> (D)	8-97635-597-0	01	1	1008-1209		●
151	PROTECTOR; HEAT,EXH PIPE EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> (D)	8-97635-597-0	01	1	1210-1410		●
151	PROTECTOR; HEAT,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (D)	8-97635-597-0	01	1	1411-	●
151	PROTECTOR; HEAT,EXH PIPE EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> (D)	8-97635-597-0	01	1	1411-		●
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (A)	1-22159-334-0	01	1	1008-1209	●	●
151	PROTECTOR; HEAT,EXH PIPE (A)	1-22159-334-0	01	1	1210-1410	●
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (A)	1-22159-334-0	01	1	1210-1410		●
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (A)	1-22159-334-0	01	1	1411-	●	●
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (B)	8-97632-332-1	01	1	1008-1207	●	●
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (E)	8-97641-322-0	01	1	1208-1209	●	●
151	PROTECTOR; HEAT,EXH PIPE (E)	8-97641-322-0	01	1	1210-1410	●
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (E)	8-97641-322-0	01	1	1210-1410		●
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (E)	8-97644-313-0	01	1	1411-	●	●
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (C)	8-97632-334-0	01	1	1008-1207	●	●
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (F)	8-97641-323-0	01	1	1208-1209	●	●
151	PROTECTOR; HEAT,EXH PIPE (F)	8-97641-323-0	01	1	1210-1410	●
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (F)	8-97641-323-0	01	1	1210-1410		●
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (F)	8-97644-314-0	01	1	1411-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE (B) OD=112	1-22119-294-1	01	1	1008-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (B) OD=112	1-22119-294-1	01	1	1008-		●
475	BEARING; SEAL,VIBNON,EXH PIPE SILENCER SINGLE VERTICAL<N28> (A) OD=122	1-22119-297-1	02	1	1008-1209	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (A) OD=122	1-22119-297-1	02	1	1008-1209		●
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=122	1-22119-297-1	02	1	1210-1410	●
475	BEARING; SEAL,VIBNON,EXH PIPE SILENCER SINGLE VERTICAL<N28> (A) OD=122	1-22119-297-1	02	1	1210-1410		●
475	BEARING; SEAL,VIBNON,EXH PIPE SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (A) OD=122	1-22119-297-1	02	1	1210-1410		●
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=122	1-22119-297-1	02	1	1411-	●	●
476	SPRING; VIBNON,EXH PIPE (B)	8-94141-851-0	02	1	1008-	●	●
476	SPRING; VIBNON,EXH PIPE SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (B)	8-94141-851-0	02	1	1008-		●
476	SPRING; VIBNON,EXH PIPE SILENCER SINGLE VERTICAL<N28> (A)	1-09583-298-0	04	1	1008-1209	●	●
476	SPRING; VIBNON,EXH PIPE (A)	1-09583-298-0	04	1	1210-1410	●
476	SPRING; VIBNON,EXH PIPE SILENCER SINGLE VERTICAL<N28> (A)	1-09583-298-0	04	1	1210-1410		●
476	SPRING; VIBNON,EXH PIPE SILENCER SINGLE VERTICAL<N28> (A)	1-09583-298-0	04	1	1411-	●	●
476	SPRING; VIBNON,EXH PIPE SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-09583-248-0	04	1	1008-1410		●
476	SPRING; VIBNON,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-09583-248-0	04	1	1411-	●	●

509 81 81 107 70 75 108 24 75 59 508 508 70 108 81 509 81 118 118 59 12 476 20 475 553 160 159 384 159 384 159

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	SILENCER ASM; EXH SILENCER SINGLE VERTICAL<N28> (A)	8-97634-120-1	01	1	1008-1209	●	●
12	SILENCER ASM; EXH (A)	8-97634-120-1	01	1	1210-1410	●
12	SILENCER ASM; EXH SILENCER SINGLE VERTICAL<N28> (A)	8-97634-120-1	01	1	1210-1410		●
12	SILENCER ASM; EXH SILENCER SINGLE VERTICAL<N28> (A)	8-97634-120-1	01	1	1411-	●	●
12	SILENCER ASM; EXH EXC. SILENCER SINGLE VERTICAL<N28> (B)	8-97637-113-1	01	1	1008-1209	●	●
12	SILENCER ASM; EXH EXC. SILENCER SINGLE VERTICAL<N28> (B)	8-97637-113-1	01	1	1210-1410		●
12	SILENCER ASM; EXH EXC. SILENCER SINGLE VERTICAL<N28> (B)	8-97637-113-1	01	1	1411-	●	●
20	BOLT; FLANGE,EXH PIPE (A) M10X51.4	8-94436-943-0	02	1	1008-1410	●	●
20	BOLT; FLANGE,EXH PIPE (A) M10X51.4	8-94436-943-0	02	1	1411-	●	●
20	BOLT; FLANGE,EXH PIPE SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (B) M10X49.8	8-97039-586-0	02	1	1008-		●
24	COLLAR; DIST,CLAMP SILENCER SINGLE VERTICAL<N28> L=25	1-14234-083-0	10	1	1008-1209	●	●
24	COLLAR; DIST,CLAMP L=25	1-14234-083-0	10	1	1210-1410	●
24	COLLAR; DIST,CLAMP SILENCER SINGLE VERTICAL<N28> L=25	1-14234-083-0	10	1	1210-1410		●
24	COLLAR; DIST,CLAMP SILENCER SINGLE VERTICAL<N28> L=25	1-14234-083-0	10	1	1411-	●	●
24	COLLAR; DIST,CLAMP EXC. SILENCER SINGLE VERTICAL<N28> L=22	9-22159-024-0	04	1	1008-1209	●	●
24	COLLAR; DIST,CLAMP EXC. SILENCER SINGLE VERTICAL<N28> L=22	9-22159-024-0	04	1	1210-1410		●
24	COLLAR; DIST,CLAMP EXC. SILENCER SINGLE VERTICAL<N28> L=22	9-22159-024-0	04	1	1411-	●	●
59	BRACKET; EXH SILENCER,FRT SILENCER SINGLE VERTICAL<N28> (B)	1-22151-768-1	01	1	1008-1209	●	●
59	BRACKET; EXH SILENCER,FRT (B)	1-22151-768-1	01	1	1210-1410	●
59	BRACKET; EXH SILENCER,FRT SILENCER SINGLE VERTICAL<N28> (B)	1-22151-768-1	01	1	1210-1410		●
59	BRACKET; EXH SILENCER,FRT SILENCER SINGLE VERTICAL<N28> (B)	1-22151-768-1	01	1	1411-	●	●
59	BRACKET; EXH SILENCER,FRT SILENCER SINGLE VERTICAL<N28> (C)	8-97632-549-0	01	1	1008-1209	●	●
59	BRACKET; EXH SILENCER,FRT (C)	8-97632-549-0	01	1	1210-1410	●
59	BRACKET; EXH SILENCER,FRT SILENCER SINGLE VERTICAL<N28> (C)	8-97632-549-0	01	1	1210-1410		●
59	BRACKET; EXH SILENCER,FRT SILENCER SINGLE VERTICAL<N28> (C)	8-97632-549-0	01	1	1411-	●	●
59	BRACKET; EXH SILENCER,FRT EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22134-147-1	02	1	1008-1209	●	●
59	BRACKET; EXH SILENCER,FRT EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22134-147-1	02	1	1210-1410		●
59	BRACKET; EXH SILENCER,FRT EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22134-147-1	02	1	1411-	●	●
70	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> (A) M10X40 FLANGE	0-28051-040-0	01	1	1008-1209	●	●
70	BOLT; BRKT (A) M10X40 FLANGE	0-28051-040-0	01	1	1210-1410	●
70	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> (A) M10X40 FLANGE	0-28051-040-0	01	1	1210-1410		●
70	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> (A) M10X40 FLANGE	0-28051-040-0	01	1	1411-	●	●
70	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> (A) M10X60 FLANGE	0-28051-060-0	04	1	1008-1209	●	●
70	BOLT; BRKT (A) M10X60 FLANGE	0-28051-060-0	04	1	1210-1410	●
70	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> (A) M10X60 FLANGE	0-28051-060-0	04	1	1210-1410		●
70	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> (A) M10X60 FLANGE	0-28051-060-0	04	1	1411-	●	●
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (B) M10X35 FLANGE	0-28051-035-0	04	1	1008-1209	●	●
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (B) M10X35 FLANGE	0-28051-035-0	04	1	1210-1410		●
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (B) M10X35 FLANGE	0-28051-035-0	04	1	1411-	●	●
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M10X50 FLANGE	0-28051-050-0	04	1	1008-1209	●	●
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M10X50 FLANGE	0-28051-050-0	04	1	1210-1410		●
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M10X50 FLANGE	0-28051-050-0	04	1	1411-	●	●
70	BOLT; BRKT SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (A) M10X60 FLANGE	0-28051-060-0	02	1	1008-1510		●
70	BOLT; BRKT SILENCER LAYOUT REAR VAR1<JAZ> WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) EXC. SILENCER SINGLE VERTICAL<N28> M10X60 FLANGE	0-28051-060-0	02	1	1511-		●
75	RUBBER; SUPPORT,BRKT OD=40	1-22159-094-0	08	1	1008-	●	●
75	RUBBER; SUPPORT,BRKT SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	04	1	1008-1209	●	●
75	RUBBER; SUPPORT,BRKT OD=40	1-22159-094-0	04	1	1210-1410	●
75	RUBBER; SUPPORT,BRKT SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	04	1	1210-1410		●
75	RUBBER; SUPPORT,BRKT SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	04	1	1411-	●	●
81	NUT; BRKT SILENCER LAYOUT REAR VAR1<JAZ> WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) EXC. SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91180-210-0	02	1	1511-		●
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91180-210-0	01	1	1008-1209	●	●
81	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	01	1	1210-1410	●
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91180-210-0	01	1	1210-1410		●
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91180-210-0	05	1	1411-1510	●	●
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91180-210-0	01	1	1511-	●	●
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91180-210-0	04	1	1008-1209	●	●
81	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	04	1	1210-1410	●
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91180-210-0	04	1	1210-1410		●
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> (A) M12 FLANGE	0-91180-212-0	02	1	1008-1209	●	●
81	NUT; BRKT (A) M12 FLANGE	0-91180-212-0	02	1	1210-1410	●
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> (A) M12 FLANGE	0-91180-212-0	02	1	1210-1410		●
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> (A) M12 FLANGE	0-91180-212-0	02	1	1411-	●	●
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M12 FLANGE	0-91180-212-0	12	1	1008-1209	●	●
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M12 FLANGE	0-91180-212-0	12	1	1210-1410		●
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M12 FLANGE	0-91180-212-0	12	1	1411-	●	●
81	NUT; BRKT SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91180-210-0	02	1	1008-1510		●
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91180-210-0	04	1	1511-	●	●
107	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> M12X40 FLANGE	0-28051-240-0	06	1	1008-1209	●
107	BOLT; BRKT EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> M12X40 FLANGE	0-28051-240-0	06	1	1008-1209		●
107	BOLT; BRKT EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> M12X40 FLANGE	0-28051-240-0	06	1	1210-1410		●
107	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> M12X40 FLANGE	0-28051-240-0	06	1	1411-	●
107	BOLT; BRKT EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> M12X40 FLANGE	0-28051-240-0	06	1	1411-		●
107	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M12X45 FLANGE	0-28051-245-0	04	1	1008-1209	●	●
107	BOLT; BRKT SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> M12X45 FLANGE	0-28051-245-0	04	1	1008-1209		●
107	BOLT; BRKT M12X45 FLANGE	0-28051-245-0	04	1	1210-1410	●
107	BOLT; BRKT SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> M12X45 FLANGE	0-28051-245-0	04	1	1210-1410		●
107	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M12X45 FLANGE	0-28051-245-0	04	1	1210-1410		●
107	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M12X45 FLANGE	0-28051-245-0	04	1	1411-	●	●
107	BOLT; BRKT SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> M12X45 FLANGE	0-28051-245-0	04	1	1411-		●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR EXC. SILENCER SINGLE VERTICAL<N28> FRONT	1-22134-145-0	01	1	1008-1209	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> FRONT	1-22134-145-0	01	1	1008-1209		●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> FRONT	1-22134-145-0	01	1	1210-1410		●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR EXC. SILENCER SINGLE VERTICAL<N28> FRONT	1-22134-145-0	01	1	1411-	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> FRONT	1-22134-145-0	01	1	1411-		●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR EXC. SILENCER SINGLE VERTICAL<N28> REAR	1-22134-146-0	01	1	1008-1209	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> REAR	1-22134-146-0	01	1	1008-1209		●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> REAR	1-22134-146-0	01	1	1210-1410		●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR EXC. SILENCER SINGLE VERTICAL<N28> REAR	1-22134-146-0	01	1	1411-	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> REAR	1-22134-146-0	01	1	1411-		●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28>	1-22134-148-3	02	1	1008-		●
118	NUT; SILENCER MTG BRKT EXC. SILENCER SINGLE VERTICAL<N28> M10	0-91110-510-0	08	1	1008-1209	●	●
118	NUT; SILENCER MTG BRKT EXC. SILENCER SINGLE VERTICAL<N28> M10	0-91110-510-0	08	1	1210-1410		●
118	NUT; SILENCER MTG BRKT EXC. SILENCER SINGLE VERTICAL<N28> M10	0-91110-510-0	08	1	1411-	●	●
159	BOLT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> M8X20 FLANGE	0-28050-820-0	04	1	1008-1207	●	●
159	BOLT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> M8X25 W/LK&PL WASHER	1-09030-027-0	06	1	1008-1209	●	●
159	BOLT; HEAT PROTECTOR M8X25 W/LK&PL WASHER	1-09030-027-0	06	1	1210-1410	●
159	BOLT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> M8X25 W/LK&PL WASHER	1-09030-027-0	06	1	1210-1410		●
159	BOLT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> M8X25 W/LK&PL WASHER	1-09030-027-0	06	1	1411-	●	●
159	BOLT; HEAT PROTECTOR EXC. SILENCER SINGLE VERTICAL<N28> M8X22 W/LK&PL WASHER	1-09030-042-0	05	1	1008-1209	●	●
159	BOLT; HEAT PROTECTOR EXC. SILENCER SINGLE VERTICAL<N28> M8X22 W/LK&PL WASHER	1-09030-042-0	05	1	1210-1410		●
159	BOLT; HEAT PROTECTOR EXC. SILENCER SINGLE VERTICAL<N28> M8X22 W/LK&PL WASHER	1-09030-042-0	05	1	1411-	●	●
160	NUT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91180-108-0	04	1	1208-1209	●	●
160	NUT; HEAT PROTECTOR M8 FLANGE	0-91180-108-0	04	1	1210-1410	●
160	NUT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91180-108-0	04	1	1210-1410		●
160	NUT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91180-108-0	04	1	1411-	●	●
160	NUT; HEAT PROTECTOR EXC. SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91180-108-0	01	1	1008-1209	●	●
160	NUT; HEAT PROTECTOR EXC. SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91180-108-0	01	1	1210-1410		●
160	NUT; HEAT PROTECTOR EXC. SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91180-108-0	01	1	1411-	●	●
384	PROTECTOR; HEAT SILENCER MTG MIXER TRUCK<RA2> EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-22119-557-1	01	1	1008-1209	●
384	PROTECTOR; HEAT SILENCER MTG DUMP TRUCK<RA1> EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-22119-557-1	01	1	1008-1209		●
384	PROTECTOR; HEAT SILENCER MTG DUMP TRUCK<RA1> EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-22119-557-1	01	1	1210-1410		●
384	PROTECTOR; HEAT SILENCER MTG EXC. SILENCER SINGLE VERTICAL<N28>,MIXER TRUCK<RA2> (A)	1-22119-556-0	01	1	1008-1209	●
384	PROTECTOR; HEAT SILENCER MTG EXC. SILENCER SINGLE VERTICAL<N28>,DUMP TRUCK<RA1> (A)	1-22119-556-0	01	1	1008-1209		●
384	PROTECTOR; HEAT SILENCER MTG EXC. SILENCER SINGLE VERTICAL<N28>,DUMP TRUCK<RA1> (A)	1-22119-556-0	01	1	1210-1410		●
384	PROTECTOR; HEAT SILENCER MTG EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22119-556-0	01	1	1411-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE (B) OD=112	1-22119-294-1	01	1	1008-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (B) OD=112	1-22119-294-1	01	1	1008-		●
475	BEARING; SEAL,VIBNON,EXH PIPE SILENCER SINGLE VERTICAL<N28> (A) OD=122	1-22119-297-1	02	1	1008-1209	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (A) OD=122	1-22119-297-1	02	1	1008-1209		●
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=122	1-22119-297-1	02	1	1210-1410	●
475	BEARING; SEAL,VIBNON,EXH PIPE SILENCER SINGLE VERTICAL<N28> (A) OD=122	1-22119-297-1	02	1	1210-1410		●
475	BEARING; SEAL,VIBNON,EXH PIPE SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (A) OD=122	1-22119-297-1	02	1	1210-1410		●
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=122	1-22119-297-1	02	1	1411-	●	●
476	SPRING; VIBNON,EXH PIPE (B)	8-94141-851-0	02	1	1008-	●	●
476	SPRING; VIBNON,EXH PIPE SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (B)	8-94141-851-0	02	1	1008-		●
476	SPRING; VIBNON,EXH PIPE SILENCER SINGLE VERTICAL<N28> (A)	1-09583-298-0	04	1	1008-1209	●	●
476	SPRING; VIBNON,EXH PIPE (A)	1-09583-298-0	04	1	1210-1410	●
476	SPRING; VIBNON,EXH PIPE SILENCER SINGLE VERTICAL<N28> (A)	1-09583-298-0	04	1	1210-1410		●
476	SPRING; VIBNON,EXH PIPE SILENCER SINGLE VERTICAL<N28> (A)	1-09583-298-0	04	1	1411-	●	●
476	SPRING; VIBNON,EXH PIPE SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-09583-248-0	04	1	1008-1410		●
476	SPRING; VIBNON,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-09583-248-0	04	1	1411-	●	●
508	BAND; EXHAUST SILENCER EXC. SILENCER SINGLE VERTICAL<N28>	1-22159-384-0	02	1	1008-1209	●	●
508	BAND; EXHAUST SILENCER EXC. SILENCER SINGLE VERTICAL<N28>	1-22159-384-0	02	1	1210-1410		●
508	BAND; EXHAUST SILENCER EXC. SILENCER SINGLE VERTICAL<N28>	1-22159-384-0	02	1	1411-	●	●
509	STUD; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M12X40 L=56	1-09300-123-0	06	1	1008-1209	●
509	STUD; BRKT EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> (A) M12X40 L=56	1-09300-123-0	06	1	1008-1209		●
509	STUD; BRKT EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> (A) M12X40 L=56	1-09300-123-0	06	1	1210-1410		●
509	STUD; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M12X40 L=56	1-09300-123-0	06	1	1411-	●
509	STUD; BRKT EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> (A) M12X40 L=56	1-09300-123-0	06	1	1411-		●
509	STUD; BRKT SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (A) M12X40 L=56	1-09300-123-0	04	1	1008-		●
509	STUD; BRKT SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-22152-152-0	02	1	1008-		●
553	FLANGE; SILENCER EXC. SILENCER SINGLE VERTICAL<N28>	1-22115-148-1	01	1	1008-1209	●	●
553	FLANGE; SILENCER EXC. SILENCER SINGLE VERTICAL<N28>	1-22115-148-1	01	1	1210-1410		●
553	FLANGE; SILENCER EXC. SILENCER SINGLE VERTICAL<N28>	1-22115-148-1	01	1	1411-	●	●

168 45 52 65 44 70 77 573 77 65 81 105 1 26 36 34 17 1 290 52 20 476 475 41 42 1 220 36 475 476 475 476 220

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; EXH EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22123-762-1	01	1	1008-1209	●
1	PIPE; EXH EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> (A)	1-22123-762-1	01	1	1008-1209		●
1	PIPE; EXH EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> (A)	1-22123-762-1	01	1	1210-1410		●
1	PIPE; EXH EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22123-762-1	01	1	1411-	●
1	PIPE; EXH EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> (A)	1-22123-762-1	01	1	1411-		●
1	PIPE; EXH EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-22124-033-0	01	1	1008-1209	●
1	PIPE; EXH EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> (B)	1-22124-033-0	01	1	1008-1209		●
1	PIPE; EXH EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> (B)	1-22124-033-0	01	1	1210-1410		●
1	PIPE; EXH EXC. SILENCER SINGLE VERTICAL<N28> (B)	8-97645-637-0	01	1	1411-	●
1	PIPE; EXH EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> (B)	8-97645-637-0	01	1	1411-		●
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> (E)	8-97636-102-1	01	1	1008-1209	●	●
1	PIPE; EXH (E)	8-97636-102-1	01	1	1210-1410	●
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> (E)	8-97636-102-1	01	1	1210-1410		●
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> (E)	8-97644-311-0	01	1	1411-	●	●
1	PIPE; EXH SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (C)	8-97632-394-0	01	1	1008-1410		●
1	PIPE; EXH SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (C)	8-97645-640-0	01	1	1411-		●
1	PIPE; EXH SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (D)	8-97634-143-1	01	1	1008-		●
17	BOLT; EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> M12X25 FLANGE	1-09000-604-0	04	1	1008-1209	●	●
17	BOLT; EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> M12X25 FLANGE	1-09000-604-0	04	1	1210-1410		●
17	BOLT; EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> M12X25 FLANGE	1-09000-604-0	04	1	1411-	●	●
20	BOLT; FLANGE,EXH PIPE (A) M10X51.4	8-94436-943-0	02	1	1008-1410	●	●
20	BOLT; FLANGE,EXH PIPE (A) M10X51.4	8-94436-943-0	02	1	1411-	●	●
20	BOLT; FLANGE,EXH PIPE SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (B) M10X49.8	8-97039-586-0	02	1	1008-		●
26	STUD; EXH MANIF SILENCER SINGLE VERTICAL<N28> M12X125 L=145	8-97617-265-0	04	1	1008-1209	●	●
26	STUD; EXH MANIF M12X125 L=145	8-97617-265-0	04	1	1210-1402	●
26	STUD; EXH MANIF SILENCER SINGLE VERTICAL<N28> M12X125 L=145	8-97617-265-0	04	1	1210-1402		●
26	STUD; EXH MANIF M12X125 L=145	8-97648-063-0	04	1	1403-1410	●
26	STUD; EXH MANIF SILENCER SINGLE VERTICAL<N28> M12X125 L=145	8-97648-063-0	04	1	1403-1410		●
26	STUD; EXH MANIF M12X125 L=145	8-97648-063-0	04	1	1411-	●	●
26	STUD; EXH MANIF EXC. SILENCER SINGLE VERTICAL<N28> M12X140 L=160	1-09302-163-0	04	1	1008-1209	●	●
26	STUD; EXH MANIF EXC. SILENCER SINGLE VERTICAL<N28> M12X140 L=160	1-09302-163-0	04	1	1210-1410		●
34	WASHER; EXH PIPE ID=13 OD=26	1-09556-020-0	04	1	1008-	●	●
36	NUT; EXH PIPE (A) M12	1-09400-131-0	04	1	1008-	●	●
36	NUT; EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (B) M12	0-91110-512-0	04	1	1008-1209	●	●
36	NUT; EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (B) M12	0-91110-512-0	04	1	1210-1410		●
36	NUT; EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (B) M12	0-91110-512-0	04	1	1411-	●	●
41	NUT; EXH PIPE TO EXH SILENCER M12	0-91110-512-0	04	1	1008-	●	●
42	BOLT; EXH PIPE TO EXH SILENCER EXC. SILENCER SINGLE VERTICAL<N28> M12X30 FLANGE	0-28051-230-0	04	1	1008-1209	●
42	BOLT; EXH PIPE TO EXH SILENCER EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> M12X30 FLANGE	0-28051-230-0	04	1	1008-1209		●
42	BOLT; EXH PIPE TO EXH SILENCER EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> M12X30 FLANGE	0-28051-230-0	04	1	1210-1410		●
42	BOLT; EXH PIPE TO EXH SILENCER EXC. SILENCER SINGLE VERTICAL<N28> M12X30 FLANGE	0-28051-230-0	04	1	1411-	●
42	BOLT; EXH PIPE TO EXH SILENCER EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> M12X30 FLANGE	0-28051-230-0	04	1	1411-		●
42	BOLT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> M12X35 FLANGE	1-09000-653-0	04	1	1008-1209	●	●
42	BOLT; EXH PIPE TO EXH SILENCER M12X35 FLANGE	1-09000-653-0	04	1	1210-1410	●
42	BOLT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> M12X35 FLANGE	1-09000-653-0	04	1	1210-1410		●
42	BOLT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> M12X35 FLANGE	1-09000-653-0	04	1	1411-	●	●
42	BOLT; EXH PIPE TO EXH SILENCER SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> M12X25 FLANGE	1-09000-604-0	04	1	1008-		●
44	BOLT; BRKT SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> M10X35 FLANGE	0-28051-035-0	02	1	1008-1510		●
44	BOLT; BRKT SILENCER LAYOUT REAR VAR1<JAZ> WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) EXC. SILENCER SINGLE VERTICAL<N28> M10X35 FLANGE	0-28051-035-0	02	1	1511-		●
45	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M10X50 FLANGE	0-28051-050-0	02	1	1008-1209	●	●
45	BOLT; BRKT M10X50 FLANGE	0-28051-050-0	02	1	1210-1410	●
45	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M10X50 FLANGE	0-28051-050-0	02	1	1210-1410		●
45	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M10X50 FLANGE	0-28051-050-0	02	1	1411-	●	●
52	NUT; BRKT SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91180-210-0	02	1	1008-1209	●	●
52	NUT; BRKT SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91180-210-0	02	1	1008-1209		●
52	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1210-1410	●
52	NUT; BRKT SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91180-210-0	02	1	1210-1410		●
52	NUT; BRKT SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91180-210-0	02	1	1210-1410		●
52	NUT; BRKT SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91180-210-0	02	1	1411-1510	●	●
52	NUT; BRKT SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91180-210-0	02	1	1411-1510		●
52	NUT; BRKT SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91180-210-0	02	1	1511-	●	●
52	NUT; BRKT SILENCER LAYOUT REAR VAR1<JAZ> WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) EXC. SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91180-210-0	02	1	1511-		●
65	WASHER; PL SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> ID=10.5 OD=32	0-91614-810-0	02	1	1008-1510		●
65	WASHER; PL SILENCER LAYOUT REAR VAR1<JAZ> WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) EXC. SILENCER SINGLE VERTICAL<N28> ID=10.5 OD=32	0-91614-810-0	02	1	1511-		●
70	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> (A) M10X40 FLANGE	0-28051-040-0	01	1	1008-1209	●	●
70	BOLT; BRKT (A) M10X40 FLANGE	0-28051-040-0	01	1	1210-1410	●
70	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> (A) M10X40 FLANGE	0-28051-040-0	01	1	1210-1410		●
70	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> (A) M10X40 FLANGE	0-28051-040-0	01	1	1411-	●	●
70	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> (A) M10X60 FLANGE	0-28051-060-0	04	1	1008-1209	●	●
70	BOLT; BRKT (A) M10X60 FLANGE	0-28051-060-0	04	1	1210-1410	●
70	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> (A) M10X60 FLANGE	0-28051-060-0	04	1	1210-1410		●
70	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> (A) M10X60 FLANGE	0-28051-060-0	04	1	1411-	●	●
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (B) M10X35 FLANGE	0-28051-035-0	04	1	1008-1209	●	●
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (B) M10X35 FLANGE	0-28051-035-0	04	1	1210-1410		●
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (B) M10X35 FLANGE	0-28051-035-0	04	1	1411-	●	●
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M10X50 FLANGE	0-28051-050-0	04	1	1008-1209	●	●
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M10X50 FLANGE	0-28051-050-0	04	1	1210-1410		●
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M10X50 FLANGE	0-28051-050-0	04	1	1411-	●	●
70	BOLT; BRKT SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (A) M10X60 FLANGE	0-28051-060-0	02	1	1008-1510		●
70	BOLT; BRKT SILENCER LAYOUT REAR VAR1<JAZ> WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) EXC. SILENCER SINGLE VERTICAL<N28> M10X60 FLANGE	0-28051-060-0	02	1	1511-		●
77	RUBBER; CUSHION,BRKT SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	04	1	1008-1209	●	●
77	RUBBER; CUSHION,BRKT SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	04	1	1008-1209		●
77	RUBBER; CUSHION,BRKT OD=40	1-22159-094-0	04	1	1210-1410	●
77	RUBBER; CUSHION,BRKT SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	04	1	1210-1410		●
77	RUBBER; CUSHION,BRKT SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	04	1	1210-1410		●
77	RUBBER; CUSHION,BRKT SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	04	1	1411-1510	●	●
77	RUBBER; CUSHION,BRKT SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	04	1	1411-1510		●
77	RUBBER; CUSHION,BRKT SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	04	1	1511-	●	●
77	RUBBER; CUSHION,BRKT SILENCER LAYOUT REAR VAR1<JAZ> WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) EXC. SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	04	1	1511-		●
81	NUT; BRKT SILENCER LAYOUT REAR VAR1<JAZ> WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) EXC. SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91180-210-0	02	1	1511-		●
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91180-210-0	01	1	1008-1209	●	●
81	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	01	1	1210-1410	●
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91180-210-0	01	1	1210-1410		●
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91180-210-0	05	1	1411-1510	●	●
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91180-210-0	01	1	1511-	●	●
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91180-210-0	04	1	1008-1209	●	●
81	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	04	1	1210-1410	●
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91180-210-0	04	1	1210-1410		●
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> (A) M12 FLANGE	0-91180-212-0	02	1	1008-1209	●	●
81	NUT; BRKT (A) M12 FLANGE	0-91180-212-0	02	1	1210-1410	●
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> (A) M12 FLANGE	0-91180-212-0	02	1	1210-1410		●
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> (A) M12 FLANGE	0-91180-212-0	02	1	1411-	●	●
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M12 FLANGE	0-91180-212-0	12	1	1008-1209	●	●
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M12 FLANGE	0-91180-212-0	12	1	1210-1410		●
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M12 FLANGE	0-91180-212-0	12	1	1411-	●	●
81	NUT; BRKT SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91180-210-0	02	1	1008-1510		●
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91180-210-0	04	1	1511-	●	●
105	NUT; CLAMP SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91180-210-0	07	1	1008-1209	●	●
105	NUT; CLAMP M10 FLANGE	0-91180-210-0	07	1	1210-1410	●
105	NUT; CLAMP SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91180-210-0	07	1	1210-1410		●
105	NUT; CLAMP SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91180-210-0	07	1	1411-	●	●
105	NUT; CLAMP SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91180-108-0	02	1	1008-1510		●
105	NUT; CLAMP SILENCER LAYOUT REAR VAR1<JAZ> WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) EXC. SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91180-108-0	02	1	1511-		●
168	BRACKET; EXH PIPE,FRT SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28>	8-97633-177-1	01	1	1008-1510		●
168	BRACKET; EXH PIPE,FRT SILENCER LAYOUT REAR VAR1<JAZ> WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) EXC. SILENCER SINGLE VERTICAL<N28>	8-97633-177-1	01	1	1511-		●
220	CLAMP; EXH PIPE SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> D=101.4	1-22133-170-1	01	1	1008-		●
290	BOLT; CLAMP SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> M8X40 FLANGE	0-28650-840-0	02	1	1008-1510		●
290	BOLT; CLAMP SILENCER LAYOUT REAR VAR1<JAZ> WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) EXC. SILENCER SINGLE VERTICAL<N28> M8X40 FLANGE	0-28650-840-0	02	1	1511-		●
475	BEARING; SEAL,VIBNON,EXH PIPE (B) OD=112	1-22119-294-1	01	1	1008-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (B) OD=112	1-22119-294-1	01	1	1008-		●
475	BEARING; SEAL,VIBNON,EXH PIPE SILENCER SINGLE VERTICAL<N28> (A) OD=122	1-22119-297-1	02	1	1008-1209	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (A) OD=122	1-22119-297-1	02	1	1008-1209		●
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=122	1-22119-297-1	02	1	1210-1410	●
475	BEARING; SEAL,VIBNON,EXH PIPE SILENCER SINGLE VERTICAL<N28> (A) OD=122	1-22119-297-1	02	1	1210-1410		●
475	BEARING; SEAL,VIBNON,EXH PIPE SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (A) OD=122	1-22119-297-1	02	1	1210-1410		●
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=122	1-22119-297-1	02	1	1411-	●	●
476	SPRING; VIBNON,EXH PIPE (B)	8-94141-851-0	02	1	1008-	●	●
476	SPRING; VIBNON,EXH PIPE SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (B)	8-94141-851-0	02	1	1008-		●
476	SPRING; VIBNON,EXH PIPE SILENCER SINGLE VERTICAL<N28> (A)	1-09583-298-0	04	1	1008-1209	●	●
476	SPRING; VIBNON,EXH PIPE (A)	1-09583-298-0	04	1	1210-1410	●
476	SPRING; VIBNON,EXH PIPE SILENCER SINGLE VERTICAL<N28> (A)	1-09583-298-0	04	1	1210-1410		●
476	SPRING; VIBNON,EXH PIPE SILENCER SINGLE VERTICAL<N28> (A)	1-09583-298-0	04	1	1411-	●	●
476	SPRING; VIBNON,EXH PIPE SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-09583-248-0	04	1	1008-1410		●
476	SPRING; VIBNON,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-09583-248-0	04	1	1411-	●	●
573	TUBE; DIST SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> L=25	1-14234-083-0	02	1	1008-1510		●
573	TUBE; DIST SILENCER LAYOUT REAR VAR1<JAZ> WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) EXC. SILENCER SINGLE VERTICAL<N28> L=25	1-14234-083-0	02	1	1511-		●

151 151 36 34 1 475 476 16 475 476 20 41 354 375 368 375 368 354 476 475 26 160 151 159 151

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; EXH EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22123-762-1	01	1	1008-1209	●
1	PIPE; EXH EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> (A)	1-22123-762-1	01	1	1008-1209		●
1	PIPE; EXH EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> (A)	1-22123-762-1	01	1	1210-1410		●
1	PIPE; EXH EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22123-762-1	01	1	1411-	●
1	PIPE; EXH EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> (A)	1-22123-762-1	01	1	1411-		●
1	PIPE; EXH EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-22124-033-0	01	1	1008-1209	●
1	PIPE; EXH EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> (B)	1-22124-033-0	01	1	1008-1209		●
1	PIPE; EXH EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> (B)	1-22124-033-0	01	1	1210-1410		●
1	PIPE; EXH EXC. SILENCER SINGLE VERTICAL<N28> (B)	8-97645-637-0	01	1	1411-	●
1	PIPE; EXH EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> (B)	8-97645-637-0	01	1	1411-		●
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> (E)	8-97636-102-1	01	1	1008-1209	●	●
1	PIPE; EXH (E)	8-97636-102-1	01	1	1210-1410	●
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> (E)	8-97636-102-1	01	1	1210-1410		●
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> (E)	8-97644-311-0	01	1	1411-	●	●
1	PIPE; EXH SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (C)	8-97632-394-0	01	1	1008-1410		●
1	PIPE; EXH SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (C)	8-97645-640-0	01	1	1411-		●
1	PIPE; EXH SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (D)	8-97634-143-1	01	1	1008-		●
16	FLANGE; EXH PIPE SILENCER SINGLE VERTICAL<N28>	1-22115-148-1	01	1	1008-1209	●	●
16	FLANGE; EXH PIPE	1-22115-148-1	01	1	1210-1410	●
16	FLANGE; EXH PIPE SILENCER SINGLE VERTICAL<N28>	1-22115-148-1	01	1	1210-1410		●
16	FLANGE; EXH PIPE SILENCER SINGLE VERTICAL<N28>	1-22115-148-1	01	1	1411-	●	●
20	BOLT; FLANGE,EXH PIPE (A) M10X51.4	8-94436-943-0	02	1	1008-1410	●	●
20	BOLT; FLANGE,EXH PIPE (A) M10X51.4	8-94436-943-0	02	1	1411-	●	●
20	BOLT; FLANGE,EXH PIPE SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (B) M10X49.8	8-97039-586-0	02	1	1008-		●
26	STUD; EXH MANIF SILENCER SINGLE VERTICAL<N28> M12X125 L=145	8-97617-265-0	04	1	1008-1209	●	●
26	STUD; EXH MANIF M12X125 L=145	8-97617-265-0	04	1	1210-1402	●
26	STUD; EXH MANIF SILENCER SINGLE VERTICAL<N28> M12X125 L=145	8-97617-265-0	04	1	1210-1402		●
26	STUD; EXH MANIF M12X125 L=145	8-97648-063-0	04	1	1403-1410	●
26	STUD; EXH MANIF SILENCER SINGLE VERTICAL<N28> M12X125 L=145	8-97648-063-0	04	1	1403-1410		●
26	STUD; EXH MANIF M12X125 L=145	8-97648-063-0	04	1	1411-	●	●
26	STUD; EXH MANIF EXC. SILENCER SINGLE VERTICAL<N28> M12X140 L=160	1-09302-163-0	04	1	1008-1209	●	●
26	STUD; EXH MANIF EXC. SILENCER SINGLE VERTICAL<N28> M12X140 L=160	1-09302-163-0	04	1	1210-1410		●
34	WASHER; EXH PIPE ID=13 OD=26	1-09556-020-0	04	1	1008-	●	●
36	NUT; EXH PIPE (A) M12	1-09400-131-0	04	1	1008-	●	●
36	NUT; EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (B) M12	0-91110-512-0	04	1	1008-1209	●	●
36	NUT; EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (B) M12	0-91110-512-0	04	1	1210-1410		●
36	NUT; EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (B) M12	0-91110-512-0	04	1	1411-	●	●
41	NUT; EXH PIPE TO EXH SILENCER M12	0-91110-512-0	04	1	1008-	●	●
151	PROTECTOR; HEAT,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (D)	8-97635-597-0	01	1	1008-1209	●
151	PROTECTOR; HEAT,EXH PIPE EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> (D)	8-97635-597-0	01	1	1008-1209		●
151	PROTECTOR; HEAT,EXH PIPE EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> (D)	8-97635-597-0	01	1	1210-1410		●
151	PROTECTOR; HEAT,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (D)	8-97635-597-0	01	1	1411-	●
151	PROTECTOR; HEAT,EXH PIPE EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> (D)	8-97635-597-0	01	1	1411-		●
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (A)	1-22159-334-0	01	1	1008-1209	●	●
151	PROTECTOR; HEAT,EXH PIPE (A)	1-22159-334-0	01	1	1210-1410	●
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (A)	1-22159-334-0	01	1	1210-1410		●
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (A)	1-22159-334-0	01	1	1411-	●	●
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (B)	8-97632-332-1	01	1	1008-1207	●	●
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (E)	8-97641-322-0	01	1	1208-1209	●	●
151	PROTECTOR; HEAT,EXH PIPE (E)	8-97641-322-0	01	1	1210-1410	●
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (E)	8-97641-322-0	01	1	1210-1410		●
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (E)	8-97644-313-0	01	1	1411-	●	●
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (C)	8-97632-334-0	01	1	1008-1207	●	●
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (F)	8-97641-323-0	01	1	1208-1209	●	●
151	PROTECTOR; HEAT,EXH PIPE (F)	8-97641-323-0	01	1	1210-1410	●
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (F)	8-97641-323-0	01	1	1210-1410		●
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (F)	8-97644-314-0	01	1	1411-	●	●
159	BOLT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> M8X20 FLANGE	0-28050-820-0	04	1	1008-1207	●	●
159	BOLT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> M8X25 W/LK&PL WASHER	1-09030-027-0	06	1	1008-1209	●	●
159	BOLT; HEAT PROTECTOR M8X25 W/LK&PL WASHER	1-09030-027-0	06	1	1210-1410	●
159	BOLT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> M8X25 W/LK&PL WASHER	1-09030-027-0	06	1	1210-1410		●
159	BOLT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> M8X25 W/LK&PL WASHER	1-09030-027-0	06	1	1411-	●	●
159	BOLT; HEAT PROTECTOR EXC. SILENCER SINGLE VERTICAL<N28> M8X22 W/LK&PL WASHER	1-09030-042-0	05	1	1008-1209	●	●
159	BOLT; HEAT PROTECTOR EXC. SILENCER SINGLE VERTICAL<N28> M8X22 W/LK&PL WASHER	1-09030-042-0	05	1	1210-1410		●
159	BOLT; HEAT PROTECTOR EXC. SILENCER SINGLE VERTICAL<N28> M8X22 W/LK&PL WASHER	1-09030-042-0	05	1	1411-	●	●
160	NUT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91180-108-0	04	1	1208-1209	●	●
160	NUT; HEAT PROTECTOR M8 FLANGE	0-91180-108-0	04	1	1210-1410	●
160	NUT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91180-108-0	04	1	1210-1410		●
160	NUT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91180-108-0	04	1	1411-	●	●
160	NUT; HEAT PROTECTOR EXC. SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91180-108-0	01	1	1008-1209	●	●
160	NUT; HEAT PROTECTOR EXC. SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91180-108-0	01	1	1210-1410		●
160	NUT; HEAT PROTECTOR EXC. SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91180-108-0	01	1	1411-	●	●
354	CLAMP; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28>	8-97632-333-0	02	1	1008-1209	●	●
354	CLAMP; HEAT PROTECTOR	8-97632-333-0	02	1	1210-1410	●
354	CLAMP; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28>	8-97632-333-0	02	1	1210-1410		●
354	CLAMP; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28>	8-97632-333-0	02	1	1411-	●	●
368	BOLT; CLAMP SILENCER SINGLE VERTICAL<N28> M8X30 FLANGE	0-28050-830-0	04	1	1008-1207	●	●
375	NUT; CLAMP SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91180-108-0	04	1	1208-1209	●	●
375	NUT; CLAMP M8 FLANGE	0-91180-108-0	04	1	1210-1410	●
375	NUT; CLAMP SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91180-108-0	04	1	1210-1410		●
375	NUT; CLAMP SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91180-108-0	04	1	1411-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE (B) OD=112	1-22119-294-1	01	1	1008-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (B) OD=112	1-22119-294-1	01	1	1008-		●
475	BEARING; SEAL,VIBNON,EXH PIPE SILENCER SINGLE VERTICAL<N28> (A) OD=122	1-22119-297-1	02	1	1008-1209	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (A) OD=122	1-22119-297-1	02	1	1008-1209		●
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=122	1-22119-297-1	02	1	1210-1410	●
475	BEARING; SEAL,VIBNON,EXH PIPE SILENCER SINGLE VERTICAL<N28> (A) OD=122	1-22119-297-1	02	1	1210-1410		●
475	BEARING; SEAL,VIBNON,EXH PIPE SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (A) OD=122	1-22119-297-1	02	1	1210-1410		●
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=122	1-22119-297-1	02	1	1411-	●	●
476	SPRING; VIBNON,EXH PIPE (B)	8-94141-851-0	02	1	1008-	●	●
476	SPRING; VIBNON,EXH PIPE SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (B)	8-94141-851-0	02	1	1008-		●
476	SPRING; VIBNON,EXH PIPE SILENCER SINGLE VERTICAL<N28> (A)	1-09583-298-0	04	1	1008-1209	●	●
476	SPRING; VIBNON,EXH PIPE (A)	1-09583-298-0	04	1	1210-1410	●
476	SPRING; VIBNON,EXH PIPE SILENCER SINGLE VERTICAL<N28> (A)	1-09583-298-0	04	1	1210-1410		●
476	SPRING; VIBNON,EXH PIPE SILENCER SINGLE VERTICAL<N28> (A)	1-09583-298-0	04	1	1411-	●	●
476	SPRING; VIBNON,EXH PIPE SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-09583-248-0	04	1	1008-1410		●
476	SPRING; VIBNON,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-09583-248-0	04	1	1411-	●	●

570

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	570	ADAPTER; EXH PIPE M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1411-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
