◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11323 - CYZ LHD MIDDLE EAST EURO2 WITH 3STEPS ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-41 - FUEL PIPING; CHASSIS ▶
1-41 — FUEL PIPING; CHASSIS (#62584) — 83 parça

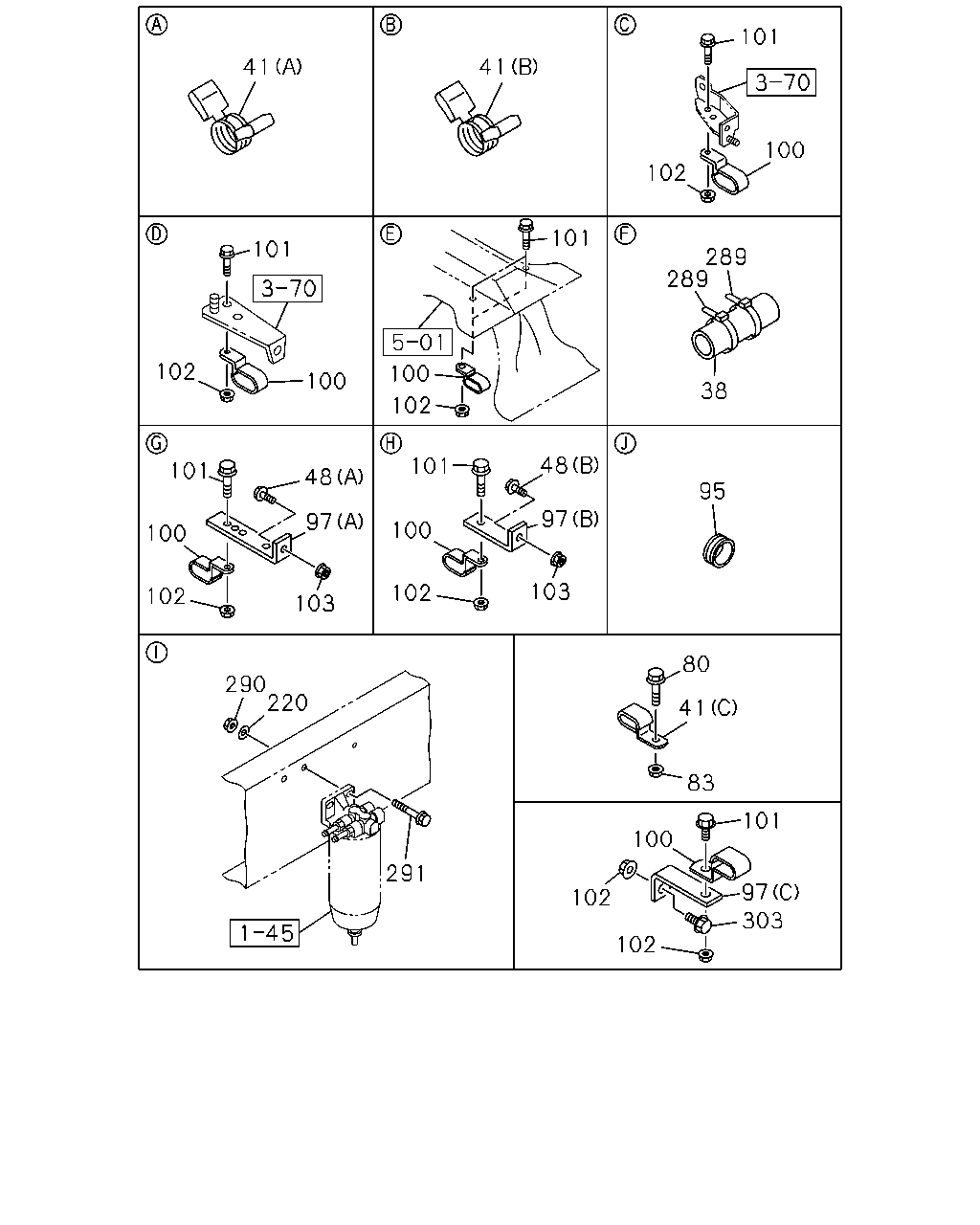

çizim 170529
41 41 101 100 102 289 289 38 95 80 41 83 101 100 102 102 97 303 291 220 290 103 97 48 101 100 102 101 100 102 103 97 48 101 100 102 100 102 101
BalonParca AdiParca NoAdetTipApplied Date A B
38 SLEEVE; RUBBER,RUBBER HOSE
FUEL TANK 200L AL<THF> L=150 SERVICED BY L=1300 		1-09360-677-1 01 1 1411- ●
38 SLEEVE; RUBBER,RUBBER HOSE
L=150 SERVICED BY L=1300 		1-09360-677-1 02 1 1008-1410 ●
38 SLEEVE; RUBBER,RUBBER HOSE
EXC. BATTERY LAYOUT REAR VAR1<NCT> L=150 SERVICED BY L=1300 		1-09360-677-1 02 1 1008-1410 ●
38 SLEEVE; RUBBER,RUBBER HOSE
L=150 SERVICED BY L=1300 		1-09360-677-1 02 1 1411- ●
38 SLEEVE; RUBBER,RUBBER HOSE
FUEL TANK 400L<SDH> EXC. BATTERY LAYOUT REAR VAR1<NCT> L=150 SERVICED BY L=1300 		1-09360-677-1 02 1 1411- ●
38 SLEEVE; RUBBER,RUBBER HOSE
BATTERY LAYOUT REAR VAR1<NCT> L=150 SERVICED BY L=1300 		1-09360-677-1 03 1 1008-1410 ●
38 SLEEVE; RUBBER,RUBBER HOSE
BATTERY LAYOUT REAR VAR1<NCT> FUEL TANK 400L<SDH> L=150 SERVICED BY L=1300 		1-09360-677-1 03 1 1411- ●
41 CLIP; FUEL PIPE,FUEL TANK
FUEL TANK 200L AL<THF> (C) ID=19X32 H=17.5 L=22.5 		1-09701-315-0 01 1 1411- ●
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=19X32 H=17.5 L=22.5 		1-09701-315-0 01 1 1008-1109 ●
41 CLIP; FUEL PIPE,FUEL TANK
EXC. BATTERY LAYOUT REAR VAR1<NCT> (C) ID=19X32 H=17.5 L=22.5 		1-09701-315-0 01 1 1008-1109 ●
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=14X29 H=15 L=20 		1-09700-744-0 01 1 1110-1410 ●
41 CLIP; FUEL PIPE,FUEL TANK
EXC. BATTERY LAYOUT REAR VAR1<NCT> (C) ID=14X29 H=15 L=20 		1-09700-744-0 01 1 1110-1410 ●
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=14X29 H=15 L=20 		1-09700-744-0 01 1 1411- ●
41 CLIP; FUEL PIPE,FUEL TANK
FUEL TANK 400L<SDH> (C) ID=14X29 H=15 L=20 		1-09700-744-0 01 1 1411- ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=14 		1-09704-102-0 04 1 1008- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=19 		8-94238-569-0 02 1 1008- ● ●
48 BOLT; BRKT
BATTERY LAYOUT REAR VAR1<NCT> (B) M8X25 FLANGE 		0-28650-825-0 01 1 1008- ●
48 BOLT; BRKT
BATTERY LAYOUT REAR VAR1<NCT> (A) M8X35 FLANGE 		0-28650-835-0 02 1 1008- ●
80 BOLT; CLIP,FUEL TANK
M8X20 FLANGE 		0-28650-820-0 01 1 1008-1410 ●
80 BOLT; CLIP,FUEL TANK
EXC. BATTERY LAYOUT REAR VAR1<NCT> M8X20 FLANGE 		0-28650-820-0 01 1 1008-1410 ●
80 BOLT; CLIP,FUEL TANK
M8X20 FLANGE 		0-28650-820-0 01 1 1411- ● ●
83 NUT; CLIP,FUEL TANK
M8 FLANGE 		0-91180-108-0 01 1 1008-1410 ●
83 NUT; CLIP,FUEL TANK
EXC. BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE 		0-91180-108-0 01 1 1008-1410 ●
83 NUT; CLIP,FUEL TANK
M8 FLANGE 		0-91180-108-0 01 1 1411- ● ●
95 BUSHING; PIPE,FUEL TANK
ID=32 OD=40 T=23 		1-09332-112-0 01 1 1008- ● ●
97 BRACKET; CLIP
FUEL TANK 200L AL<THF> (C) L=120 H=35 		1-82698-088-0 01 1 1411- ●
97 BRACKET; CLIP
(C) 		1-47475-927-0 01 1 1008-1010 ●
97 BRACKET; CLIP
EXC. BATTERY LAYOUT REAR VAR1<NCT> (C) 		1-47475-927-0 01 1 1008-1010 ●
97 BRACKET; CLIP
(C) L=68 		1-47475-525-0 01 1 1011-1410 ●
97 BRACKET; CLIP
EXC. BATTERY LAYOUT REAR VAR1<NCT> (C) L=68 		1-47475-525-0 01 1 1011-1410 ●
97 BRACKET; CLIP
(C) L=68 		1-47475-525-0 01 1 1411- ●
97 BRACKET; CLIP
FUEL TANK 400L<SDH> (C) L=68 		1-47475-525-0 01 1 1411- ●
97 BRACKET; CLIP
BATTERY LAYOUT REAR VAR1<NCT> (B) L=55 		1-47475-304-0 01 1 1008- ●
97 BRACKET; CLIP
BATTERY LAYOUT REAR VAR1<NCT> (A) 		8-98172-059-0 02 1 1008- ●
100 CLIP; FUEL PIPE
ID=19X32 H=17.5 L=22.5 		1-09701-315-0 05 1 1008- ●
100 CLIP; FUEL PIPE
EXC. BATTERY LAYOUT REAR VAR1<NCT> ID=19X32 H=17.5 L=22.5 		1-09701-315-0 05 1 1008- ●
100 CLIP; FUEL PIPE
BATTERY LAYOUT REAR VAR1<NCT> ID=19X32 H=17.5 L=22.5 		1-09701-315-0 08 1 1008-1410 ●
100 CLIP; FUEL PIPE
WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) BATTERY LAYOUT REAR VAR1<NCT> ID=19X32 H=17.5 L=22.5 		1-09701-315-0 08 1 1411- ●
101 BOLT; CLIP,FUEL PIPE
M8X25 FLANGE 		0-28650-825-0 02 1 1411- ● ●
101 BOLT; CLIP,FUEL PIPE
M8X20 FLANGE 		0-28650-820-0 05 1 1008-1410 ●
101 BOLT; CLIP,FUEL PIPE
EXC. BATTERY LAYOUT REAR VAR1<NCT> M8X20 FLANGE 		0-28650-820-0 05 1 1008-1410 ●
101 BOLT; CLIP,FUEL PIPE
M8X20 FLANGE 		0-28650-820-0 03 1 1411- ●
101 BOLT; CLIP,FUEL PIPE
EXC. BATTERY LAYOUT REAR VAR1<NCT> M8X20 FLANGE 		0-28650-820-0 03 1 1411- ●
101 BOLT; CLIP,FUEL PIPE
BATTERY LAYOUT REAR VAR1<NCT> M8X20 FLANGE 		0-28650-820-0 08 1 1008-1410 ●
101 BOLT; CLIP,FUEL PIPE
WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) BATTERY LAYOUT REAR VAR1<NCT> M8X20 FLANGE 		0-28650-820-0 06 1 1411- ●
102 NUT; CLIP,FUEL PIPE
M8 FLANGE 		0-91180-108-0 05 1 1008- ●
102 NUT; CLIP,FUEL PIPE
EXC. BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE 		0-91180-108-0 05 1 1008- ●
102 NUT; CLIP,FUEL PIPE
BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE 		0-91180-108-0 08 1 1008-1410 ●
102 NUT; CLIP,FUEL PIPE
WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE 		0-91180-108-0 08 1 1411- ●
103 NUT; BRKT
BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE 		0-91180-108-0 01 1 1008- ●
220 WASHER; PL
ID=10.5 OD=26 		0-91614-710-0 02 1 1008- ● ●
289 CLIP; BAND,HOSE
FUEL TANK 200L AL<THF> L=250 		5-09707-030-1 02 1 1411- ●
289 CLIP; BAND,HOSE
L=250 		5-09707-030-1 04 1 1008-1410 ●
289 CLIP; BAND,HOSE
EXC. BATTERY LAYOUT REAR VAR1<NCT> L=250 		5-09707-030-1 04 1 1008-1410 ●
289 CLIP; BAND,HOSE
L=250 		5-09707-030-1 04 1 1411- ●
289 CLIP; BAND,HOSE
FUEL TANK 400L<SDH> EXC. BATTERY LAYOUT REAR VAR1<NCT> L=250 		5-09707-030-1 04 1 1411- ●
289 CLIP; BAND,HOSE
BATTERY LAYOUT REAR VAR1<NCT> L=250 		5-09707-030-1 06 1 1008-1410 ●
289 CLIP; BAND,HOSE
BATTERY LAYOUT REAR VAR1<NCT> FUEL TANK 400L<SDH> L=250 		5-09707-030-1 06 1 1411- ●
290 NUT; FILTER TO BRKT
M10 FLANGE 		0-91180-210-0 02 1 1008- ● ●
291 BOLT; FILER TO BRKT
M10X60 FLANGE 		0-28051-060-0 02 1 1008- ● ●
303 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 01 1 1008-1410 ●
303 BOLT; BRKT
EXC. BATTERY LAYOUT REAR VAR1<NCT> M8X35 FLANGE 		0-28650-835-0 01 1 1008-1410 ●
303 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 01 1 1411- ● ●

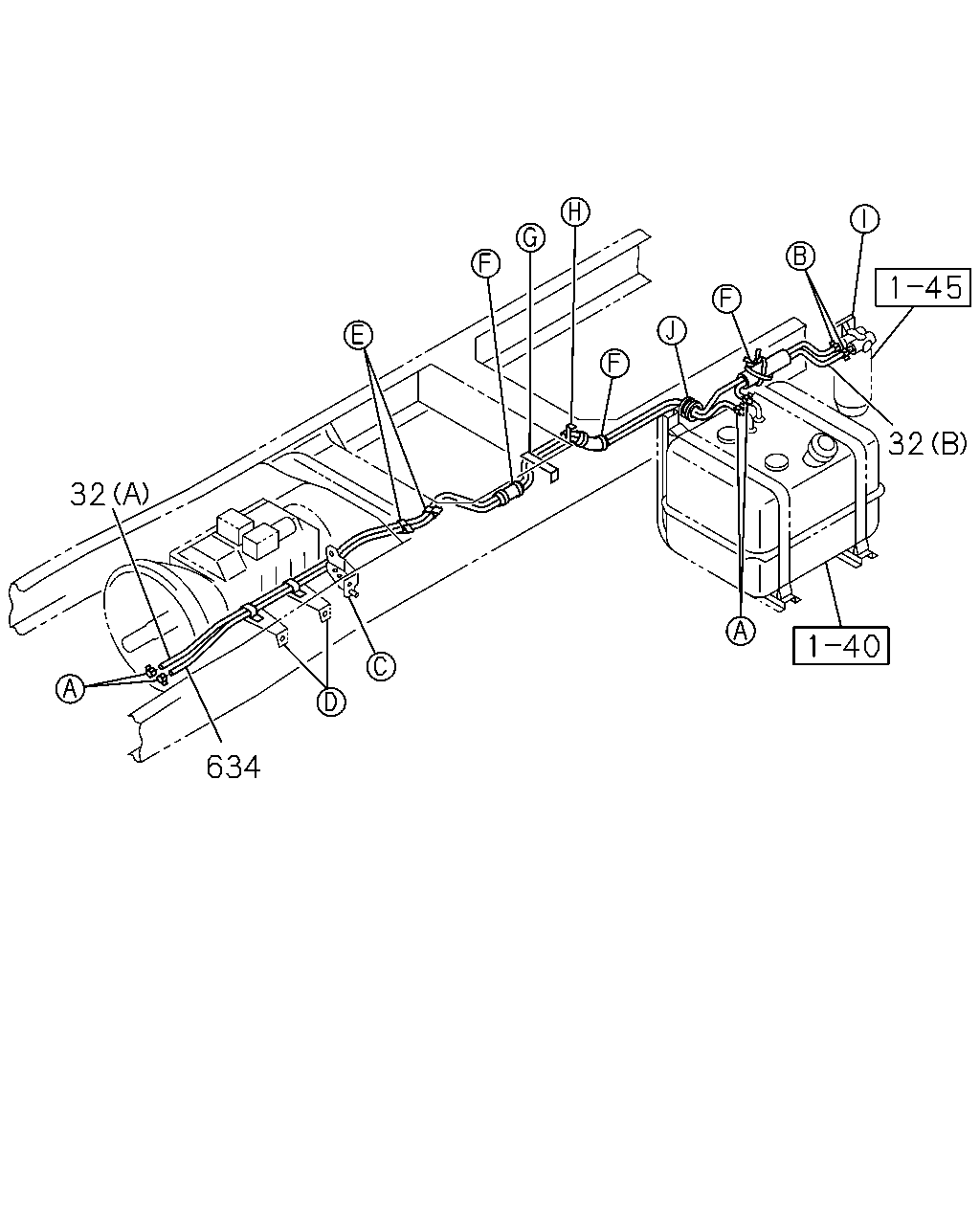

çizim 170562
32 634 32
BalonParca AdiParca NoAdetTipApplied Date A B
32 PIPE; DELIVERY,FUEL TANK
(B) L=900 SERVICED BY L=3000 		0-01260-300-0 01 1 1008-1410 ●
32 PIPE; DELIVERY,FUEL TANK
EXC. BATTERY LAYOUT REAR VAR1<NCT> (B) L=900 SERVICED BY L=3000 		0-01260-300-0 01 1 1008-1410 ●
32 PIPE; DELIVERY,FUEL TANK
(B) L=900 SERVICED BY L=3000 		0-01260-300-0 01 1 1411- ●
32 PIPE; DELIVERY,FUEL TANK
FUEL TANK 400L<SDH> (B) L=900 SERVICED BY L=3000 		0-01260-300-0 01 1 1411- ●
32 PIPE; DELIVERY,FUEL TANK
(A) L=2300 SERVICED BY L=3000 		0-01262-300-0 01 1 1008-1410 ●
32 PIPE; DELIVERY,FUEL TANK
EXC. BATTERY LAYOUT REAR VAR1<NCT> (A) L=2300 SERVICED BY L=3000 		0-01262-300-0 01 1 1008-1410 ●
32 PIPE; DELIVERY,FUEL TANK
(A) L=2300 SERVICED BY L=3000 		0-01262-300-0 01 1 1411- ●
32 PIPE; DELIVERY,FUEL TANK
FUEL TANK 200L AL<THF> (A) L=2300 SERVICED BY L=3000 		0-01262-300-0 01 1 1411- ●
32 PIPE; DELIVERY,FUEL TANK
FUEL TANK 400L<SDH> EXC. BATTERY LAYOUT REAR VAR1<NCT> (A) L=2300 SERVICED BY L=3000 		0-01262-300-0 01 1 1411- ●
32 PIPE; DELIVERY,FUEL TANK
BATTERY LAYOUT REAR VAR1<NCT> (B) L=820 SERVICED BY L=3000 		0-01260-300-0 01 1 1008-1410 ●
32 PIPE; DELIVERY,FUEL TANK
FUEL TANK 200L AL<THF> (B) L=700 SERVICED BY L=3000 		0-01260-300-0 01 1 1411- ●
32 PIPE; DELIVERY,FUEL TANK
BATTERY LAYOUT REAR VAR1<NCT> (A) L=3050 SERVICED BY L=5050 		0-01262-505-0 01 1 1008-1410 ●
32 PIPE; DELIVERY,FUEL TANK
BATTERY LAYOUT REAR VAR1<NCT> FUEL TANK 400L<SDH> (A) L=3050 SERVICED BY L=5050 		0-01262-505-0 01 1 1411- ●
634 HOSE; RUBBER RETURN
FUEL TANK 200L AL<THF> L=1850 SERVICED BY L=3000 		0-01260-300-0 01 1 1411- ●
634 HOSE; RUBBER RETURN
L=1950 SERVICED BY L=3000 		0-01260-300-0 01 1 1008-1410 ●
634 HOSE; RUBBER RETURN
EXC. BATTERY LAYOUT REAR VAR1<NCT> L=1950 SERVICED BY L=3000 		0-01260-300-0 01 1 1008-1410 ●
634 HOSE; RUBBER RETURN
L=1950 SERVICED BY L=3000 		0-01260-300-0 01 1 1411- ●
634 HOSE; RUBBER RETURN
FUEL TANK 400L<SDH> EXC. BATTERY LAYOUT REAR VAR1<NCT> L=1950 SERVICED BY L=3000 		0-01260-300-0 01 1 1411- ●
634 HOSE; RUBBER RETURN
BATTERY LAYOUT REAR VAR1<NCT> L=2700 SERVICED BY L=3000 		0-01260-300-0 01 1 1008-1410 ●
634 HOSE; RUBBER RETURN
BATTERY LAYOUT REAR VAR1<NCT> FUEL TANK 400L<SDH> L=2700 SERVICED BY L=3000 		0-01260-300-0 01 1 1411- ●
