1-40 — FUEL TANK (#62583) — 127 parça

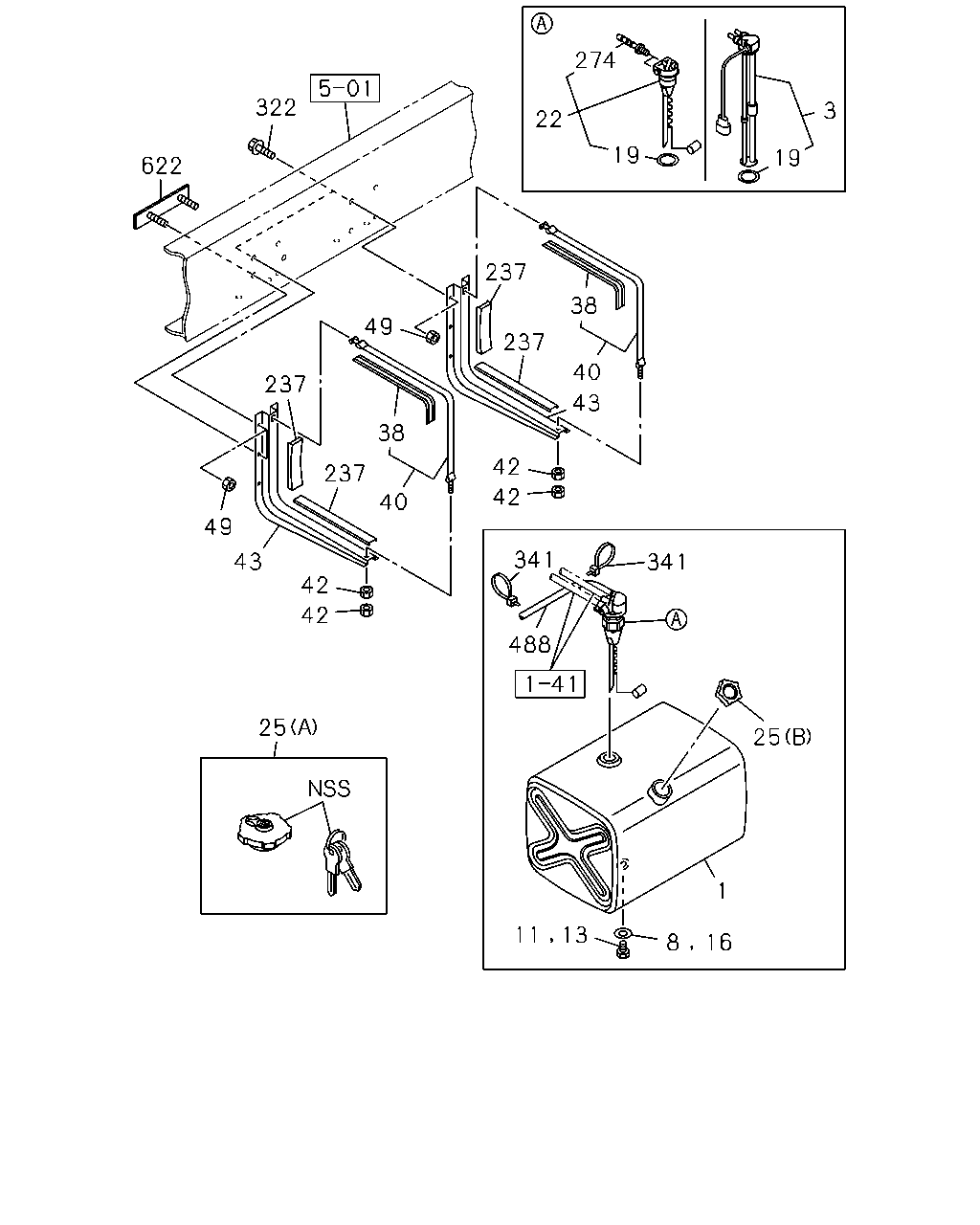

3 19 19 22 274 38 237 237 43 40 42 42 341 341 488 25 1 16 8 13 11 25 42 42 40 38 49 237 49 43 322 622 237

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK; FUEL FUEL TANK 200L AL<THF> 745X650X480 200L	1-87411-169-0	01	1	1411-	●
1	TANK; FUEL 1050X680X625 400L	1-87412-050-3	01	1	1008-1410	●	●
1	TANK; FUEL 1050X680X625 400L	1-87411-788-3	01	1	1411-		●
1	TANK; FUEL FUEL TANK 400L<SDH> 1050X680X625 400L	1-87411-788-3	01	1	1411-	●
3	UNIT; FUEL TANK,SUB FUEL TANK 200L AL<THF>	8-98217-750-0	01	1	1411-	●
3	UNIT; FUEL TANK,SUB	8-98217-749-0	01	1	1305-1410	●	●
3	UNIT; FUEL TANK,SUB	8-98217-749-0	01	1	1411-		●
3	UNIT; FUEL TANK,SUB FUEL TANK 400L<SDH>	8-98217-749-0	01	1	1411-	●
8	GASKET; DRAIN PLUG,FUEL TANK ID=18.2 T=1.6	8-98030-453-0	01	1	1305-	●	●
11	PLUG; DRAIN,FUEL TANK M18X12	0-92002-418-0	01	1	1305-	●	●
13	PLUG; SCREW,SUB TANK JOINT M18X12	0-92002-418-0	01	1	1008-1304	●	●
16	GASKET; PLUG ID=18.2 T=1.6	8-98030-453-0	01	1	1008-1304	●	●
19	GASKET; FUEL TANK UNIT ID=58	1-83149-005-0	01	1	1008-1304	●	●
19	GASKET; FUEL TANK UNIT ID=54.5	8-98299-580-0	01	1	1305-1410	●	●
22	UNIT; FUEL TANK	1-83141-132-0	01	1	1008-1304	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L AL<THF> (B)	1-22440-056-0	01	1	1411-	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L AL<THF> (A)	1-22440-057-2	01	1	1411-	●
25	CAP; FILLER,FUEL TANK (A)	8-98108-595-0	01	1	1008-1410	●	●
25	CAP; FILLER,FUEL TANK (A)	8-98108-595-0	01	1	1411-		●
25	CAP; FILLER,FUEL TANK FUEL TANK 400L<SDH> (A)	8-98108-595-0	01	1	1411-	●
25	CAP; FILLER,FUEL TANK (B)	8-98115-780-0	01	1	1008-1109	●	●
25	CAP; FILLER,FUEL TANK (B)	8-98182-306-0	01	1	1110-1410	●	●
25	CAP; FILLER,FUEL TANK (B)	8-98182-306-0	01	1	1411-		●
25	CAP; FILLER,FUEL TANK FUEL TANK 400L<SDH> (B)	8-98182-306-0	01	1	1411-	●
38	INSULATION; SUPPORT BELT FUEL TANK 200L AL<THF> L=960	1-22553-044-0	02	1	1411-	●
38	INSULATION; SUPPORT BELT L=1156	1-22553-039-1	02	1	1008-1410	●	●
38	INSULATION; SUPPORT BELT L=1156	1-22553-039-1	02	1	1411-		●
38	INSULATION; SUPPORT BELT FUEL TANK 400L<SDH> L=1156	1-22553-039-1	02	1	1411-	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L AL<THF> L=1045	1-22550-262-0	02	1	1411-	●
40	BELT; SUPPORT,FUEL TANK L=1210	1-22550-261-0	02	1	1008-1110	●	●
40	BELT; SUPPORT,FUEL TANK L=1210	8-98202-448-0	02	1	1111-1410	●	●
40	BELT; SUPPORT,FUEL TANK L=1210	8-98202-448-0	02	1	1411-		●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 400L<SDH> L=1210	8-98202-448-0	02	1	1411-	●
42	NUT; SUPPORT BELT M10	0-91110-510-0	04	1	1008-	●	●
43	BRACKET; FUEL TANK FUEL TANK 200L AL<THF>	1-53461-543-0	02	1	1411-	●
43	BRACKET; FUEL TANK	1-53461-525-1	02	1	1008-1410	●	●
43	BRACKET; FUEL TANK	1-53461-525-1	02	1	1411-		●
43	BRACKET; FUEL TANK FUEL TANK 400L<SDH>	1-53461-525-1	02	1	1411-	●
49	NUT; BRKT M12	0-91110-512-0	08	1	1008-1410		●
49	NUT; BRKT WHEEL BASE 5900MM(59W) EXC. SILENCER LAYOUT REAR VAR1<JAZ> M12	0-91110-512-0	08	1	1008-1410	●
49	NUT; BRKT M12	0-91110-512-0	08	1	1411-		●
49	NUT; BRKT FUEL TANK 400L<SDH> EXC. SILENCER LAYOUT REAR VAR1<JAZ> M12	0-91110-512-0	08	1	1411-	●
49	NUT; BRKT SILENCER LAYOUT REAR VAR1<JAZ> M12	0-91110-512-0	12	1	1008-1008	●
49	NUT; BRKT SILENCER LAYOUT REAR VAR1<JAZ> M12	0-91110-512-0	06	1	1009-1410	●
49	NUT; BRKT SILENCER LAYOUT REAR VAR1<JAZ> FUEL TANK 400L<SDH> M12	0-91110-512-0	06	1	1411-	●
49	NUT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6600MM(66W) EXC. SILENCER LAYOUT REAR VAR1<JAZ> M12	0-91110-512-0	02	1	1008-1410	●
49	NUT; BRKT FUEL TANK 200L AL<THF> M12	0-91110-512-0	04	1	1411-	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L AL<THF> L=340	1-22553-043-2	02	1	1411-	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L AL<THF> L=540	1-22553-064-1	02	1	1411-	●
237	GASKET; BRKT TO FUEL TANK	1-22553-037-1	04	1	1008-1410	●	●
237	GASKET; BRKT TO FUEL TANK	1-22553-037-1	04	1	1411-		●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 400L<SDH>	1-22553-037-1	04	1	1411-	●
274	CONNECTOR; ELBOW,FUEL TANK PIPE	1-83149-006-0	02	1	1008-1304	●	●
322	BOLT; BRKT FIX FUEL TANK 200L AL<THF> M12X35 FLANGE	0-28051-235-0	08	1	1411-	●
322	BOLT; BRKT FIX M12X40 FLANGE	0-28051-240-0	10	1	1008-1410		●
322	BOLT; BRKT FIX EXC. SILENCER LAYOUT REAR VAR1<JAZ> M12X40 FLANGE	0-28051-240-0	10	1	1008-1410	●
322	BOLT; BRKT FIX M12X40 FLANGE	0-28051-240-0	10	1	1411-		●
322	BOLT; BRKT FIX FUEL TANK 400L<SDH> EXC. SILENCER LAYOUT REAR VAR1<JAZ> M12X40 FLANGE	0-28051-240-0	10	1	1411-	●
322	BOLT; BRKT FIX SILENCER LAYOUT REAR VAR1<JAZ> M12X40 FLANGE	0-28051-240-0	12	1	1008-1410	●
322	BOLT; BRKT FIX SILENCER LAYOUT REAR VAR1<JAZ> FUEL TANK 400L<SDH> M12X40 FLANGE	0-28051-240-0	12	1	1411-	●
341	CLIP; BAND,RUBBER HOSE L=350	1-09707-183-0	02	1	1008-1410	●	●
341	CLIP; BAND,RUBBER HOSE L=350	1-09707-183-0	02	1	1411-		●
341	CLIP; BAND,RUBBER HOSE FUEL TANK 400L<SDH> L=350	1-09707-183-0	02	1	1411-	●
488	HOSE; RUBBER	8-98134-936-0	01	1	1008-1410	●	●
488	HOSE; RUBBER	8-98134-936-0	01	1	1411-		●
488	HOSE; RUBBER FUEL TANK 400L<SDH>	8-98134-936-0	01	1	1411-	●
622	STUD; BRACKET	1-53461-534-0	01	1	1008-1410		●
622	STUD; BRACKET EXC. SILENCER LAYOUT REAR VAR1<JAZ>	1-53461-534-0	01	1	1008-1410	●
622	STUD; BRACKET	1-53461-534-0	01	1	1411-		●
622	STUD; BRACKET FUEL TANK 400L<SDH> EXC. SILENCER LAYOUT REAR VAR1<JAZ>	1-53461-534-0	01	1	1411-	●

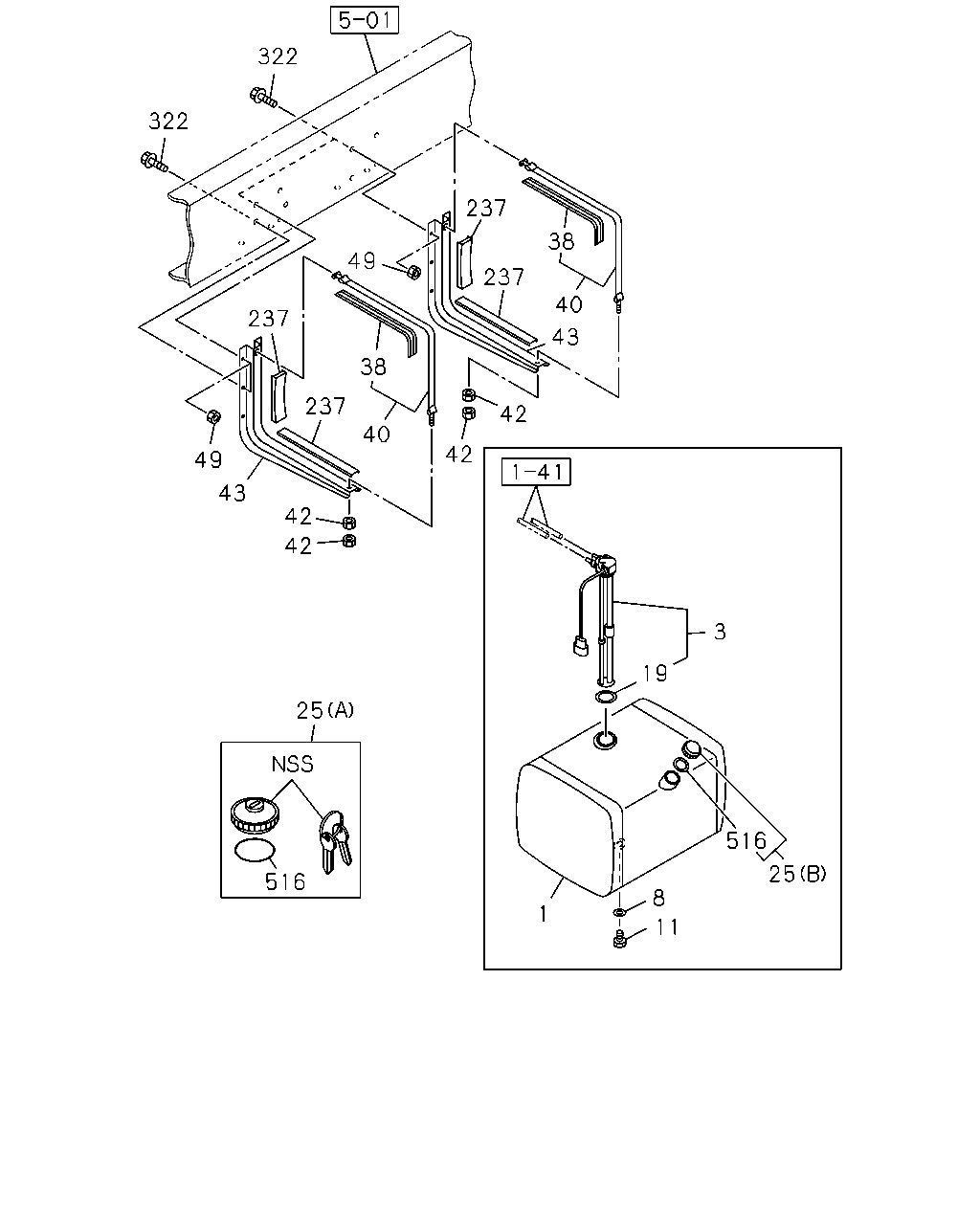

322 322 49 237 49 237 43 42 42 40 38 237 237 40 43 38 42 42 25 516 1 11 8 516 25 3 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK; FUEL FUEL TANK 200L AL<THF> 745X650X480 200L	1-87411-169-0	01	1	1411-	●
1	TANK; FUEL 1050X680X625 400L	1-87412-050-3	01	1	1008-1410	●	●
1	TANK; FUEL 1050X680X625 400L	1-87411-788-3	01	1	1411-		●
1	TANK; FUEL FUEL TANK 400L<SDH> 1050X680X625 400L	1-87411-788-3	01	1	1411-	●
3	UNIT; FUEL TANK,SUB FUEL TANK 200L AL<THF>	8-98217-750-0	01	1	1411-	●
3	UNIT; FUEL TANK,SUB	8-98217-749-0	01	1	1305-1410	●	●
3	UNIT; FUEL TANK,SUB	8-98217-749-0	01	1	1411-		●
3	UNIT; FUEL TANK,SUB FUEL TANK 400L<SDH>	8-98217-749-0	01	1	1411-	●
8	GASKET; DRAIN PLUG,FUEL TANK ID=18.2 T=1.6	8-98030-453-0	01	1	1305-	●	●
11	PLUG; DRAIN,FUEL TANK M18X12	0-92002-418-0	01	1	1305-	●	●
19	GASKET; FUEL TANK UNIT ID=58	1-83149-005-0	01	1	1008-1304	●	●
19	GASKET; FUEL TANK UNIT ID=54.5	8-98299-580-0	01	1	1305-1410	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L AL<THF> (B)	1-22440-056-0	01	1	1411-	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L AL<THF> (A)	1-22440-057-2	01	1	1411-	●
25	CAP; FILLER,FUEL TANK (A)	8-98108-595-0	01	1	1008-1410	●	●
25	CAP; FILLER,FUEL TANK (A)	8-98108-595-0	01	1	1411-		●
25	CAP; FILLER,FUEL TANK FUEL TANK 400L<SDH> (A)	8-98108-595-0	01	1	1411-	●
25	CAP; FILLER,FUEL TANK (B)	8-98115-780-0	01	1	1008-1109	●	●
25	CAP; FILLER,FUEL TANK (B)	8-98182-306-0	01	1	1110-1410	●	●
25	CAP; FILLER,FUEL TANK (B)	8-98182-306-0	01	1	1411-		●
25	CAP; FILLER,FUEL TANK FUEL TANK 400L<SDH> (B)	8-98182-306-0	01	1	1411-	●
38	INSULATION; SUPPORT BELT FUEL TANK 200L AL<THF> L=960	1-22553-044-0	02	1	1411-	●
38	INSULATION; SUPPORT BELT L=1156	1-22553-039-1	02	1	1008-1410	●	●
38	INSULATION; SUPPORT BELT L=1156	1-22553-039-1	02	1	1411-		●
38	INSULATION; SUPPORT BELT FUEL TANK 400L<SDH> L=1156	1-22553-039-1	02	1	1411-	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L AL<THF> L=1045	1-22550-262-0	02	1	1411-	●
40	BELT; SUPPORT,FUEL TANK L=1210	1-22550-261-0	02	1	1008-1110	●	●
40	BELT; SUPPORT,FUEL TANK L=1210	8-98202-448-0	02	1	1111-1410	●	●
40	BELT; SUPPORT,FUEL TANK L=1210	8-98202-448-0	02	1	1411-		●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 400L<SDH> L=1210	8-98202-448-0	02	1	1411-	●
42	NUT; SUPPORT BELT M10	0-91110-510-0	04	1	1008-	●	●
43	BRACKET; FUEL TANK FUEL TANK 200L AL<THF>	1-53461-543-0	02	1	1411-	●
43	BRACKET; FUEL TANK	1-53461-525-1	02	1	1008-1410	●	●
43	BRACKET; FUEL TANK	1-53461-525-1	02	1	1411-		●
43	BRACKET; FUEL TANK FUEL TANK 400L<SDH>	1-53461-525-1	02	1	1411-	●
49	NUT; BRKT M12	0-91110-512-0	08	1	1008-1410		●
49	NUT; BRKT WHEEL BASE 5900MM(59W) EXC. SILENCER LAYOUT REAR VAR1<JAZ> M12	0-91110-512-0	08	1	1008-1410	●
49	NUT; BRKT M12	0-91110-512-0	08	1	1411-		●
49	NUT; BRKT FUEL TANK 400L<SDH> EXC. SILENCER LAYOUT REAR VAR1<JAZ> M12	0-91110-512-0	08	1	1411-	●
49	NUT; BRKT SILENCER LAYOUT REAR VAR1<JAZ> M12	0-91110-512-0	12	1	1008-1008	●
49	NUT; BRKT SILENCER LAYOUT REAR VAR1<JAZ> M12	0-91110-512-0	06	1	1009-1410	●
49	NUT; BRKT SILENCER LAYOUT REAR VAR1<JAZ> FUEL TANK 400L<SDH> M12	0-91110-512-0	06	1	1411-	●
49	NUT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6600MM(66W) EXC. SILENCER LAYOUT REAR VAR1<JAZ> M12	0-91110-512-0	02	1	1008-1410	●
49	NUT; BRKT FUEL TANK 200L AL<THF> M12	0-91110-512-0	04	1	1411-	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L AL<THF> L=340	1-22553-043-2	02	1	1411-	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L AL<THF> L=540	1-22553-064-1	02	1	1411-	●
237	GASKET; BRKT TO FUEL TANK	1-22553-037-1	04	1	1008-1410	●	●
237	GASKET; BRKT TO FUEL TANK	1-22553-037-1	04	1	1411-		●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 400L<SDH>	1-22553-037-1	04	1	1411-	●
322	BOLT; BRKT FIX FUEL TANK 200L AL<THF> M12X35 FLANGE	0-28051-235-0	08	1	1411-	●
322	BOLT; BRKT FIX M12X40 FLANGE	0-28051-240-0	10	1	1008-1410		●
322	BOLT; BRKT FIX EXC. SILENCER LAYOUT REAR VAR1<JAZ> M12X40 FLANGE	0-28051-240-0	10	1	1008-1410	●
322	BOLT; BRKT FIX M12X40 FLANGE	0-28051-240-0	10	1	1411-		●
322	BOLT; BRKT FIX FUEL TANK 400L<SDH> EXC. SILENCER LAYOUT REAR VAR1<JAZ> M12X40 FLANGE	0-28051-240-0	10	1	1411-	●
322	BOLT; BRKT FIX SILENCER LAYOUT REAR VAR1<JAZ> M12X40 FLANGE	0-28051-240-0	12	1	1008-1410	●
322	BOLT; BRKT FIX SILENCER LAYOUT REAR VAR1<JAZ> FUEL TANK 400L<SDH> M12X40 FLANGE	0-28051-240-0	12	1	1411-	●
516	GASKET; CAP FUEL TANK 200L AL<THF> ID=78	8-98259-383-0	01	1	1411-	●
