1-31 — AIR DUCT (#62581) — 111 parça

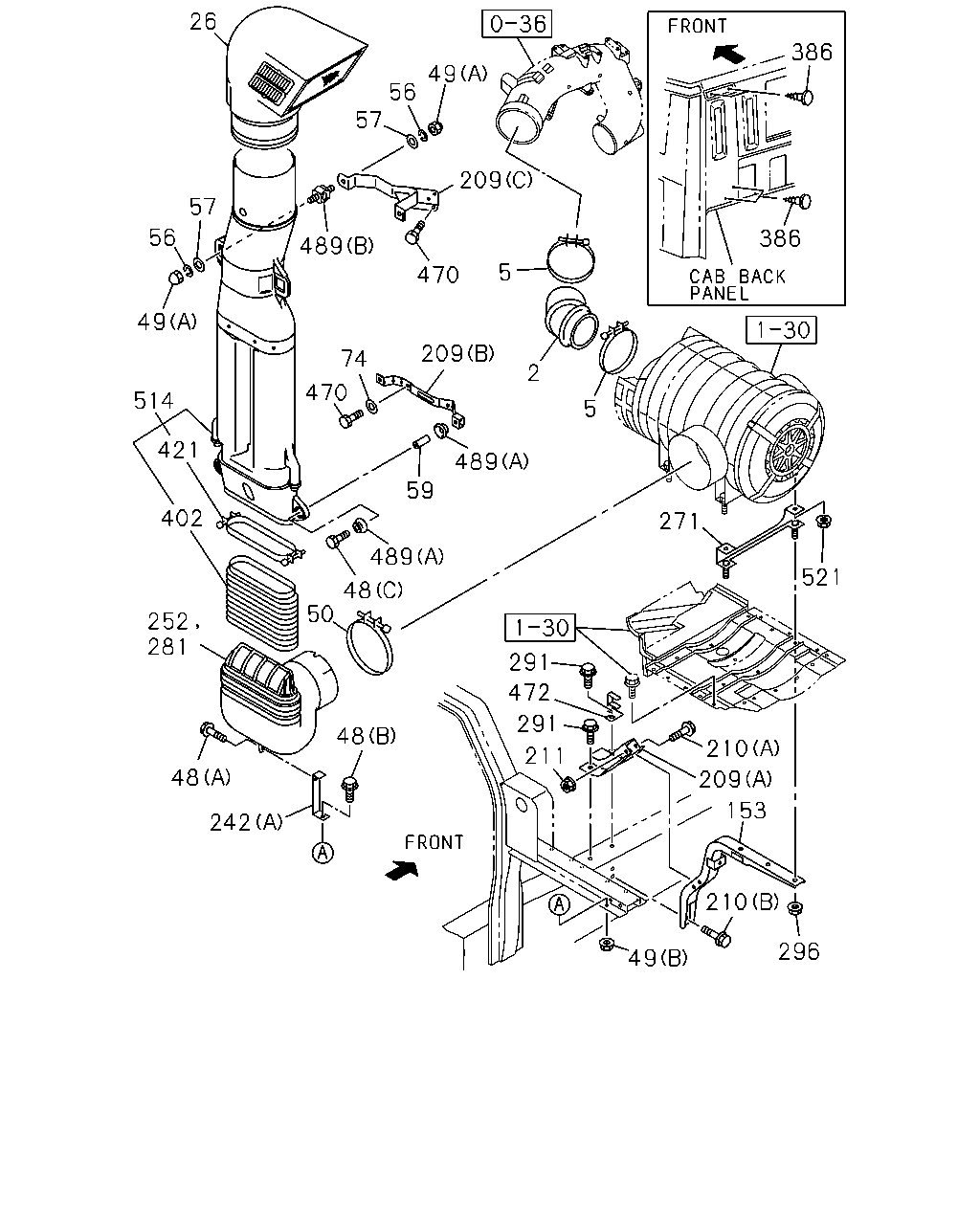

çizim 170218
49 56 57 26 57 56 49 514 421 402 252 281 48 242 48 50 48 489 59 489 209 470 489 74 470 209 5 2 5 271 291 472 291 211 210 209 153 521 210 296 49 386 386
BalonParca AdiParca NoAdetTipApplied Date
2 HOSE; ACL 1-14231-955-1 01 1 1008-
5 CLIP; AIR DUCT
ID=130-169 		1-09707-157-0 02 1 1008-
26 DUCT; AIR INT
EXC. PRE CLEANER<W17> 		8-98122-904-2 01 1 1411-
26 DUCT; AIR INT 1-14219-258-1 01 1 1008-1410
26 DUCT; AIR INT
PRE CLEANER<W17> 		1-14219-258-1 01 1 1411-
48 BOLT; AIR DUCT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 1008-
48 BOLT; AIR DUCT
(B) M10X25 FLANGE 		0-28651-025-0 01 1 1008-
48 BOLT; AIR DUCT
(C) M10X60 		1-09030-044-1 02 1 1008-1410
48 BOLT; AIR DUCT
PRE CLEANER<W17> (C) M10X60 		1-09030-044-1 02 1 1411-
49 NUT; AIR DUCT
EXC. PRE CLEANER<W17> (C) M8 FLANGE 		1-09984-122-0 01 1 1411-
49 NUT; AIR DUCT
EXC. PRE CLEANER<W17> (A) M8 FLANGE 		1-09984-126-0 01 1 1411-
49 NUT; AIR DUCT
(B) M10 FLANGE 		0-91180-210-0 01 1 1008-
49 NUT; AIR DUCT
(A) M8 FLANGE 		1-09984-126-0 04 1 1008-1410
49 NUT; AIR DUCT
PRE CLEANER<W17> (A) M8 FLANGE 		1-09984-126-0 04 1 1411-
50 CLIP; JOINT HOSE
ID=183.5 		1-09707-098-2 01 1 1008-
56 WASHER; LK,AIR INT DUCT
EXC. PRE CLEANER<W17> ID=8.2 		1-09985-177-0 02 1 1411-
56 WASHER; LK,AIR INT DUCT
ID=8.2 		1-09985-177-0 04 1 1008-1410
56 WASHER; LK,AIR INT DUCT
PRE CLEANER<W17> ID=8.2 		1-09985-177-0 04 1 1411-
57 WASHER; PL,AIR INT DUCT
EXC. PRE CLEANER<W17> ID=8.4 OD=22 		1-09985-188-0 02 1 1411-
57 WASHER; PL,AIR INT DUCT
ID=8.4 OD=22 		1-09985-188-0 04 1 1008-1410
57 WASHER; PL,AIR INT DUCT
PRE CLEANER<W17> ID=8.4 OD=22 		1-09985-188-0 04 1 1411-
59 TUBE; DIST,AIR INT DUCT 1-79998-228-0 02 1 1008-
74 WASHER; PL,ACL
ID=8.4 OD=22 		1-09985-188-0 01 1 1008-1410
74 WASHER; PL,ACL
PRE CLEANER<W17> ID=8.4 OD=22 		1-09985-188-0 01 1 1411-
153 BRACKET; ACL,FRT 1-53419-265-1 01 1 1008-
209 BRACKET; ACL
(A) 		1-53419-276-0 01 1 1008-
209 BRACKET; ACL
(C) 		1-79990-045-2 01 1 1008-1410
209 BRACKET; ACL
PRE CLEANER<W17> (C) 		1-79990-045-2 01 1 1411-
209 BRACKET; ACL
(B) 		8-98115-405-1 01 1 1008-1410
209 BRACKET; ACL
PRE CLEANER<W17> (B) 		8-98115-405-1 01 1 1411-
210 BOLT; ACL BRKT
(A) M8X70 FLANGE 		0-28050-870-0 02 1 1008-
210 BOLT; ACL BRKT
(B) M12X30 FLANGE 		0-28051-230-0 01 1 1008-
211 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1008-
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17> (B) 		1-53419-325-1 01 1 1411-
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17> (C) 		8-98041-994-1 01 1 1411-
242 BRACKET; AIR DUCT
(A) 		1-23957-006-0 01 1 1008-
252 DUCT; AIR INT
EXC. PRE CLEANER<W17> 		1-14230-194-0 01 1 1411-
271 SPACER; BRKT,ACL 1-53419-343-1 02 1 1008-
281 DUCT; AIR,VERTICAL INT 1-14230-194-0 01 1 1008-1410
281 DUCT; AIR,VERTICAL INT
PRE CLEANER<W17> 		1-14230-194-0 01 1 1411-
291 BOLT; ACL
M12X30 FLANGE 		0-28051-230-0 02 1 1008-
296 NUT; ACL
M8 FLANGE 		0-91180-108-0 04 1 1008-
386 PLUG; DUCT BRKT,AIR INT
GRIP OUT SIDE<W52> OD=15 L=14.5 		1-76378-157-0 01 1 1008-1410
386 PLUG; DUCT BRKT,AIR INT
OD=15 L=14.5 		1-76378-157-0 04 1 1411-
386 PLUG; DUCT BRKT,AIR INT
EXC. GRIP OUT SIDE<W52> OD=15 L=14.5 		1-76378-157-0 04 1 1008-1410
402 GASKET; RUBBER 1-14230-149-2 01 1 1008-1410
402 GASKET; RUBBER
PRE CLEANER<W17> 		1-14230-149-2 01 1 1411-
421 CLAMP; AIR DUCT 1-14239-237-0 01 1 1008-1410
421 CLAMP; AIR DUCT
PRE CLEANER<W17> 		1-14239-237-0 01 1 1411-
470 BOLT; BRKT
M8X25 FLANGE 		8-98074-570-0 04 1 1008-1410
470 BOLT; BRKT
PRE CLEANER<W17> M8X25 FLANGE 		8-98074-570-0 04 1 1411-
472 STOPPER; LINK ROD 8-98163-013-0 01 1 1008-1410
489 RUBBER; SUPPORT
(A) OD=40 T=18.5 		1-14119-267-0 04 1 1008-1410
489 RUBBER; SUPPORT
PRE CLEANER<W17> (A) OD=40 T=18.5 		1-14119-267-0 04 1 1411-
489 RUBBER; SUPPORT
(B) 		8-97080-149-0 02 1 1008-1410
489 RUBBER; SUPPORT
PRE CLEANER<W17> (B) 		8-97080-149-0 02 1 1411-
514 DUCT; PRE CLEANER 1-14230-170-1 01 1 1008-1410
514 DUCT; PRE CLEANER
PRE CLEANER<W17> 		1-14230-170-1 01 1 1411-
521 NUT; SPACER
M8 FLANGE 		0-91180-108-0 04 1 1008-

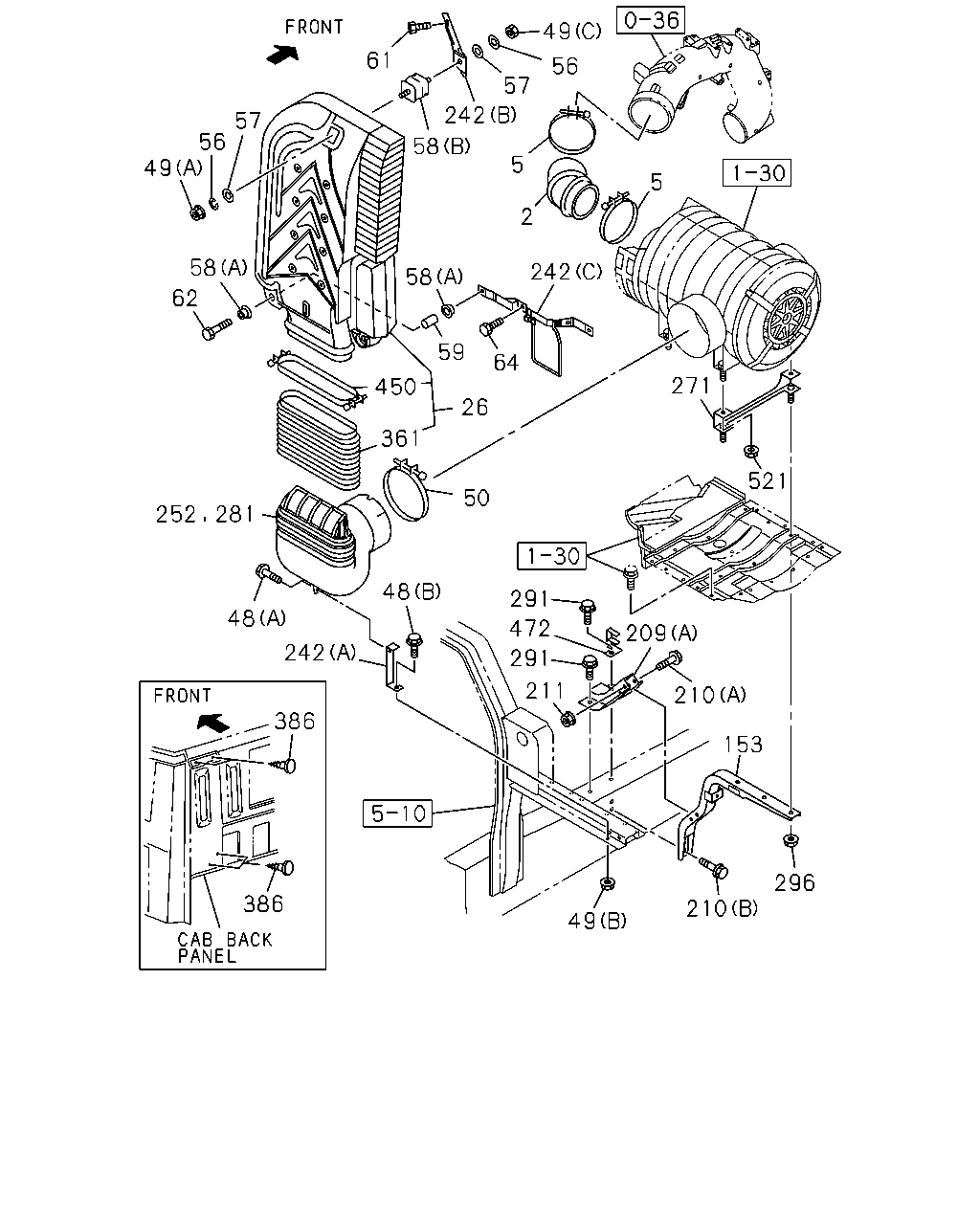

çizim 455686
49 56 57 242 58 61 57 56 49 58 62 252 281 58 59 64 26 50 450 361 48 48 242 386 386 49 210 296 153 210 209 291 472 291 211 521 271 242 2 5 5
BalonParca AdiParca NoAdetTipApplied Date
2 HOSE; ACL 1-14231-955-1 01 1 1008-
5 CLIP; AIR DUCT
ID=130-169 		1-09707-157-0 02 1 1008-
26 DUCT; AIR INT
EXC. PRE CLEANER<W17> 		8-98122-904-2 01 1 1411-
26 DUCT; AIR INT 1-14219-258-1 01 1 1008-1410
26 DUCT; AIR INT
PRE CLEANER<W17> 		1-14219-258-1 01 1 1411-
48 BOLT; AIR DUCT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 1008-
48 BOLT; AIR DUCT
(B) M10X25 FLANGE 		0-28651-025-0 01 1 1008-
48 BOLT; AIR DUCT
(C) M10X60 		1-09030-044-1 02 1 1008-1410
48 BOLT; AIR DUCT
PRE CLEANER<W17> (C) M10X60 		1-09030-044-1 02 1 1411-
49 NUT; AIR DUCT
EXC. PRE CLEANER<W17> (C) M8 FLANGE 		1-09984-122-0 01 1 1411-
49 NUT; AIR DUCT
EXC. PRE CLEANER<W17> (A) M8 FLANGE 		1-09984-126-0 01 1 1411-
49 NUT; AIR DUCT
(B) M10 FLANGE 		0-91180-210-0 01 1 1008-
49 NUT; AIR DUCT
(A) M8 FLANGE 		1-09984-126-0 04 1 1008-1410
49 NUT; AIR DUCT
PRE CLEANER<W17> (A) M8 FLANGE 		1-09984-126-0 04 1 1411-
50 CLIP; JOINT HOSE
ID=183.5 		1-09707-098-2 01 1 1008-
56 WASHER; LK,AIR INT DUCT
EXC. PRE CLEANER<W17> ID=8.2 		1-09985-177-0 02 1 1411-
56 WASHER; LK,AIR INT DUCT
ID=8.2 		1-09985-177-0 04 1 1008-1410
56 WASHER; LK,AIR INT DUCT
PRE CLEANER<W17> ID=8.2 		1-09985-177-0 04 1 1411-
57 WASHER; PL,AIR INT DUCT
EXC. PRE CLEANER<W17> ID=8.4 OD=22 		1-09985-188-0 02 1 1411-
57 WASHER; PL,AIR INT DUCT
ID=8.4 OD=22 		1-09985-188-0 04 1 1008-1410
57 WASHER; PL,AIR INT DUCT
PRE CLEANER<W17> ID=8.4 OD=22 		1-09985-188-0 04 1 1411-
58 SUPPORT; AIR INL DUCT
EXC. PRE CLEANER<W17> (A) OD=40 T=18.5 		1-14119-267-0 04 1 1411-
58 SUPPORT; AIR INL DUCT
EXC. PRE CLEANER<W17> (B) 		8-97080-149-0 01 1 1411-
59 TUBE; DIST,AIR INT DUCT 1-79998-228-0 02 1 1008-
61 BOLT; BRKT,AIR DUCT
EXC. PRE CLEANER<W17> M8X25 FLANGE 		8-98074-570-0 02 1 1411-
62 BOLT; AIR INT DUCT
EXC. PRE CLEANER<W17> M10X60 		1-09030-044-1 02 1 1411-
64 BOLT; BRKT,AIR DUCT
EXC. PRE CLEANER<W17> M8X25 FLANGE 		8-98074-570-0 02 1 1411-
153 BRACKET; ACL,FRT 1-53419-265-1 01 1 1008-
209 BRACKET; ACL
(A) 		1-53419-276-0 01 1 1008-
209 BRACKET; ACL
(C) 		1-79990-045-2 01 1 1008-1410
209 BRACKET; ACL
PRE CLEANER<W17> (C) 		1-79990-045-2 01 1 1411-
209 BRACKET; ACL
(B) 		8-98115-405-1 01 1 1008-1410
209 BRACKET; ACL
PRE CLEANER<W17> (B) 		8-98115-405-1 01 1 1411-
210 BOLT; ACL BRKT
(A) M8X70 FLANGE 		0-28050-870-0 02 1 1008-
210 BOLT; ACL BRKT
(B) M12X30 FLANGE 		0-28051-230-0 01 1 1008-
211 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1008-
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17> (B) 		1-53419-325-1 01 1 1411-
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17> (C) 		8-98041-994-1 01 1 1411-
242 BRACKET; AIR DUCT
(A) 		1-23957-006-0 01 1 1008-
252 DUCT; AIR INT
EXC. PRE CLEANER<W17> 		1-14230-194-0 01 1 1411-
271 SPACER; BRKT,ACL 1-53419-343-1 02 1 1008-
281 DUCT; AIR,VERTICAL INT 1-14230-194-0 01 1 1008-1410
281 DUCT; AIR,VERTICAL INT
PRE CLEANER<W17> 		1-14230-194-0 01 1 1411-
291 BOLT; ACL
M12X30 FLANGE 		0-28051-230-0 02 1 1008-
296 NUT; ACL
M8 FLANGE 		0-91180-108-0 04 1 1008-
361 RUBBER; CUSHION,AIR DUCT
EXC. PRE CLEANER<W17> 		1-14230-149-2 01 1 1411-
386 PLUG; DUCT BRKT,AIR INT
GRIP OUT SIDE<W52> OD=15 L=14.5 		1-76378-157-0 01 1 1008-1410
386 PLUG; DUCT BRKT,AIR INT
OD=15 L=14.5 		1-76378-157-0 04 1 1411-
386 PLUG; DUCT BRKT,AIR INT
EXC. GRIP OUT SIDE<W52> OD=15 L=14.5 		1-76378-157-0 04 1 1008-1410
450 CLAMP; HOSE
EXC. PRE CLEANER<W17> 		1-14239-237-0 01 1 1411-
472 STOPPER; LINK ROD 8-98163-013-0 01 1 1008-1410
521 NUT; SPACER
M8 FLANGE 		0-91180-108-0 04 1 1008-
