1-01 — ACCELERATOR PEDAL AND CONTROL (#6258) — 275 parça

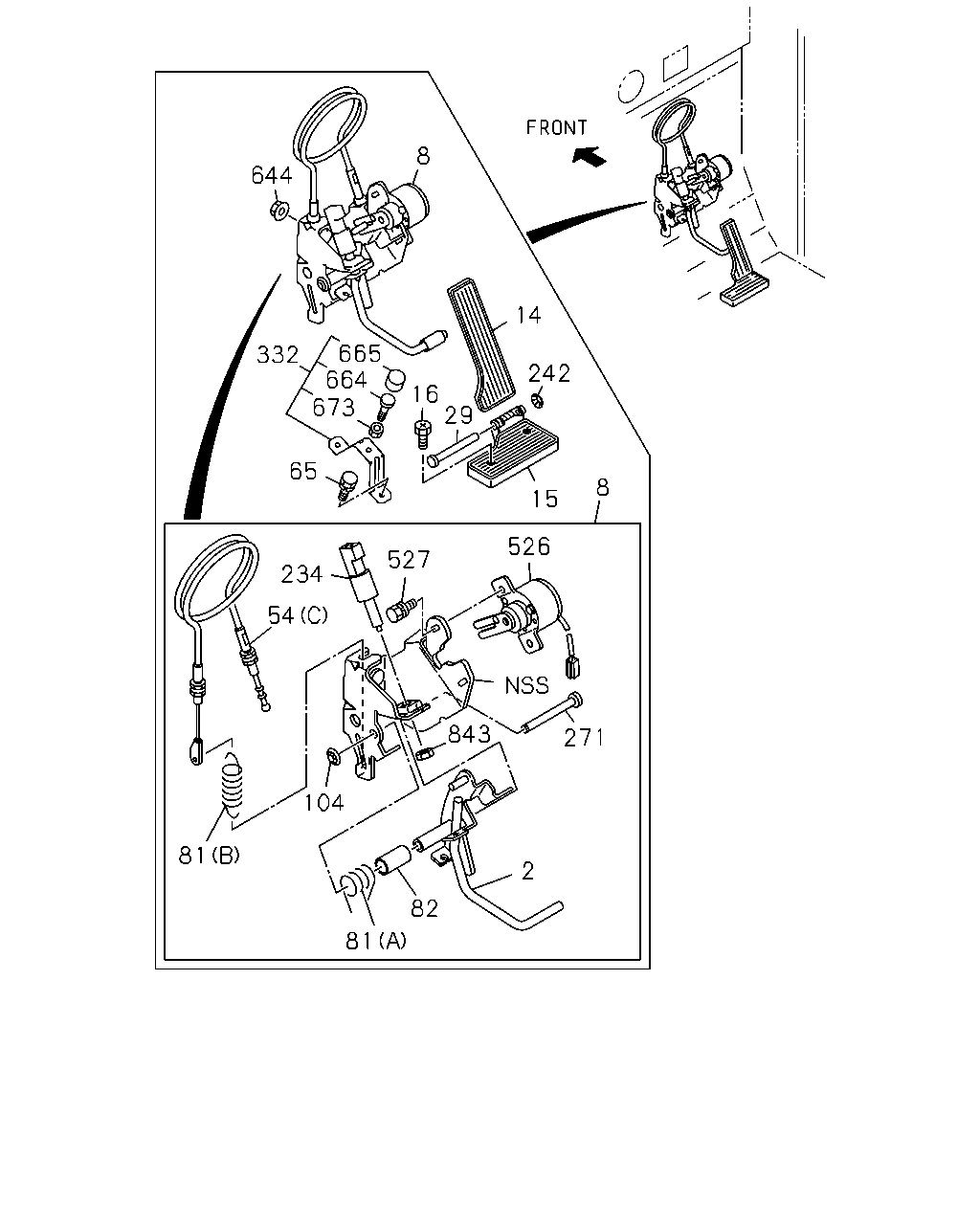

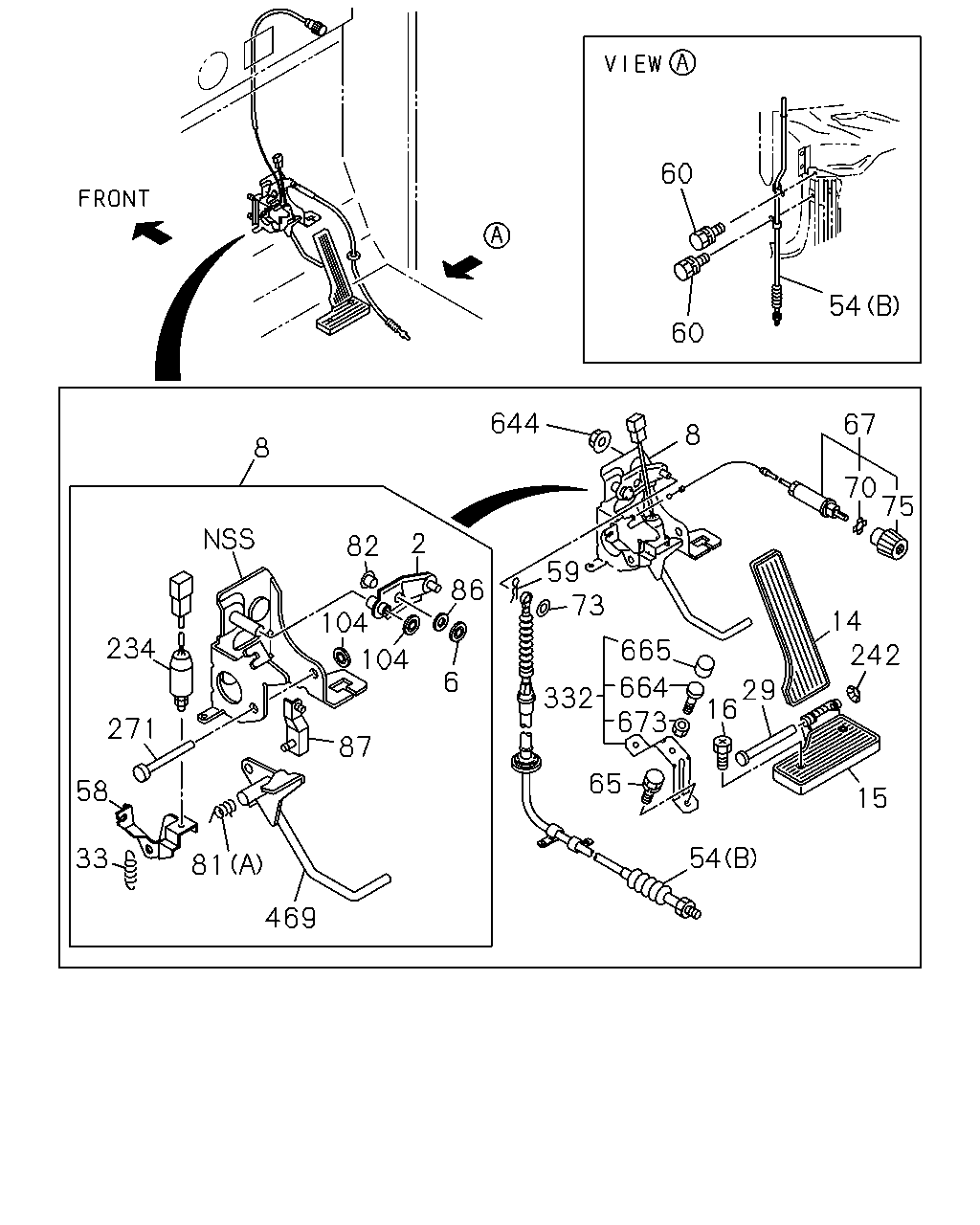

60 54 60 644 67 8 8 70 75 2 82 59 73 86 14 242 104 234 665 104 6 664 673 29 16 332 271 87 65 58 15 54 33 81 469

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	LEVER; ENG CONT EXC. ELECTRONIC GOV RED3(KG5)	1-71907-210-2	01	1	9906-	●
2	LEVER; ENG CONT	1-71907-210-2	01	1	9906-		●
2	LEVER; ENG CONT	1-71907-550-1	01	1	9906-			●
6	RING; SNAP,LINK TO LINK EXC. ELECTRONIC GOV RED3(KG5) ID=4	9-09185-404-0	02	1	9906-	●
6	RING; SNAP,LINK TO LINK ID=4	9-09185-404-0	02	1	9906-		●
8	LINK ASM; ENG CONT EXC. ELECTRONIC GOV RED3(KG5)	1-73996-206-6	01	1	9906-	●
8	LINK ASM; ENG CONT	1-73996-206-6	01	1	9906-		●
8	LINK ASM; ENG CONT	1-71907-551-3	01	1	9906-			●
14	PAD; PEDAL,ACCEL	1-73907-563-0	01	1	9906-	●	●	●
15	STAND; HEEL,ACCEL PEDAL	1-73907-266-2	01	1	9906-	●	●	●
16	SCREW; HEEL STAND,ACCEL PEDAL M6X28 W/LK&PL WASHER	1-09980-543-0	02	1	9906-	●	●	●
29	SHAFT; ACCEL PEDAL OD=8.0 L=74	1-71907-212-1	01	1	9906-	●	●	●
33	SPRING; IDLING CONT LEVER EXC. ELECTRONIC GOV RED3(KG5)	8-94414-815-0	01	1	9906-	●
33	SPRING; IDLING CONT LEVER	8-94414-815-0	01	1	9906-		●
54	CABLE; ENG CONT CAB UP +110MM<TGG> (B) L=2971	1-73907-566-1	01	1	9906-	●
54	CABLE; ENG CONT EXC. CAB UP +110MM<TGG> (B) L=2836	1-73907-404-2	01	1	9906-	●
54	CABLE; ENG CONT (B) L=2836	1-73907-404-2	01	1	9906-		●
54	CABLE; ENG CONT (A) L=1300	1-23230-132-0	01	1	9906-9906	●	●
54	CABLE; ENG CONT (A) L=1300	1-23230-132-0	01	1	9907-9912	●
54	CABLE; ENG CONT EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (A) L=1300	1-23230-132-0	01	1	0001-	●
54	CABLE; ENG CONT (C) L=850	1-71907-257-0	01	1	9906-			●
58	LEVER; IDLING CONT EXC. ELECTRONIC GOV RED3(KG5)	1-71907-242-1	01	1	9906-	●
58	LEVER; IDLING CONT	1-71907-242-1	01	1	9906-		●
59	PIN; SNAP,ENG CONT CABLE EXC. ELECTRONIC GOV RED3(KG5) L=27.7	1-09747-005-0	01	1	9906-	●
59	PIN; SNAP,ENG CONT CABLE L=27.7	1-09747-005-0	01	1	9906-		●
60	BOLT; CABLE EXC. ELECTRONIC GOV RED3(KG5) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9906-	●
60	BOLT; CABLE M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9906-		●
65	BOLT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9906-	●	●	●
67	CABLE ASM; IDLE CONT EXC. ELECTRONIC GOV RED3(KG5) L=399	1-73998-912-3	01	1	9906-	●
67	CABLE ASM; IDLE CONT L=399	1-73998-912-3	01	1	9906-		●
70	NUT; CONT CABLE EXC. ELECTRONIC GOV RED3(KG5)	1-73908-045-1	01	1	9906-	●
70	NUT; CONT CABLE	1-73908-045-1	01	1	9906-		●
73	WASHER; PL,ACCEL CONT CABLE EXC. ELECTRONIC GOV RED3(KG5) ID=8.4	9-09160-508-0	01	1	9906-	●
73	WASHER; PL,ACCEL CONT CABLE ID=8.4	9-09160-508-0	01	1	9906-		●
75	KNOB ASM; IDLING CONT EXC. ELECTRONIC GOV RED3(KG5)	8-97066-797-1	01	1	9906-	●
75	KNOB ASM; IDLING CONT	8-97066-797-1	01	1	9906-		●
81	SPRING; RETURN,ENG CONT LEVER (A)	8-97853-205-1	01	1	9906-	●	●	●
81	SPRING; RETURN,ENG CONT LEVER (B)	1-71907-268-0	01	1	9906-			●
82	BUSHING; ENG CONT LVR EXC. ELECTRONIC GOV RED3(KG5)	1-71907-244-1	02	1	9906-	●
82	BUSHING; ENG CONT LVR	1-71907-244-1	02	1	9906-		●
82	BUSHING; ENG CONT LVR L=31.5	1-53459-627-0	01	1	9906-			●
86	WASHER; PL,ENG CONT LEVER EXC. ELECTRONIC GOV RED3(KG5) ID=6.4	9-09160-506-0	02	1	9906-	●
86	WASHER; PL,ENG CONT LEVER ID=6.4	9-09160-506-0	02	1	9906-		●
87	LINK; ENG CONT EXC. ELECTRONIC GOV RED3(KG5)	1-71907-211-1	01	1	9906-	●
87	LINK; ENG CONT	1-71907-211-1	01	1	9906-		●
104	NUT; ENG CONT EXC. ELECTRONIC GOV RED3(KG5) ID=7.9 PUSH NUT	8-94368-617-0	02	1	9906-	●
104	NUT; ENG CONT ID=7.9 PUSH NUT	8-94368-617-0	02	1	9906-		●
104	NUT; ENG CONT ID=7.9 PUSH NUT	8-94368-617-0	01	1	9906-			●
234	SWITCH; ACCEL EXC. ELECTRONIC GOV RED3(KG5)	1-82380-114-2	01	1	9906-	●
234	SWITCH; ACCEL	1-82380-114-2	01	1	9906-		●
234	SWITCH; ACCEL	1-82380-131-1	01	1	9906-			●
242	NUT; ACCEL PEDAL ID=7.9 PUSH NUT	8-97022-565-0	01	1	9906-	●	●	●
271	SHAFT; ENG CONT EXC. ELECTRONIC GOV RED3(KG5) OD=8.0 L=74	1-71907-212-1	01	1	9906-	●
271	SHAFT; ENG CONT OD=8.0 L=74	1-71907-212-1	01	1	9906-		●
271	SHAFT; ENG CONT OD=8.0 L=69	1-71907-298-0	01	1	9906-			●
332	BRACKET; ACCEL PEDAL STOPPER	1-73998-937-1	01	1	9906-	●	●	●
469	LEVER ASM EXC. ELECTRONIC GOV RED3(KG5)	1-71907-209-5	01	1	9906-	●
469	LEVER ASM	1-71907-209-5	01	1	9906-		●
644	NUT; LINK,ENG CONT M8 FLANGE W/RUBBER	1-09984-176-0	03	1	9906-	●	●	●
664	BOLT; STOPPER M8X45	0-20800-845-0	01	1	9906-	●	●	●
665	COVER; STOPPER RUBBER	1-23249-009-0	01	1	9906-	●	●	●
673	NUT; STOPPER M8	9-09111-408-0	01	1	9906-	●	●	●

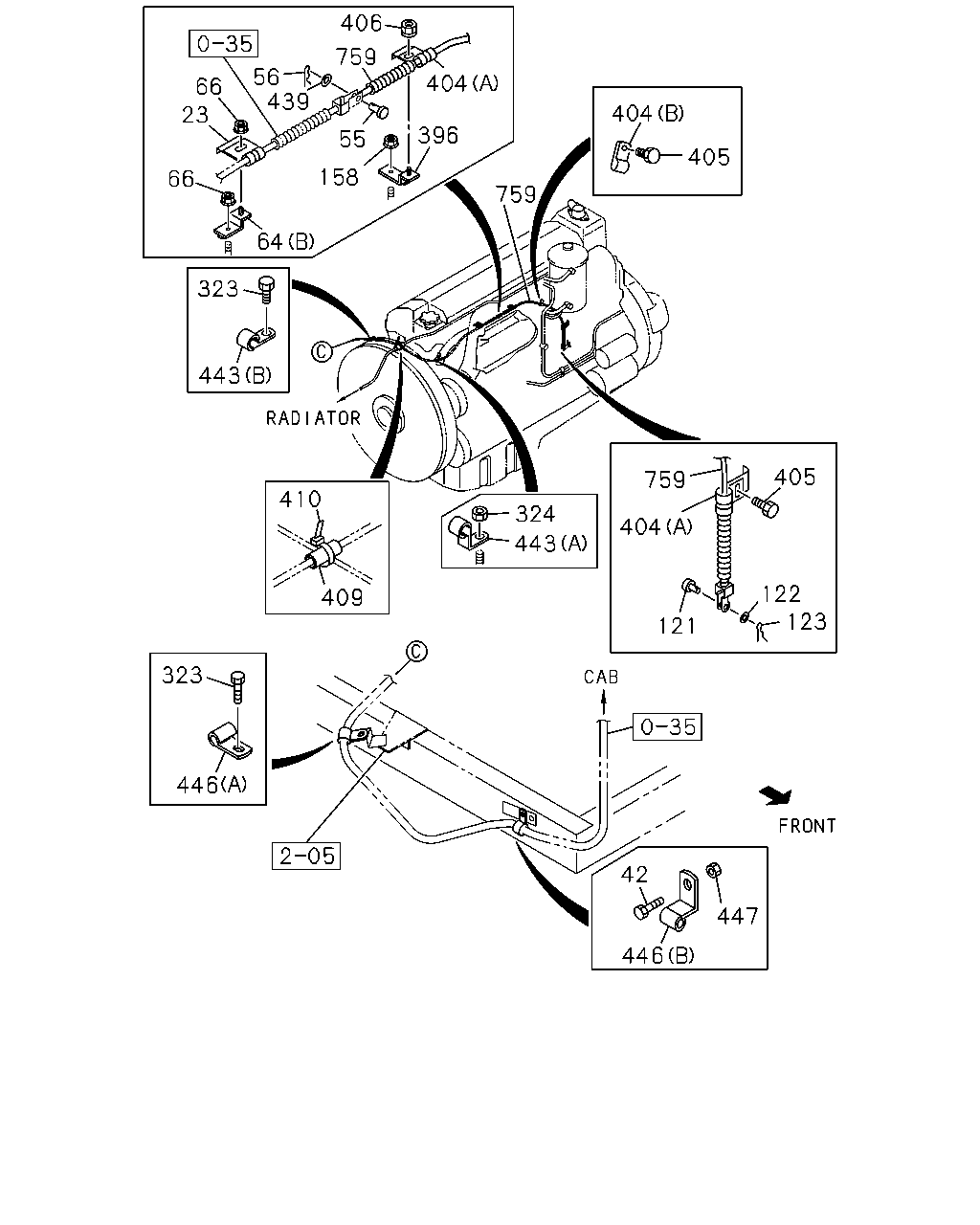

406 759 56 439 404 66 23 404 396 55 405 158 66 759 64 323 443 405 759 410 324 404 443 409 122 123 121 323 42 447 446 446

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
23	BRACKET; FUEL CUT CABLE EXC. ELECTRONIC GOV RED3(KG5)	1-14319-138-0	01	1	9906-	●
23	BRACKET; FUEL CUT CABLE	1-14319-138-0	01	1	9906-		●
23	BRACKET; FUEL CUT CABLE	1-14319-099-0	01	1	9906-			●
42	BOLT; BRKT,ENG CONT CABLE ELECTRONIC GOV RED3(KG5) M8X20 FLANGE	0-28080-820-0	02	1	9906-	●
42	BOLT; BRKT,ENG CONT CABLE M8X20 FLANGE	0-28080-820-0	02	1	9906-			●
42	BOLT; BRKT,ENG CONT CABLE EXC. ELECTRONIC GOV RED3(KG5) M8X25 FLANGE	0-28680-825-0	04	1	9906-	●
42	BOLT; BRKT,ENG CONT CABLE M8X25 FLANGE	0-28680-825-0	04	1	9906-		●
55	PIN; JAW JOINT L=11	1-09744-102-0	01	1	9906-			●
56	PIN; SNAP,JAW JOINT L=17.9	1-09747-002-0	01	1	9906-	●	●	●
64	BRACKET; ENG CONT CABLE (A)	1-23219-105-1	01	1	9906-9906	●	●
64	BRACKET; ENG CONT CABLE (A)	1-23219-105-1	01	1	9907-9912	●
64	BRACKET; ENG CONT CABLE EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (A)	1-23219-105-1	01	1	0001-	●
64	BRACKET; ENG CONT CABLE (B)	1-47477-804-3	01	1	9906-			●
66	NUT; BRKT ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	02	1	9906-	●
66	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9906-			●
121	PIN; JOINT,CABLE L=11	1-09744-102-0	01	1	9906-9912			●
121	PIN; JOINT,CABLE GLOW SYSTEM-FAST DIESEL ENGINE<KM6> L=11	1-09744-102-0	01	1	0001-	●
121	PIN; JOINT,CABLE L=11	1-09744-102-0	01	1	0001-			●
122	WASHER; PL,CABLE ID=8.4	9-09160-508-0	01	1	9906-9906	●	●
122	WASHER; PL,CABLE ID=8.4	9-09160-508-0	01	1	9907-9912	●
122	WASHER; PL,CABLE EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ID=8.4	9-09160-508-0	01	1	0001-	●
122	WASHER; PL,CABLE ID=5.3	9-09160-505-0	01	1	9906-9912			●
122	WASHER; PL,CABLE GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ID=5.3	9-09160-505-0	01	1	0001-	●
122	WASHER; PL,CABLE ID=5.3	9-09160-505-0	01	1	0001-			●
123	PIN; SNAP,CABLE L=27.7	1-09747-005-0	01	1	9906-9906	●	●
123	PIN; SNAP,CABLE L=27.7	1-09747-005-0	01	1	9907-9912	●
123	PIN; SNAP,CABLE EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> L=27.7	1-09747-005-0	01	1	0001-	●
123	PIN; SNAP,CABLE L=17.9	1-09747-002-0	01	1	9906-9912			●
123	PIN; SNAP,CABLE GLOW SYSTEM-FAST DIESEL ENGINE<KM6> L=17.9	1-09747-002-0	01	1	0001-	●
123	PIN; SNAP,CABLE L=17.9	1-09747-002-0	01	1	0001-			●
158	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	9906-9906	●	●	●
158	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	9907-	●		●
323	BOLT; CLIP ELECTRONIC GOV RED3(KG5) M8X20 FLANGE	0-28680-820-0	02	1	9906-	●
323	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	9906-			●
324	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	01	1	9906-			●
396	BRACKET; CLIP	1-47478-055-0	01	1	9906-9906	●	●	●
396	BRACKET; CLIP	1-47478-055-0	01	1	9907-	●		●
404	CLIP; CABLE (A)	1-14319-111-0	01	1	9906-9906	●	●
404	CLIP; CABLE (A)	1-14319-111-0	01	1	9907-	●
404	CLIP; CABLE (B) ID=9 L=40	9-09524-875-0	01	1	9906-9906	●	●	●
404	CLIP; CABLE (B) ID=9 L=40	9-09524-875-0	01	1	9906-9906	●	●
404	CLIP; CABLE (B) ID=9 L=40	9-09524-875-0	01	1	9907-	●		●
404	CLIP; CABLE (B) ID=9 L=40	9-09524-875-0	01	1	9907-	●
404	CLIP; CABLE (A)	1-14319-111-0	02	1	9906-			●
405	BOLT; CABLE CLIP M6X16 FLANGE	0-28080-616-0	02	1	9906-9906	●	●
405	BOLT; CABLE CLIP M6X16 FLANGE	0-28080-616-0	02	1	9907-9912	●
405	BOLT; CABLE CLIP EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> M6X16 FLANGE	0-28080-616-0	02	1	0001-	●
405	BOLT; CABLE CLIP M8X16 FLANGE	0-28080-816-0	02	1	9906-9906	●	●	●
405	BOLT; CABLE CLIP M8X16 FLANGE	0-28080-816-0	02	1	9907-	●		●
406	NUT; CABLE CLIP M8 FLANGE	0-91150-108-0	01	1	9906-9906	●	●	●
406	NUT; CABLE CLIP M8 FLANGE	0-91150-108-0	01	1	9907-	●		●
409	SLEEVE ID=6 L=30	5-09360-352-0	01	1	9906-9910			●
409	SLEEVE ID=6 OD=10 L=70	1-09376-512-0	01	1	9911-			●
410	CLIP; BAND ELECTRONIC GOV RED3(KG5) L=140	5-09707-031-1	01	1	9906-	●
410	CLIP; BAND L=140	5-09707-031-1	01	1	9906-			●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	9-09160-505-0	01	1	9906-	●	●	●
443	CLIP; CABLE ELECTRONIC GOV RED3(KG5) (A) ID=6 H=20 L=20	1-09700-603-0	01	1	9906-	●
443	CLIP; CABLE (A) ID=6 H=20 L=20	1-09700-603-0	01	1	9906-			●
443	CLIP; CABLE ELECTRONIC GOV RED3(KG5) (B) ID=7 L=20	9-09524-635-0	02	1	9906-	●
443	CLIP; CABLE (B) ID=7 L=20	9-09524-635-0	02	1	9906-			●
443	CLIP; CABLE EXC. ELECTRONIC GOV RED3(KG5) (C) ID=6-10 & 6-10	1-09709-192-1	01	1	9906-	●
443	CLIP; CABLE (C) ID=6-10 & 6-10	1-09709-192-1	01	1	9906-		●
446	CLIP; ENG CONT ELECTRONIC GOV RED3(KG5) (B) ID=11 H=20 L=20	9-09527-010-0	01	1	9906-0007	●
446	CLIP; ENG CONT (B) ID=11 H=20 L=20	9-09527-010-0	01	1	9906-0007			●
446	CLIP; ENG CONT (B) ID=11 H=20 L=20	5-09700-351-0	01	1	0008-			●
446	CLIP; ENG CONT EXC. ELECTRONIC GOV RED3(KG5) (C) ID=7 L=28	9-09524-655-0	04	1	9906-	●
446	CLIP; ENG CONT (C) ID=7 L=28	9-09524-655-0	04	1	9906-		●
446	CLIP; ENG CONT (A) ID=11 L=20	9-09525-035-0	01	1	9906-			●
447	NUT; BRKT,CONT WIRE EXC. ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	04	1	9906-	●
447	NUT; BRKT,CONT WIRE M8 FLANGE	0-91150-108-0	04	1	9906-		●
447	NUT; BRKT,CONT WIRE M8 FLANGE	0-91150-108-0	01	1	9906-			●
759	WIRE; CONT,FUEL CUT L=752	1-23230-026-1	01	1	9906-9912			●
759	WIRE; CONT,FUEL CUT GLOW SYSTEM-FAST DIESEL ENGINE<KM6> L=752	1-23230-026-1	01	1	0001-	●
759	WIRE; CONT,FUEL CUT L=752	1-23230-026-1	01	1	0001-			●

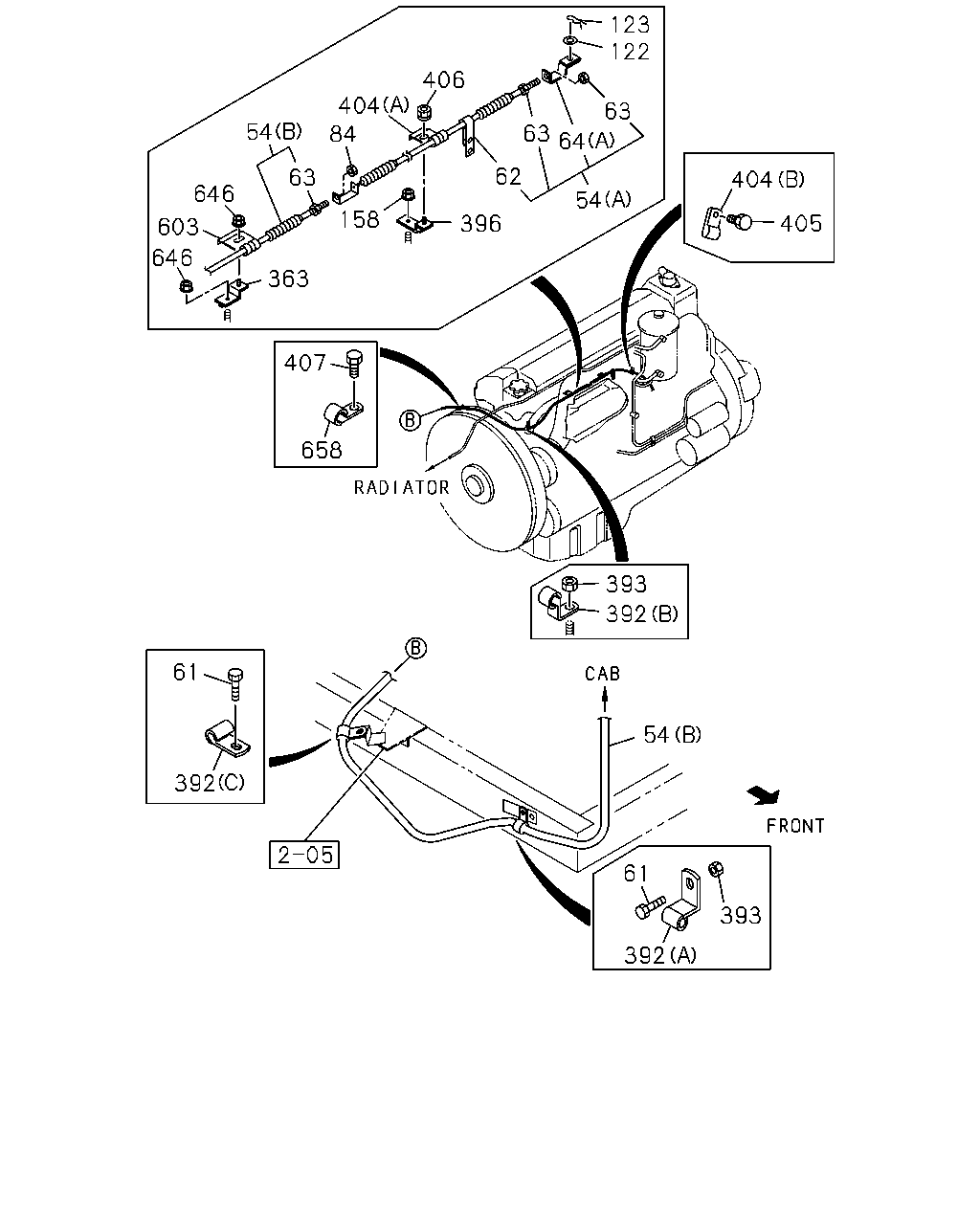

123 122 406 84 63 63 62 63 404 646 158 396 405 603 646 363 407 658 393 392 61 54 61 393 392 64 54 392 54 404

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
54	CABLE; ENG CONT CAB UP +110MM<TGG> (B) L=2971	1-73907-566-1	01	1	9906-	●
54	CABLE; ENG CONT EXC. CAB UP +110MM<TGG> (B) L=2836	1-73907-404-2	01	1	9906-	●
54	CABLE; ENG CONT (B) L=2836	1-73907-404-2	01	1	9906-		●
54	CABLE; ENG CONT (A) L=1300	1-23230-132-0	01	1	9906-9906	●	●
54	CABLE; ENG CONT (A) L=1300	1-23230-132-0	01	1	9907-9912	●
54	CABLE; ENG CONT EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (A) L=1300	1-23230-132-0	01	1	0001-	●
54	CABLE; ENG CONT (C) L=850	1-71907-257-0	01	1	9906-			●
61	BOLT; BRKT TO FRAME ENG CONT CABLE EXC. ELECTRONIC GOV RED3(KG5) M8X25 FLANGE	0-28680-825-0	02	1	9906-	●
61	BOLT; BRKT TO FRAME ENG CONT CABLE M8X25 FLANGE	0-28680-825-0	02	1	9906-		●
62	CLIP; ENG CONT CABLE L=30	1-09700-326-0	01	1	9906-9906	●	●
62	CLIP; ENG CONT CABLE L=30	1-09700-326-0	01	1	9907-9912	●
62	CLIP; ENG CONT CABLE EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> L=30	1-09700-326-0	01	1	0001-	●
63	NUT; LOCK,BRKT M8	9-09111-408-0	02	1	9906-9906	●	●
63	NUT; LOCK,BRKT M8	9-09111-408-0	02	1	9907-9912	●
63	NUT; LOCK,BRKT EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> M8	9-09111-408-0	02	1	0001-	●
63	NUT; LOCK,BRKT M8	9-09111-408-0	01	1	9906-	●	●
64	BRACKET; ENG CONT CABLE (A)	1-23219-105-1	01	1	9906-9906	●	●
64	BRACKET; ENG CONT CABLE (A)	1-23219-105-1	01	1	9907-9912	●
64	BRACKET; ENG CONT CABLE EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (A)	1-23219-105-1	01	1	0001-	●
64	BRACKET; ENG CONT CABLE (B)	1-47477-804-3	01	1	9906-			●
84	NUT; ENG CONT LEVER EXC. ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	01	1	9906-	●
84	NUT; ENG CONT LEVER M8 FLANGE	0-91150-108-0	01	1	9906-		●
122	WASHER; PL,CABLE ID=8.4	9-09160-508-0	01	1	9906-9906	●	●
122	WASHER; PL,CABLE ID=8.4	9-09160-508-0	01	1	9907-9912	●
122	WASHER; PL,CABLE EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ID=8.4	9-09160-508-0	01	1	0001-	●
122	WASHER; PL,CABLE ID=5.3	9-09160-505-0	01	1	9906-9912			●
122	WASHER; PL,CABLE GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ID=5.3	9-09160-505-0	01	1	0001-	●
122	WASHER; PL,CABLE ID=5.3	9-09160-505-0	01	1	0001-			●
123	PIN; SNAP,CABLE L=27.7	1-09747-005-0	01	1	9906-9906	●	●
123	PIN; SNAP,CABLE L=27.7	1-09747-005-0	01	1	9907-9912	●
123	PIN; SNAP,CABLE EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> L=27.7	1-09747-005-0	01	1	0001-	●
123	PIN; SNAP,CABLE L=17.9	1-09747-002-0	01	1	9906-9912			●
123	PIN; SNAP,CABLE GLOW SYSTEM-FAST DIESEL ENGINE<KM6> L=17.9	1-09747-002-0	01	1	0001-	●
123	PIN; SNAP,CABLE L=17.9	1-09747-002-0	01	1	0001-			●
158	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	9906-9906	●	●	●
158	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	9907-	●		●
363	SPACER; BRKT,ENG CONT SHAFT EXC. ELECTRONIC GOV RED3(KG5)	1-47477-804-3	01	1	9906-	●
363	SPACER; BRKT,ENG CONT SHAFT	1-47477-804-3	01	1	9906-		●
392	CLIP; ACCEL CONT CABLE EXC. ELECTRONIC GOV RED3(KG5) (B) ID=8 H=20 L=20	1-09700-604-0	01	1	9906-	●
392	CLIP; ACCEL CONT CABLE (B) ID=8 H=20 L=20	1-09700-604-0	01	1	9906-		●
392	CLIP; ACCEL CONT CABLE EXC. ELECTRONIC GOV RED3(KG5) (C) ID=11 H=20 L=20	5-09700-351-0	01	1	9906-	●
392	CLIP; ACCEL CONT CABLE (C) ID=11 H=20 L=20	5-09700-351-0	01	1	9906-		●
392	CLIP; ACCEL CONT CABLE EXC. ELECTRONIC GOV RED3(KG5) (A) ID=11 L=20	9-09525-035-0	01	1	9906-	●
392	CLIP; ACCEL CONT CABLE (A) ID=11 L=20	9-09525-035-0	01	1	9906-		●
393	NUT; CLIP TO FRAME EXC. ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	01	1	9906-	●
393	NUT; CLIP TO FRAME EXC. ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	01	1	9906-	●
393	NUT; CLIP TO FRAME M8 FLANGE	0-91150-108-0	01	1	9906-		●
393	NUT; CLIP TO FRAME M8 FLANGE	0-91150-108-0	01	1	9906-		●
396	BRACKET; CLIP	1-47478-055-0	01	1	9906-9906	●	●	●
396	BRACKET; CLIP	1-47478-055-0	01	1	9907-	●		●
404	CLIP; CABLE (A)	1-14319-111-0	01	1	9906-9906	●	●
404	CLIP; CABLE (A)	1-14319-111-0	01	1	9907-	●
404	CLIP; CABLE (B) ID=9 L=40	9-09524-875-0	01	1	9906-9906	●	●	●
404	CLIP; CABLE (B) ID=9 L=40	9-09524-875-0	01	1	9906-9906	●	●
404	CLIP; CABLE (B) ID=9 L=40	9-09524-875-0	01	1	9907-	●		●
404	CLIP; CABLE (B) ID=9 L=40	9-09524-875-0	01	1	9907-	●
404	CLIP; CABLE (A)	1-14319-111-0	02	1	9906-			●
405	BOLT; CABLE CLIP M6X16 FLANGE	0-28080-616-0	02	1	9906-9906	●	●
405	BOLT; CABLE CLIP M6X16 FLANGE	0-28080-616-0	02	1	9907-9912	●
405	BOLT; CABLE CLIP EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> M6X16 FLANGE	0-28080-616-0	02	1	0001-	●
405	BOLT; CABLE CLIP M8X16 FLANGE	0-28080-816-0	02	1	9906-9906	●	●	●
405	BOLT; CABLE CLIP M8X16 FLANGE	0-28080-816-0	02	1	9907-	●		●
406	NUT; CABLE CLIP M8 FLANGE	0-91150-108-0	01	1	9906-9906	●	●	●
406	NUT; CABLE CLIP M8 FLANGE	0-91150-108-0	01	1	9907-	●		●
407	BOLT; CLIP TO ENG EXC. ELECTRONIC GOV RED3(KG5) M8X25 FLANGE	0-28680-825-0	02	1	9906-	●
407	BOLT; CLIP TO ENG M8X25 FLANGE	0-28680-825-0	02	1	9906-		●
603	BRACKET; ENG CONT SHAFT EXC. ELECTRONIC GOV RED3(KG5)	1-14319-140-0	01	1	9906-	●
603	BRACKET; ENG CONT SHAFT	1-14319-140-0	01	1	9906-		●
646	NUT; BRKT,LEVER EXC. ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	02	1	9906-	●
646	NUT; BRKT,LEVER M8 FLANGE	0-91150-108-0	02	1	9906-		●
658	CLIP; ENG CONT CABLE EXC. ELECTRONIC GOV RED3(KG5) ID=7 L=20	9-09524-635-0	02	1	9906-	●
658	CLIP; ENG CONT CABLE ID=7 L=20	9-09524-635-0	02	1	9906-		●

8 644 14 665 664 673 332 242 16 29 65 8 15 526 527 234 54 843 271 104 81 2 82 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	LEVER; ENG CONT EXC. ELECTRONIC GOV RED3(KG5)	1-71907-210-2	01	1	9906-	●
2	LEVER; ENG CONT	1-71907-210-2	01	1	9906-		●
2	LEVER; ENG CONT	1-71907-550-1	01	1	9906-			●
8	LINK ASM; ENG CONT EXC. ELECTRONIC GOV RED3(KG5)	1-73996-206-6	01	1	9906-	●
8	LINK ASM; ENG CONT	1-73996-206-6	01	1	9906-		●
8	LINK ASM; ENG CONT	1-71907-551-3	01	1	9906-			●
14	PAD; PEDAL,ACCEL	1-73907-563-0	01	1	9906-	●	●	●
15	STAND; HEEL,ACCEL PEDAL	1-73907-266-2	01	1	9906-	●	●	●
16	SCREW; HEEL STAND,ACCEL PEDAL M6X28 W/LK&PL WASHER	1-09980-543-0	02	1	9906-	●	●	●
29	SHAFT; ACCEL PEDAL OD=8.0 L=74	1-71907-212-1	01	1	9906-	●	●	●
54	CABLE; ENG CONT CAB UP +110MM<TGG> (B) L=2971	1-73907-566-1	01	1	9906-	●
54	CABLE; ENG CONT EXC. CAB UP +110MM<TGG> (B) L=2836	1-73907-404-2	01	1	9906-	●
54	CABLE; ENG CONT (B) L=2836	1-73907-404-2	01	1	9906-		●
54	CABLE; ENG CONT (A) L=1300	1-23230-132-0	01	1	9906-9906	●	●
54	CABLE; ENG CONT (A) L=1300	1-23230-132-0	01	1	9907-9912	●
54	CABLE; ENG CONT EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (A) L=1300	1-23230-132-0	01	1	0001-	●
54	CABLE; ENG CONT (C) L=850	1-71907-257-0	01	1	9906-			●
65	BOLT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9906-	●	●	●
81	SPRING; RETURN,ENG CONT LEVER (A)	8-97853-205-1	01	1	9906-	●	●	●
81	SPRING; RETURN,ENG CONT LEVER (B)	1-71907-268-0	01	1	9906-			●
82	BUSHING; ENG CONT LVR EXC. ELECTRONIC GOV RED3(KG5)	1-71907-244-1	02	1	9906-	●
82	BUSHING; ENG CONT LVR	1-71907-244-1	02	1	9906-		●
82	BUSHING; ENG CONT LVR L=31.5	1-53459-627-0	01	1	9906-			●
104	NUT; ENG CONT EXC. ELECTRONIC GOV RED3(KG5) ID=7.9 PUSH NUT	8-94368-617-0	02	1	9906-	●
104	NUT; ENG CONT ID=7.9 PUSH NUT	8-94368-617-0	02	1	9906-		●
104	NUT; ENG CONT ID=7.9 PUSH NUT	8-94368-617-0	01	1	9906-			●
234	SWITCH; ACCEL EXC. ELECTRONIC GOV RED3(KG5)	1-82380-114-2	01	1	9906-	●
234	SWITCH; ACCEL	1-82380-114-2	01	1	9906-		●
234	SWITCH; ACCEL	1-82380-131-1	01	1	9906-			●
242	NUT; ACCEL PEDAL ID=7.9 PUSH NUT	8-97022-565-0	01	1	9906-	●	●	●
271	SHAFT; ENG CONT EXC. ELECTRONIC GOV RED3(KG5) OD=8.0 L=74	1-71907-212-1	01	1	9906-	●
271	SHAFT; ENG CONT OD=8.0 L=74	1-71907-212-1	01	1	9906-		●
271	SHAFT; ENG CONT OD=8.0 L=69	1-71907-298-0	01	1	9906-			●
332	BRACKET; ACCEL PEDAL STOPPER	1-73998-937-1	01	1	9906-	●	●	●
526	SENSOR; ACCEL	1-81534-003-2	01	1	9906-			●
527	BOLT; ACCEL SENSOR M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9906-			●
644	NUT; LINK,ENG CONT M8 FLANGE W/RUBBER	1-09984-176-0	03	1	9906-	●	●	●
664	BOLT; STOPPER M8X45	0-20800-845-0	01	1	9906-	●	●	●
665	COVER; STOPPER RUBBER	1-23249-009-0	01	1	9906-	●	●	●
673	NUT; STOPPER M8	9-09111-408-0	01	1	9906-	●	●	●
843	NUT M12	9-99111-412-0	01	1	9906-			●

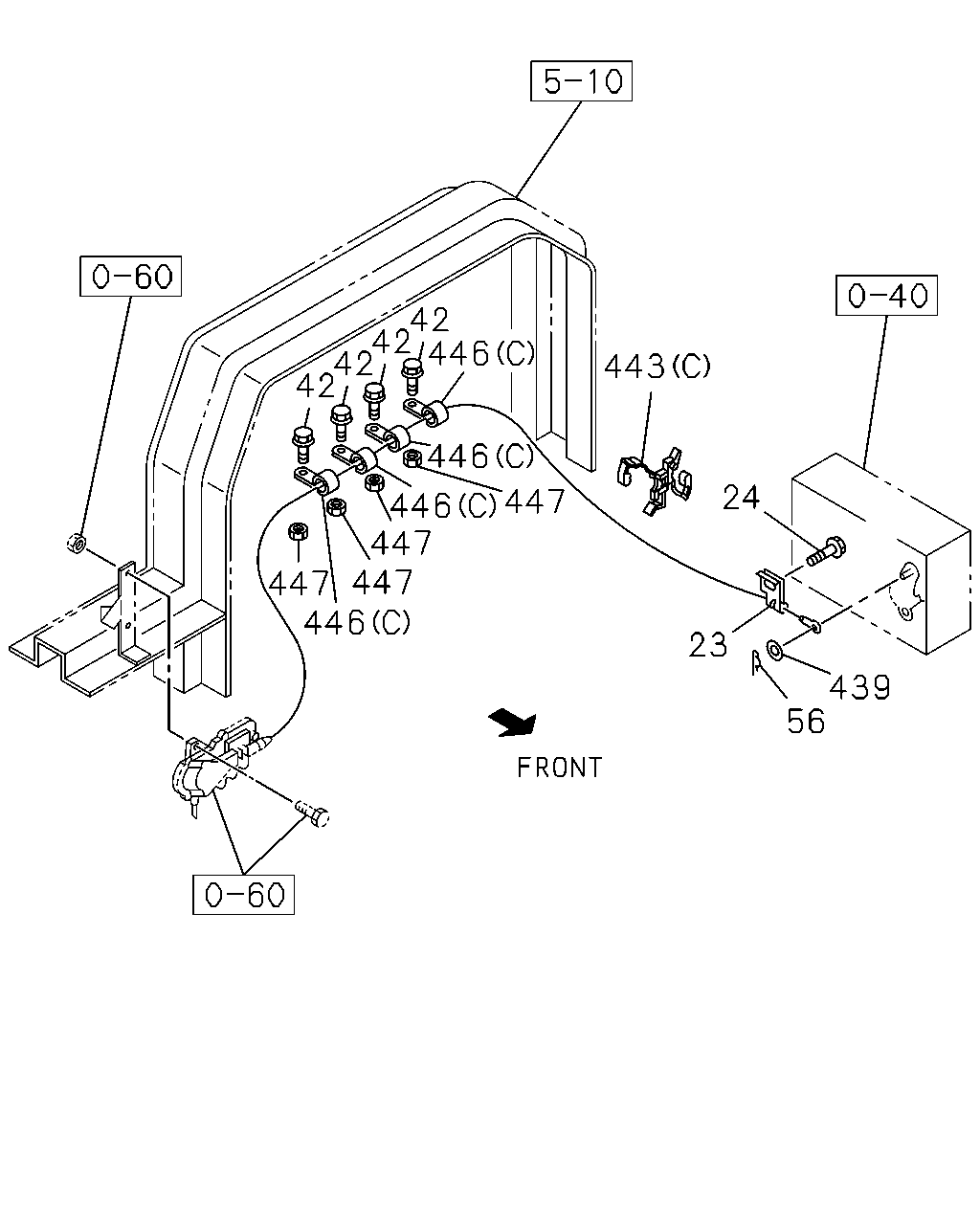

42 42 446 42 42 443 446 446 447 447 446 24 23 439 56 447 447

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
23	BRACKET; FUEL CUT CABLE EXC. ELECTRONIC GOV RED3(KG5)	1-14319-138-0	01	1	9906-	●
23	BRACKET; FUEL CUT CABLE	1-14319-138-0	01	1	9906-		●
23	BRACKET; FUEL CUT CABLE	1-14319-099-0	01	1	9906-			●
24	BOLT; BRKT EXC. ELECTRONIC GOV RED3(KG5) M8X25 FLANGE	0-28680-825-0	01	1	9906-	●
24	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	01	1	9906-		●
42	BOLT; BRKT,ENG CONT CABLE ELECTRONIC GOV RED3(KG5) M8X20 FLANGE	0-28080-820-0	02	1	9906-	●
42	BOLT; BRKT,ENG CONT CABLE M8X20 FLANGE	0-28080-820-0	02	1	9906-			●
42	BOLT; BRKT,ENG CONT CABLE EXC. ELECTRONIC GOV RED3(KG5) M8X25 FLANGE	0-28680-825-0	04	1	9906-	●
42	BOLT; BRKT,ENG CONT CABLE M8X25 FLANGE	0-28680-825-0	04	1	9906-		●
56	PIN; SNAP,JAW JOINT L=17.9	1-09747-002-0	01	1	9906-	●	●	●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	9-09160-505-0	01	1	9906-	●	●	●
443	CLIP; CABLE ELECTRONIC GOV RED3(KG5) (A) ID=6 H=20 L=20	1-09700-603-0	01	1	9906-	●
443	CLIP; CABLE (A) ID=6 H=20 L=20	1-09700-603-0	01	1	9906-			●
443	CLIP; CABLE ELECTRONIC GOV RED3(KG5) (B) ID=7 L=20	9-09524-635-0	02	1	9906-	●
443	CLIP; CABLE (B) ID=7 L=20	9-09524-635-0	02	1	9906-			●
443	CLIP; CABLE EXC. ELECTRONIC GOV RED3(KG5) (C) ID=6-10 & 6-10	1-09709-192-1	01	1	9906-	●
443	CLIP; CABLE (C) ID=6-10 & 6-10	1-09709-192-1	01	1	9906-		●
446	CLIP; ENG CONT ELECTRONIC GOV RED3(KG5) (B) ID=11 H=20 L=20	9-09527-010-0	01	1	9906-0007	●
446	CLIP; ENG CONT (B) ID=11 H=20 L=20	9-09527-010-0	01	1	9906-0007			●
446	CLIP; ENG CONT (B) ID=11 H=20 L=20	5-09700-351-0	01	1	0008-			●
446	CLIP; ENG CONT EXC. ELECTRONIC GOV RED3(KG5) (C) ID=7 L=28	9-09524-655-0	04	1	9906-	●
446	CLIP; ENG CONT (C) ID=7 L=28	9-09524-655-0	04	1	9906-		●
446	CLIP; ENG CONT (A) ID=11 L=20	9-09525-035-0	01	1	9906-			●
447	NUT; BRKT,CONT WIRE EXC. ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	04	1	9906-	●
447	NUT; BRKT,CONT WIRE M8 FLANGE	0-91150-108-0	04	1	9906-		●
447	NUT; BRKT,CONT WIRE M8 FLANGE	0-91150-108-0	01	1	9906-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
