0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#62572) — 146 parça

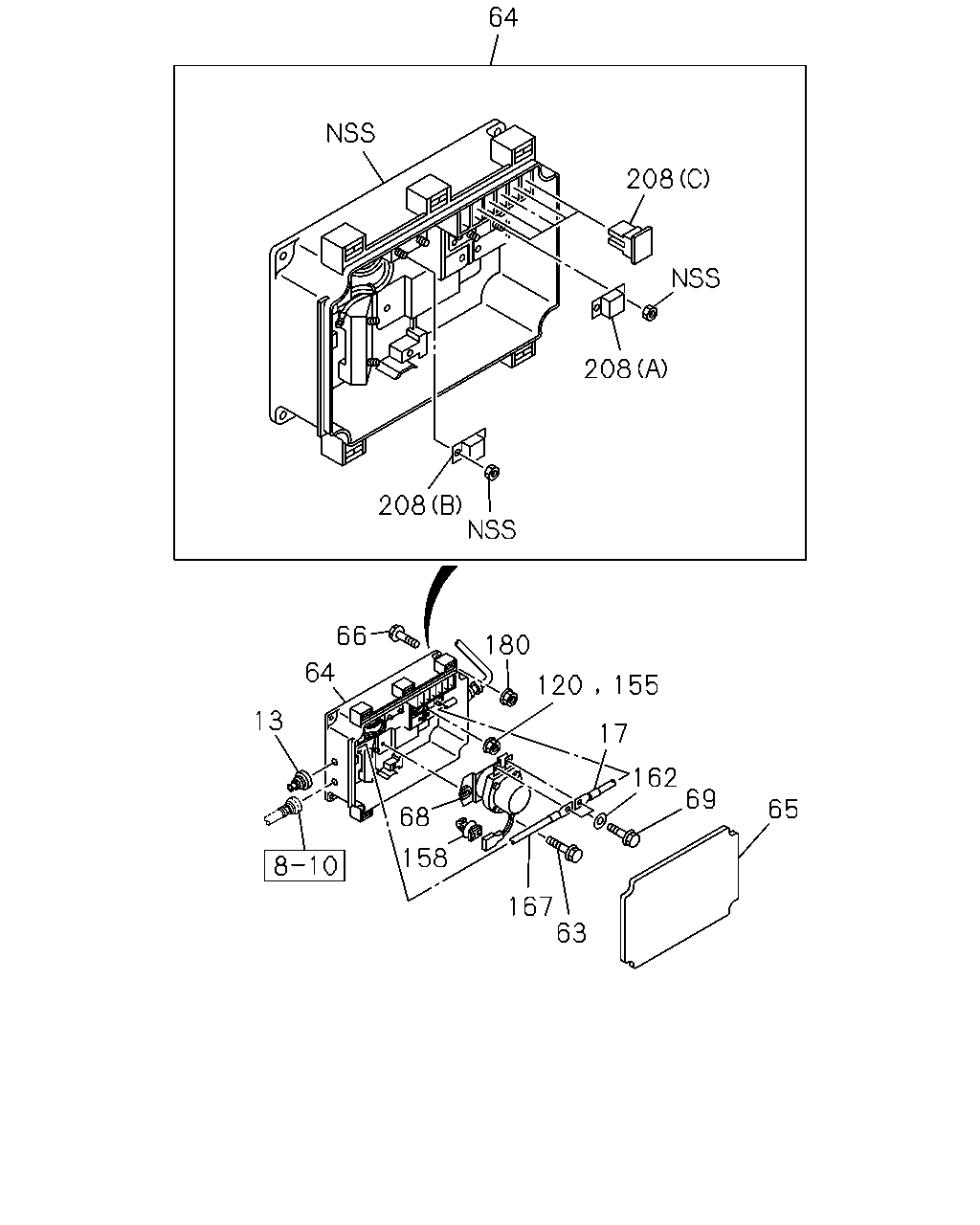

64 208 208 208 66 64 13 68 158 167 63 17 155 120 180 162 69 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	GROMMET; BATTERY CABLE ID=26	1-09333-140-0	01	1	1008-	●	●
17	CABLE; BATTERY (+) TO RELAY L=640	1-82652-760-3	01	1	1008-1410	●	●
17	CABLE; BATTERY (+) TO RELAY L=480	8-98239-412-0	01	1	1411-	●	●
63	BOLT; RELAY BATTERY M8X30 W/LK&PL WASHER	0-50640-830-0	02	1	1008-	●	●
64	BOX; BATTERY RELAY	1-82510-648-0	01	1	1008-	●	●
65	COVER; BATTERY RELAY	1-82510-654-1	01	1	1008-	●	●
66	BOLT; COVER,BATTERY RELAY M8X25 W/LK&PL WASHER	0-50640-825-0	04	1	1008-1410	●	●
66	BOLT; COVER,BATTERY RELAY M8X30 W/LK&PL WASHER	0-50640-830-0	02	1	1411-	●	●
68	RELAY; BATTERY	1-82550-313-0	01	1	1008-	●	●
69	BOLT; CABLE BATTERY M8X20 W/LK&PL WASHER	0-50640-820-0	02	1	1008-	●	●
120	NUT; RELAY BATTERY M8 FLANGE	0-91180-108-0	01	1	1008-1410	●	●
120	NUT; RELAY BATTERY M8 FLANGE	0-91180-108-0	02	1	1411-	●	●
155	NUT; RELAY,BATTERY M8 FLANGE	0-91180-108-0	01	1	1008-	●	●
158	CLIP; RELAY OD=7 H=1.2	8-94364-750-0	02	1	1008-	●	●
162	WASHER; PL,CABLE,BATTERY ID=8.4 OD=18	0-91614-608-0	02	1	1008-	●	●
167	CABLE; BATTERY RELAY TO STARTER ENGINE REAR PTO(SV1) L=5520	8-97616-788-1	01	1	1008-1209	●
167	CABLE; BATTERY RELAY TO STARTER L=5520	8-97616-788-1	01	1	1210-1410	●
167	CABLE; BATTERY RELAY TO STARTER	8-98218-185-1	01	1	1411-	●
167	CABLE; BATTERY RELAY TO STARTER EXC. ENGINE REAR PTO(SV1) L=5500	8-97616-651-1	01	1	1008-1209	●
167	CABLE; BATTERY RELAY TO STARTER EXC. BATTERY LAYOUT REAR VAR1<NCT> L=5500	8-97616-651-1	01	1	1008-1209		●
167	CABLE; BATTERY RELAY TO STARTER EXC. BATTERY LAYOUT REAR VAR1<NCT> L=5500	8-97616-651-1	01	1	1210-1410		●
167	CABLE; BATTERY RELAY TO STARTER EXC. BATTERY LAYOUT REAR VAR1<NCT>	8-98240-978-0	01	1	1411-		●
167	CABLE; BATTERY RELAY TO STARTER BATTERY LAYOUT REAR VAR1<NCT> L=4740	8-97618-796-0	01	1	1008-1410		●
167	CABLE; BATTERY RELAY TO STARTER BATTERY LAYOUT REAR VAR1<NCT>	8-98198-306-0	01	1	1411-		●
180	NUT; COVER M8 FLANGE	0-91180-108-0	02	1	1008-1410	●	●
180	NUT; COVER M8 FLANGE	0-91180-108-0	04	1	1411-	●	●
208	FUSE (B) 80A	1-82516-031-0	01	1	1008-	●	●
208	FUSE (A) 100A	1-82516-032-0	01	1	1008-	●	●
208	FUSE (C) 40A GREEN	8-94468-662-0	05	1	1008-	●	●

23 23 23 23 61 23 23 23 78 10 75 14 24 100 10 10 24 12 101 76 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
10	BOLT; BATTERY CABLE CLIP (A) M8X20 FLANGE	0-28650-820-0	05	1	1008-1410	●	●
10	BOLT; BATTERY CABLE CLIP (A) M8X25 FLANGE	0-28650-825-0	05	1	1411-	●	●
10	BOLT; BATTERY CABLE CLIP (B) M8X35 FLANGE	0-28650-835-0	02	1	1008-	●	●
12	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91180-108-0	07	1	1008-1410	●	●
12	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91180-108-0	08	1	1411-	●	●
12	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91180-108-0	01	1	1008-	●	●
14	BOLT; BRKT CLIP M8X20 FLANGE	0-28650-820-0	01	1	1008-	●
14	BOLT; BRKT CLIP EXC. BATTERY LAYOUT REAR VAR1<NCT> M8X20 FLANGE	0-28650-820-0	01	1	1008-		●
23	BRACKET; CABLE CLIP TO FRAME (A)	1-82698-590-0	01	1	1008-	●	●
23	BRACKET; CABLE CLIP TO FRAME ENGINE REAR PTO(SV1) (G)	1-82698-628-0	01	1	1008-1209	●
23	BRACKET; CABLE CLIP TO FRAME (G)	1-82698-628-0	01	1	1210-	●
23	BRACKET; CABLE CLIP TO FRAME EXC. ENGINE REAR PTO(SV1) (F)	1-82698-575-1	01	1	1008-1209	●
23	BRACKET; CABLE CLIP TO FRAME (F)	1-82698-575-1	01	1	1008-1209		●
23	BRACKET; CABLE CLIP TO FRAME (F)	1-82698-575-1	01	1	1210-		●
23	BRACKET; CABLE CLIP TO FRAME (E)	8-98171-604-0	01	1	1008-	●	●
23	BRACKET; CABLE CLIP TO FRAME (C) L=40	1-47478-410-0	01	1	1008-	●	●
23	BRACKET; CABLE CLIP TO FRAME (B) L=95	1-82698-557-0	01	1	1008-	●	●
23	BRACKET; CABLE CLIP TO FRAME (D)	1-82698-574-0	01	1	1008-	●	●
24	BOLT; BRKT TO FRAME M8X30 FLANGE	0-28650-830-0	04	1	1511-	●	●
24	BOLT; BRKT TO FRAME (A) M8X25 FLANGE	0-28650-825-0	02	1	1008-	●	●
24	BOLT; BRKT TO FRAME (B) M8X35 FLANGE	0-28650-835-0	02	1	1008-	●	●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	03	1	1008-	●	●
61	BRACKET; BATTERY CABLE	8-98147-302-0	01	1	1008-	●	●
75	BOLT; BRKT M8X20 FLANGE	0-28050-820-0	02	1	1008-	●	●
76	NUT; BATTERY CABLE M8 FLANGE	0-91180-108-0	03	1	1008-1410	●
76	NUT; BATTERY CABLE EXC. BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE	0-91180-108-0	03	1	1008-1410		●
76	NUT; BATTERY CABLE M8 FLANGE	0-91180-108-0	03	1	1411-	●	●
76	NUT; BATTERY CABLE BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE	0-91180-108-0	04	1	1008-1410		●
76	NUT; BATTERY CABLE BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE	0-91180-108-0	01	1	1411-		●
78	BRACKET; CLIP BATTERY	1-47476-396-1	01	1	1008-	●
78	BRACKET; CLIP BATTERY EXC. BATTERY LAYOUT REAR VAR1<NCT>	1-47476-396-1	01	1	1008-		●
100	BOLT; BATTERY CABLE CLIP M8X25 FLANGE	0-28650-825-0	04	1	1008-	●	●
101	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91180-108-0	04	1	1008-	●	●

22 99 99 9 9 9 9 18 9 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	CLIP; BATTERY CABLE (A) L=350	1-09707-183-0	02	1	1008-1410	●
9	CLIP; BATTERY CABLE EXC. BATTERY LAYOUT REAR VAR1<NCT> (A) L=350	1-09707-183-0	02	1	1008-1410		●
9	CLIP; BATTERY CABLE (A) L=350	1-09707-183-0	01	1	1411-	●
9	CLIP; BATTERY CABLE EXC. BATTERY LAYOUT REAR VAR1<NCT> (A) L=350	1-09707-183-0	01	1	1411-		●
9	CLIP; BATTERY CABLE (B) ID=18 L=28	1-09701-067-0	03	1	1008-1410	●
9	CLIP; BATTERY CABLE EXC. BATTERY LAYOUT REAR VAR1<NCT> (B) ID=18 L=28	1-09701-067-0	03	1	1008-1410		●
9	CLIP; BATTERY CABLE (B) ID=18 L=28	1-09701-067-0	03	1	1411-	●	●
9	CLIP; BATTERY CABLE (C) ID=21 L=24	8-94176-807-1	02	1	1008-	●	●
9	CLIP; BATTERY CABLE (E) ID=20 H=23 L=27	1-09700-861-0	01	1	1008-	●	●
9	CLIP; BATTERY CABLE (F) ID=21 L=30 H=40	1-09700-991-1	01	1	1008-	●	●
9	CLIP; BATTERY CABLE (D) ID=18 L=28 H=30	1-09701-110-0	02	1	1008-	●	●
9	CLIP; BATTERY CABLE BATTERY LAYOUT REAR VAR1<NCT> (A) L=350	1-09707-183-0	03	1	1008-1410		●
9	CLIP; BATTERY CABLE BATTERY LAYOUT REAR VAR1<NCT> (A) L=350	1-09707-183-0	02	1	1411-		●
9	CLIP; BATTERY CABLE BATTERY LAYOUT REAR VAR1<NCT> (G) ID=19 L=28	0-95235-856-0	01	1	1008-1410		●
9	CLIP; BATTERY CABLE BATTERY LAYOUT REAR VAR1<NCT> (B) ID=18 L=28	1-09701-067-0	02	1	1008-1410		●
18	CLIP; BATTERY CABLE ID=21 L=24	8-94176-807-1	01	1	1008-	●	●
22	CLIP; BATTERY CABLE (C) ID=20 H=23 L=27	1-09700-861-0	01	1	1008-	●	●
22	CLIP; BATTERY CABLE (B) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1008-1410	●	●
22	CLIP; BATTERY CABLE (A) ID=25 L=50	1-09701-019-0	01	1	1008-1410	●	●
22	CLIP; BATTERY CABLE (D) ID=11 & 13 H=26 L=48	1-09701-270-0	02	1	1008-1410	●	●
22	CLIP; BATTERY CABLE (D) ID=11 & 13 H=26 L=48	1-09701-270-0	03	1	1411-	●	●
99	CLIP; BATTERY CABLE (A) ID=18 L=25 H=50	1-09701-096-0	02	1	1008-	●	●
99	CLIP; BATTERY CABLE (B) ID=18 H=23 L=28	1-09701-070-0	02	1	1008-	●	●

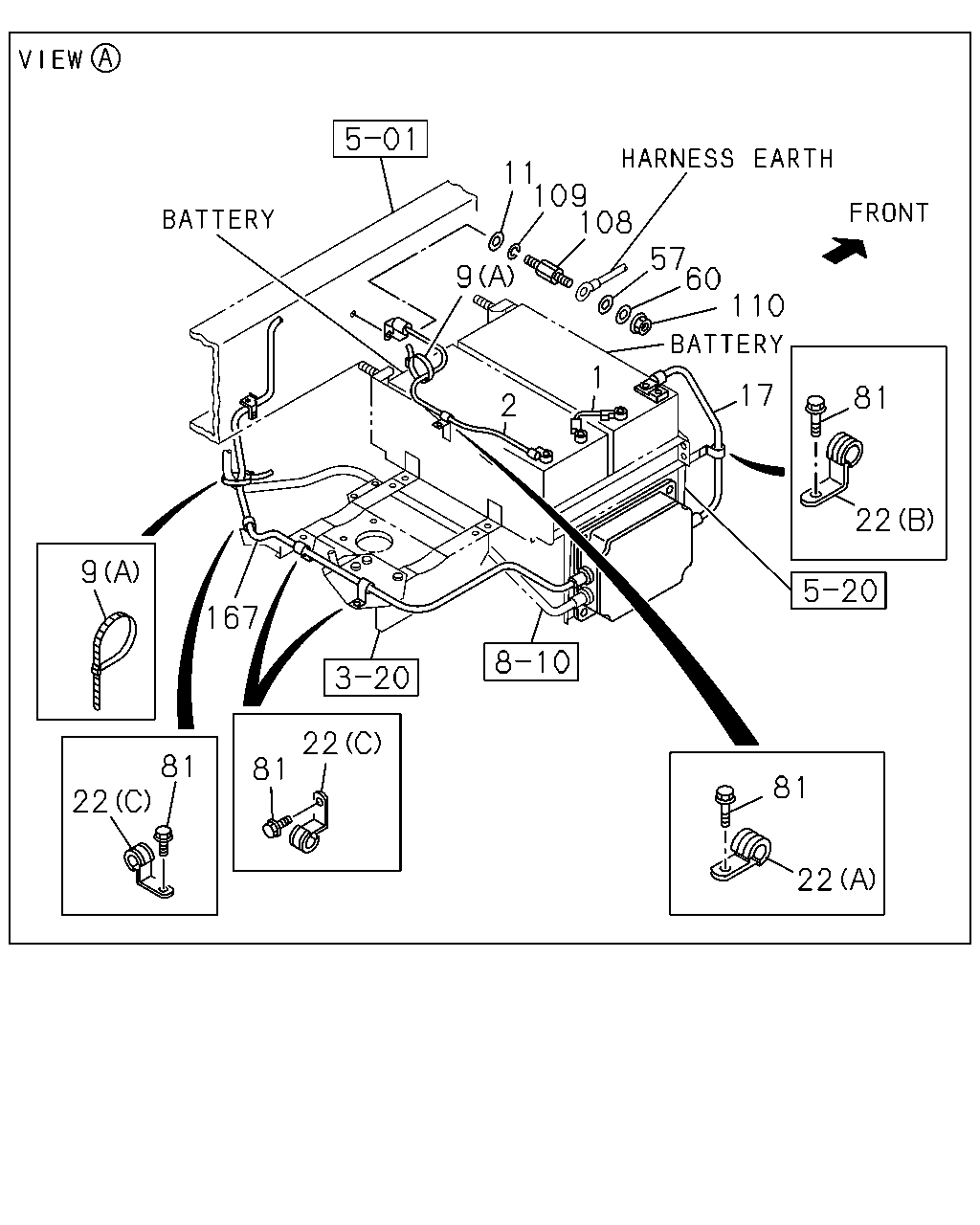

22 81 22 81 22 81 81 22 9 167 2 1 17 110 60 57 108 109 11 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CABLE; BATTERY BATTERY 115F51 N120<SJ3> L=265	1-82650-388-1	01	1	1008-	●	●
1	CABLE; BATTERY BATTERY 145G51 N150<SJ8> L=450	1-82650-389-1	01	1	1008-	●	●
2	CABLE; BATTERY L=720	1-82650-384-1	01	1	1008-1410	●
2	CABLE; BATTERY EXC. BATTERY LAYOUT REAR VAR1<NCT> L=720	1-82650-384-1	01	1	1008-1410		●
2	CABLE; BATTERY L=710	8-98219-867-0	01	1	1411-	●
2	CABLE; BATTERY EXC. BATTERY LAYOUT REAR VAR1<NCT> L=710	8-98219-867-0	01	1	1411-		●
2	CABLE; BATTERY BATTERY LAYOUT REAR VAR1<NCT> L=680	1-82650-385-1	01	1	1008-1410		●
2	CABLE; BATTERY BATTERY LAYOUT REAR VAR1<NCT> L=640	8-98223-230-0	01	1	1411-		●
9	CLIP; BATTERY CABLE (A) L=350	1-09707-183-0	02	1	1008-1410	●
9	CLIP; BATTERY CABLE EXC. BATTERY LAYOUT REAR VAR1<NCT> (A) L=350	1-09707-183-0	02	1	1008-1410		●
9	CLIP; BATTERY CABLE (A) L=350	1-09707-183-0	01	1	1411-	●
9	CLIP; BATTERY CABLE EXC. BATTERY LAYOUT REAR VAR1<NCT> (A) L=350	1-09707-183-0	01	1	1411-		●
9	CLIP; BATTERY CABLE (B) ID=18 L=28	1-09701-067-0	03	1	1008-1410	●
9	CLIP; BATTERY CABLE EXC. BATTERY LAYOUT REAR VAR1<NCT> (B) ID=18 L=28	1-09701-067-0	03	1	1008-1410		●
9	CLIP; BATTERY CABLE (B) ID=18 L=28	1-09701-067-0	03	1	1411-	●	●
9	CLIP; BATTERY CABLE (C) ID=21 L=24	8-94176-807-1	02	1	1008-	●	●
9	CLIP; BATTERY CABLE (E) ID=20 H=23 L=27	1-09700-861-0	01	1	1008-	●	●
9	CLIP; BATTERY CABLE (F) ID=21 L=30 H=40	1-09700-991-1	01	1	1008-	●	●
9	CLIP; BATTERY CABLE (D) ID=18 L=28 H=30	1-09701-110-0	02	1	1008-	●	●
9	CLIP; BATTERY CABLE BATTERY LAYOUT REAR VAR1<NCT> (A) L=350	1-09707-183-0	03	1	1008-1410		●
9	CLIP; BATTERY CABLE BATTERY LAYOUT REAR VAR1<NCT> (A) L=350	1-09707-183-0	02	1	1411-		●
9	CLIP; BATTERY CABLE BATTERY LAYOUT REAR VAR1<NCT> (G) ID=19 L=28	0-95235-856-0	01	1	1008-1410		●
9	CLIP; BATTERY CABLE BATTERY LAYOUT REAR VAR1<NCT> (B) ID=18 L=28	1-09701-067-0	02	1	1008-1410		●
11	WASHER; BATTERY CABLE EARTH ID=8.4 OD=22	0-91614-708-0	01	1	1008-	●	●
17	CABLE; BATTERY (+) TO RELAY L=640	1-82652-760-3	01	1	1008-1410	●	●
17	CABLE; BATTERY (+) TO RELAY L=480	8-98239-412-0	01	1	1411-	●	●
22	CLIP; BATTERY CABLE (C) ID=20 H=23 L=27	1-09700-861-0	01	1	1008-	●	●
22	CLIP; BATTERY CABLE (B) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1008-1410	●	●
22	CLIP; BATTERY CABLE (A) ID=25 L=50	1-09701-019-0	01	1	1008-1410	●	●
22	CLIP; BATTERY CABLE (D) ID=11 & 13 H=26 L=48	1-09701-270-0	02	1	1008-1410	●	●
22	CLIP; BATTERY CABLE (D) ID=11 & 13 H=26 L=48	1-09701-270-0	03	1	1411-	●	●
57	WASHER; PL,BATTERY CABLE ID=6.4	9-09164-506-0	01	1	1008-1410	●	●
57	WASHER; PL,BATTERY CABLE ID=6.4	9-09164-506-0	01	1	1008-1410	●	●
57	WASHER; PL,BATTERY CABLE ID=6.4	0-91614-506-0	01	1	1411-	●	●
60	WASHER; LK,BATTERY CABLE ID=6.1	0-91510-606-0	01	1	1008-	●	●
81	BOLT; BATTERY CABLE M8X25 FLANGE	0-28650-825-0	05	1	1008-1410	●	●
81	BOLT; BATTERY CABLE M8X25 FLANGE	0-28650-825-0	02	1	1411-	●	●
108	STUD; EARTH BATTERY CABLE M6X14,M8X17 L=42	5-09309-006-1	01	1	1008-	●	●
109	WASHER; LK,EARTH BATTERY CABLE ID=8.2	0-91510-808-0	01	1	1008-	●	●
110	NUT; HARNESS TO BATTERY EARTH M6 FLANGE	5-09440-004-0	01	1	1008-	●	●
167	CABLE; BATTERY RELAY TO STARTER ENGINE REAR PTO(SV1) L=5520	8-97616-788-1	01	1	1008-1209	●
167	CABLE; BATTERY RELAY TO STARTER L=5520	8-97616-788-1	01	1	1210-1410	●
167	CABLE; BATTERY RELAY TO STARTER	8-98218-185-1	01	1	1411-	●
167	CABLE; BATTERY RELAY TO STARTER EXC. ENGINE REAR PTO(SV1) L=5500	8-97616-651-1	01	1	1008-1209	●
167	CABLE; BATTERY RELAY TO STARTER EXC. BATTERY LAYOUT REAR VAR1<NCT> L=5500	8-97616-651-1	01	1	1008-1209		●
167	CABLE; BATTERY RELAY TO STARTER EXC. BATTERY LAYOUT REAR VAR1<NCT> L=5500	8-97616-651-1	01	1	1210-1410		●
167	CABLE; BATTERY RELAY TO STARTER EXC. BATTERY LAYOUT REAR VAR1<NCT>	8-98240-978-0	01	1	1411-		●
167	CABLE; BATTERY RELAY TO STARTER BATTERY LAYOUT REAR VAR1<NCT> L=4740	8-97618-796-0	01	1	1008-1410		●
167	CABLE; BATTERY RELAY TO STARTER BATTERY LAYOUT REAR VAR1<NCT>	8-98198-306-0	01	1	1411-		●

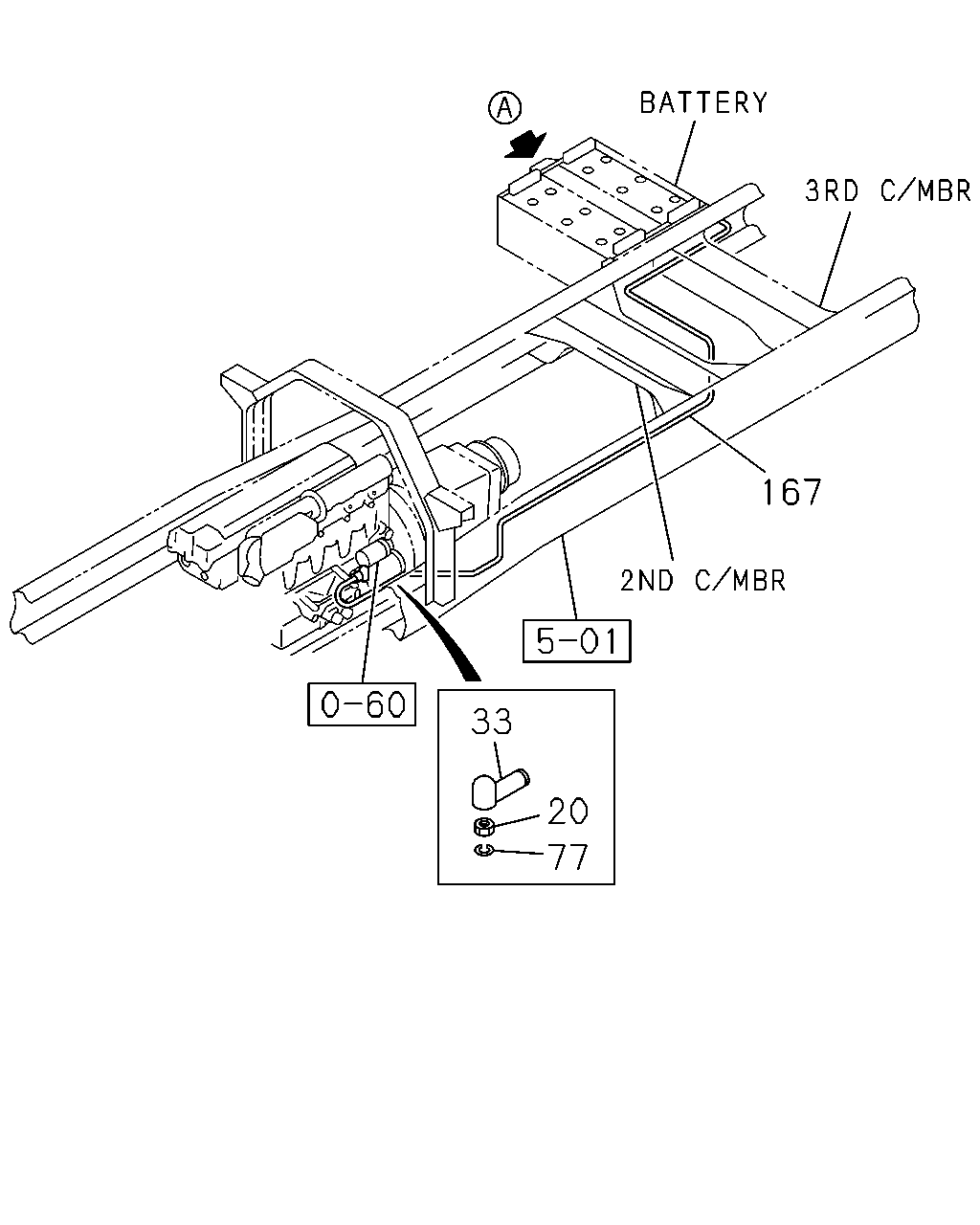

77 20 33 167

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
20	NUT; STARTER CABLE M10	8-98011-328-0	01	1	1008-	●	●
33	CAP; INSULATOR	8-97181-965-0	01	1	1008-	●	●
77	WASHER; LK,STARTER CABLE ID=10.2	0-91510-610-0	01	1	1008-	●	●
167	CABLE; BATTERY RELAY TO STARTER ENGINE REAR PTO(SV1) L=5520	8-97616-788-1	01	1	1008-1209	●
167	CABLE; BATTERY RELAY TO STARTER L=5520	8-97616-788-1	01	1	1210-1410	●
167	CABLE; BATTERY RELAY TO STARTER	8-98218-185-1	01	1	1411-	●
167	CABLE; BATTERY RELAY TO STARTER EXC. ENGINE REAR PTO(SV1) L=5500	8-97616-651-1	01	1	1008-1209	●
167	CABLE; BATTERY RELAY TO STARTER EXC. BATTERY LAYOUT REAR VAR1<NCT> L=5500	8-97616-651-1	01	1	1008-1209		●
167	CABLE; BATTERY RELAY TO STARTER EXC. BATTERY LAYOUT REAR VAR1<NCT> L=5500	8-97616-651-1	01	1	1210-1410		●
167	CABLE; BATTERY RELAY TO STARTER EXC. BATTERY LAYOUT REAR VAR1<NCT>	8-98240-978-0	01	1	1411-		●
167	CABLE; BATTERY RELAY TO STARTER BATTERY LAYOUT REAR VAR1<NCT> L=4740	8-97618-796-0	01	1	1008-1410		●
167	CABLE; BATTERY RELAY TO STARTER BATTERY LAYOUT REAR VAR1<NCT>	8-98198-306-0	01	1	1411-		●
