◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11323 - CYZ LHD MIDDLE EAST EURO2 WITH 3STEPS ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-60 - ENGINE ELECTRICAL CONTROL PARTS ▶
0-60 — ENGINE ELECTRICAL CONTROL PARTS (#62571) — 85 parça

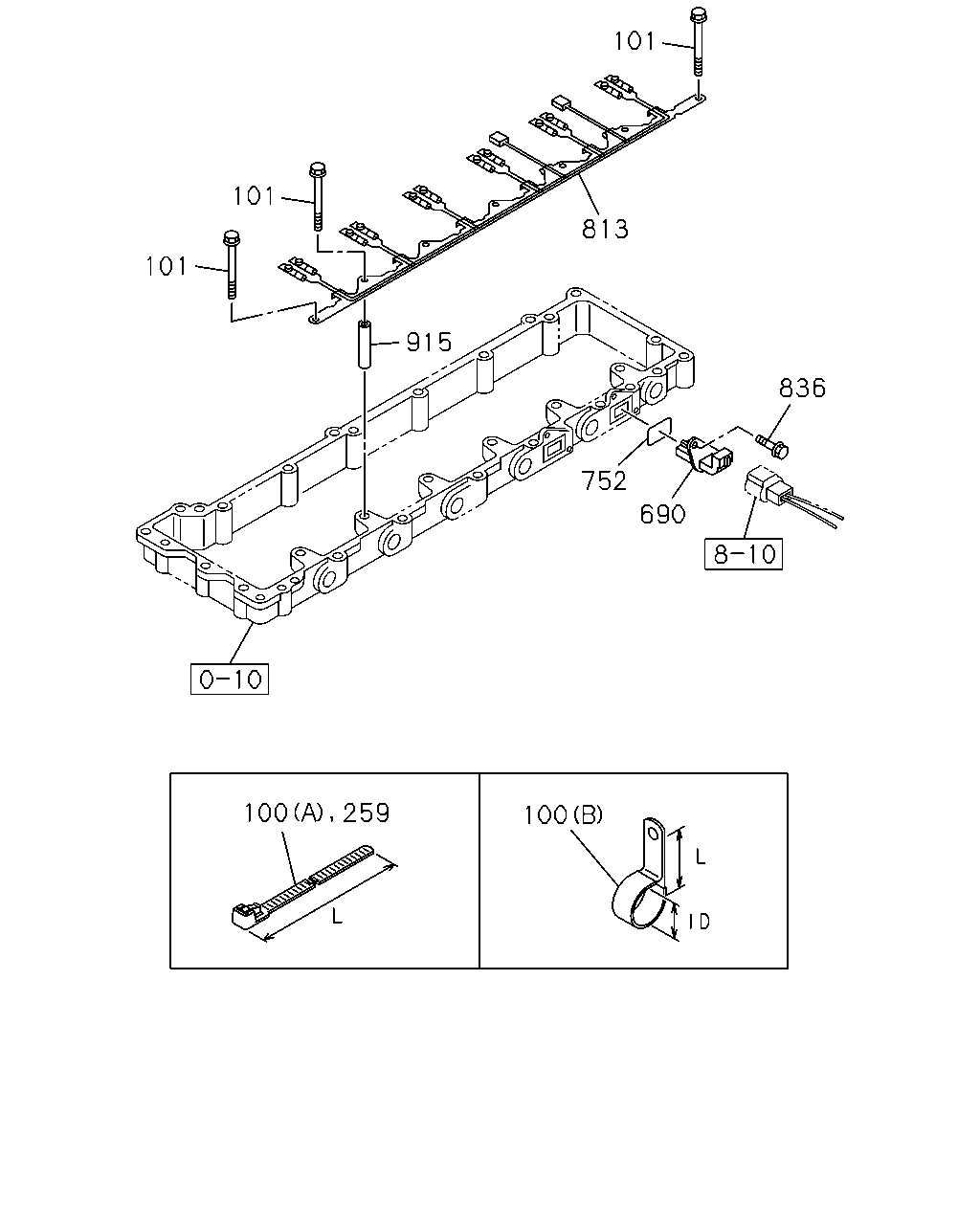

çizim 170509
836 690 752 813 101 101 101 915 100 259 100
BalonParca AdiParca NoAdetTipApplied Date A B
100 CLIP; HARNESS
(B) ID=11 L=20 		0-95235-035-0 01 1 1008- ● ●
100 CLIP; HARNESS
(A) L=140 		5-09707-031-1 02 1 1008-1205 ● ●
100 CLIP; HARNESS
(A) L=140 		8-98216-431-0 02 1 1206- ● ●
101 BOLT; HARNESS
M8X70 FLANGE 		0-28050-870-0 07 1 1008- ● ●
259 CLIP; BAND,HARNESS TO OIL PIPE
L=250 		5-09707-030-1 04 1 1008-1205 ● ●
259 CLIP; BAND,HARNESS TO OIL PIPE
L=250 		8-98216-430-0 04 1 1206-1208 ● ●
259 CLIP; BAND,HARNESS TO OIL PIPE
L=250 		8-98216-430-0 05 1 1209- ● ●
690 CONNECTOR 8-94390-858-1 02 1 1008- ● ●
752 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94391-310-0 02 1 1008- ● ●
813 HARNESS; INJECTOR 1-82641-338-1 01 1 1008- ● ●
836 BOLT; CONNECTOR
M8X12 FLANGE 		0-28050-812-0 04 1 1008- ● ●
915 SPACER; HARNESS
L=51 		1-11369-157-0 05 1 1008- ● ●
çizim 170510
428 428 608 441 428 428 441
BalonParca AdiParca NoAdetTipApplied Date A B
428 CLIP; HARNESS
(H) ID=28X2 L=28 		1-09701-302-0 02 1 1411- ● ●
428 CLIP; HARNESS
(F) ID=22 L=52 		9-09917-431-0 03 1 1008-1410 ●
428 CLIP; HARNESS
(H) ID=24X2 L=25 		1-09700-710-0 04 1 1411- ● ●
428 CLIP; HARNESS
(C) ID=35 L=35 		1-09700-684-0 01 1 1008-1410 ● ●
428 CLIP; HARNESS
(C) ID=35 L=35 		1-09700-684-0 02 1 1411- ● ●
428 CLIP; HARNESS
(D) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 1008-1410 ● ●
428 CLIP; HARNESS
(G) ID=31 L=35 		1-09700-329-1 01 1 1411- ● ●
428 CLIP; HARNESS
(E) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1008-1410 ● ●
428 CLIP; HARNESS
(I) L=350 		1-09707-183-0 02 1 1411- ● ●
428 CLIP; HARNESS
(A) L=36 		8-94224-891-1 01 1 1008- ● ●
428 CLIP; HARNESS
(B) ID=11 L=28 		9-09917-544-0 01 1 1008- ● ●
441 BOLT; HARNESS TO FRAME
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1008-1410 ● ●
441 BOLT; HARNESS TO FRAME
(A) M8X20 FLANGE 		0-28650-820-0 05 1 1411- ● ●
441 BOLT; HARNESS TO FRAME
(B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 1008-1410 ● ●
441 BOLT; HARNESS TO FRAME
(B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 1411- ● ●
608 SENSOR; AIR TEMP 8-97177-549-0 01 1 1008-1204 ● ●
608 SENSOR; AIR TEMP 8-98214-375-0 01 1 1205- ● ●

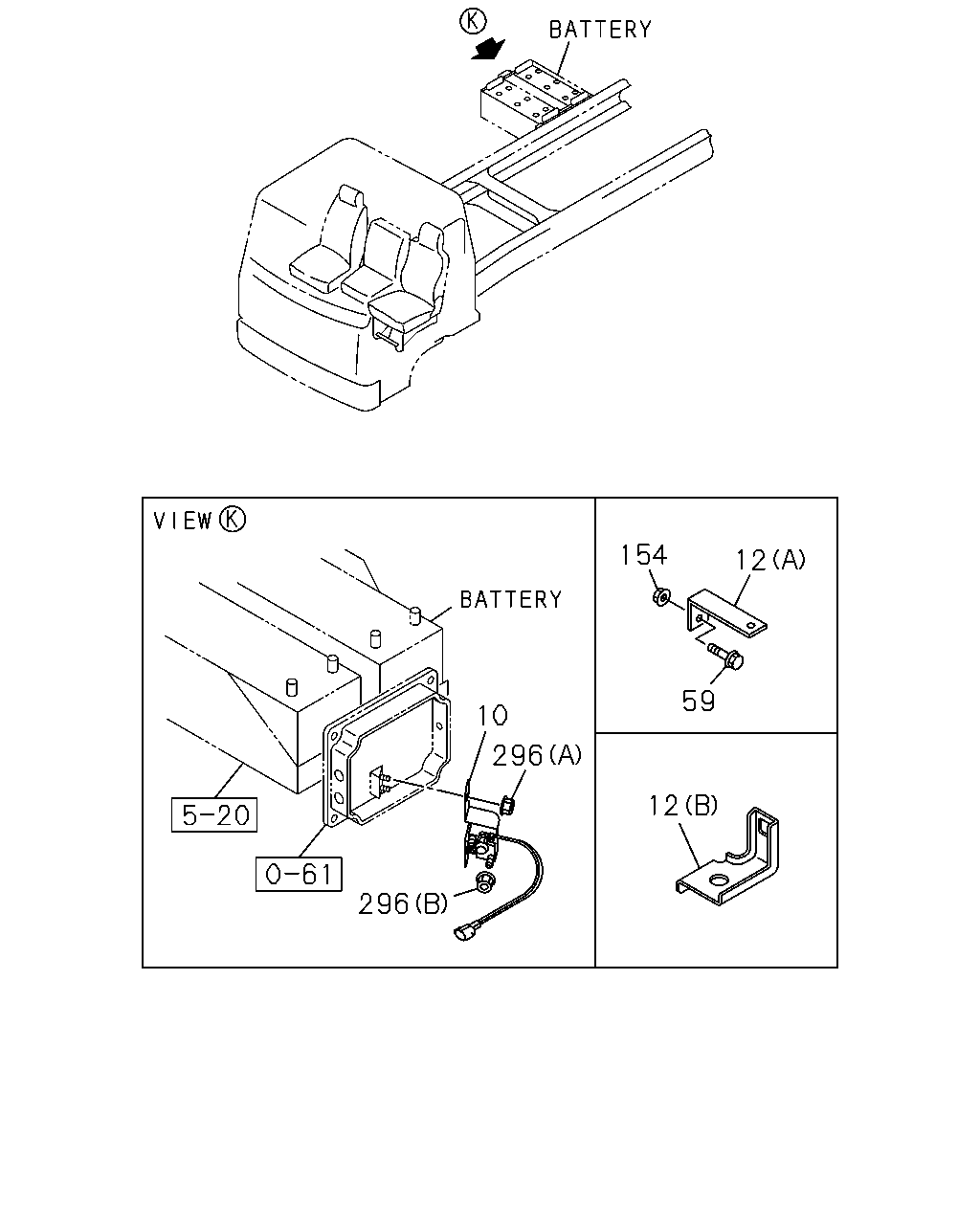

çizim 170512
154 12 59 12 296 10 296
BalonParca AdiParca NoAdetTipApplied Date A B
10 RELAY; STARTER 1-81171-097-1 01 1 1008- ● ●
12 BRACKET; STARTER RELAY
(A) L=90 B=25 		1-47476-630-0 01 1 1008- ● ●
12 BRACKET; STARTER RELAY
(B) 		8-97304-944-0 01 1 1008- ● ●
59 BOLT; BRKT,HARNESS CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1008- ● ●
59 BOLT; BRKT,HARNESS CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 1008- ● ●
154 NUT; BRKT FIX
M8 FLANGE 		0-91180-108-0 01 1 1008- ● ●
296 NUT; RELAY,STARTER
(A) M8 FLANGE 		0-91180-108-0 02 1 1008- ● ●
296 NUT; RELAY,STARTER
(B) M6 FLANGE 		0-91180-206-0 02 1 1008- ● ●

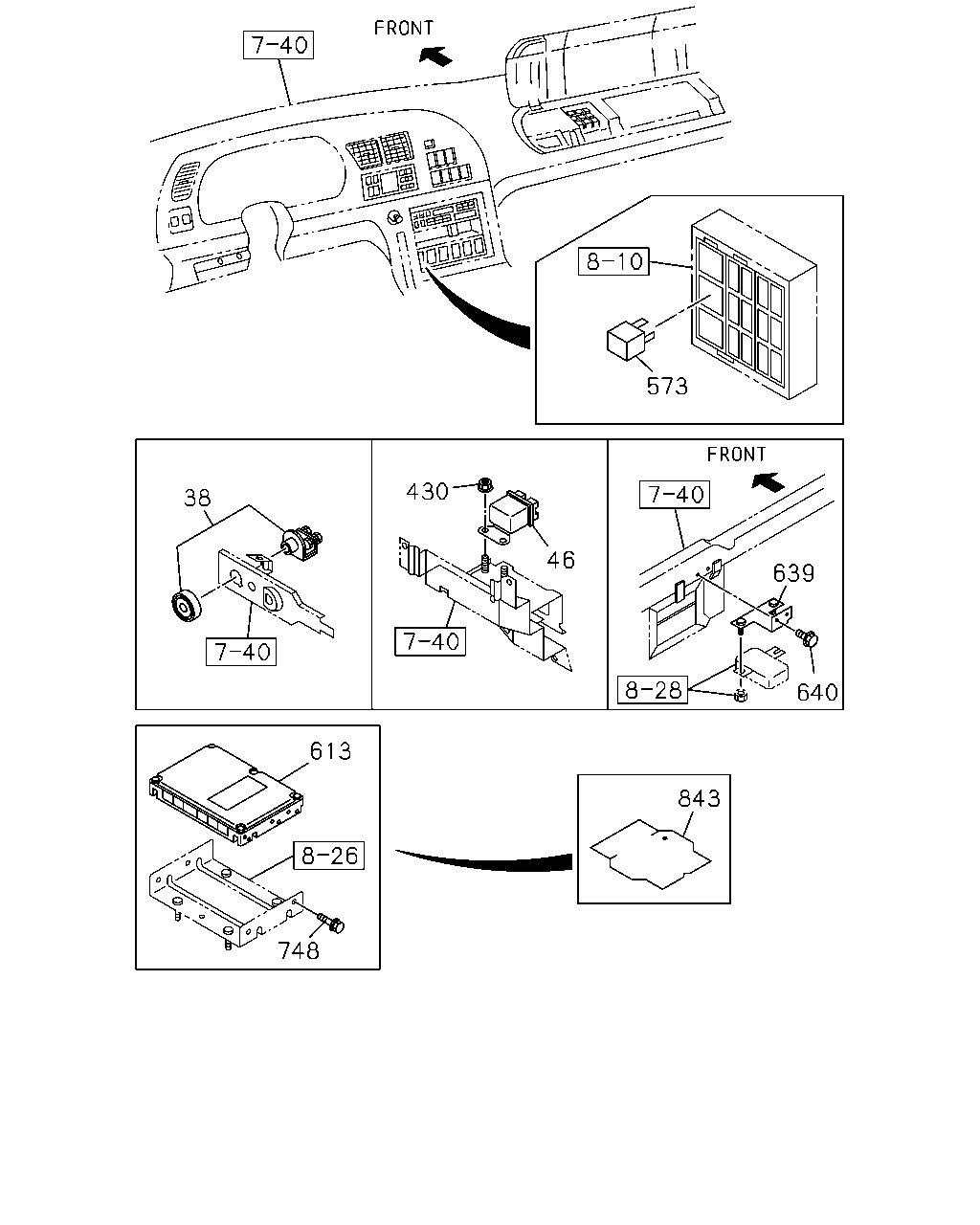

çizim 170538
573 748 613 843 640 639 46 430 38
BalonParca AdiParca NoAdetTipApplied Date A B
38 RESISTOR; CONT,GLOW PLUG 1-81402-008-0 01 1 1008- ● ●
46 RELAY; GLOW PLUG 8-94258-014-0 01 1 1008- ● ●
430 NUT; RELAY FIX
M6 FLANGE 		0-91180-106-0 01 1 1008- ● ●
573 RELAY; ELEC GOV
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1008- ● ●
613 CONTROL UNIT; ENG 1-80111-424-1 01 1 1008- ● ●
639 BRACKET; QOS GLOW TIMER
FULL TRAILER PIPING<Z25> 		1-73908-161-0 01 1 1008-1410 ●
640 BOLT; BRKT,QOS GLOW TIMER
FULL TRAILER PIPING<Z25> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1008-1410 ●
748 BOLT; CONT UNIT
M5X10 W/LK+PL WASHER 		0-36230-510-0 04 1 1008- ● ●
843 SEAL; BRKT 1-76770-009-2 01 1 1008-1101 ● ●
843 SEAL; BRKT 8-98119-974-0 01 1 1102- ● ●

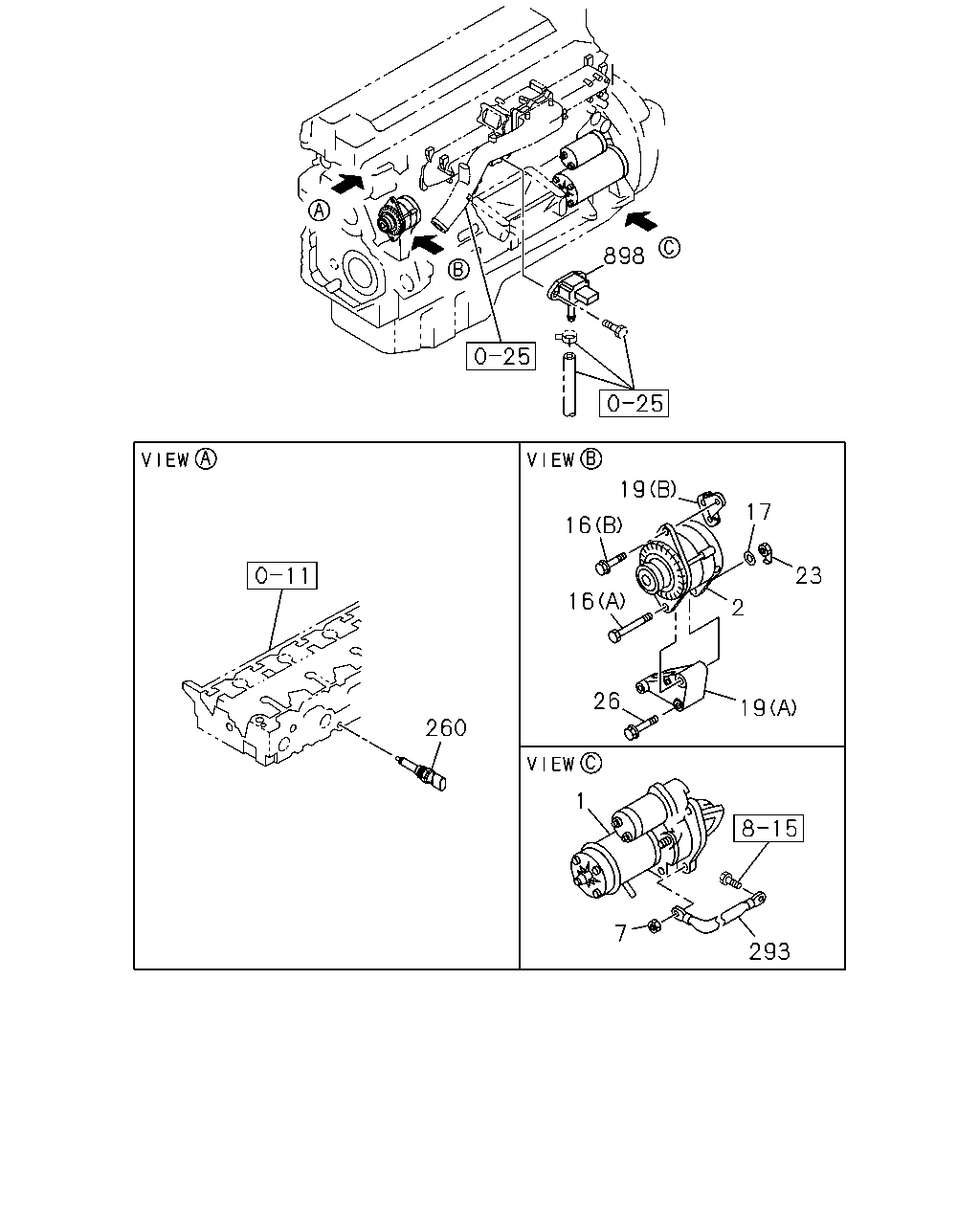

çizim 170547
898 260 16 19 17 23 2 19 26 16 1 7 293
BalonParca AdiParca NoAdetTipApplied Date A B
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 7.0KW MITSUBISHI 		8-97380-509-4 01 1 1008- ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 7.0KW MITSUBISHI 		8-97380-508-4 01 1 1008- ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 60A MITSUBISHI 		1-81200-572-8 01 1 1008-1410 ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 60A NIKKO 		8-98201-083-2 01 1 1411- ● ●
7 NUT; STARTER
M14 FLANGE 		0-91150-114-0 03 1 1008- ● ●
16 BOLT; GEN
(A) M12X40 FLANGE 		0-28051-240-0 01 1 1008-1410 ● ●
16 BOLT; GEN
(B) M14X123 		1-09040-105-0 01 1 1008- ● ●
17 WASHER; PL,GEN
ID=15 		0-91610-514-0 01 1 1008- ● ●
19 BRACKET; GEN
(A) 		8-97604-177-0 01 1 1008- ● ●
19 BRACKET; GEN
(B) 		8-97606-317-0 01 1 1008-1410 ● ●
23 NUT; GEN
M14 FLANGE 		0-91150-114-0 01 1 1008- ● ●
26 BOLT; GEN BRKT
M10X60 FLANGE 		0-28151-060-0 02 1 1008- ● ●
260 SENSOR; WATER TEMP 1-80210-005-1 01 1 1008- ● ●
293 CABLE; STARTER EARTH
L=350 		1-82650-235-0 01 1 1008- ● ●
898 SENSOR; BOOST 1-80220-014-0 01 1 1008- ● ●

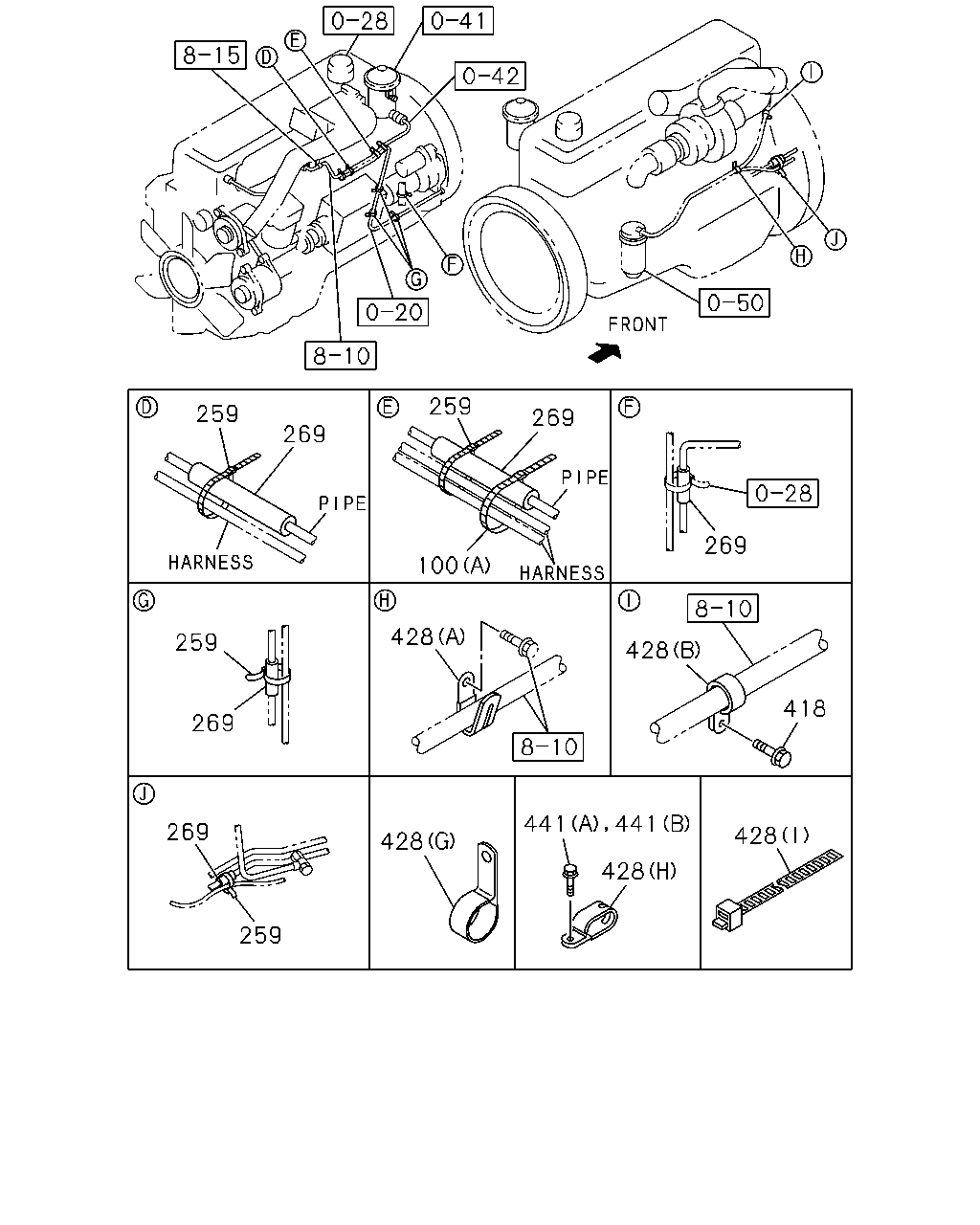

çizim 170565
259 269 259 269 269 428 259 269 428 418 428 441 441 428 428 259 269 100
BalonParca AdiParca NoAdetTipApplied Date A B
100 CLIP; HARNESS
(B) ID=11 L=20 		0-95235-035-0 01 1 1008- ● ●
100 CLIP; HARNESS
(A) L=140 		5-09707-031-1 02 1 1008-1205 ● ●
100 CLIP; HARNESS
(A) L=140 		8-98216-431-0 02 1 1206- ● ●
259 CLIP; BAND,HARNESS TO OIL PIPE
L=250 		5-09707-030-1 04 1 1008-1205 ● ●
259 CLIP; BAND,HARNESS TO OIL PIPE
L=250 		8-98216-430-0 04 1 1206-1208 ● ●
259 CLIP; BAND,HARNESS TO OIL PIPE
L=250 		8-98216-430-0 05 1 1209- ● ●
269 SLEEVE; RUBBER,CABLE
ID=10 OD=14 L=30 		9-09956-682-0 02 1 1008- ● ●
418 BOLT; CLIP
M10X16 FLANGE 		0-28151-016-0 01 1 1008- ● ●
428 CLIP; HARNESS
(H) ID=28X2 L=28 		1-09701-302-0 02 1 1411- ● ●
428 CLIP; HARNESS
(F) ID=22 L=52 		9-09917-431-0 03 1 1008-1410 ●
428 CLIP; HARNESS
(H) ID=24X2 L=25 		1-09700-710-0 04 1 1411- ● ●
428 CLIP; HARNESS
(C) ID=35 L=35 		1-09700-684-0 01 1 1008-1410 ● ●
428 CLIP; HARNESS
(C) ID=35 L=35 		1-09700-684-0 02 1 1411- ● ●
428 CLIP; HARNESS
(D) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 1008-1410 ● ●
428 CLIP; HARNESS
(G) ID=31 L=35 		1-09700-329-1 01 1 1411- ● ●
428 CLIP; HARNESS
(E) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1008-1410 ● ●
428 CLIP; HARNESS
(I) L=350 		1-09707-183-0 02 1 1411- ● ●
428 CLIP; HARNESS
(A) L=36 		8-94224-891-1 01 1 1008- ● ●
428 CLIP; HARNESS
(B) ID=11 L=28 		9-09917-544-0 01 1 1008- ● ●
441 BOLT; HARNESS TO FRAME
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1008-1410 ● ●
441 BOLT; HARNESS TO FRAME
(A) M8X20 FLANGE 		0-28650-820-0 05 1 1411- ● ●
441 BOLT; HARNESS TO FRAME
(B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 1008-1410 ● ●
441 BOLT; HARNESS TO FRAME
(B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 1411- ● ●
