0-52 — OIL AND VACUUM PIPING; ENGINE (#62569) — 77 parça

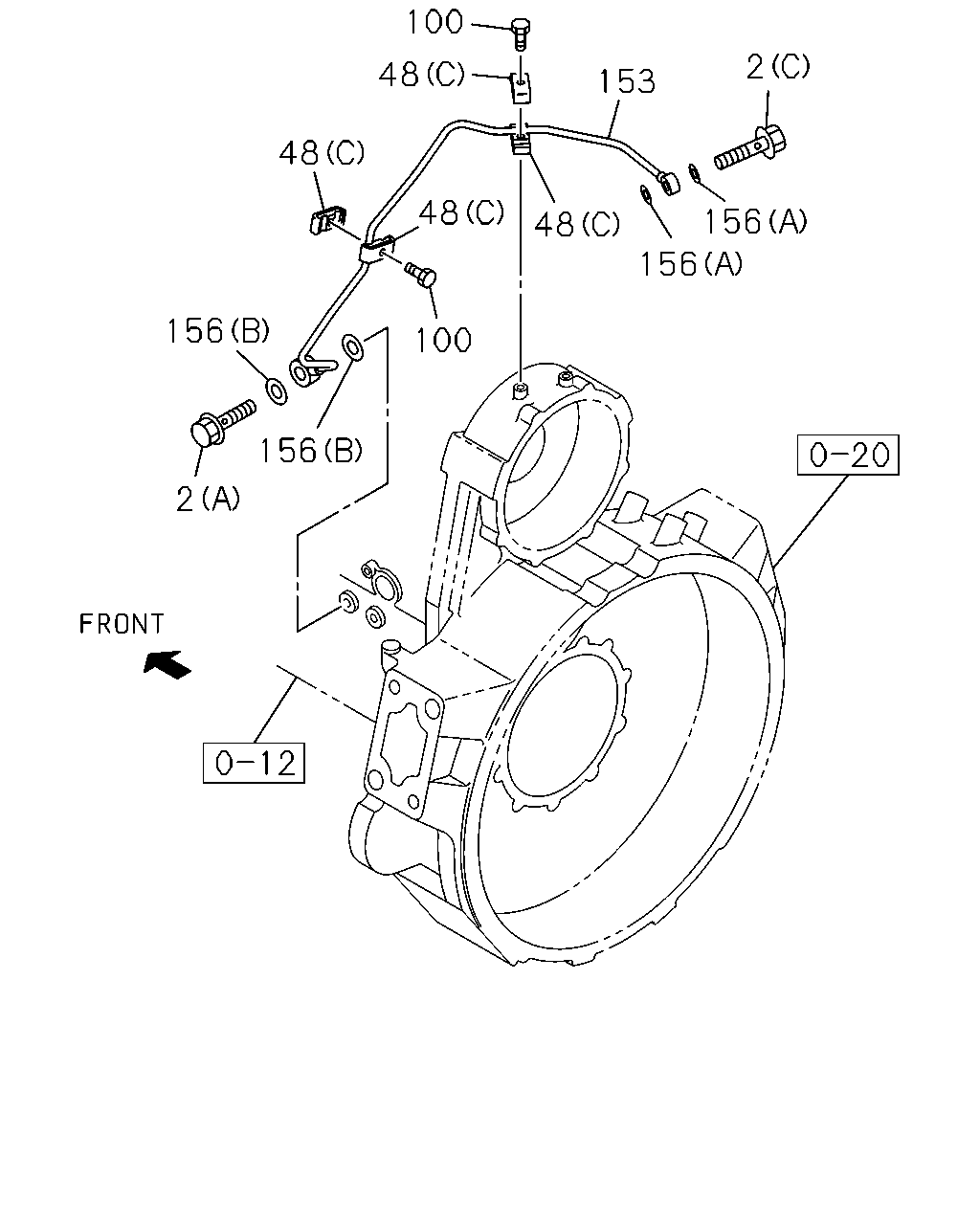

2 156 156 48 153 48 48 100 48 156 156 2 100

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	BOLT; EYE,OIL PIPE (C) M10X21 FLANGE	8-97372-238-0	03	1	1008-
2	BOLT; EYE,OIL PIPE (D) M10X28	8-98037-823-0	01	1	1008-
2	BOLT; EYE,OIL PIPE (B) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	1008-
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO(SV1) (A) M14X27 FLANGE	1-09675-086-0	01	1	1008-
2	BOLT; EYE,OIL PIPE (A) M14X27 FLANGE	1-09675-086-0	01	1	1008-
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO(SV1) (C) M10X21 FLANGE	8-97372-238-0	01	1	1008-
48	CLIP; OIL PIPE (A) ID=9 & 9 L=25	1-09701-212-2	01	1	1008-
48	CLIP; OIL PIPE (B) ID=9 & 11 L=28	1-09701-265-1	02	1	1008-
48	CLIP; OIL PIPE ENGINE REAR PTO(SV1) (C)	1-09701-132-1	04	1	1008-1210
48	CLIP; OIL PIPE ENGINE REAR PTO(SV1) (C)	1-09701-240-0	04	1	1211-
100	BOLT; CLIP ENGINE REAR PTO(SV1) M6X30 FLANGE	0-28650-630-0	02	1	1008-
153	PIPE; OIL,C/BL TO PTO ENGINE REAR PTO(SV1)	8-97610-104-0	01	1	1008-
156	GASKET; EYE JOINT,OIL PIPE ENGINE REAR PTO(SV1) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	1008-
156	GASKET; EYE JOINT,OIL PIPE ENGINE REAR PTO(SV1) (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	1008-1312
156	GASKET; EYE JOINT,OIL PIPE ENGINE REAR PTO(SV1) (B) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-

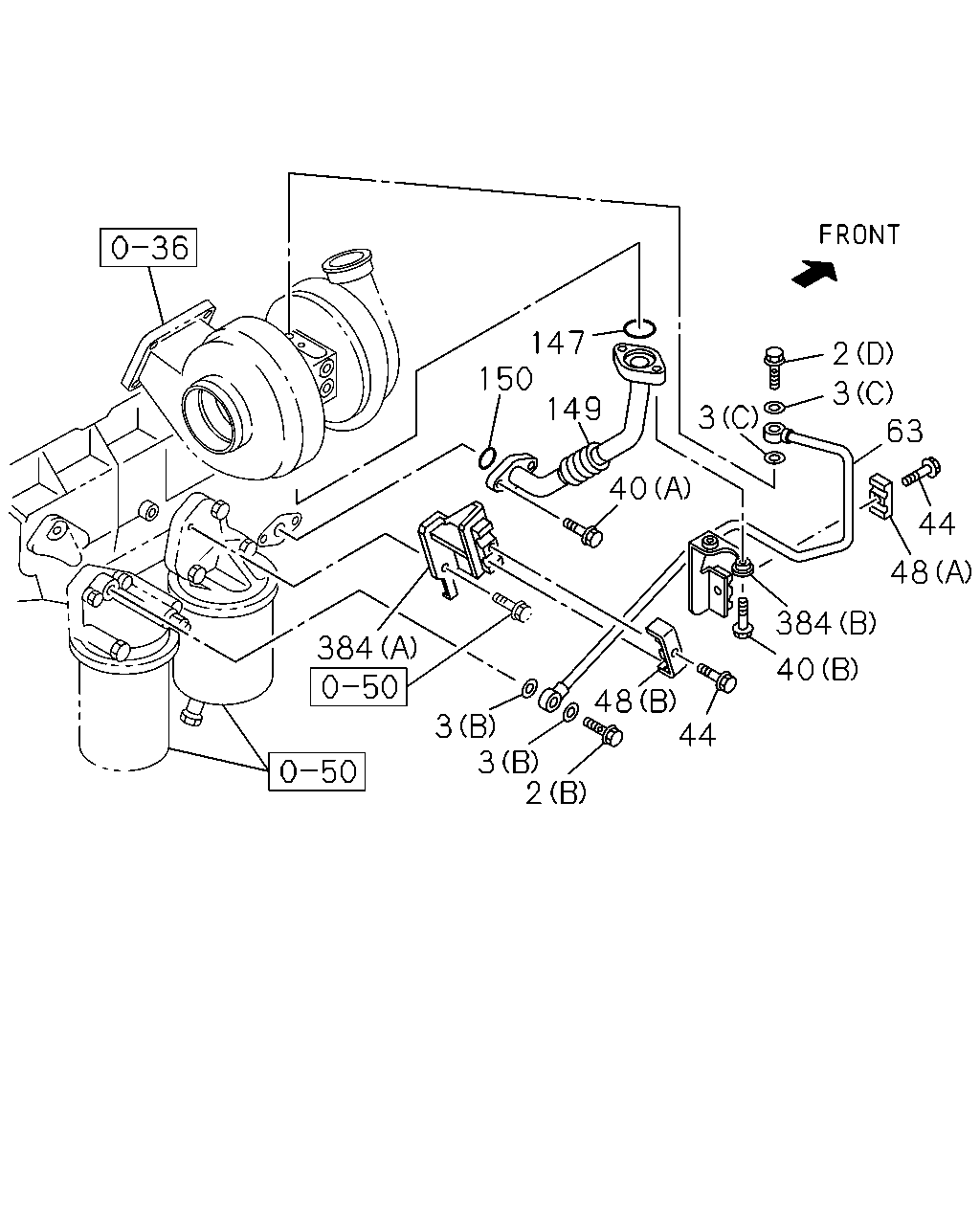

147 149 150 40 3 2 63 44 3 48 384 40 48 44 2 3 3 384

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	BOLT; EYE,OIL PIPE (C) M10X21 FLANGE	8-97372-238-0	03	1	1008-
2	BOLT; EYE,OIL PIPE (D) M10X28	8-98037-823-0	01	1	1008-
2	BOLT; EYE,OIL PIPE (B) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	1008-
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO(SV1) (A) M14X27 FLANGE	1-09675-086-0	01	1	1008-
2	BOLT; EYE,OIL PIPE (A) M14X27 FLANGE	1-09675-086-0	01	1	1008-
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO(SV1) (C) M10X21 FLANGE	8-97372-238-0	01	1	1008-
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=10.2 OD=15.2	1-09630-083-0	02	1	1008-
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.2	1-09630-084-0	02	1	1008-1312
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.2	8-98251-344-0	02	1	1401-
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=25	1-09630-141-0	02	1	1008-
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=10.2 OD=16.0	9-09571-410-0	02	1	1008-
40	BOLT; OIL PIPE (A) M10X30 FLANGE	0-28151-030-0	02	1	1008-
40	BOLT; OIL PIPE (B) M10X25 FLANGE	0-28751-025-0	02	1	1008-
44	BOLT; CLIP,OIL PIPE M6X30 FLANGE	0-28050-630-0	02	1	1008-
48	CLIP; OIL PIPE (A) ID=9 & 9 L=25	1-09701-212-2	01	1	1008-
48	CLIP; OIL PIPE (B) ID=9 & 11 L=28	1-09701-265-1	02	1	1008-
48	CLIP; OIL PIPE ENGINE REAR PTO(SV1) (C)	1-09701-132-1	04	1	1008-1210
48	CLIP; OIL PIPE ENGINE REAR PTO(SV1) (C)	1-09701-240-0	04	1	1211-
63	PIPE; OIL,TURBOCHARGER FEED	1-13313-734-0	01	1	1008-
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.1	8-94399-399-0	01	1	1008-
149	PIPE; OIL RETURN,TURBOCHARGER	1-13313-735-2	01	1	1008-
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	1-09623-450-0	01	1	1008-
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER (A)	1-13345-191-0	01	1	1008-
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER (B)	1-13345-201-0	01	1	1008-

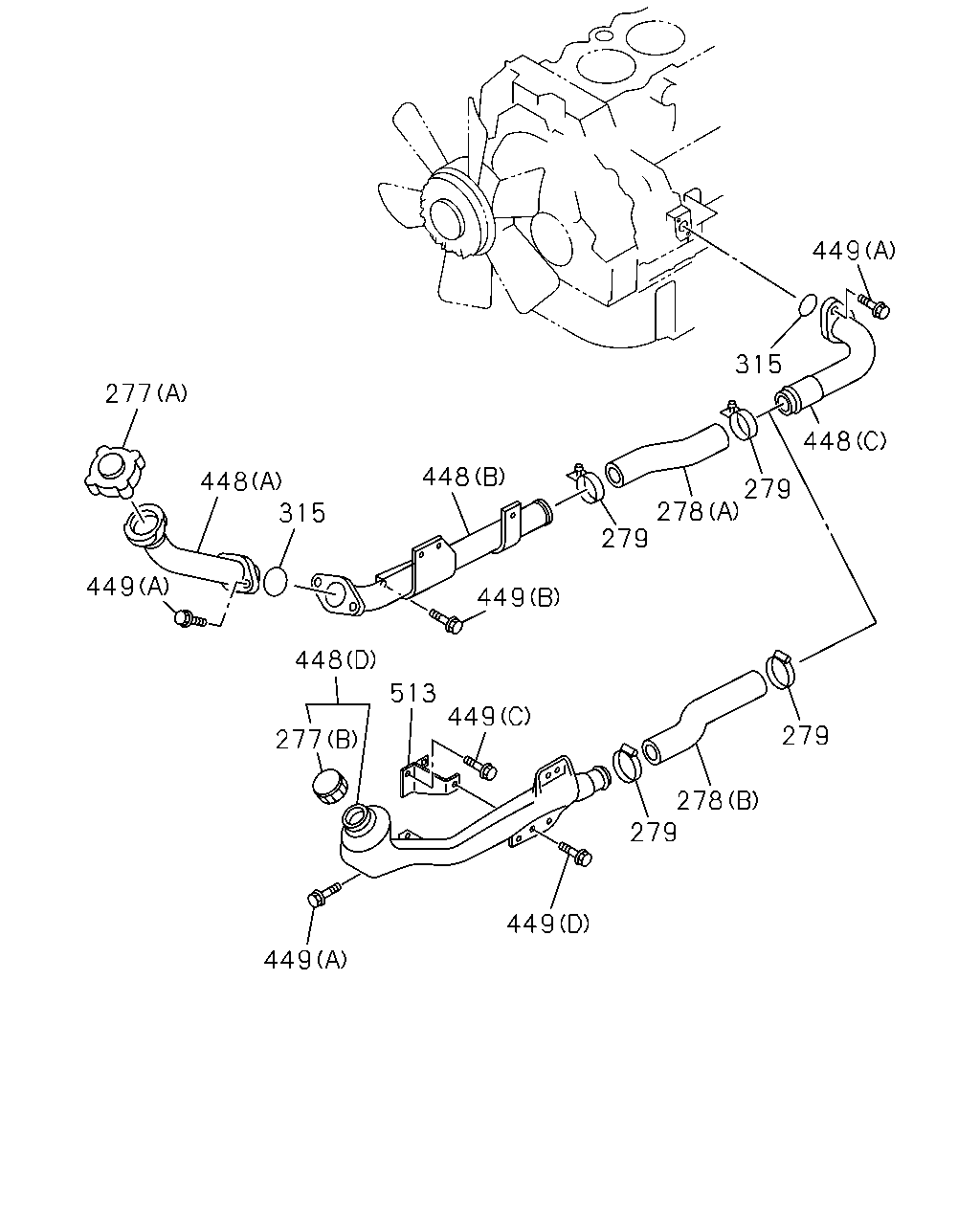

449 315 448 279 278 279 449 448 315 448 277 449 448 513 277 449 449 449 279 279 278

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
277	CAP; OIL FILLER (A)	1-11750-028-0	01	1	1008-1410
277	CAP; OIL FILLER (B)	8-97629-367-0	01	1	1411-
278	HOSE; RUBBER,OIL FILLER (A)	1-11749-205-0	01	1	1008-1410
278	HOSE; RUBBER,OIL FILLER (B)	8-97631-599-0	01	1	1411-
279	CLIP; RUBBER HOSE ID=48	9-09915-512-1	02	1	1008-
315	GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-299-0	01	1	1008-1410
315	GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=38.7	1-09623-299-0	01	1	1008-1410
315	GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=38.7	1-09623-299-0	01	1	1411-
448	FILLER; OIL (C)	1-11740-227-2	01	1	1008-
448	FILLER; OIL (A)	1-11741-175-4	01	1	1008-1410
448	FILLER; OIL (D)	8-97634-069-1	01	1	1411-
448	FILLER; OIL (B)	1-11741-304-0	01	1	1008-1410
449	BOLT; OIL FILLER (D) M8X20 FLANGE	0-28650-820-0	02	1	1411-
449	BOLT; OIL FILLER (C) M8X16 W/LK&PL WASHER	1-09980-498-0	01	1	1411-
449	BOLT; OIL FILLER (A) M8X16 FLANGE	0-28050-816-0	02	1	1008-1410
449	BOLT; OIL FILLER (A) M8X16 FLANGE	0-28050-816-0	02	1	1008-1410
449	BOLT; OIL FILLER (A) M8X16 FLANGE	0-28050-816-0	02	1	1411-
449	BOLT; OIL FILLER (B) M8X25 FLANGE	0-28650-825-0	02	1	1008-1410
449	BOLT; OIL FILLER (A) M8X16 FLANGE	0-28050-816-0	01	1	1411-
513	BRACKET; OIL FILLER	8-98210-104-0	01	1	1411-

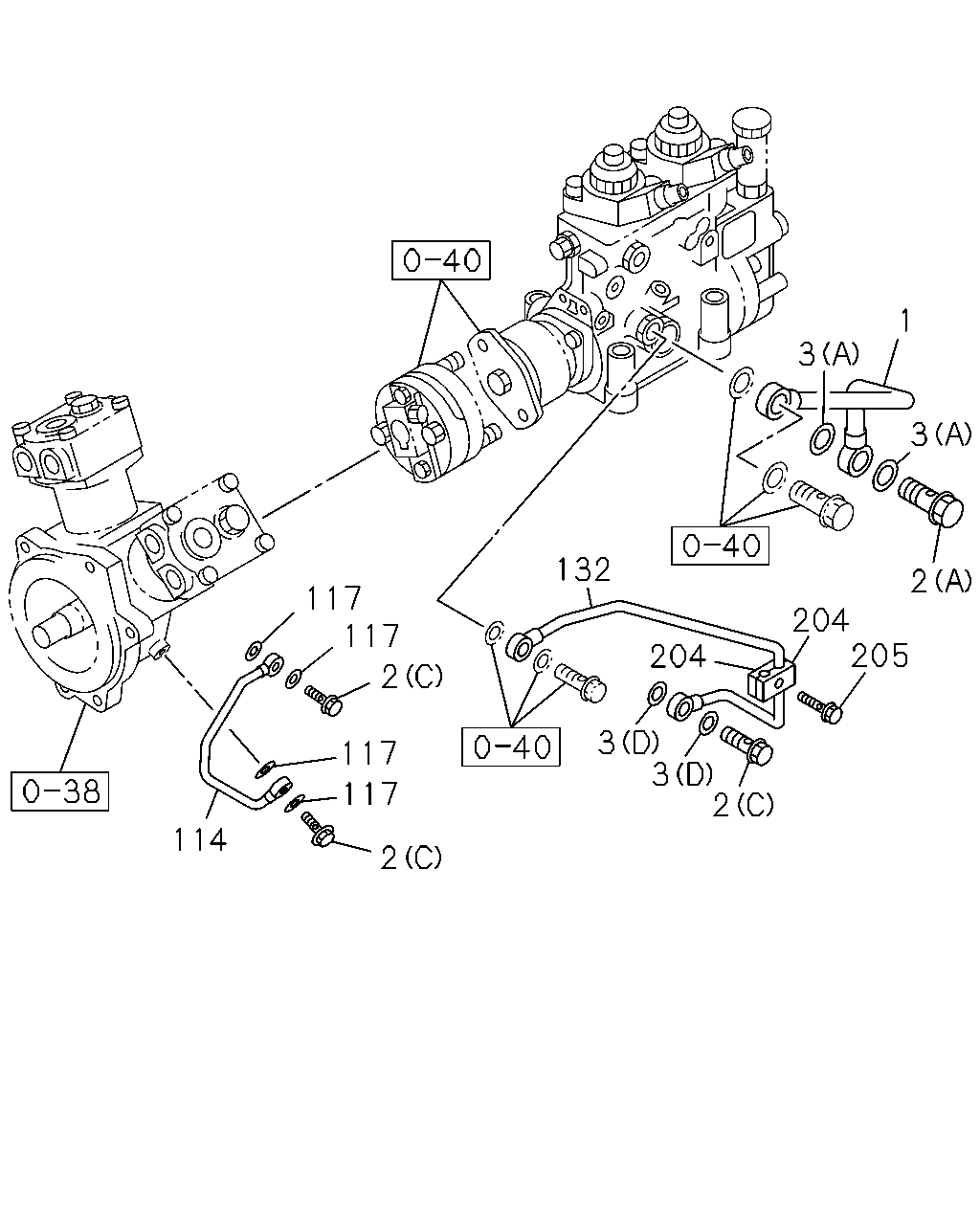

114 117 2 117 2 117 117 132 3 3 2 204 204 2 205 3 3 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; OIL,INJ PUMP TO C/BL	1-13314-022-0	01	1	1008-
2	BOLT; EYE,OIL PIPE (C) M10X21 FLANGE	8-97372-238-0	03	1	1008-
2	BOLT; EYE,OIL PIPE (D) M10X28	8-98037-823-0	01	1	1008-
2	BOLT; EYE,OIL PIPE (B) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	1008-
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO(SV1) (A) M14X27 FLANGE	1-09675-086-0	01	1	1008-
2	BOLT; EYE,OIL PIPE (A) M14X27 FLANGE	1-09675-086-0	01	1	1008-
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO(SV1) (C) M10X21 FLANGE	8-97372-238-0	01	1	1008-
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=10.2 OD=15.2	1-09630-083-0	02	1	1008-
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.2	1-09630-084-0	02	1	1008-1312
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.2	8-98251-344-0	02	1	1401-
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=25	1-09630-141-0	02	1	1008-
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=10.2 OD=16.0	9-09571-410-0	02	1	1008-
114	PIPE ASM; OIL,BODY	1-13314-040-0	01	1	1008-
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2	1-09630-083-0	04	1	1008-
132	PIPE ASM; OIL,INJ PUMP FEED	1-13314-021-0	01	1	1008-
204	CLIP; OIL PIPE	1-09701-132-1	02	1	1008-1210
204	CLIP; OIL PIPE	1-09701-240-0	02	1	1211-
205	BOLT; CLIP M6X30 FLANGE	0-28050-630-0	01	1	1008-
