0-39 — AIR COMPRESSOR; BRAKE (#62563) — 64 parça

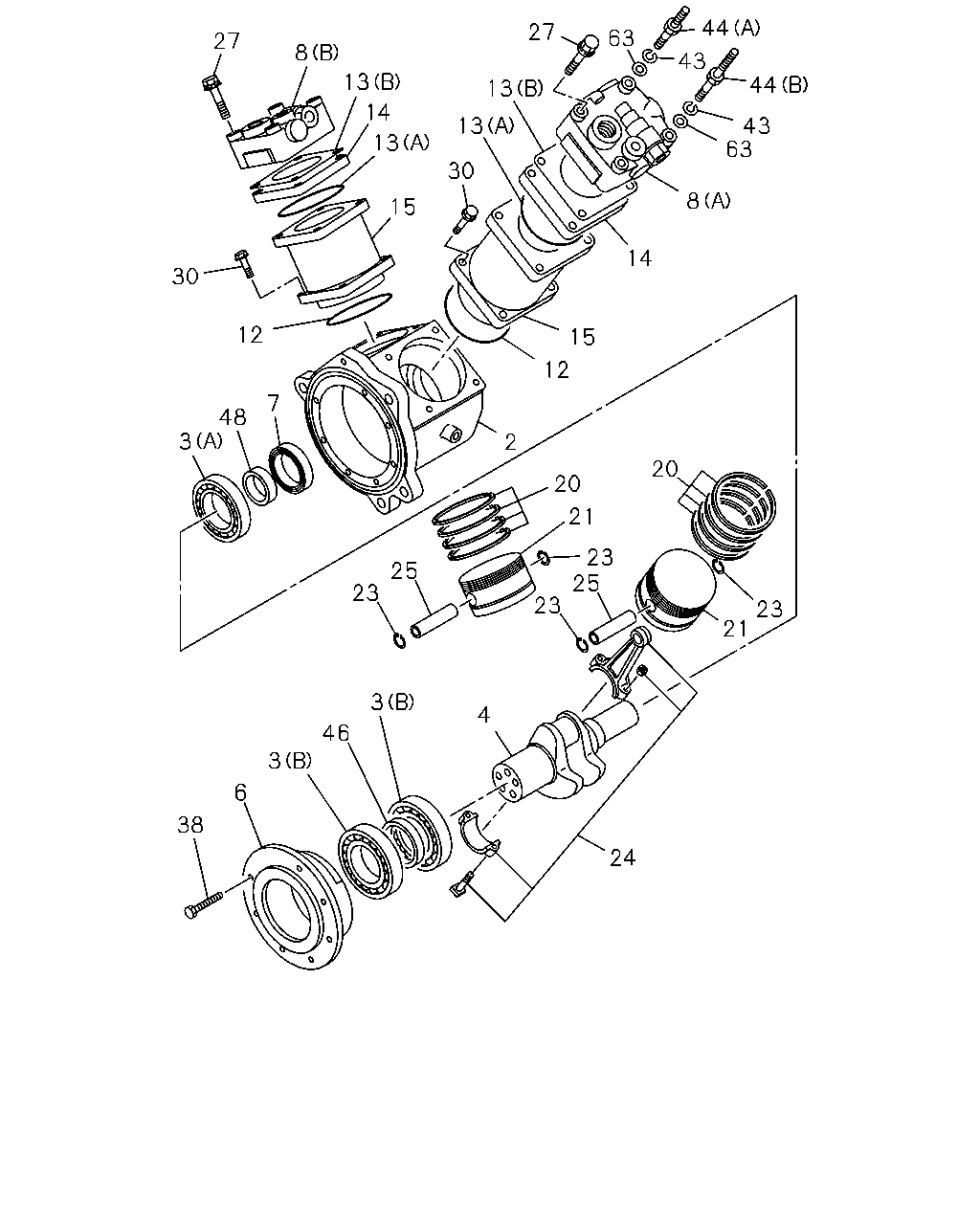

çizim 170519
27 8 13 14 13 15 30 13 13 27 63 44 43 43 44 63 8 14 15 12 2 20 21 23 20 25 23 25 23 7 12 30 48 3 3 6 38 46 3 4 24 23 21
BalonParca AdiParca NoAdetTipApplied Date
2 CRANKCASE; AIR CMPR 1-19151-269-6 01 1 1008-
3 BEARING; AIR CMPR
(A) 		1-09800-232-0 01 1 1008-
3 BEARING; AIR CMPR
(B) 		1-09800-246-0 02 1 1008-1406
4 CRANKSHAFT; AIR CMPR 1-19171-089-0 01 1 1008-1406
6 COVER ASM; BRG,AIR CMPR 1-19156-068-1 01 1 1008-
7 SEAL; OIL,BRG COVER,AIR CMPR 1-09625-534-0 01 1 1008-
8 HEAD ASM; CYL,AIR CMPR
(B) 		1-19110-073-0 01 1 1008-
8 HEAD ASM; CYL,AIR CMPR
(A) 		1-19110-074-0 01 1 1008-
12 GASKET; AIR CMPR 1-19623-539-0 02 1 1008-1112
12 GASKET; AIR CMPR 8-98192-459-0 02 1 1201-
13 GASKET; AIR CMPR
(A) 		1-09623-615-0 02 1 1008-1112
13 GASKET; AIR CMPR
(A) 		8-98048-640-0 02 1 1201-
13 GASKET; AIR CMPR
(B) 		1-19115-012-0 02 1 1008-
14 PLATE; AIR CMPR 1-19130-008-0 02 1 1008-1204
14 PLATE; AIR CMPR 8-98208-785-0 02 1 1205-
15 CYLINDER; AIR CMPR 1-19163-067-0 02 1 1008-
20 RING KIT; PISTON,AIR CMPR 1-19163-058-0 02 1 1008-
21 PISTON; AIR CMPR 1-19161-026-0 02 1 1008-
23 RING; SNAP,PISTON,AIR CMPR 9-19168-003-0 04 1 1008-1012
23 RING; SNAP,PISTON,AIR CMPR 1-19169-004-0 04 1 1101-
24 ROD ASM; CONN,AIR CMPR 1-19173-006-0 02 1 1008-
25 PIN; PISTON,AIR CMPR 1-19167-006-0 02 1 1008-
27 BOLT; HD
M10X80 		1-19119-024-0 06 1 1008-1012
27 BOLT; HD
M10X75 		8-98167-018-0 06 1 1101-
30 BOLT; CYL TO CRANKCASE
M10X25 		9-01911-025-0 08 1 1008-
38 BOLT; COVER FIX 1-19159-016-0 07 1 1008-
43 WASHER; LK,CYL TO CRANKCASE,AIR CMPR
ID=10.2 		9-09150-610-0 02 1 1008-
44 STUD; CYL HD,AIR CMPR
(A) 		8-97614-054-0 01 1 1008-
44 STUD; CYL HD,AIR CMPR
(B) 		8-98119-750-0 01 1 1008-
46 SPACER; BRG 1-19179-016-0 01 1 1008-
48 SLEEVE; CR/SHF 1-19179-018-0 01 1 1008-
63 WASHER; PL,STUD
ID=10.5 OD=18 		9-09160-510-0 02 1 1008-

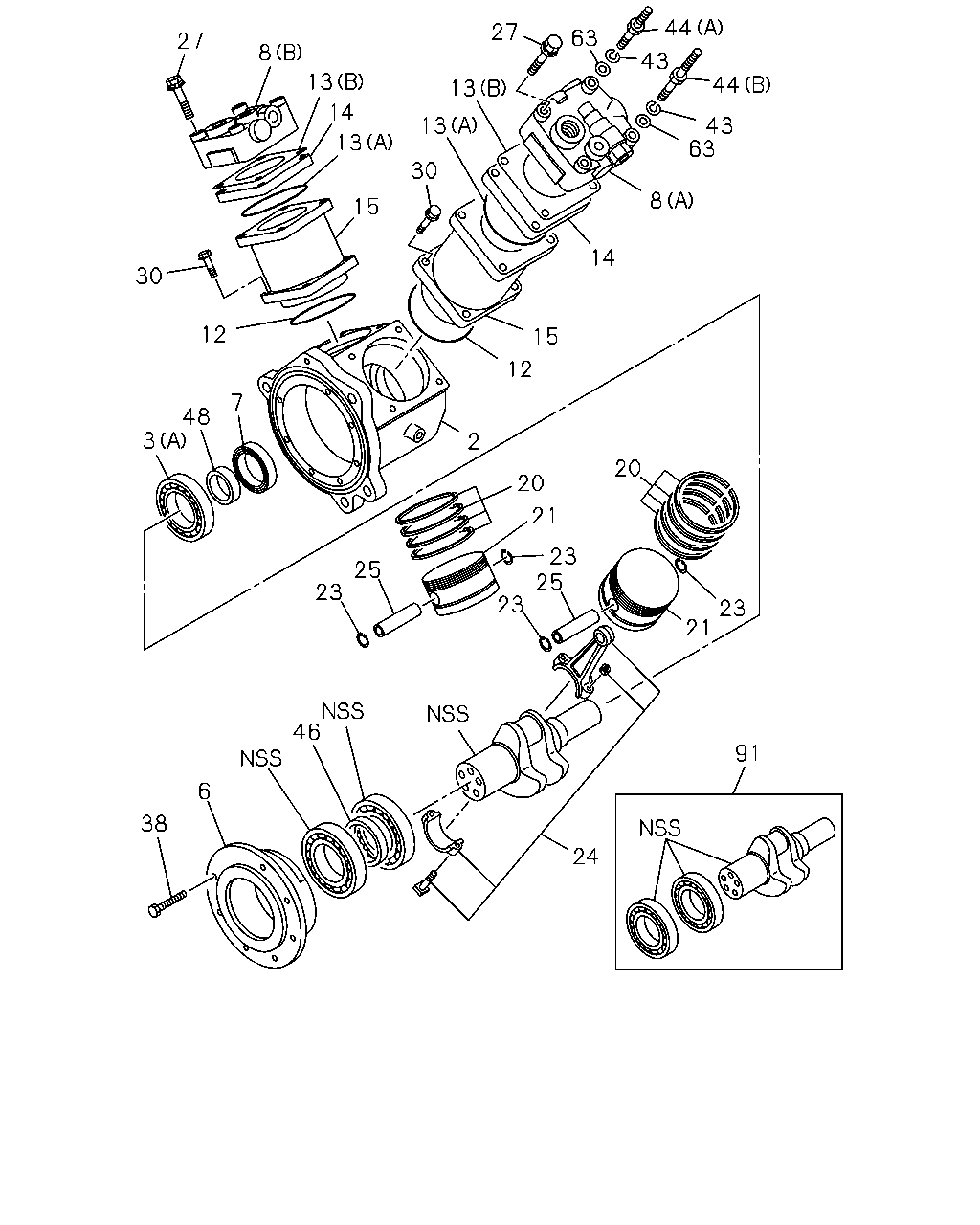

çizim 455557
27 8 13 14 13 15 30 13 13 27 63 43 44 44 43 63 8 14 15 12 2 20 21 23 20 21 23 25 23 25 23 46 6 38 24 91 30 12 7 48 3
BalonParca AdiParca NoAdetTipApplied Date
2 CRANKCASE; AIR CMPR 1-19151-269-6 01 1 1008-
3 BEARING; AIR CMPR
(A) 		1-09800-232-0 01 1 1008-
3 BEARING; AIR CMPR
(B) 		1-09800-246-0 02 1 1008-1406
6 COVER ASM; BRG,AIR CMPR 1-19156-068-1 01 1 1008-
7 SEAL; OIL,BRG COVER,AIR CMPR 1-09625-534-0 01 1 1008-
8 HEAD ASM; CYL,AIR CMPR
(B) 		1-19110-073-0 01 1 1008-
8 HEAD ASM; CYL,AIR CMPR
(A) 		1-19110-074-0 01 1 1008-
12 GASKET; AIR CMPR 1-19623-539-0 02 1 1008-1112
12 GASKET; AIR CMPR 8-98192-459-0 02 1 1201-
13 GASKET; AIR CMPR
(A) 		1-09623-615-0 02 1 1008-1112
13 GASKET; AIR CMPR
(A) 		8-98048-640-0 02 1 1201-
13 GASKET; AIR CMPR
(B) 		1-19115-012-0 02 1 1008-
14 PLATE; AIR CMPR 1-19130-008-0 02 1 1008-1204
14 PLATE; AIR CMPR 8-98208-785-0 02 1 1205-
15 CYLINDER; AIR CMPR 1-19163-067-0 02 1 1008-
20 RING KIT; PISTON,AIR CMPR 1-19163-058-0 02 1 1008-
21 PISTON; AIR CMPR 1-19161-026-0 02 1 1008-
23 RING; SNAP,PISTON,AIR CMPR 9-19168-003-0 04 1 1008-1012
23 RING; SNAP,PISTON,AIR CMPR 1-19169-004-0 04 1 1101-
24 ROD ASM; CONN,AIR CMPR 1-19173-006-0 02 1 1008-
25 PIN; PISTON,AIR CMPR 1-19167-006-0 02 1 1008-
27 BOLT; HD
M10X80 		1-19119-024-0 06 1 1008-1012
27 BOLT; HD
M10X75 		8-98167-018-0 06 1 1101-
30 BOLT; CYL TO CRANKCASE
M10X25 		9-01911-025-0 08 1 1008-
38 BOLT; COVER FIX 1-19159-016-0 07 1 1008-
43 WASHER; LK,CYL TO CRANKCASE,AIR CMPR
ID=10.2 		9-09150-610-0 02 1 1008-
44 STUD; CYL HD,AIR CMPR
(A) 		8-97614-054-0 01 1 1008-
44 STUD; CYL HD,AIR CMPR
(B) 		8-98119-750-0 01 1 1008-
46 SPACER; BRG 1-19179-016-0 01 1 1008-
48 SLEEVE; CR/SHF 1-19179-018-0 01 1 1008-
63 WASHER; PL,STUD
ID=10.5 OD=18 		9-09160-510-0 02 1 1008-
91 SHAFT KIT; CRANK 8-98277-411-0 01 1 1407-
