11323 - CYZ LHD MIDDLE EAST EURO2 WITH 3STEPS
▶
0 - Engine, Emission, Engine Electrical
▶
0-32 - WATER PIPING; ENGINE
▶
0-32 — WATER PIPING; ENGINE
(#62557) — 42 parça
◀

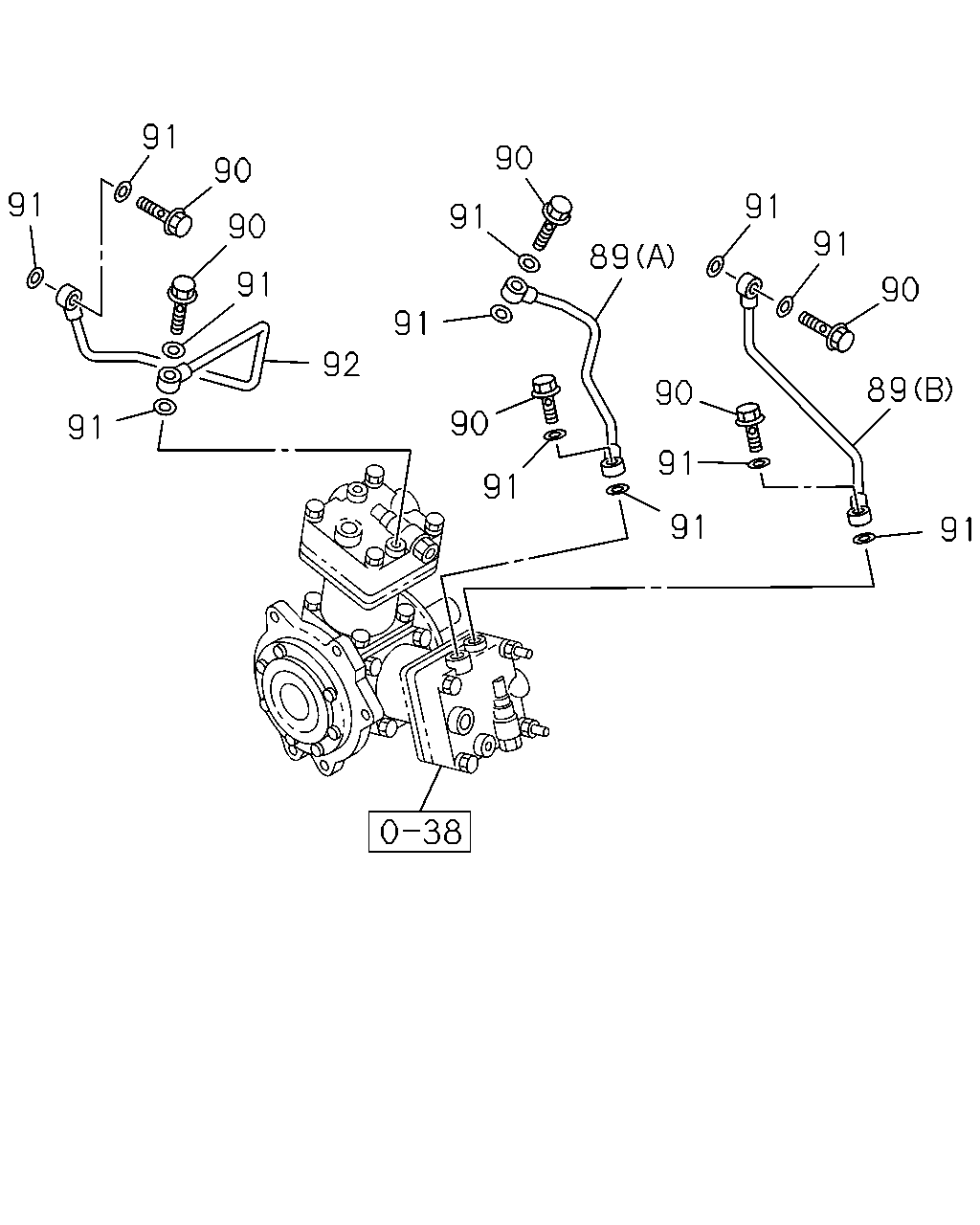

[032A] AIR COMPRESSOR PIPE (5 parça)

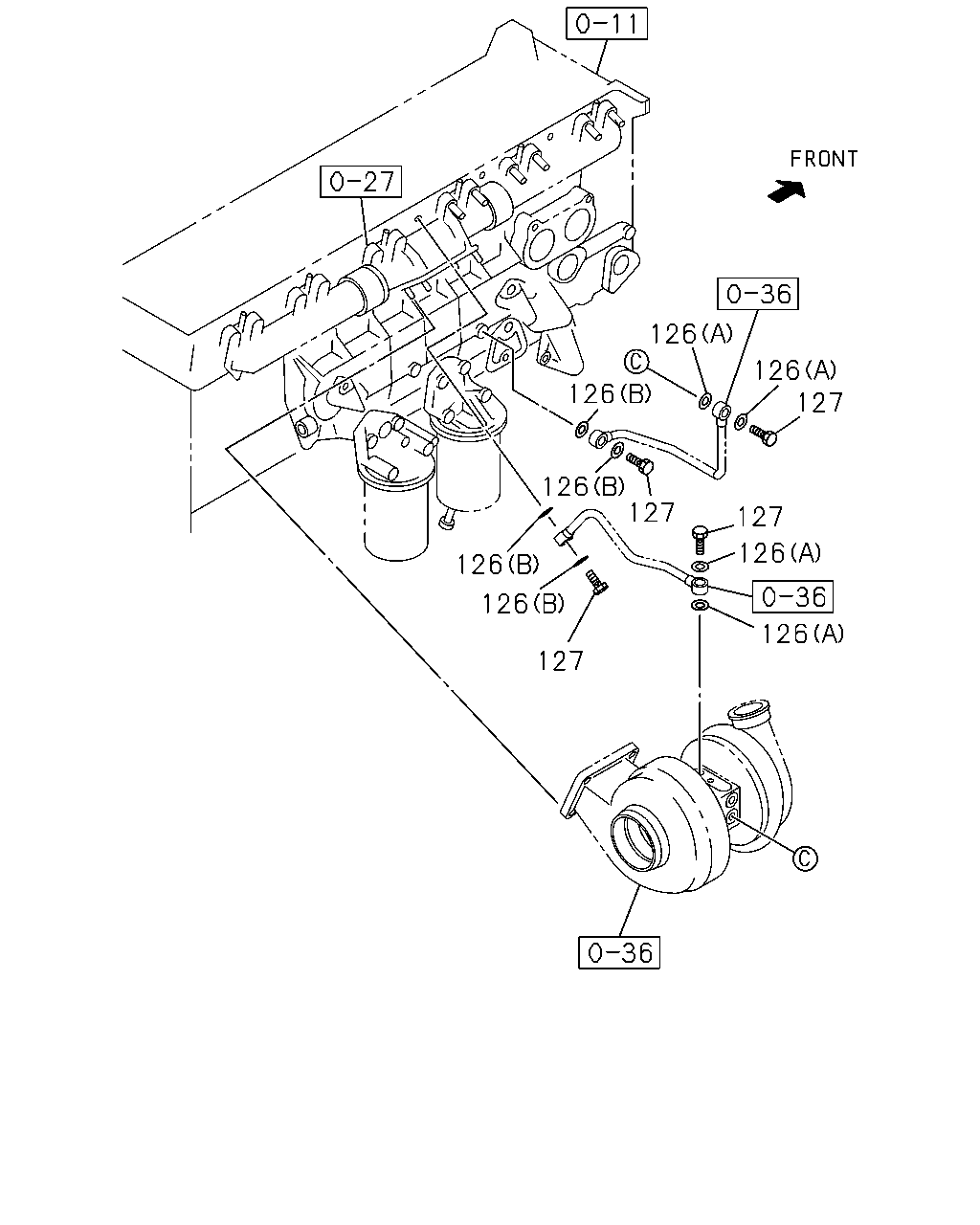

[032A] TURBOCHARGER SIDE (4 parça)

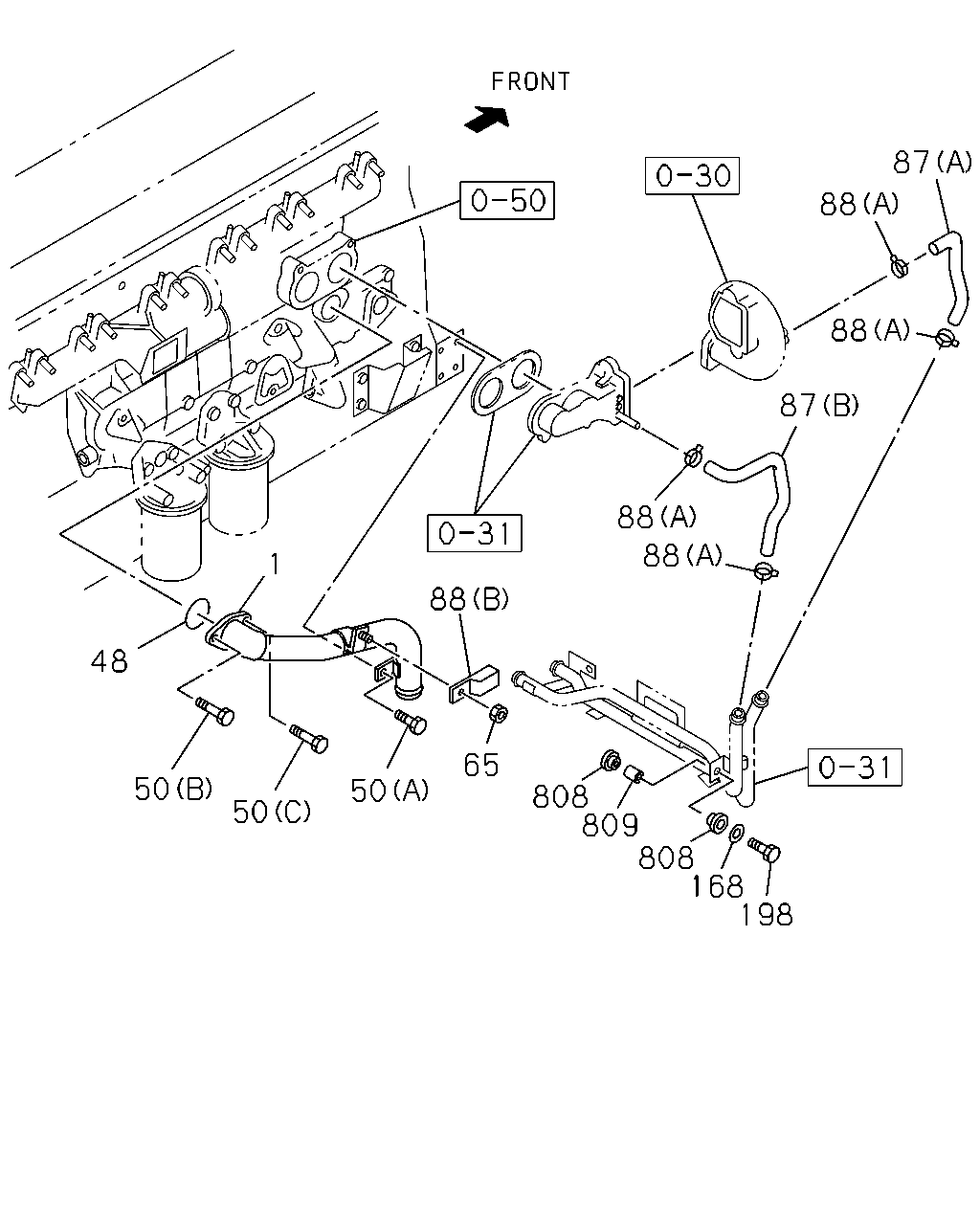

[032A] WATER INLET PIPE AND HTR HOSE (15 parça)

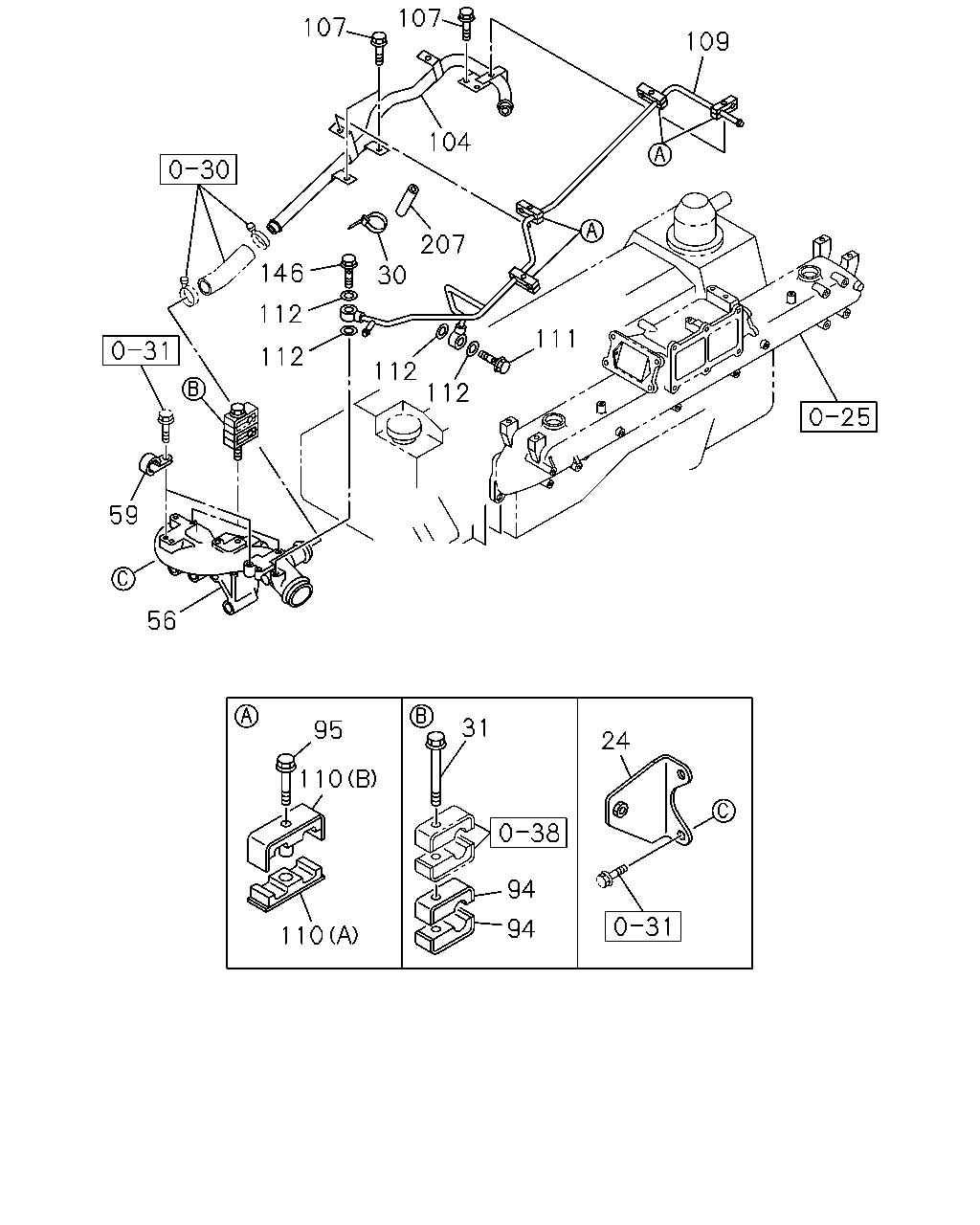

[032A] WATER OUTLET PIPE (18 parça)
▶
91
89
90
91
91
89
90
91
91
91
90
91
91
90
92
91
90
90
91
91
91
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
89
PIPE; WATER,AIR CMPR,IN
(B)
1-13722-007-0
01
1
1008-
89
PIPE; WATER,AIR CMPR,IN
(A)
1-13722-008-0
01
1
1008-
90
BOLT; EYE,WATER PIPE,AIR CMPR
M14X27 EYE-BOLT
1-09675-193-0
06
1
1008-
91
GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25
1-09630-141-0
12
1
1008-
92
PIPE; WATER,AIR CMPR,OUT
1-13722-009-0
01
1
1008-
126
126
126
126
126
127
127
126
127
127
126
126
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
126
GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2
1-09630-085-0
04
1
1008-1312
126
GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2
8-98251-345-0
04
1
1401-
126
GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=25
1-09630-141-0
04
1
1008-
127
BOLT; EYE
M14X27 EYE-BOLT
1-09675-193-0
04
1
1008-
87
88
88
87
88
88
88
198
168
808
809
808
65
50
50
50
48
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PIPE; WATER PUMP,INL
8-97606-255-2
01
1
1008-
48
GASKET; PIPE TO PUMP
ALSO INCLUDED IN GASKET SET(ENGINE).
1-09623-406-0
01
1
1008-
50
BOLT; WATER PIPE INL
(B) M10X30 FLANGE
0-28151-030-0
01
1
1008-
50
BOLT; WATER PIPE INL
(C) M10X80 FLANGE
0-28151-080-0
01
1
1008-
50
BOLT; WATER PIPE INL
(A) M14X25 FLANGE
0-28951-425-0
01
1
1008-
65
NUT
M10 FLANGE
0-91180-110-0
01
1
1008-
87
HOSE; RUBBER,HTR
(A)
1-83565-572-0
01
1
1008-
87
HOSE; RUBBER,HTR
(B)
1-83565-577-0
01
1
1008-
88
CLIP; HOSE,HTR
(A) ID=20
1-09707-084-1
04
1
1008-
88
CLIP; HOSE,HTR
(B)
9-09915-663-0
01
1
1008-1206
88
CLIP; HOSE,HTR
(B)
8-98166-024-0
01
1
1207-
168
WASHER; PL,PIPE
ID=10.5 OD=26
0-91614-710-0
02
1
1008-
198
BOLT; PIPE
M10X45 FLANGE
0-28051-045-0
02
1
1008-
808
RUBBER; MTG
1-09337-017-0
04
1
1008-
809
TUBE; DIST
ID=11.8 L=27
1-21559-149-0
02
1
1008-
107
107
109
104
207
30
146
112
112
59
56
112
112
111
31
24
94
94
110
110
95
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
24
BRACKET; WATER PIPE
1-13729-060-0
01
1
1008-
30
CLIP; HARNESS
L=140
5-09707-031-1
02
1
1008-1205
30
CLIP; HARNESS
L=140
8-98216-431-0
02
1
1206-
31
BOLT; CLIP
M6X70 FLANGE
0-28050-670-0
02
1
1008-
56
PIPE; WATER OUTLET
8-98039-673-0
01
1
1008-
59
CLIP; HARNESS,WATER OUTLET PIPE
ID=11 L=24
0-95235-045-0
02
1
1008-
94
CLIP; WATER PIPE
1-09701-282-0
04
1
1008-
95
BOLT; CLIP
M6X35 FLANGE
0-28050-635-0
04
1
1008-
104
PIPE; WATER CHARGE
1-13721-913-2
01
1
1008-1208
104
PIPE; WATER CHARGE
8-98228-041-0
01
1
1209-
107
BOLT; WATER PIPE
M10X20 FLANGE
0-28151-020-0
04
1
1008-
109
PIPE; AIR,LEAK,THERMOSTAT HSG
8-97606-594-0
01
1
1008-
110
CLIP; AIR PIPE
(A) ID=9 & 9 L=25
1-09701-180-0
04
1
1008-
110
CLIP; AIR PIPE
(B) ID=9 & 9 L=25
8-94393-280-3
04
1
1008-
111
BOLT; EYE,LEAK,THERMOSTAT HSG
M14X27 EYE-BOLT
1-09675-193-0
01
1
1008-
112
GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25
1-09630-141-0
04
1
1008-
146
BOLT; EYE
M14X27 EYE-BOLT
1-09675-193-0
01
1
1008-
207
COUPLING; RUBBER
ID=14 OD=18 L=60
1-09337-030-0
02
1
1008-
